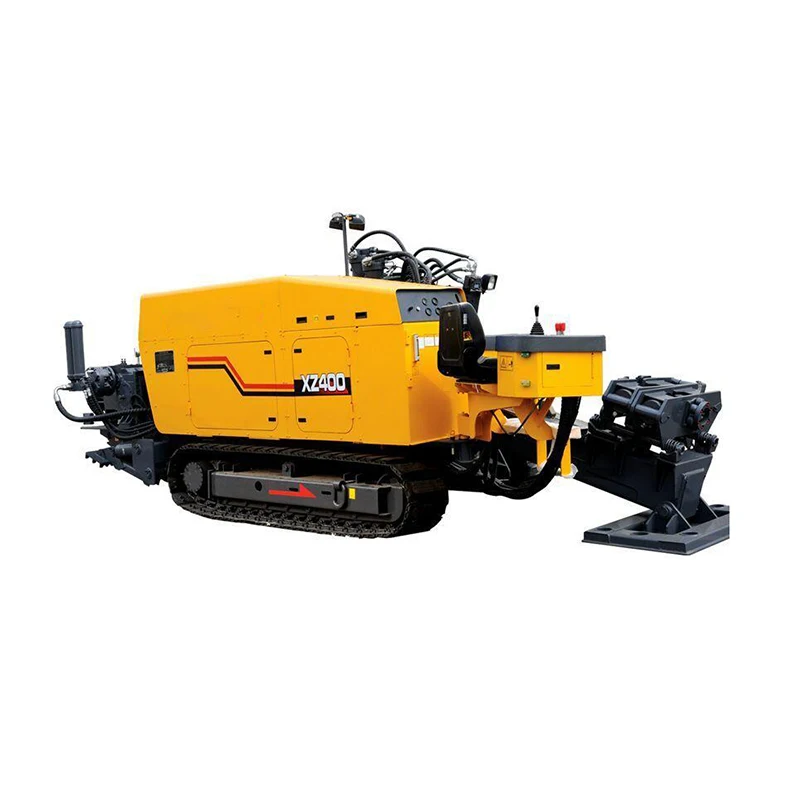

Hot Selling Brand New 400kN horizontal directional drilling XZ400 Hdd Machine High Perfomance Professional Technical Support
- Category: >>>
- Supplier: Tewrex Industrial Machinery (Suzhou) Co. Ltd.
Share on (1601245080225):
Product Overview
Description
Product Description
Hot Selling Brand New 400kN horizontal directional drilling XZ400 Hdd Machine High Perfomance Professional Technical Support
1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2.Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5.Support the diverse needs of customers, the machine can option configuration with the automatic (semi automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and
other devices.
2.Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5.Support the diverse needs of customers, the machine can option configuration with the automatic (semi automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and
other devices.
Description | Unit | Parameter value | ||||
Engine | China III | Model | QSB5.9-C210 | |||
Rated Power | kW /(r/min) | 154 / 2200 | ||||
China II | Model | 6BTAA5.9-C205 | ||||
Rated Power | kW /(r/min) | 153/ 2200 | ||||
China III | Model | QSB6.7-C220 | ||||
EU Stage IIIA | Rated Power | kW /(r/min) | 164/2200 | |||
Thrust-Pull | Type | Pinion and rack drive | ||||
Max thrust-pull force | kN | 370/370 | ||||
Max thrust-pull speed | m/min | 32 | ||||
Rotation | Type | four motor | ||||
Torque | N·m | 13200 | ||||
Max spindle speed | r/min | 140 | ||||
Max inclination angle | ° | 20 | ||||
Pipe | Diameter × Length | mm×mm | Φ73/83×3000 | |||
Mud pump | Max Flow rate | L/min | 400 | |||
Max pressure | MPa | 8 | ||||
Weight | kg | 10500 | ||||
