Fire Foam Trailer With Foam Monitor, Mobile Foam Tank Fire System,100 Litre 2000 Litre Customizable,Foam Tank,Mobile Foam Car

Product Overview

Description

Fire Foam Trailer With Foam Monitor



please contact us derectly, we'll give the latest quote.



I. Introduction



Fire Foam Trailer With Foam Monitor is a new type of mobile foam firefighting product with large flow rate, long range, simple operation,convenient and flexible.

This series can be set up in flammable and explosive petrochemical enterprises, oil tanks, oil transmission terminals, hangars, ship berths, large buildings and other places.



II. Technical parameters

Model Specification	PLY20/300	PLY30/500	PLY50/1000
Rated working pressure (MPa)	0.8
Working pressure range (MPa)	0.6~1.6
mixing ratio	3% or 6%
Flow rate (L/S)	20	30	50
Range (m)	≥20
Max. working pressure (MPa)	1.6
Slewing angle (°)	360
Pitch angle (°)	-45~+80
Tank Capacity	200-2000 Liter
Fire Monitor Flow Range	500-3800LPM





III. Structure and working principle and method of use

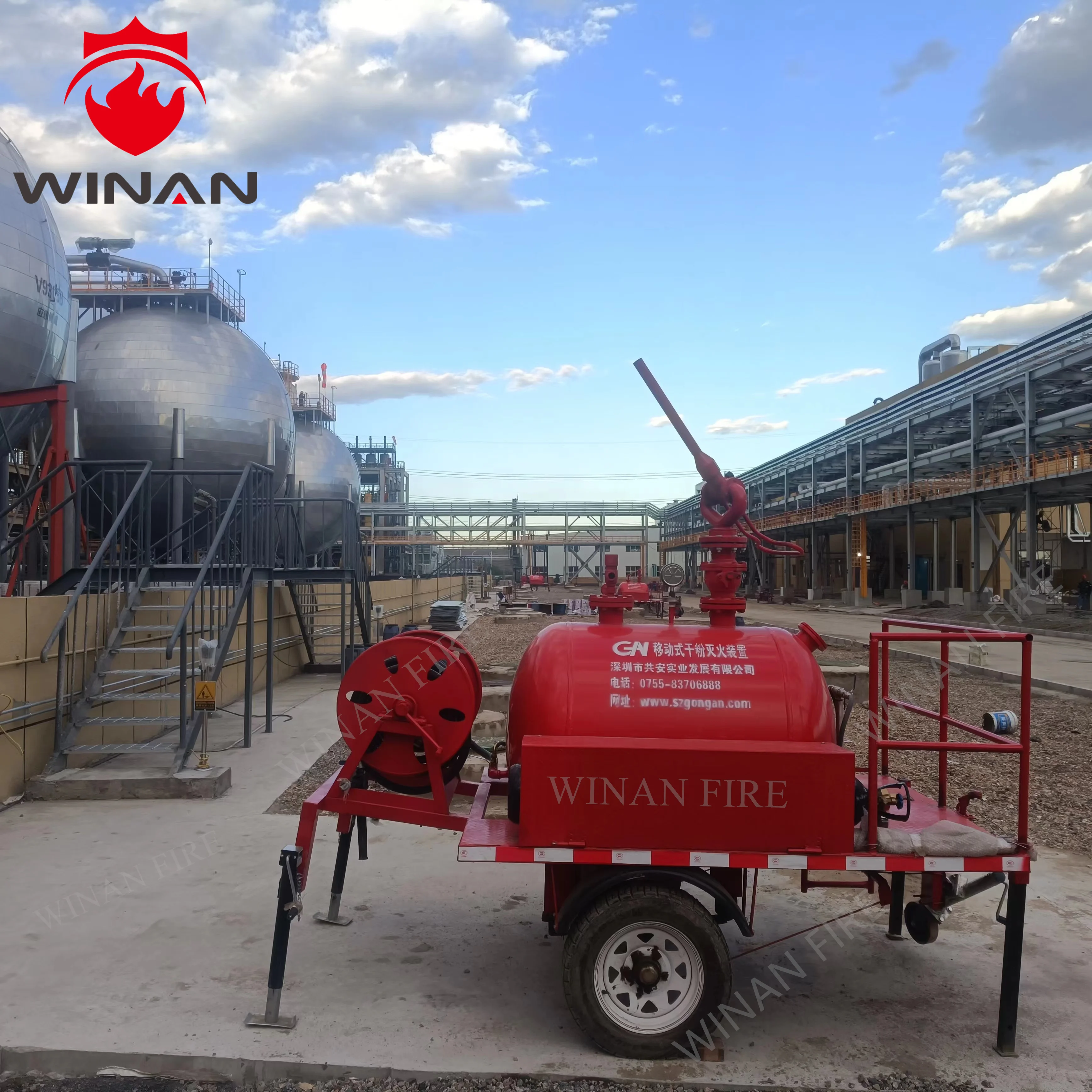

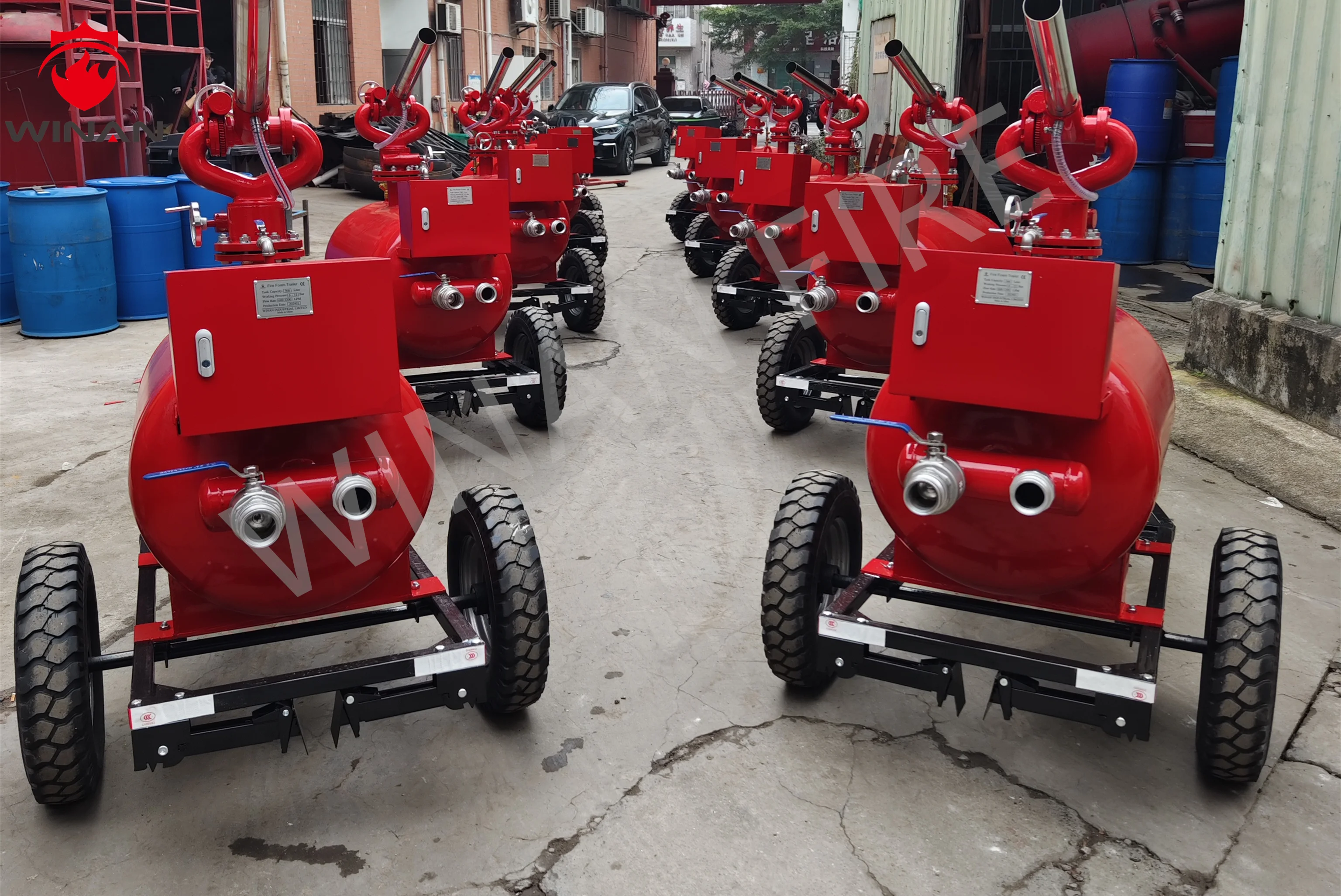

The Fire Foam Trailer With Foam Monitor consists of a trailer chassis, a liquid storage tank, a self-priming foam cannon and a fire hose. When in use, the fire hose can be connected to the fire truck or fire hydrant for water supply. When the pressure water passes through the nozzle of the proportional mixer, the flow rate increases to form negative pressure. The tube that sucks in the liquid sucks the foam liquid from the tank into the proportional mixer and mixes it with the water to form a foam mixture, and the barrel of the foam gun sucks in the air to form the foam, and then it is aimed at the point of fire to extinguish the fire.
