Liquid Oxygen/Nitrogen/Argon Production Line Plant oxygen generating plant nitrogen generator for sale
- Category: >>>
- Supplier: Shenzhen Longer Industry Co. Ltd.
Share on (1601245239174):
Product Overview
Description
Pruduct Parameters
Each unit is skid-mounted construction, connected by fixed-size short pipe. the whole set of plant with all pipes and valve are delivered together to the User’s site, the Users needn’t to buy any additional spare part by themselves, we ensure the plant’s perfect and integrate.
KZO-50 oxygen production plant | ||||||
Product Type | Cryogenic Air Separation Plant | |||||
Available Product | Oxygen gas /liquid oxygen/Nitrogen gas/Liquid nitrogen | |||||
Applicable Industries | Industrial fields and Medical | |||||
Oxygen Capacity | 50Nm3/h | |||||
Oxygen Purity | 99.6% | |||||
Working pressure | 1.2Mpa | |||||
Warranty | 12 months | |||||
Type | Skid-mounted | |||||
Size | 68M3(1*40 container) | |||||
Weight | ~13T | |||||
Packing | Nude/Wooden box | |||||
Our advantages:
1）The plant is skid mounted direct structure in whole, connected by high-pressure soft pipe，the user needn’t invest the connecting pipe and valves.
2）Using liquid pump inner-compress flow, can produce high quality medical oxygen,
completely accord with standard of medical oxygen, can sell to the hospital, and also use for industrial.
3）It have small volume,occupied small area.
4）The whole equipment without base installation, stable running, simple operation, easy maintenance.
5） The plant uses an internal compression process, liquid oxygen pump compression filling bottles, maximum reduce equipment maintenance costs, improve work efficiency.
6）All single unit adopt domestic most advanced technology, greatly reduce the energy consumption and save electricity
7）The cooling system of the equipment is air cooling type, users don't have to build the cooling pool, can save construction cost.
8) Equipment installation & commissioning period is short, about a month to finish all the work.
9) About 20L liquid oxygen can be produced when no gas oxygen is produced
2）Using liquid pump inner-compress flow, can produce high quality medical oxygen,
completely accord with standard of medical oxygen, can sell to the hospital, and also use for industrial.
3）It have small volume,occupied small area.
4）The whole equipment without base installation, stable running, simple operation, easy maintenance.
5） The plant uses an internal compression process, liquid oxygen pump compression filling bottles, maximum reduce equipment maintenance costs, improve work efficiency.
6）All single unit adopt domestic most advanced technology, greatly reduce the energy consumption and save electricity
7）The cooling system of the equipment is air cooling type, users don't have to build the cooling pool, can save construction cost.
8) Equipment installation & commissioning period is short, about a month to finish all the work.
9) About 20L liquid oxygen can be produced when no gas oxygen is produced
Product Overview
Please send your inquiry details in the below, click "Send" now
NO | Main Part | Function |
1 | Air Compressor | The air compressor is sprayed-oil screw type compressor, box-body construction and main machine is imported from Germany. It has low noise and the main machine combines gas, lubrication, water, cooling and electrical instrument to one compact unit. The control system adopts PLC controller, touch-way panel provides the operation of all adjustment of parameter and critical running parameter. The liquid crystal display (with English text) has full protection function and thus has minimal operation supervision from a plant operator. |
2 | Pre Cooling System | It adopts a full-close imported compressor therefore refrigeration agent will never leak out. The high-efficient steam water separator and imported automatic drain water machine will ensure the outlet will not produce condensation. Refrigeration component is imported to support plant can run continuously (non stop) for 365 days a year. It is equipped with long-distance signal connecting point of air inlet temperature, long distance signal of start and stop machine and operating trouble indicator or signal thus it is convenient for user’s interlock supervision. The unit is box type body construction. The foundation is easy to install and construct. |
3 | Purifier | The unit is composed of two vessels: one is on heating while the other being regenerated. This ensures that the gas will be clean and purified to prolong the running period of rectifying (rectification) column. The system uses nitrogen to heat for regenerated and has automatic control for the temperature heat. |
4 | Turbine Expander | Turbine expander has the following advantages: 1.easy to install 2.less maintenance and easy to maintain 3.high efficient, runs and operate stable 4.has minimal cooling lost 5.Rectification Column |
5 | Rectification Column | It incorporates an aluminum fin type heat exchange. The aluminum increases the heat exchange’s affection and depresses the operation pressure. This process will produce less power consumption thus saving on electricity cost. The unit is equipped with an advanced digital instrument for the temperature, flow and liquid display. It has replaced the traditional meters. |
Reviews

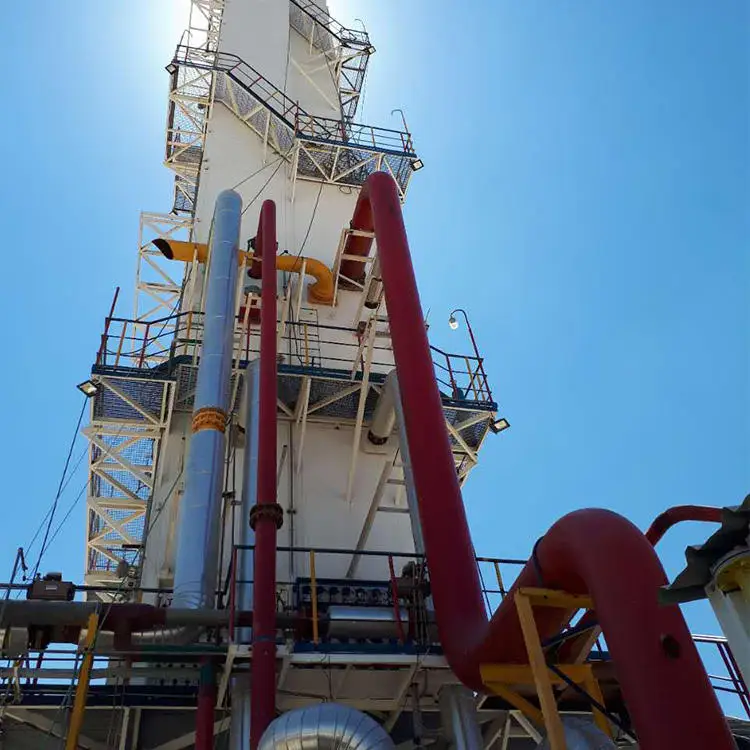

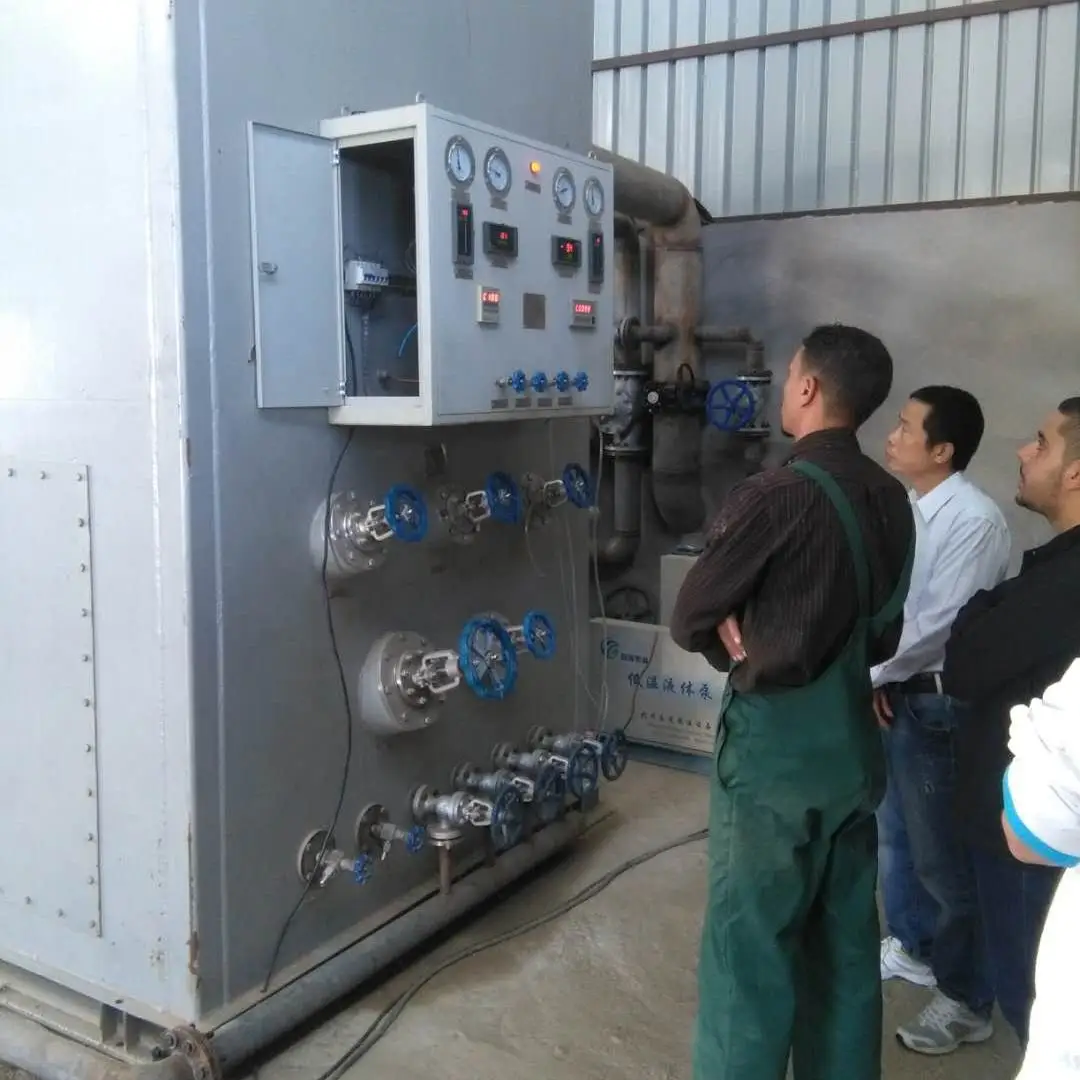

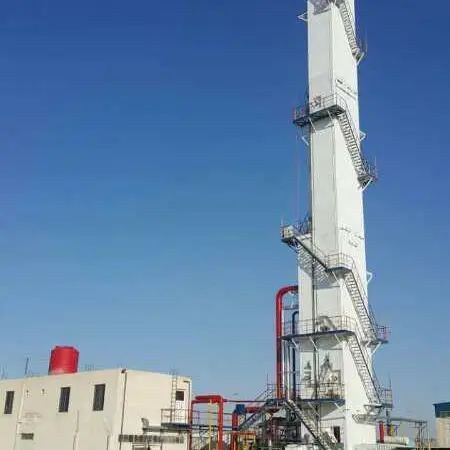

Successful case
Our Advantage
Company Profile
Shenzhen Longer Industry Co., Ltd is a specialized manufactory in air separation equipment. Our company has a complete system including R&D, manufacturing and marketing.
Our main products include air separation plant and liquefaction equipment, all kinds of pressure vessel. Widely used in many industries, such as building materials; metallurgy; stone; electron; aviation; medical treatment; petrifaction, etc.
Our Products have been sold throughout the countries and regions with good quality, reasonable prices and excellent services. Especially, we cooperated with multinational gas company in the world, mostly promoted the research and development ability in products and also advance to diversification and large-scale. We will always be devoted to constant innovation and develop efficiently to provide customers much better products and service.
Logistics & Payment
FAQ
Q: Are you trading company or factory?
A: We are Air Separation Plant manufacturer, founded in 2003.Clients are very welcomed to
visit our factory
Q: What is the terms of payment?
A: T/T, L/C etc.Q: How long is your delivery time?A: It depends on your order
request, generally it is 45-120 working days
Q: What’s the order process?
A:1) Inquiry---provide us all clear requirements.
2)Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4)Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
Q: Can you provide oversea service?
A: Yes,our engineers are available for over sea services and they have very rich experience for overseas installation
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2/N2 Production capacity:____Nm3/h
2) O2/N2 Purity: ____%
3) O2/N2 Discharge pressure: ____Bar
4) Local Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
