Tobee Effluent Handling
$12,600

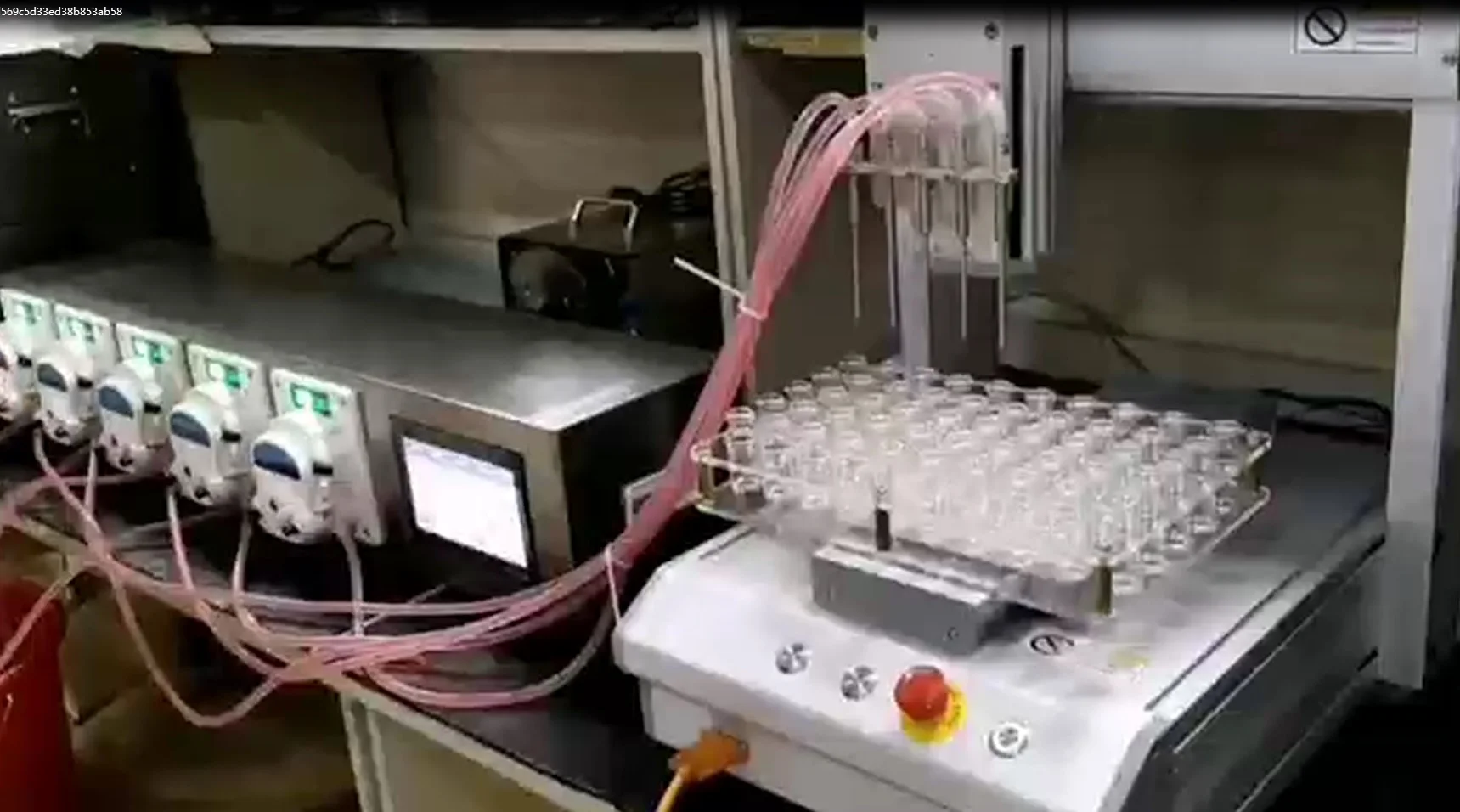

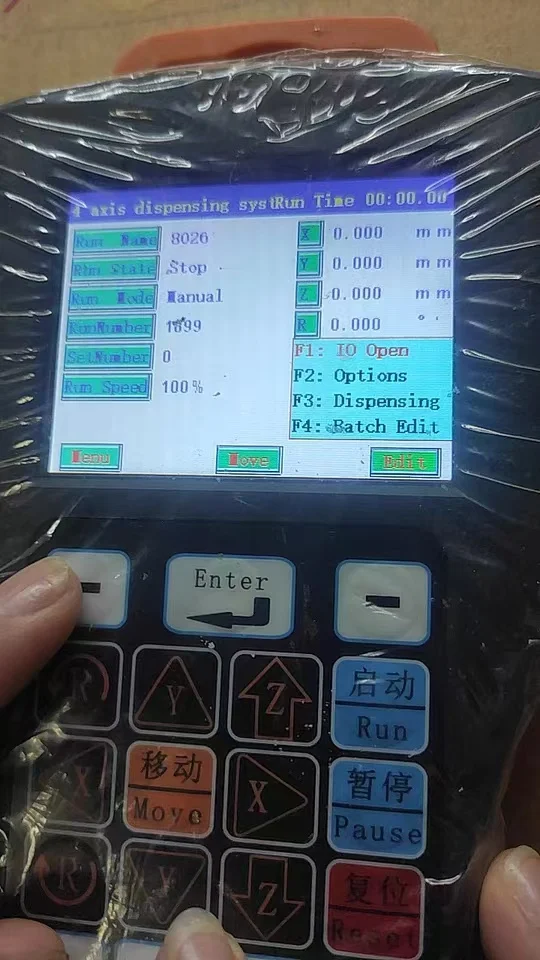

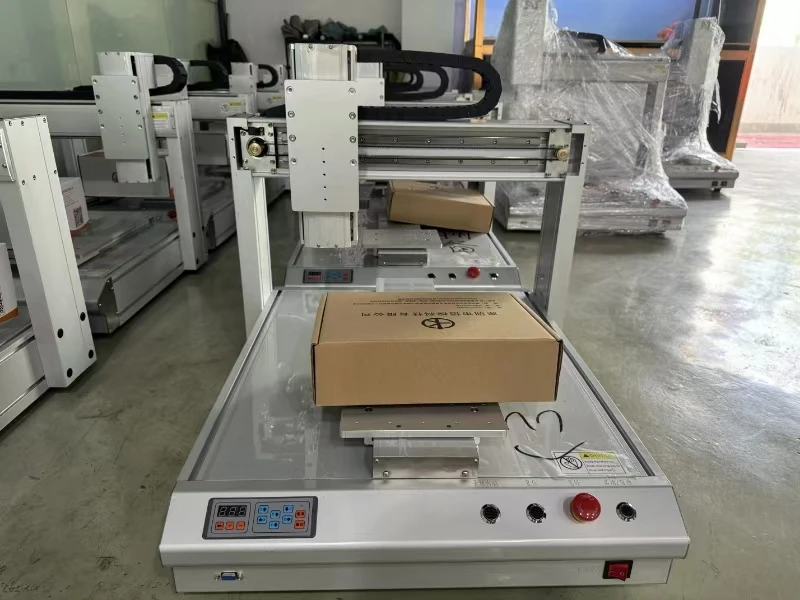

3 Axis 10x5 flacons 5 channels filling machine xyz Dispensing robot
- Category: >>>
- Supplier: Hyuweiy(beijing)fluid Equipment Co. Ltd.
Share on (1601245258489):
Product Overview
Description

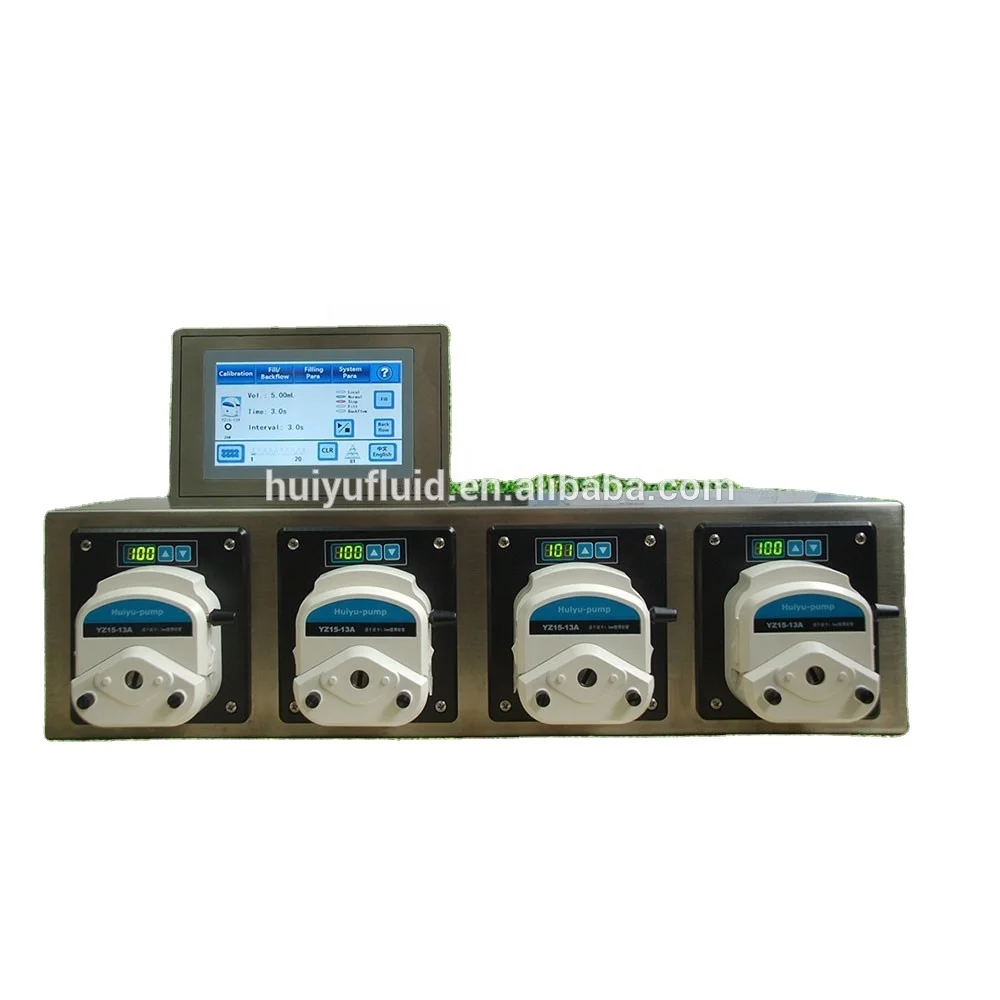

3 Axis 5 nozzles automatic bottles tubes liquid peristaltic pump filling machine
Product Description
Technical parameter:
Volume range of filling: 0.1ml-9999.99ml(resolution:0.01ml)
Time range of filling: 0.5s—6000s(resolution:0.01s)
interval time:0.5s-999.9s
Filling time: 0-999999times( 0 means unlimited cycle)

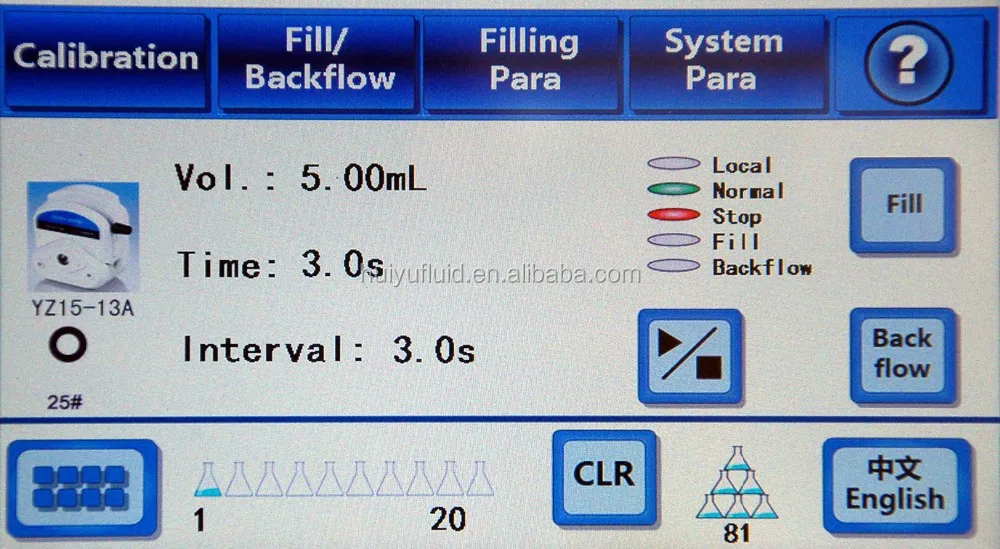

Dispensing calibration:seperate operation for each channel,percentage, volume, weighte or average weight method.
channel usages: each channel can be set work or shut down according to customer application.
Password function:Protect the system parameters and prevent misoperation through the password function.
Drive Dimension: 663×218×177 (mm)LXWXH
Controller dimension:228x60x166(mm) LXWXH
Available Power: AC90V-260V 50/60Hz
Working condition temperature: 0℃—40℃
sigle 4 channel filling system weight: 12.1kg
Controller Weight:1.7kg
IP Grade: IP31
Technical Table:
Available Pump head | Filling Volume(ml) | Tubing specification | Filling Time(s) | repeatability error | Dispensing head ID(mm) | Production Capacity (pcs/min) | ||
YZ15-1A | 0.3-0.5 | 13# | 1-1.2 |
≤±2% | ≤0.5 | 27-30 | ||
1.0-2.3 | 14# | 1-1.2 | ≤1.0 | |||||
2.6-5.1 | 19# | 1-1.2 | ≤1.5 | |||||
4.6-9.1 | 16# | 1-1.2 | ≤2.0 | |||||
10-19 | 25# | 1-1.2 | ≤3.0 | |||||
15-30 | 17# | 1-1.2 | ≤3.0 | |||||
YZ25-1A
| 8-17 | 15# | 1-1.2 | ≤±2% | ≤3.0 | |||
12-24 | 24# | 1-1.2 | ≤±2% | ≤3.0 | ||||
DMD15-1A DMD15-2A | 0.1-0.9 | 2X13# |
1-1.2
| ≤±2%
| ≤0.5 | |||
0.2-2.3 | 2X14# | ≤1.0 | ||||||
0.5-5.9 | 2X19# | ≤2.0 | ||||||
1.0-2.0 | 2X16# | ≤3.0 | ||||||
OEM option
CE certificate
