40000psi trailer mounted ultra high pressure hydro jetting water blasting machine
- Category: >>>
- Supplier: HeNan XuZhiYang Machinery CO. Ltd.
Share on (1601245477906):
Product Overview
Description
Product Overview

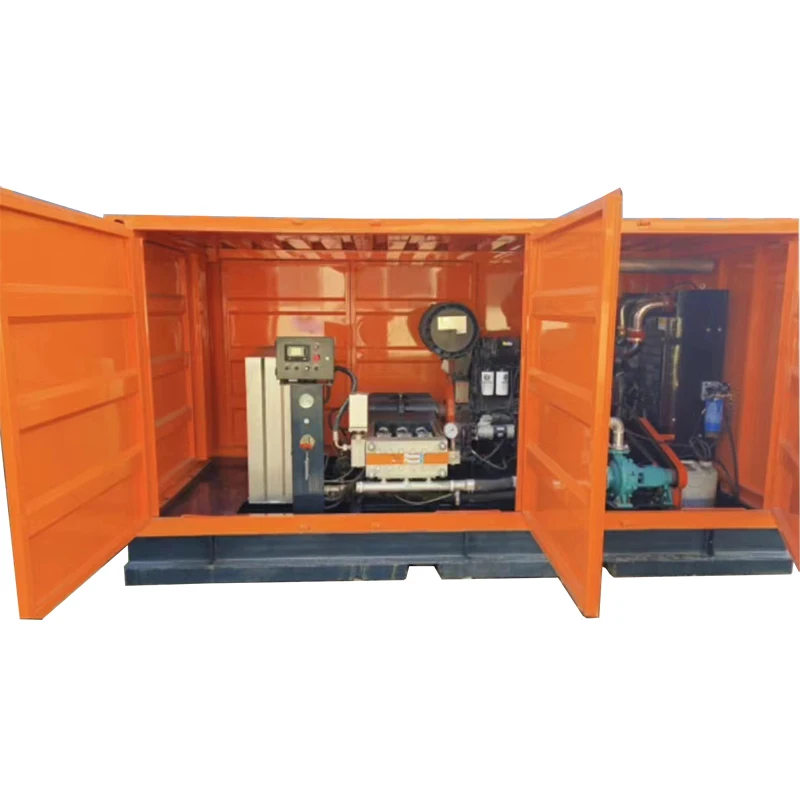

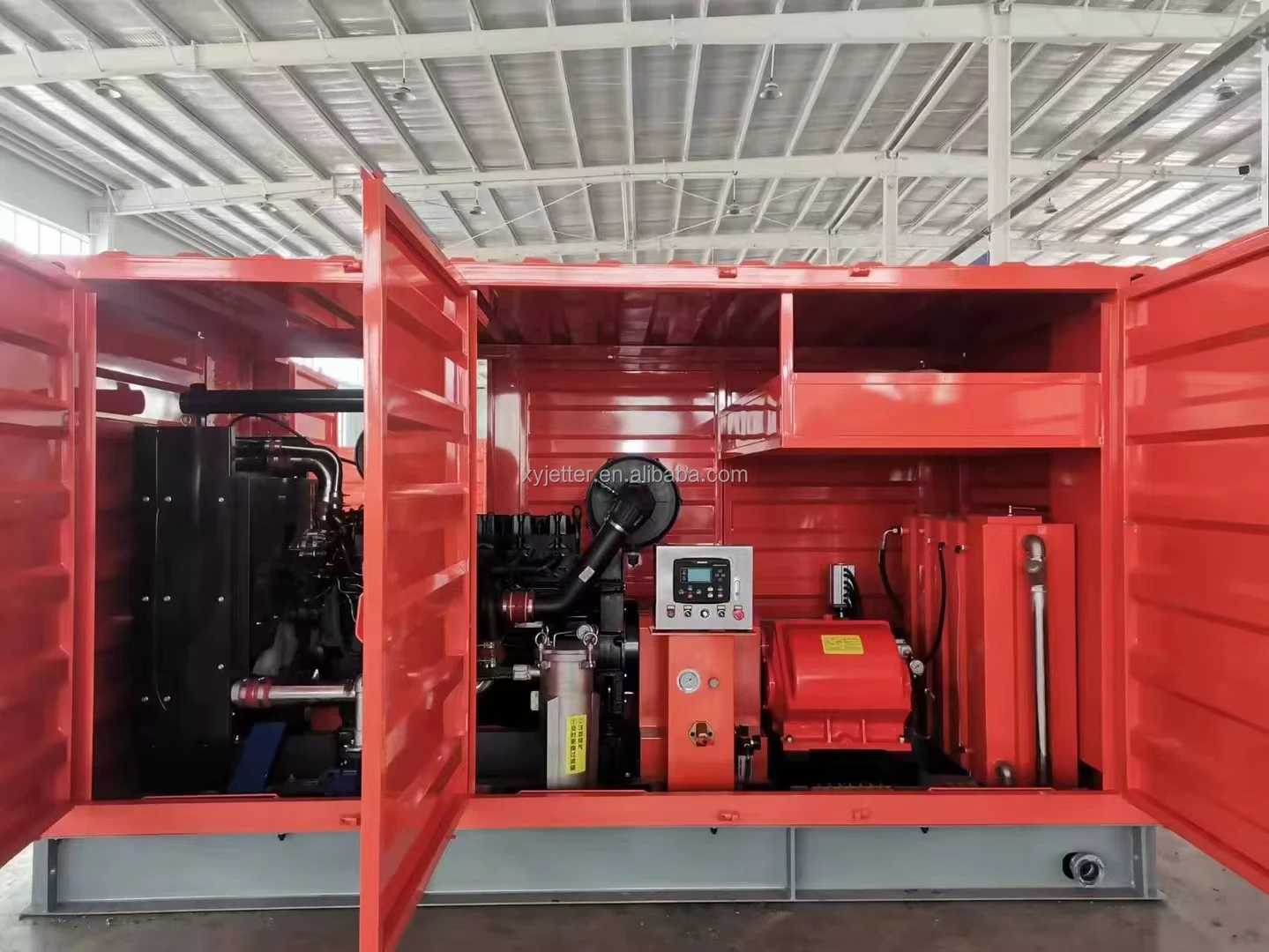

XY28045 ultra High pressure hydro jet machine
This high pressure hydro jet machine is driven with 6-cylinder diesel engine, Max. working pressure 40000psi/2800bar; chould be better for ship yard/ marine rust paint removal, surface heavy dirt cleaning, industrial heavy dirt cleaning, condenser/ heat exchanger pipe cleaning, tube/tank cleaning, marine rust paint removal, concrete surface roughening, cement removal, etc. welcome customized.
FEATURES AT A GLANCE

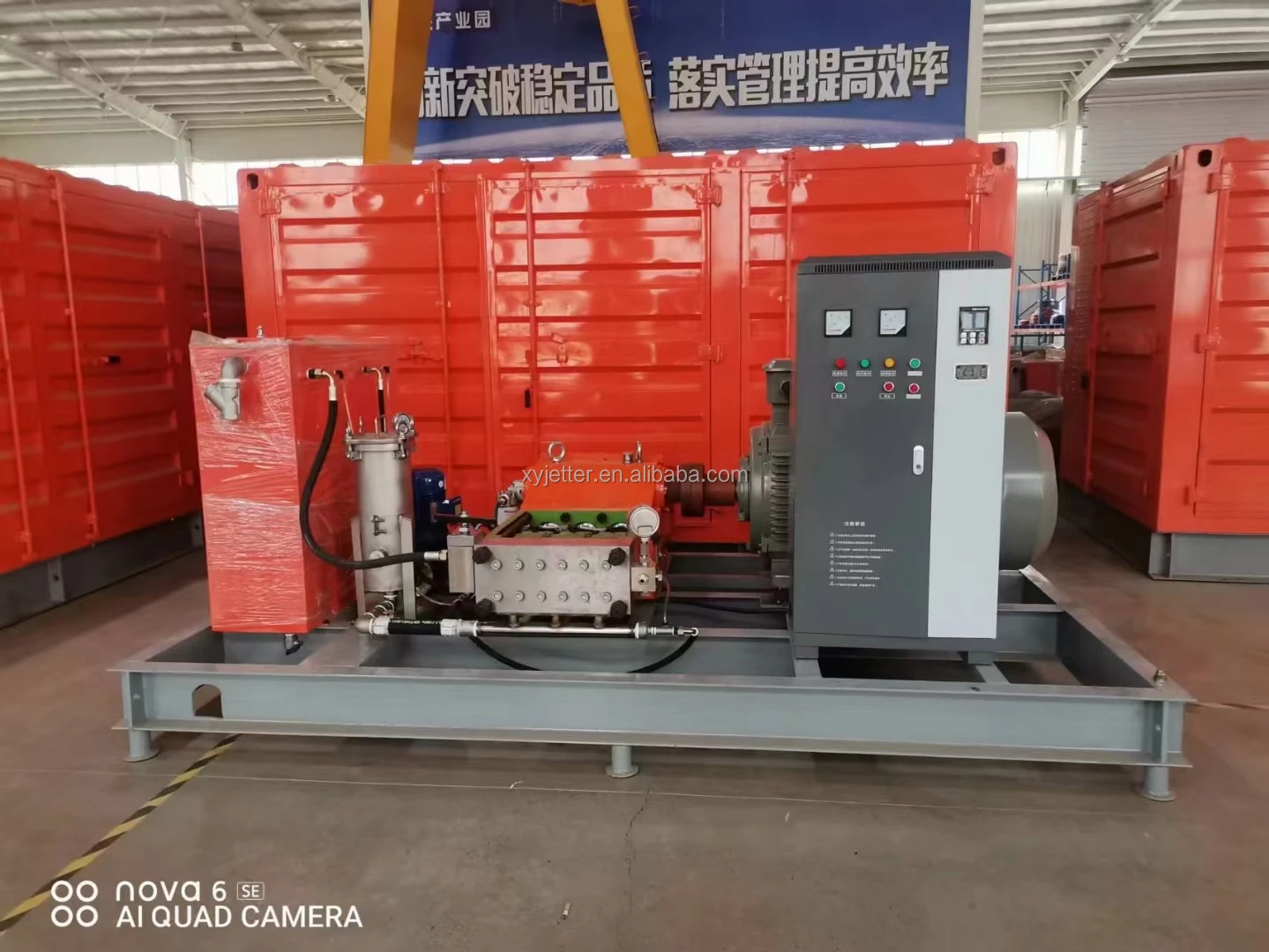

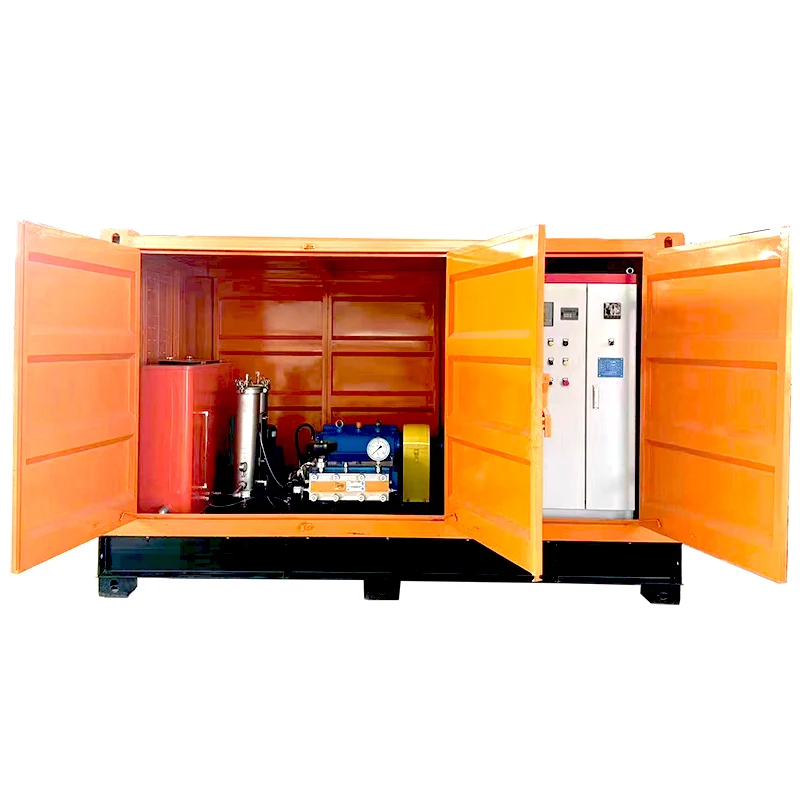

Model: XY28045E
Rate pressure: 280Mpa/2800bar/40000psi
water flow: 45 L/min ( 12 gallon /min)
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Electric motor drive: 250kw
with wter tank/inlet water filter/ booster pump

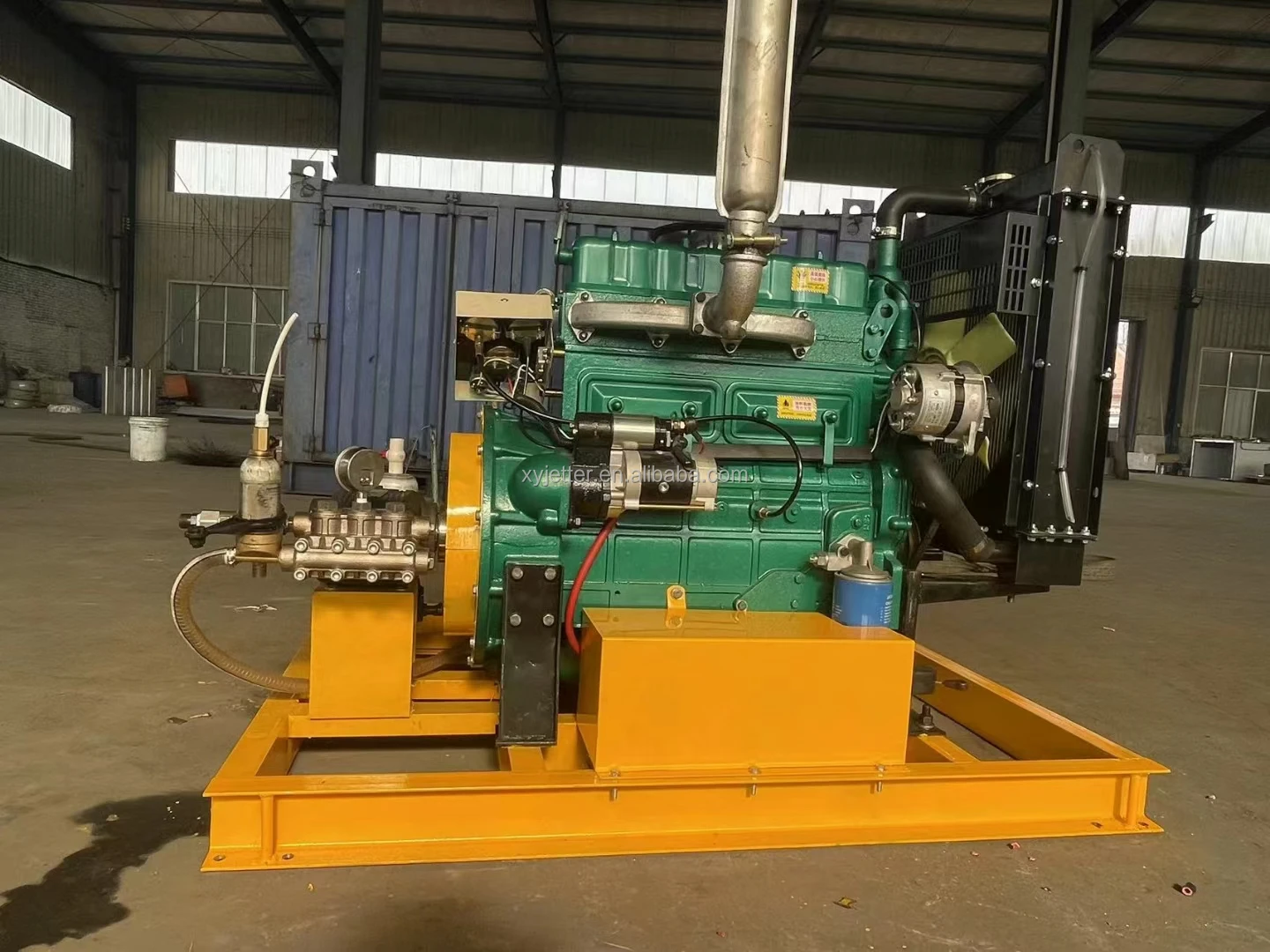

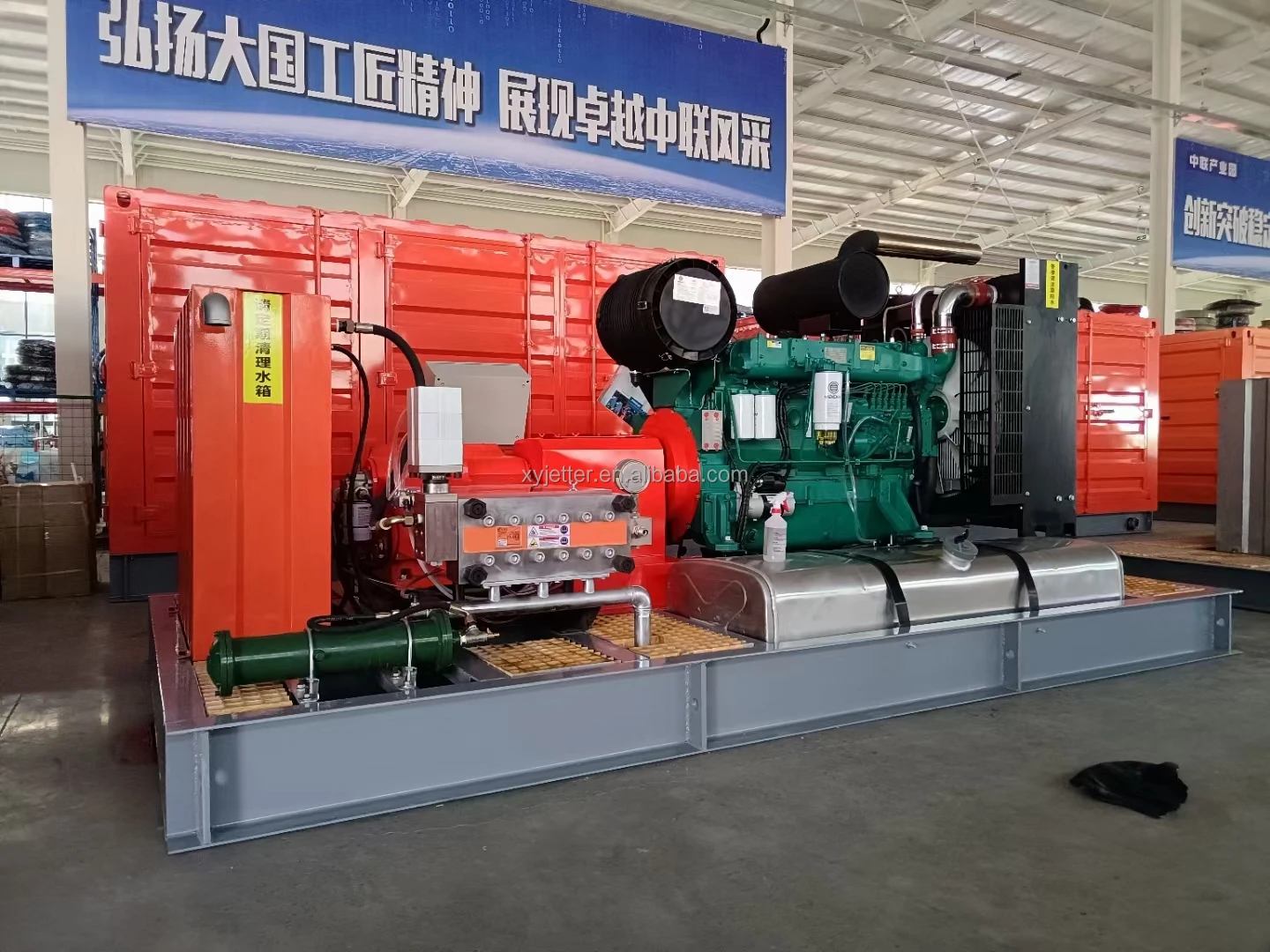

Model: XY28045D
Rate pressure: 280Mpa/2800bar/40000psi
water flow: 45 L/min ( 12 gallon /min)
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 350kw, 6-cylinder
with wter tank/inlet water filter/ booster pump
water flow: 45 L/min ( 12 gallon /min)
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 350kw, 6-cylinder
with wter tank/inlet water filter/ booster pump
PRODUCT SPECIFICATIONS
Model | Rate pressure | Water flow | Electric motor drive | Diesel engine drive |
XY28045 | 280Mpa/2800bar | 45 L/min | 250kw | 350kw |
XY28030 | 280Mpa/2800bar | 30 L/min | 160kw | 220kw |
XY1330 | 150MPa/1500bar | 50 L/min | 160kw | 225kw |
XY1824 | 120Mpa/1200bar | 70 L/min | 160kw | 225kw |
XY2230 | 150Mpa/1500bar | 85 L/min | 200kw | 264kw |
XY1320 | 100Mpa/1000bar | 50 L/min | 90kw | 120kw |
XY1814 | 70Mpa/700bar | 70 L/min | 90kw | 120kw |
XY1510 | 50MPa/500bar | 60 Lmin | 55kw | 64kw |
XY2210 | 50Mpa/500bar | 85 L/min | 90kw | 120kw |
XY0610 | 50Mpa/500bar | 22 L/min | 22kw | 33kw |
PRODUCT CONFIGURATION
6-cylinder diesel engine
150Mpa high pressure pump
Seismic pressure gauge
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Product Application
Cleaning | industrial pipe/heat exchanger/condenser pipe cleaning, tube/tank cleaning, boiler cleaning, evaporation tank cleaning, concrete surface cleaning, cement cleaning; aluminum formwork cleaning, ship/hull cleaning, |
removing | marine hull rust removal, paint removal, cement removal, scale oxide removal, dephosphorization removal on steel plant, phosphorous removal; road mark removal, rubber removal from airport ground; pile corrosion removal, deburring, etc. |
pressure testing | valve pressure testing, pipe cleaning testing, etc. |
Pretreatment | highway overlay treatmeat, concrete streatment, marine surface treatment, surface treatment,etc |
Successful Project
Marine rust paint removal
Tank & reactor cleaning
concrete surface roughening
industrial pipe cleaning
pipe cleaning effect
industrial strong dirt cleaning
large Pipe cleaning
cement removal
concrete cutting

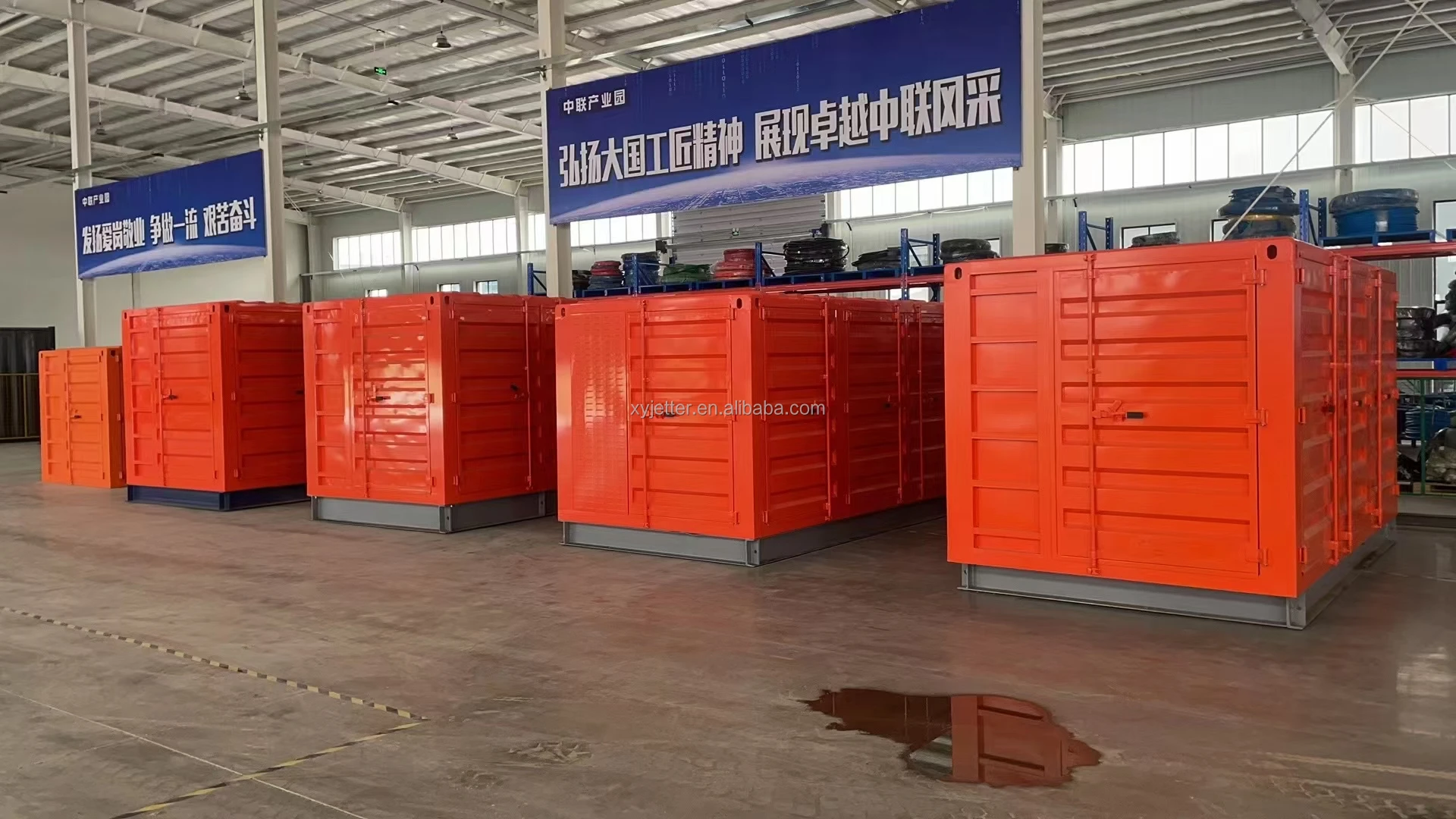

Factory picture show
FAQ
Q1：What pressures and flow rates are available in these machines?
A1：Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more.
Flow rates typically range from 15 to 600 L/min;
Flow rates typically range from 15 to 600 L/min;
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: Fan Nozzles: For surface cleaning.
Rotary Nozzles: For deep cleaning and descaling.
Piercing Nozzles: For cutting and precise applications.
Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning;
Turbo nozzle: for surface strong dirt cleaning,
Customized Nozzles: Designed for specific tasks or materials.
Rotary Nozzles: For deep cleaning and descaling.
Piercing Nozzles: For cutting and precise applications.
Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning;
Turbo nozzle: for surface strong dirt cleaning,
Customized Nozzles: Designed for specific tasks or materials.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation.
Diesel: Preferred for outdoor use and higher power needs.
Gasoline: Portable option, ideal for remote locations.
Diesel: Preferred for outdoor use and higher power needs.
Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
