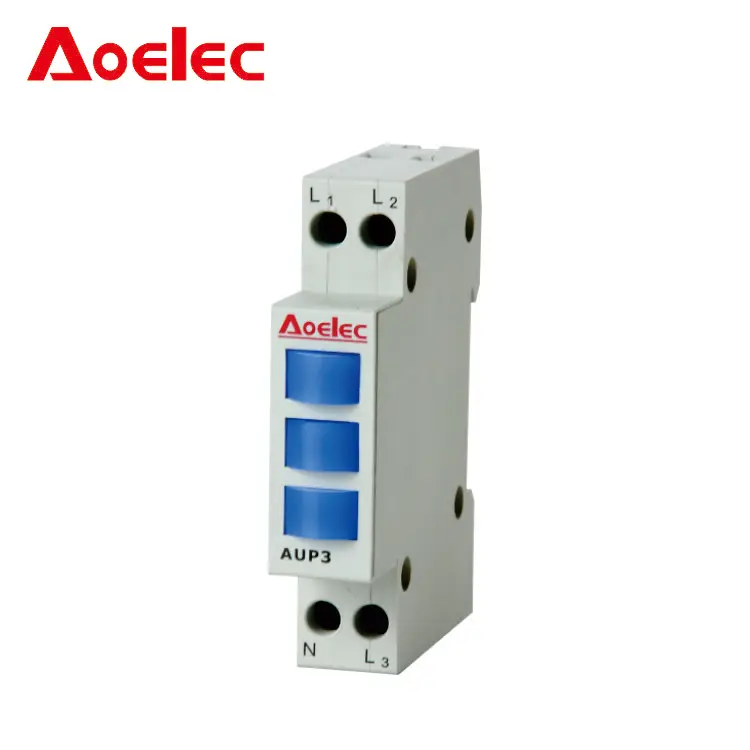

AUP3 CE mark indicating light 120V signal lamp

Function and Feature:

Applicable to circuit with rated voltage 230V~and frequency 50/60Hz for visual indication and warning

Three phase LED lamp in one module.

Obviously indication phase with three different colors.

Technical Data:

Rated Voltage(Un):24/48/110/230VAC

                                   24/48/110/230VDC

Rated frequency:50/60Hz

Number of poles:1P

Light source:LED diode

Rated insulation voltage(Ui):500V

Light Source capacity:0.8W

Colors:red/green/blue/yellow/transparent

Terminals:pillar type

Cable termination:25mm²

Torque of screw:2.5Nm

IP degree:IP20

Standards:IEC/EN 60947-5-1

Catalog NO.                                                                                                              CTN Size:46.5X24X17.5CM
