Price:$57,600.00 - $61,200.00

Quantity:


Product Overview

Description



Product Description

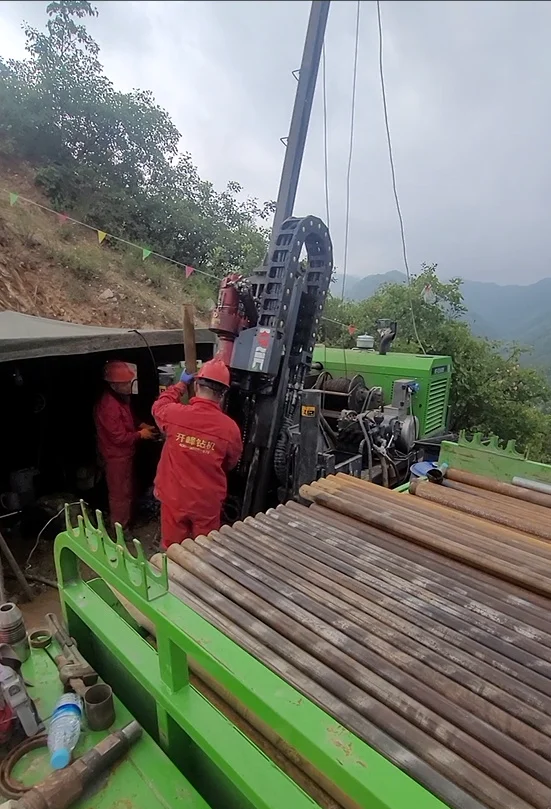

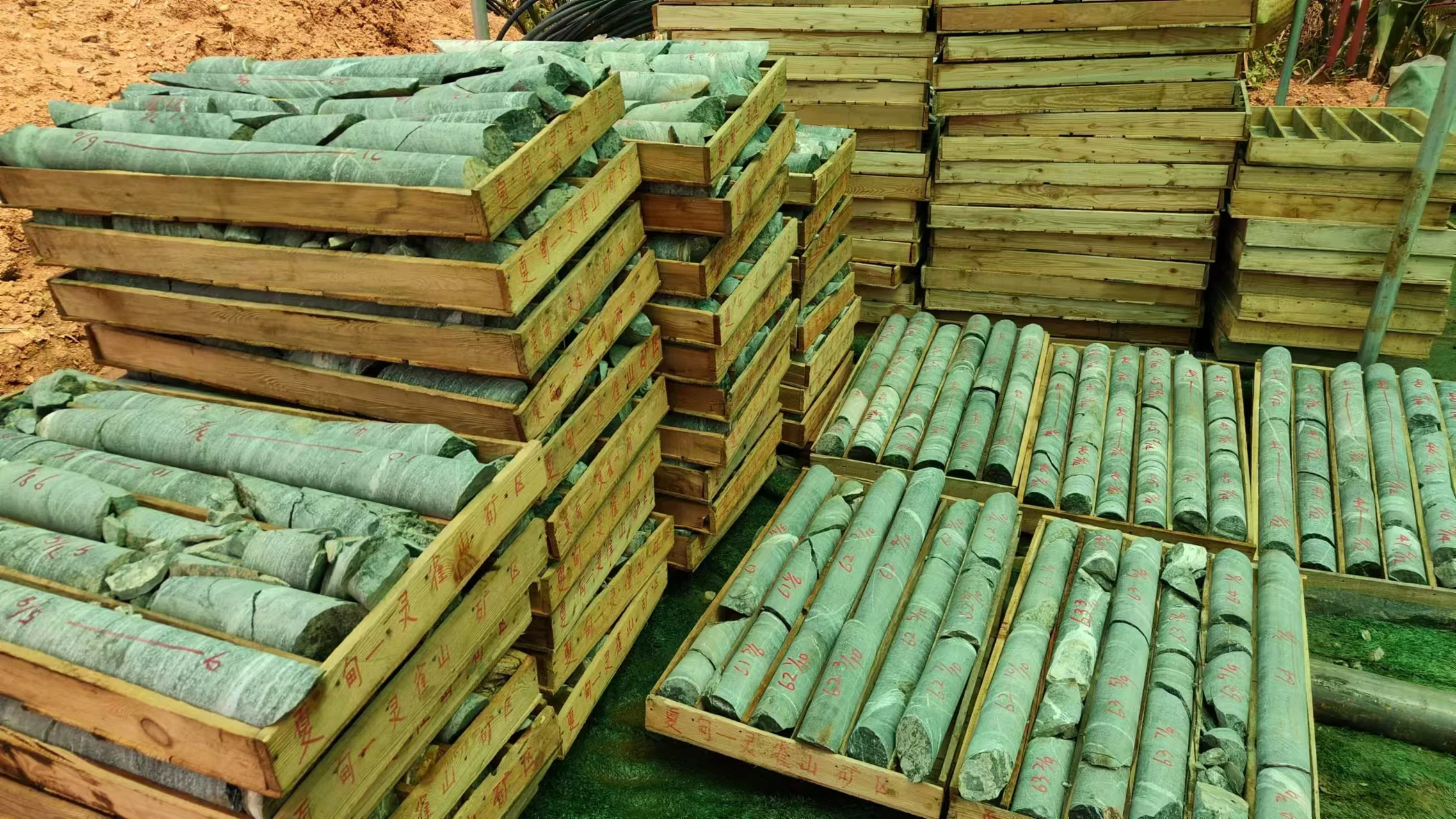

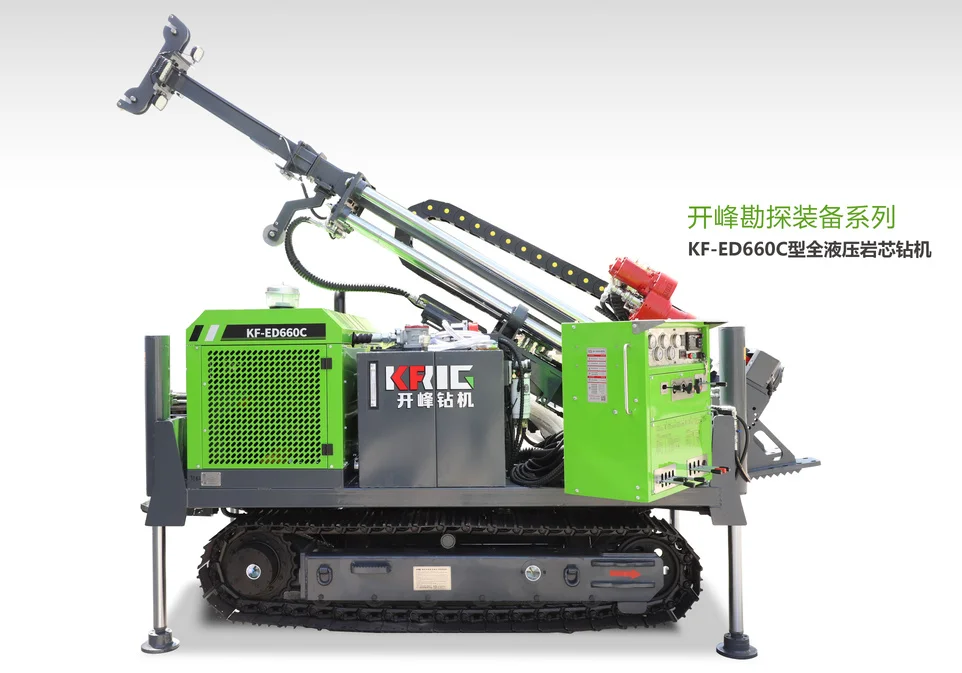

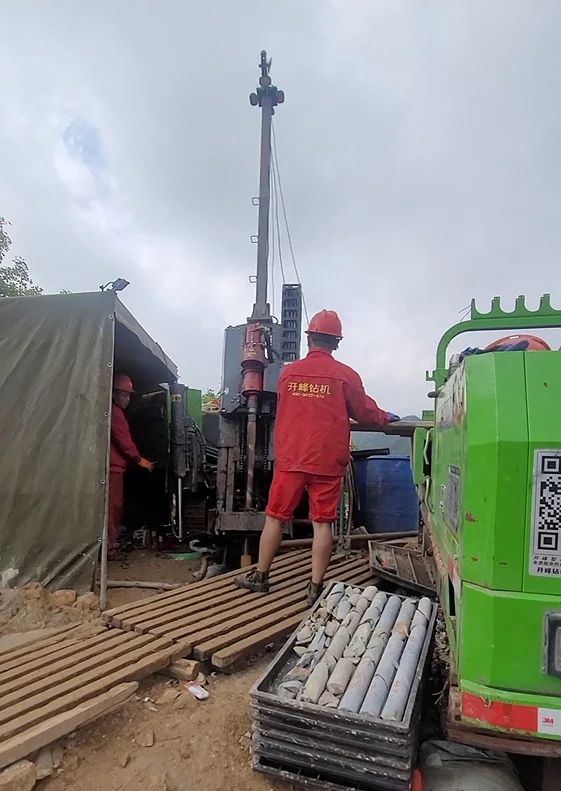

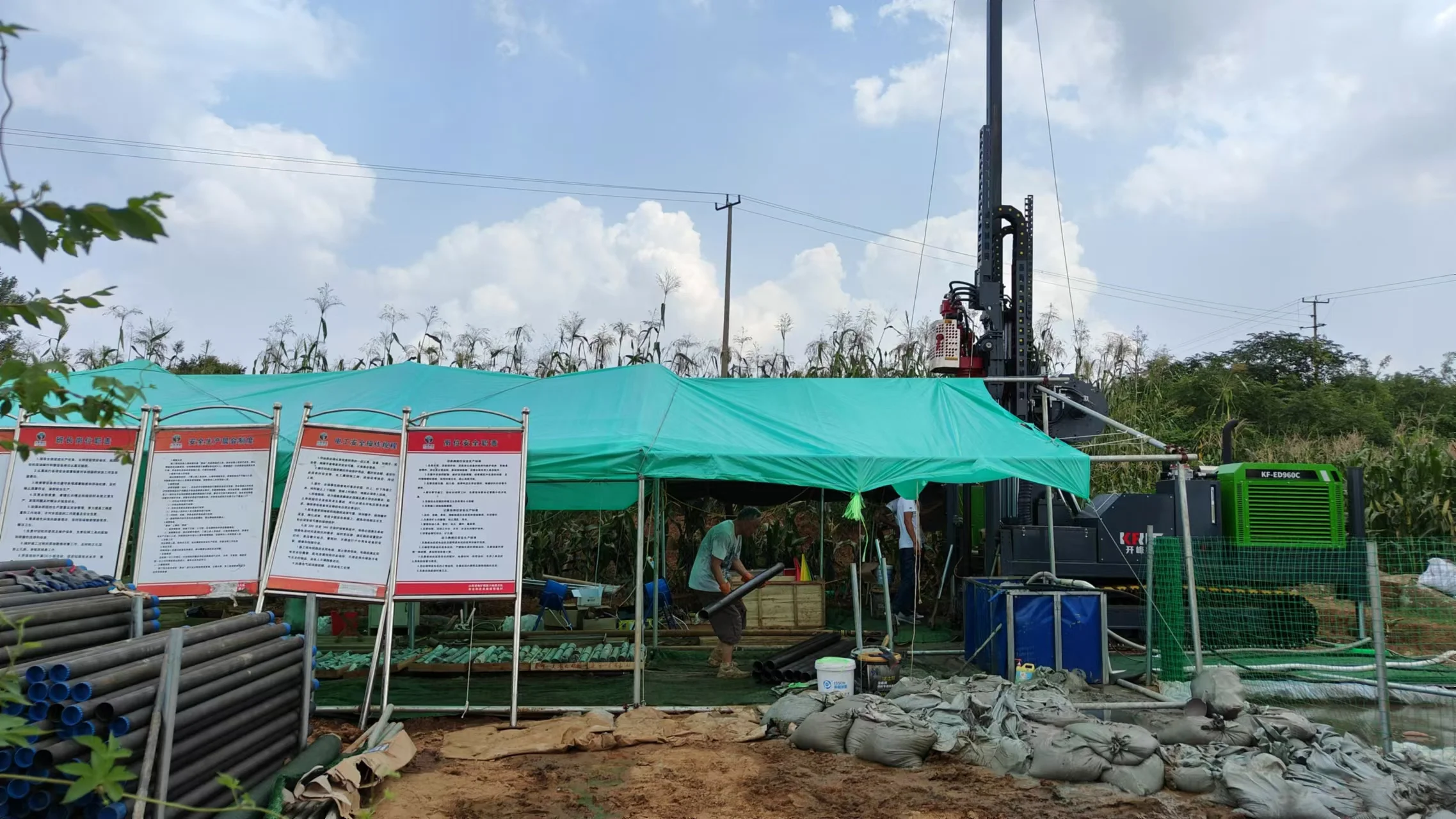

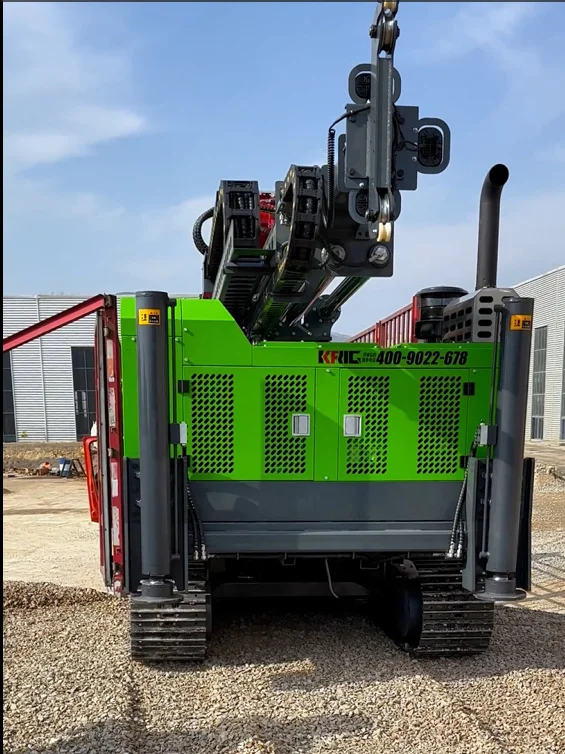

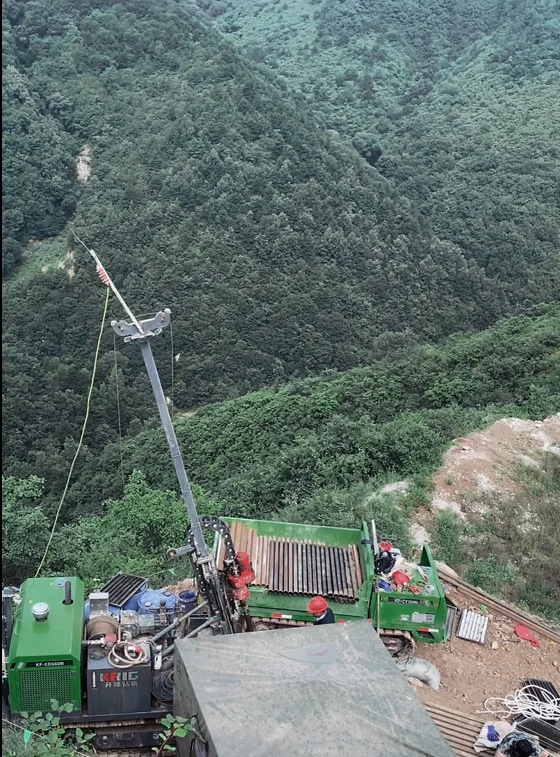

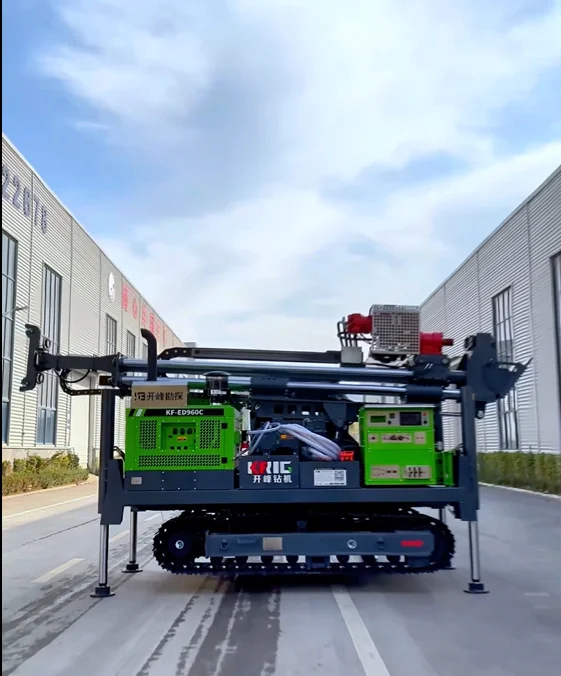

The KF-ED660C full-hydraulic rock core rig is suitable for various forms of drilling operations. It is the company's stable and efficient exploration rig products.Relocation is fast, with long -distance wireless remote control functions, one person can easily control and be flexible.Widely used in geological search, railways, highways, bridges, water conservancy, hydropower, and tunnel -shaped project surveys; it can also be used for municipal civil construction and other engineering surveys;Rock core drilling.
Advantages:
1. Power head control, strong torque, high speed, stable and reliable;
2. International advanced hydraulic control technology, integrated design, stable and strong power output; Integrated design;
3. The whole system has its own inverter brushless to maintain the generator (output 220V/380V) does not require additional purchase, providing continuous and stable power power for drilling operations.
4. Equipped -one -click intelligent fuel injection system, self -stop and anti -overflow, safe refueling, worry -free and effort;
5. Salvation parameters in real -time intelligent monitoring, actively call the police and stop, prevent improper operation, and settle in the house.
6. The mud pump is not adjusted, and the water can be quickly injected in the hole.
7. Steel chain rails, strong off -road capabilities, convenient movement, sturdy and durable, and the complex terrain of the upper mountain and lower mountains is easy to cope.
8. All -in -one design, analog quantity wireless remote control walk, accurate handling and soft control, improving mobility and safety.


More product detail






Specification


Drilling capacity
Drilling depth
BTW/BQ 950m/ NTW/NQ 800m/ HTW/HQ 460m/ PQ 310m
Maximum drill pipe size
127mm
dynamical system
Engine model
"Weichai WP4.1NG
EFI high-pressure common rail"
Engine power
103kw 2300r
Displacement
4.1N
Number of cylinders
4-cylinder in-line
Cooling method
Water-cooled
Feed system
Give the course
2m
Give the force
52kN
Promotion
120KN
Drill angle
40-90°
Drill pipe length
1.5m
Slewing power head
Drive form
Hydraulic cycloidal motor
Maximum torque
Max 1770Nm
Gearbox
1st gear (3 different torque hydraulic motors optional)
Spindle speed
0-1100r/min
Rope wistling
Drive mode
Hydraulically driven
Rope capacity
950m（ID 6mm）
Hoist lifting force
11kN
Lift speed
100m/min
Drill pipe holders
Through-hole diameter
127mm
Gripping force
56KN
Hydraulics
Main pump
20MPa
Auxiliary pumps
18MPa
Hydraulic oil cooling
Air cooling + water cooling
Mud unit
Mud pump
BW-100-3
Flow and pressure
100Lpm，6Mpa
Power Unit
Generator type
Brushless inverter, maintenance-free
Power and voltage
15kW 220V/380V
Walking track
Track type
Steel Tracks
Control form
Wireless remote control + body operation handle
Travel speed
3.1km/h -5.2km
Dimensions and Weight (Shipping)
Length*Width*Height
4200*1800*2600mm
Machine weight
6600Kg


Company Profile






Why Choose Us




Certifications




Exhibition








Q 1. Are you a manufacturer?
A: Yes, we are a factory with more than 10 years of manufacturing experience.
Q2. What are your terms of payment?
A: T/T 40% as deposit, 60% before delivery, we will show you photos of the product and packaging before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CIF
Q4. What about your delivery time?
A: Generally, it takes 7-10 working days after receiving the advance payment. The exact delivery time depends on the items and quantity of your order.
Q5.What is the warranty on our machines?
A: Our mainframes are guaranteed for one year, during which time all damaged parts can be replaced with new ones. We also provide videos of machine installation and operation.
Q6. What are your packing conditions?
A: Usually, we use standard export containers; The ED660C uses 20-size containers, and the ED960C uses 40-size containers and the whole container of goods is fixed.
Q7. Do you provide wearing parts for trading clients?
A: Yes, we have your customer record and are more than willing to provide customers with accessories

Q8. How can you build a good long-term relationship with our business?
A: 1. We maintain good quality and competitive prices to ensure that our customers benefit; 2. We respect every customer as our friend, we sincerely do business with them and make friends, no matter where they come from.
