1M3 2M3 3M3 4M3 5M3 6M3 Cement Concrete mixer truck drum truck mounted Concrete mixer tank
- Category: >>>
- Supplier: Henan Qichen Machinery Import And Export Co. Ltd.Henan Ltd.
Share on (1601245519455):
Product Overview
Description
Product Description

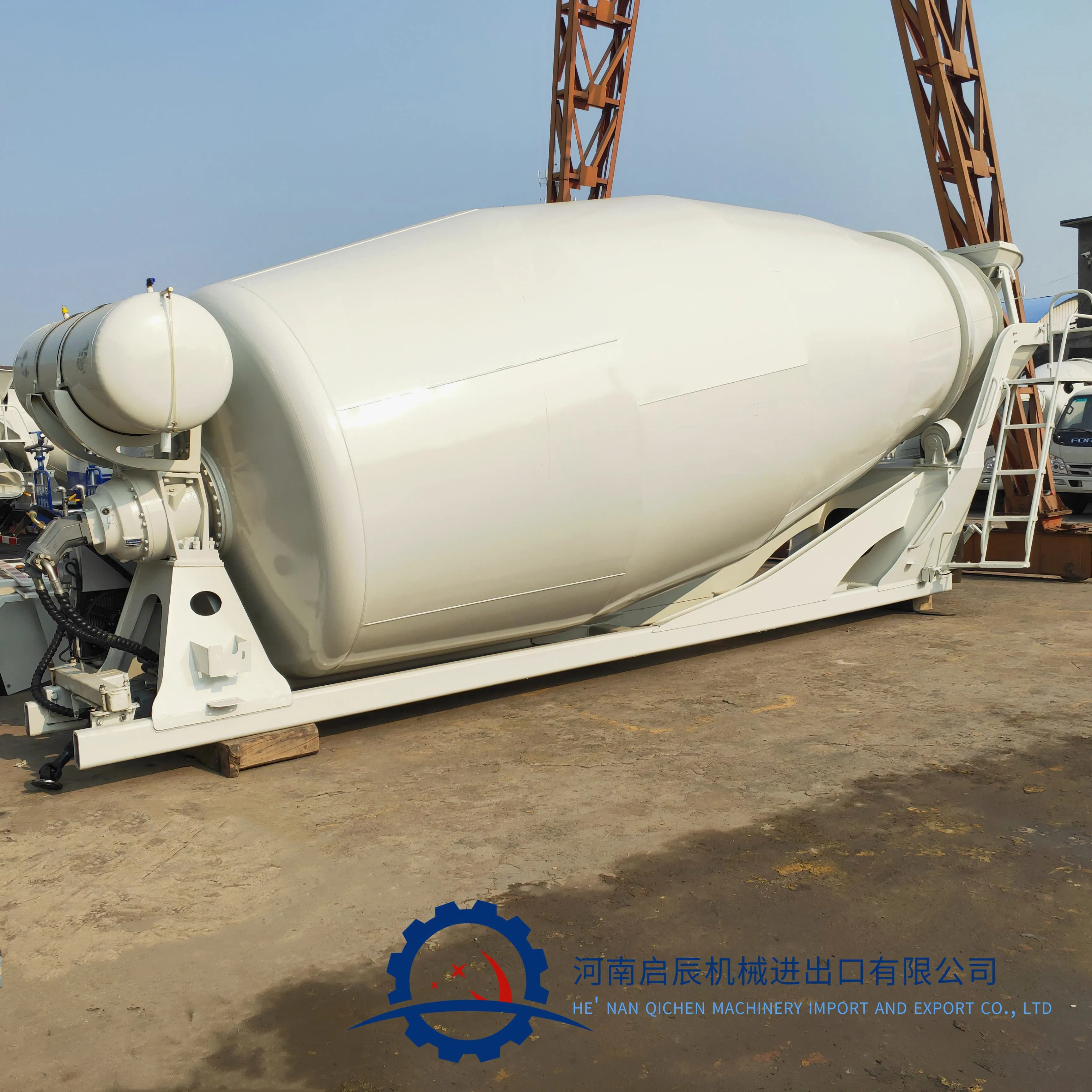

Product description of concrete mixing drum ：
Hydraulic system: famous brand Sunny, the structure is simple and reliable.Water supply system: It supplies water by pressure, which saves the labor intensity and reduces the car weight.
Mixing drum: It is pear shaped and has dual helical blades, which improves the concrete quality;
The installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive to the clean discharge of the concrete.
Control device: It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.
Control device: It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.
Specification
Item | Parameter | |
1 | Geometric volume of tank | 2.7m3 |
2 | Mixing volume | 1.5m3 |
3 | Tilt angle of mixing drum | 15° |
4 | Water tank volume | 200L |
5 | Drum material | Q345B |
6 | Drum thickness | 4mm |
7 | Hydraulic motor and pump | BMS30-125 |
8 | Dimension(L*W*H) | 2950*1350*1650mm |
9 | Weight | 1115KG |
10 | UNIQUE SELLING POINT | Fully hydraulic system |
