AUP1 Electrical Din rail 12V Indicator Light lamp

Share on (1601245521871):


Price:

Quantity:


Product Overview

Description






Function and Feature:


The Modular Signal Lamp is applicable to circuit with rated voltage 230V~and


Frequency 50/60Hz for visual indication and warning





Technical Data:


Rated Voltage(Un):24/48/110/230VAC


                                   24/48/110/230VDC


Rated frequency:50/60Hz


Number of poles:1P


Light source:LED diode


Rated insulation voltage(Ui):500V


Light Source capacity:0.8W


Colors:red/green/blue/yellow/transparent


Terminals:pillar type


Cable termination:25mm2


Torque of screw:2.5Nm


IP degree:IP20


Standards:IEC/EN 60947-5-1


Catalog NO.                                                                                                              CTN Size:46.5X24X17.5CM



































Color and Un Type designation QTY/Box QTY/CTN
Red 24VAC AUP1 AC 24V Red 12 120
Red 48VAC AUP1 AC 48V Red 12 120
Red  110VAC AUP1 AC 110V Red 12 120
Red  230VAC AUP1 AC 230V Red 12 120





About us:

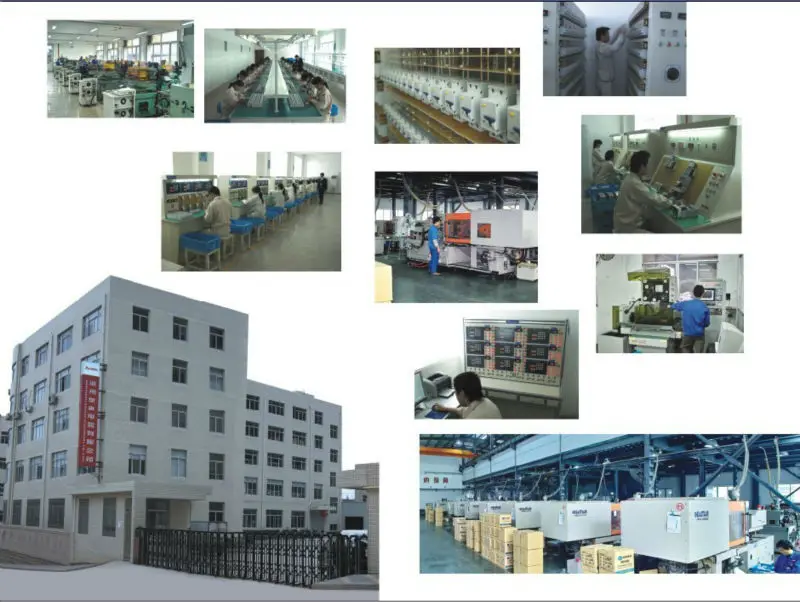

Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
