Factory Supply Handheld Fiber mini 5In 1 Laser welding machine laser Spot Welder 2000w 1500w laser welding machine
- Category: >>>
- Supplier: Smart Machine Technology Co. Ltd.Smart Ltd.
Share on (1601245533611):
Product Overview
Description
Products Description
The application of fiber laser welding machine |
Performance characteristics
●Adapt for various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials；
●The light can be emitted continuously or pulsed, not only for thermal conductivity, but also for continuous deep penetration. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, cleaning,cutting.
●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%,and the service life of the pump source is greater than 100,000 hours；
●Fast processing speed；
●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials)；
●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials)；
●It can process parts with complex shapes and small parts, and can also be processed in vacuum；
●and Robotic arm and other automated institutions Combined, the processing can be automated；
●Can realize filler wire welding,Due to advanced process imethods, exist product structures and materials can be improved.
●Can realize filler wire welding,Due to advanced process imethods, exist product structures and materials can be improved.
Model | Smart-W1000 | Smart-W1500 | Smart-W2000 | Smart-W3000 | |||
Laser type | Continuous fiber laser | ||||||
Rated output power | 1000W | 1500W | 2000W | 3000W | |||
Power adjustment range | 10%～ 100% | ||||||
Laser center wavelength | 1064nm ( ±10nm ） | ||||||
output method | Continuous/modulation | ||||||
Maximum modulation frequency | 50kHz | ||||||
Gun body air pressure (Bar) | ≤15Bar | ||||||
Fiber output interface | QBH | ||||||
Indicating system | Red light | ||||||
Torch cable length | 10m | 20m | |||||
Torch type | 5 In 1 laser head | ||||||
Collimator Specification (mm) | D16-F60 | ||||||
Focus mirror size (mm) | D20-F150 | ||||||
Wire feed diameter | 0.8, 1.0, 1.2, 1.6,2,2.5,3 | ||||||
Protective mirror size (mm) | D18xT2 | ||||||
Protective gas method | Coaxial protection | ||||||
Focus vertical adjustment range (mm) | ±10mm | ||||||
product structure | Portable/Handheld | ||||||
Product size L*D*H | 1420*620*1070mm | 1760x920x1370 | |||||
product weight | 120kg | 150kg | 200kg | ||||
Working temperature | 10～40℃ | ||||||
Working environment humidity | <70% | ||||||
Operating Voltage | Single phase 220VAC | Single phase 220VAC | 3 phase 380VAC | ||||
Total power | <=7kw | <=8.5 kw | <=11 kw | <=15 kw | |||
Other Machines You Might Be Interested In:
Company Profile
What we offer:
1) Good quality control
2) Highly competitive prices
3) Customized Machine Designs For Each Dealer.
4) On Customers' Site Training Hand to Hand
5)Remote Control Online Instructions
6) Effective OEM&ODM service
2) Highly competitive prices
3) Customized Machine Designs For Each Dealer.
4) On Customers' Site Training Hand to Hand
5)Remote Control Online Instructions
6) Effective OEM&ODM service
Our Advantage
1.Customized Service.If you are looking for a machine that meets your specific design requirements, we can help. Our customized services allow us to produce machines based on your own design drawings or even just pictures. We can create an exact replica of the machine you have in mind, ensuring that it meets all of your specific needs and requirements. So, feel free to share your designs or pictures with us and we'll get started on producing your 1:1 machine today.
2.Competitive Price.
When it comes to making a purchase, getting a competitive price is always a top priority. With so many options available in the market, finding the best deal can be a challenging task.finding a competitive price can help you save money and make the most of your budget.
3.Free Training on Site or Online.
We provide free training opportunities both on-site and online, which sets us apart from our competitors.

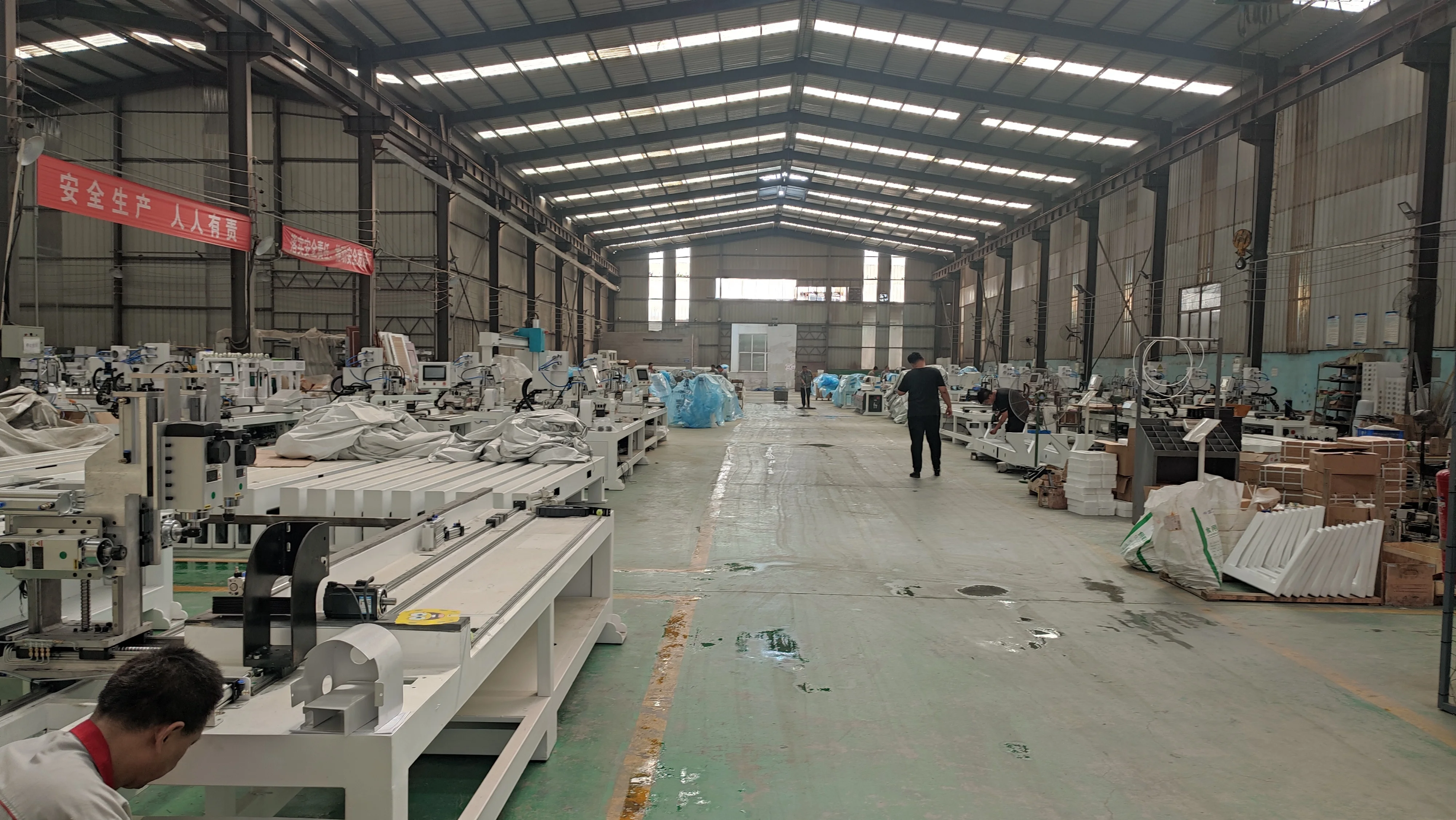

Production Process
1.Machine Structure Making By Machining Center
2.Gantry Milling
3.Rail Inspection During Installation_Rack Inspection During Installation
4.Debugging
5.Package

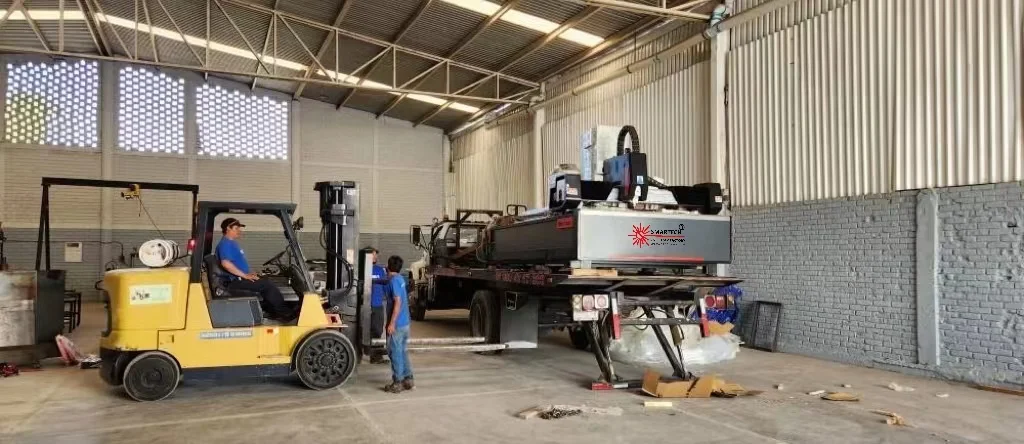

6.Transportation
Exhibition

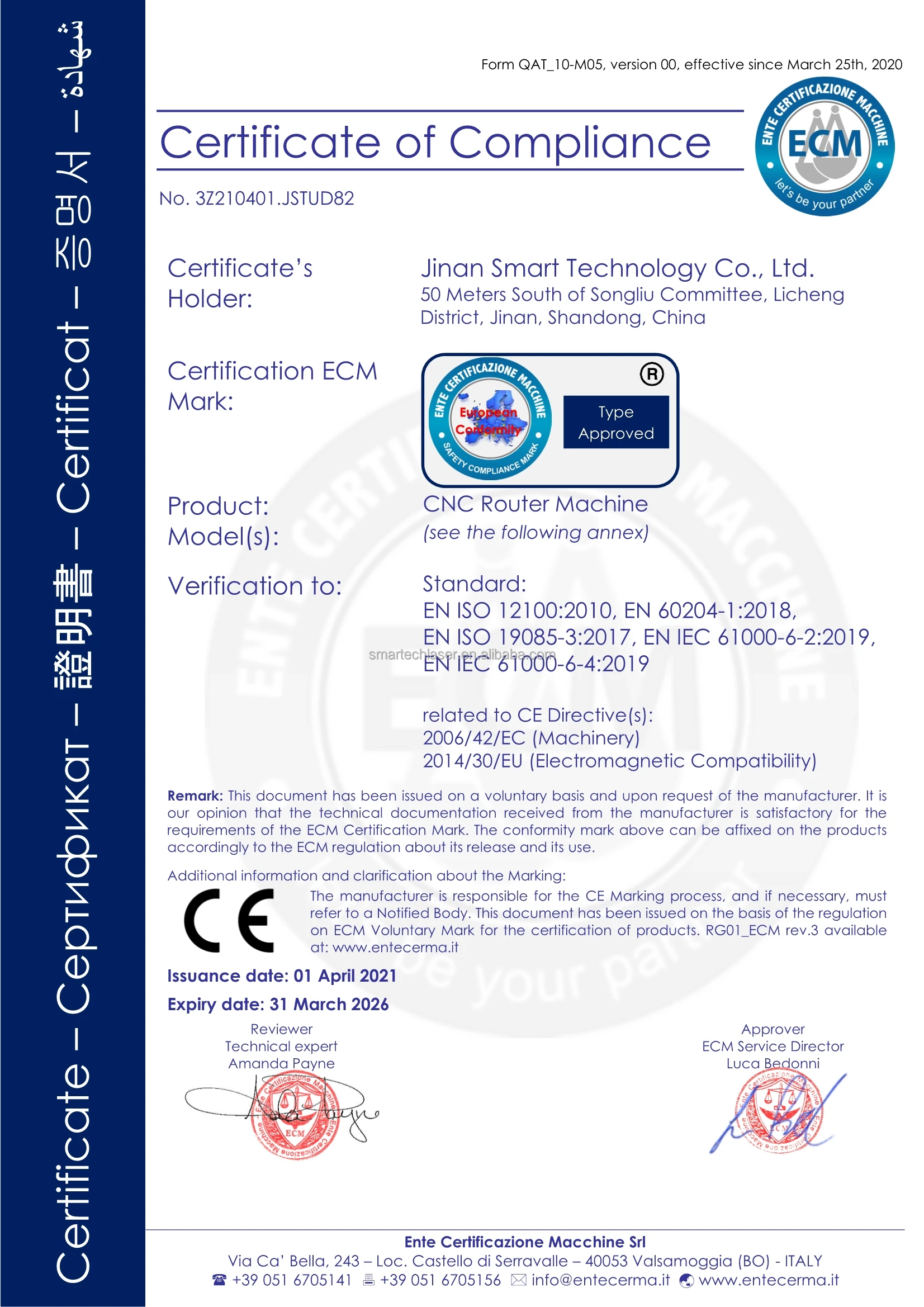

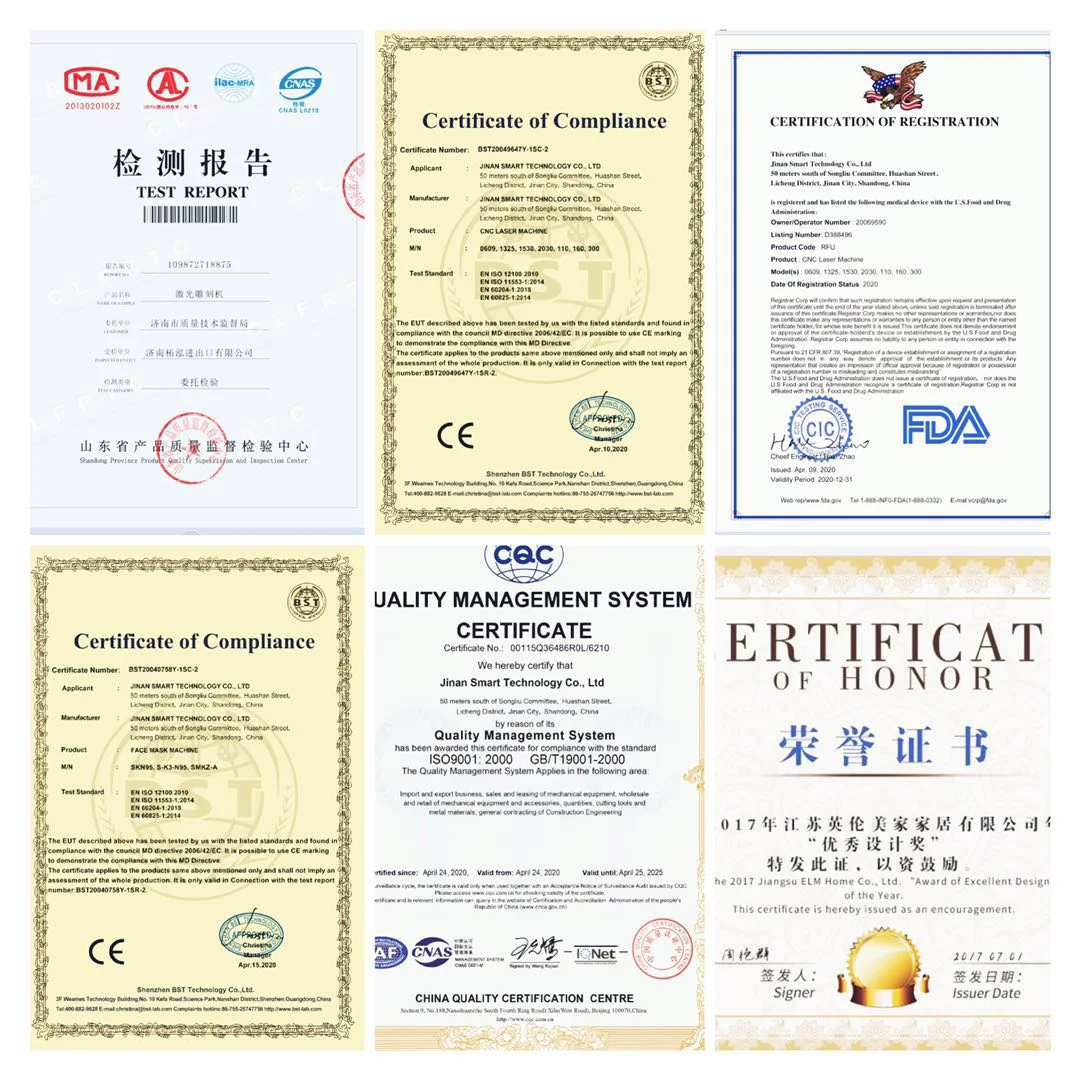

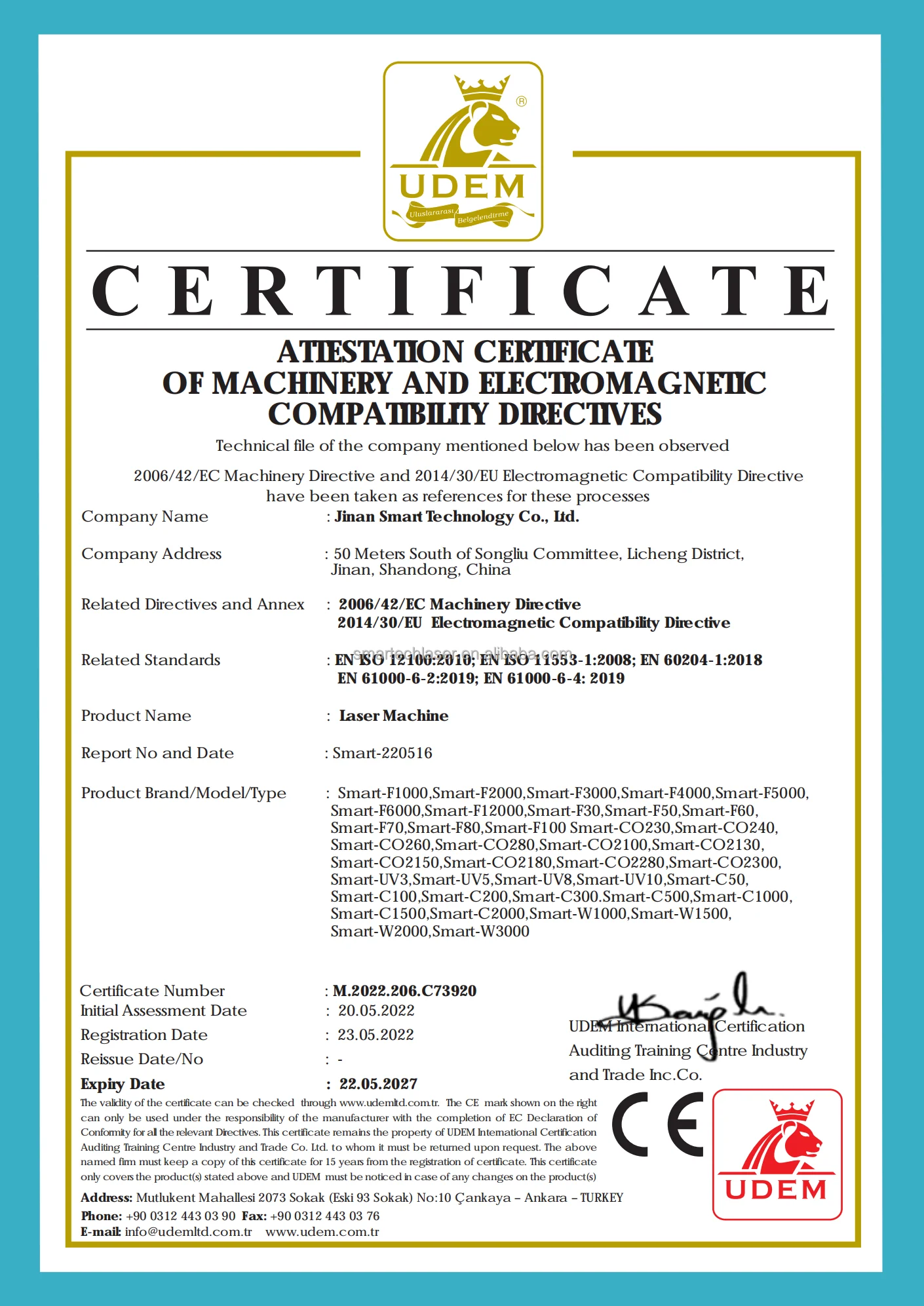

Certifications
Customer Photos
Product packaging
FAQ
Q1 :What is the payment terms?
A1:Western Union,Cash,T/T
Q2 :How long is the delivery date?(After getting the deposit)
A2:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment
Q 3:How about the shipping ways?
A3:By sea or by air
Q4 :Where is your factory located? How can I visit there?
A4:Jinan City, Shandong Province, China,
Q5: How about your laser machine package?
A5: Standard export wood package with free fumigation
Q6 How about the quality guarantee period?
A6: 5 Years
Q7: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
Q8: How can I do if the machine goes wrong?
A8: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q9: How can I know your machine is designed for my product?
A9: You can send samples to us for marking to check the quality, we can help you to do sample testing. Free sample marking service is provided.
Q10:.If there is some problems for some parts during warranty period, will your company repair or replace for me?
A10:Yes, we will. we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. ( PS: Not including the consumable parts and Man-made damage. )
Q11:Will the machine will send to my door?
A11:1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
A1:Western Union,Cash,T/T
Q2 :How long is the delivery date?(After getting the deposit)
A2:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment
Q 3:How about the shipping ways?
A3:By sea or by air
Q4 :Where is your factory located? How can I visit there?
A4:Jinan City, Shandong Province, China,
Q5: How about your laser machine package?
A5: Standard export wood package with free fumigation
Q6 How about the quality guarantee period?
A6: 5 Years
Q7: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
Q8: How can I do if the machine goes wrong?
A8: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q9: How can I know your machine is designed for my product?
A9: You can send samples to us for marking to check the quality, we can help you to do sample testing. Free sample marking service is provided.
Q10:.If there is some problems for some parts during warranty period, will your company repair or replace for me?
A10:Yes, we will. we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. ( PS: Not including the consumable parts and Man-made damage. )
Q11:Will the machine will send to my door?
A11:1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
Q12:.Can I buy spare parts from your company if I have spare parts in the future?
A12:Yes, please. Our company supply spare parts for all of our machine.
Q13: How about the documents after shipment?
A13:After shipment, we'll send documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q14: Is the machine safe to operate?
A14:Yes, the laser is completely safe to operate SMARTECH Laser machines offer so many safe system, like leakage proof socket, emergency stop button ,water alarm, red dot focus.
Q15: Which countries are your laser machinery sold to?
A15: Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
Q16: What's your quality control system?
A16: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q17: What about wholesale price?
A17:If you are a wholesaler, distributor, or agent, please contact us to obtain the wholesale price
Q18:Does the machine can be customized according to my requirements ?
A18:Sure, ODM support
Q12:.Can I buy spare parts from your company if I have spare parts in the future?
A12:Yes, please. Our company supply spare parts for all of our machine.
Q13: How about the documents after shipment?
A13:After shipment, we'll send documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q14: Is the machine safe to operate?
A14:Yes, the laser is completely safe to operate SMARTECH Laser machines offer so many safe system, like leakage proof socket, emergency stop button ,water alarm, red dot focus.
Q15: Which countries are your laser machinery sold to?
A15: Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
Q16: What's your quality control system?
A16: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q17: What about wholesale price?
A17:If you are a wholesaler, distributor, or agent, please contact us to obtain the wholesale price
Q18:Does the machine can be customized according to my requirements ?
A18:Sure, ODM support
