Factory Price 100m 150m 200m 300m 350m 600m Steel Crawler Mounted Water Well Drilling Rig Machine Hydraulic Core Drilling Rig
- Category: >>>
- Supplier: Shandong Yugong Intelligent Equipment Group Co. Ltd.Shandong Ltd.
Share on (1601245574699):
Product Overview
Description

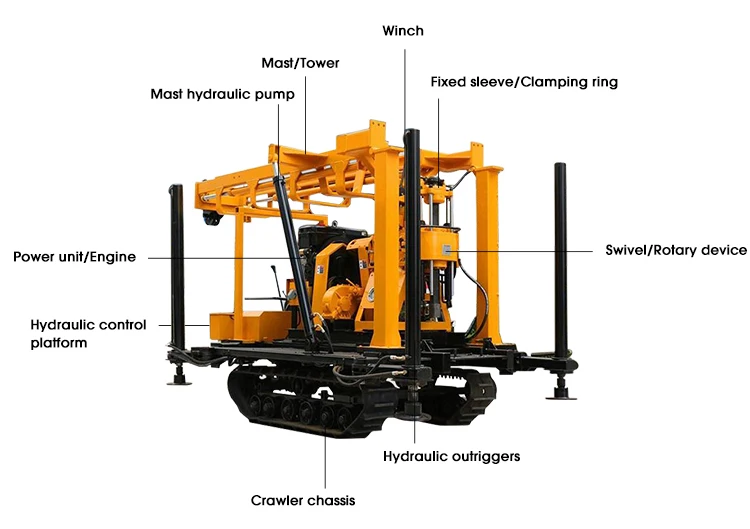

Product Structure

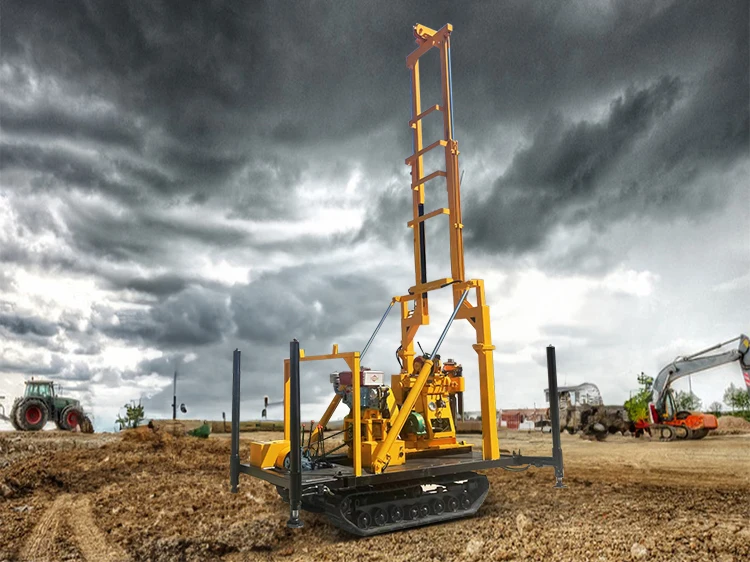

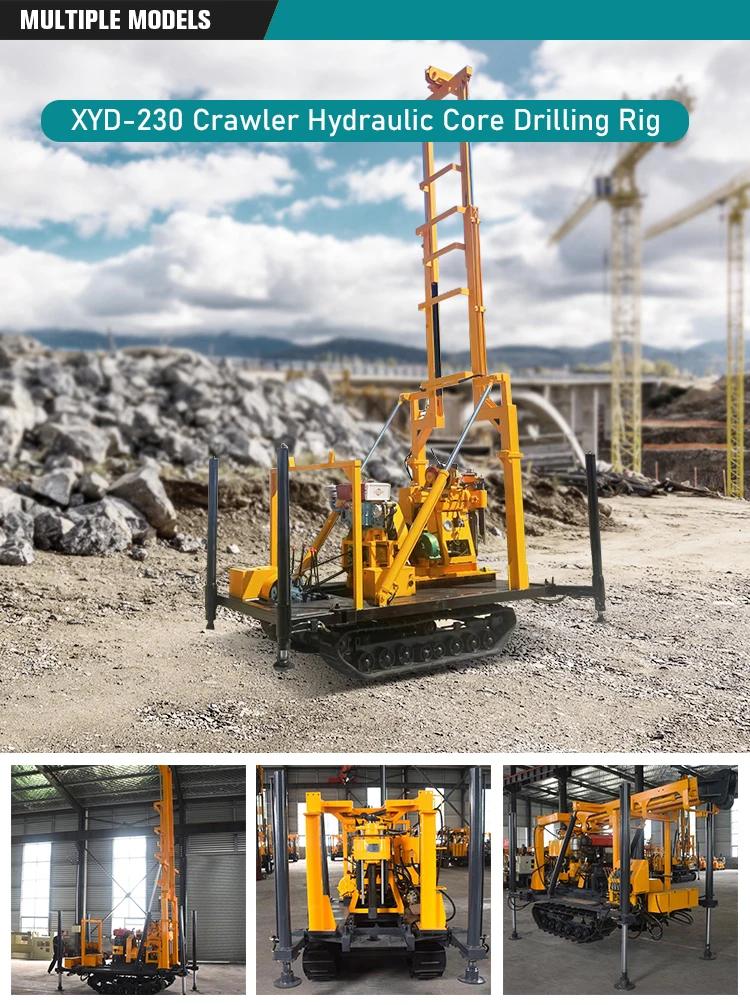

XYD-230 Crawler Hydraulic Core Drilling Rig, divided into complete models and high efficiency, adopt the latest technology, and can be customized according to customer needs to adapt to various working environments. The hydraulic fixture system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs
The listed price is only the factory deposit price. If you want to know the specific price, please contact me to provide you with perfect machine matching and price.
Model | XYD-230 | |
Drilling depth | 230m | |
Maximum opening diameter | 75-300mm | |
Final hole diameter | 75mm | |
Kelly | 53/59*4200mm | |
Drill pipe diameter | 50/60mm | |
Drilling angle | 90°-75° | |
Auxiliary power diesel engine | 14.7kw 2200r/min | |
Structural weight/Size | 3000kg 3800*1950*2700 | |
Spindle | ||
Spindle speed | 64/128/287/557r/min | |
Spindle stroke | 450mm | |
Windlass | ||
Single rope lifting force | 24kn | |
Single rope lifting speed | 0.12/0.22/0.49/0.95m/s | |
Drum diameter | 140mm | |
Wire rope diameter | 13mm | |
Wire rope capacity | 35m | |
Derrick | ||
Rated load | 5t | |
Effective height | 6m | |
Tower leg specification | 89mm | |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

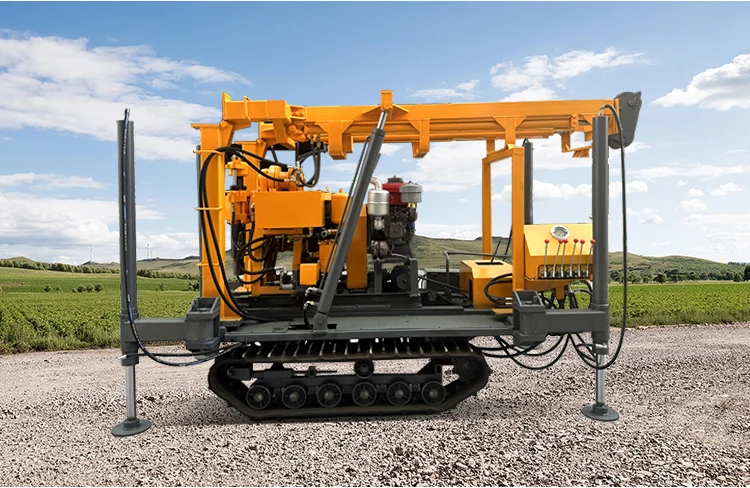

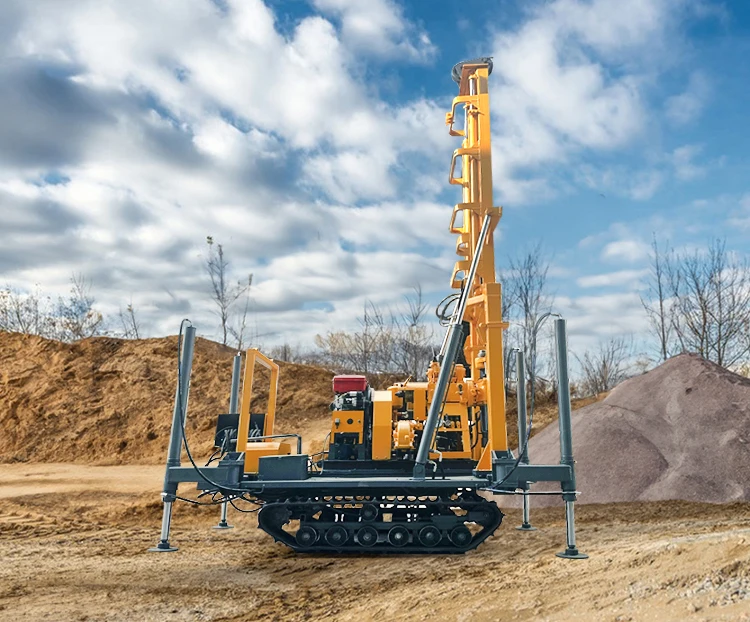

Product Display
Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method, all these guarantee the drill rig’s high operation and performance efficiency.
Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

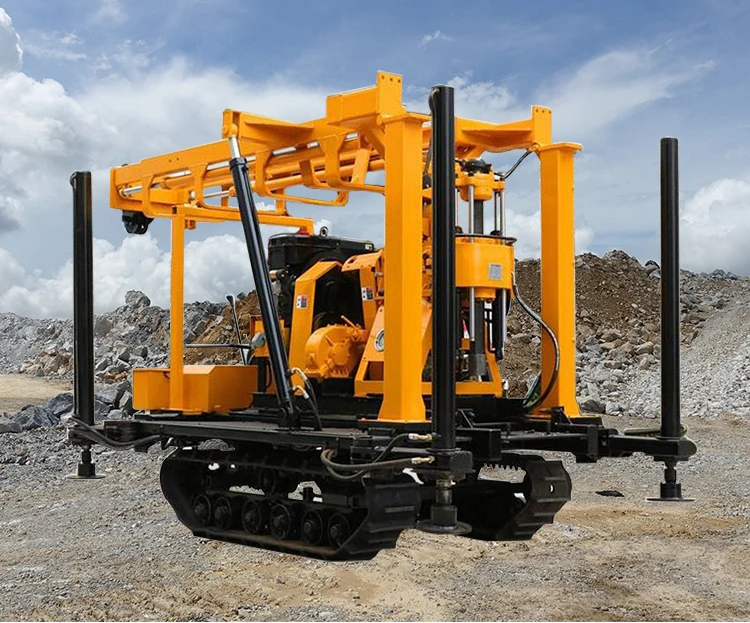

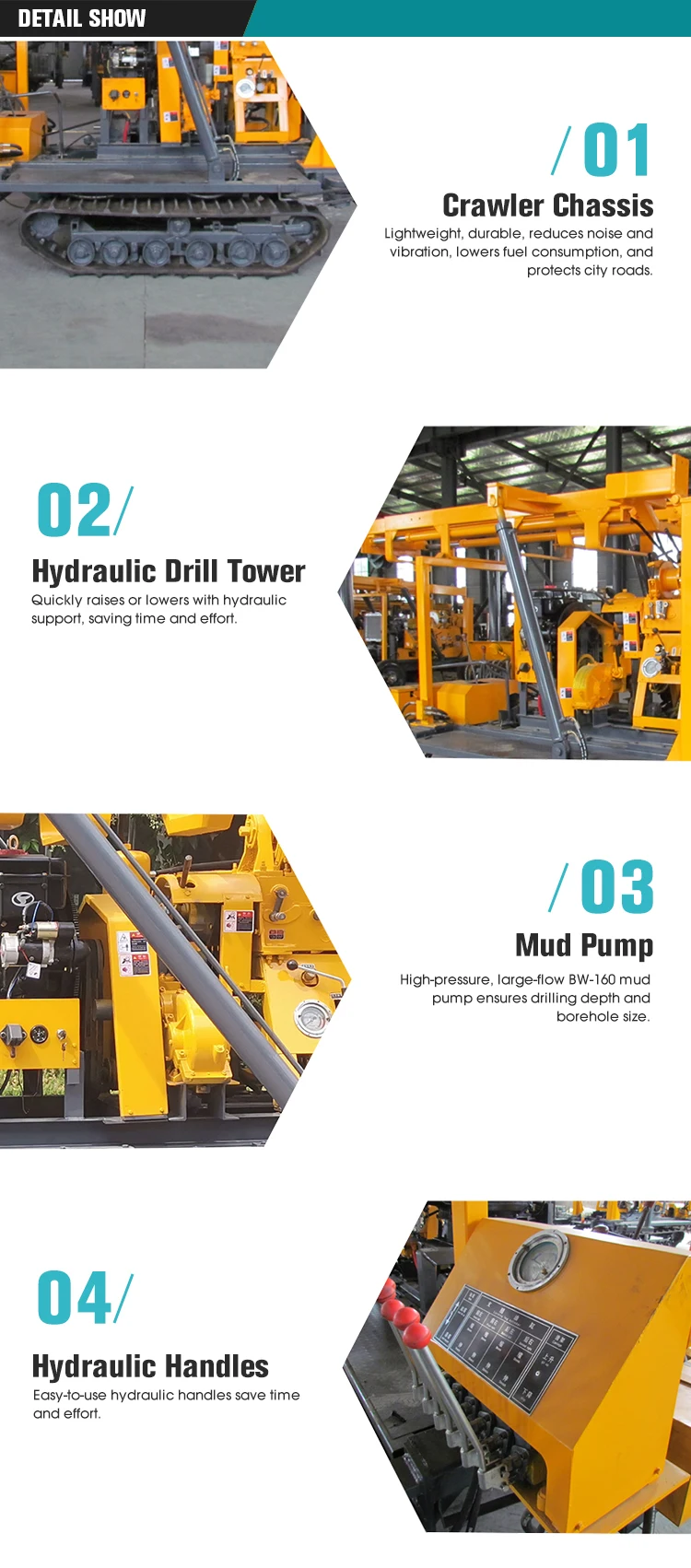

Detail Show
Application

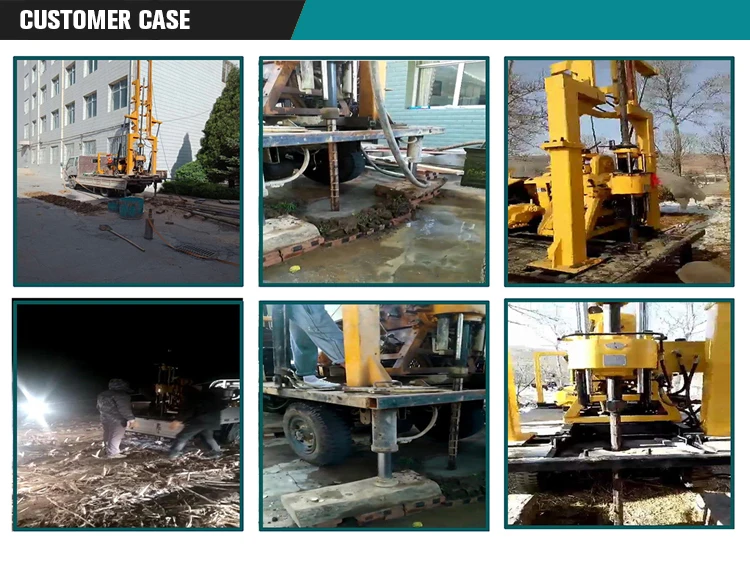

For Pile Drivingand Anchoring,Water Well,Water Conservancy, Power Station,Etc
Shandong Yugong intelligent Equipment Group Co., LTD (hereinafter referred to as "Yugong Group") was established in 2019 and is located in Jining City, Shandong Province, which is known as "the hometown of Confucius and Mencius, the state of etiquette". It is adjacent to Qufu, the "Holy City of the East", Liangshan, the "City of Heroes" in the west, Weishan Lake, the "Lingxiu of Qilu" in the south, and Mount Tai, the "Top of the Five Mountains" in the north, men of civil and military prosperity, people are outstanding. The Beijing-Hangzhou Grand Canal, Jining Airport, Beijing-Shanghai High-speed Railway, Rizhao-Lankao High-speed Railway, Beijing-Taipei Expressway, and Rizhao-Lankao Expressway crisscross, with convenient transportation and developed communications.
Yugong Group complies with the national development direction, actively promotes the in-depth development of machinery and equipment industry, implements the diversified development strategy, gradually develops from a single industrial and mining equipment and machinery factory in the past to a scientific and technological machinery industry group with "Emergency equipment rilling machinery, engineering machinery, road machinery, agricultural and forestry machinery"five fields as the core of research and development, design, production and manufacturing, marketing services as one.
Yugong Group complies with the national development direction, actively promotes the in-depth development of machinery and equipment industry, implements the diversified development strategy, gradually develops from a single industrial and mining equipment and machinery factory in the past to a scientific and technological machinery industry group with "Emergency equipment rilling machinery, engineering machinery, road machinery, agricultural and forestry machinery"five fields as the core of research and development, design, production and manufacturing, marketing services as one.
Certifications
FAQ
Q1. How can we guarantee quality?
A: We always provide a pre-production sample before mass production; we also conduct final inspection before shipment. Our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
Q2. Can you do OEM for me?
A: We accept all OEM orders. Just contact us and provide your design, and we will offer you a reasonable price and make samples for you as soon as possible.
Q3. Are you a manufacturer or trading company?
A: We are a professional manufacturer with a large, modern factory in Shandong, China.
Q4. What services can we provide?
A: We offer the following services:Delivery Terms: FOB, CFR, CIF
Accepted Payment Currencies: USD, EUR, CAD, AUD, GBP, CNY
Accepted Payment Types: T/T, L/C, D/P, D/A, PayPal, Cash
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
A: We always provide a pre-production sample before mass production; we also conduct final inspection before shipment. Our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
Q2. Can you do OEM for me?
A: We accept all OEM orders. Just contact us and provide your design, and we will offer you a reasonable price and make samples for you as soon as possible.
Q3. Are you a manufacturer or trading company?
A: We are a professional manufacturer with a large, modern factory in Shandong, China.
Q4. What services can we provide?
A: We offer the following services:Delivery Terms: FOB, CFR, CIF
Accepted Payment Currencies: USD, EUR, CAD, AUD, GBP, CNY
Accepted Payment Types: T/T, L/C, D/P, D/A, PayPal, Cash
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
