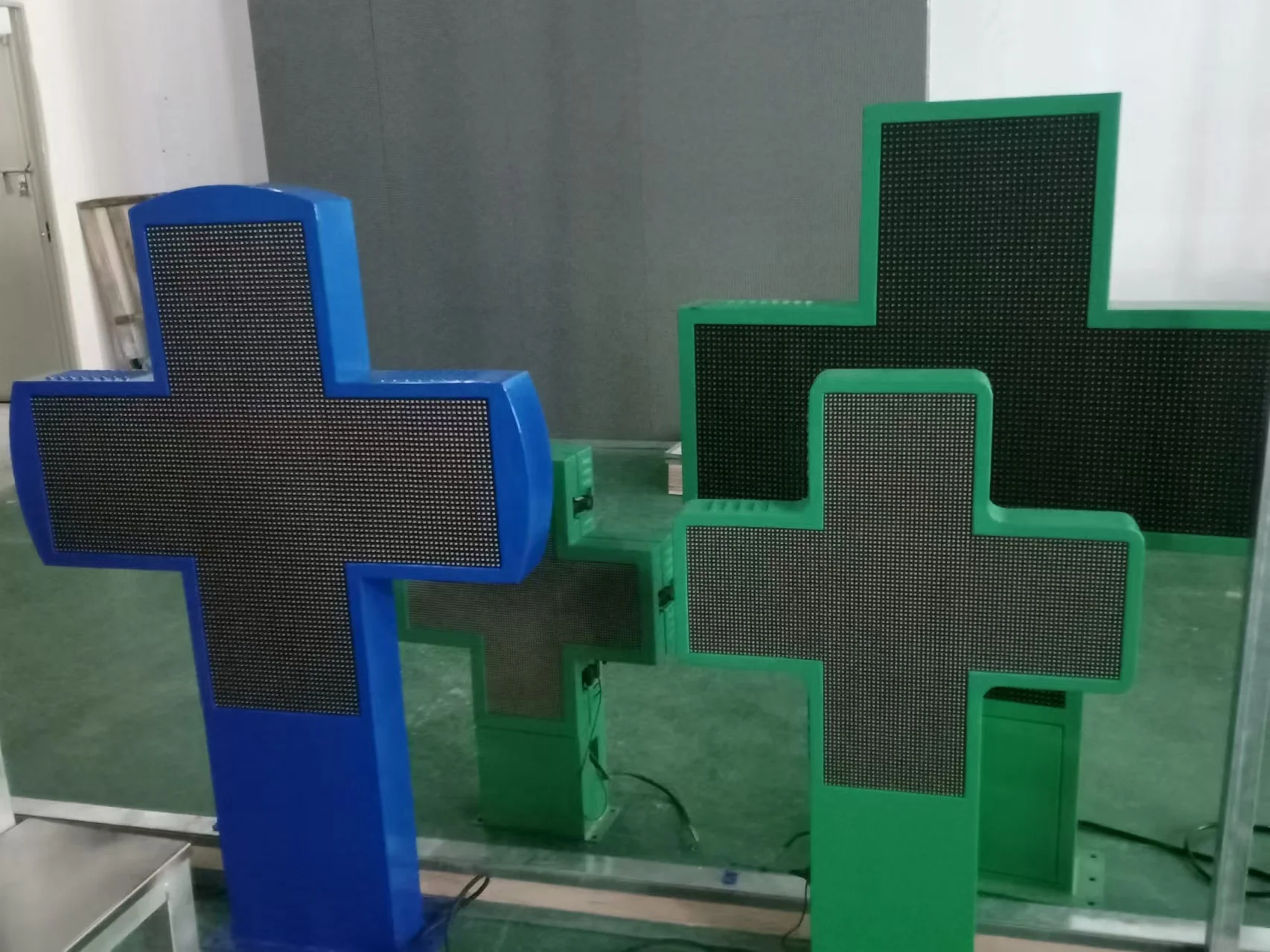

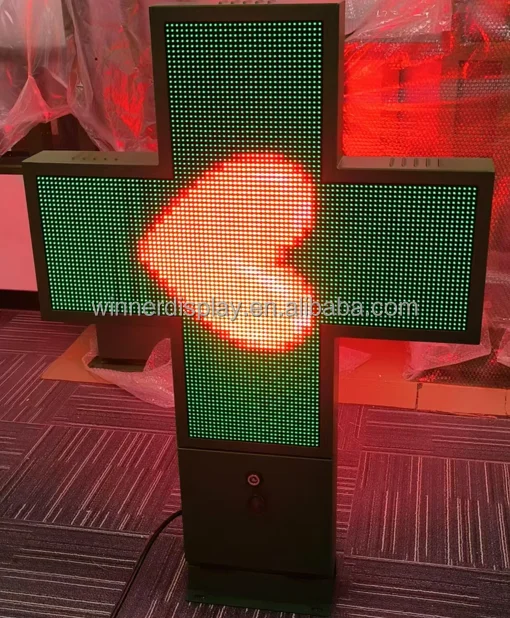

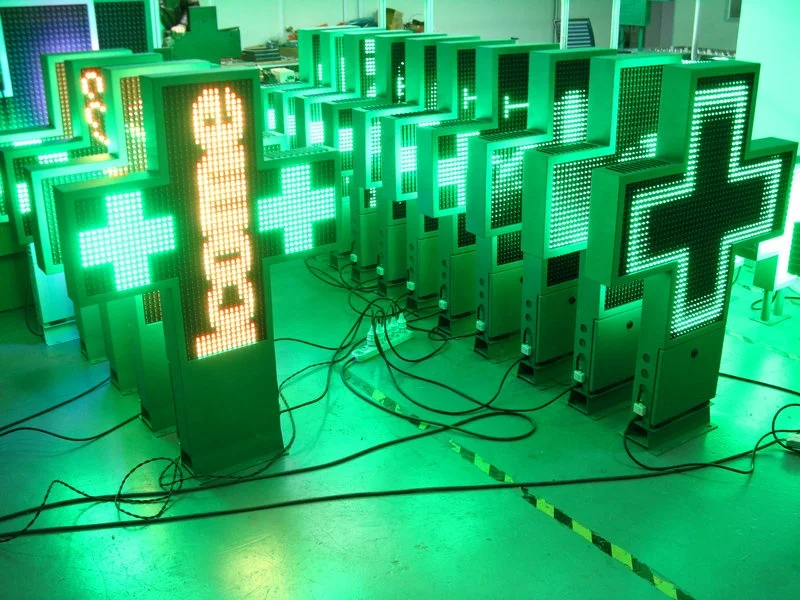

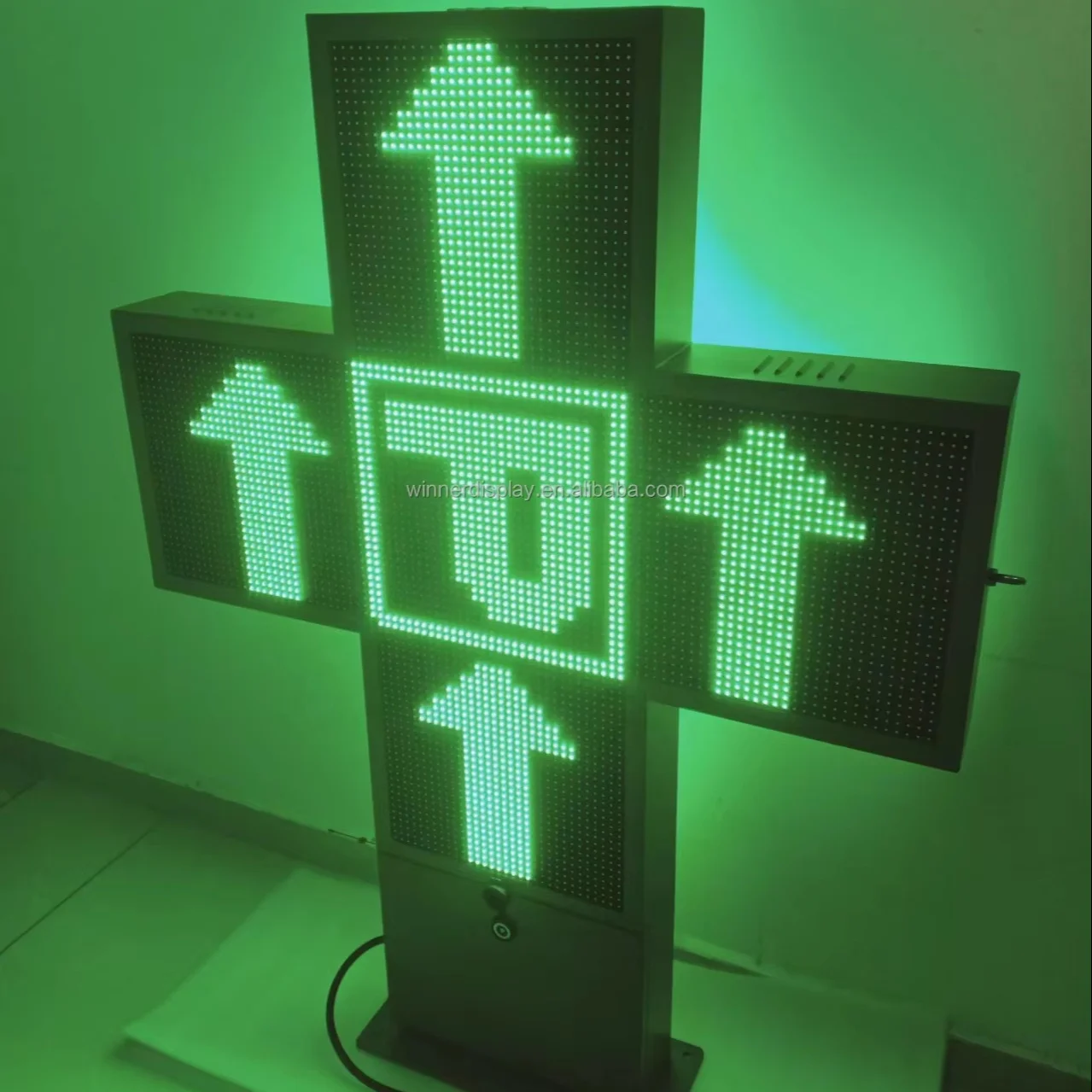

P8 led pharmacy cross sign outdoor full color 800mm HD 3d effect animation pharmacy cross led screen for advertisement
- Category: >>>
- Supplier: Shenzhen Leading Optronics Co. Ltd.
Share on (1601245621132):
Product Overview
Description
Product Description
Item | LD-800P8ODSMDDSFC |
Pixel pitch | 8mm |
Pixel configuration | 1RGB |
Pixel resolution | 96×96dots |
Max brightness | ≥55000 CD |
View angle(horizontal) | ±60° |
Gray-scale | 4096 grade |
Input voltage(AC) | 220V |
Work voltage(DC) | 5V |
Max power consumption | 600W |
Cooling way | Natural cooling |
Control mode | PC asynchronous control |
Communication mode | Wifi / LAN / RF wireless communication(Optional) |
Support program | Animation,text,date,time,temperature |
Protection level | IP65 |
MTBF | 30000h |
Life span | 100000h |
Operation temperature | －20～60℃ |
Operation humidity | 10%～90% |
Cabinet material | Iron / Aluminum frame |
Standard size | 1050(L) ×820(H) ×100(T)mm |
Net weight | 26KG(Iron frame) |
Packing size | 1120(L) ×890(H) ×240(T)mm |
Features
* 96*96 pixel dots resolution
* Low power, super high brightness
* Outdoor waterproof
* Animation/Video/Time/Temperature....
* AC 1100V～240V input voltage
* WIFI / LAN / RF wireless communication
* 2 years warranty
Installation methods

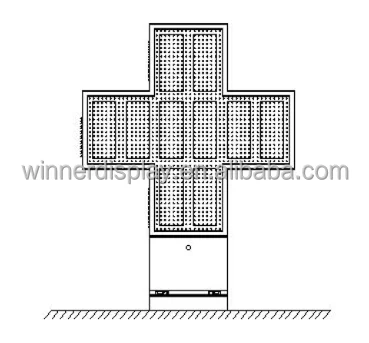

1. Mount on a base or on the ground

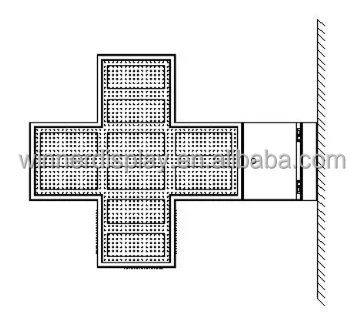

2. Mount on the wall

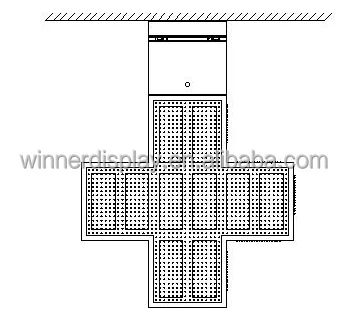

3. Mount on the ceiling
Product Usage

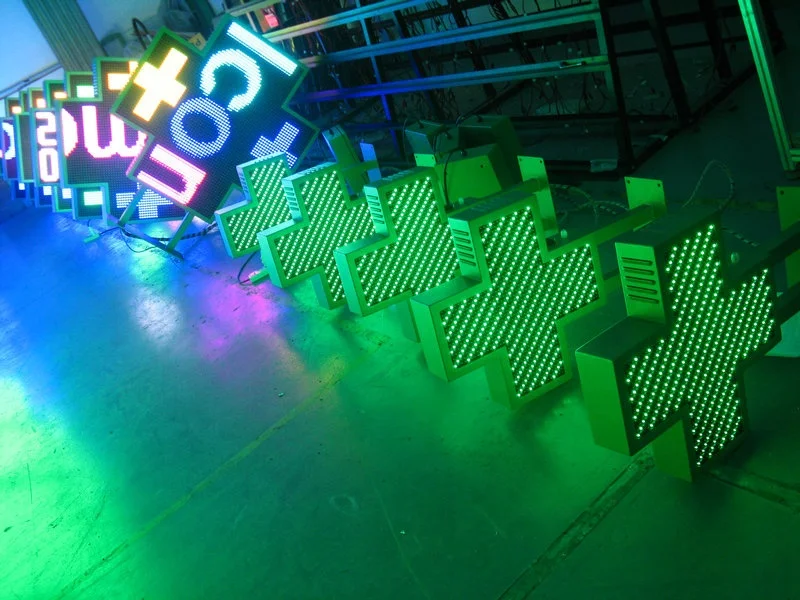

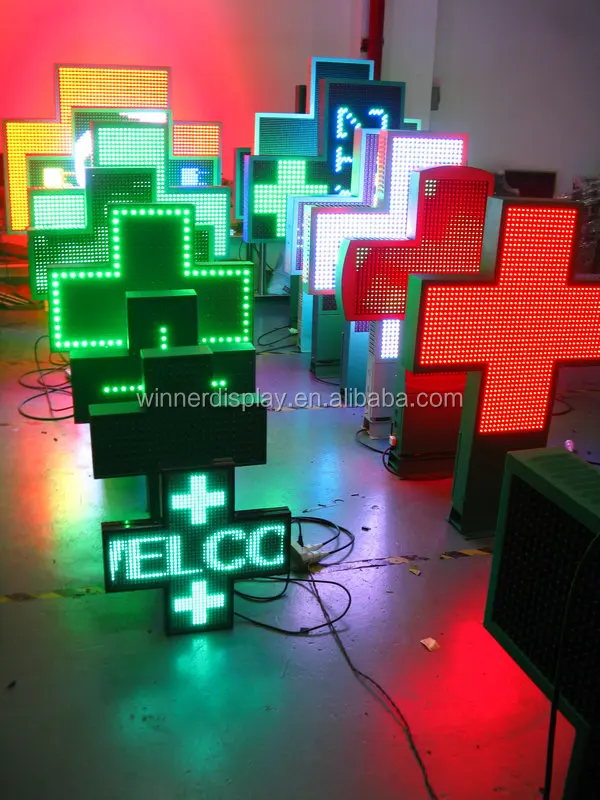

Styles and sizes of pharmacy crosses we do:
1. Size: 500mm/600mm/800mm...
2. Pixel Pitch: P2.5, P3, P4, P5, P6, P8....
3. Color: single/double /full color
4. Single side / double sides
5. With support / without support
6. Programmable / non-programmable
7. WIFI / LAN / RF Communication
We also accpet customized according to your requiremnts, please contact us freely when you need!

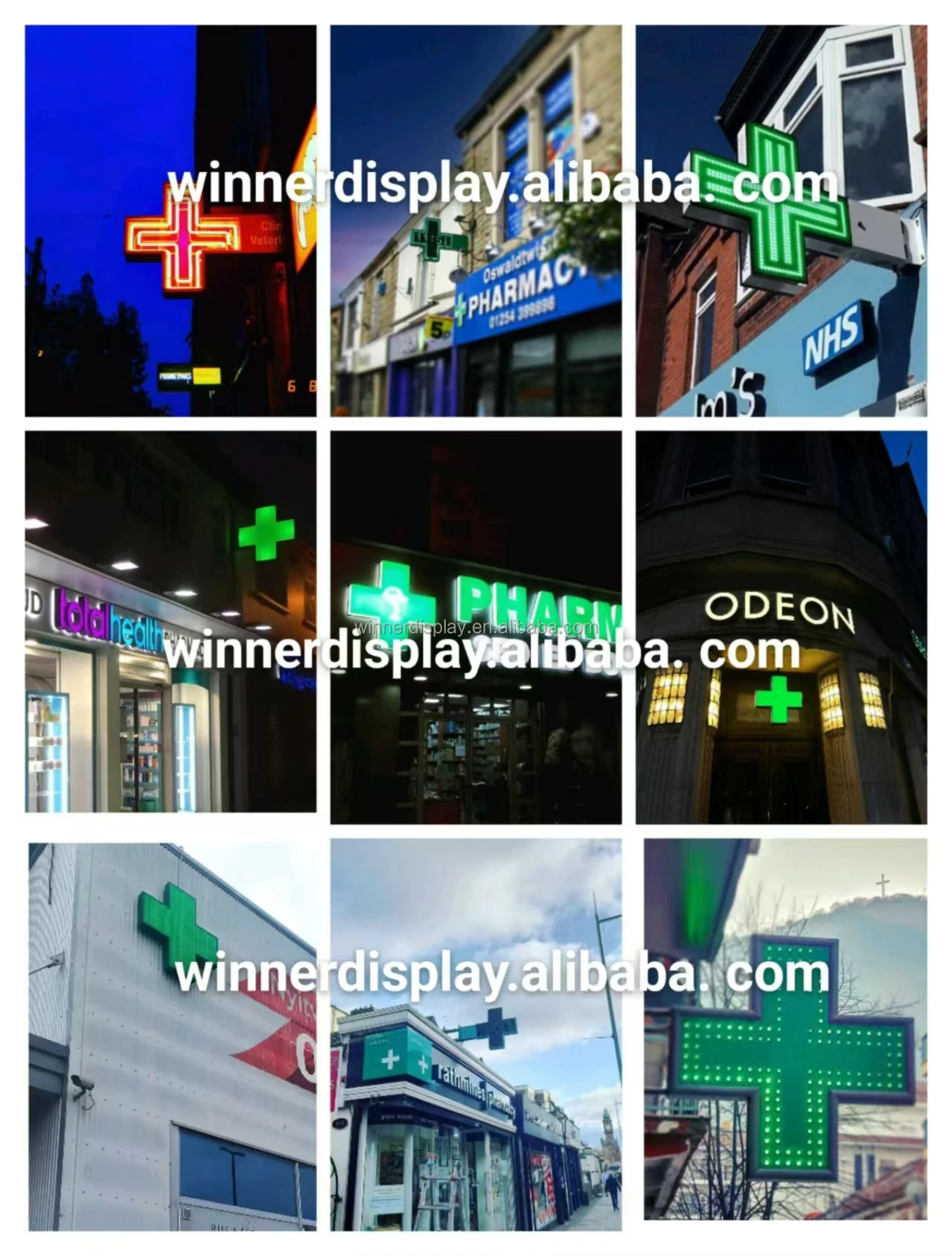

Application and Cases
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. It for the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad....
Related Products
Packing&Shipping

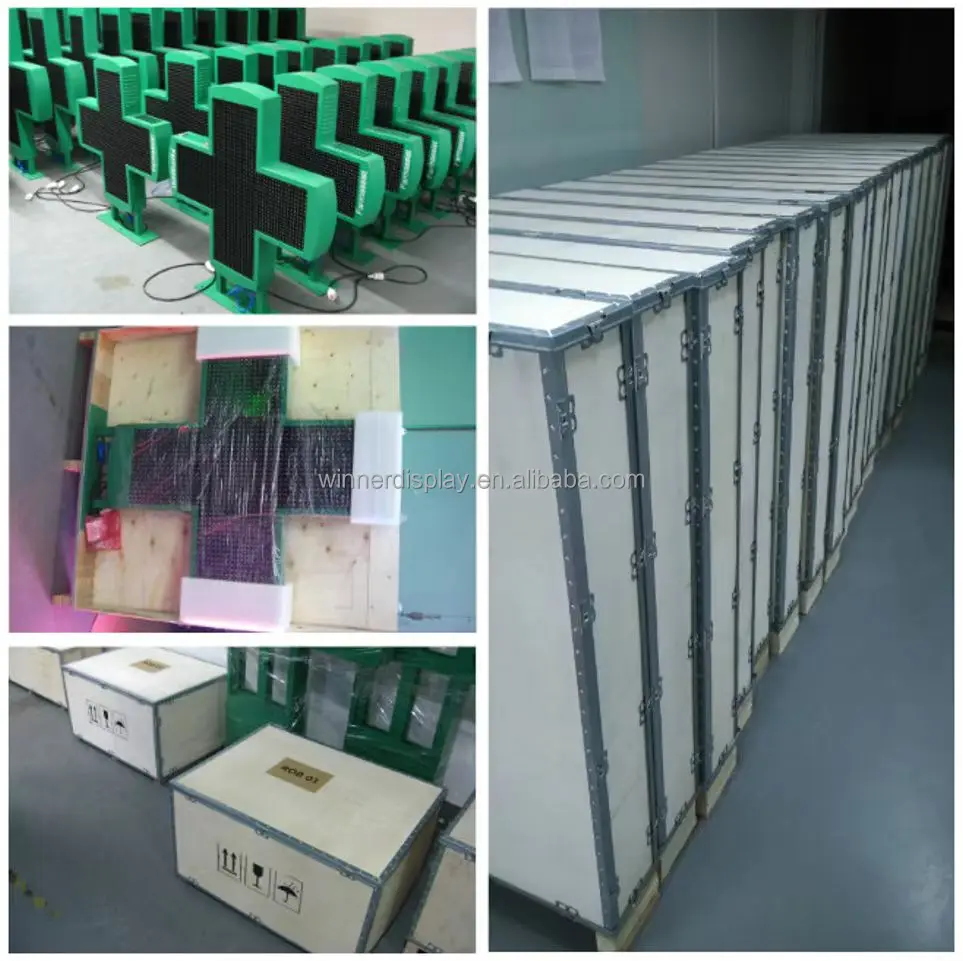

Package

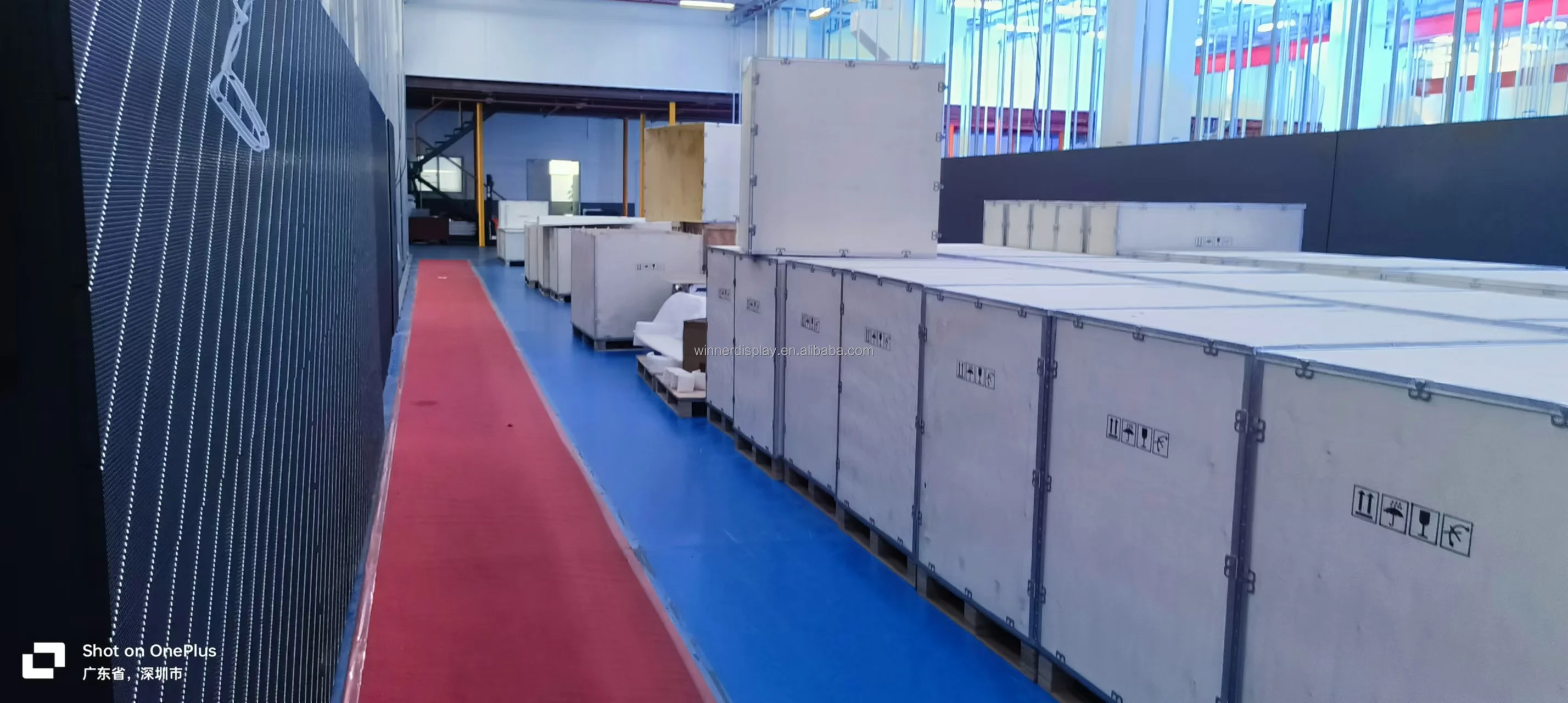

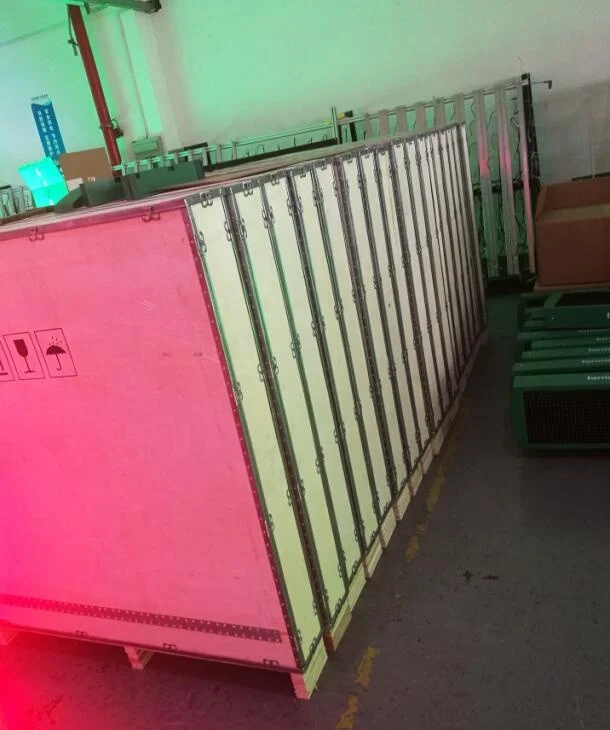

Standard export carton, wooden or flight case packing depend on the order.
Shipping
After confirming order, shipping way and detail delivery date should be decided according to clients's requirements, production season and order quantity.

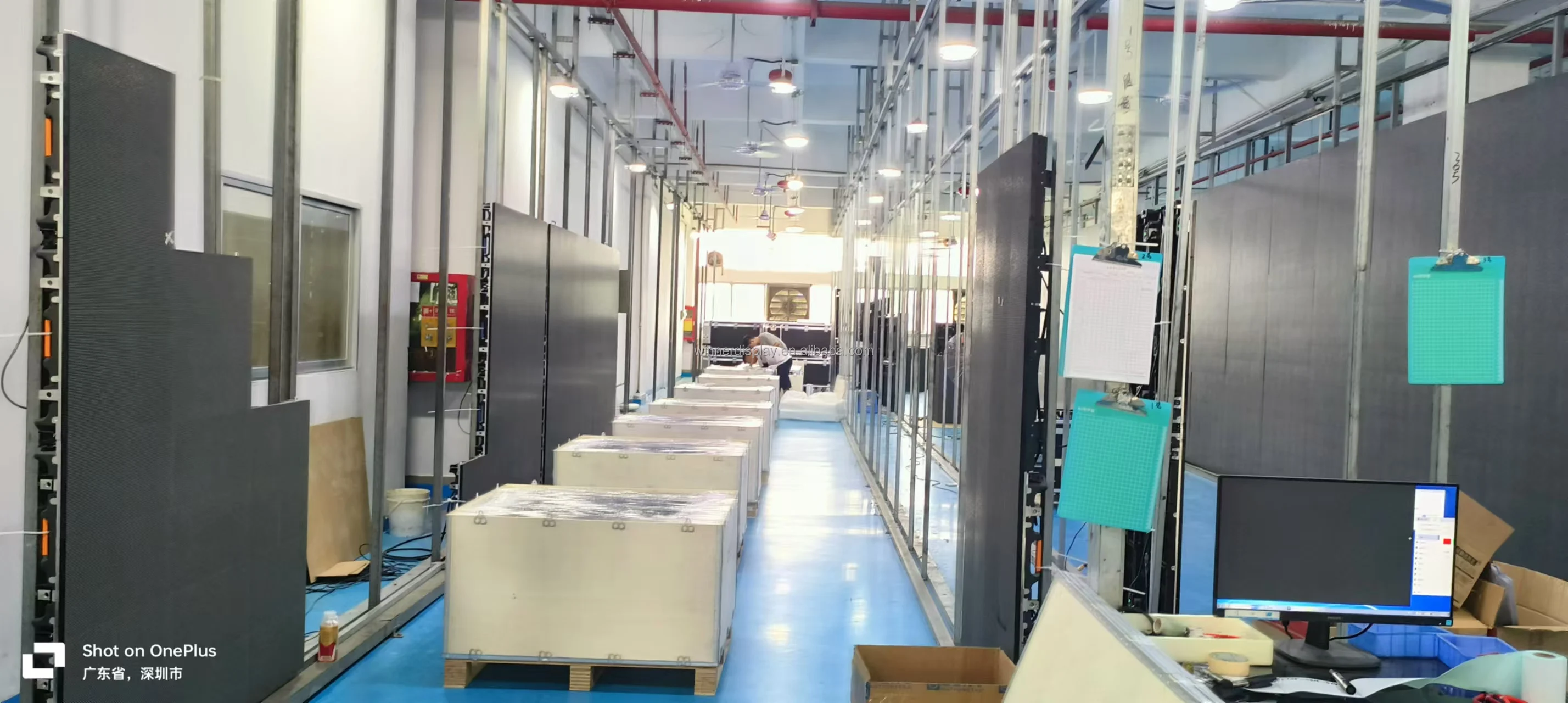

Company Introduction

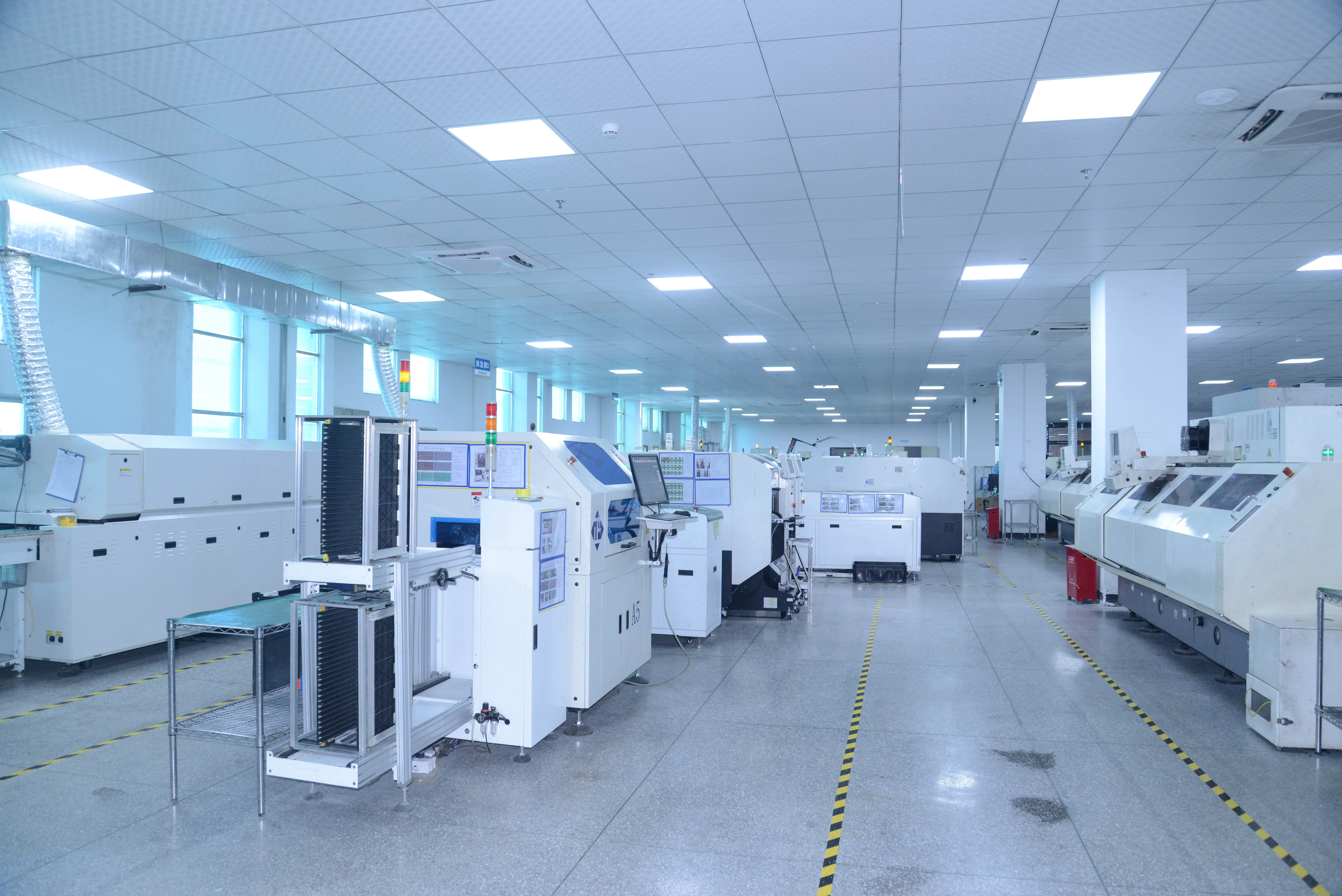

Shenzhen Leading Optronics CO.,Ltd is a professional manufacturer which is engaged in the research and development, production, sales and technical services of LED display over 10 years in China.
We have an experienced technology team and marketing group.Our main products and focus on LED Display, rental led display, transparent led display, LED Module, led pharmacy cross, led bus sign and etc. We also can according to customers demand to customize all led display solutions and LED products.Our company with rich experience in manufacturing, reliable production technology, advanced equipment, efficient management, and at a reasonable price, fast delivery, and perfect and efficient technical support to continuously improve its power and influence, won the society from all walks of life and the vast majority of customers trust and support.
Our company introduction of modern quality management system continuously strengthen standardized, scientific, and improve the management level, ensure the process from the raw material supply, production, sales and customer service of the entire process links such as specification, thus ensuring the stability of product quality. In line with the business philosophy of "people-oriented, integrity management, service customer and mutual benefit", the company is willing to work together with customers and people of insight to develop together and create a better tomorrow! Our products are completely made by advanced equipment and cheap production cost, so we can ensure that we can provide our customers with great output, lower price and better service.We are waiting for you!
We have an experienced technology team and marketing group.Our main products and focus on LED Display, rental led display, transparent led display, LED Module, led pharmacy cross, led bus sign and etc. We also can according to customers demand to customize all led display solutions and LED products.Our company with rich experience in manufacturing, reliable production technology, advanced equipment, efficient management, and at a reasonable price, fast delivery, and perfect and efficient technical support to continuously improve its power and influence, won the society from all walks of life and the vast majority of customers trust and support.
Our company introduction of modern quality management system continuously strengthen standardized, scientific, and improve the management level, ensure the process from the raw material supply, production, sales and customer service of the entire process links such as specification, thus ensuring the stability of product quality. In line with the business philosophy of "people-oriented, integrity management, service customer and mutual benefit", the company is willing to work together with customers and people of insight to develop together and create a better tomorrow! Our products are completely made by advanced equipment and cheap production cost, so we can ensure that we can provide our customers with great output, lower price and better service.We are waiting for you!
Our Services
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and years technical team who are willing to answer your question freely. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems.
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T, PayPal, West Union, L/C.... At least 50% deposit in advance, and the rest 50% before delivery.
Our average production time is 7-15 days, after receiving the deposit.
Q4: What's the control system?
A4: We usually use Nova, Linsn, Huidu, Colorlight, LUMEN, ONBON or XIXUN control system, and also we can make it as your requests.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for over ten years what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, please contact us freely.
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and years technical team who are willing to answer your question freely. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems.
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T, PayPal, West Union, L/C.... At least 50% deposit in advance, and the rest 50% before delivery.
Our average production time is 7-15 days, after receiving the deposit.
Q4: What's the control system?
A4: We usually use Nova, Linsn, Huidu, Colorlight, LUMEN, ONBON or XIXUN control system, and also we can make it as your requests.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for over ten years what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, please contact us freely.
