Flat Glass or Single Curvature Glass Tempering Furnace for Safety Building Glass
- Category: >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (1601245626352):
Product Overview
Description
Product Description

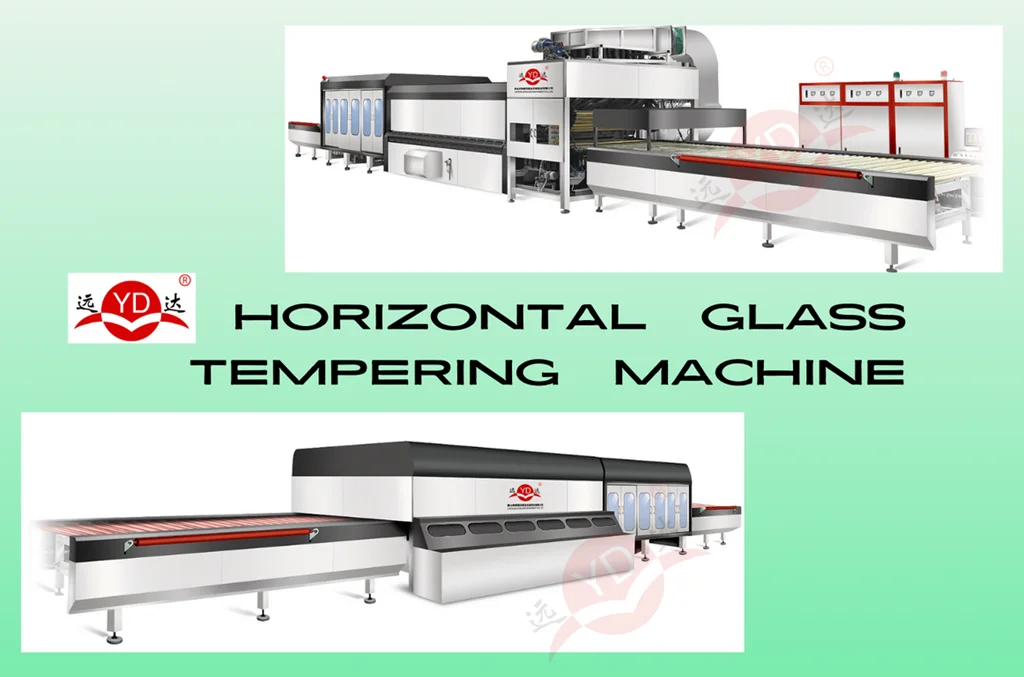

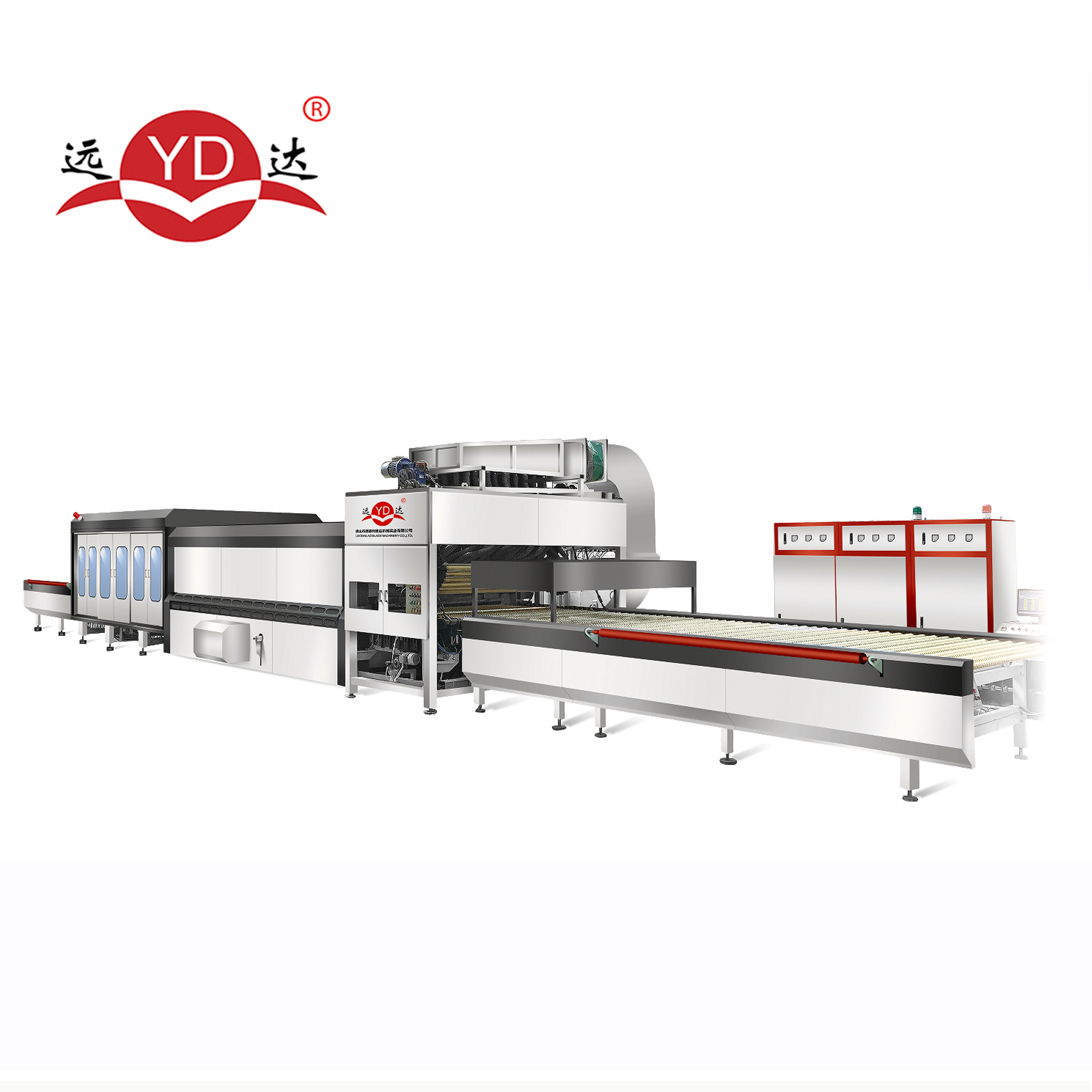

*Horizontal Flat Glass Tempering Furnace
*Flat/Bent Glass Tempering Furnace
(Radiation Heating/Convection Heating)
Liaoda's YD-F series Glass Tempering Furnace is used to make tempered glass.
Tempered glass, also named toughed glass, is widely applied to the building and furniture industry, for its higher safety performance.
Specification
Model | YD-F-1225 | YD-F-2436 | YD-F-2442 | YD-F-2860 |
Max.Glass Width(mm) | 1200 | 2440 | 2400 | 2800 |
Max.Glass Length(mm) | 2500 | 3660 | 4200 | 6000 |
Min.Glass Size(mm) | 100x150 | 200x300 | 200x300 | 400x500 |
Glass Thickness(mm) | 4-19 | 4-19 | 4-19 | 5-19 |
Production Capacity(sqm/h) | 45 | 113.8 | 130.6 | 214.2 |
Heating Power(kW) | 180 | 536 | 589 | 1092 |
Blower Power(kW) | 75 | 305 | 325 | 445 |
Total Length(m) | 13.5m | 19.7m | 21m | 28m |
Features:
1. Function: To manufacture tempered/toughened/heat-enforced safety glass which is widely applied in furniture, construction, door and window industry, etc. 2. Processed Glass Range: Glass of 4-19mm thickness
-Transparent float glass or flat glass
-Mass color float glass or flat glass
-Single face silk-screen printing glass
-Coated glass ( single, double, triple silver LOW-E glass)
-Mass color float glass or flat glass
-Single face silk-screen printing glass
-Coated glass ( single, double, triple silver LOW-E glass)
3. PLC: Germany-made BECKHOFF control system. User-friendly and easy to operate.
Clear and straight-forward interface with multi-language option.
4. Flat tempering furnace consisted of 5 main parts: glass loading table, heating section, passing section, cooling section and unloading table.
5. Bent/Flat tempering furnace has a bending structure to make tempered bent glass.
5. We can provide custom-made machine to process glass of different size.
DETAILS IMAGES
Glass loading table with auxiliary wheels
Easy to transport large size glass
High pressure blower
Powerful centrifugal blower for air supply system.
Quality and high accurate ceramic rollers
Horizontal ceramic roller bed to ensure high accurate positioning and presice temperature control.
Efficient heat insulation structure
High density and high strength thermal-insulating materials to ensure good heating performance and lower energy consumption.
Efficient quenching system
Improve air exchange efficiency and facilitate heat emission.
Aramid roller rope
High density aramid rope can resist frequent abrasion and heat.
Stable German BECKHOFF PLC
Stable and user-friendly control system.
Easy to operate.
Good toughening performance
To increase the glass strength after tempering.
Bending section
Automatic bending the glass according to your curve requirement.

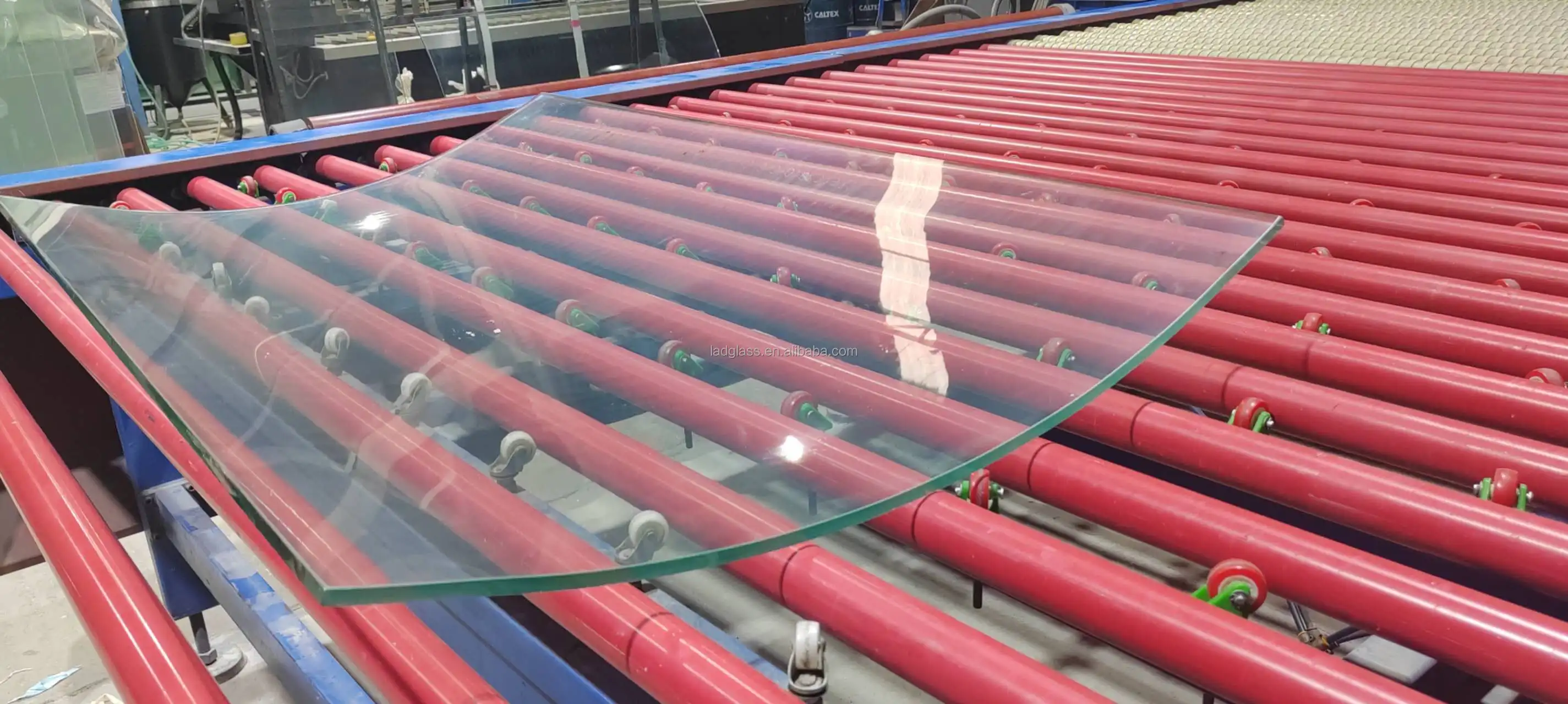

Bent glass tempering
Packing & Delivery
FAQ
Q: Are you manufacturer or trade company?
A: We are a professional manufacturer with 24 years of experience. We are based in Foshan, a city near Guangzhou. We warmly
welcome your visit to our factory.
Q: How long is the production lead time?
A: Production lead time is about 30-40 days. It depends on the machine model you choose.
Q: What's the MOQ of the products?
A: 1 set.
Q: How long is machine warranty?
A: 1 year.
Q: Why choose Liaoda(LAD) Glass Machinery?
A:
20+ years of experience in manufacturing
Machine widely used in different industry
CE certificate high quality products and components
Competitive price
Best service, rapid response
Export and project experience in 110+ countries and regions
A: We are a professional manufacturer with 24 years of experience. We are based in Foshan, a city near Guangzhou. We warmly
welcome your visit to our factory.
Q: How long is the production lead time?
A: Production lead time is about 30-40 days. It depends on the machine model you choose.
Q: What's the MOQ of the products?
A: 1 set.
Q: How long is machine warranty?
A: 1 year.
Q: Why choose Liaoda(LAD) Glass Machinery?
A:
20+ years of experience in manufacturing
Machine widely used in different industry
CE certificate high quality products and components
Competitive price
Best service, rapid response
Export and project experience in 110+ countries and regions
Company Profile
Wide range of glass processing machine for you:
Flat / Bent Glass Tempering Furnace
Glass Double Edging Machine
Glass Washing and Drying Machine
Glass Edging Machine
Glass Beveling Machine
Glass Sandblasting Machine
Glass Cutting Table or Glass Cutting Machine
Glass Loading and Unloading Table ......
Welcome to visit our factory in Foshan!
