Guangzhou stage lighting 19pcs 15w 4in1 bee eye moving head dj party disco led stage lights
- Category: >>>
- Supplier: Guangzhou Xuanlang Lighting Technology Co. Ltd.
Share on (1601245720197):
Product Overview
Description
Product Description
Parameter:
Rated voltage: AC100V~240V 50/60Hz
Input power: 300W
Light source specification: 19pcs 15W 4in1 LEDs 5060
Rated lifespan: 30000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 8 ° -60 ° DMX linear focusing
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro
command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply,
suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, coupled with a high-precision imported Hall
positioning device, making the operation positioning more accurate. When there is a misoperation, it can automatically return to
its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function,
Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit precision scan)
Control mode: 23 (simplified) 21/35/78/92/97/99 (standard) 7 channel control modes, standard DMX512 protocol, RDM protocol

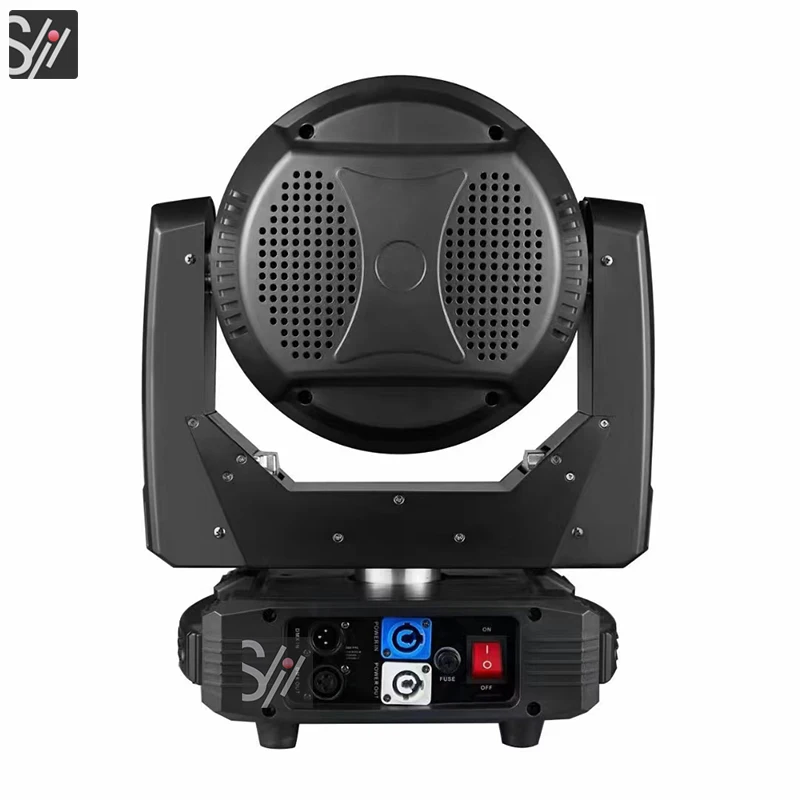

Control interface: DMX512 interface (3-core/optional 5-core), power cord handle
Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it
automatically enters sleep mode, making the light fixture more stable and safe
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Cooling system: High conductivity lightweight aluminum radiator is used, and the intelligent monitoring technology of the fan
automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent
system/intelligent temperature and noise balance module
Protection level: IP20, optional rain cover protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or cardboard box

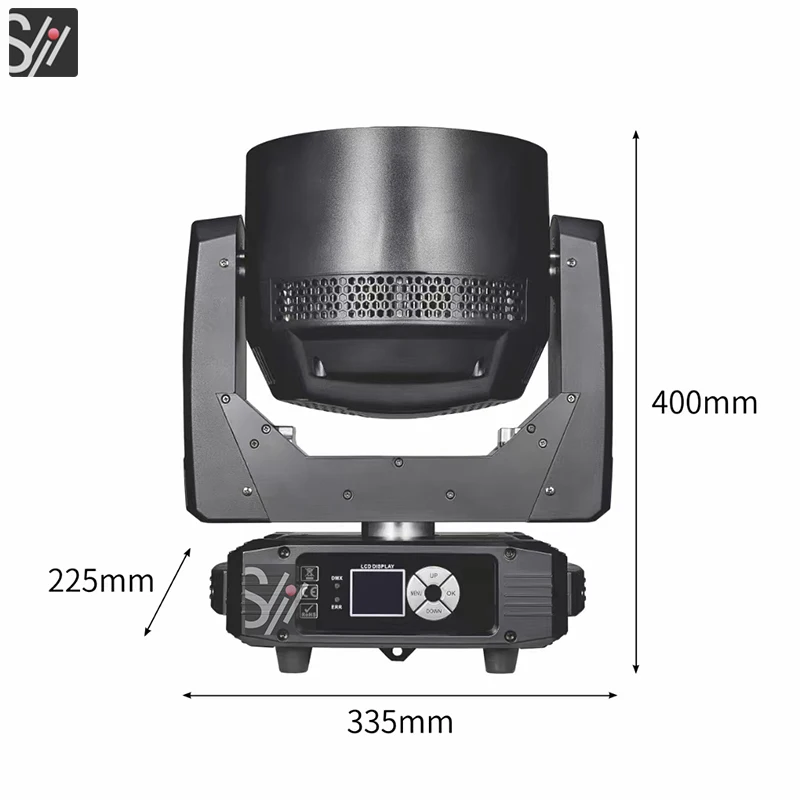

Net weight: 15KG Gross weight: 16.5KG Product size: 34 * 23 * 41CM Packaging size: 47 * 34 * 52CM (one pack, one)
Effect modes: (Vortex, Kaleidoscope, Dyeing, Beam)
The front mirror disc can rotate infinitely, seamlessly spliced mirror disc, non spherical lens structure, single point control of
light bead, light strip effect: strobe, scrolling effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity,
without the need for manual rotation! You can also turn off the automatic rotation function
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. It can independently control the LED
beads, race effect, built-in and other rich effects. The product has built-in RDM remote control panel dialing upgrade function.
Input power: 300W
Light source specification: 19pcs 15W 4in1 LEDs 5060
Rated lifespan: 30000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 8 ° -60 ° DMX linear focusing
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro
command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply,
suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, coupled with a high-precision imported Hall
positioning device, making the operation positioning more accurate. When there is a misoperation, it can automatically return to
its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function,
Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit precision scan)
Control mode: 23 (simplified) 21/35/78/92/97/99 (standard) 7 channel control modes, standard DMX512 protocol, RDM protocol
Control interface: DMX512 interface (3-core/optional 5-core), power cord handle
Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it
automatically enters sleep mode, making the light fixture more stable and safe
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Cooling system: High conductivity lightweight aluminum radiator is used, and the intelligent monitoring technology of the fan
automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent
system/intelligent temperature and noise balance module
Protection level: IP20, optional rain cover protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or cardboard box
Net weight: 15KG Gross weight: 16.5KG Product size: 34 * 23 * 41CM Packaging size: 47 * 34 * 52CM (one pack, one)
Effect modes: (Vortex, Kaleidoscope, Dyeing, Beam)
The front mirror disc can rotate infinitely, seamlessly spliced mirror disc, non spherical lens structure, single point control of
light bead, light strip effect: strobe, scrolling effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity,
without the need for manual rotation! You can also turn off the automatic rotation function
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. It can independently control the LED
beads, race effect, built-in and other rich effects. The product has built-in RDM remote control panel dialing upgrade function.
Detailed Images
Project Show
Certificate
Factory Show
Payment & Delivery
FAQ
Q1. Can I have a sample order for your product?
A: Sample order is welcome here. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for sample , 20-30 days for mass production depending on actual order size.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express way like DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for stage light?
A: Firstly, let us know your requirements or application.
B.Secondly, we quote according to your requirements or our suggestions.
C.Thirdly, customer confirms the samples and places deposit for formal order.
D.Fourthly, we arrange the production.
Q6. Is it OK to print my logo on stage light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q1. Can I have a sample order for your product?
A: Sample order is welcome here. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for sample , 20-30 days for mass production depending on actual order size.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express way like DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for stage light?
A: Firstly, let us know your requirements or application.
B.Secondly, we quote according to your requirements or our suggestions.
C.Thirdly, customer confirms the samples and places deposit for formal order.
D.Fourthly, we arrange the production.
Q6. Is it OK to print my logo on stage light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
