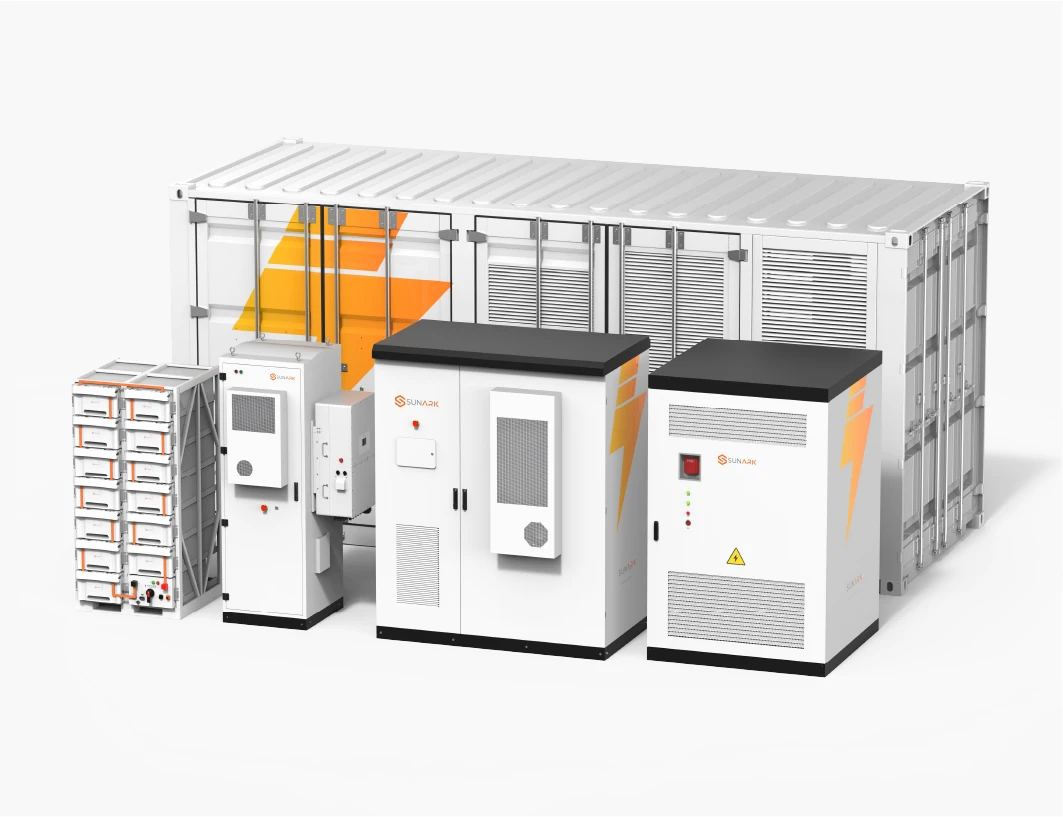

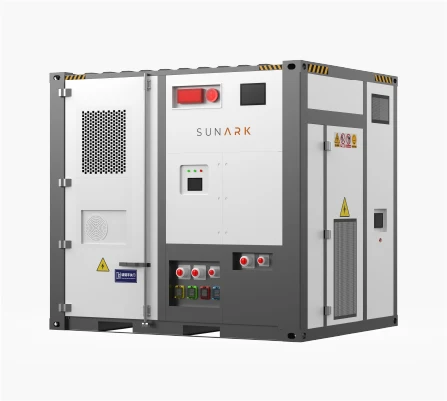

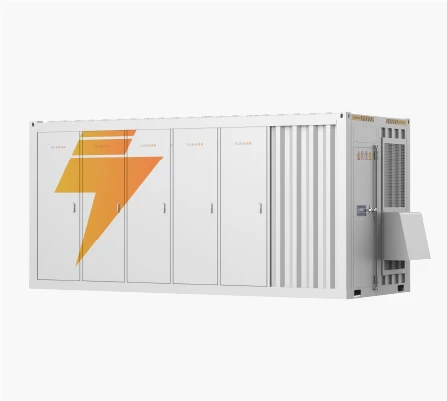

Sunark High Voltage Lithium Ion Battery 100Kwh 150Kwh 215Kwh Commercial Industrial Outdoor ESS Container Price In China
- Category: >>>
- Supplier: SunArk Power Co. Ltd.SunArk Ltd.
Share on (1601245724516):
Product Overview
Description
Products Description

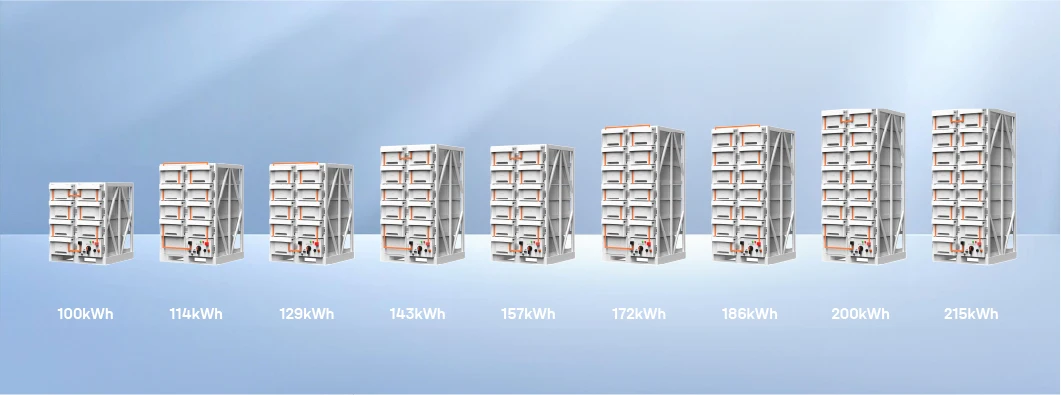

MODULE | 100kWh | 114kWh | 129kWh | 143kWh | 157kWh | 172kWh | 186kWh | 200kWh | 215kWh | ||||||||
Battery module | |||||||||||||||||
Configuration | 1P16S | ||||||||||||||||
Rated capacity | 280Ah | ||||||||||||||||
Rated energy | 14.336kWh | ||||||||||||||||
Rated voltage | 51.2V | ||||||||||||||||
Voltage range | 44.8-56.8V | ||||||||||||||||
Rated charge/discharge | 0.5C | ||||||||||||||||
AC internal resistance | ≤5mΩ | ||||||||||||||||
Dimension (W/D/H) | 376*885*238.5 (±5) mm | ||||||||||||||||
Weight | 108kg | ||||||||||||||||

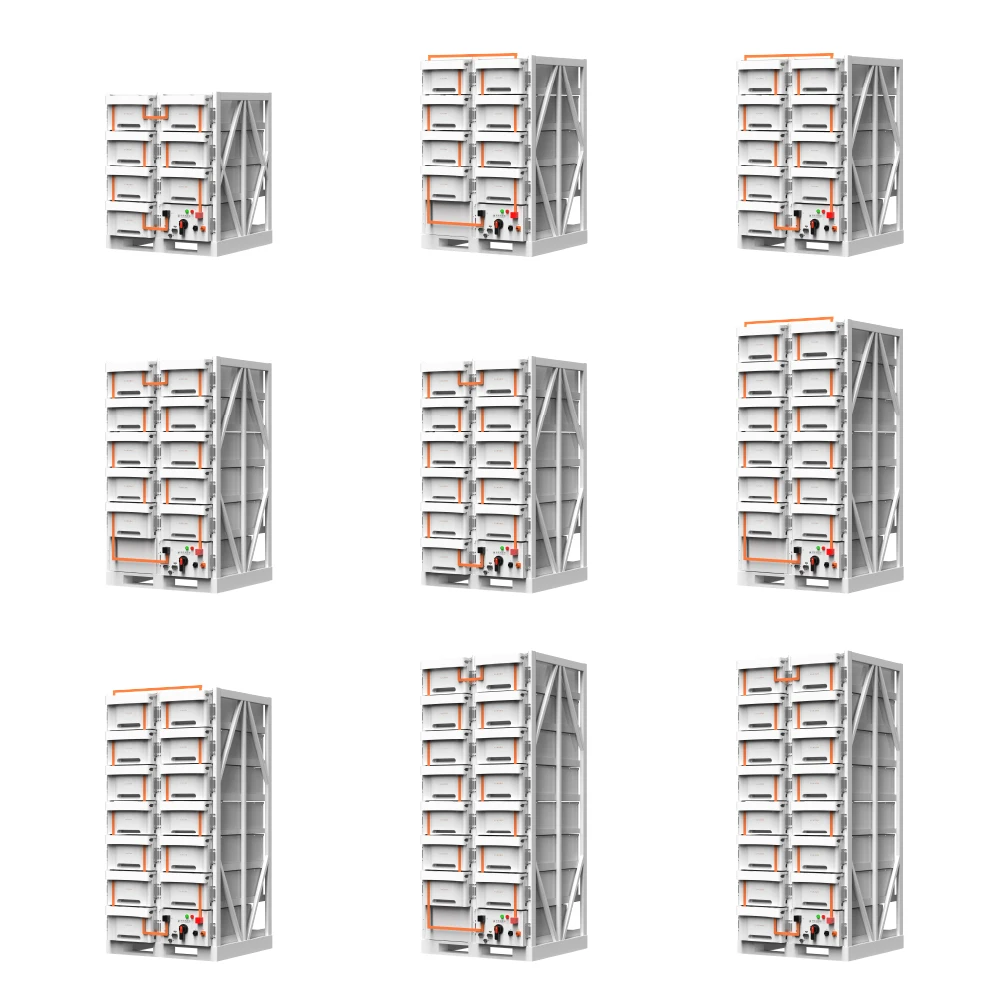

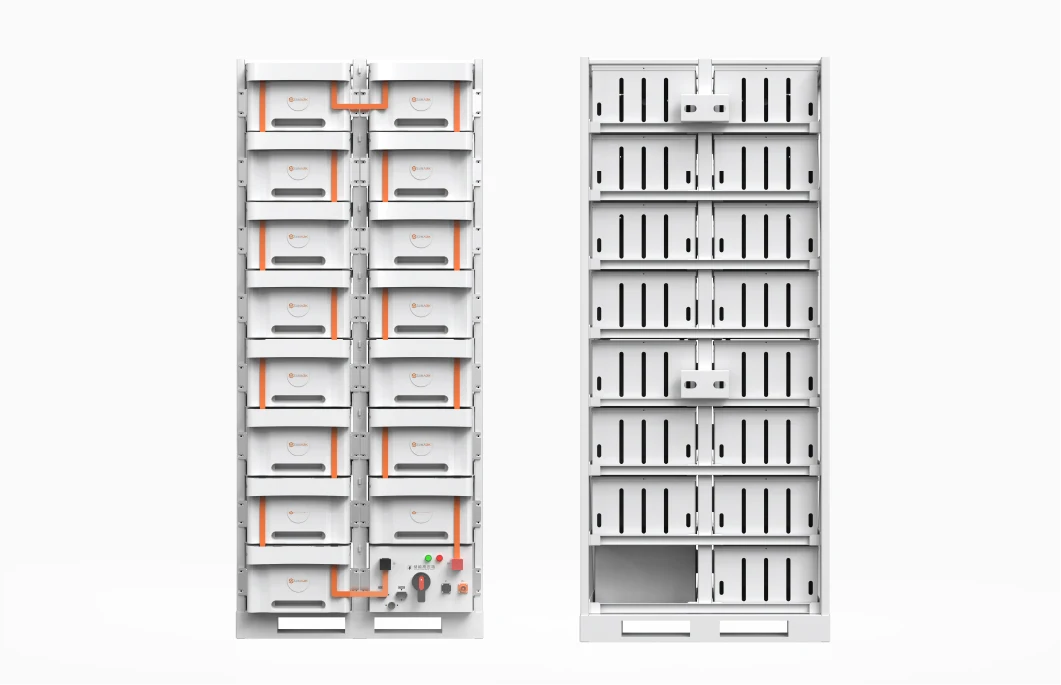

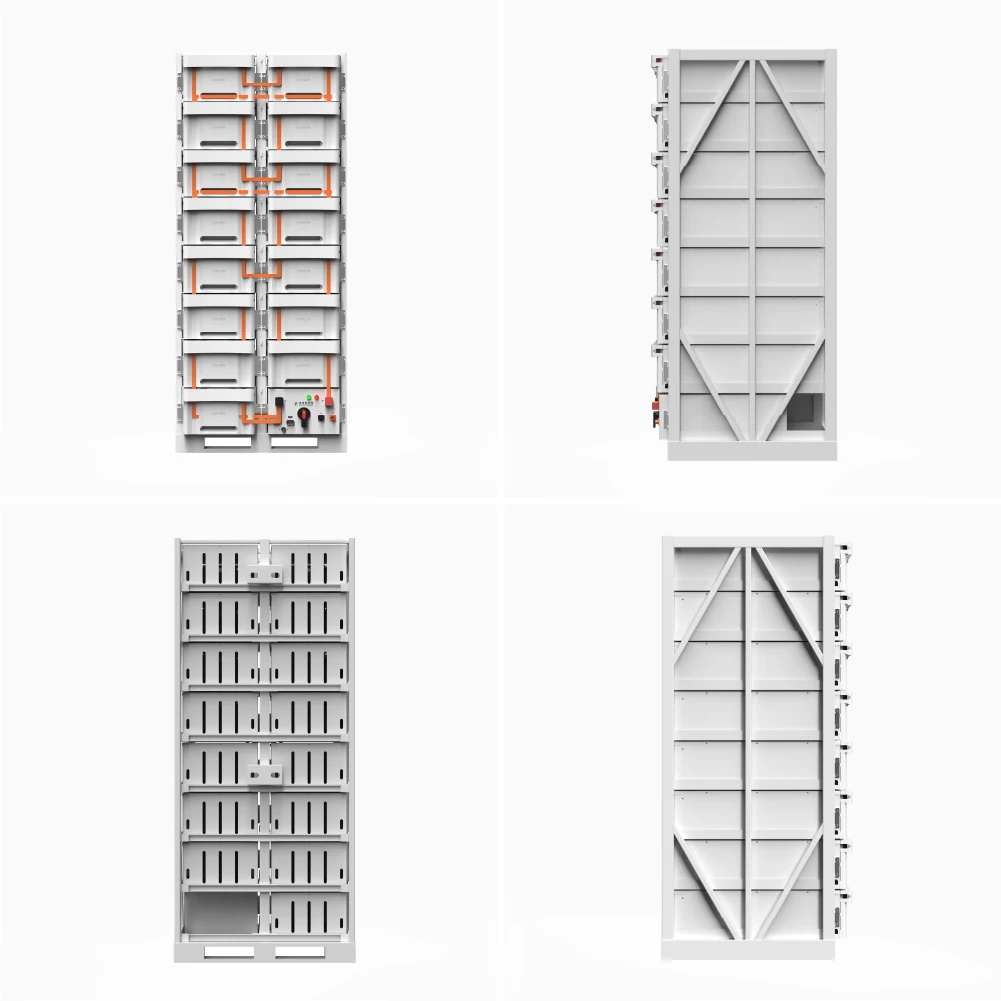

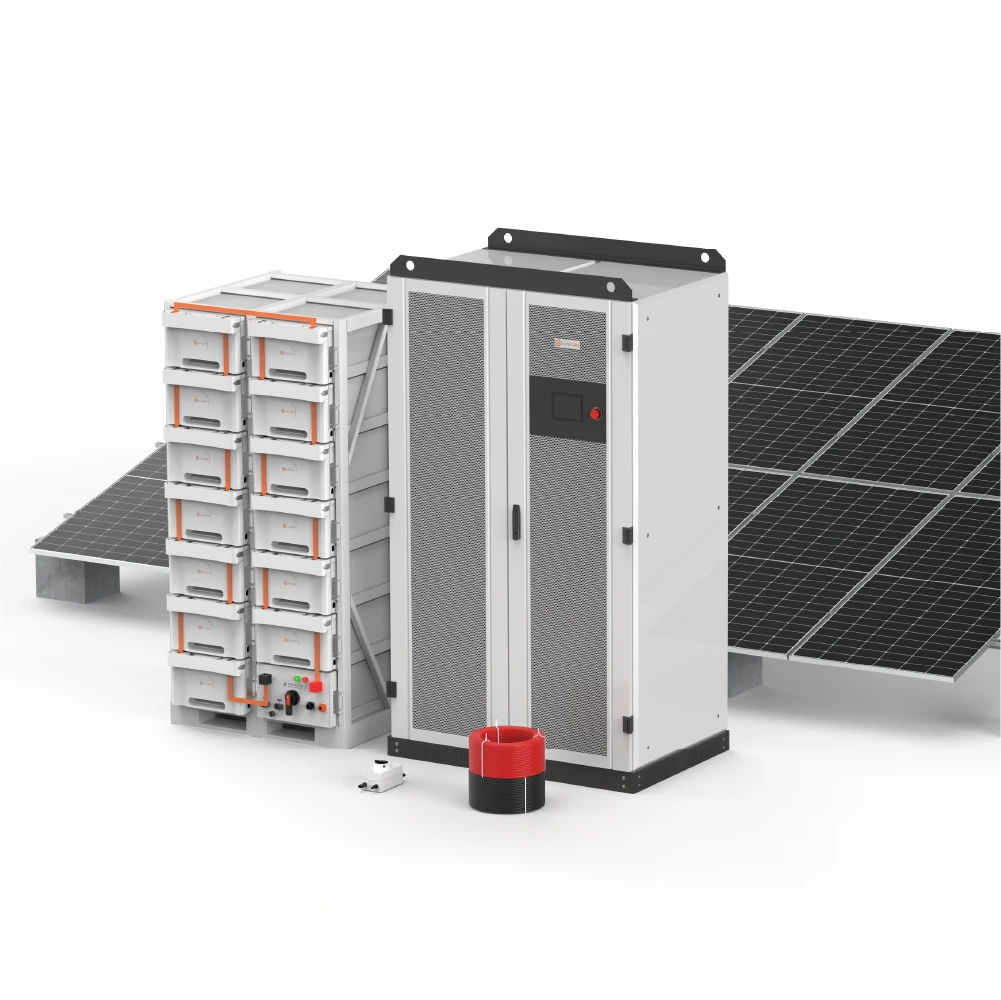

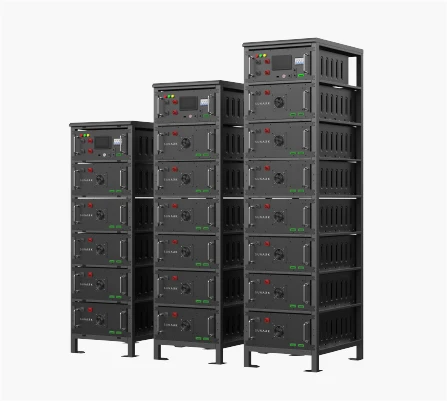

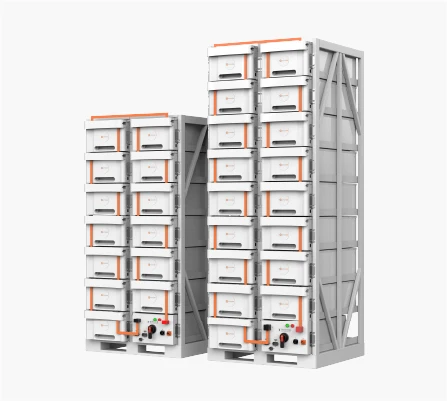

Battery rack | |||||||||||||||||
Configuration | 7modules + 1BPU | 8modules + 1BPU | 9modules + 1BPU | 10modules + 1BPU | 11modules + 1BPU | 12modules + 1BPU | 13modules + 1BPU | 14modules + 1BPU | 15modules + 1BPU | ||||||||
Rated capacity | 280Ah | ||||||||||||||||
Rated energy | 100kWh | 114kWh | 129kWh | 143kWh | 157kWh | 172kWh | 186kWh | 200kWh | 215kWh | ||||||||
Rated voltage | 358.4V | 409.6V | 460.8V | 512V | 563.2V | 614.4V | 665.6V | 716.8V | 768V | ||||||||
Voltage range | 313.6-397.6V | 358.4-454.4V | 403.2-511.2V | 448-568V | 492.6-624.8V | 537.6-681.6V | 582.4-738.4V | 627.2-795.2V | 672-852V | ||||||||
Rated charge/discharge | 0.5C | ||||||||||||||||
Display | 7"Touch screen | ||||||||||||||||
BMS | Included | ||||||||||||||||
Communication | CAN | ||||||||||||||||
Monitoring | RS485 | ||||||||||||||||
Dimension(W/D/H)(mm) | 900*950*1100 | 900*950*1350 | 900*950*1350 | 900*950*1600 | 900*950*1600 | 900*950*1850 | 900*950*1850 | 900*950*2100 | 900*950*2100 | ||||||||
Weight | 875kg | 1075kg | 1200kg | 1325kg | 1450kg | 1575kg | 1700kg | 1825kg | 1950kg | ||||||||
Protection degree | IP20 | ||||||||||||||||
BMS Parameters on LCD | |||||||||||||||||
Cell voltage | Yes | ||||||||||||||||
Cell hight voltage | Yes | ||||||||||||||||
Cell low voltage | Yes | ||||||||||||||||
Cell temperature | Yes | ||||||||||||||||
Charge and dicharge current | Yes | ||||||||||||||||
Total battery voltage | Yes | ||||||||||||||||
Battery SOC | Yes | ||||||||||||||||
Fault warning | Yes | ||||||||||||||||
Protection | |||||||||||||||||
Short circuit protection | Yes | ||||||||||||||||
Over current protection | Yes | ||||||||||||||||
Over charge protection | Yes | ||||||||||||||||
Over discharge protection | Yes | ||||||||||||||||
Cell over voltage protection | Yes | ||||||||||||||||
Cell under voltage protection | Yes | ||||||||||||||||
Over temperature protection | Yes | ||||||||||||||||

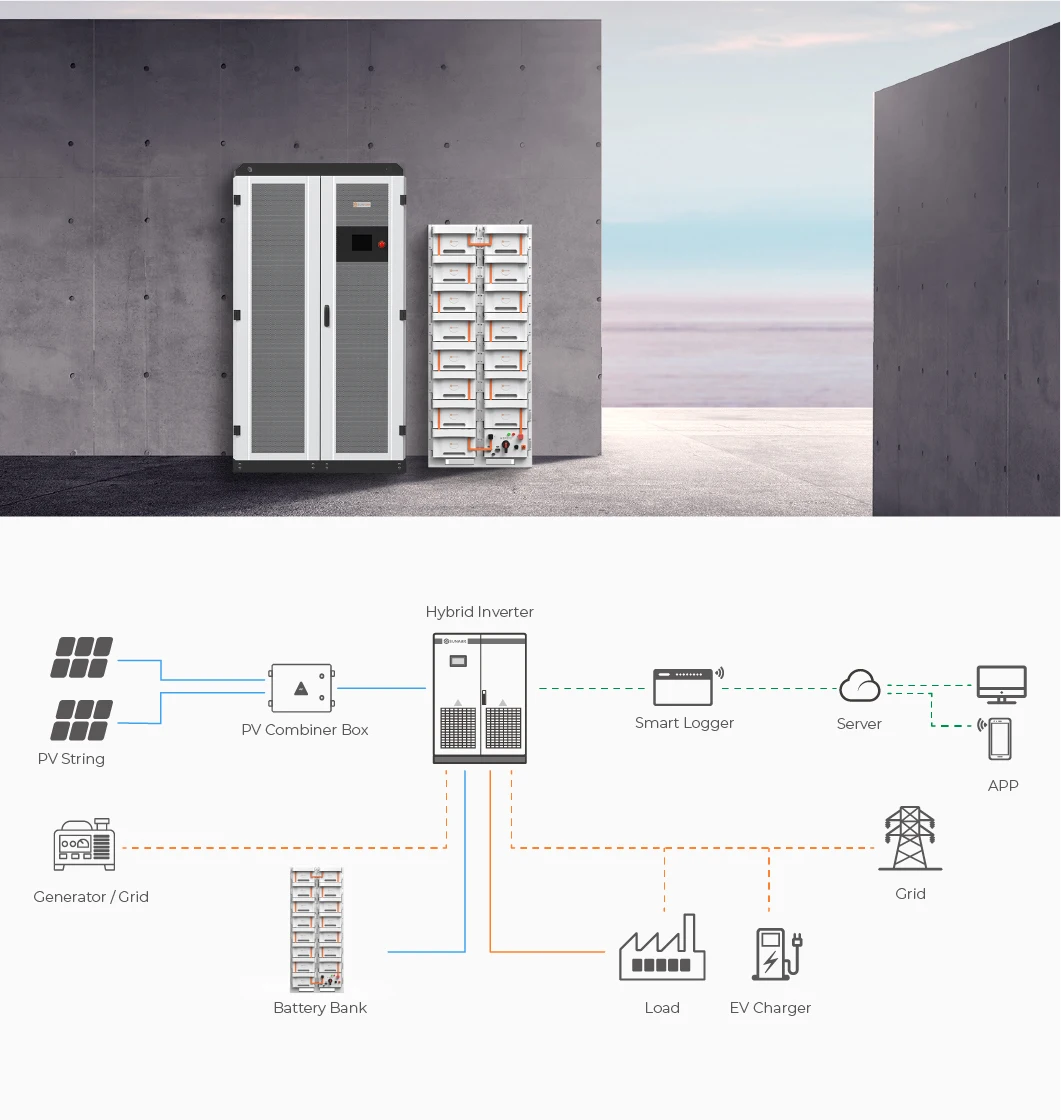

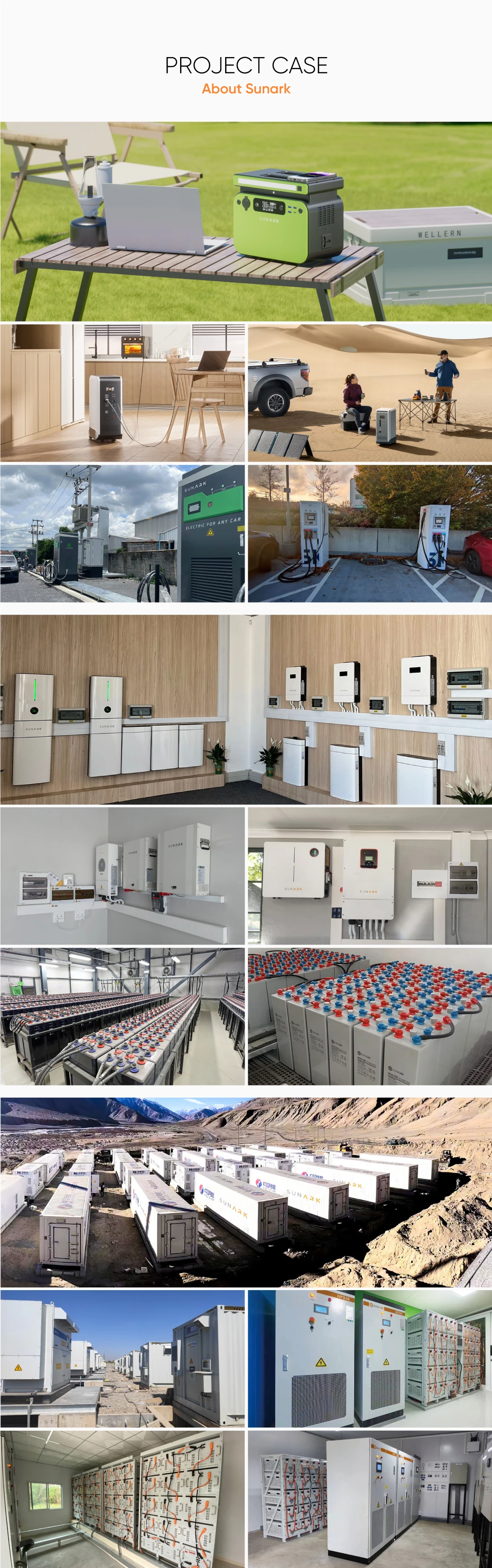

Applications
Products Series
Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Stackable Low Voltage & High Voltage PackVoltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh
Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah
All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
Power: 3-12kW
Battery Capacity: 5-45kWh
Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh
Battery Capacity: 200-3000Wh

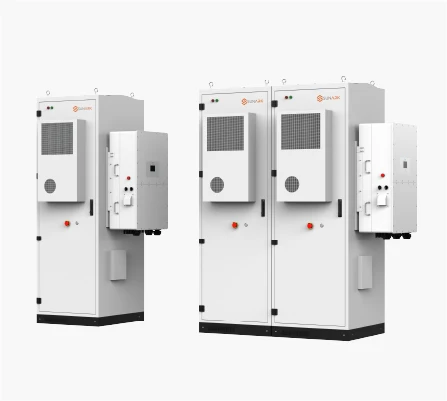

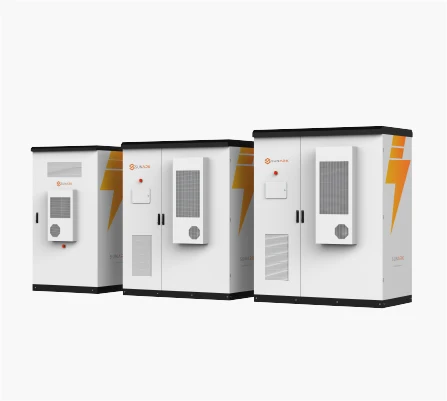

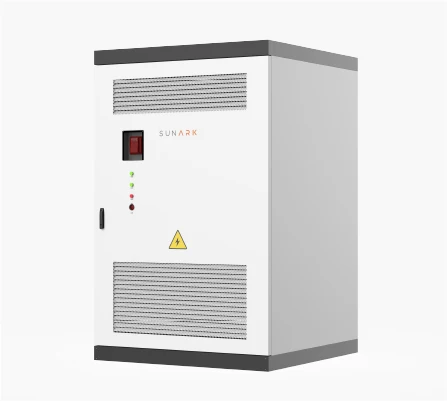

High Voltage Cabinet Energy Storage System
Voltage: 230V/400V Inverter Power:50kw/100kw Battery Capacity:105kwh/200kwh/215kwh
Voltage: 230V/400V Inverter Power:50kw/100kw Battery Capacity:105kwh/200kwh/215kwh
Lead Acid Replacement SolutionVoltage: 12V/24V/48V
Battery Capacity: 5-400Ah
Battery Capacity: 5-400Ah
Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
Capacity: 72-320kWh
About Us

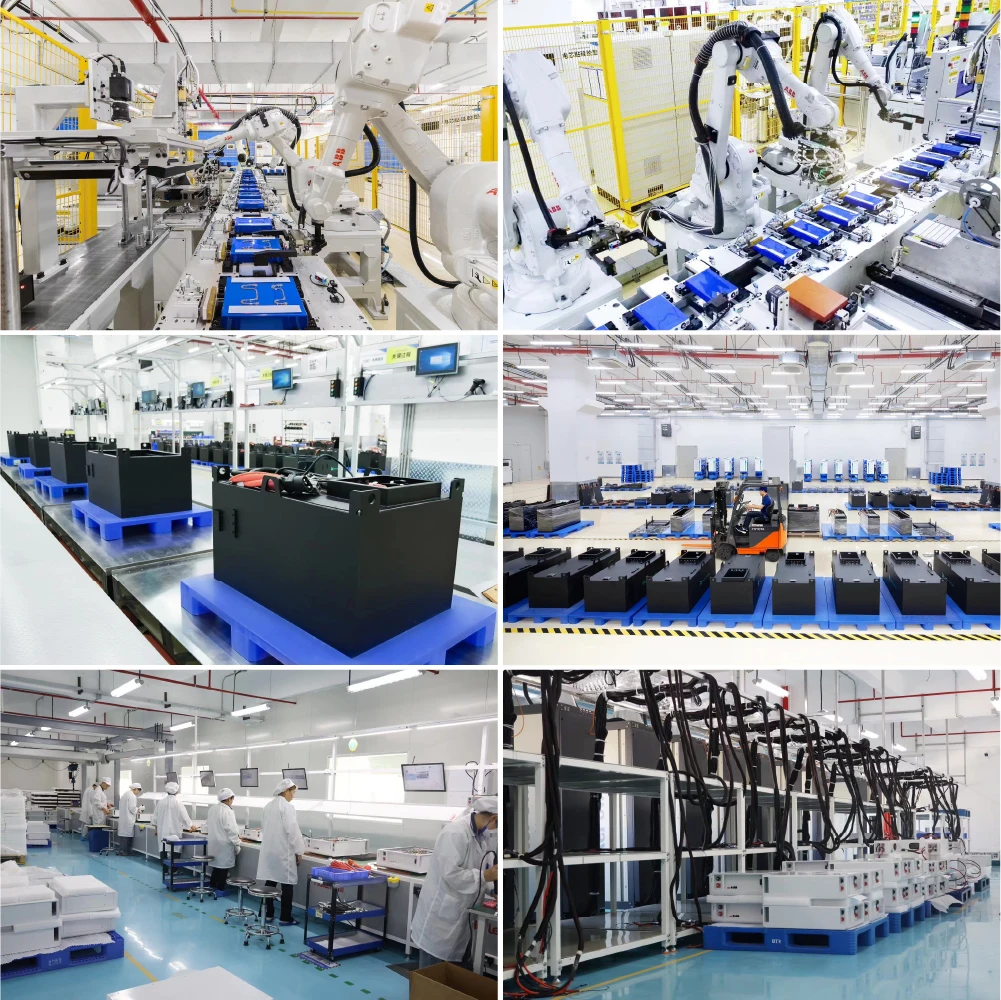

Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
