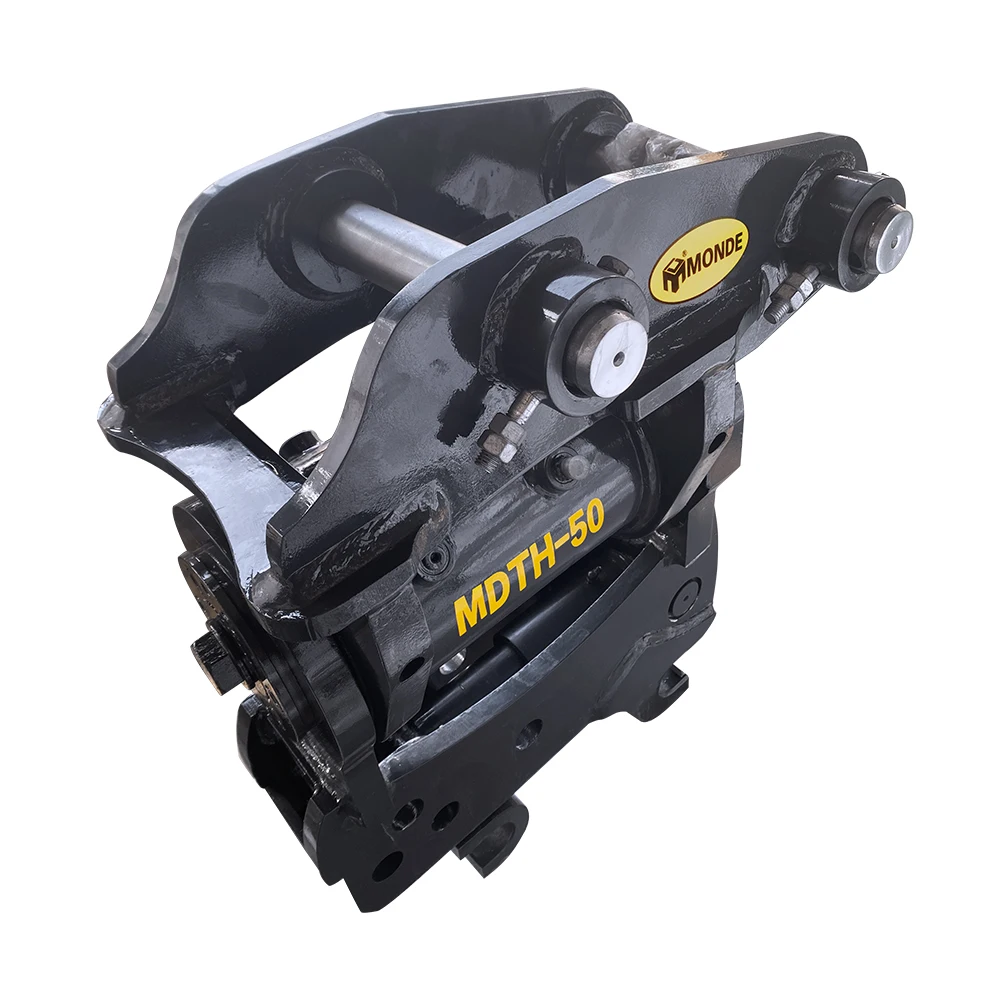

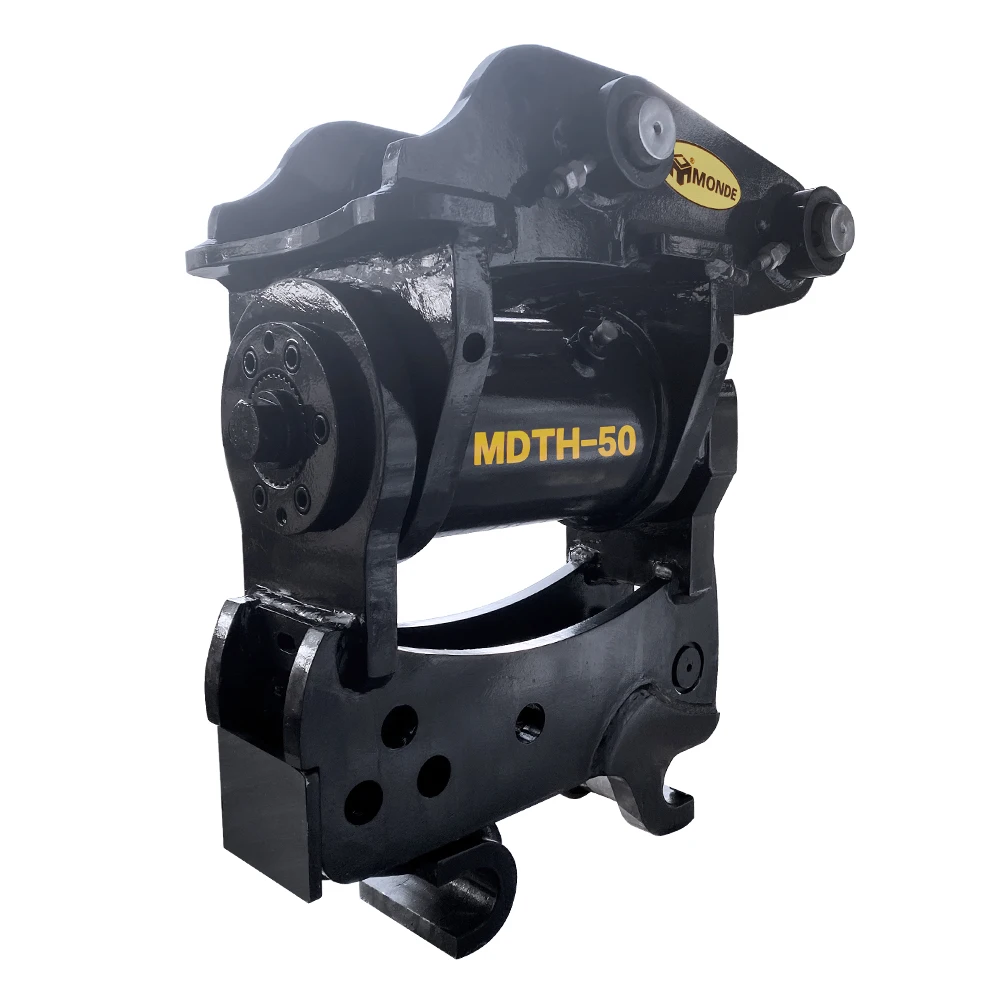

MONDE Excavator Universal Quick Hitch Tilt Rotators Quick Coupler tilt And Rotating quick Hitch
- Category: >>>
- Supplier: Shandong Mingdegangcheng Machinery Co. Ltd.Shandong Ltd.
Share on (1601245765249):
Product Overview
Description
Product Description

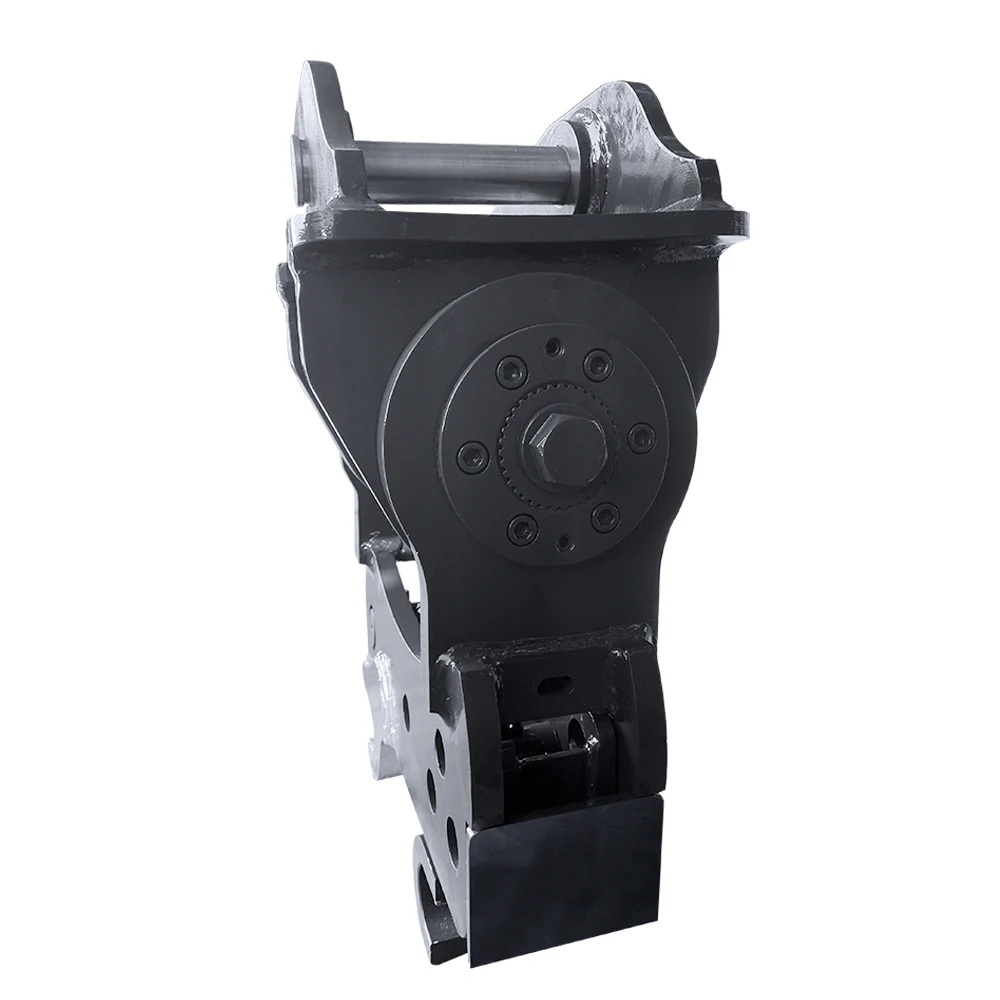

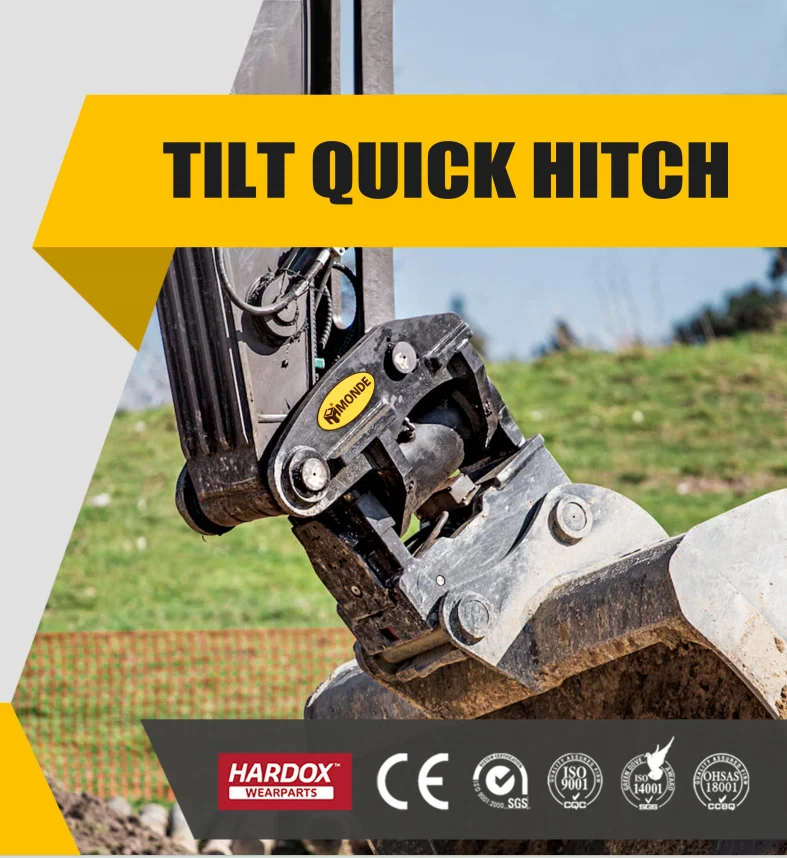

Tilt Quick Hitch
Tilt quick coupler help excavator quickly connect bucket grapple, ripper, mud bucket etc. No man work or remove pins. easy operate and save time. Tilt quick coupler is better than common hydraulic quick coupler. it can be locked when excavator do not work.
Product Details
FEATURES
● Slim structure
● Simple assembly
● Maintenance-free
● Only two moving parts
● Multiple connection ports
● Integral relief valve
● Triple sealed
●Wide tiling range, up to 180 degree tilt range
● Specfically designed for excavator attachments

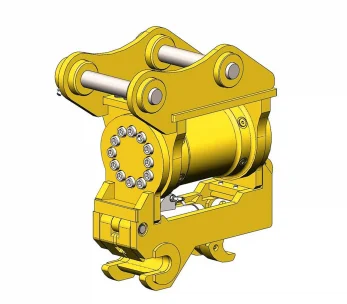

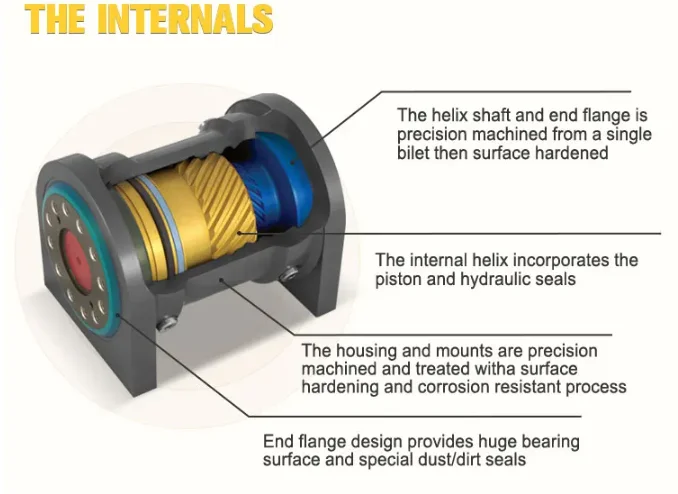

PRODUCT STRUCTURE
Supplied with hard-chrome, greasable pins used to mount the tilt coupler, leaving your original pins for use in the bucket.
ROBUST
ACTUATOR
COUPLER BASE
Uses two line coupler kit system fully automatic locking with one-step attachment and detachment. Variable Pin Centre design.
Model | MTC05 | MTC06 | MTC07A | MTC07B | MTC08A | MYC08B | MTC09 | MTC09S | MTC10 |
Tilt Range(°) | 180 | 180 | 180 | 180 | 180 | 180 | 140 | 140 | 140 |
Tilt Working Pressures(Bar) | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
Tilt Necessary Flow(Lpm) | 2-4 | 5-16 | 5-16 | 5-16 | 5-16 | 15-44 | 19-58 | 22-67 | 35-105 |
Working Pressure(Bar) | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 |
Necessary Flow(Lpm) | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 17-29 | 15-25 |
Apply to (Ton) | 0.8-1.5 | 2-3.5 | 4-6 | 4-6 | 7-9 | 7-9 | 10-15 | 16-20 | 20-25 |
Size(mm) | 477*280*567 | 477*280*567 | 518*310*585 | 545*310*585 | 541*350*608 | 582*350*649 | 720*450*784 | 800*530*864 | 858*500*911 |
Weight(kg) | 55 | 112 | 156 | 156 | 170 | 208 | 413 | 445 | 655 |

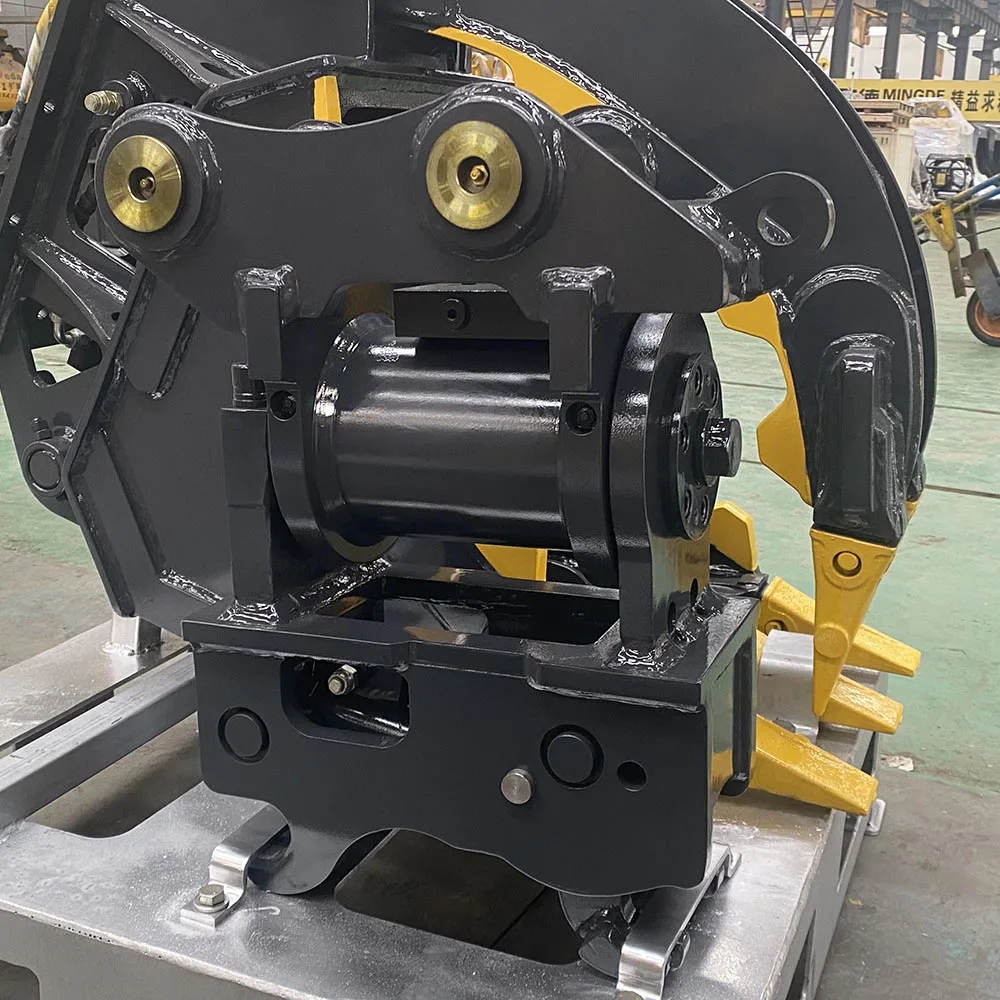

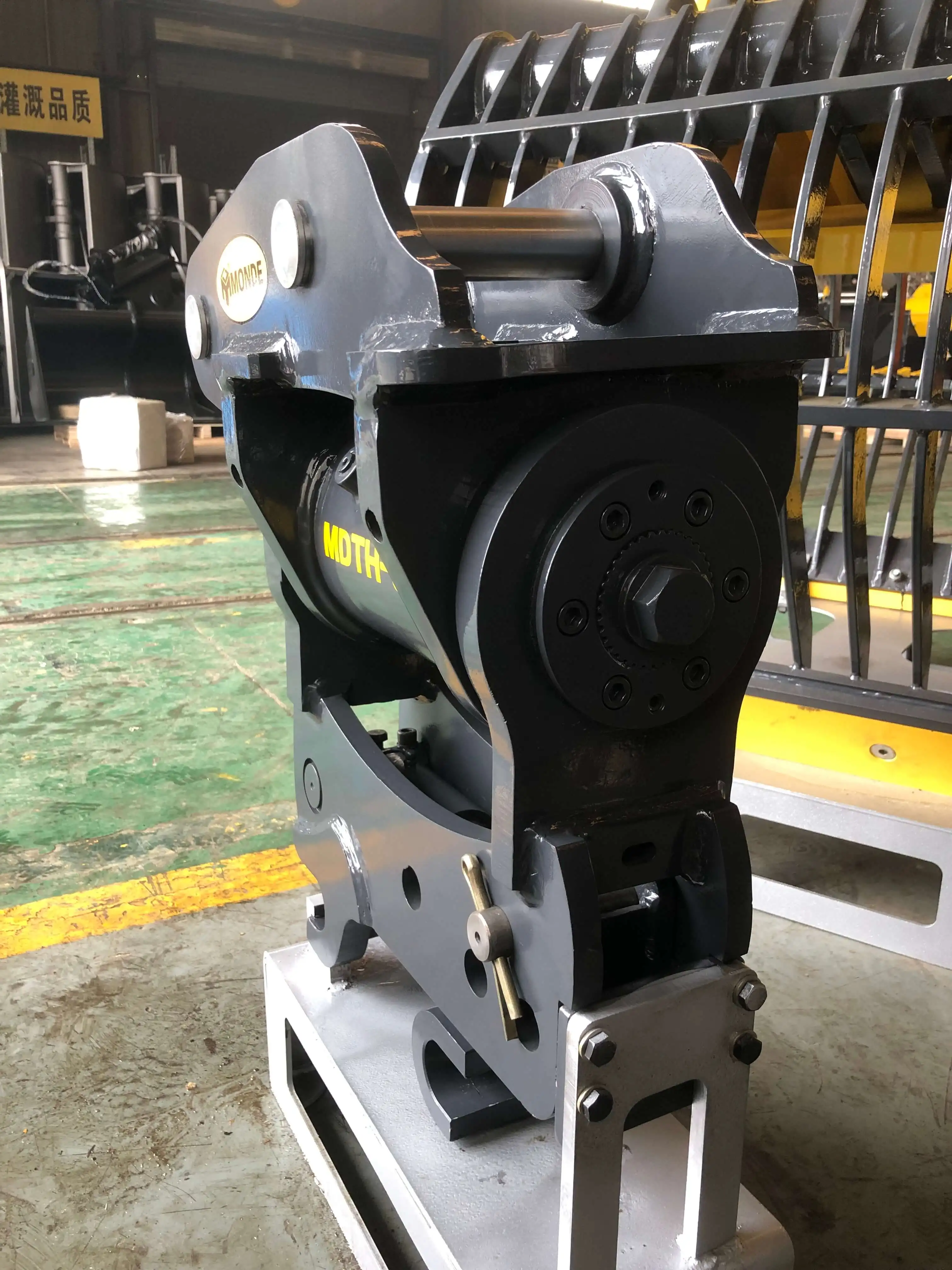

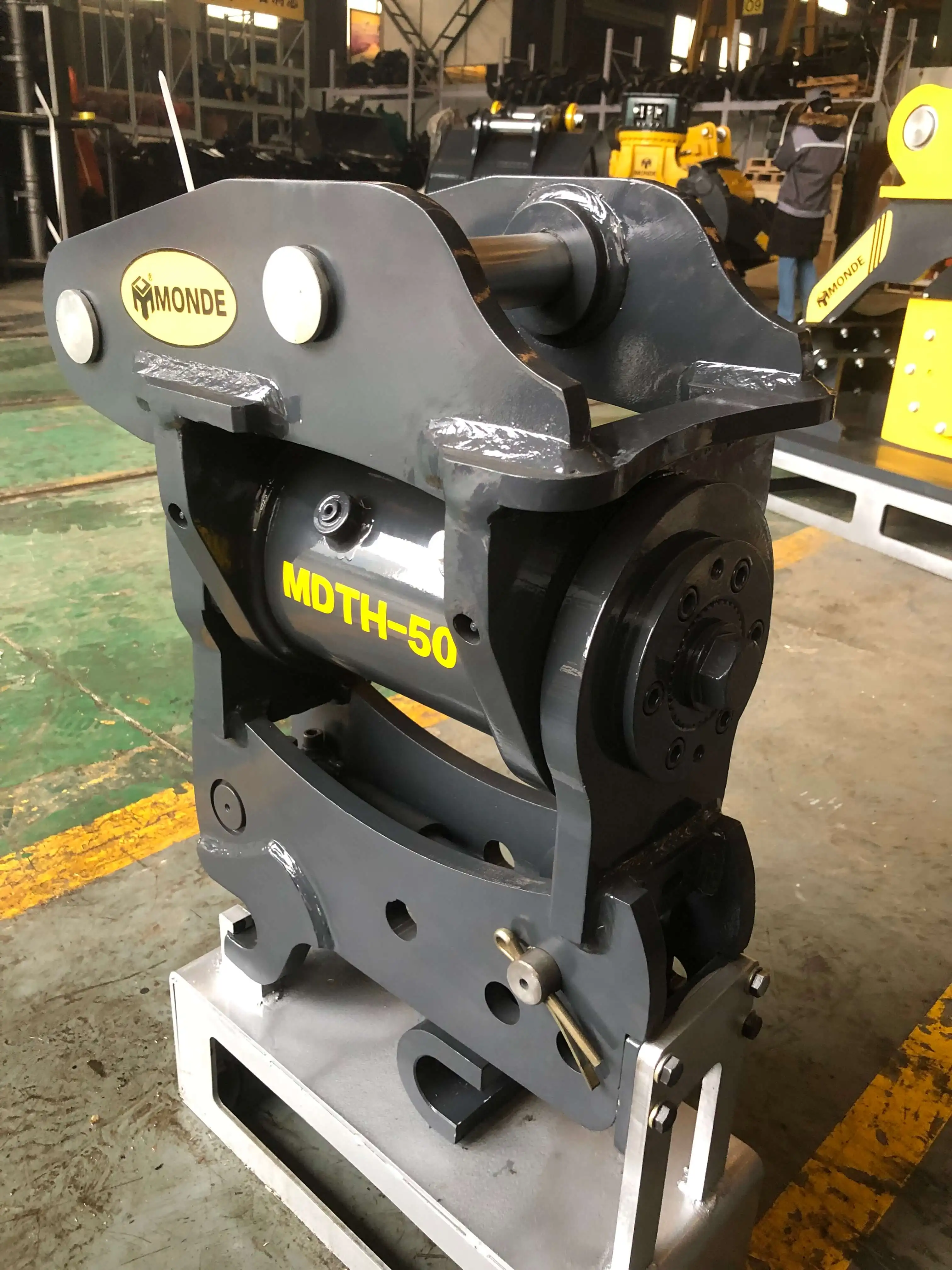

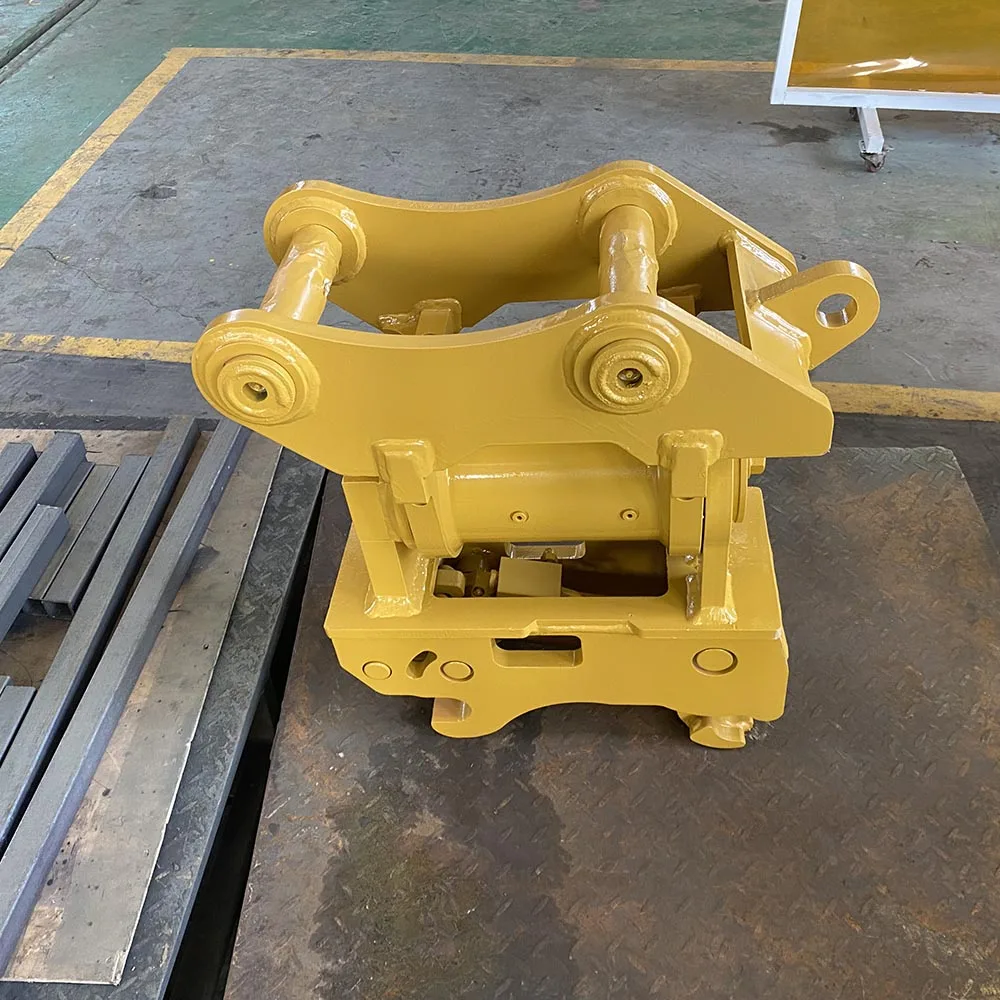

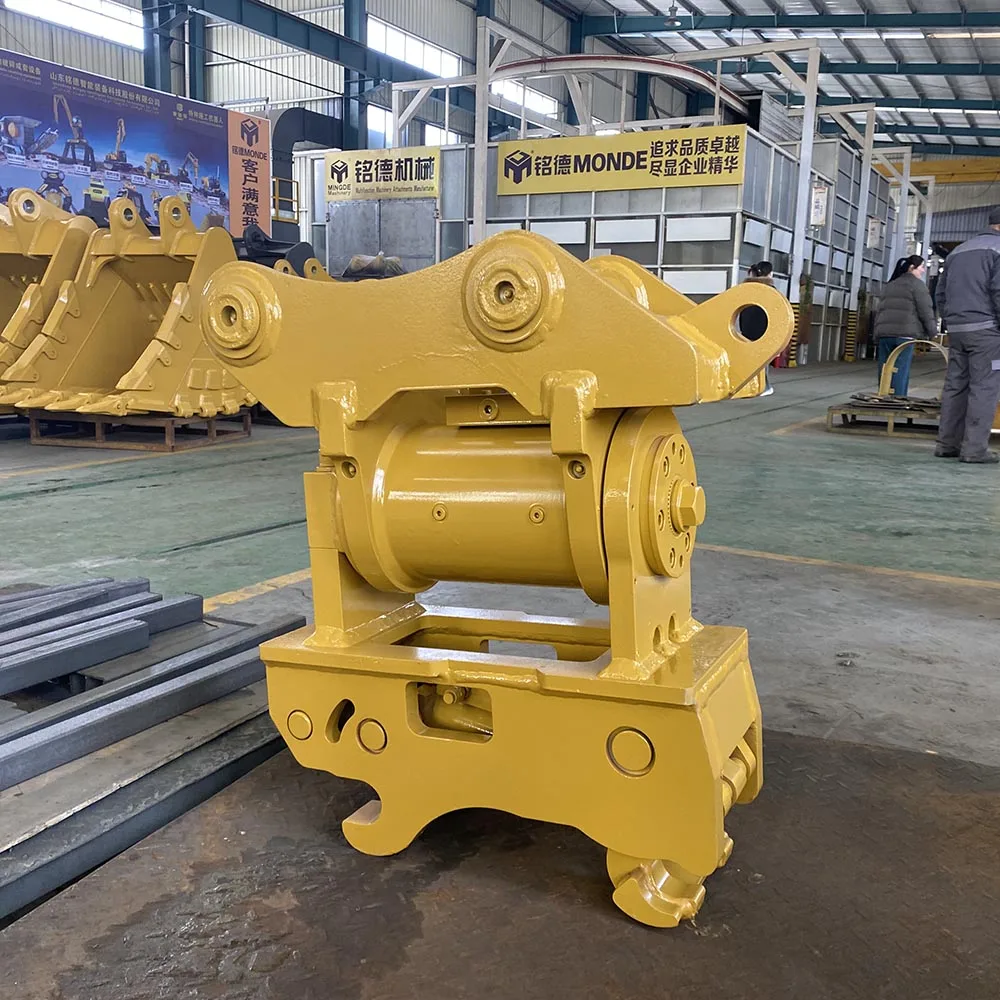

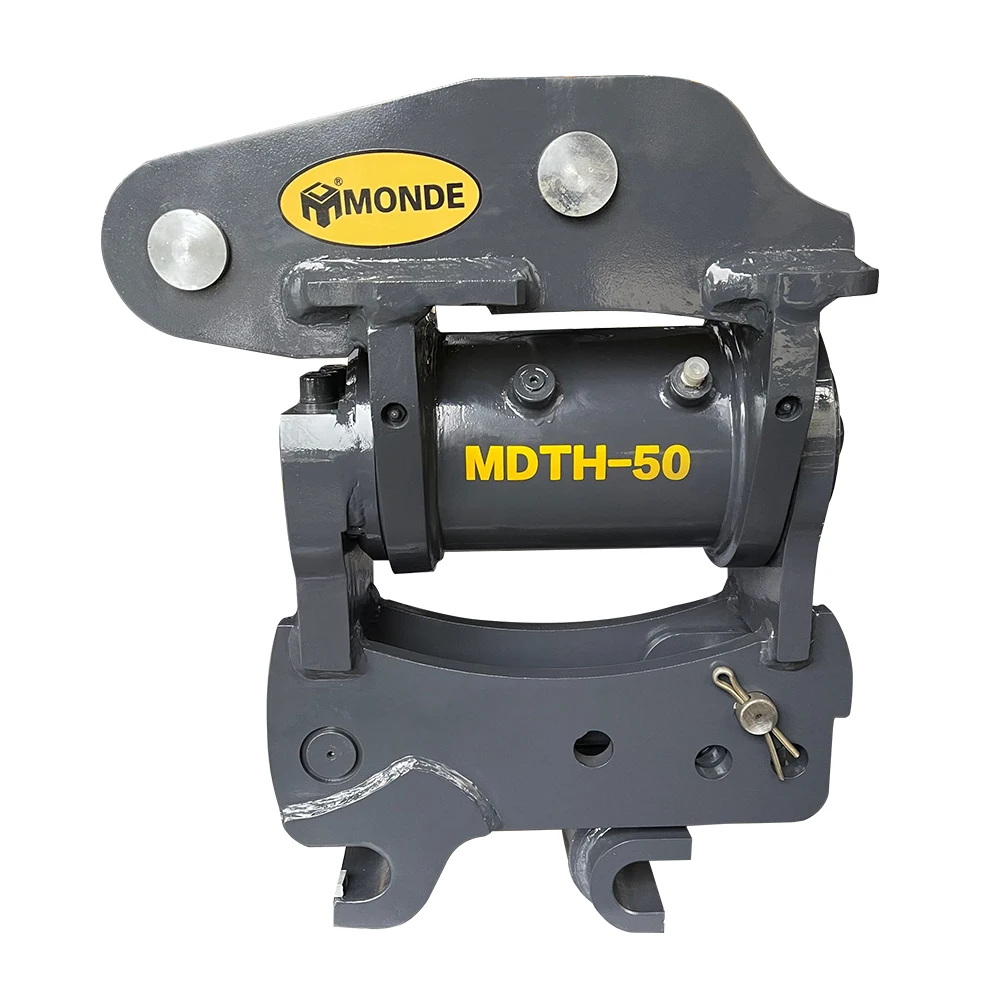

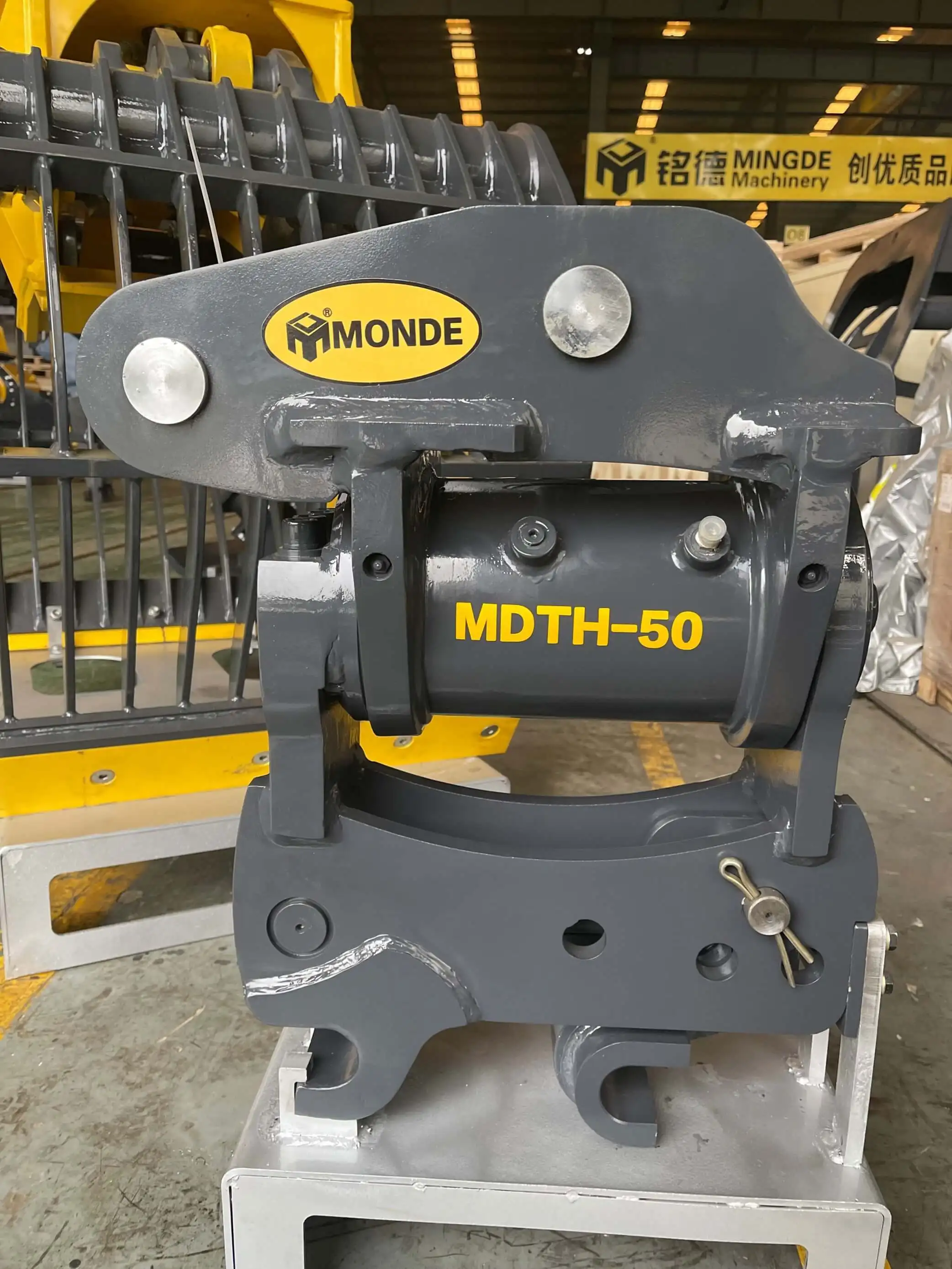

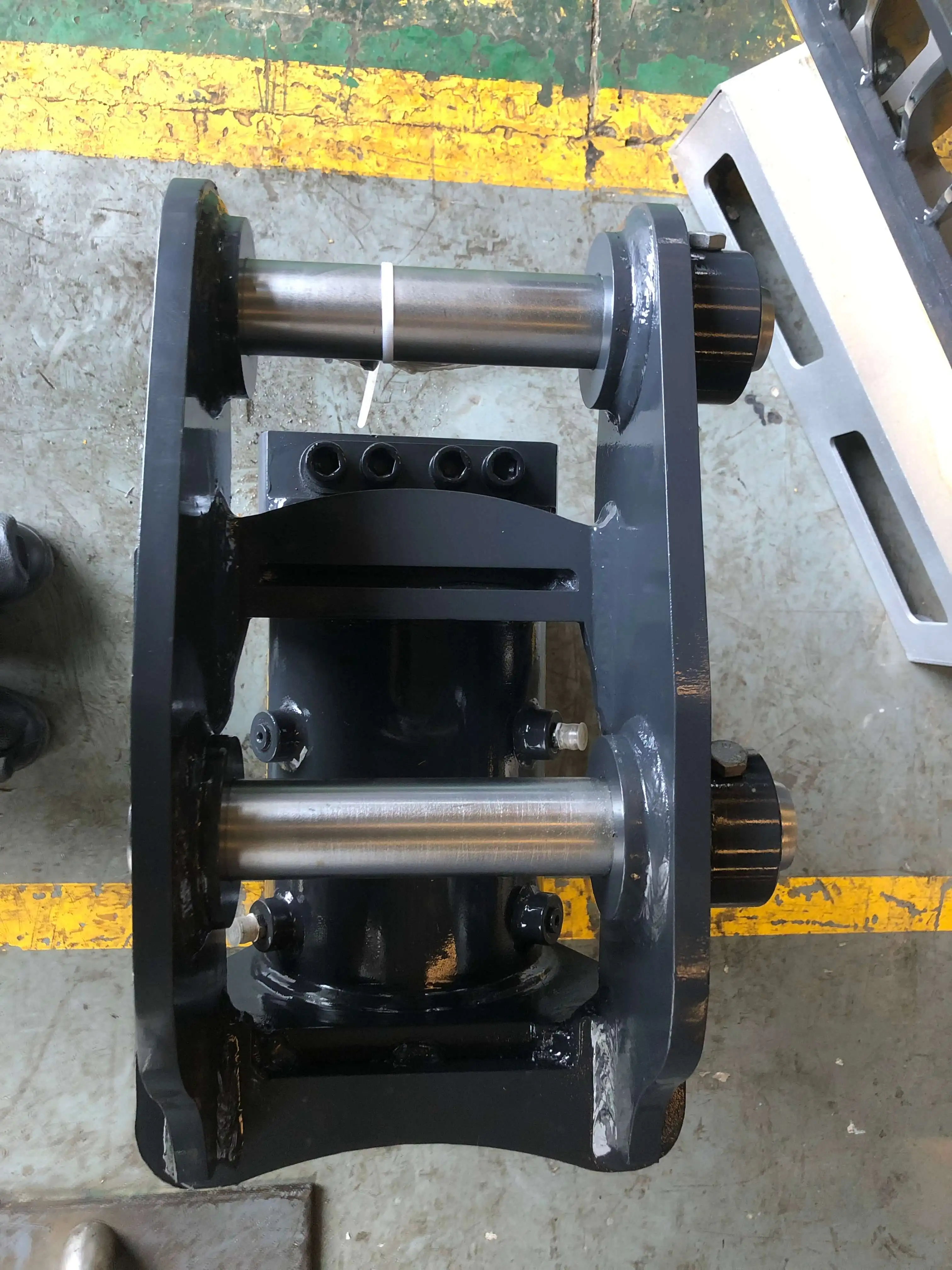

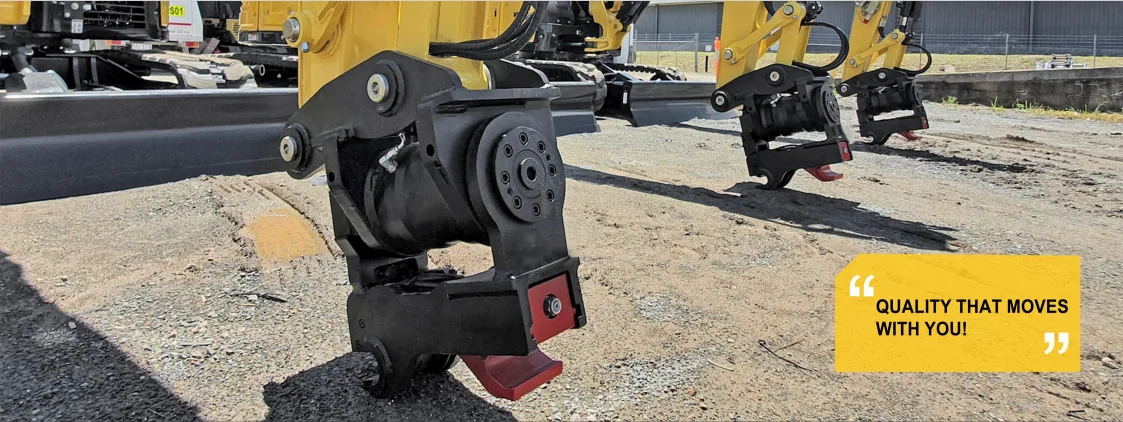

Product Display
WELD
PINS

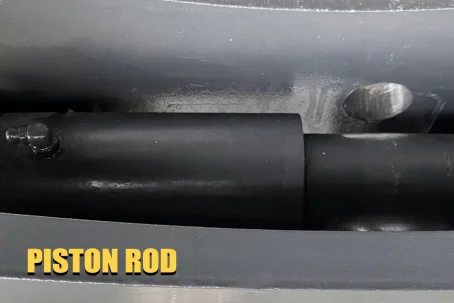

PISTON ROD
PINS
MOTOR
BOTTOM

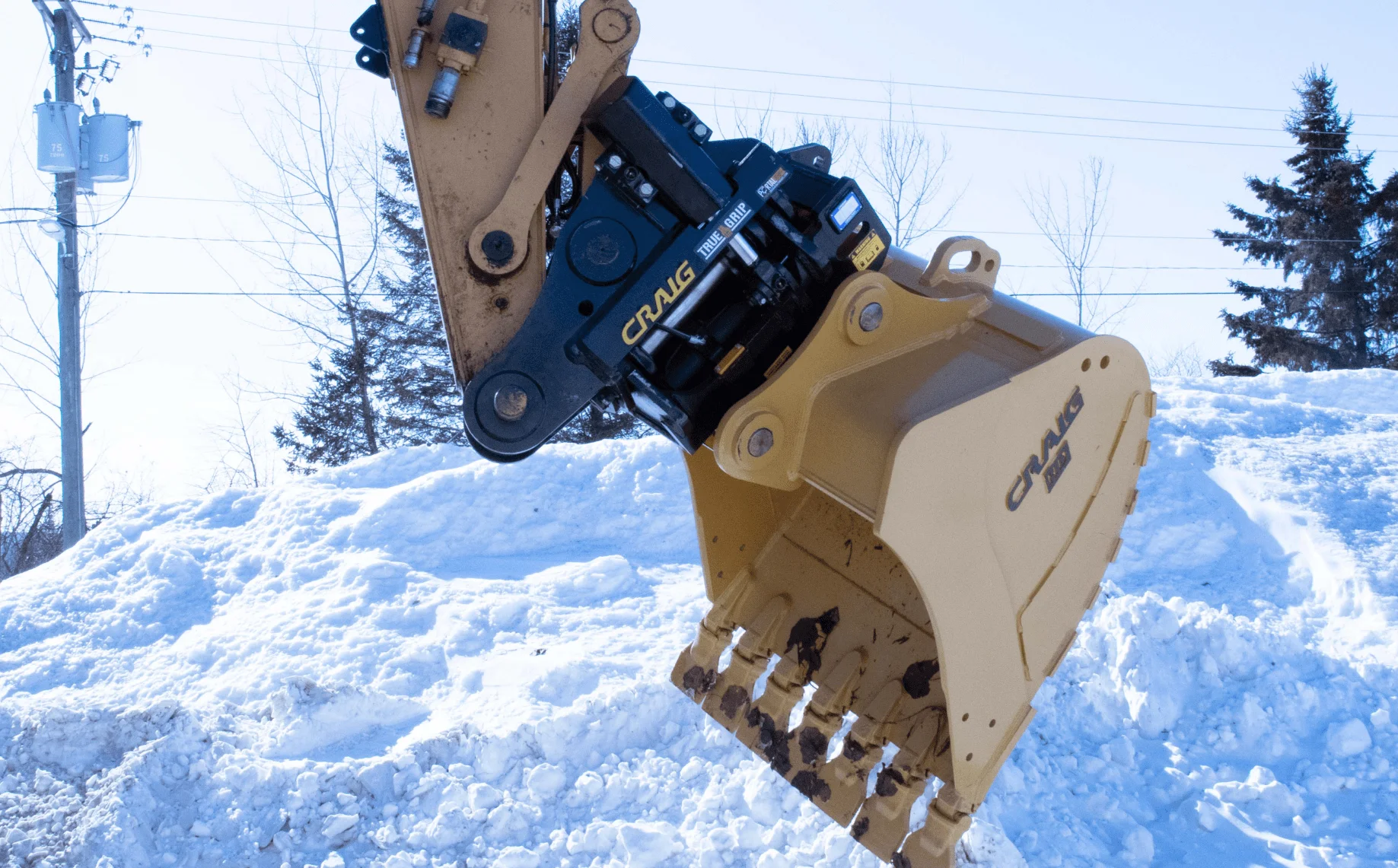

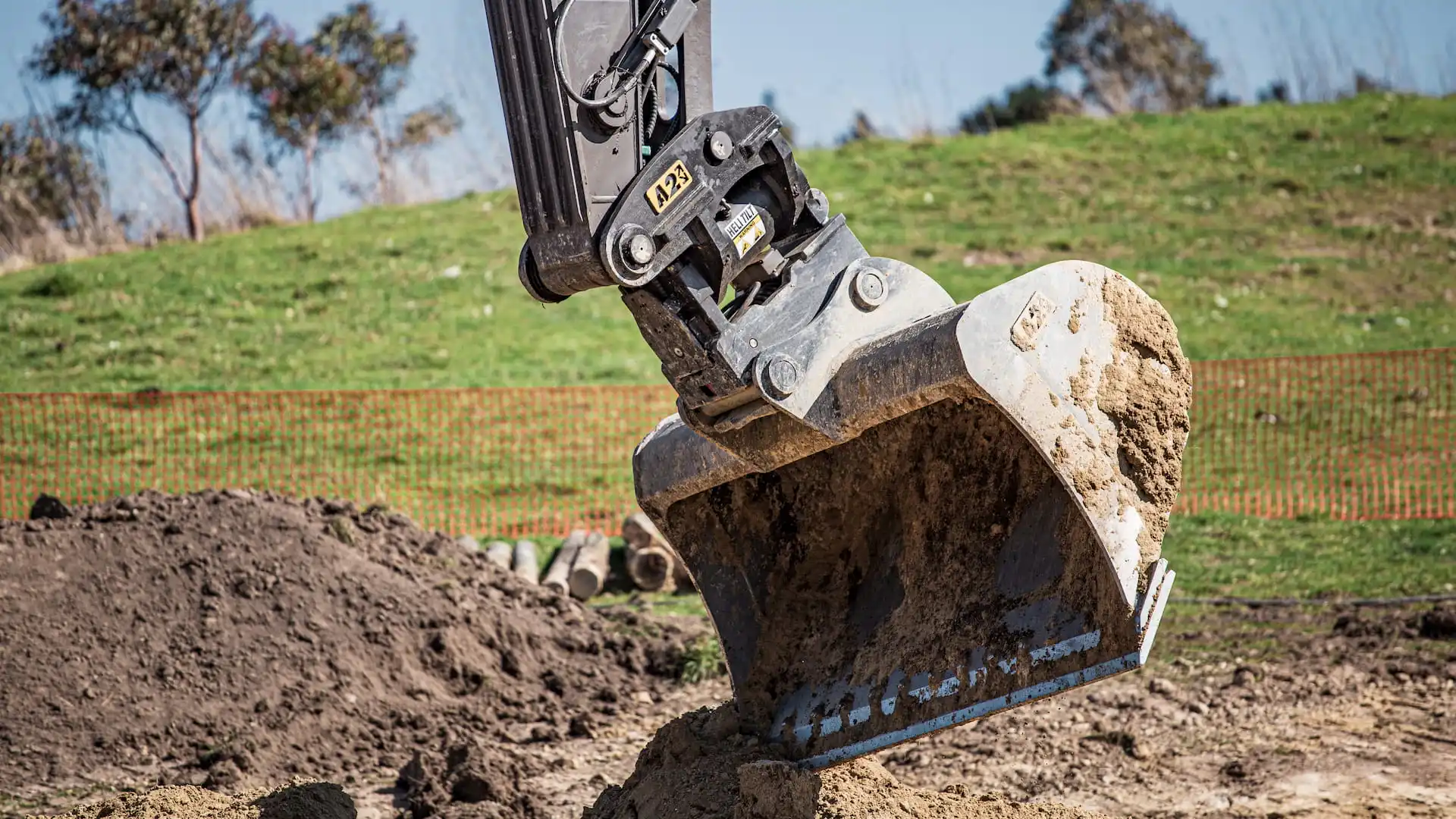

Applications
Applied to change excavator parts, like ripper, hydraulic hammer, grapples and so on, enlarge excavator working range, save time and improve efficiency. Newly design hydraulic tilt quick hitch, more safety and stability.
Packaging & Delivery
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
3.We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
Company Profile
Shandong Mingde Machinery is a well-known global enterprise in the R&D, manufacturing, sales and service of multi-functional attachments. Mingde always adheres to the human resources management idea "Scientific and Technological Innovation, Talents Base". During committing to the safe production and standard operation, the company organizes staff to carry out a series of comprehensive training and cultural activities, striving to build a solid, united and diligent excellent team. Mingde has established strategic partnership with SSAB Company in Sweden and a member of HARDOX IN MY BODY global club and HARDOX WEARPARTS global processing center. In technology research and development, mass production and marketing sales, Mingde has opened deep cooperation with Ueda Company in Japan, which greatly improved the company's core competitiveness and made the company get more than 30 patents of utility model. Mingde has passed the ISO9001 international quality system certification, SGS testing certification, CE European safety certification and ISO14001 environmental management system certification.
FAQ
Q: Are you a manufacturer?
A: Yes,our factory was established in 2007 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for
you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service. Also we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
