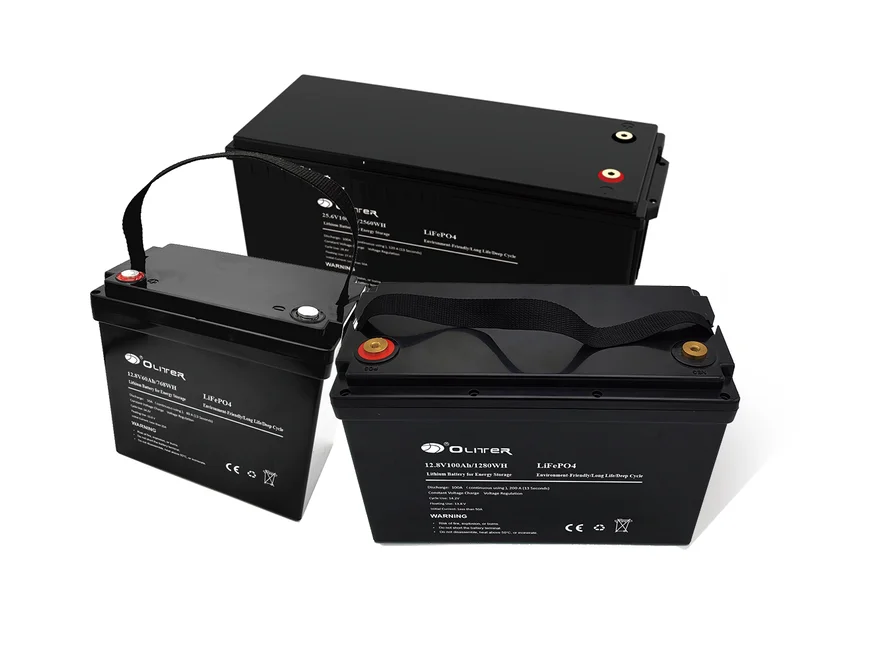

12V 24V LiFePO4 Lithium Ion Phosphate Lead Acid Replacement Batteries ABS Lithium Solar Battery for Residential
- Category: >>>
- Supplier: Zhongtai Nengchuang (jiangsu) Technology R & D Co. Ltd.Zhongtai Ltd.
Share on (1601245781367):
Product Overview
Description
Product Description
Specification
Model | ZT-12100-4S |
Voltage | 12V |
Capacity | 1280Wh |
Energy | 0.25C |
Internal Resistance(AC) | ≤20mΩ |
Cycle Life | >4500 cycles @0.5C 80%DOD |
Monthly Self Discharge | <3% |
Efficiency of charge | 100% @0.5C |
Efficiency of discharge | 96-99% @0.5C |
Charge Parameters | |
Charge Voltage | 14.6±0.2V |
Charge Mode | 0.5C to 14.6V,then 14.6V charge current to 0.02C(CC/CV) |
Charge Current | 100A |
Max. Charge Current | 100A |
Charge Cut-off Voltage | 14.6±0.2V |
Discharge Parameters | |
Continuous Current | 100A |
Max. Pulse Current | 120A(<3S) |
Discharge Cut-off Voltage | 10V |
Environmental | |
Charge Temperature | 0 to 55 (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20 to 60 (32F to 131F) @60±25% Relative Humidity |
Storage Temperature | -20 to 60 (32F to 131F) @60±25% Relative Humidity |
IP Class | IP65 |
Mechanical | |
Plastic Case | ABS / Metal Plate |
Approx. Dimensions | 307*169*208MM |
Approx. Weight | 12kgs |
Terminal | M8 |

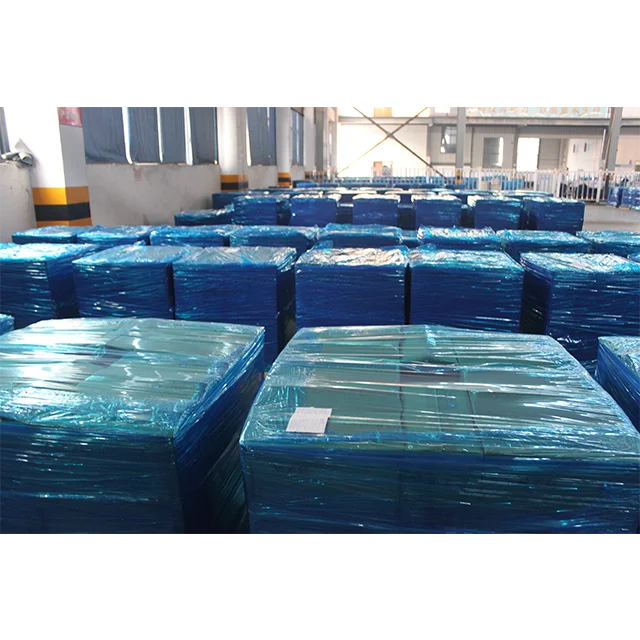

Packing & Delivery
Plywood

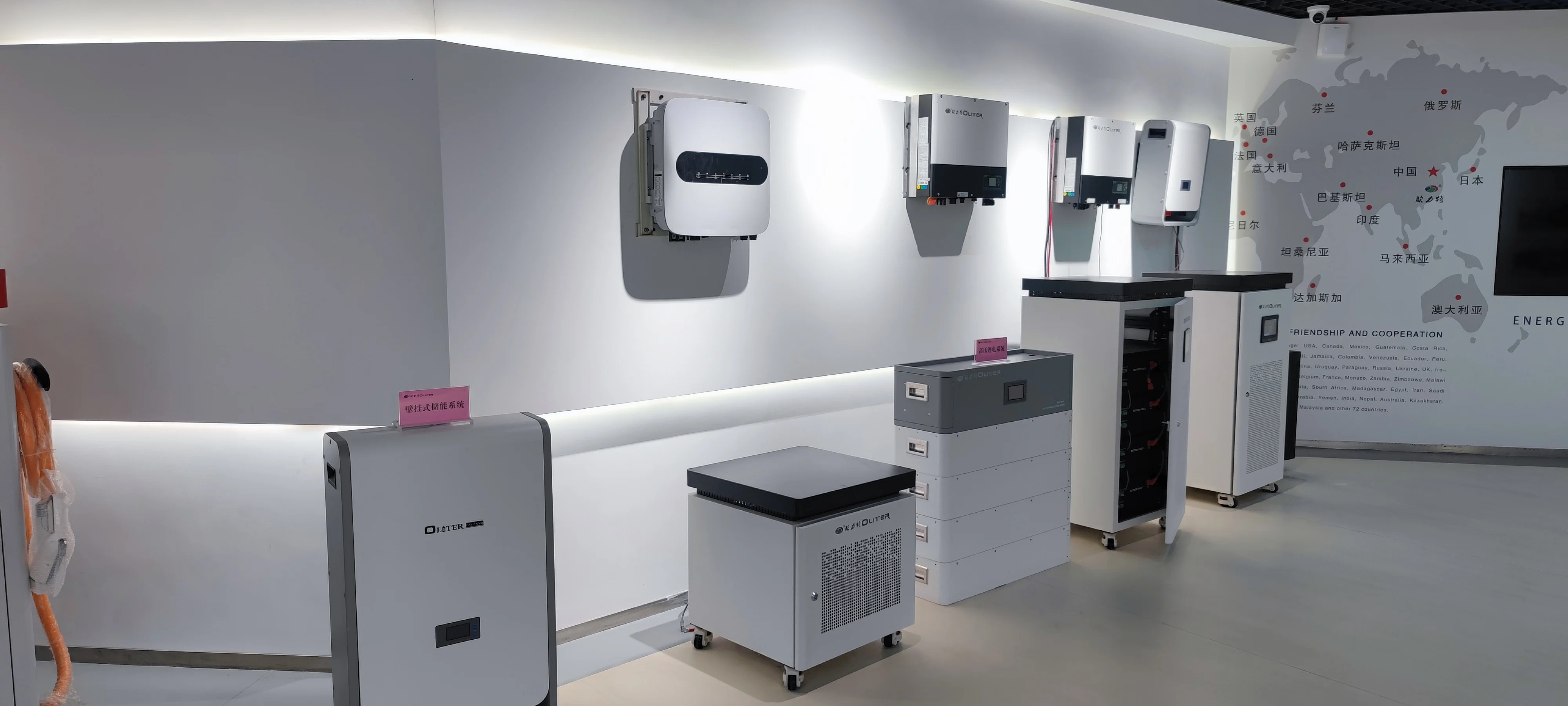

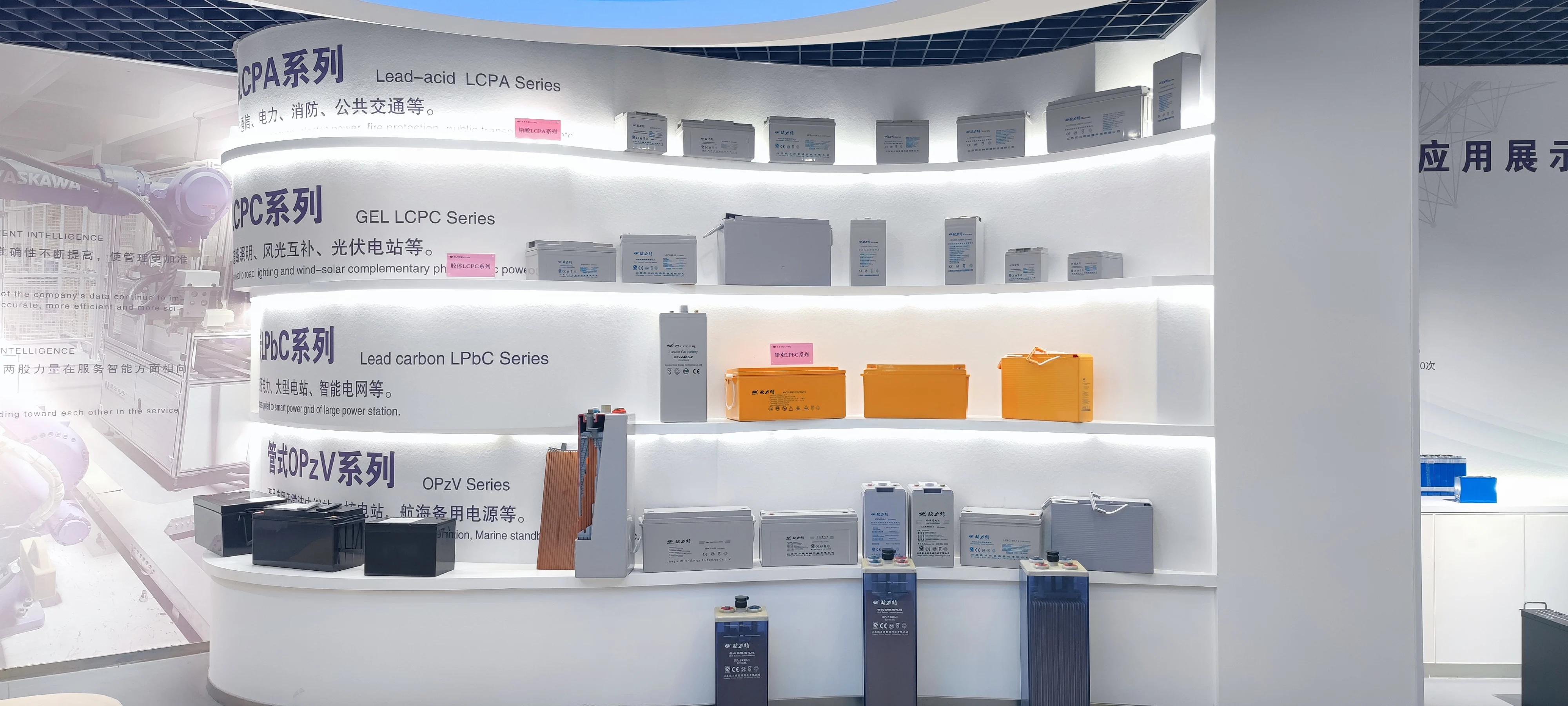

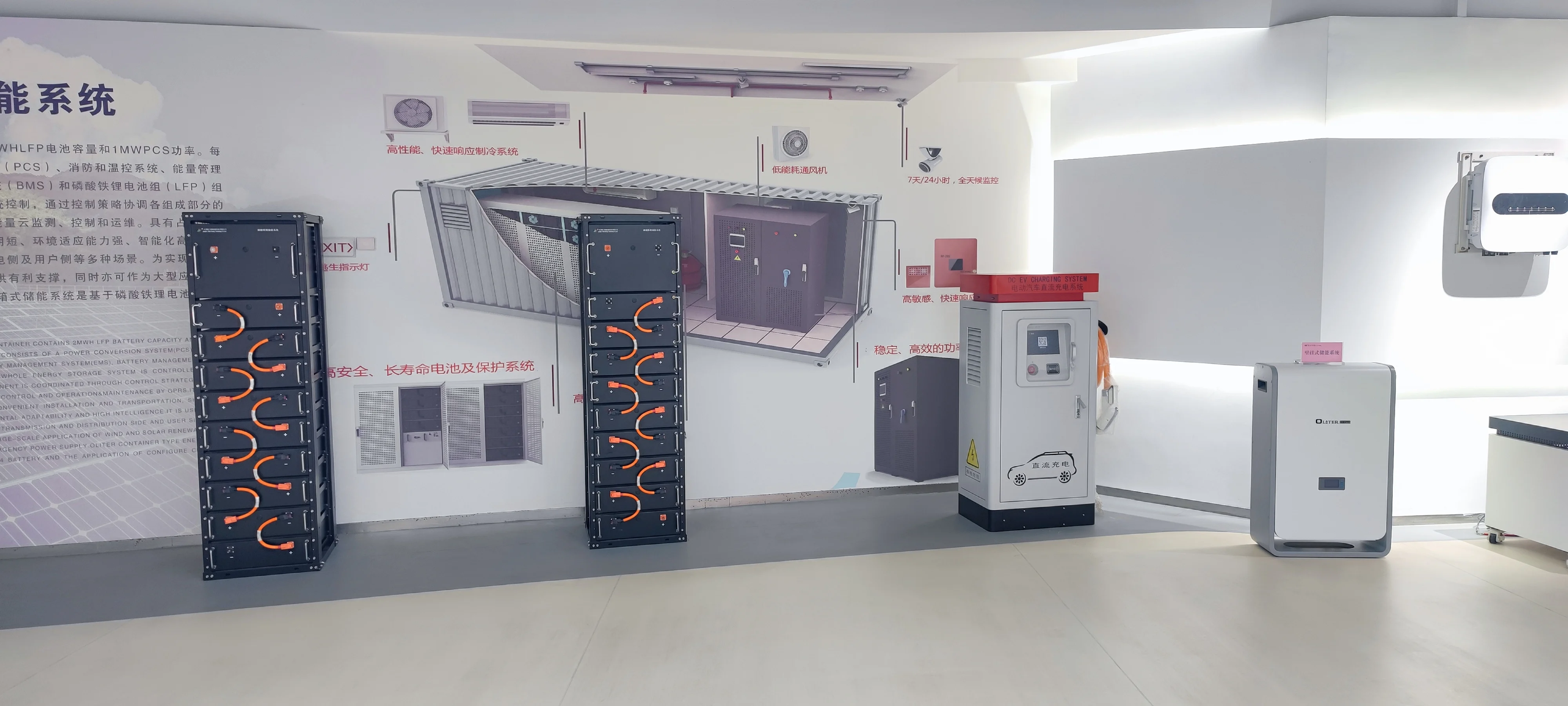

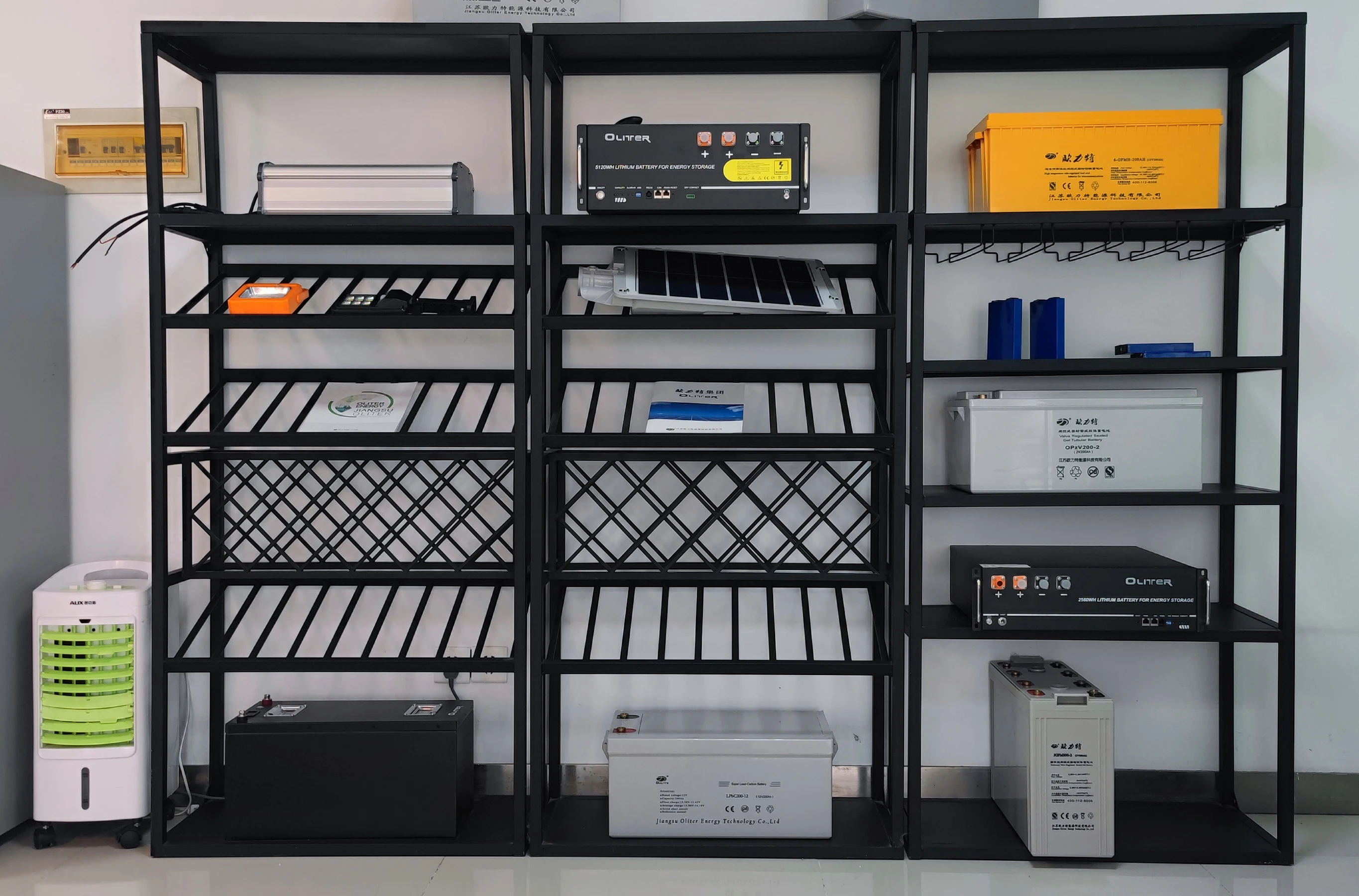

Showroom

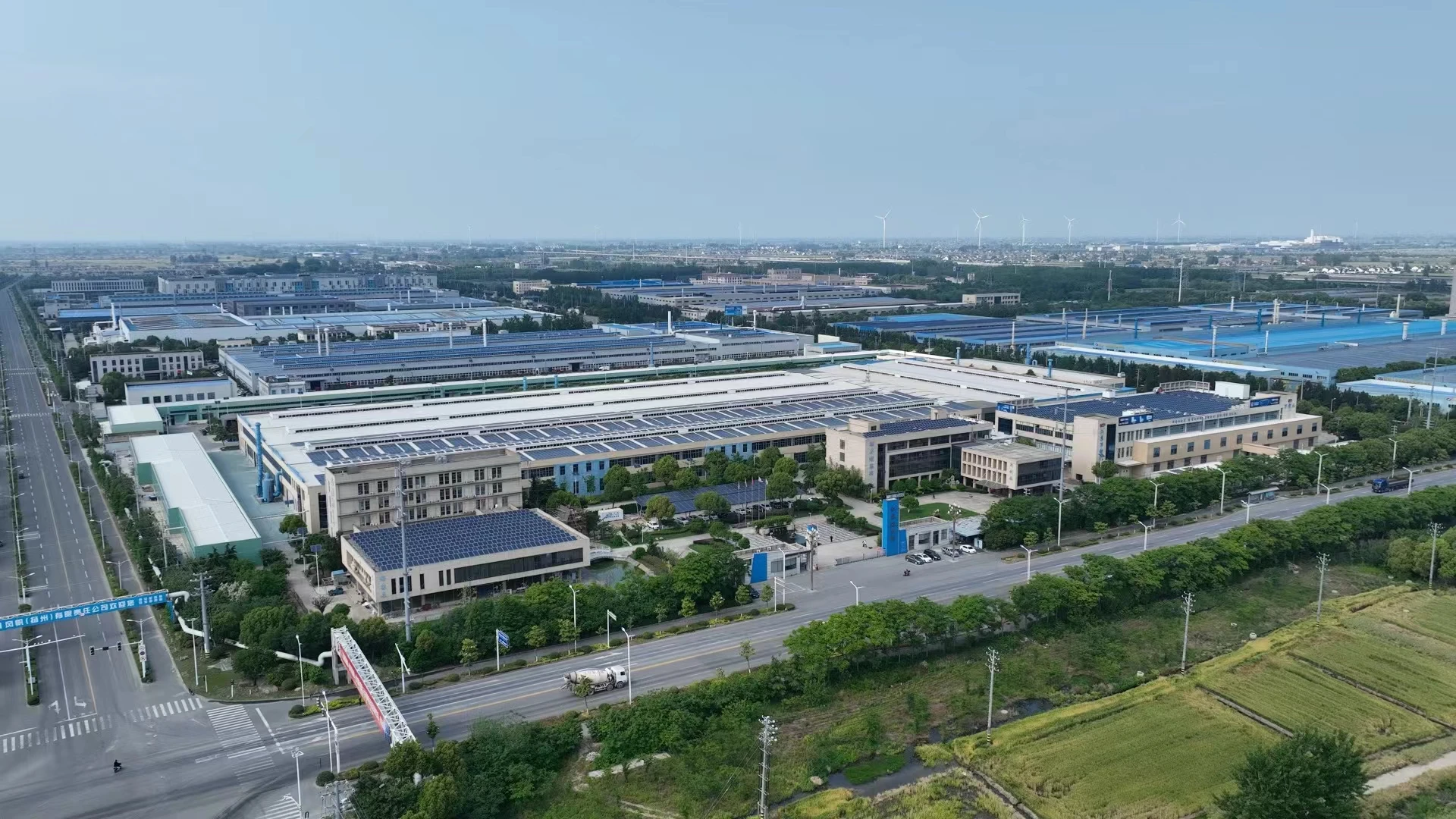

Company Profile
ZONTE is a subsidiary of the Oliter Group, a comprehensive energy solution company specializing in production, innovation, R&D and sales. With 20+ years of experience in energy storage battery production, the company's products are applied in various leading sectors, including TELECOM, BACKUP POWER and ENERGY STORAGE. ZONTE operates on a production scale of 120,000 square meters, with 3 R&D centers, 94 proprietary patents, and 31 invention patents. ZONTE collaborates with over 100 global clients, utilizing cutting-edge technology.
ZONTE is "The Future of Energy, A Green Tomorrow.
