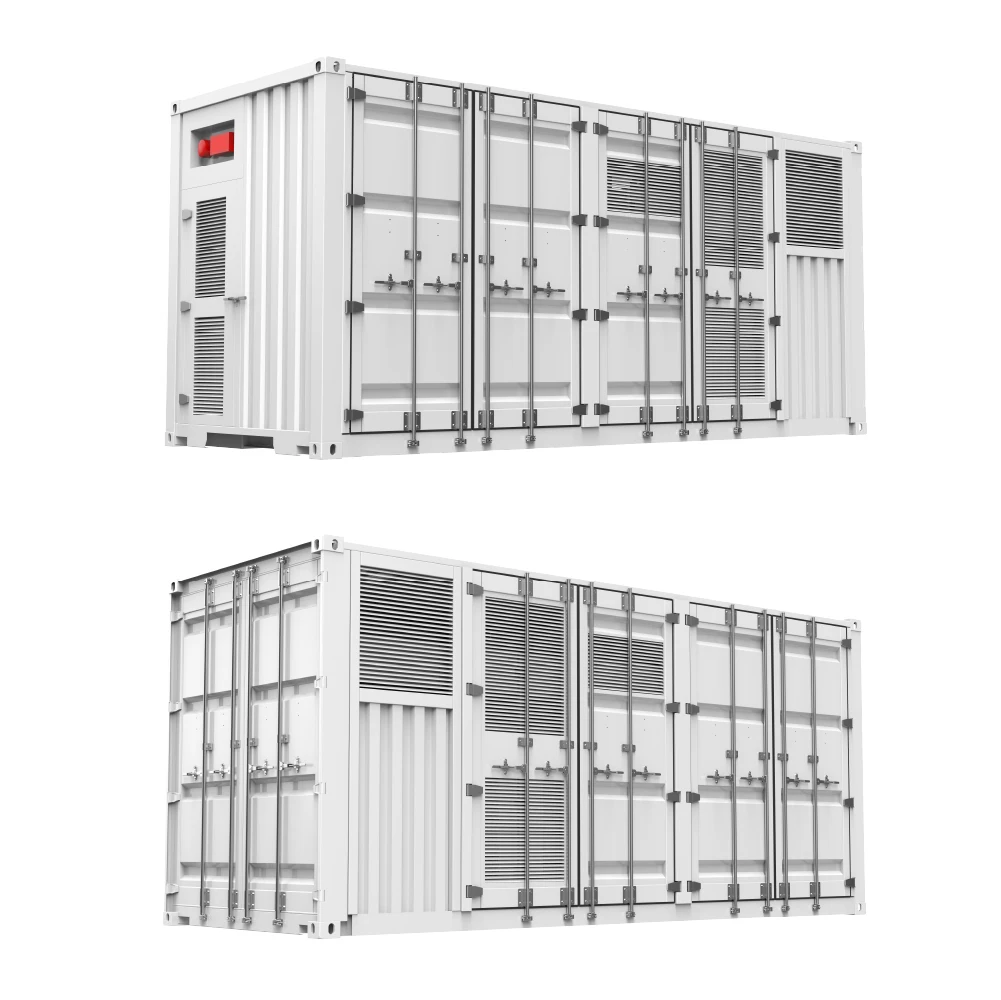

Sunark Air Cooling Containerized Energy Storage Battery System 500Kwh 600Kwh 1Mwh ESS Lithium Ion Batteries
- Category: >>>
- Supplier: SunArk Power Co. Ltd.SunArk Ltd.
Share on (1601245797410):
Product Overview
Description
Products Description

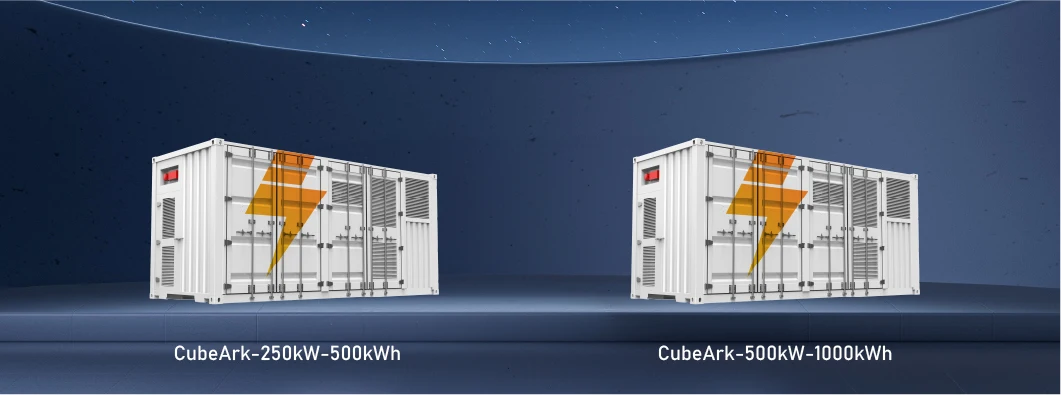

MODULE | CubeArk-500K-1MWH |
DC Data | |
Cell type | Prismatic LFP |
Cell brand | HiGEE |
Celle life cycle | >8,000 cycles@0.5C,25°C |
Cell spec | 3.2V/280Ah |
String configuration | 1P224S |
Number of strings | 5 |
String rated energy capacity | 200kWh |
DC rated energy capacity | 1000kWh |
Rated AC voltage | 716.8V |
Vokage range | 628V~806V |
BMS communication interface | Ethernet, CAN, RS485 |
BMS communication protocol | Modbus RTU, Modbus TCP |
AC Data | |
Rated AC power | 500kW |
Maximum AC power | 550kW |
Rated AC vokage | 400V |
AC PF | 1 leading ~ 1 lagging |
Output THDi | ≤3% |
Nominal grid frequency | 50/60Hz |
Isolation method | 3 Phase 4 Line Transformer |
General Data | |
Dimension w/o clearances (L*W*H) | 6,058*2,438*2, 591mm |
Weight of whole system | <30MT |
Degree of protection | IP65 |
Operating temperature range | -20~65°C |
Relative humidity | 0~95% (non-condensing) |
Max working altitude | 3,000m/9,842ft |
Cooling concept of DC hatch | HAVC |
Cooling concept of PCS hatch | Forced air cooling |
Fire extinguisher system | HFC bottle group |
Communication interfaces | RS485, Ethernet, GPRS |
Communication protocols | Modbus RTU, Modbus TCP |

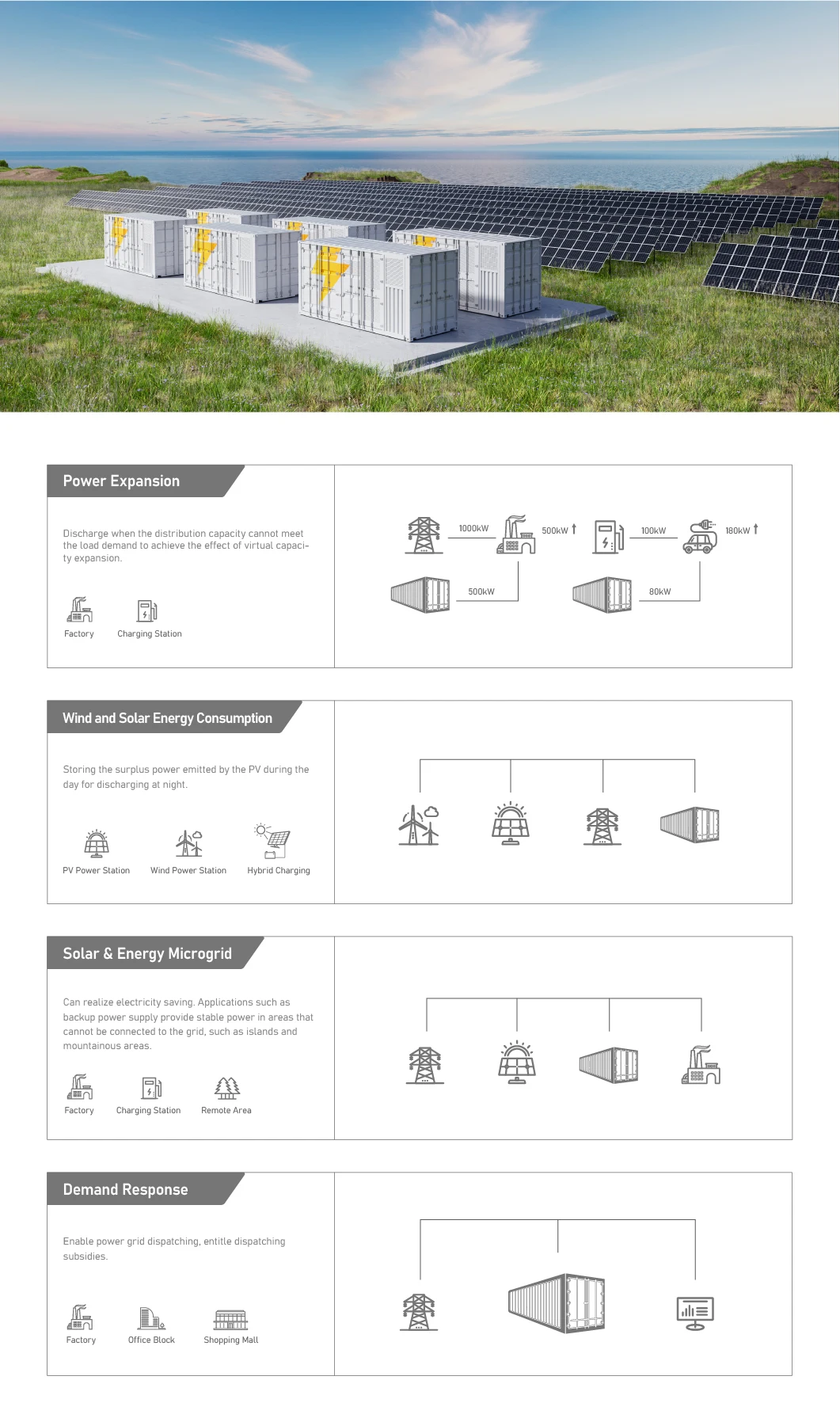

Applications

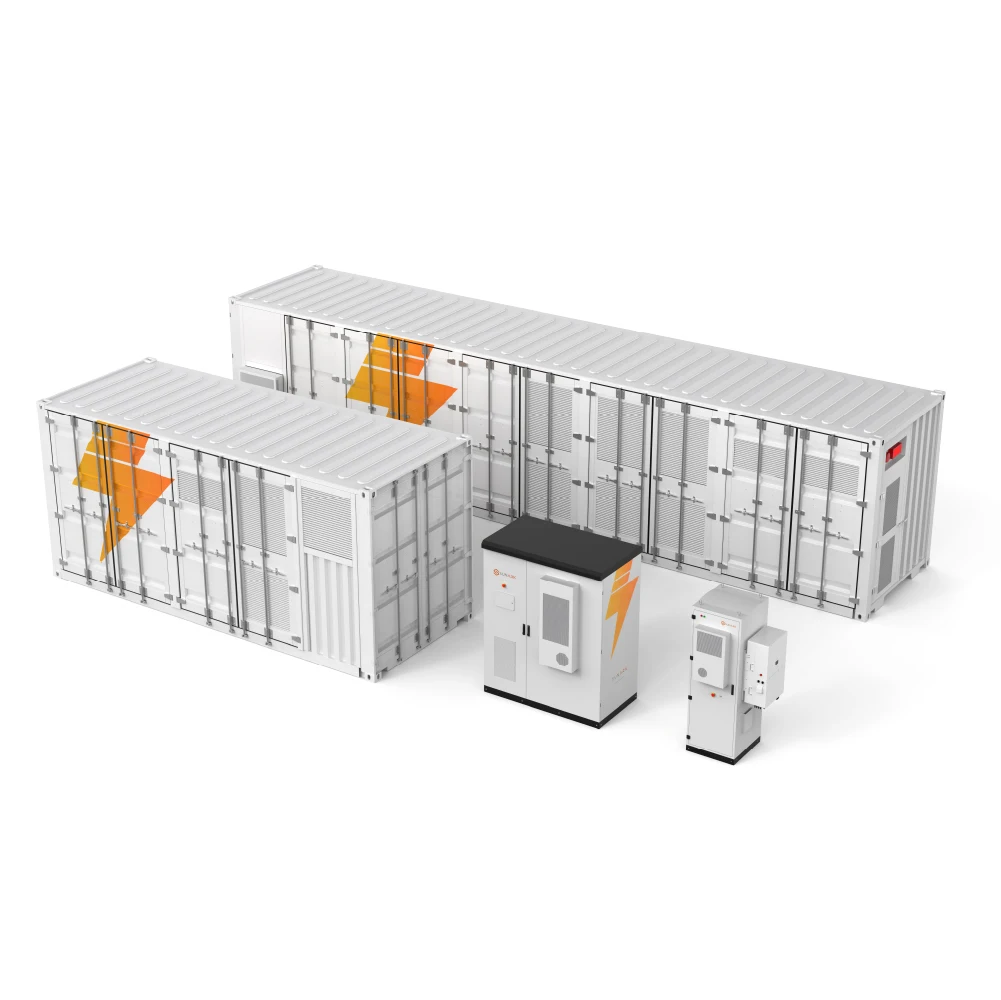

Products Series
