Factory Price Portable 3 9 m3 per hour Wet Mix Concrete Sprayer Spray Machine for Slope Protection
- Category: >>>
- Supplier: Zhengzhou Vantage Machinery Co. Ltd.
Share on (1601245844995):
Product Overview
Description
Product Overview

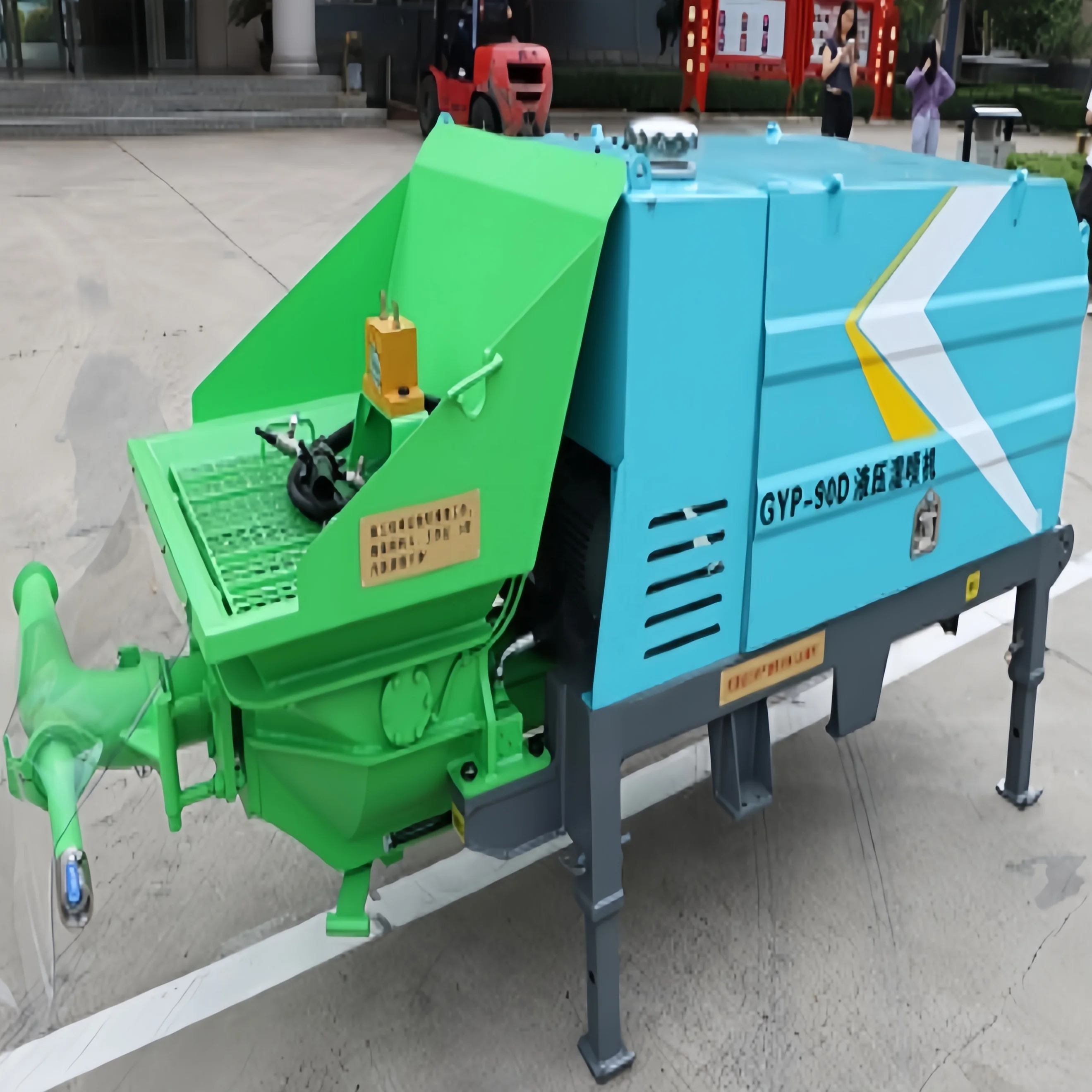

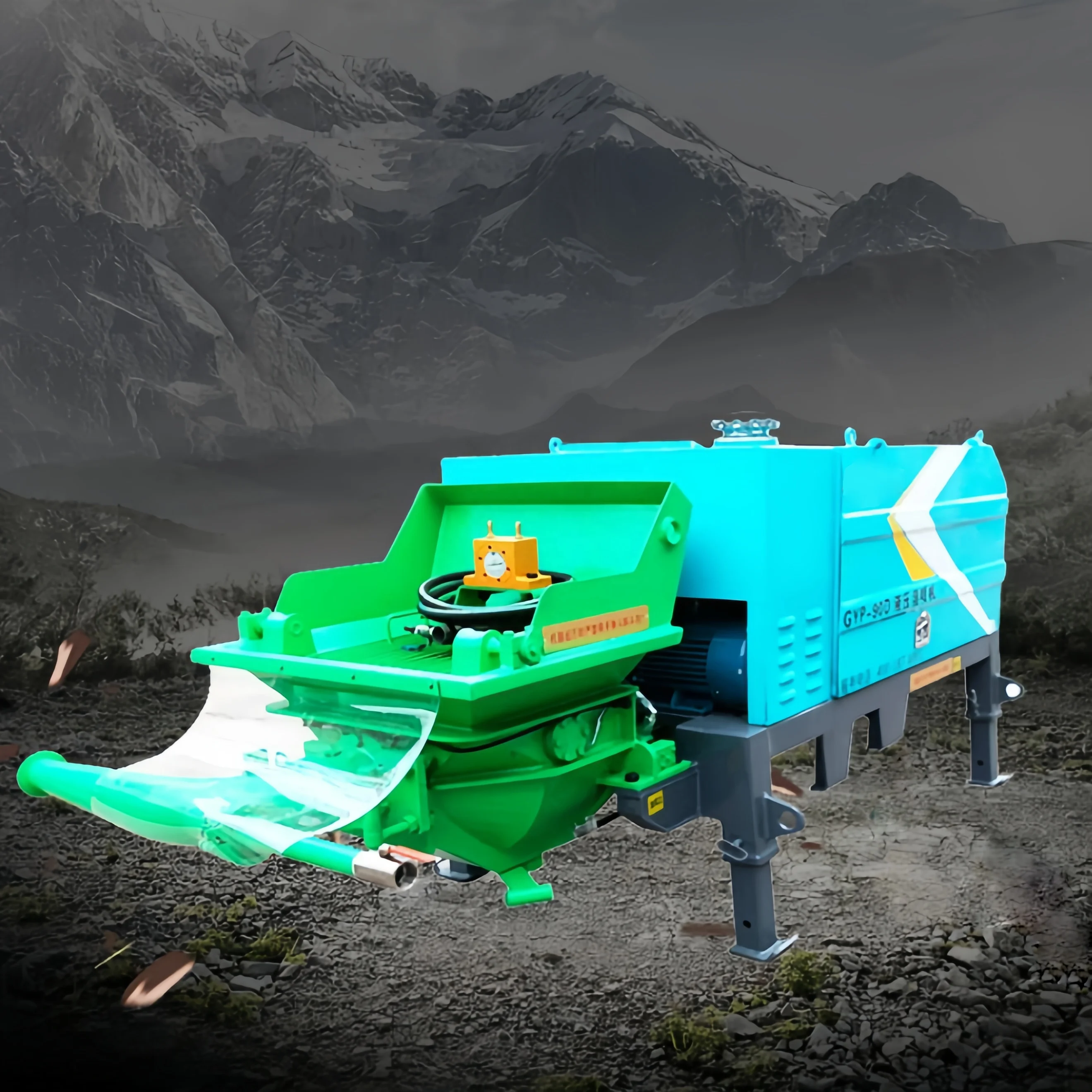

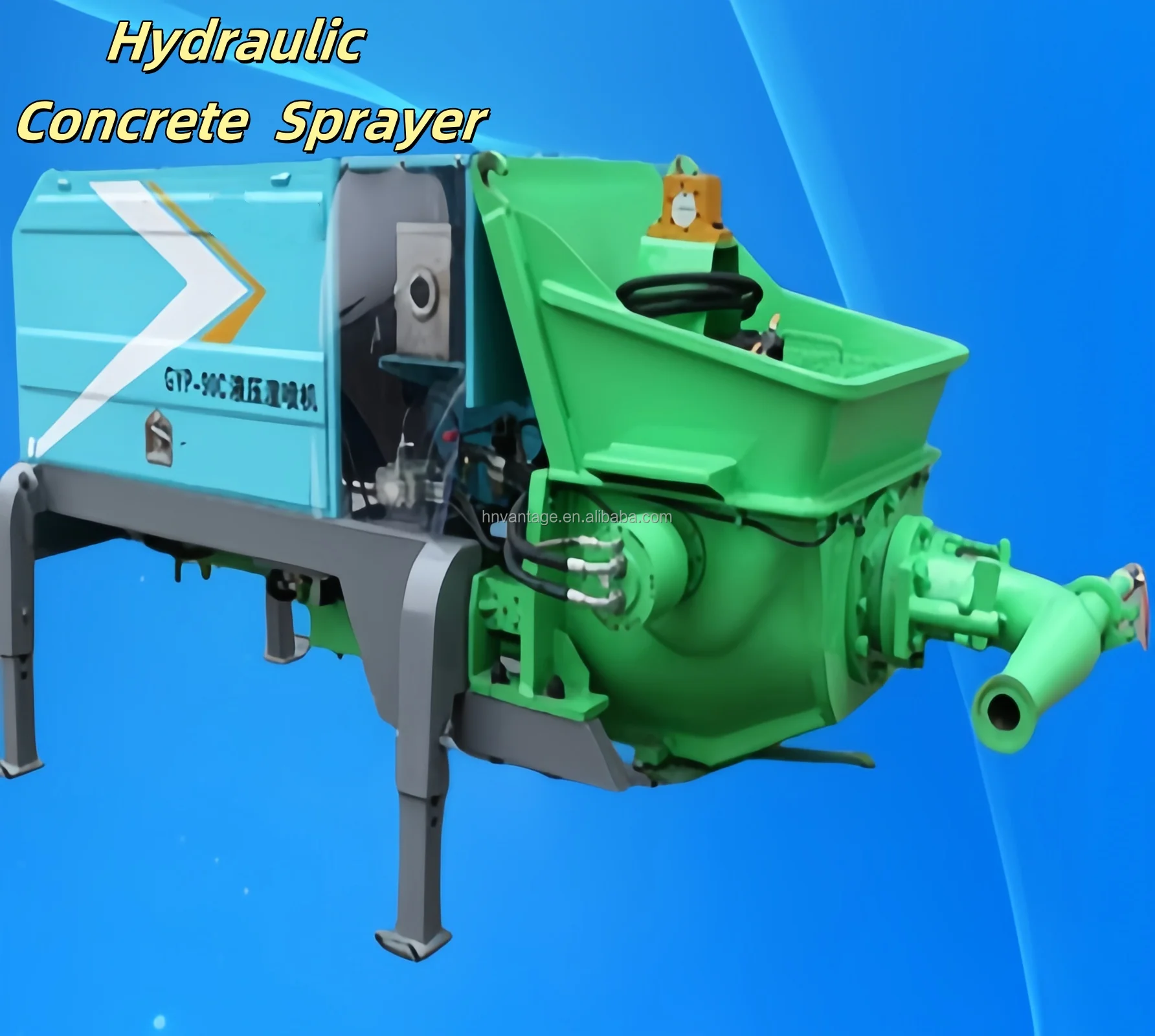

HYDRAULIC WET SPRAYING MACHINE
GYP-90D hydraulic wet spray machine is a kind of machine, electric and liquid three-in-one mechanical equipment which uses the thrust generated by hydraulic pump to make the two cylinders move alternately and send the dense flow material from the conveying pipe to the mixed flow pipe, form thin flow through the compressed air and send it to the nozzle, add a certain proportion of accelerator at the nozzle, and spray it directly to the sprayed surface. It is widely used in the construction of highway, railway, road, hydropower station and other projects.

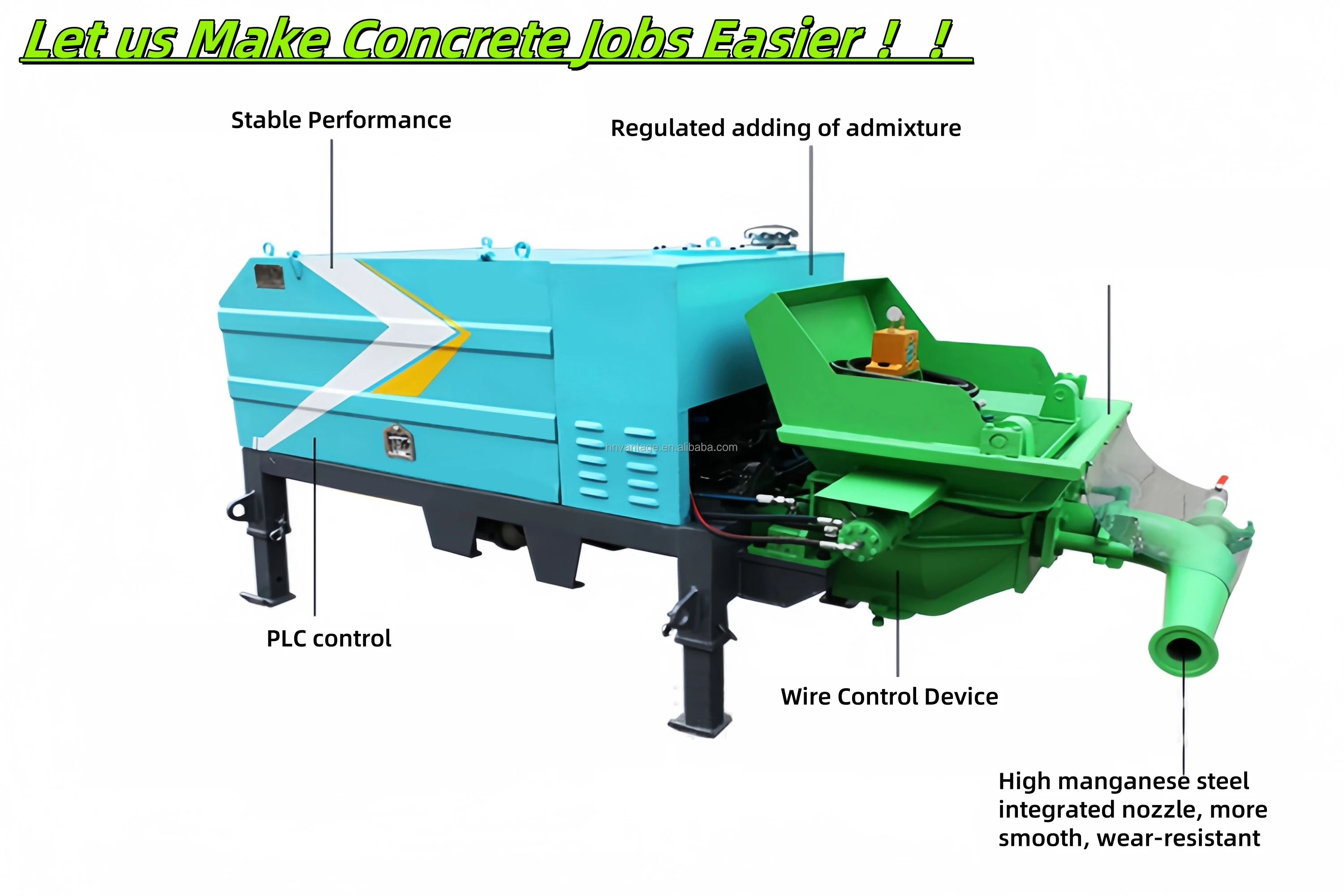

FEATURES AT A GLANCE
ADVANTAGES:
Wide ApplicationsPLC Control
Stable Performance,Less Wearing Parts
Regulated Spraying output
(Switching oscillation number ≤16)
Adjustable Admixture
Easy Maintainence, low cost.
the spray pulsation is small, good continuity.
Simple Operation
Customized Motor
Supply of Spraying Hoses

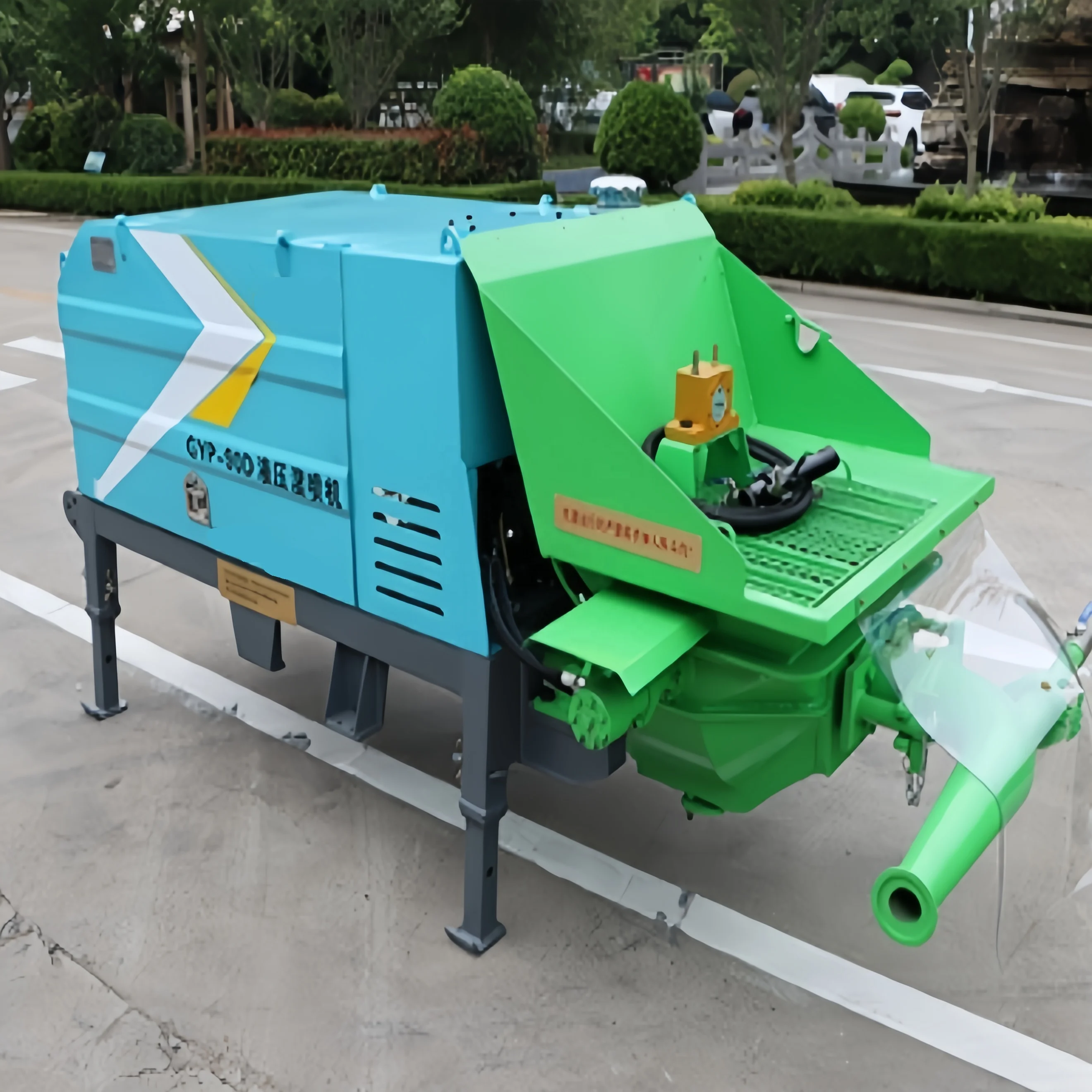

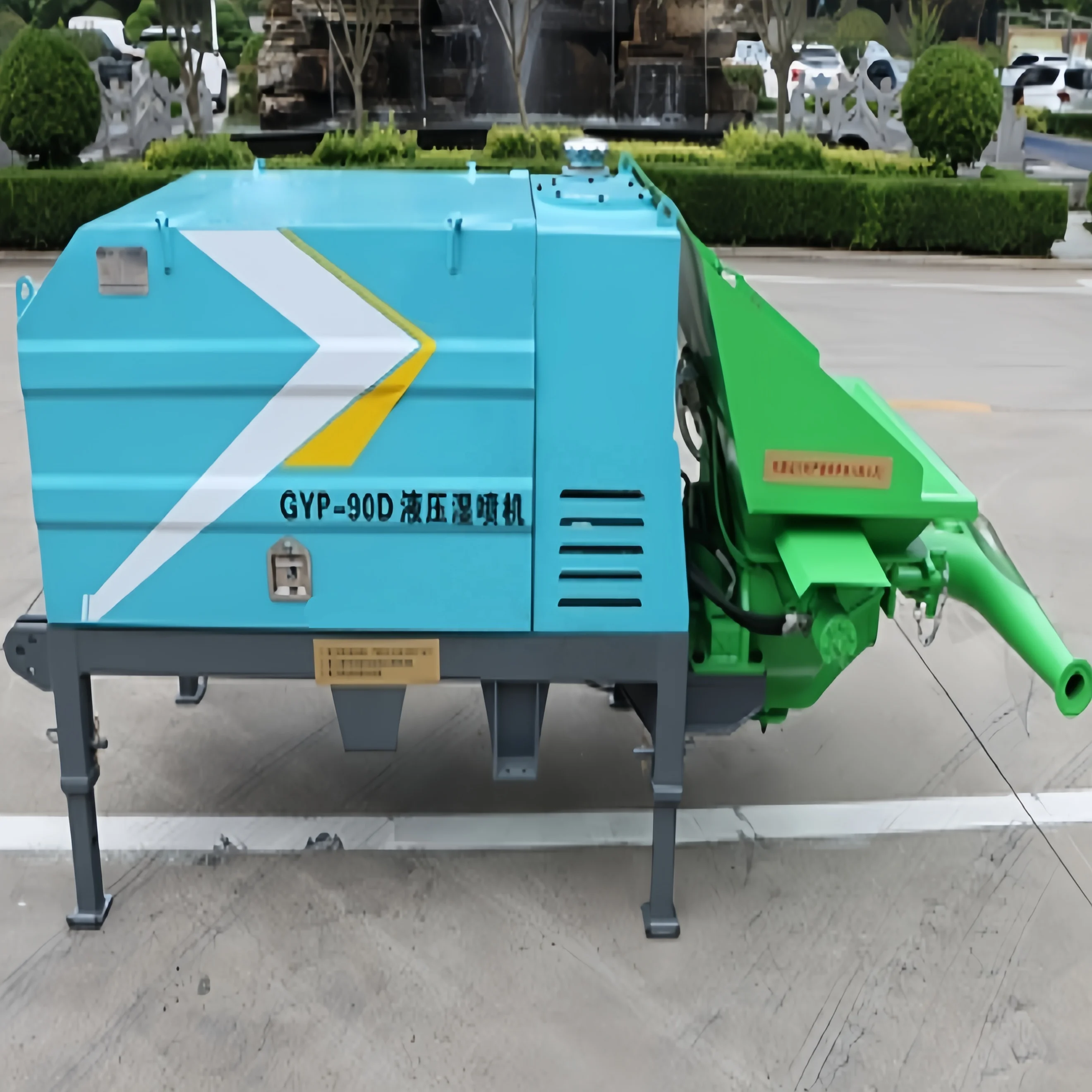

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
BASIC CONFIGURATION | UNIT | SPECIFICATIONS |
Output Capacity | m3/h | 3-9 |
System Pressure | Mpa | 18 |
Pump Cylinder Dia. | mm | 120mm |
Pump Stroke | mm | 600mm |
Working Air Pressure | Mpa | 0.4-0.6 |
Concrete Discharge Outlet Pressure | Bar | 6 |
Hopper Volume | m3 | 0.13 |
Loading Height | mm | 910 |
Bouncing Rate | % | not more than 10% |
Max.Aggregate Size | mm | 15 |
Power of Main Motor | Kw | 15 |
Power of Auxillary Motor | Kw | 7.5 |
Oil Tank Capacity | L | 128 |
Overall Dimension | mm | 2950x1210x1420 |
Machine Weight | kg | 1650 |

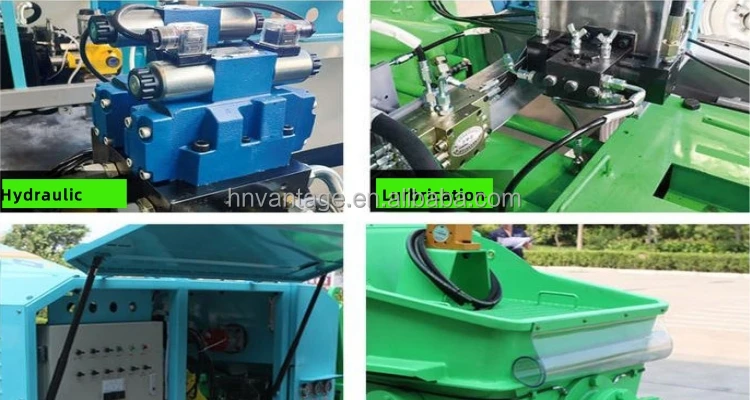

DETAILS PRESENTATION

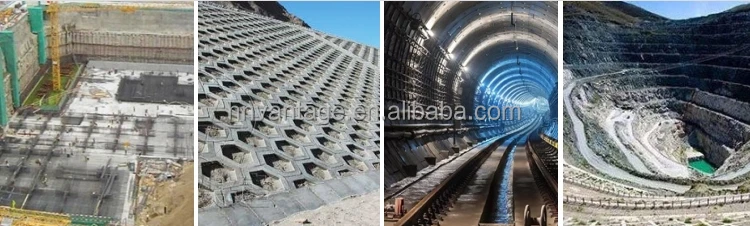

SCOPE OF APPLICATIONS

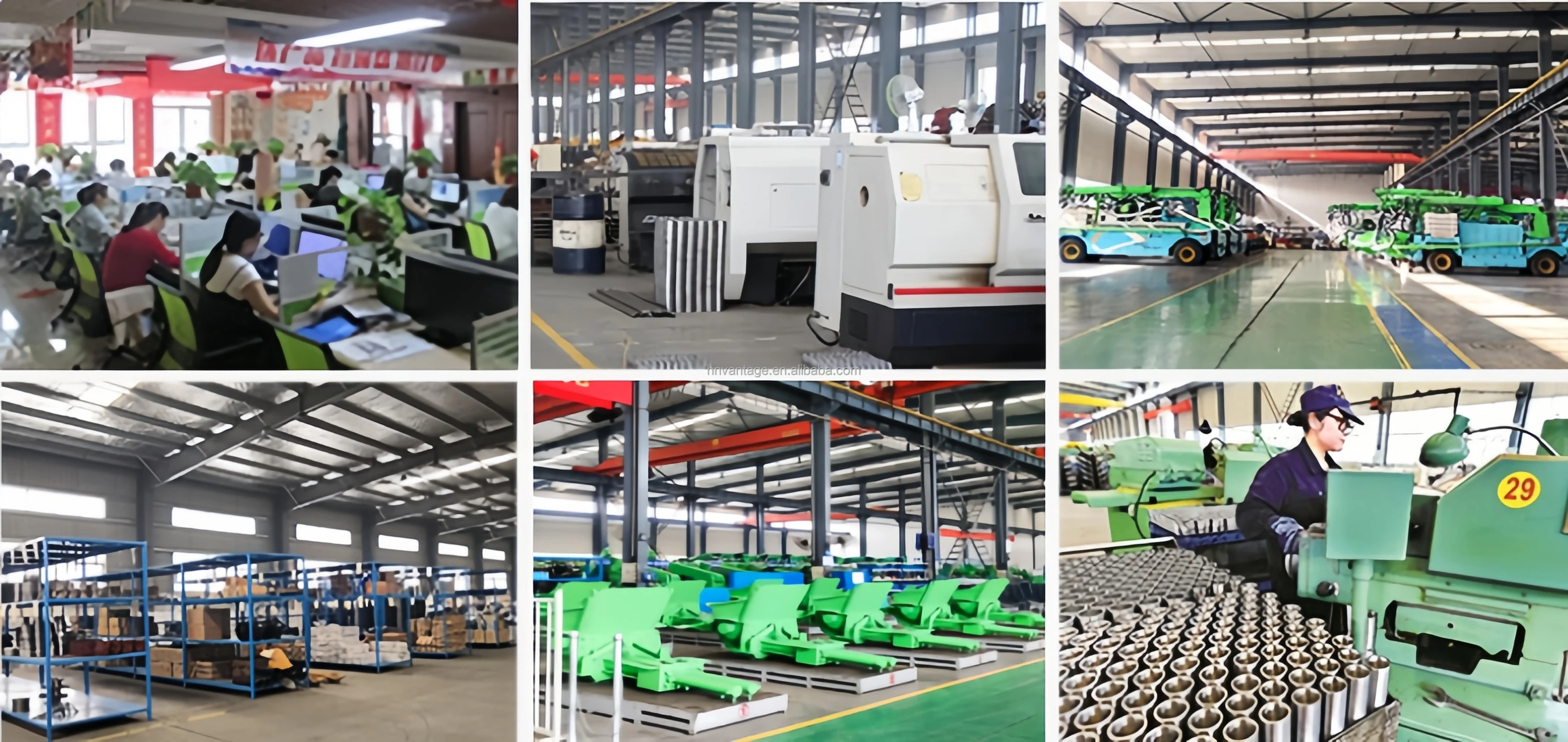

ABOUT US
Zhengzhou Vantage Machinery Co.ltd is a national high-tech enterprise specializing in the research and development and production of tunnel engineering equipment. Our products are widely used in high-speed railway, water conservancy and hydropower, mining and other tunnel (mining) construction operations.
The main products are: wet spray truck, rock drilling truck, arch frame truck, doule lining truck, side ditch truck, mobile trestle, rock drilling tools, high pressure grouting machine, intelligent steel processing machine, high pressure hose and rubber products, more than 60 kinds, to meet the tunnel construction "one-stop" procurement needs.
At the same time, the company also vigorously implement the strategy of quality strong enterprises, brand winning strategy, and constantly move toward the goal of industrialization, high-end and internationalization, in order to gradually build a modern company with scientific and technological innovation and obvious advantages, and make new and greater contributions to the high-quality development of Chinese manufacturing.
PACKING AND DELIVERY
FAQ
Q1: How about your delivery time?
A1: It depends on the quantity. Generally it is 10 days.It will be 15-30 days for customized orders
Q2: Can we add or decrease the using amount of admixture？
A2: Yes, it is adjustable, even the output capacity is regulated, we equipment a wire control unit. So easy to operate.
Q3: What is the information should I provide for inquiry ?
A3: Spraying Capacity?
A1: It depends on the quantity. Generally it is 10 days.It will be 15-30 days for customized orders
Q2: Can we add or decrease the using amount of admixture？
A2: Yes, it is adjustable, even the output capacity is regulated, we equipment a wire control unit. So easy to operate.
Q3: What is the information should I provide for inquiry ?
A3: Spraying Capacity?
Length of Concrete Delivery Hose?
Purpose Type of Work？
Local Voltage and using environment？
Q4: Do you have a warranty on this machine?
A4: Our warranty is 12 months. Beyond the warranty period, we provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q4: Do you have a warranty on this machine?
A4: Our warranty is 12 months. Beyond the warranty period, we provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q5: How can we choose the right machine?
A5: Kindly let us your work type, slope protection or tunnel works, what is your requirement, we will recommend the suitable machine. We have both wet and dry shotcrete for your options.
Q6: What about your payment Terms?
A5: T/T or Alibaba Trade Assurance.
Q6: What about your payment Terms?
A5: T/T or Alibaba Trade Assurance.
