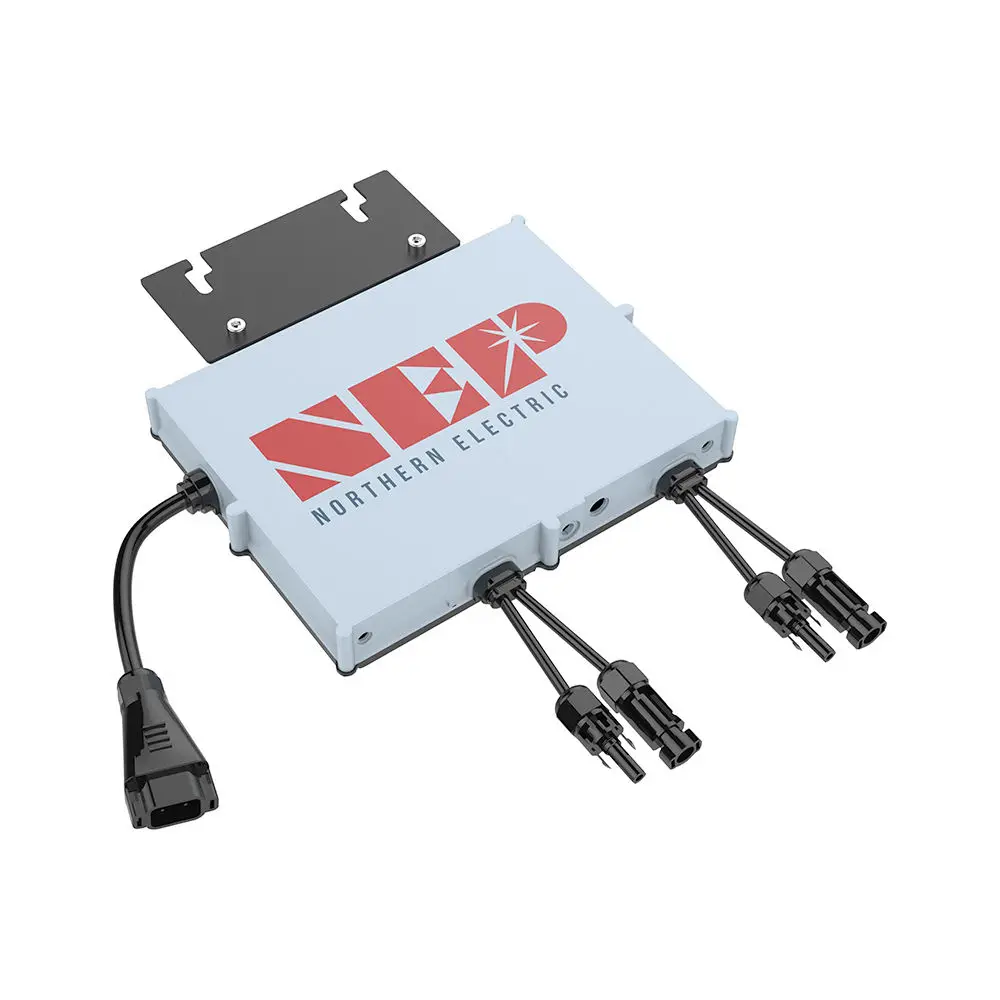

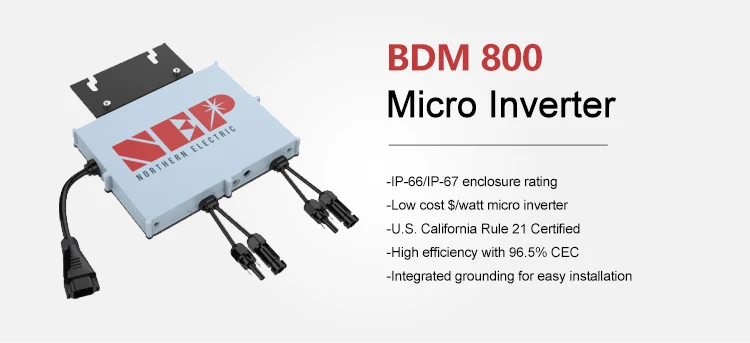

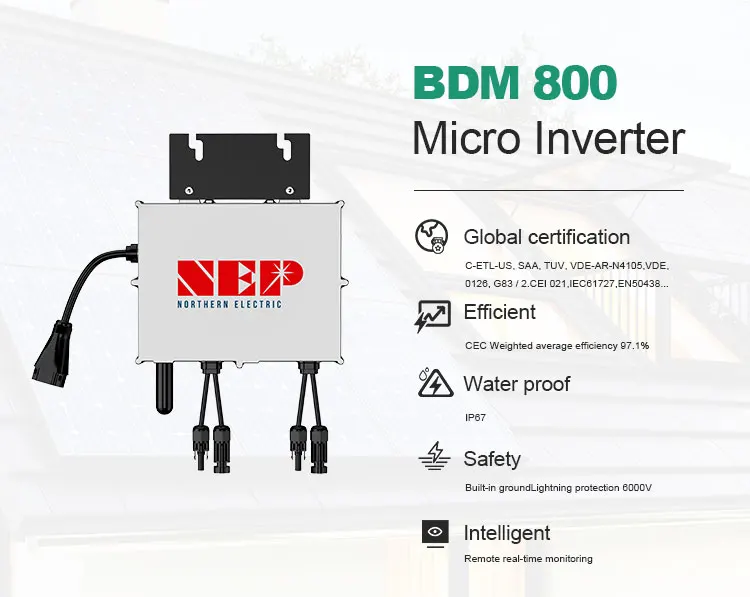

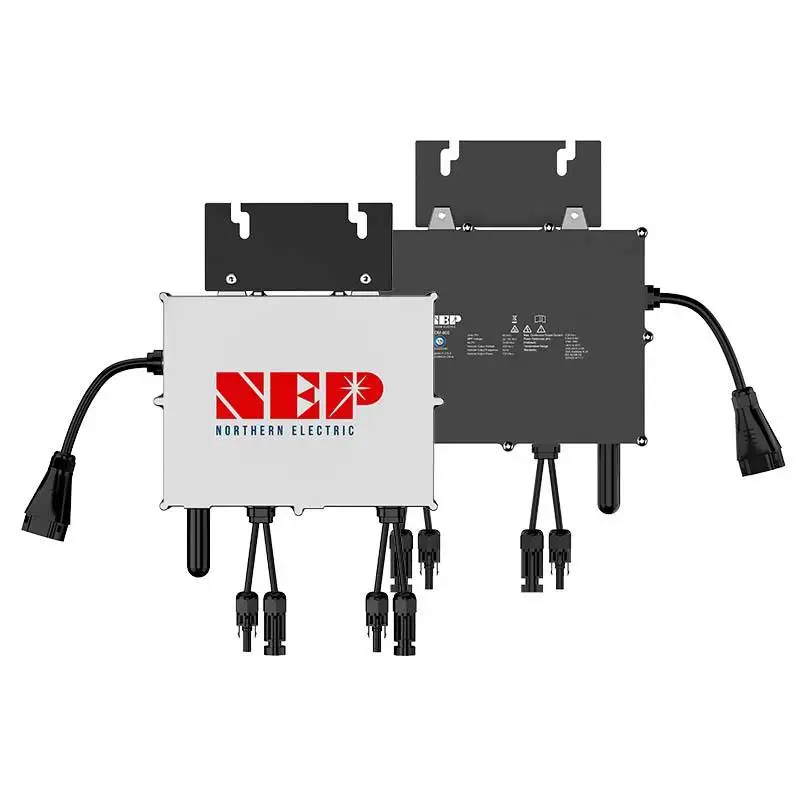

BDM 800 MICRO INVERTER

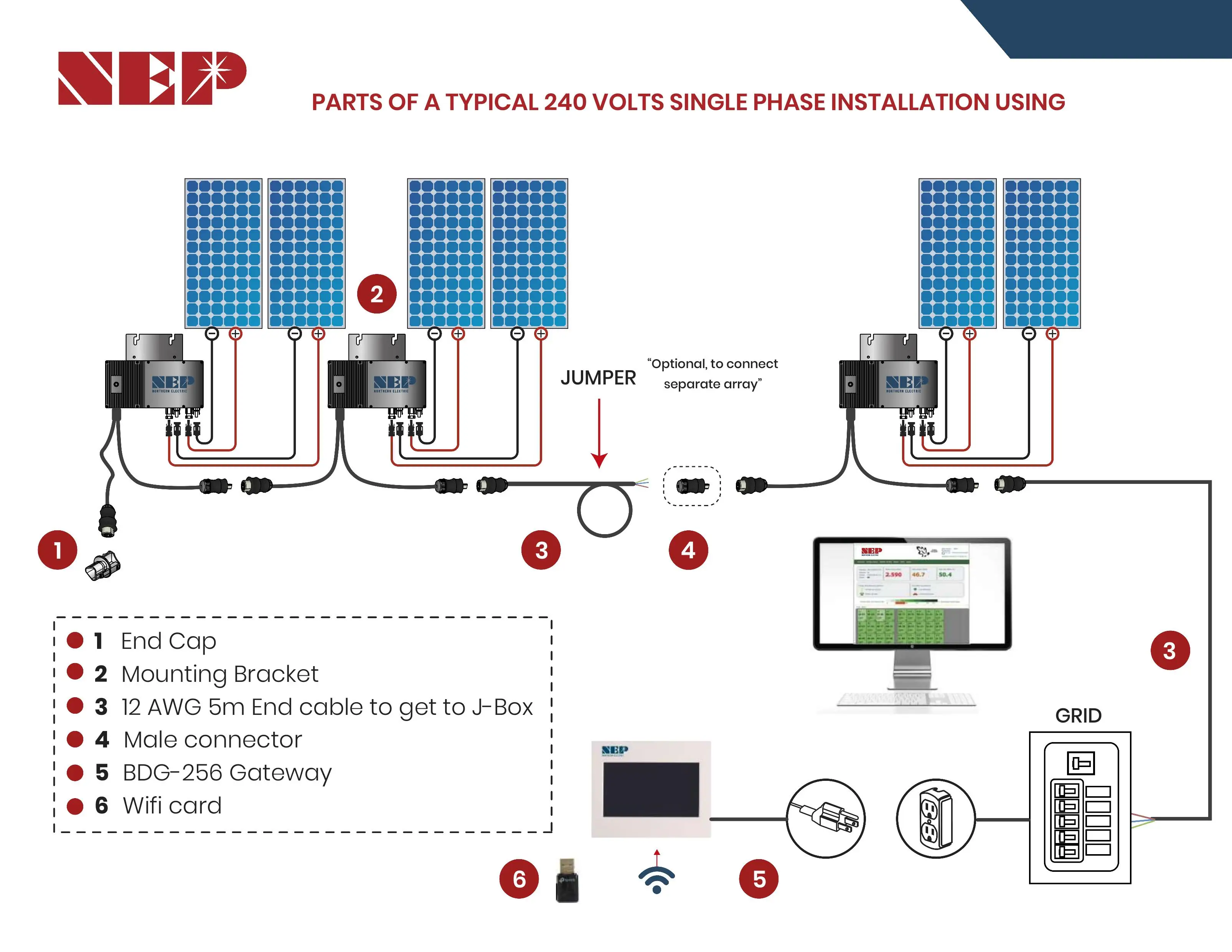

The BDM-800 is a micro inverter designed to generate more energy at a low cost and with an efficiency of 95%. It has an integrated monitor and power line communication with BDG-256 gateway . It can be connected to the BDM-300, BDM-250, and BDM-300×2. This micro-inverter is globally certified for Rule 21, TUV, NEMA-6/IP-66/IP-67 enclosure rating.
Product Parameters
Product Name | NEP Micro Inverter |
Input DC voltage： | 16-50V |
Output AC voltage： | 110/220V |
Output frequency： | 48-60HZ |
MPPT tracking voltage: | 25-35v |

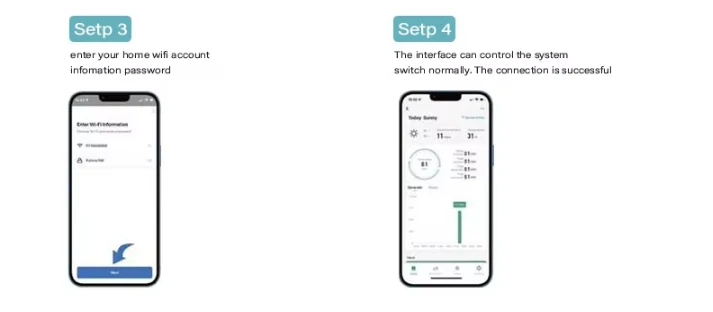

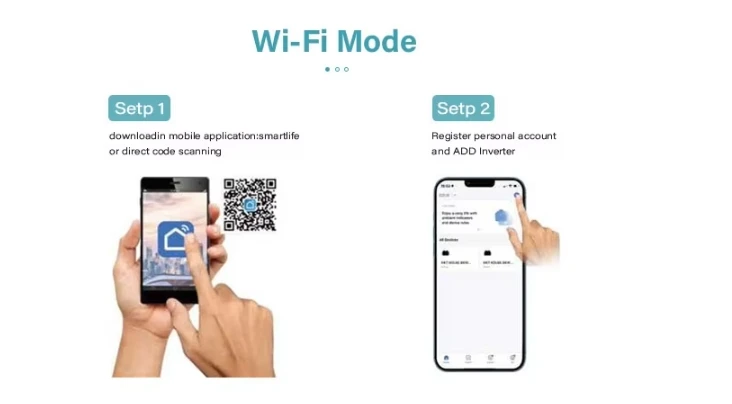

Communication method: | Bluetooth/WiFi tuya |
Number of Input MC4 Connector | 2-4 |
Dimension (W-H-D) | 8.8” x 8.2” x 1.38” (268x250x42 mm) |
Weight | 6.4 lbs. (2.9 kg) |
Environment Category | Indoor and outdoor |
Wet Location | Suitable |
Pollution Degree | PD 3 |
Overvoltage Category | II(PV), III (AC MAINS) |
Product Safety Compliance | IEC/EN 62109-1, IEC/EN 62109-2 Other Certificates are Optional |
Grid Code Compliance* (Refer to the label for the detailed grid code comliance) | IEEE 1547,VDE-AR-N 4105*,VDE V 0126-1-1/A1 AS 4777.2 & AS,TOR Erzeuger Typ A |

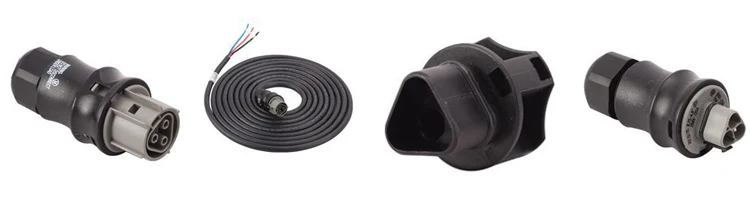

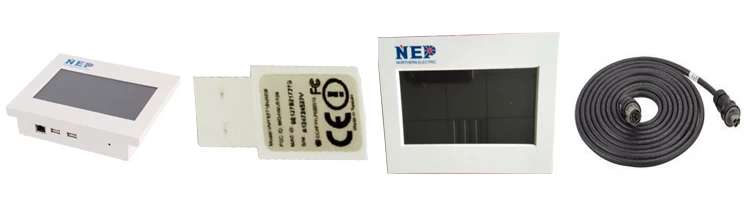

Accessories
Company Profile
Certifications

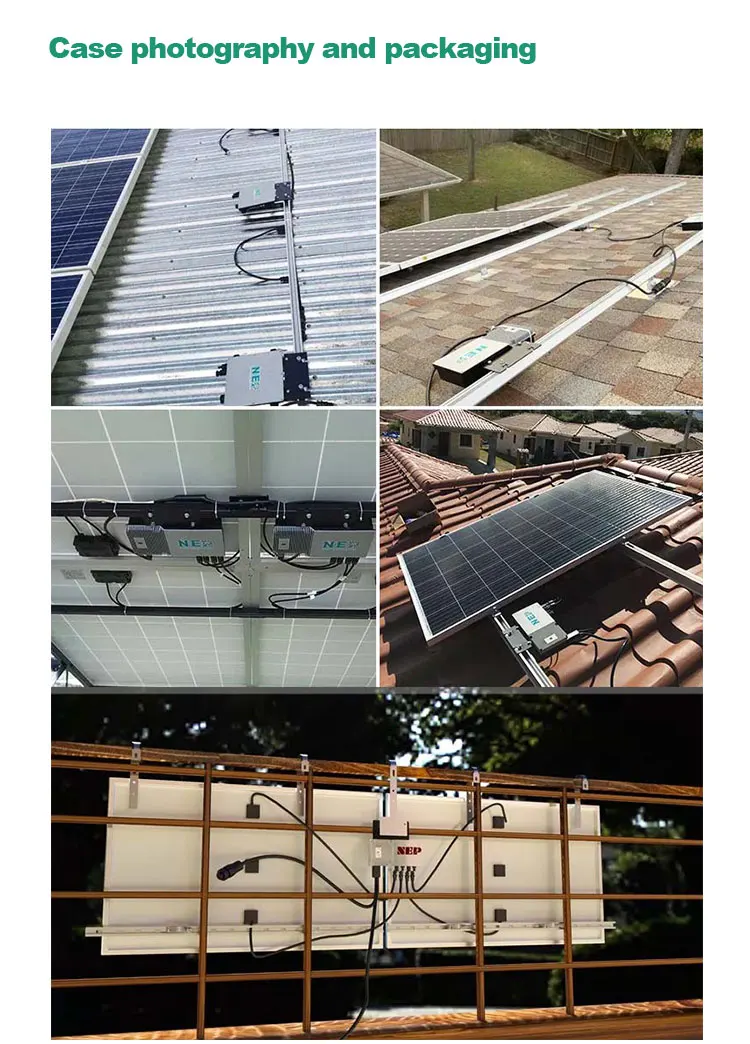

Project Cases
