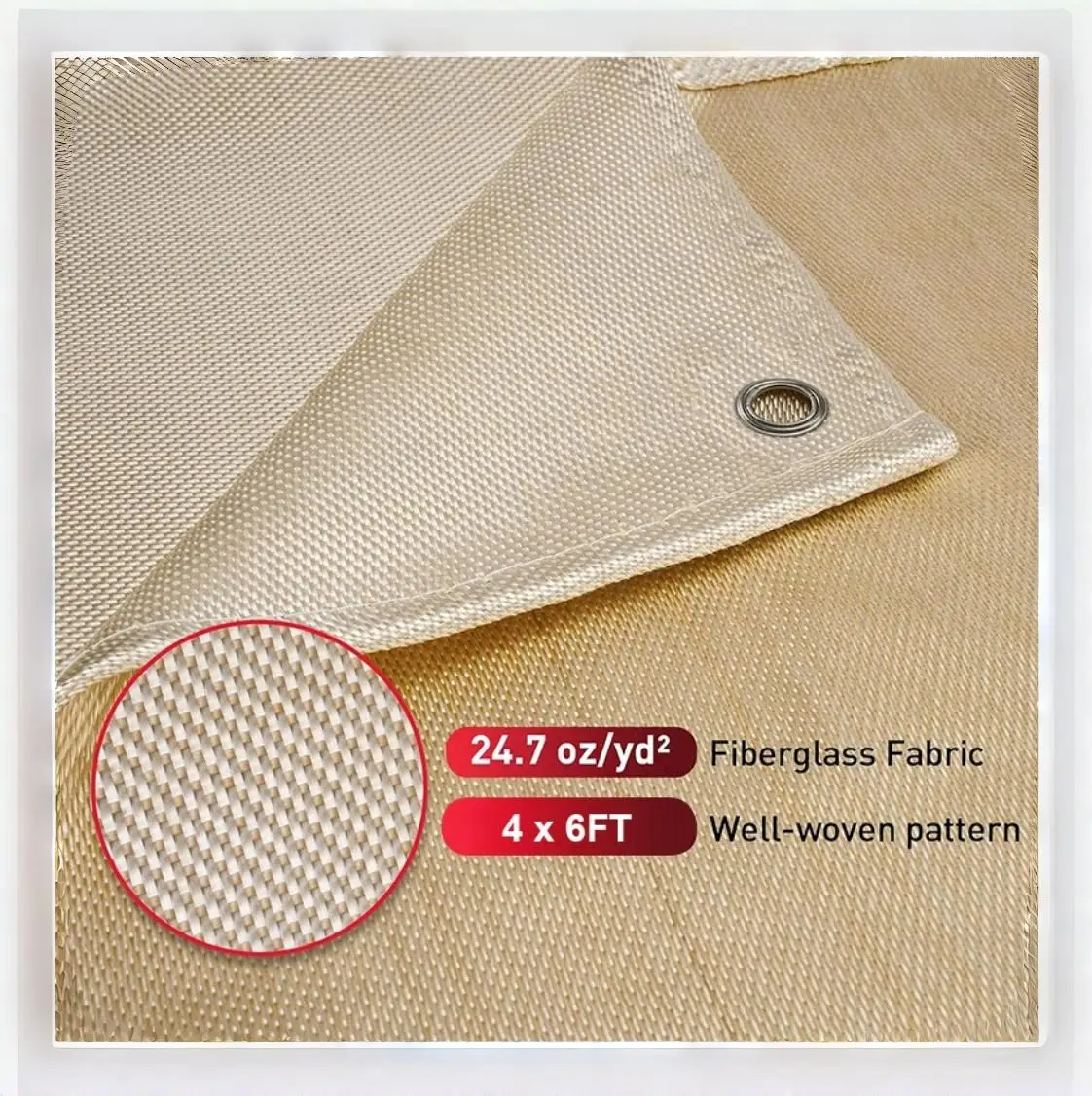

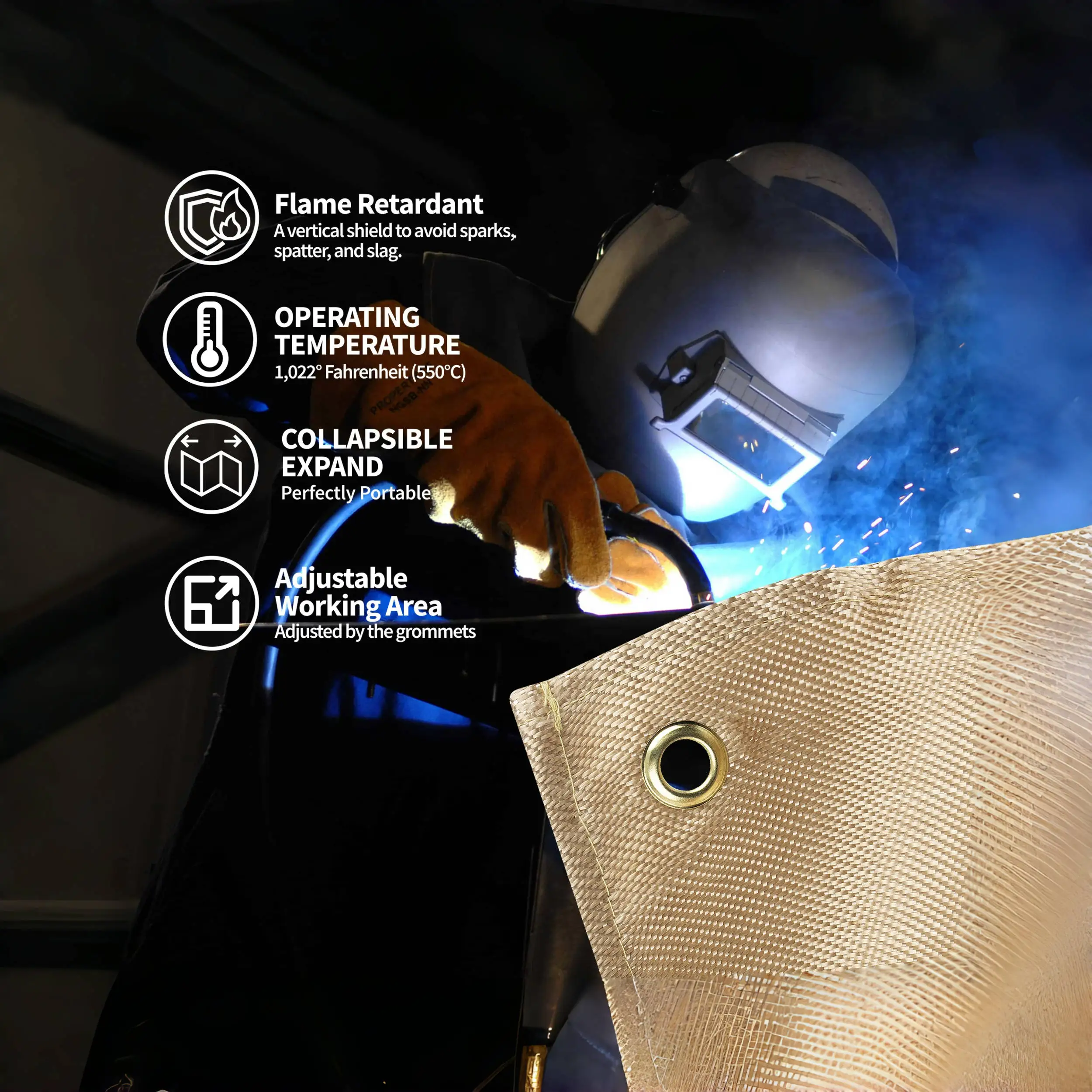

Heat Insulation Welding Curtain Fiberglass Cloth Spark Protection Fire Resistant Welding Blanket
- Category: >>>
- Supplier: Taizhou Zhongsheng Glass Fiber Products Co. Ltd.
Share on (1601245996594):
Product Overview
Description
Product Name | Welding Blanket |
Size | 4x6 6x6, 6x8, 8x8, 10x10 Ft |

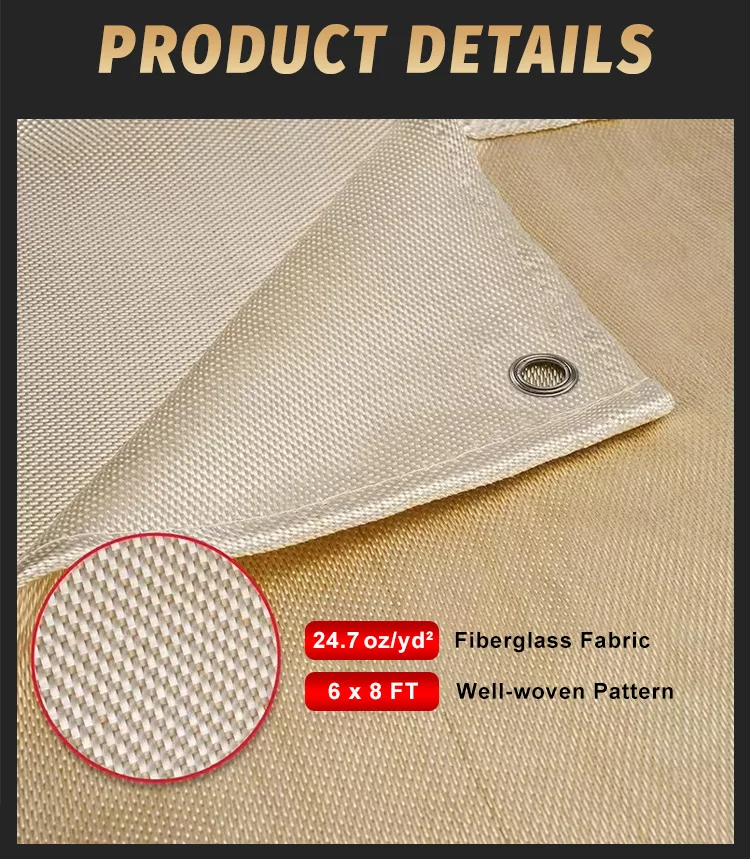

Area weight: | 24.7 OZ |
Appropriate types | Light duty，Medium duty，Heavy duty |
Applicable scene | Barbecues, ovens, hot pans, microwaves, woodstoves, fireplaces, campfires, and heavy welding gear. |

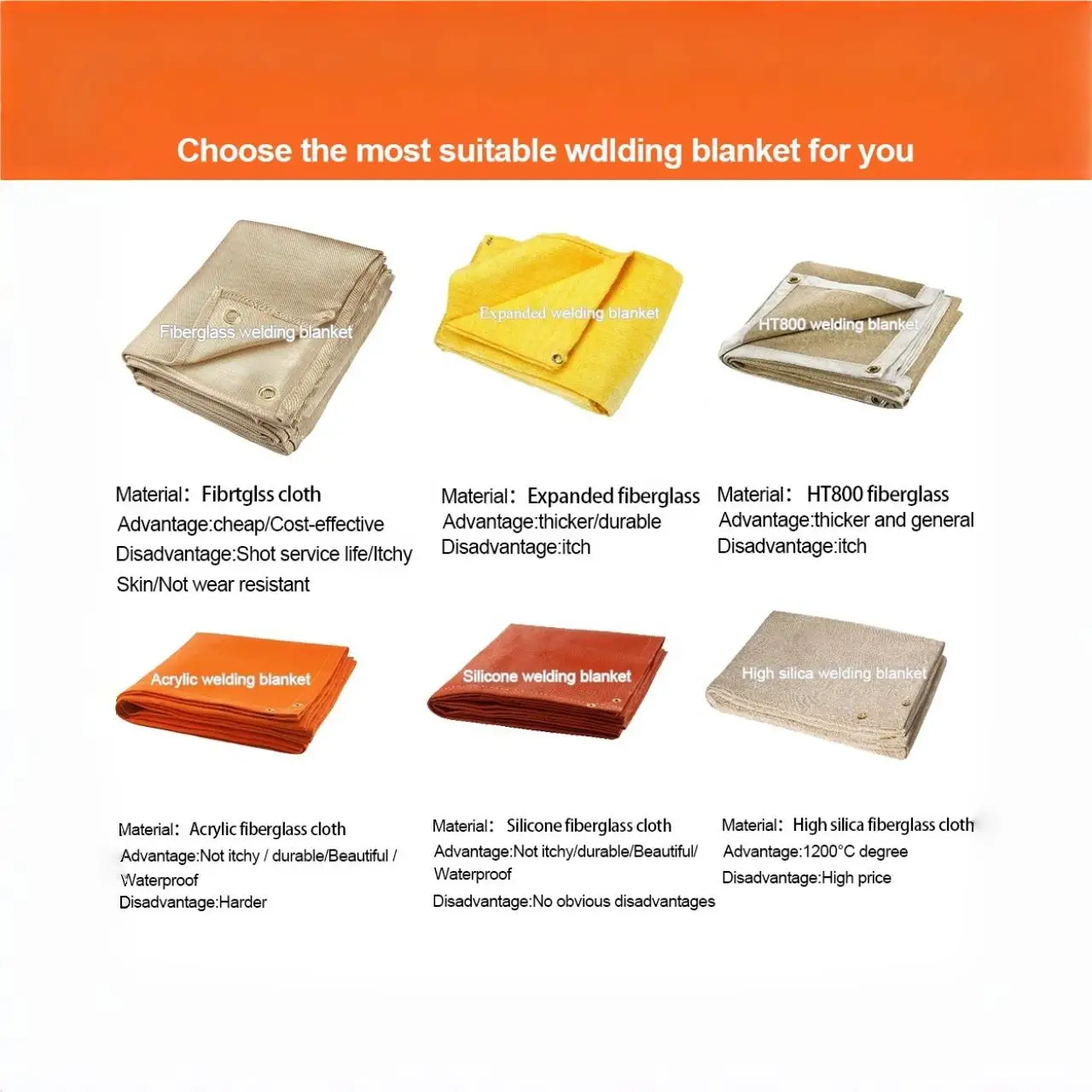

Coating type | Silicone coated, Vermiculite impregnated，PU coated，PVC coated, Dewaxing, High Silica |
WELDING BLANKET
WORKING TEMPERATURE(550°c —— 1200 °c)
WORKING TEMPERATURE(550°c —— 1200 °c)

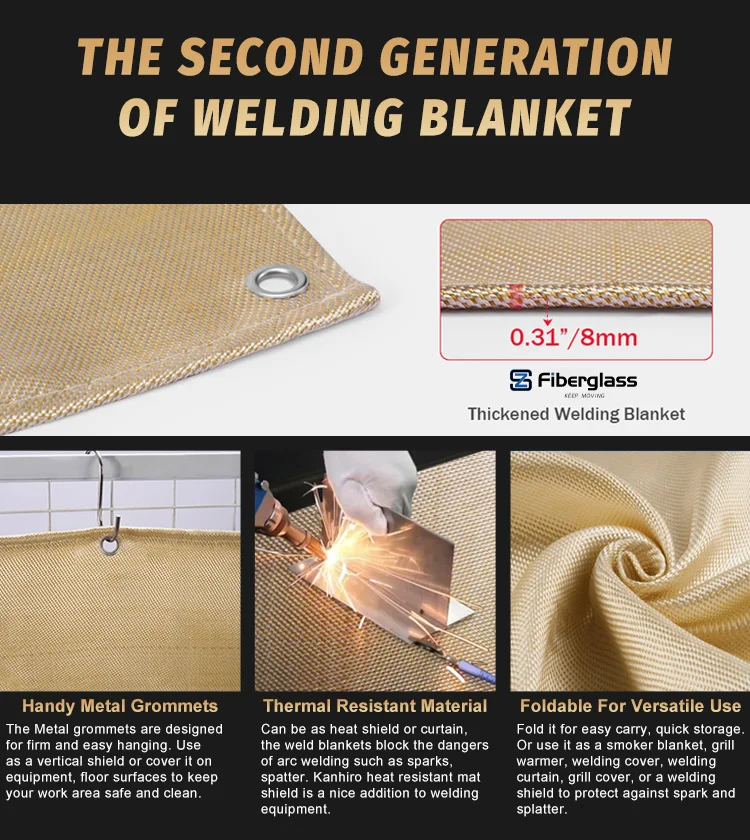

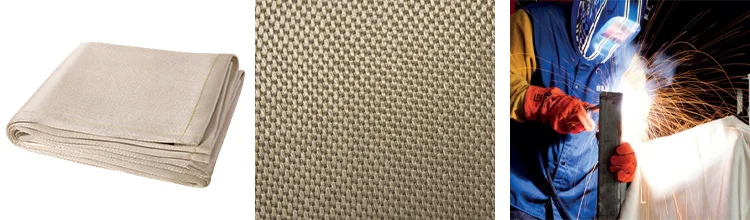

Welding blanket is made of fiberglass fabric, silica fabric or fiberglass fabric with all kinds of coating. The fabric has

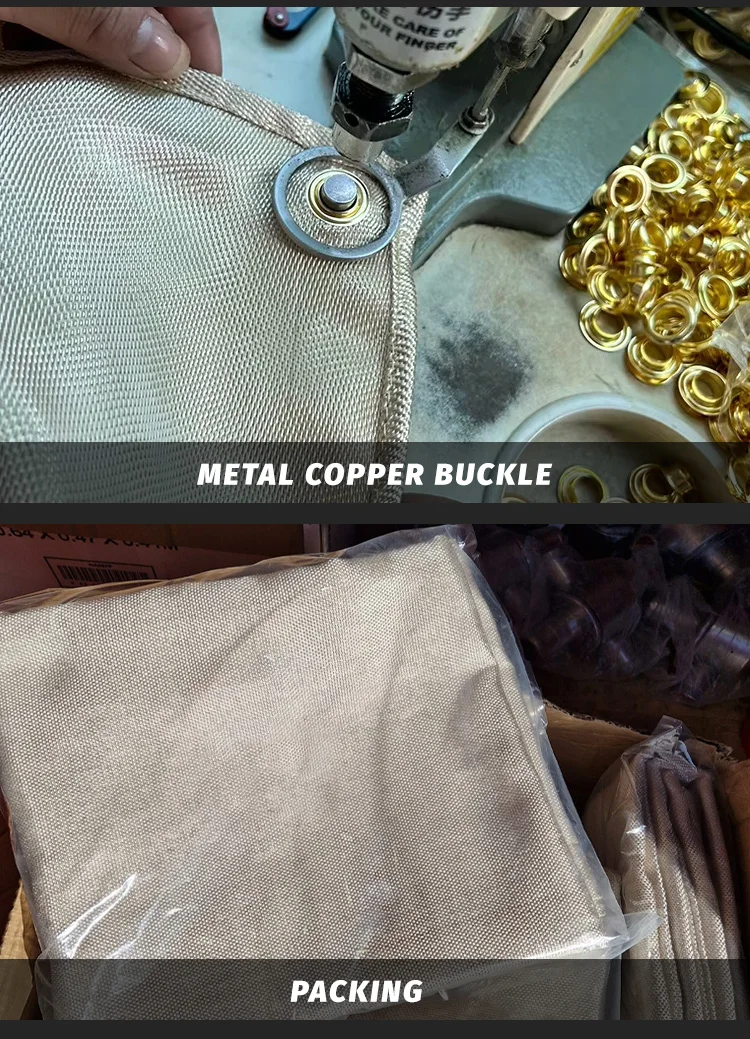

excellent properties due to its perfect structure and therefore offering high temperature resistance, thermal insulation and anti oxidation.It can protect the welder from sparks,spatter and slag, and also provide a safe and clean environment during the welding and metal cutting work. Different treatment and sizes are available as per your request. Eyelet or Velcro can be installed on customers’ demanding.
These specialty welding blanket provide temperature protection from 180℃ ~ 1200℃(300˚F ~2300˚F). Welding blanket can be subjected to various treatments and coatings such as PVC, silicone, PU, vermiculte, acrylic etc.
excellent properties due to its perfect structure and therefore offering high temperature resistance, thermal insulation and anti oxidation.It can protect the welder from sparks,spatter and slag, and also provide a safe and clean environment during the welding and metal cutting work. Different treatment and sizes are available as per your request. Eyelet or Velcro can be installed on customers’ demanding.
These specialty welding blanket provide temperature protection from 180℃ ~ 1200℃(300˚F ~2300˚F). Welding blanket can be subjected to various treatments and coatings such as PVC, silicone, PU, vermiculte, acrylic etc.
0.45mm/HT800/1.7MM Fiberglass Cloth Fire Blanket(Regular without coating)
0.45mm Fiberglass Welding Blanket
HT800 1MM Fiberglass Welding Blanket
HT3788 1.7mm Fiberglass Welding Blanket
Product Code | Weave | Density counts/cm | Weight (±5%) | Thickness(±10%) | Color | ||||||
Warp | Weft | g/m2 | Oz/yd2 | mm | inch | ||||||
ZS200A | Plain | 18 | 12 | 200 | 5.9 | 0.2 | 0.008 | White | |||
ZS200B | Plain | 12 | 8 | 200 | 5.9 | 0.2 | 0.008 | White | |||
ZS280 | Plain | 12 | 9 | 280 | 8.3 | 0.3 | 0.012 | White | |||
ZS310 | Plain | 12 | 10 | 310 | 9.1 | 0.32 | 0.013 | White | |||
ZS3732 | Twill | 18 | 10 | 430 | 12.7 | 0.43 | 0.017 | White/Tan | |||
ZS600 | Plain pane | 15 | 14 | 600 | 17.7 | 0.6 | 0.023 | White/Tan | |||
ZS3784 | 8H Satin | 18 | 12 | 840 | 24.8 | 0.8 | 0.03 | White/Tan | |||
ZS3788 | 12H Satin | 18 | 12 | 1650 | 50.1 | 1.65 | 0.067 | White/Tan | |||

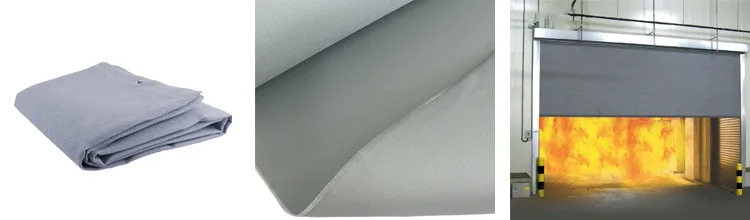

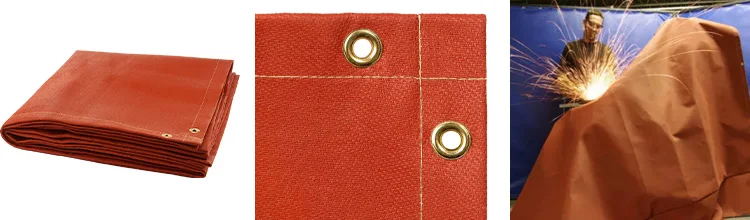

Silicone Coated Fiberglass Welding Blanket
Silicone coated fiberglass welding blanket is constructed from a fiberglass base cloth and coated one side or both sides with a specially compounded silicone rubber. Due to silicone rubber physiological property, it will not only increase the strength, thermal insulation, fireproof , insulating properties, but also has the ozone resistance, oxygen aging, light aging, climate aging , oil resistance and other properties.
Product Code | Weave | Finish | Coating g/m2 | Weight (±5%) | Thickness(±10%) | Color | ||||
g/m2 | Oz/yd2 | mm | inch | |||||||
ZS7628SO | Plain | one side | 80 | 280 | 8 | 0.2 | 0.008 | Grey/Red | ||
ZS7628ST | Plain | two sides | 160 | 360 | 11 | 0.2 | 0.008 | Grey/Red | ||
ZS3732SO | Twill | one side | 80 | 510 | 15 | 0.45 | 0.018 | Grey/Red | ||
ZS3732ST | Twill | two sides | 160 | 590 | 18 | 0.45 | 0.018 | Grey/Red | ||
ZS666ST | 8H Satin | two sides | 250 | 910 | 27 | 0.65 | 0.025 | Grey/Red | ||
ZS3784ST | 8H Satin | two sides | 300 | 1140 | 34 | 0.9 | 0.035 | Grey/Red | ||

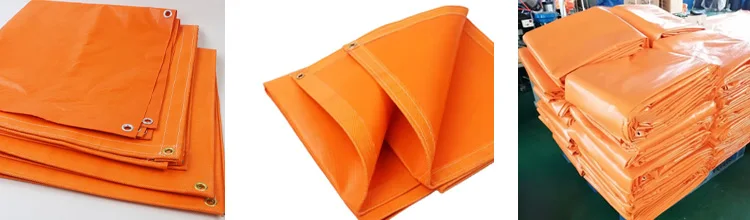

PVC Coated Fiberglass Welding Blanket
PVC coated fiberglass welding blanket is made of fiberglass basic cloth coated with PVC. It has good properties of fire
resistance, weather proof and excellent water repellence. It is also ultraviolet-proofing, cold-proofing and easy to
cut,mildew-proofing and corrosion-proofing; seasoning resistant; easy washing; high temperature resistant(180), good capability of heat maintaining.
resistance, weather proof and excellent water repellence. It is also ultraviolet-proofing, cold-proofing and easy to
cut,mildew-proofing and corrosion-proofing; seasoning resistant; easy washing; high temperature resistant(180), good capability of heat maintaining.
Product Code | Weave | Finish | PVC g/m2 | Weight (±5%) | Thickness(±10%) | Color | ||||
g/m2 | Oz/yd2 | mm | inch | |||||||
ZS200PC | Plain | PVC | 150 | 350 | 10 | 0.2 | 0.008 | Orange/Red | ||
ZS280PC | Plain | PVC | 220 | 500 | 15 | 0.32 | 0.013 | Orange/Grey | ||
ZS430PC | Twill | PVC | 200 | 620 | 18 | 0.4 | 0.015 | Orange/Grey | ||
ZS666PC | 8H Satin | PVC | 400 | 1000 | 30 | 0.7 | 0.027 | Orange/Grey | ||
ZS840PC | 8H Satin | PVC | 400 | 1200 | 35 | 0.8 | 0.03 | Orange/Grey | ||
PU Coated Fiberglass Welding Blanket
PU Coated Fiberglass Fabric (PU coated fiberglass welding blanket ) is made of fiberglass fabric coated with Polyurethane, and composite materials with multiple functions. This offers high abrasion and fire resistance for use in many applications.
It features good rebound resilience, toughness, softness, bright in color, superior resistance to wear, cold, oil, water, aging
and weather. It also has the function of an anti bacterium and can also be used for mould proofing, heat-insulation and
anti-ultraviolet.
It features good rebound resilience, toughness, softness, bright in color, superior resistance to wear, cold, oil, water, aging
and weather. It also has the function of an anti bacterium and can also be used for mould proofing, heat-insulation and
anti-ultraviolet.
Product Code | Weave | Finish | Coating g/m2 | Weight (±5%) | Thickness(±10%) | Color | ||||
g/m2 | Oz/yd2 | mm | inch | |||||||
ZS3732PO | Twill | one side | 30 | 450 | 13 | 0.43 | 0.017 | Grey | ||
ZS3732PO | Twill | one side | 60 | 480 | 14 | 0.43 | 0.017 | Grey | ||
ZS3732PT | Twill | two sides | 60 | 480 | 14 | 0.45 | 0.018 | Grey | ||
ZS3784PT | 8H Satin | two sides | 100 | 940 | 28 | 0.8 | 0.03 | Grey | ||

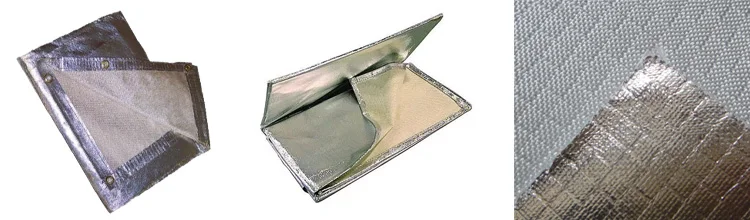

Aluminum Foil Laminated Fiberglass Welding Blanket
Aluminum foil laminated fiberglass fabrics are made of fiberglass fabrics laminated an aluminum foil or film on one side. It can resist radiant heat, and has a smooth surface, high strength, good luminous reflectance, sealing insulation, gas-proof and water proof. The thickness of aluminum foils is from 7micro to 25 micro.
Product Code | Weave | Finish | Foil μm | Weight (±5%) | Thickness(±10%) | Color | ||||
g/m2 | Oz/yd2 | mm | inch | |||||||
ZS3732AL | Twill | one side | 7 | 440 | 13 | 0.45 | 0.018 | Silver | ||
ZS3784AL | 8H Satin | one side | 12 | 860 | 25 | 0.8 | 0.03 | Silver | ||

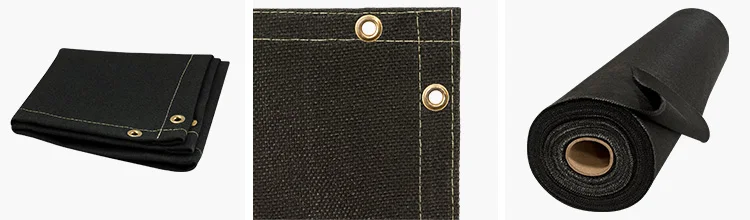

Vermiculite Coated Fiberglass Welding Blanket
Vermiculite coated fiberglass welding blanket offer high temperature and abrasion resistance. The Vermiculite coating greatly improves the fiberglass fabrics resistance to extreme temperatures. The fabrics offer a continuous operating temperature of up to 800°C with a maximum of 1000°C. Under direct flame, the fabric is odorless and virtually smokeless.
Product Code | Weave | Finish | Coating g/m2 | Weight (±5%) | Thickness(±10%) | Color | ||||
g/m2 | Oz/yd2 | mm | inch | |||||||
ZS2025V | Plain | two sides | 50 | 650 | 19 | 0.8 | 0.03 | Tan/Black | ||
ZSM24V | Plain | two sides | 50 | 900 | 26 | 1.2 | 0.05 | Tan/Black | ||
ZSM30 | Plain | two sides | 100 | 1100 | 32 | 1.5 | 0.06 | Tab/Black | ||
ZS600HSVE | 8H Satin | two sides | 100 | 660 | 20 | 0.7 | 0.028 | Tab/Black | ||
ZS1200HSVE | 12H Satin | two sides | 100 | 1250 | 37 | 1.35 | 0.05 | Tab/Black | ||
HIGH SILICA CLOTH Welding Blanket
Highgrade 96% SiO2 silica cloth can be effectively used at steady state temperature to 1100 ℃(2000 ℉) for a long period of time,and for a short time at higher temperatures up to 1400 ℃. It has good chemical stability,high temperature resistance and good electrical insulation. According to the actual demand can add vermiculite,silicone coating. Burn Loss :3.0% Max WorkingTemperature:1100°c Instantaneous temperature:1700°c 15minute temperature :1400°c
Product Code | Weave | Coating | Sio2 | Weight | Thickness | ||||
g/m2 | Oz/yd2 | mm | inch | ||||||
ZS600H5 | 8H Satin | / | 96 | 612 | 18 | 0.65 | 0.025 | ||
ZS880HS | 8H Satin | / | 96 | 880 | 26 | 1 | 0.04 | ||
ZS1200HS | 12H Satin | / | 96 | 1200 | 36 | 1.3 | 0.05 | ||
ZS600HS-A | 8H Satin | Vermiculite | 96 | 660 | 20 | 0.7 | 0.028 | ||
ZS1200HS-A | 12H Satin | Vermiculite | 96 | 1250 | 37 | 1.35 | 0.05 | ||
ZS600HS-S | 8H Satin | Silicone | 96 | 810 | 24 | 0.7 | 0.028 | ||
ZS1200HS-S | 12H Satin | Silicone | 96 | 1400 | 41 | 1.35 | 0.05 | ||

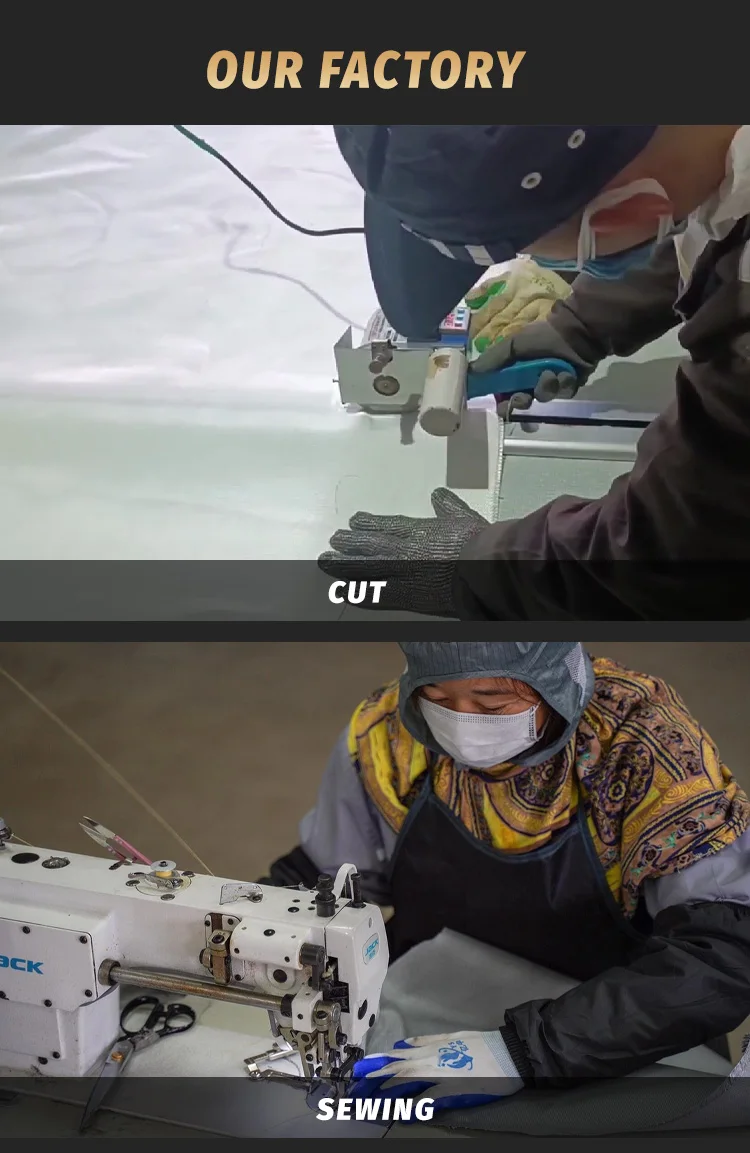

Taizhou Zhongsheng Fiberglass

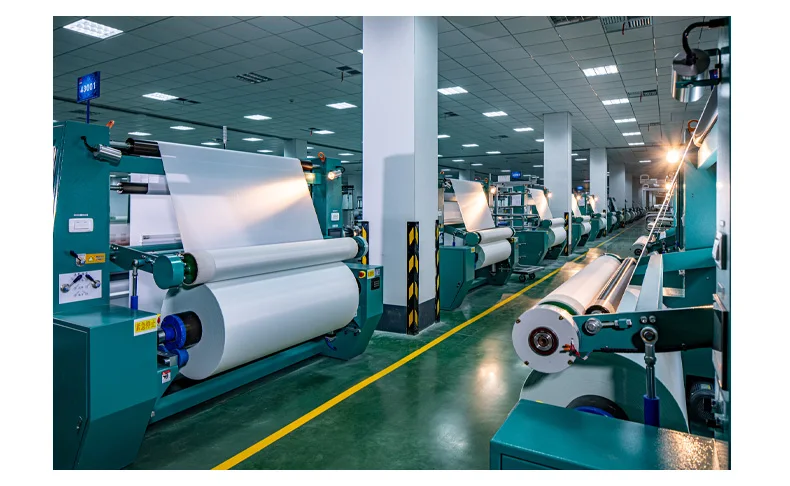

Taizhou Zhongsheng Fiberglass spans an impressive area of 150,000 square meters with three factories and 500 employees.
