Kernel Portable Mini Trolley type Medical Digital Electronic Colposcope Video China Electronic Colposcope Price For Gynecology
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1601246037272):
Product Overview
Description
Product Description
Camera
1/4 inch Sony CCD, 0.8 million effective pixels,18 times Optical zoom,Horizontal resolution 700 LINE.
Adopt 24 groups of energy-saving and eco-friendly white LED light source, with high brightness, long life,uniform illumination.
High Color rendering index, do not produce heat etc.

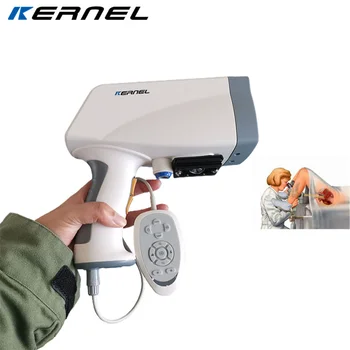

Hand-held zoom button, convenient for doctors to observe pathological changes at the same time.

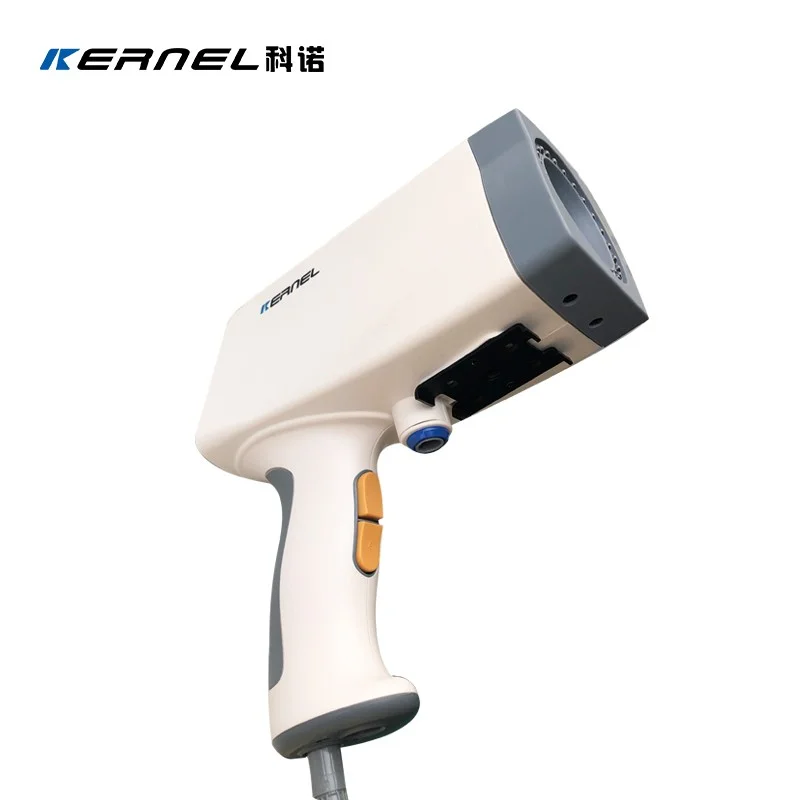

Adopt Palm-type handle design, humanized operation panel, silicone button Oval layout, can realize zoom, focus, imaging mode, acetic acid timing, image marking, brightness adjustment and other functions with single hand.

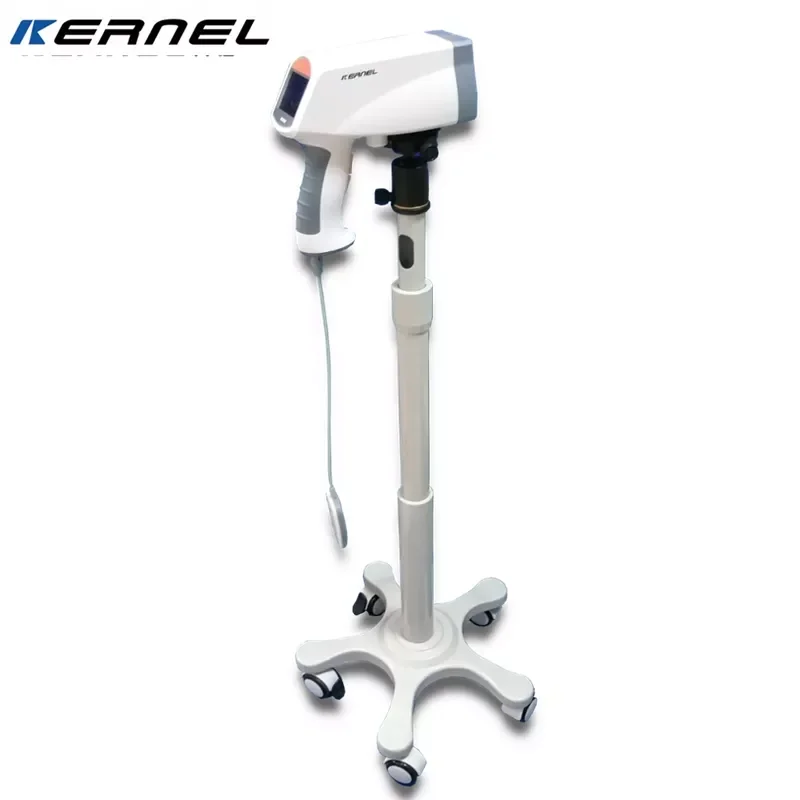

Full- damping bracket, 360°adjustment, can automatically hover at any Angle.

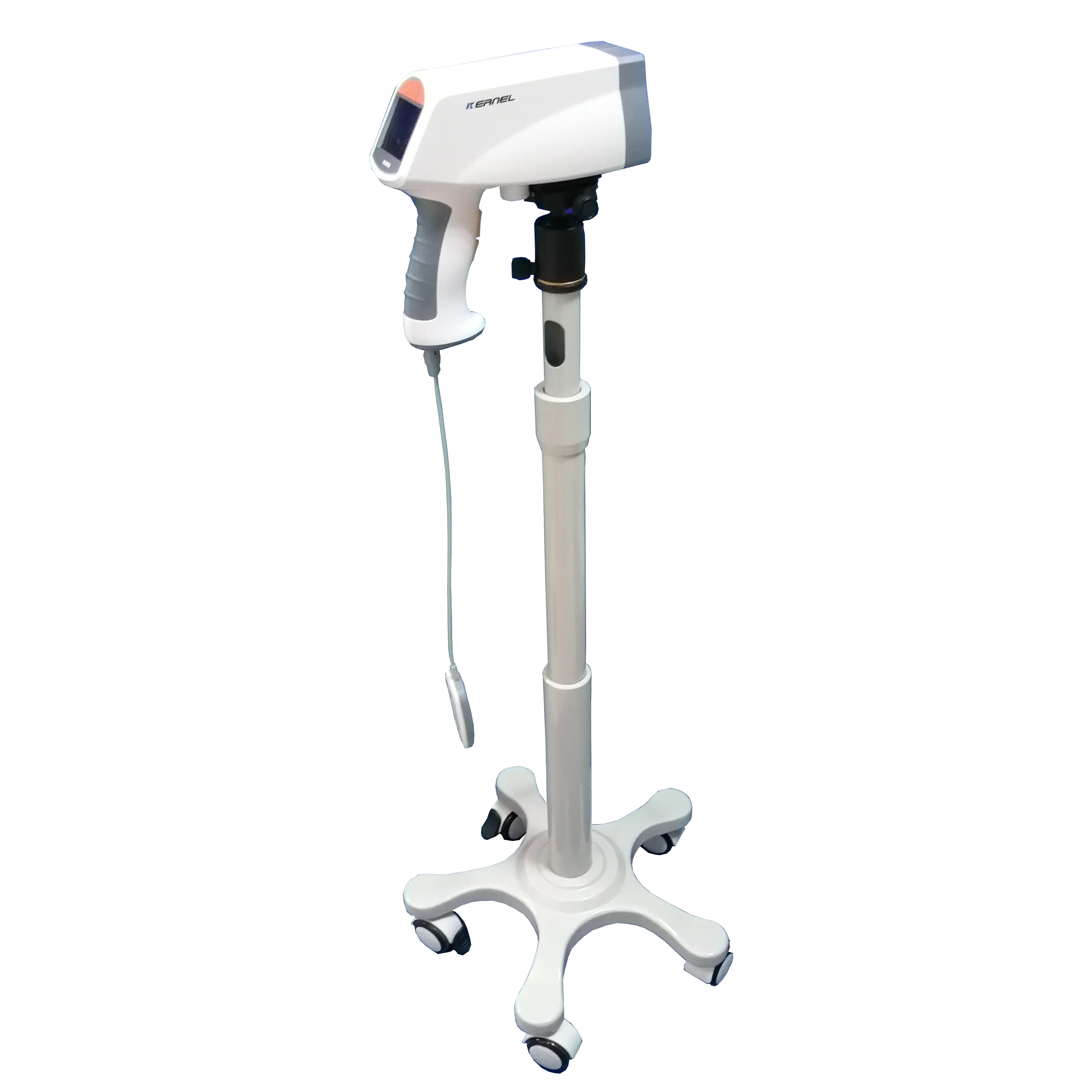

New vertical stand, flexible and simple operation, and lightweight can adjust the height of the lens up and down.
Three-segment design of the stand, easy to disassemble, convenient for doctors to carry.
Three-segment design of the stand, easy to disassemble, convenient for doctors to carry.
Camera | 1/4 inch Sony CCD |
Effective pixel | 800000 |
Zoom | System:216x, optical:18x, digital:12x |
Horizontal resolution | 700 TVL |
Focus mode | Auto focus, manual focus |
Depth of field | 4.1mm～73.8mm |
Distance | 200～400mm |
Field of view | Ф20～380mm |
Color saturation | 95% |
Imaging Mode
High lighting important lesion tissues
and vessels for rapid retrieval of
pathological tissue.
Low color temperature imaging
technology, softer light for better
observation of epithelial tissue.
High color rendering index combined
with unique imaging technology, more
realistic restore organization primaries
and detail of levels.
Four-stage green light mode for
enhanced micro-vascular recognition,
hight lighting vascular details.
In the observation of body fluid more
tissue, can reduce the light spot caused
by the reflective phenomenon.
Software
Imaging Acquisition
Foot switch and software two kinds of acquisition, video recording mode. The image can be dynamic, static, full-screen
capture. Each check can collect 100 color images

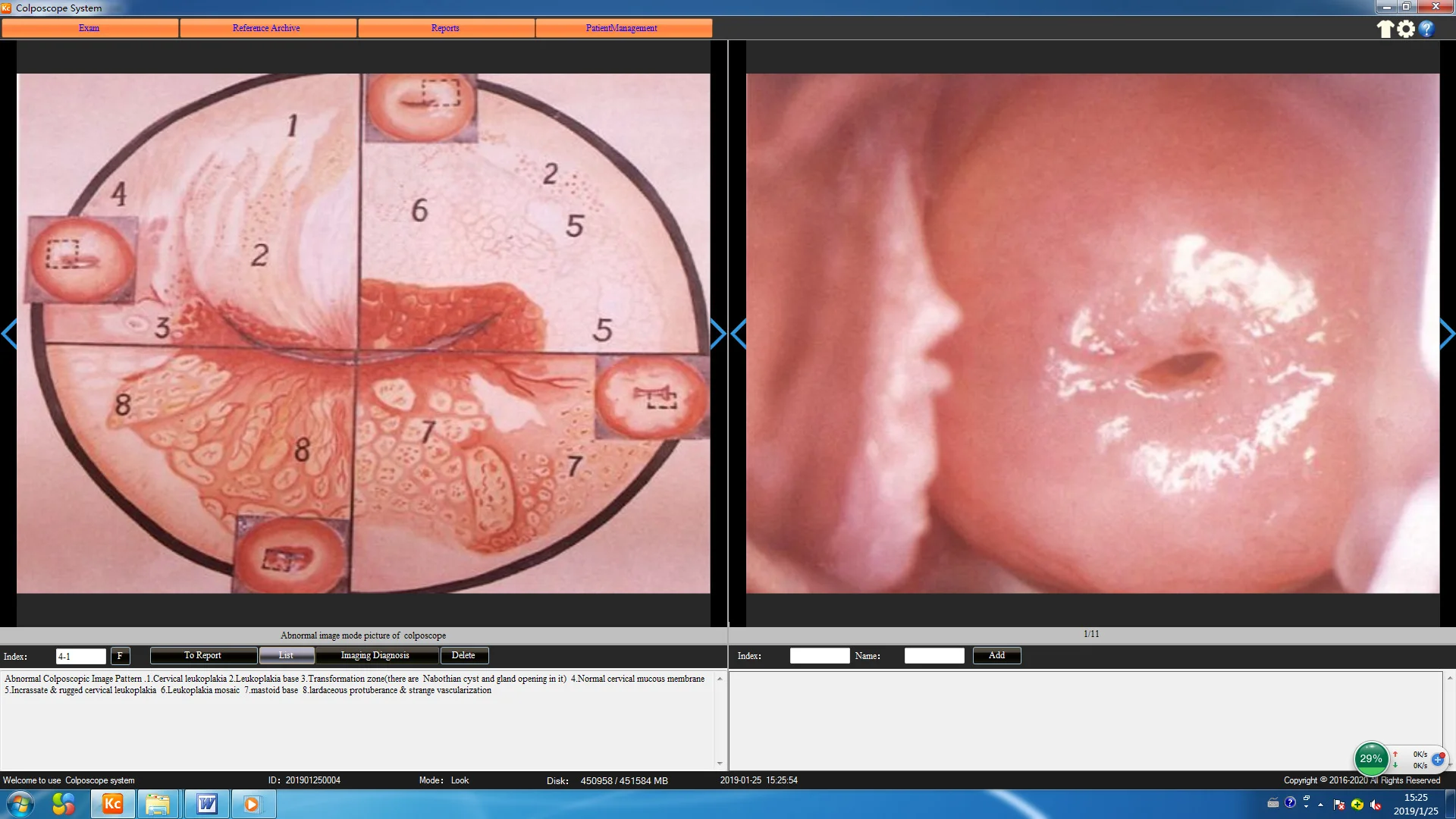

Image Procession
With the dynamic, static comparison of function, could be compared with the standard graph, the captured image can be
enlarged, reduced, negative image, marketing, text labeling, local amplification, area circumference. More convenient for
doctors to indentify pathological changes.
Clinical Analysis
Professional patient case graphs(up to 175 types), and could add patient case picture to the standard graph repository for
easy clinical comparision. Professional clinical diagnostic knowledge base provides a large number of editable clinical
terms in conjunction with Rci's automated evaluation system to make the inspection more objective and accurate.
Comes with 19 standard patient case report
templates for easy editing and printing of case
reports. Could display 1~6 pictures on the same screen. Report template can be designed and modified and out put PFD file,
to provide the basis for prevention of medical
disputes.
Query Statistics
Cases can be queried in five ways, such as case number, name, barcode, date of birth and
date of examination. The retrieved cases could
be image display, data modification, preservation. Follow-up and video replay to
faciltate hospital information management and improve management efficiency.
