Automatic mineral shaftless Rotary drum Trommel screen stone granule sifter screening machine sand soil trommel sieveing machine
- Category: >>>
- Supplier: Jiangxi Shicheng Yongsheng Ore Processing Equipment Manufacturing Co. Ltd.
Share on (1601246090285):
Product Overview
Description
Company Profile
Product Paramenters
Name | Model | Capacity (t/h) | Motor power (kw) | Weight (kg) |
Gold trommel scrubber | GT1545 | 50-80 | 11 | 6000 |
Gold centrifugal concentrator | STLB-60 | 20-35 | 5.5 | 1300 |
Gold shaking table | 6S-4450×1855×1546 | 0.6-2.5 | 1.1 | 700 |
Product Description
Automatic mineral shaftless Rotary drum Trommel screen stone granule sifter screening machine sand soil trommel sieveing machine

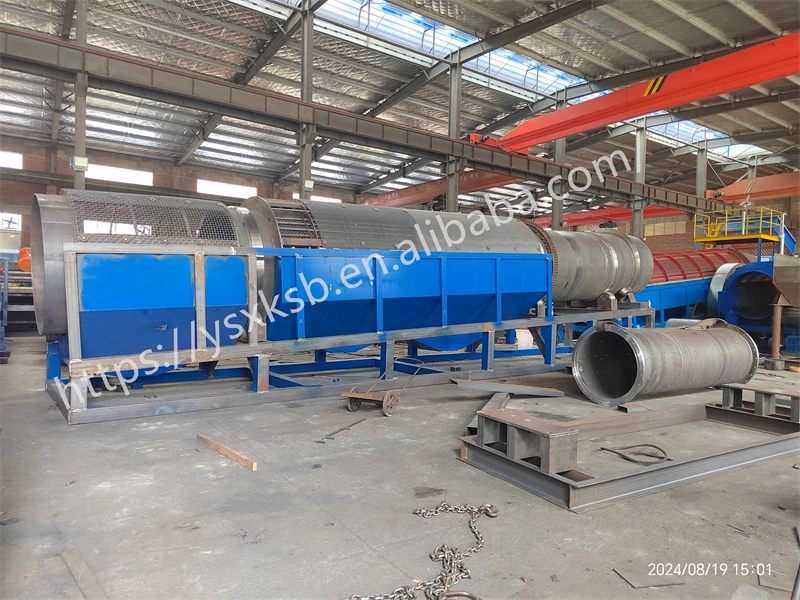

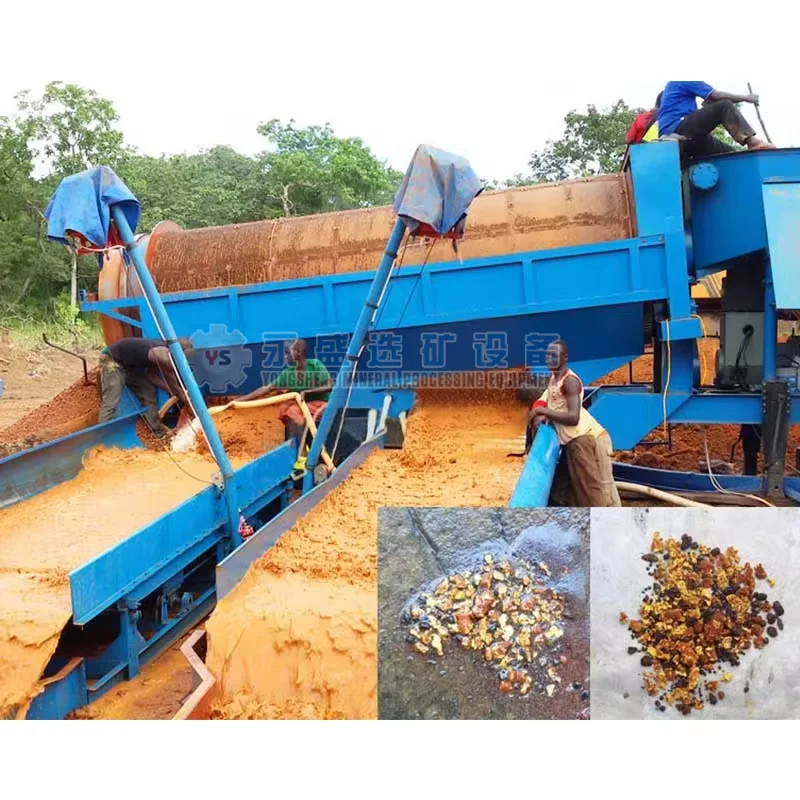

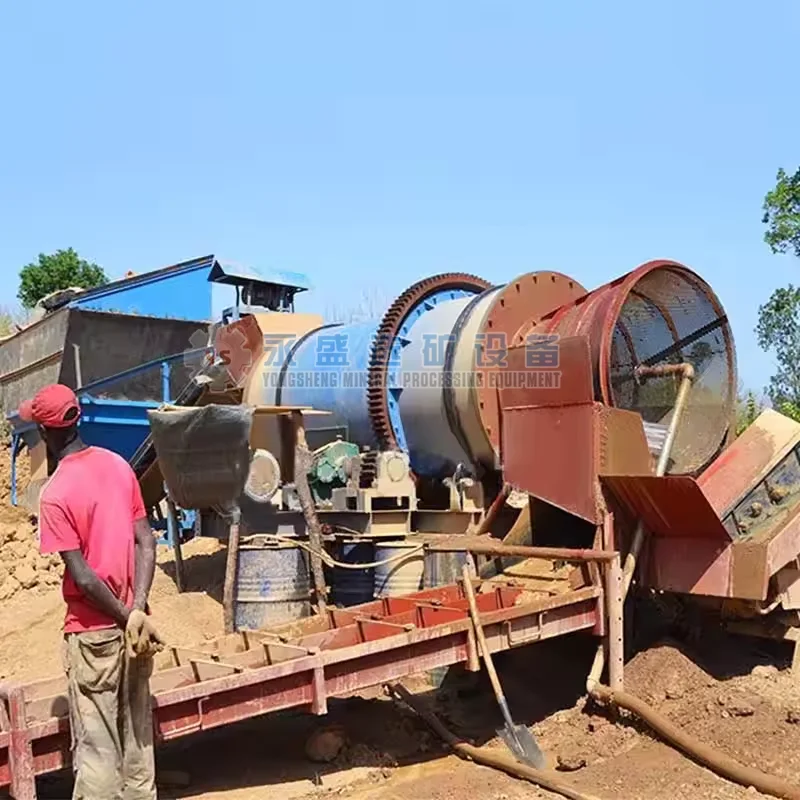

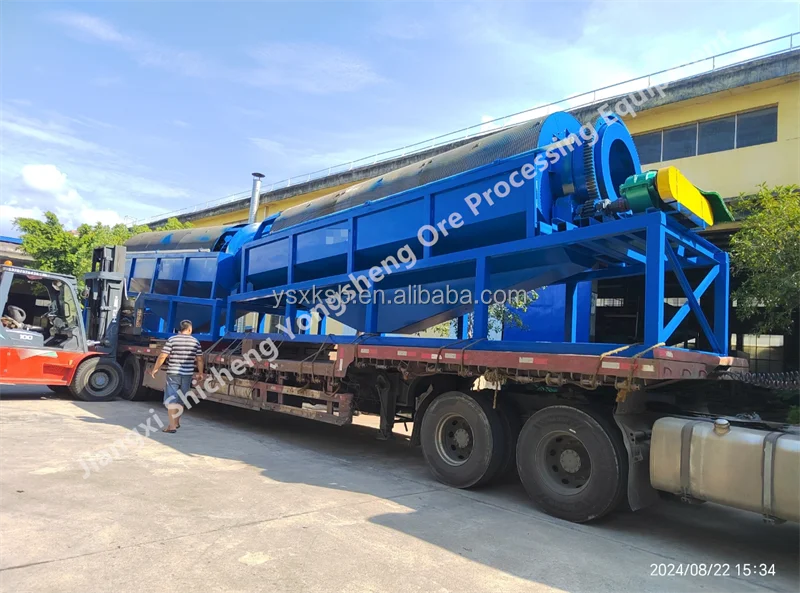

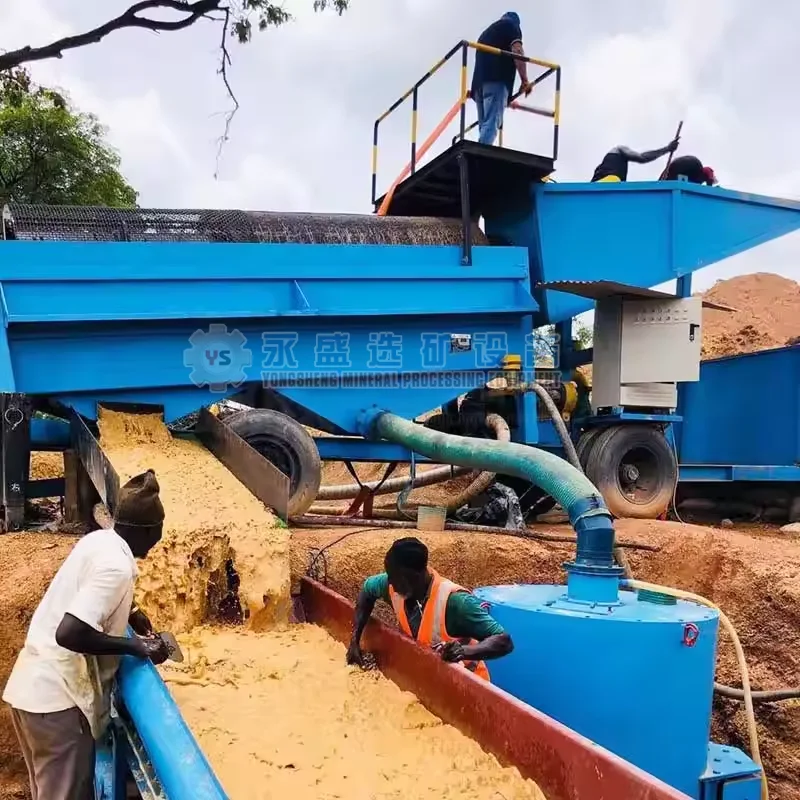

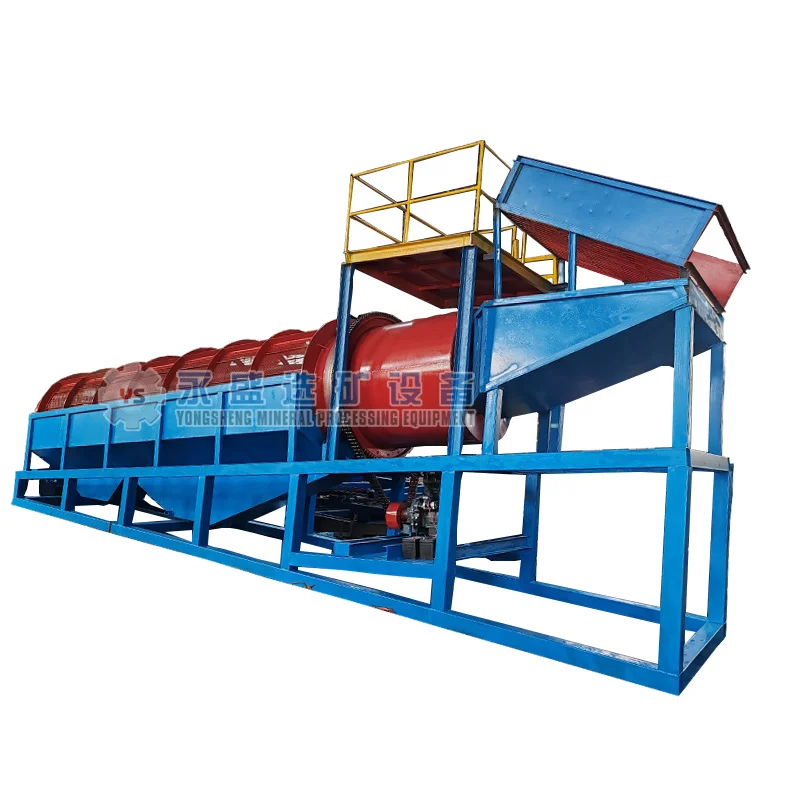

Gold Trommel Scrubber Washing Machine
The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
After the fine (soil) is separated, the material is moved into the screen. The rotating screen separates the oversize material from the fines (the fines are usually termed or categorized into less than 8mm). Most of the freely (gravity) recoverable gold and or other recoverable mineral is contained in the -8mm fines.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal
Concentrator, spirals, jigs etc.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal
Concentrator, spirals, jigs etc.

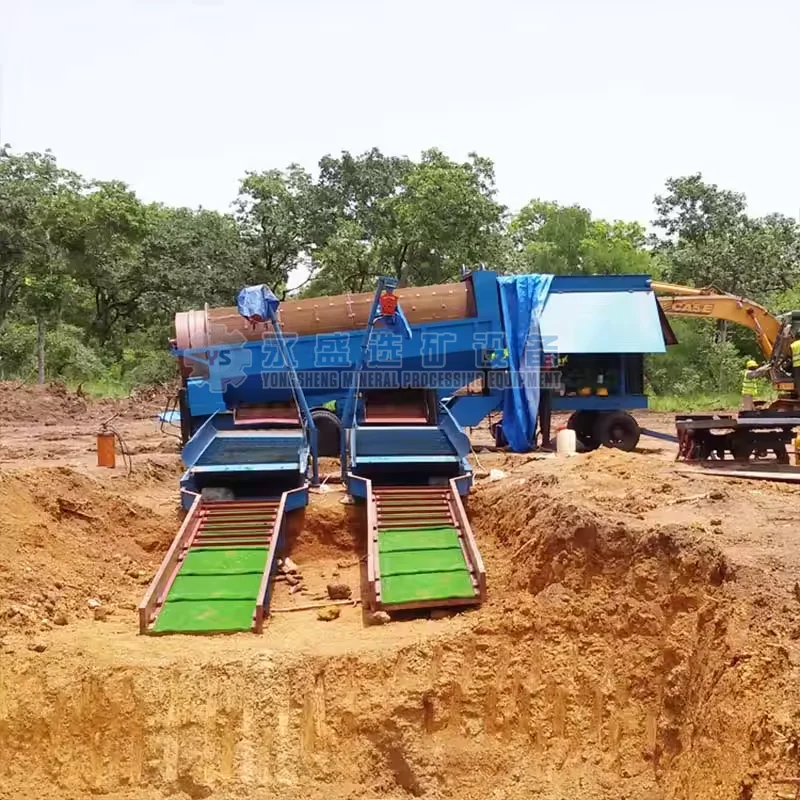

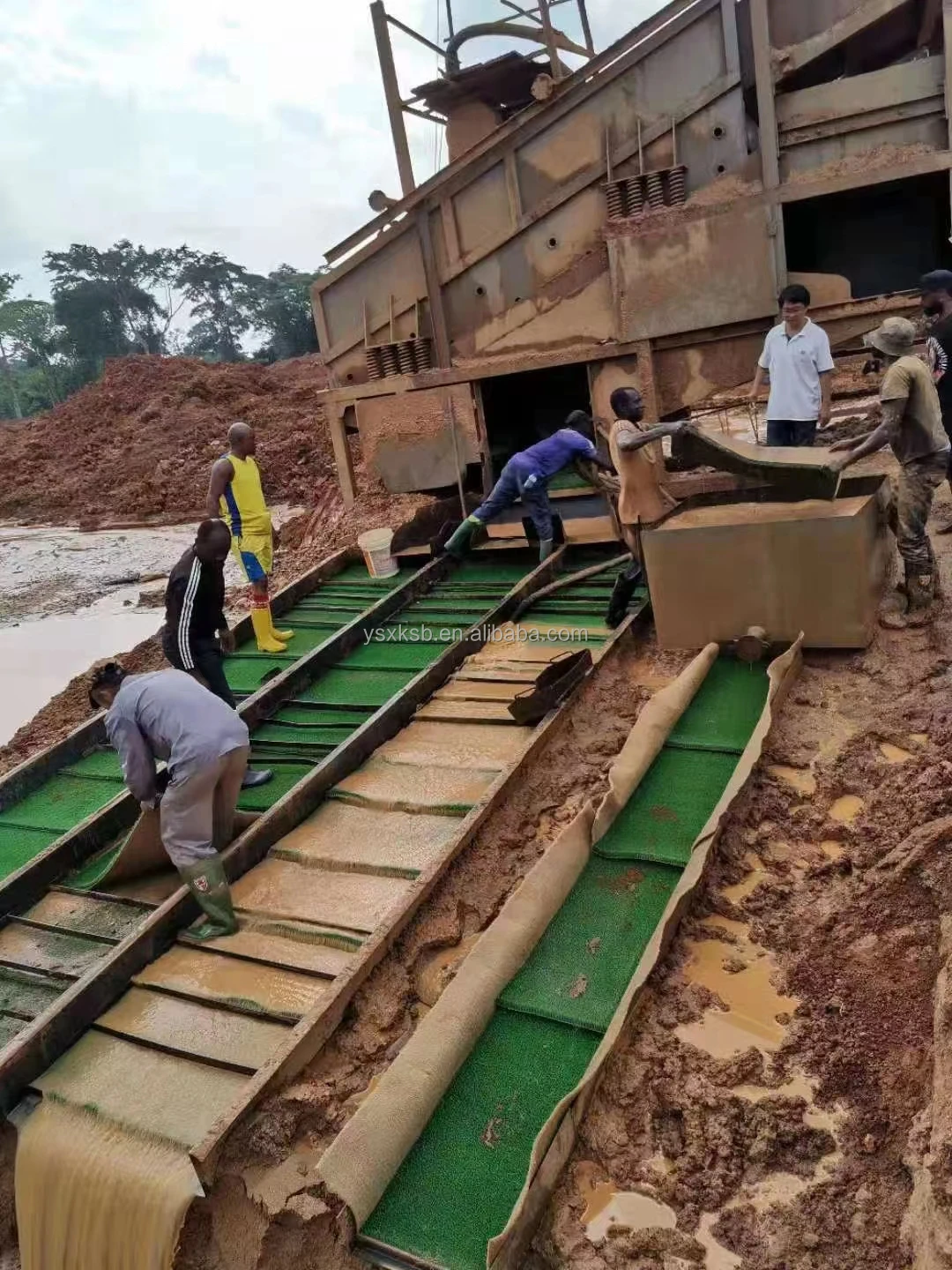

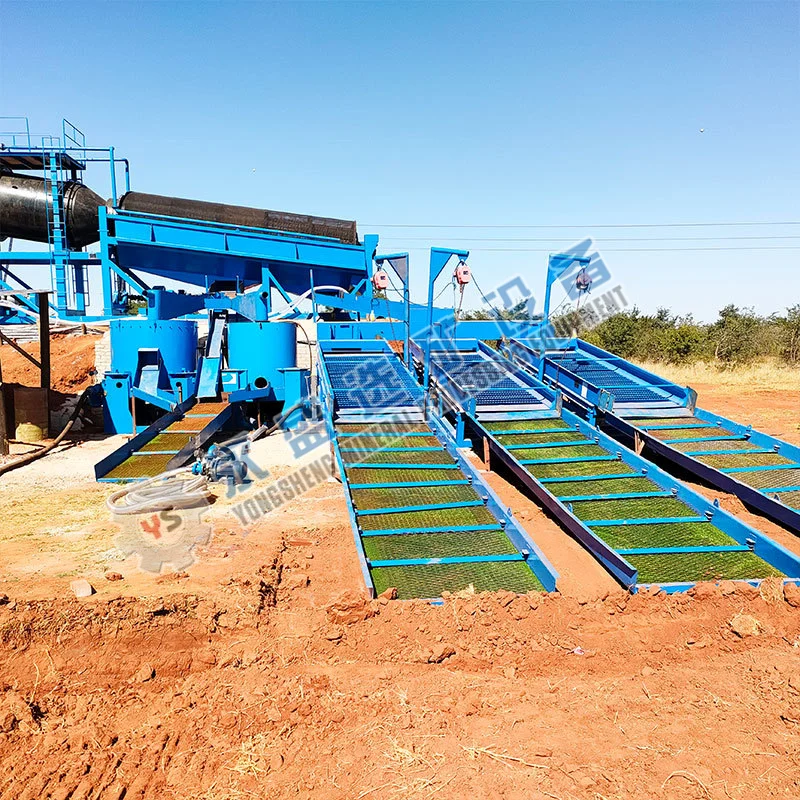

Carpet Sluice box
Carpet Sluice box is one of the most popular equipment for gold mining, which consist the steel structure and carpet. Sluice box
is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trammel screen.
is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trammel screen.
1. Low price: compare to other machines, the price of sluice box is very very low.
2. Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation
is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet
back and continue the work.
3. Easy for maintenance: The only part need to service or change is the carpet.
2. Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation
is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet
back and continue the work.
3. Easy for maintenance: The only part need to service or change is the carpet.
Gold Trommel Scrubber Washing Machine Technical Parameter | ||||||||||||||
Model | Capacity (t/h) | Power (KW) | Drum Diameter (mm) | Drum Length (mm) | Screen Size (mm) | Dimension (mm) | Weight (Kg) | |||||||
GT1015 | 10-15 | 4.0 | 1000 | 1500 | <3-10 | 3000*1400*2145 | 2200 | |||||||
GT1020 | 15-25 | 5.5 | 1000 | 2000 | <3-10 | 3460*1400*2145 | 2800 | |||||||
GT1225 | 25-40 | 7.5 | 1200 | 2500 | <3-10 | 4146*1600*2680 | 4200 | |||||||
GT1530 | 60-80 | 11 | 1500 | 3000 | <3-10 | 4460*1900*2820 | 5100 | |||||||
GT1545 | 80-150 | 15 | 1500 | 4500 | <3-10 | 5960*1900*3080 | 6000 | |||||||
GT1848 | 150-200 | 22 | 1800 | 4800 | <3-10 | 6500*2300*4000 | 7500 | |||||||
GT2055 | 200-260 | 30 | 2000 | 5500 | <3-10 | 7500*2500*4000 | 8600 | |||||||
Re: This table only shows partial models of Trommel Screen, more models information please contact us. | ||||||||||||||

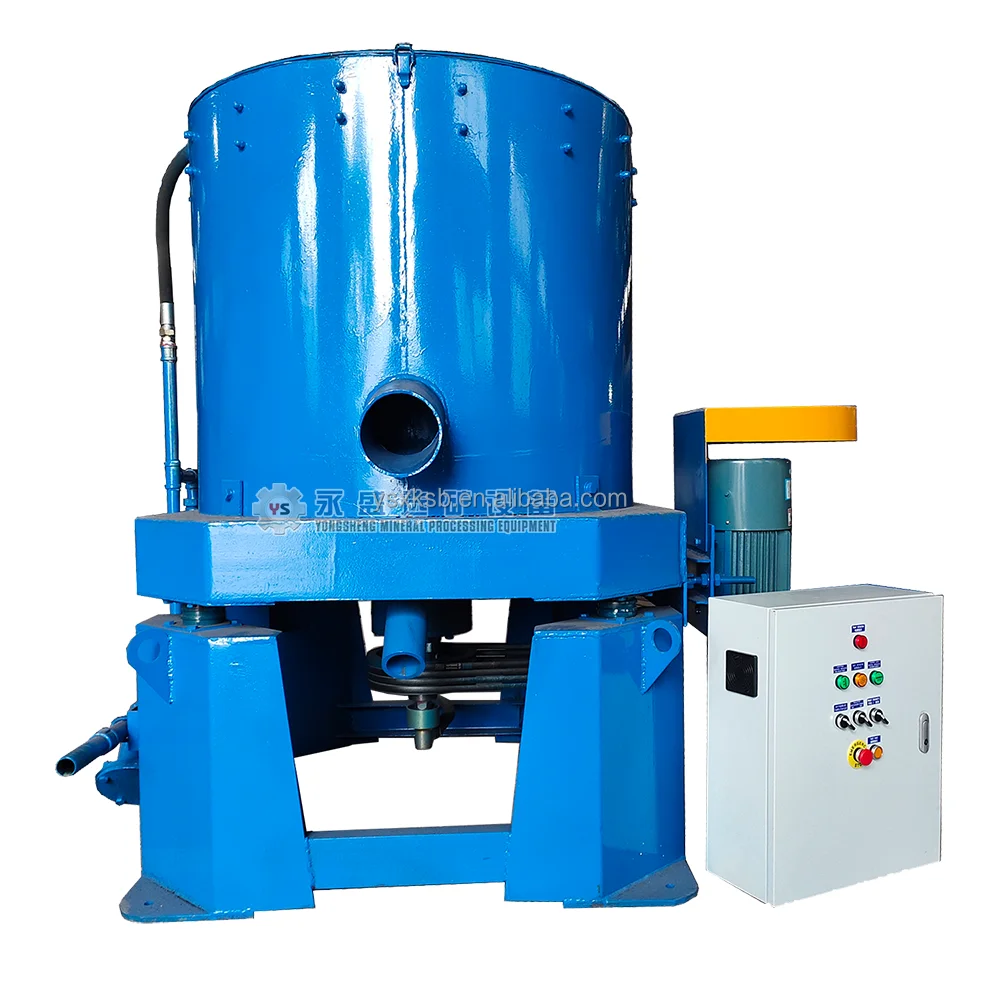

Gold centrifuge concentrator
Gold centrifuge concentrator processing plant is kind centrifugal concentration equipment. It can be used not only for placer gold
mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings, and used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation
for recovery.
Application shows that the recovery can be as high as 90%, especially for the case in recovering the natural gold in lode ore with
65% of the ore having a milling size of 0. 074 mm, the recovery for the natural gold is expected up to 98%, For that natural gold
of 0.004 mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1,000 times.
mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings, and used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation
for recovery.
Application shows that the recovery can be as high as 90%, especially for the case in recovering the natural gold in lode ore with
65% of the ore having a milling size of 0. 074 mm, the recovery for the natural gold is expected up to 98%, For that natural gold
of 0.004 mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1,000 times.
Gold centrifuge concentrator Technical Parameters | ||||||||||||
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 | STLB120 | ||||||
Feeding Capacity (T/h) | 0-0.6 | 2-3 | 8-12 | 40-45 | 60-80 | 80-100 | ||||||
Fluidization Water Required (m3/h) | 2-3 | 3-5 | 7-10 | 30-36 | 50-60 | 70-80 | ||||||
Slurry Water Required (m3/h) | 1.5-4 | 5-7 | 8-12 | 40-45 | 60-80 | 80-100 | ||||||
Feeding Density (%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | ||||||
Feeding Size (mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-6 | 0-6 | ||||||
Concentration Cleaning Up Cycle | Vein gold 1-3 Hours Placer gold:2-6 Hours | |||||||||||
Concentrate Weight (Kg) | 2 | 3-5 | 10-20 | 40-50 | 70-80 | 80-100 | ||||||
Power Requirements (Kw) | 0.75 | 1.5 | 4 | 11 | 18.5 | 30 | ||||||
Approximate Shipping Weight (Kg) | 205 | 380 | 1100 | 2300 | 3700 | 4300 | ||||||
Approximate Crated Shipping Dimensions (mm) | 914×700×900 | 1160×885×1165 | 1820×1450×1700 | 2476×2032×2018 | 2849×2085×2426 | 3200*2300*2600 | ||||||
Gold Shaking table
It is widely used in separating gold, tungsten, tin, tantalum, niobium and other rare metals and precious metal ore. Can be used
for roughing, concentration, scavenging different operations, separating coarse sand (2-0.5mm, 60 riffles Deck surface), fine sand (0.5-0.074mm, 88~110 riffles Deck surface), slime (-0.074mm, 120-138 riffles Deck surface) of different grain grade.
Shaking table Technical Parameter | ||||||||||||||||
Model | Stroke (mm) | Cross Slope (°) | Feed size (mm) | Feed Density (%) | Water Consumption (t/h) | Capacity (t/h) | Power (KW) | Weight (KG) | ||||||||
6S-4450*1855*1546 | 8-22 | 1-4 | 2-0.074 | 15-30 | 0.4-1 | 0.6-1.8 | 1.1 | 800 | ||||||||
LY-3000*1620*1360 | 6-30 | 0-10 | 2-0.074 | 10-30 | 0.3-1.5 | 0.4-1.5 | 1.1 | 550 | ||||||||
LY-2100*1050*850 | 12-28 | 0-8 | 2-0.074 | 10-30 | 0.2-1 | 0.3-0.8 | 1.1 | 350 | ||||||||
LY-1100*500*430 | 9-17 | 0-10 | 2-0.074 | 10-30 | 0.1-0.5 | 0.05-0.2 | 0.55 | 150 | ||||||||
Details Images
