Outdoor All in One 75kWh 150kWh 200kWh 300kWh Solar Battery Energy Storage System Microgrid BESS with PCS Lithium Batteries

Share on (1601246104302):


Price:$19,000.00

Quantity:


Product Overview

Description



Product Description


ALL IN ONE Hybrid Energy Generator—Battery Energy Storage Solution

For Industry&Commercial Use, Plug and Play

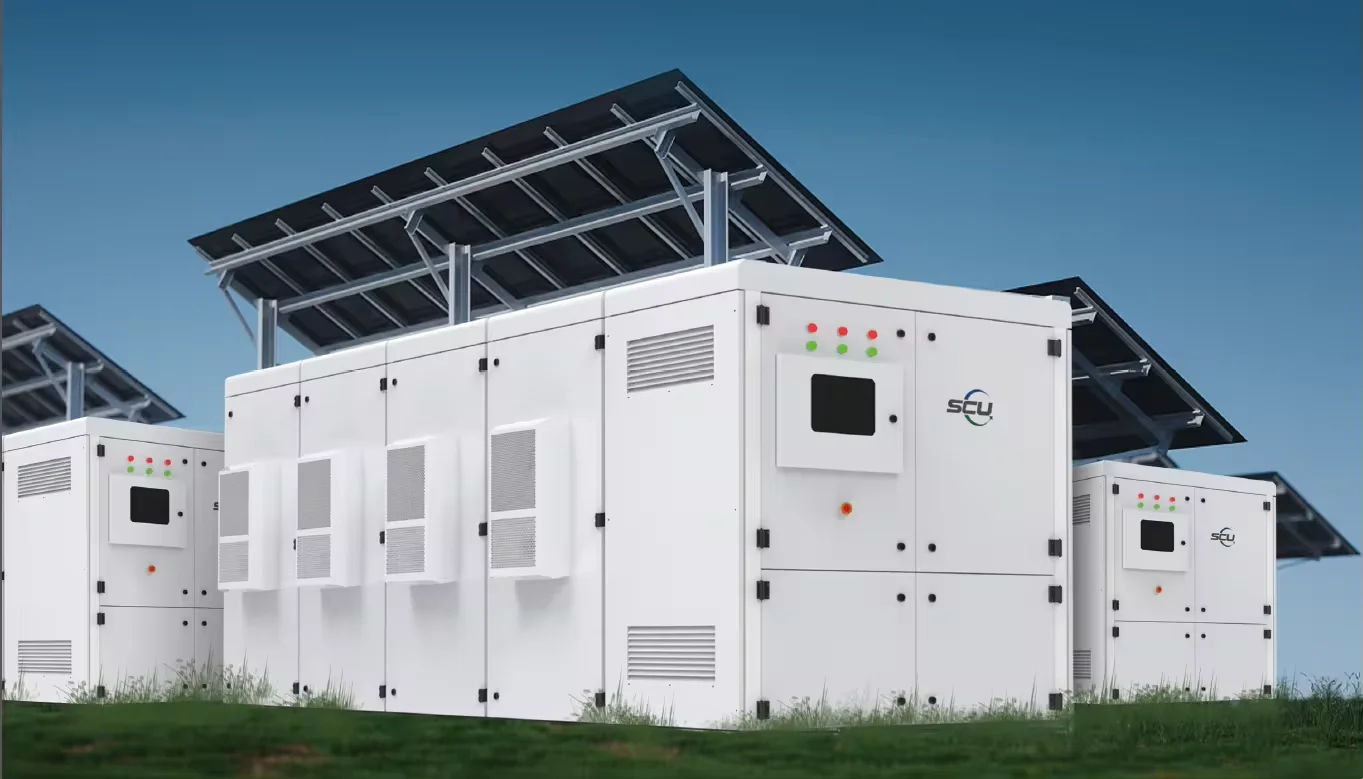

50kW/75kWh, 100kW/150kWh, 150kW/225kWh, 200kW/300kWh GRES Series All In One Battery Storage System

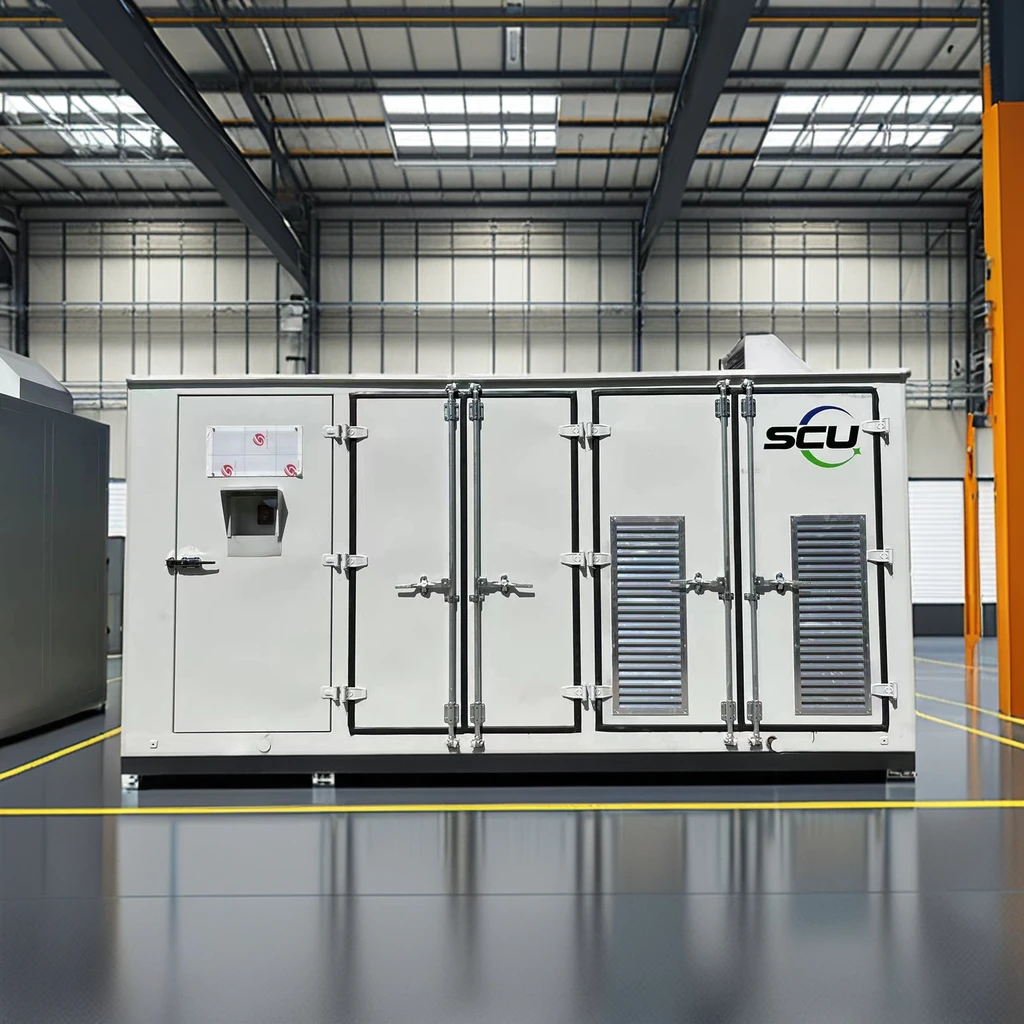

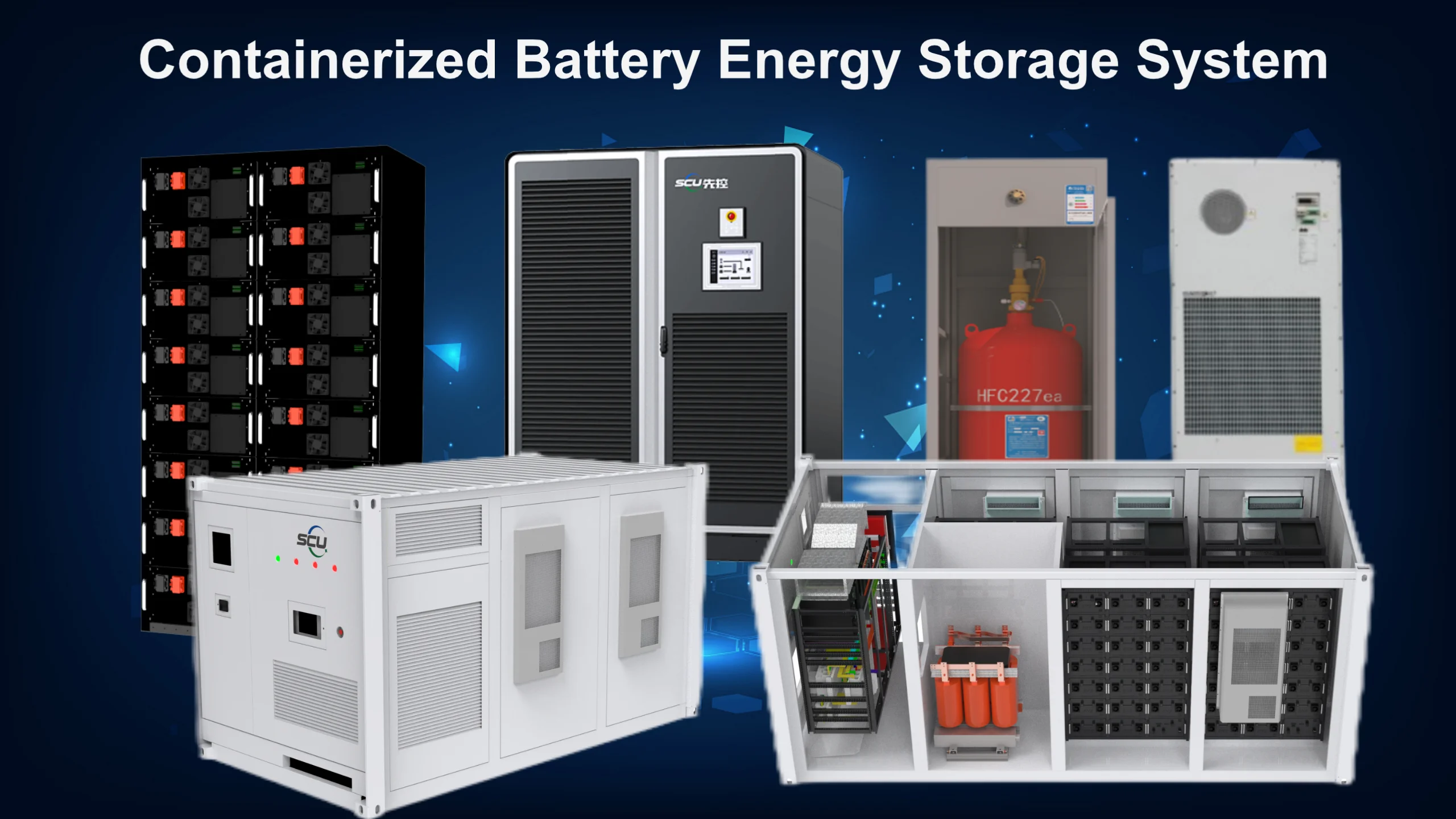

300kW/645Kwh 10ft BESS container
500KW/1MWh 20ft BESS container
1MW/2MWh 40ft BESS Container

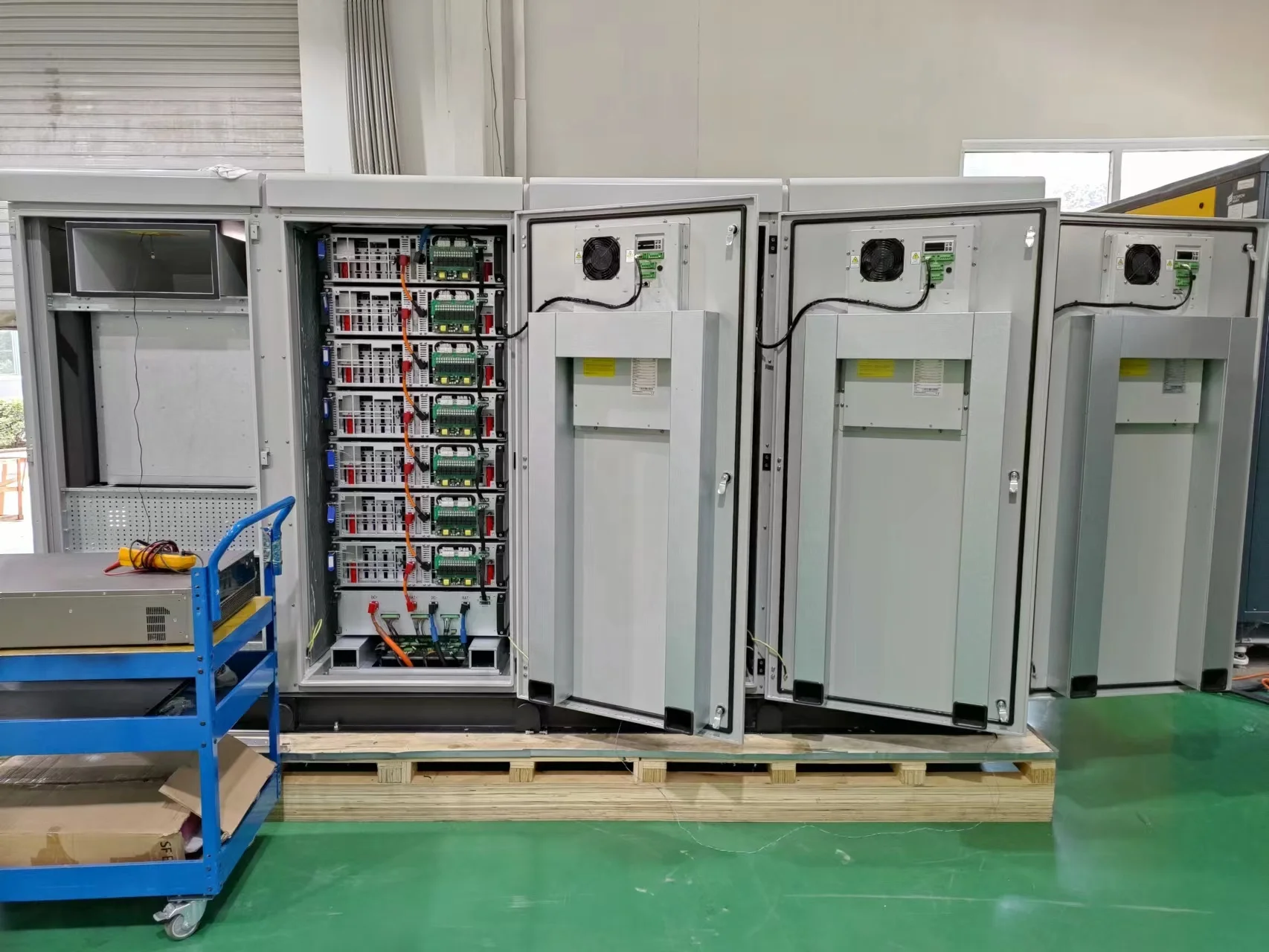

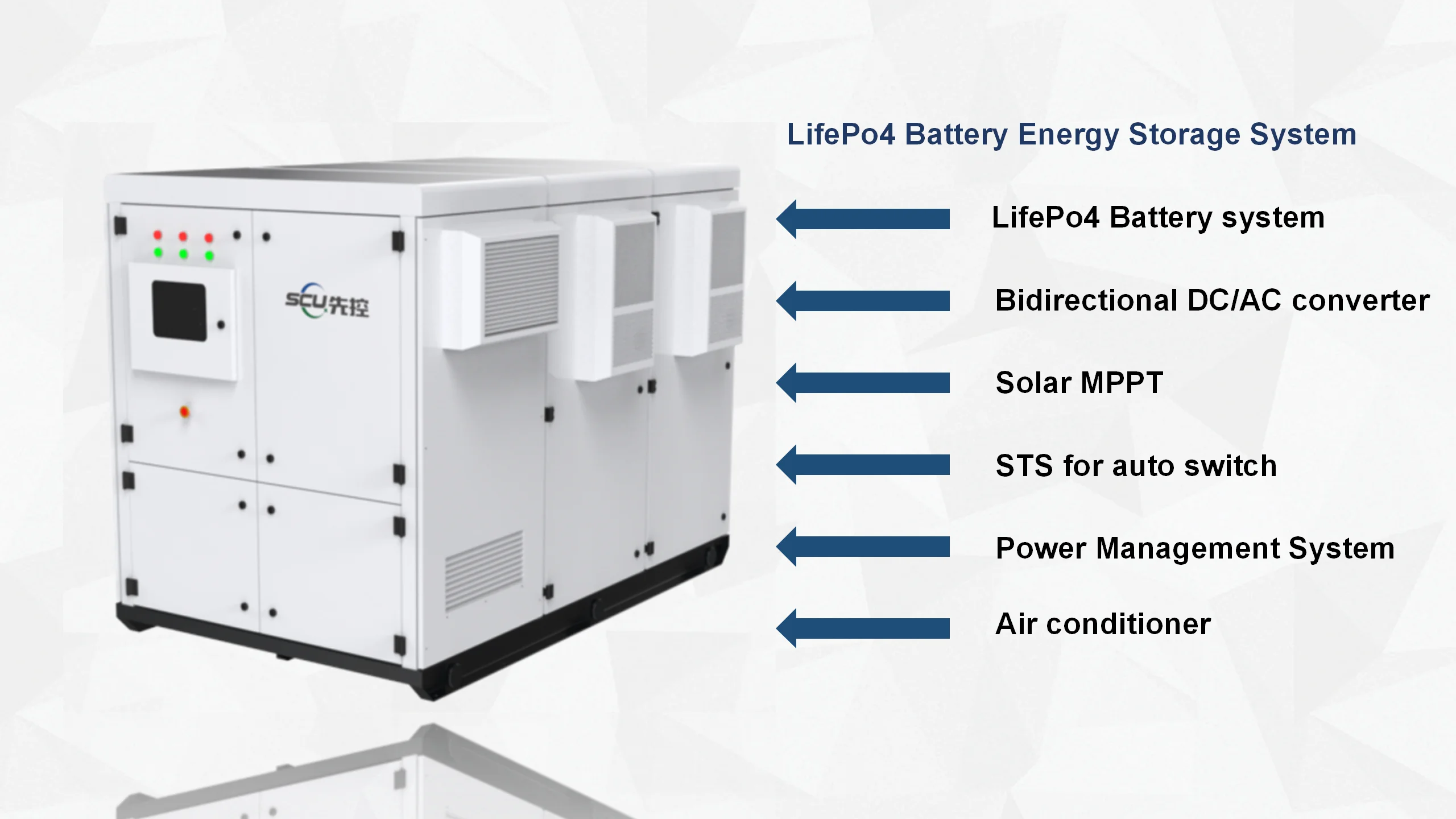

LiFePO4 Battery Energy Storage System
Using Lithium-ion phosphate battery cell;
long life cycle and high safety;

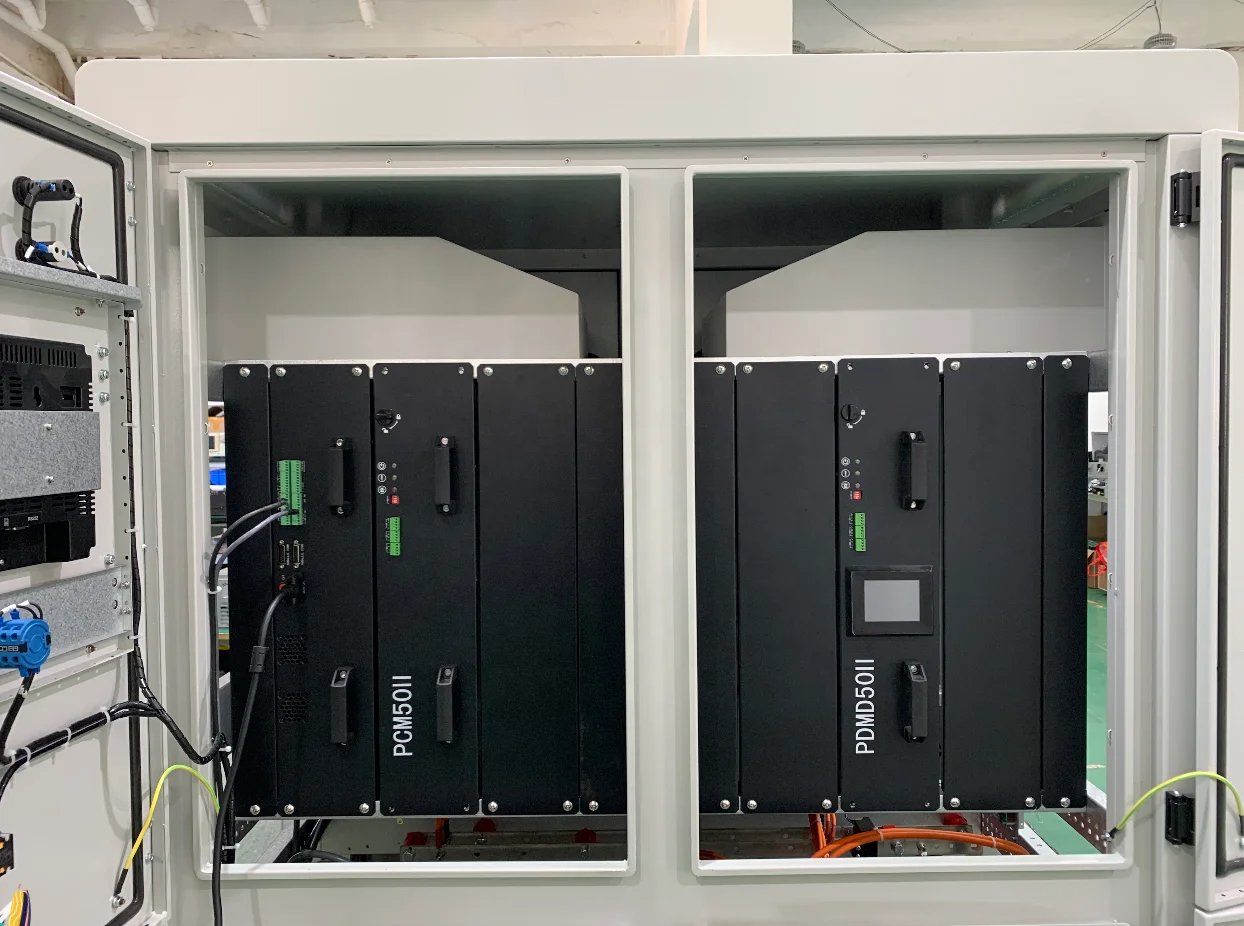

Battery system adopts modular design;
Each pack has a built-in BMS system;
Built-in Aerosol firefighting;
Unique heat dissipation and insulation design

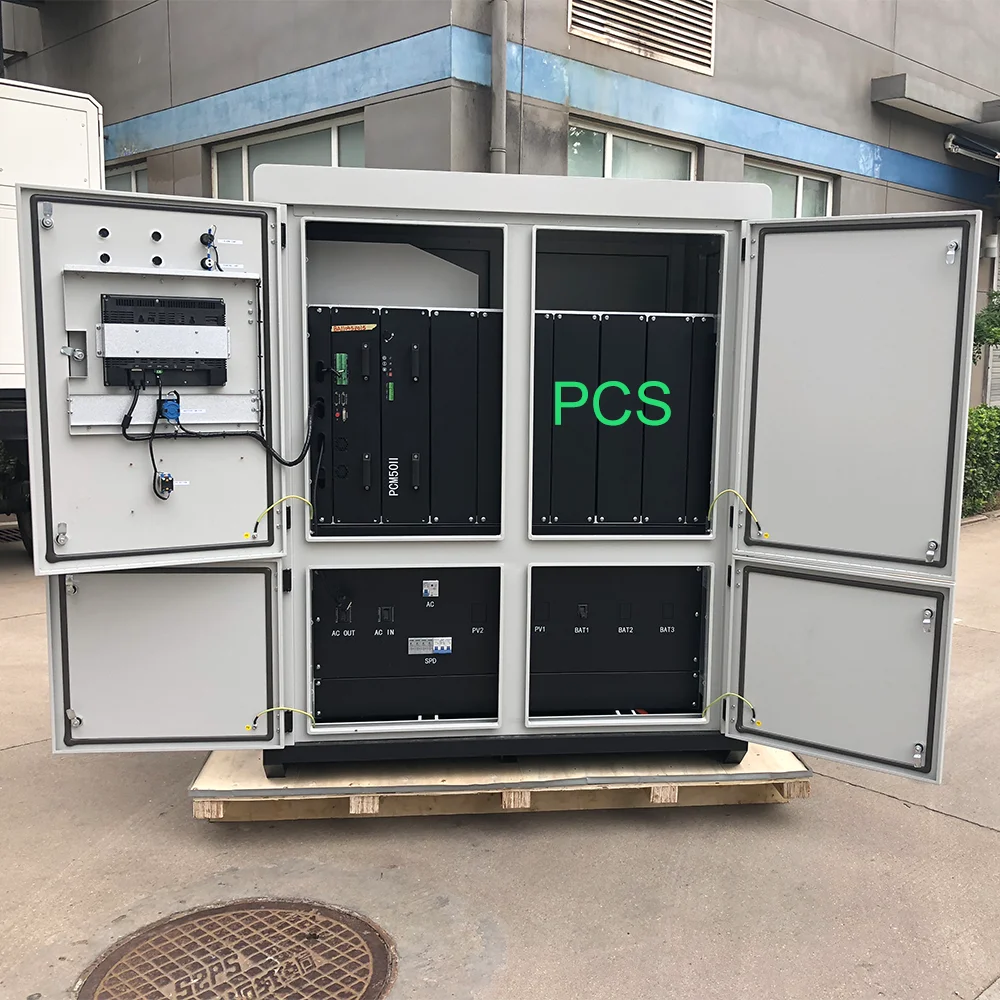

Multifunctional PCS
Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC.
PV Control Module (MPPT)
Mppt module is to filter the power from photovoltaic panel, to store energy for lithium battery.
Static Transfer Switch
Seamless on/off grid automatically switch.


HVAC
The battery compartment integrates industrial air conditioner to meet the stable operation of the system in different environments and prolong the life of the system.
PMS(Power Management System)
System operation data monitoring, operation strategy management, historical data record, system status record, etc.

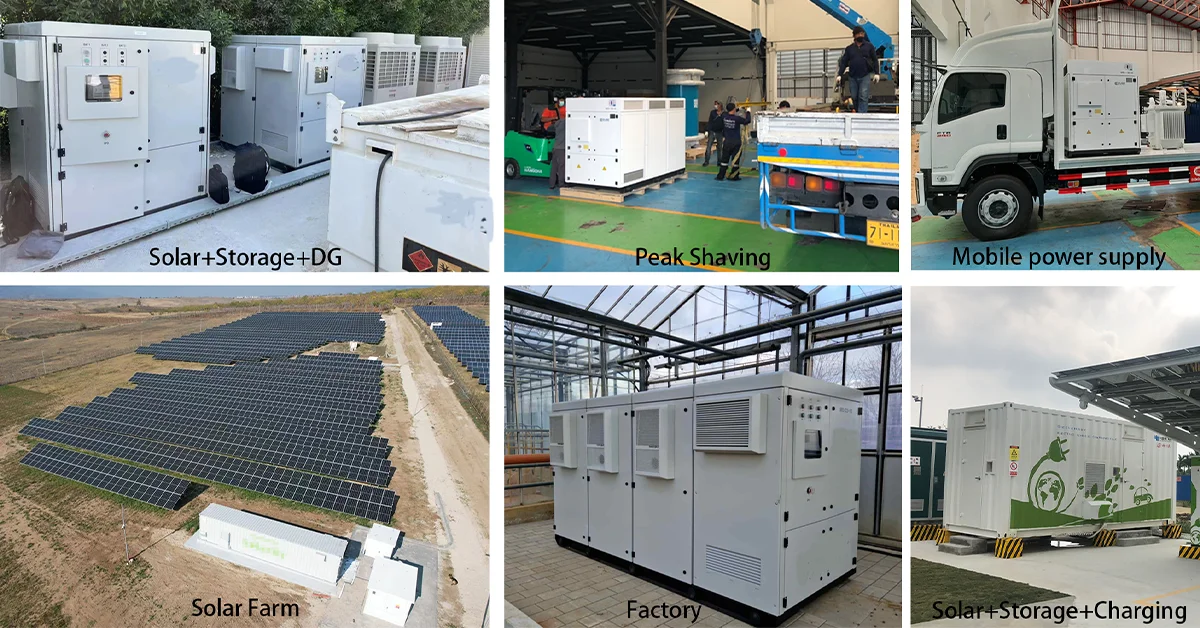

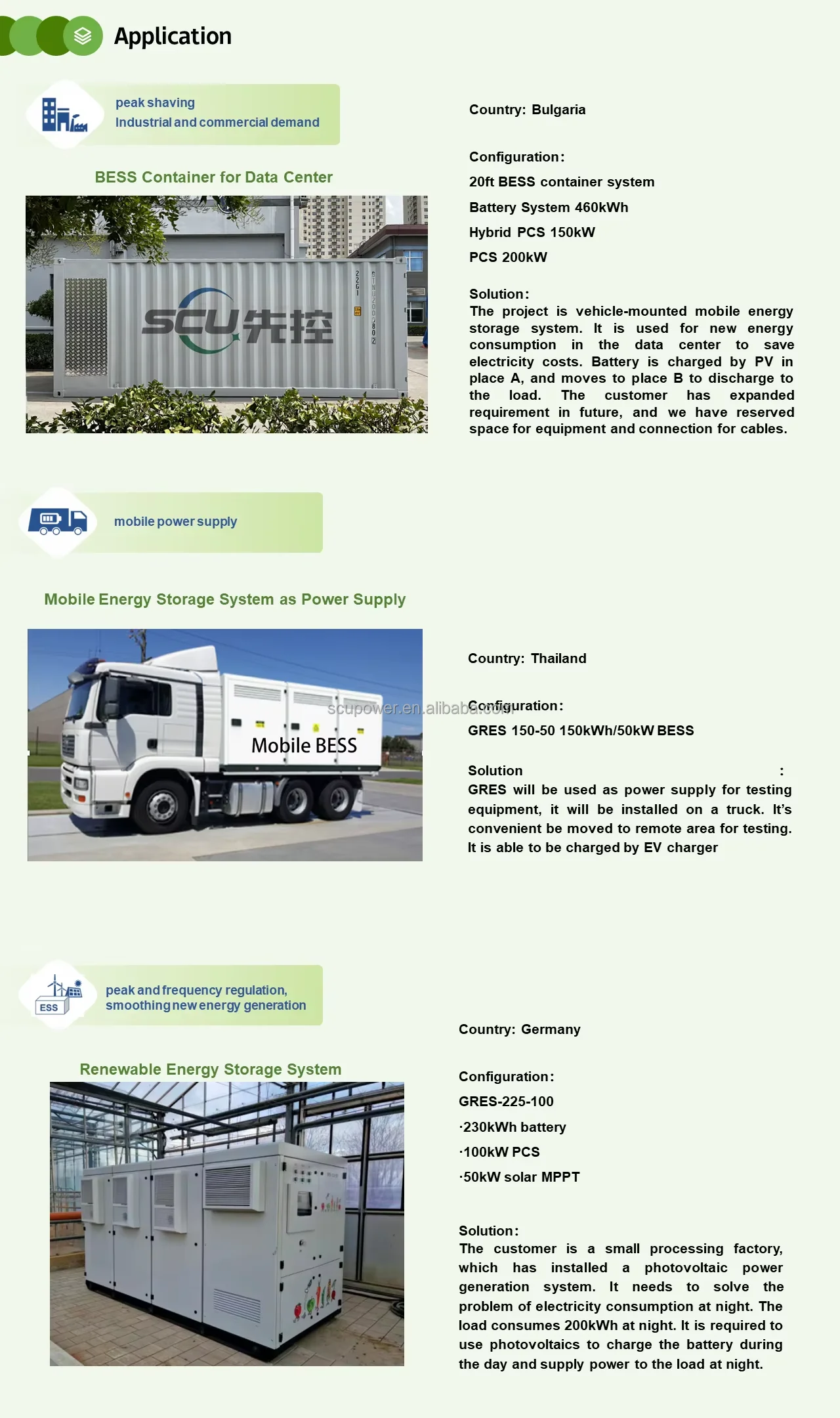

Application

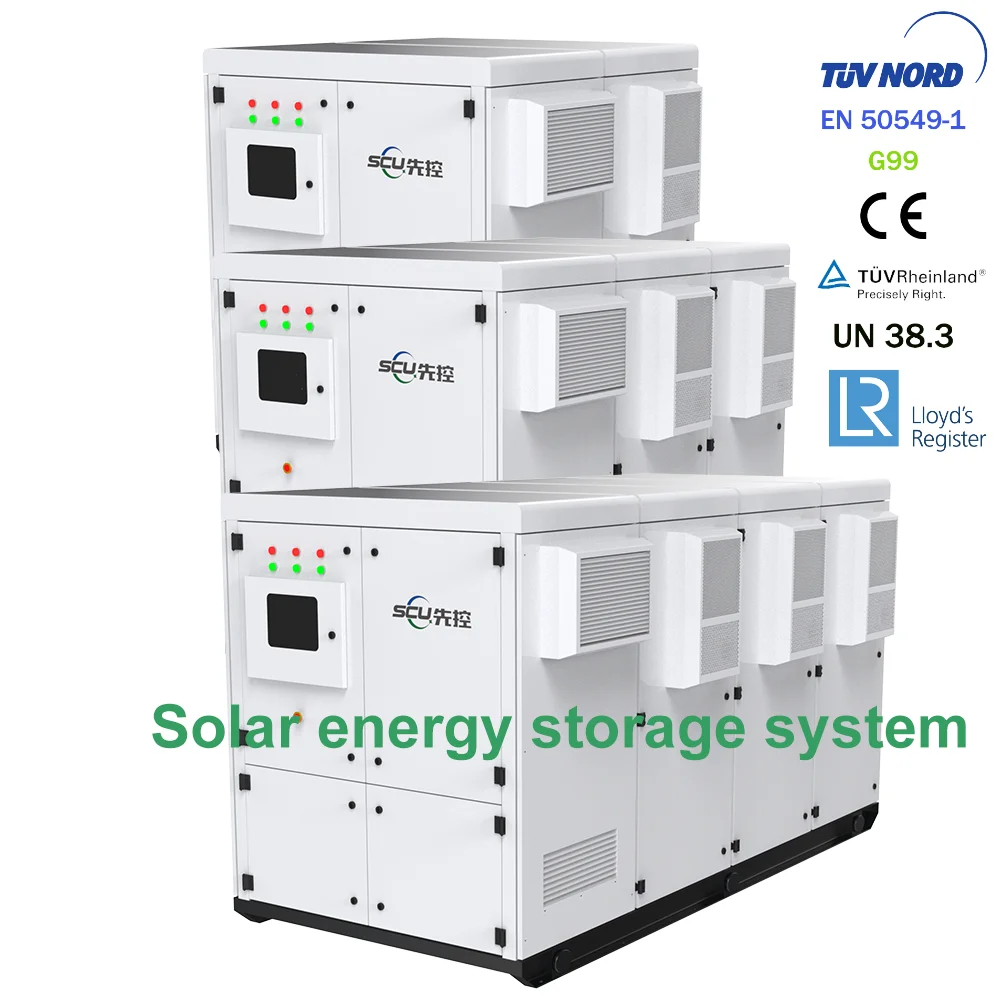

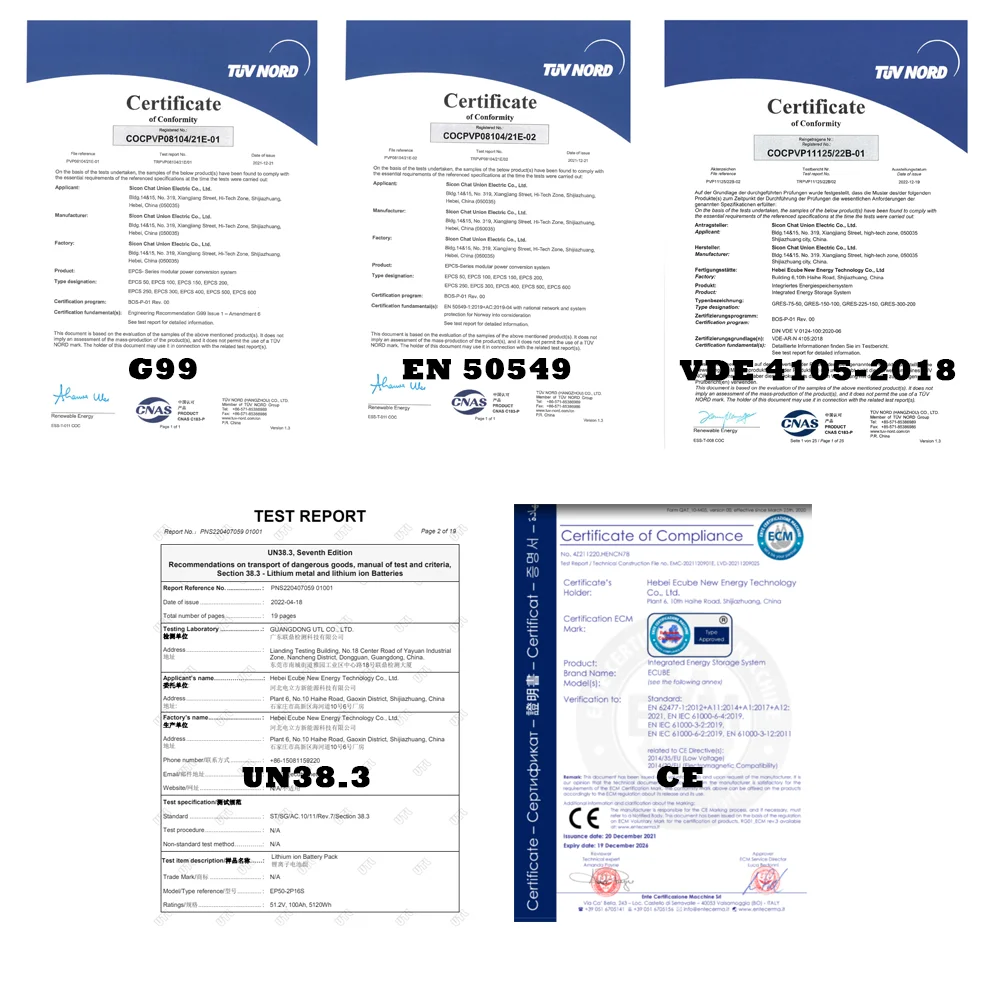

Certification




Specification


Parameter
GRES-75-50
GRES-150-100
GRES-225-150
GRES-300-200
PV parameters (Optional)
MPPT voltage range
DC200V~DC700V
Full power MPPT voltage range
DC370V~DC700V
MPPT channel Qty
1/2/3
Single-circuit MPPT maximum current(A)
135A
AC parameters (grid connected)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Grid voltage range
±15%
Rated grid frequency (Hz)
50
Grid frequency range (Hz)
±2
Current waveform distortion rate
<3%(Rated voltage)
DC component
<0.5%In
Power factor
>0.99(Rated voltage)
Power factor adjustable range
1(lead)~1(lag)
Overload capacity
110% Long term
AC parameters (off grid)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Current waveform distortion rate
<3%(Linear Load)
Rated frequency(Hz)
50
Overload capacity
110% Long term
Battery
Battery type
Lithium iron phosphate
Energy of each module(kWh)
5.12
Module qty
15
30
45
60
Total power (kWh)
76.8
153.6
230.4
307.2
Running Time (h)
1.5(Optional by Changing module qty)
Cyclelife
25℃0.5C/0.5C100%DODEOL80%≥4000s
System efficiency
Max efficiency
95%
Protection
DC Switch
YES
AC switch
YES
Grid monitoring
YES
Surge protection
DC /AC 2nd level
Basic Parameters
Dimension(W*D*H)(mm)
1680*1500*1700
1680*2270*1700
1680*3050*1700
1680*3830*1700
Weight (kg)
1395
2470
3545
4620
Isolated transformer
NO
On/off grid switching
STS
Protection
Outdoor IP54
Working temperature
-20~55℃(>45℃derating)
Relative humidity
0~95% ( (no condensing)
Cooling
Intelligent air cooling (intelligent heating optional )
Max working altitude(m)
4000(>2000 derating)
Display
Touch screen
Communication
RS485、CAN、LAN
Communication Protocol
Modbus-RTU、Modbus-TCP、CAN2.0B

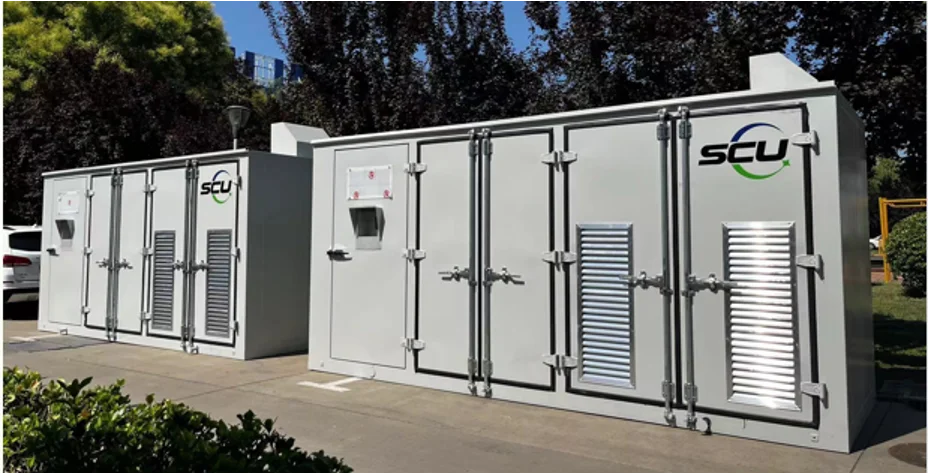

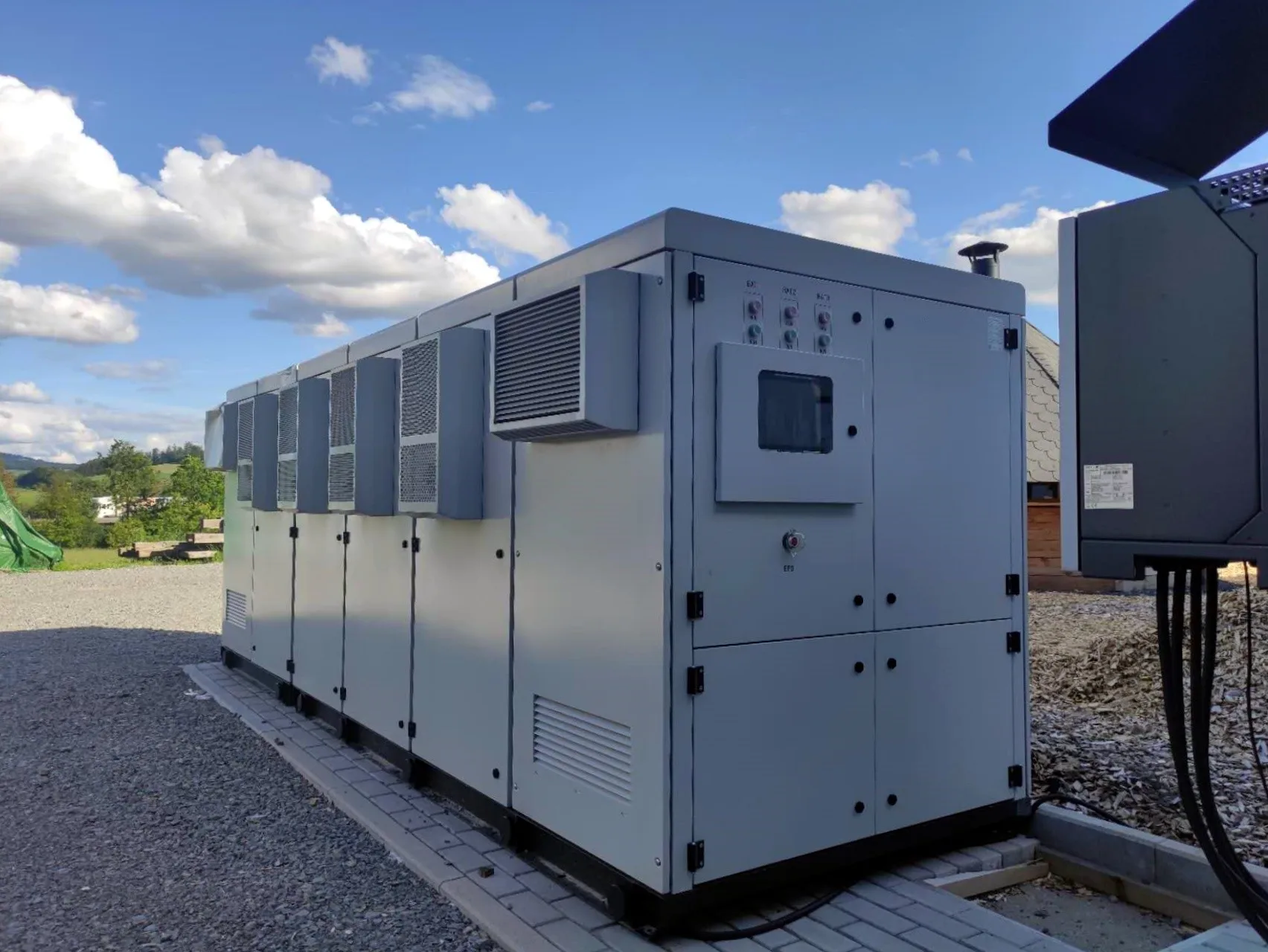

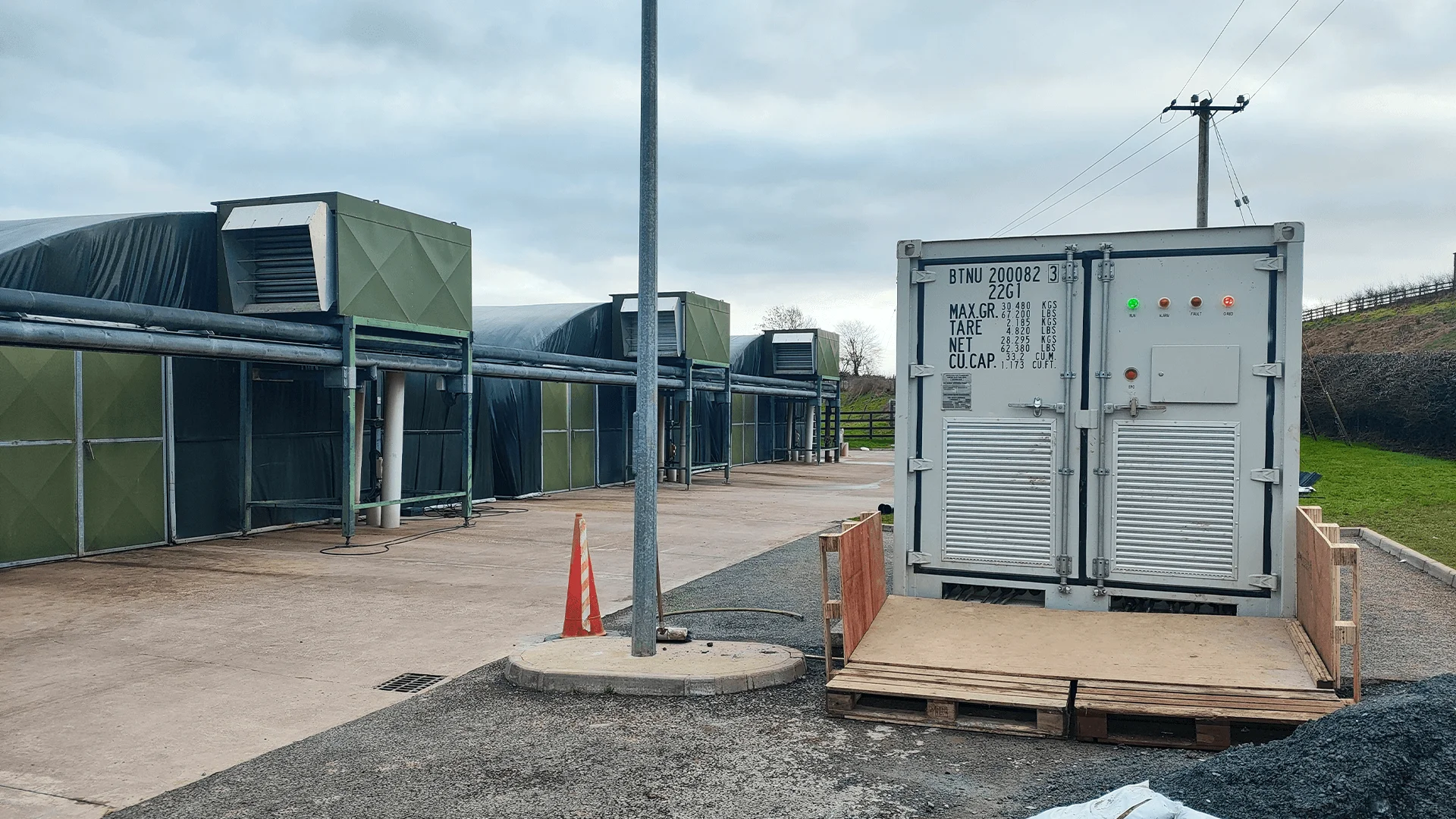

Successful Cases


LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)

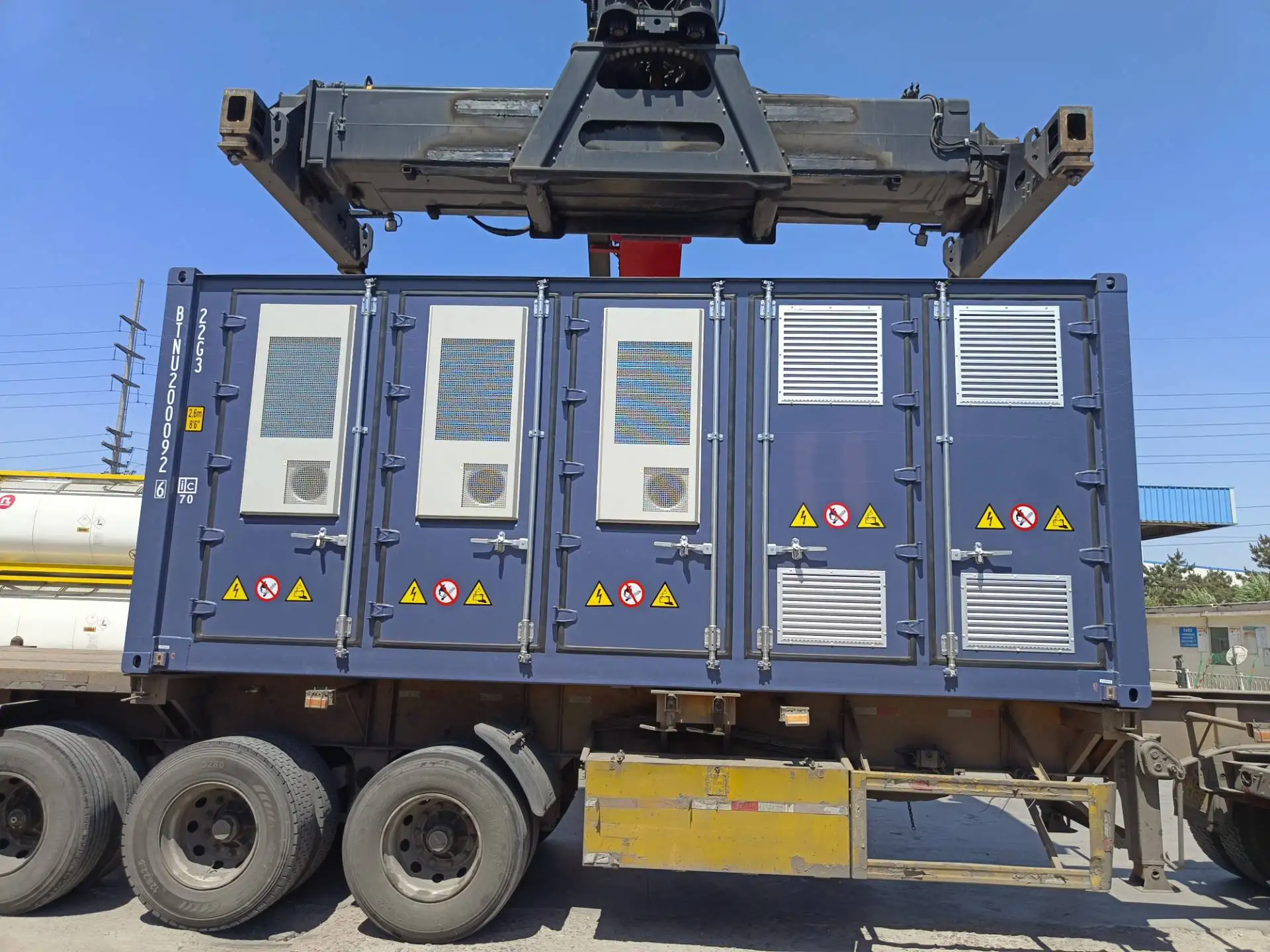

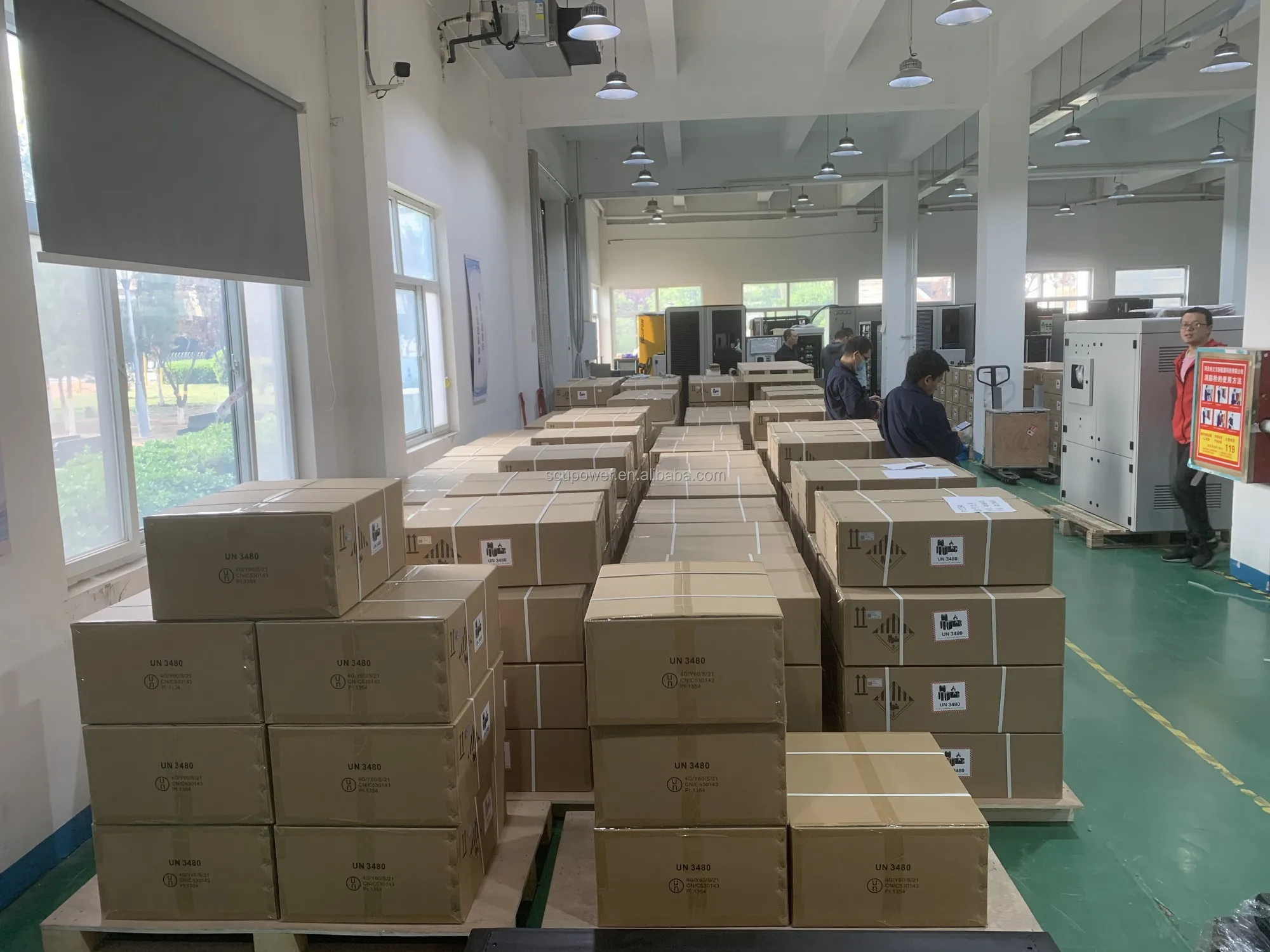

Packing & Delivery
