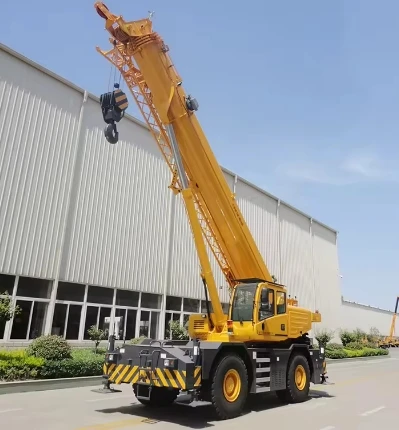

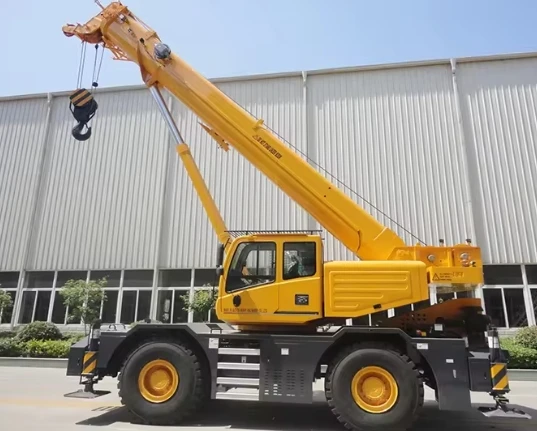

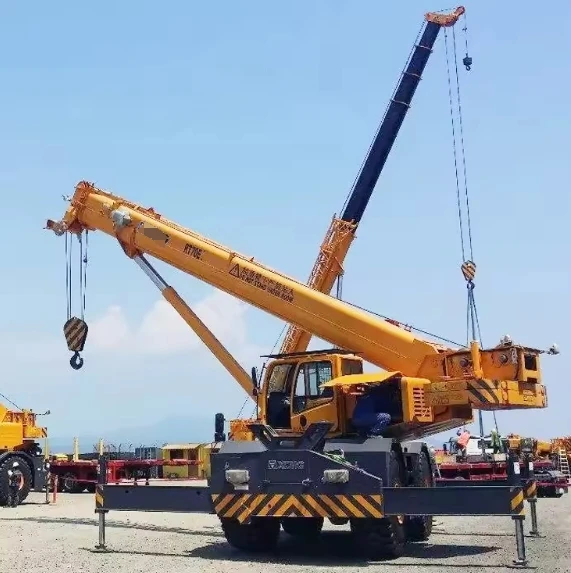

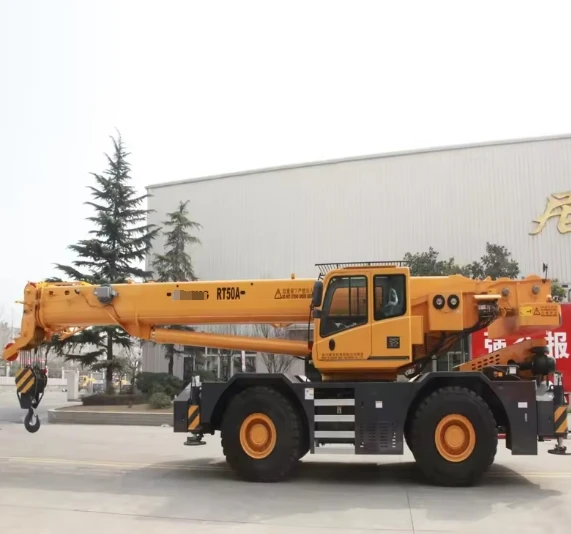

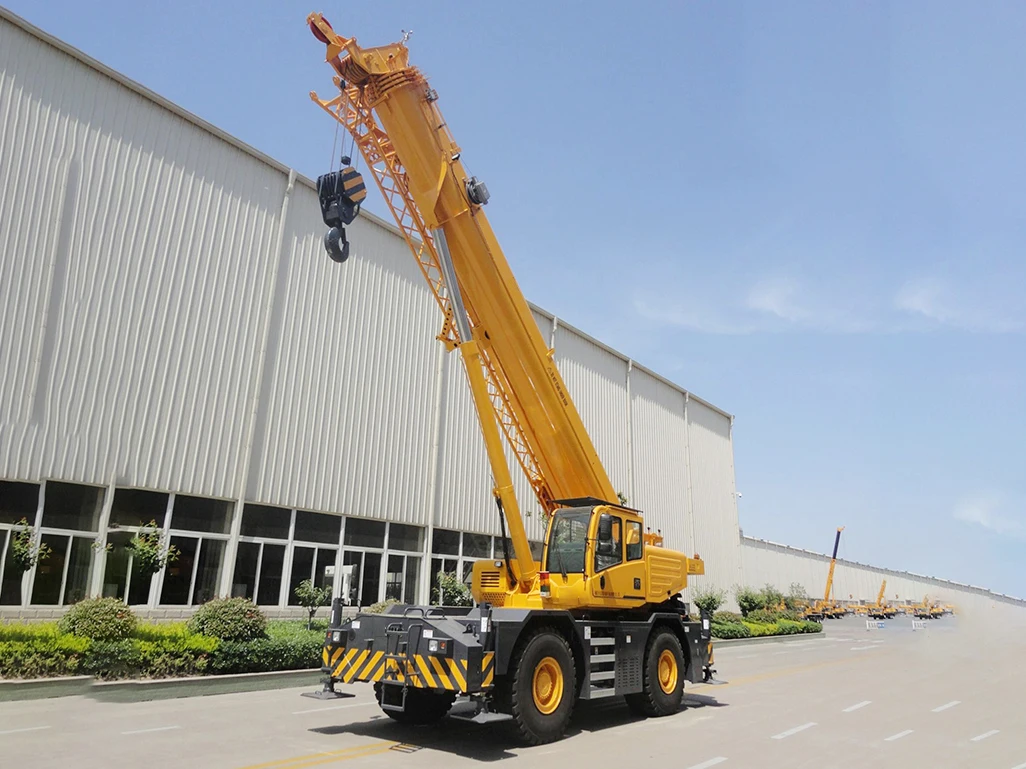

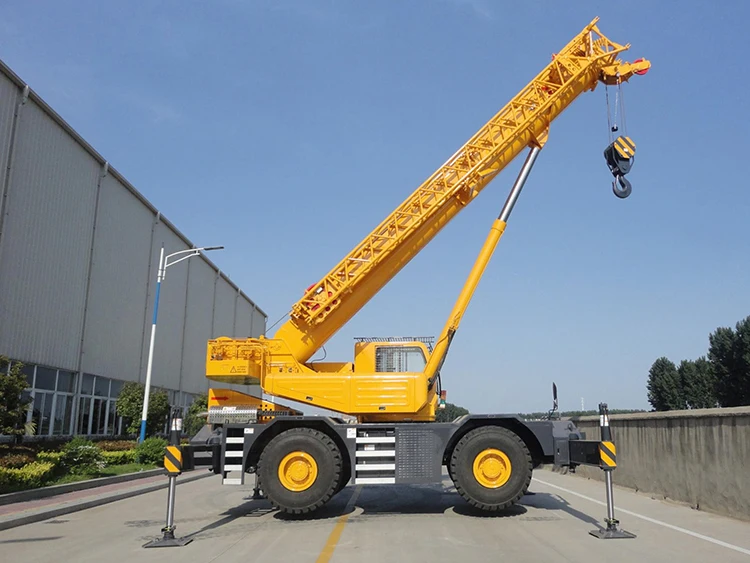

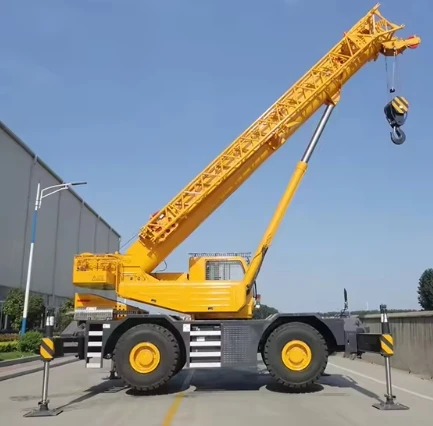

Brand New 50ton Mobile Rough Terrain Crane Heavy Hydraulic Lifting RT50
- Category: >>>
- Supplier: Zhengzhou Komatco Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601246119863):
Product Overview
Description
Contact
Products Description
Product Highlights:
Strong Power of Hoisting, Wide Range of Work
It has 34.5m main booms, 16m auxiliary booms, with the comprehensive hoisting performance about 5%-10% higher than the four sections product of the same tonner in the industry.
Maneuvering and Flexible, Quick and Efficient
The max speed reaches 37km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.
Safe and Reliable, No Worry to Handle
The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.
The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.
Economic and Environment Protection, with Cost Saving
The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.
The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; and the gravity drop
luffing system needs no extra power and save the oil consumption
Strong Power of Hoisting, Wide Range of Work
It has 34.5m main booms, 16m auxiliary booms, with the comprehensive hoisting performance about 5%-10% higher than the four sections product of the same tonner in the industry.
Maneuvering and Flexible, Quick and Efficient
The max speed reaches 37km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.
Safe and Reliable, No Worry to Handle
The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.
The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.
Economic and Environment Protection, with Cost Saving
The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.
The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; and the gravity drop
luffing system needs no extra power and save the oil consumption
Dimensions | Overall length | 12100 | mm |
Overall width | 2980 | mm | |
Overall height | 3530 | mm | |
Weighet | Dead weight in travel state | 38350 | kg |
1st axle | 17750 | kg | |
2nd axle | 20750 | kg | |
Power | engine model | ||
engine rated output | 149/2100 | KW/(r/min) | |
engine rated torque | 740/1500 | N.m/(r/min) | |
Travel | Max.travel speed | ≥35 | km/h |
Min.turning diameter | ≤5.5 | m | |
Min.ground clearance | 460 | mm | |
Approch angle | 25.8 | ||
Departure angle | 21.8 | ||
Max.gradeability | ≥55 | % | |
Lifting Performance | Max.total rated lifting load | 50 | t |
Min.rated working radius | 3 | m | |
Turning radius at swing table tail | 4090 | mm | |
Base boom amx.load moment | 1690 | kn.m | |
Base boom | 10.3 | m | |
Full-extended boom | 38.2 | m | |
Full-extended boom+Jib | 55 | m | |
Outrigger longitudinal distance span | 7 | m | |
Outrigger lateral distance span | 7.0/5.8 | m | |
Working speed | Boom elevating time | ≤80 | s |
Boom telescoping time | ≤120 | s | |
Max.swing speed | ≥2.0 | r/min | |
Main winch max. speed(on load) | ≥125 | m/min | |
Auxiliary winch max. speed(on load) | ≥125 | m/min |
Our Advantages
After-sale Service

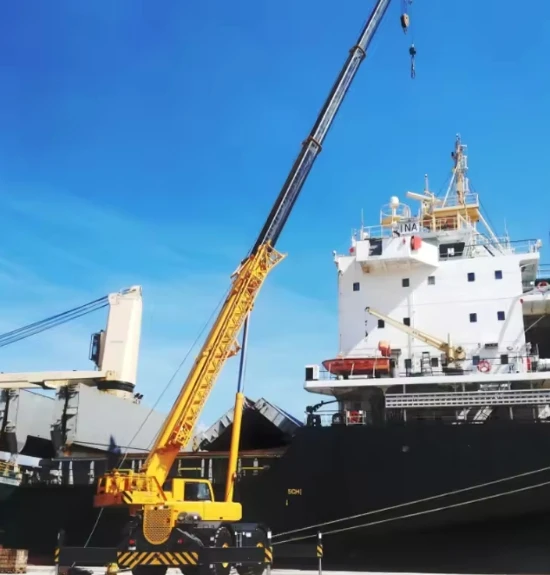

Exporting Case
