Custom Outdoor P8 Waterproof Fixed Front Maintenance Advertising Business Sign Billboard Signage Board Led Screen Display

Share on (1601246127540):


Price:$535.00 - $625.00

Quantity:


Product Overview

Description



Product Overview

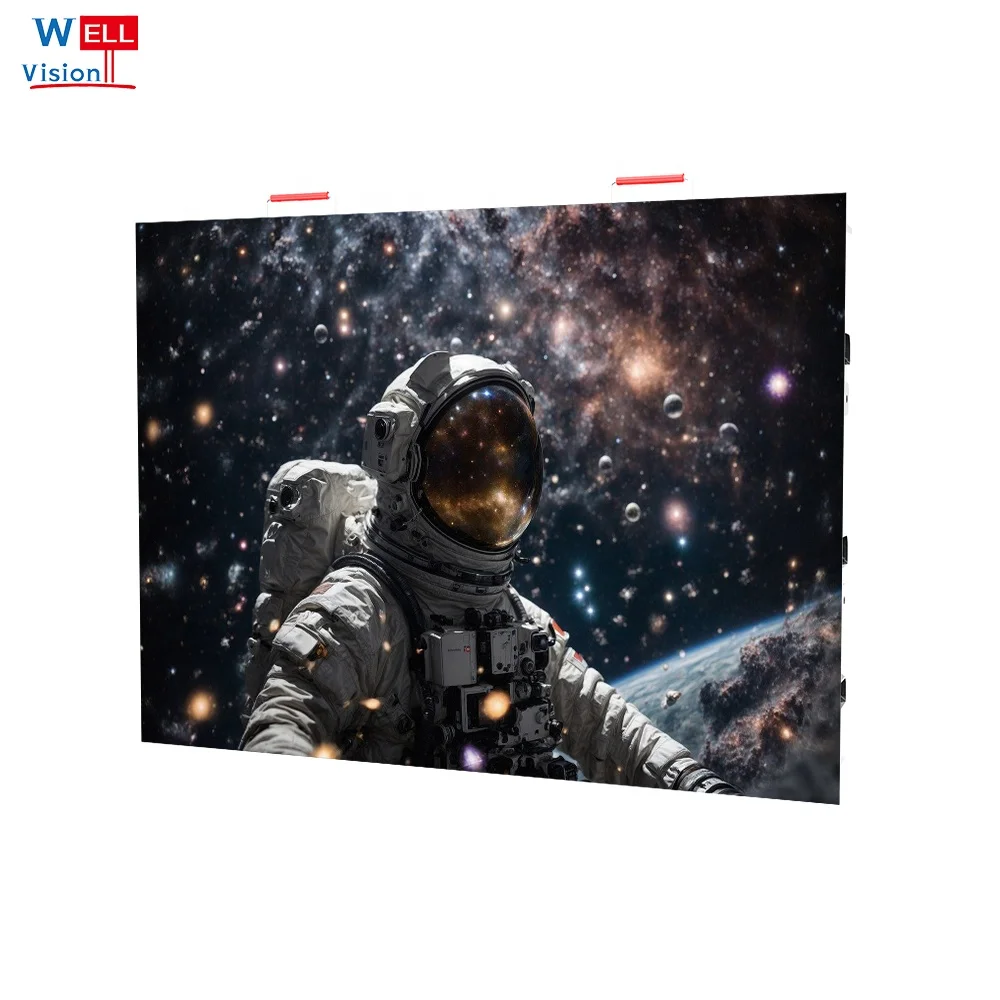

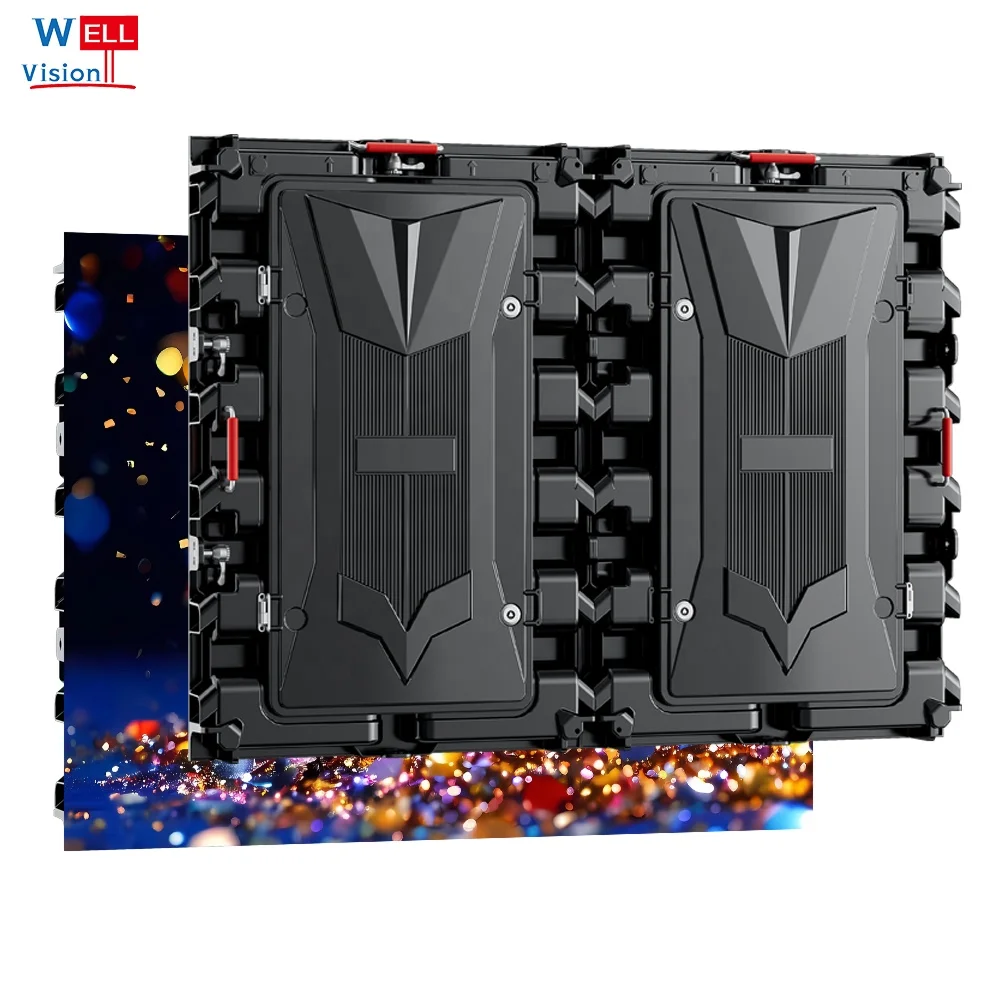

Custom Outdoor P8 Waterproof Fixed Front Maintenance Advertising Business Sign Billboard Signage Board Led Screen Display
Outdoor LED screen is for DOOH application. Various standard and customized size, outdoor, high-definition LED displays bring bright colors and vivid images to the audience, accurately conveying the advertiser’s brand information and helping improve sales.






·Most Hot-selling & Cost-Effective
··Most traditional & mature design

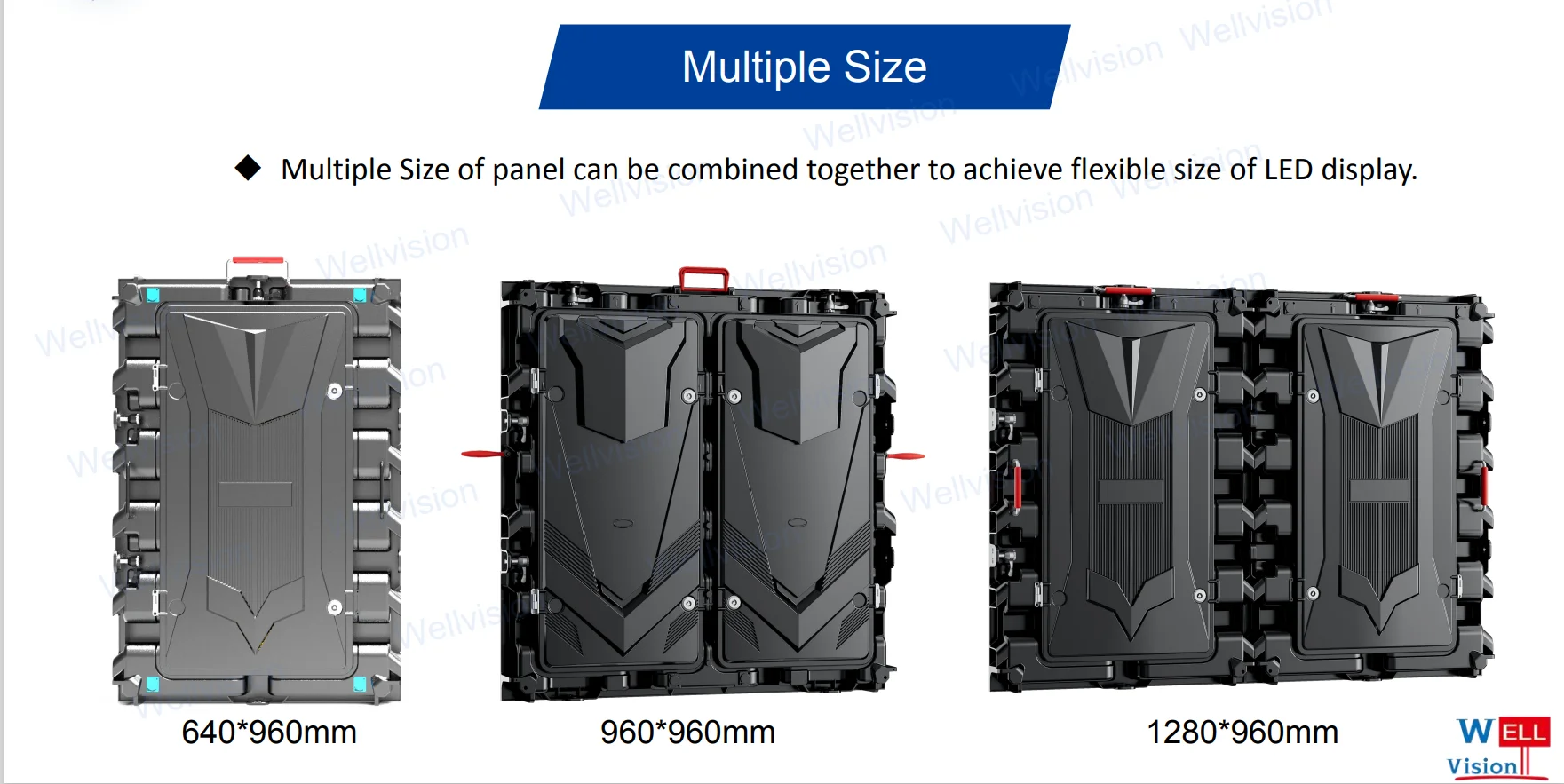

···960x960mm customizable
····Flat or curve
·····Rear service, front for option






Product Specification


Parameter
Value
Model
OM5 PLUS
OM6 PLUS
OM8 PLUS
OM10 PLUS
Pixel Pitch
5mm
6.67mm
8mm
10mm
Refresh Rate
1920/3840Hz(Optional)
Brightness
≥5000nits
≥5500nits
≥5500nits
≥6000nits
Module Size(W*H)
320*160/320*320
Pixels Per Module(W*H)
64*32/64*64
48*24/48*48
40*20/40*40
32*16/32*32
Panel Size(W*H*D)
960*960*135mm(Customizable)
Pixels Per Panel(W*H)
192*192
144*144
120*120
96*96
Pixel Density
40000Dots/㎡
22500Dots/㎡
15625Dots/㎡
10000Dots/㎡
Material
Die-casting magnesium alloy
Weight
30kg/㎡
30kg/㎡
30kg/㎡
30kg/㎡
Viewing Angle
140°/ 120°
Typical Input Power/
930/310 W/㎡
1000/330 W/㎡
1000/330 W/㎡
1000/330 W/㎡
Gray Level
14bit~16bit
Color Temperature
8000~12000K adjustable
Installation
Fixed installation method: Wall Mount / Hanging / Pole supported / Stacking
Maintenance
Rear/Front
Ingress Protection
IP65/IP54
(Front/Rear)






Project Solution and OEM




We have rich experience of outdoor advertising LED screen, we quite understand each case has its special requirements.

Our team is happy to receive your detailed requirements, more is better.
We believe that: To start 'difficult' , our partner will complete the project and hand out the project easier.

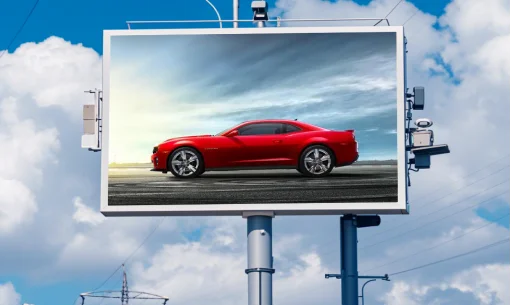

Installation reference




Packaging & Shipping


Carton
For module sample or accessories
Plywood case
For fixed LED screens
Flight case
For event rental LED screen or special designed




Above Shipping Methods for your option.

We will suggest according to screen size and address.




Why Choose Us














FAQ


Q1: How could I get the right quotation at the soonest?
A1: Tell us below info:Your application. (Indoor or outdoor? Fixed or Event temporary use? Front access or rear?)
Dimension (Width & Height)
Control method (Computer Synchronous solution? or Asynchronous solution with which remote control is available)
Material brand requested if you have. (Especially LED lamp / Driving IC/ Power supply units)
Shipping address if you need freight cost. ( Air or sea or DDP?)

Q2: What’s your delivery time?
A2: Standard delivery time is 15 working days. As to huge amount project, pls contact us for exact evaluation.
If there is stock, we could ship within 7 days. Feel free to tell if you have urgent requirement.

Q3: What’s your payment term?
A3: You can pay by T/T or credit card in Alibaba trade assurance. 50% before production, 50% before shipping.

Q4: How many years warranty do you offer?
A4: We offer 2-3 years warranty for modules and display body for different products, 1 year warranty for other spare parts.
