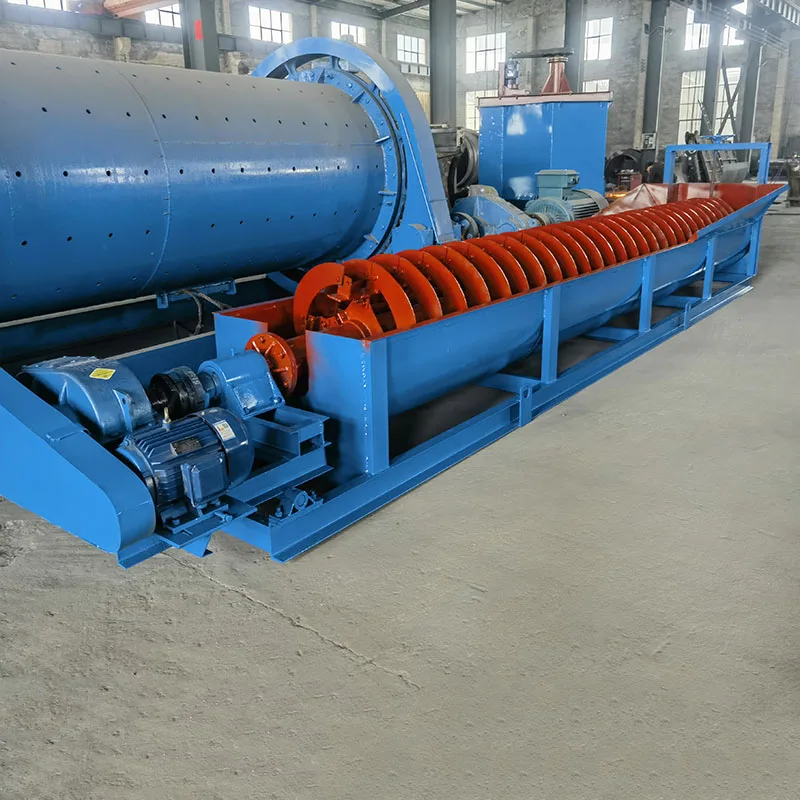

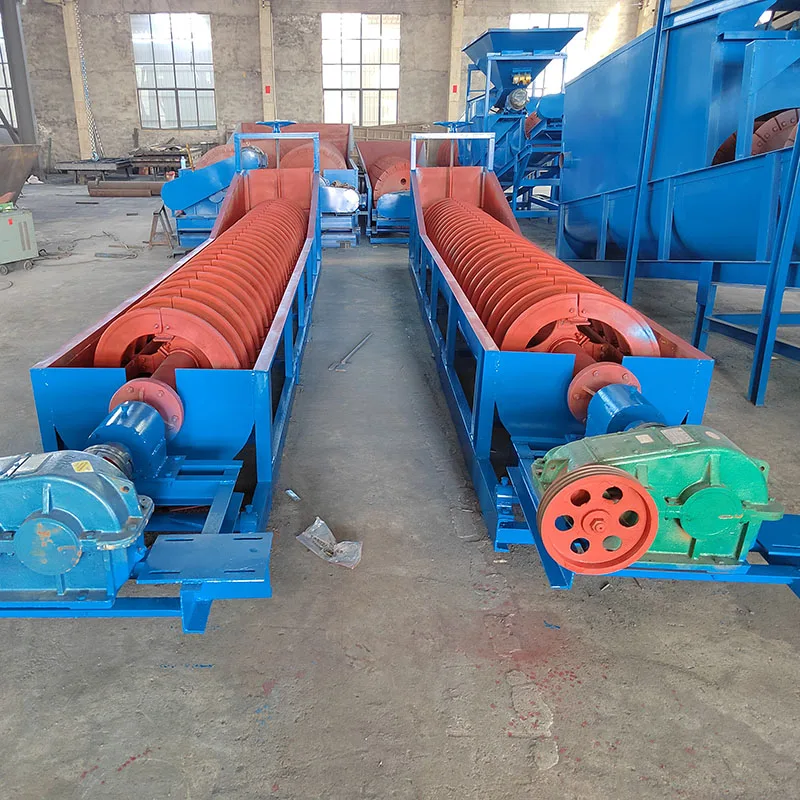

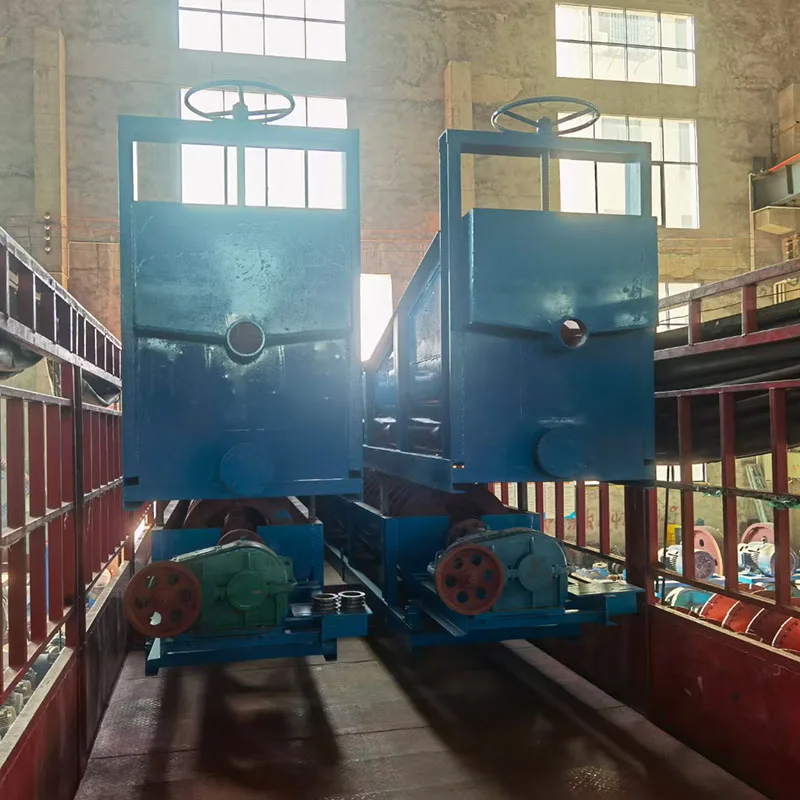

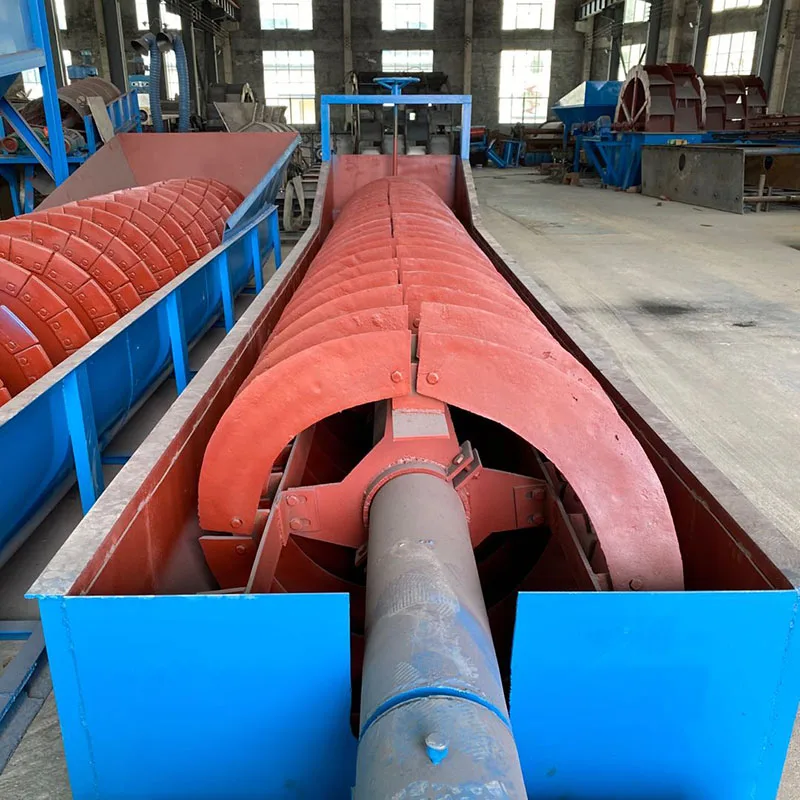

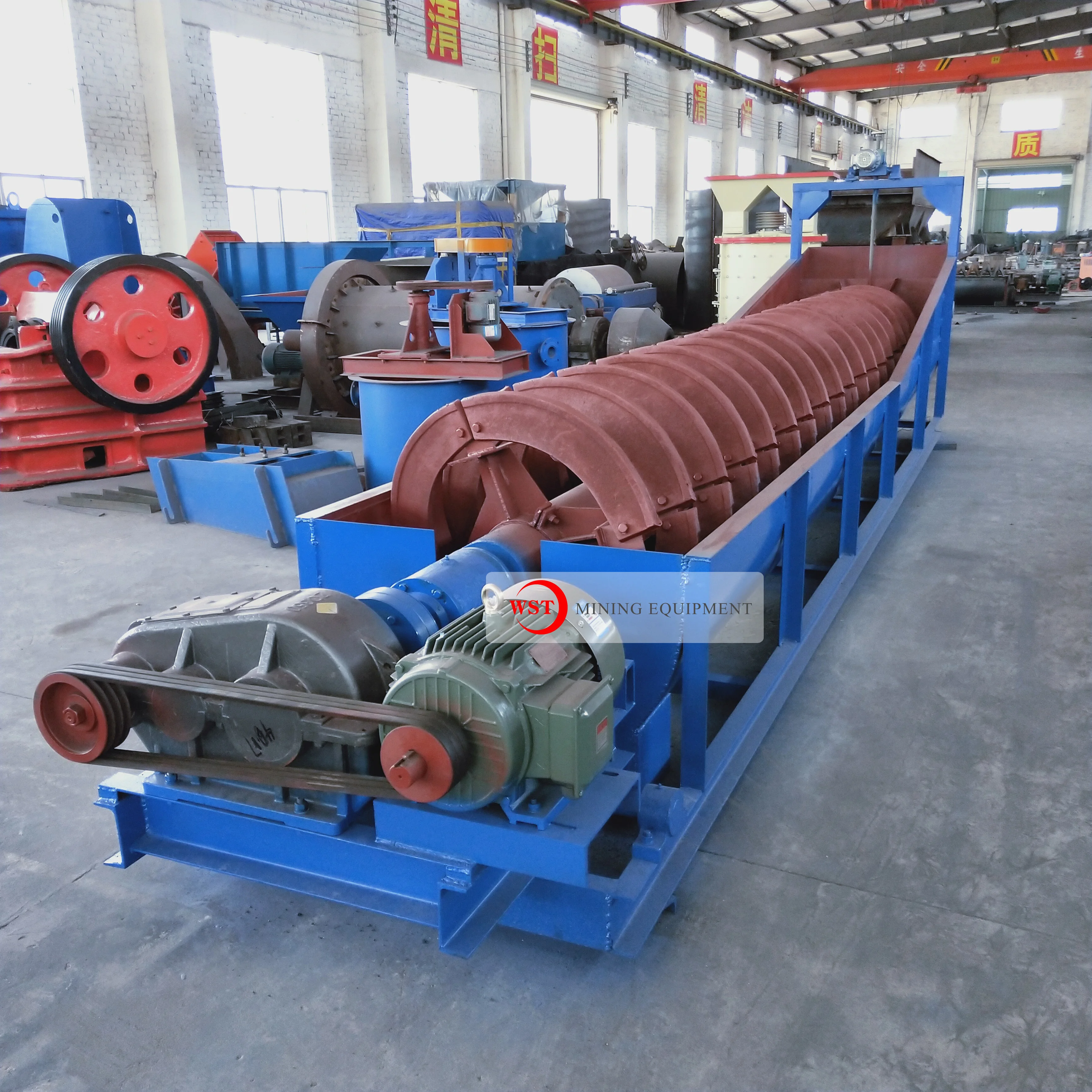

Spiral Classifier
The machine is a classification machine,utilizing the difference in sedimentation rate of mineral particles and mud. The particle size of ores with 14-325 meshes are classified.
This machine is widely worked with ball mill,shaping a close circulation process flow, in order to control the particle size of grinding products, improve the grinding efficiency and reduce the over grinding.
The machine,in the gravity concentrate plant, is also for grading of ore sand and fine mud, feeding and dehydration of sand and gravel.
Type | Model | Spiral rotation speed (r.p.m) | Capacity of regrinding return (t/d) | Capacity of overflow (t/d) | Dia. of spiral (mm) | Length of spiral (mm) | Tank slope | Power of driving motor (kW) | Weigh (kg) |
High Weir Type Single Spiral Classifier | FLG-300 | 7.7 | 30 ~80 | 10 ~30 | φ300 | 3900 | 14 ~18 | 2.2 | 668 |
FLG-500 | 8 | 145~260 | 21 ~75 | φ500 | 4390 | 1600 | |||
FLG-750 | 7.8 | 100~445 | 31~165 | φ750 | 5500 | 3 | 2716 | ||
FLG-1000 | 6.7 | 473~1026 | 85 | φ1000 | 6556 | 5.5 | 4000 | ||
FLG-1200 | 5,6,7 | 1145~1600 | 150 | φ1200 | 6500 | 5.5 | 7943 | ||
FLG-1500 | 2.5,4,6 | 1140~2730 | 235 | φ1500 | 8265 | 7.5 | 11827 | ||
High Weir Type Double Spiral Classifier | 2FLG-1200 | 5,6,7 | 2290~3200 | 310 | φ1200 | 6500 | 5.5X2 | 15840 | |
2FLG-1500 | 2.5,4,6 | 2240~5360 | 460 | φ1500 | 8230 | 7.5X2 | 22903 | ||
2FLG-2000 | 3.6,5.5 | 6400~10800 | 750 | φ2000 | 8400 | 15X2 | 34621 | ||
FLC-1000 | 2.5~7.4 | 160~700 | 50~260 | φ1000 | 8397 | 5.5 | 5225 |
