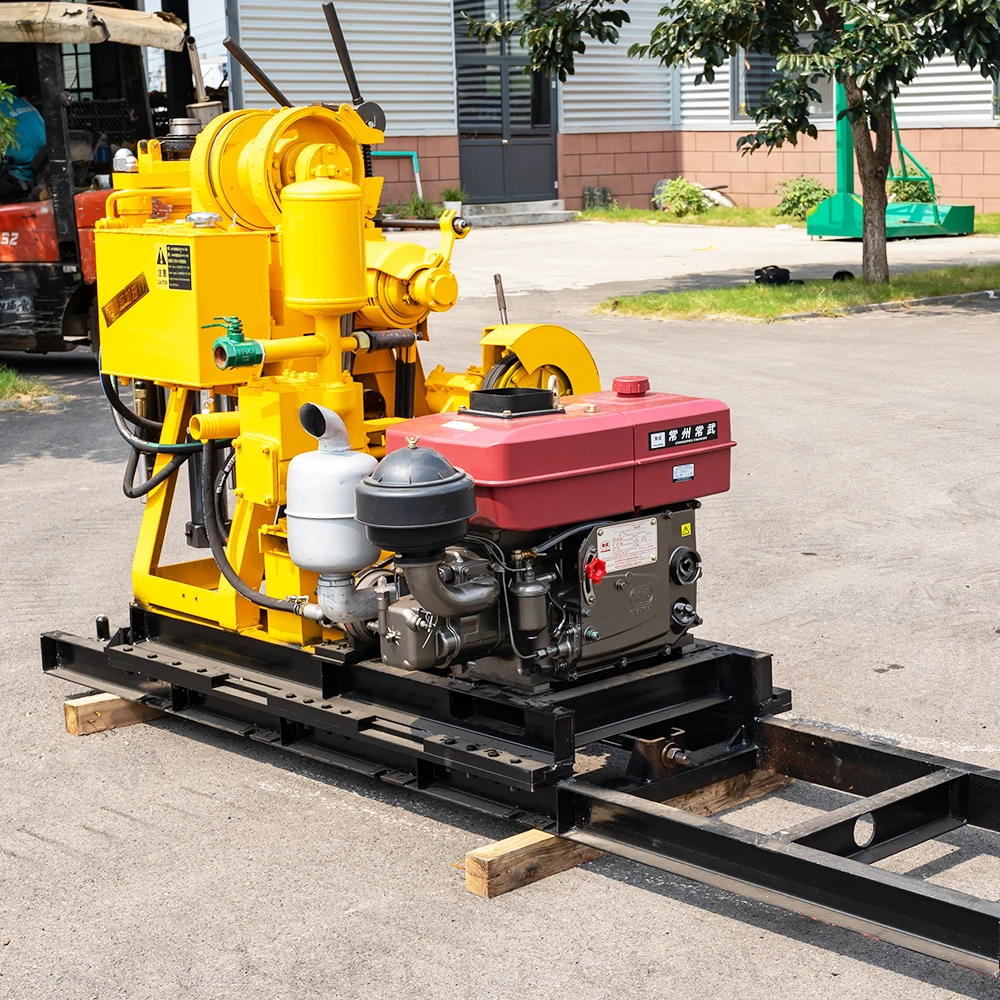

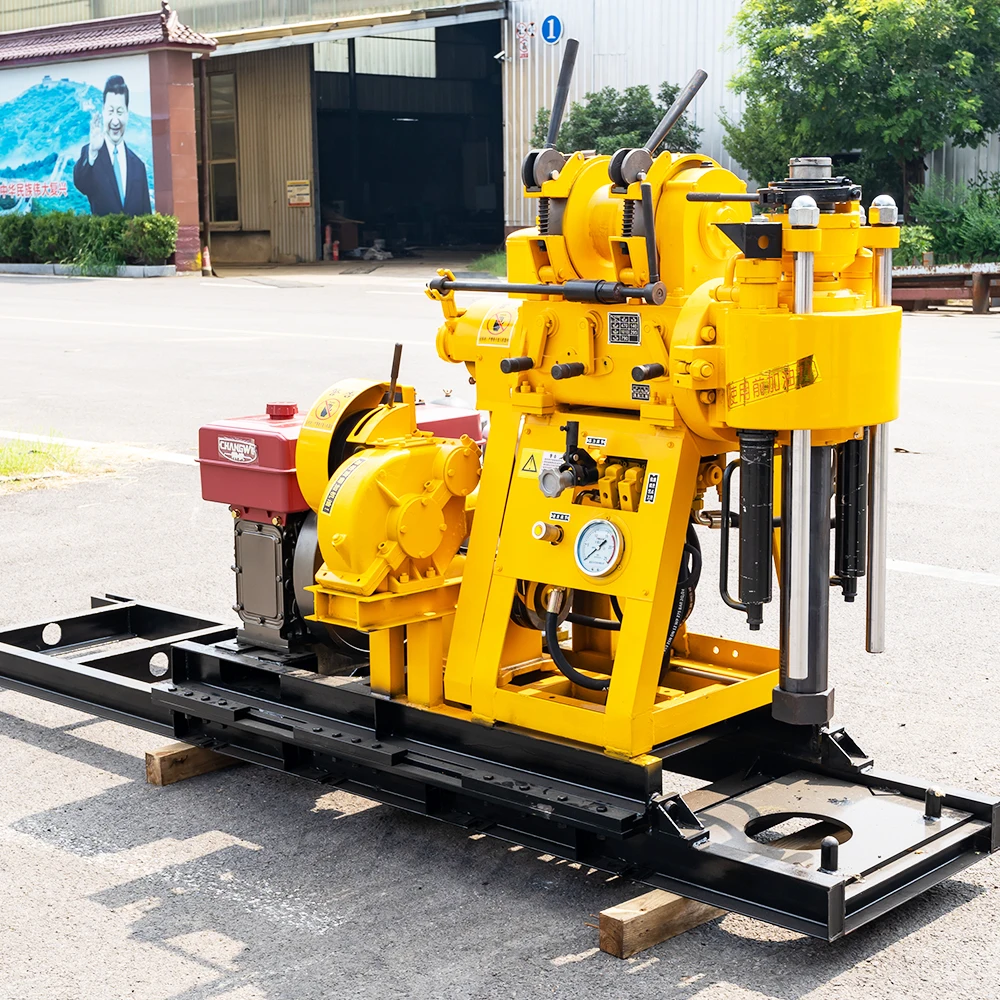

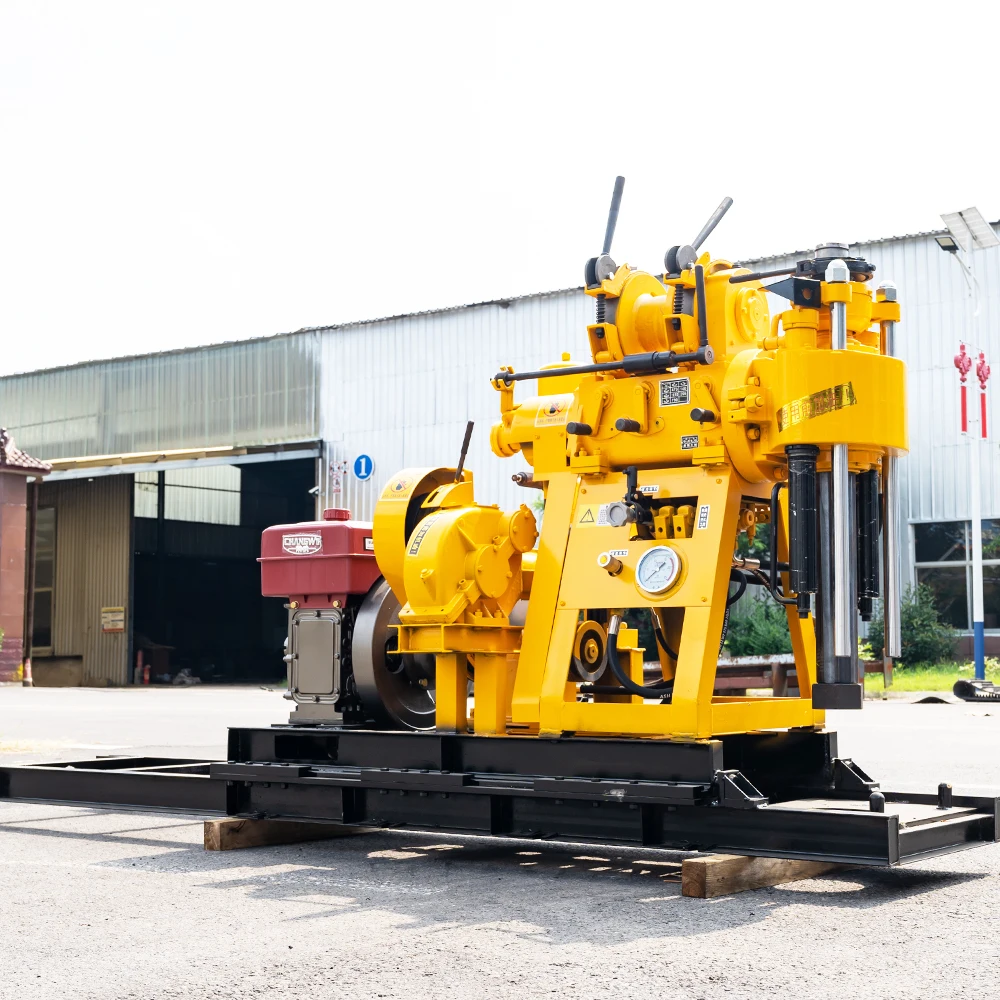

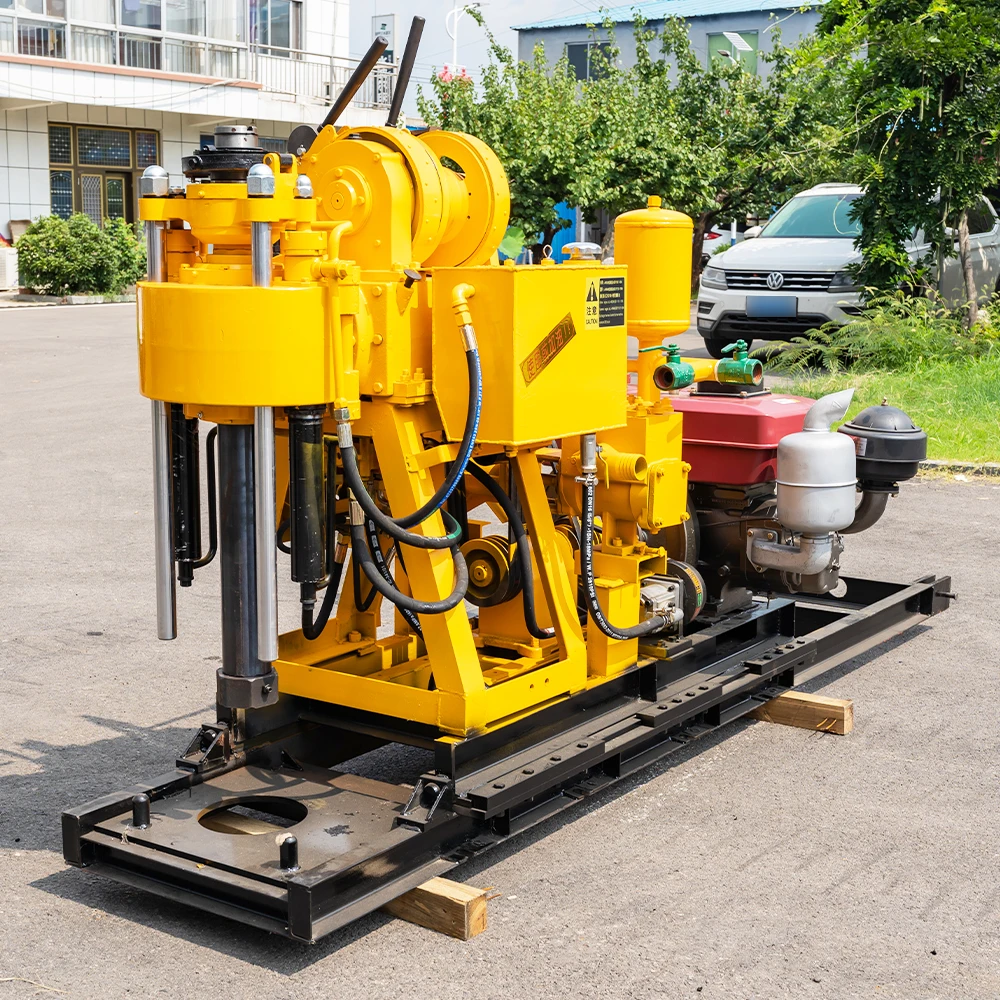

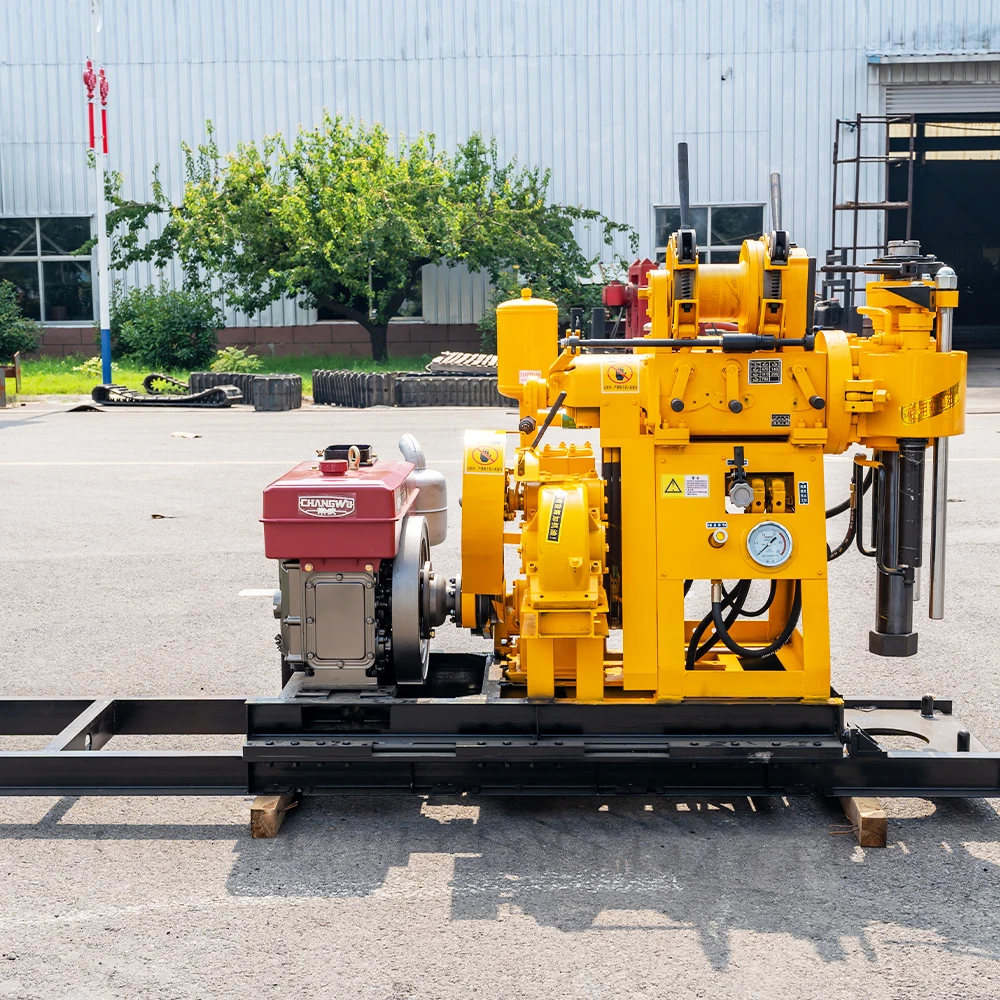

Versatile Hydraulic Drill Machine Great for 150mm Water Wells, Core Sampling, and Exploration
- Category: >>>
- Supplier: Jining Hengwang Mining Machinery Co. Ltd.
Share on (1601246186906):
Product Overview
Description
Note
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please
contact us or send us inquiry,then we can give you detail quotation list
contact us or send us inquiry,then we can give you detail quotation list
SPECIFICATIONS FOR DRILLING RIG | ||||||
Machine Specification | Model | HW160 | HW190 | |||
Drilling depth(m) | 160m | 190m | ||||
Drilling hole diameter soil/rock(mm) | 500, 220 | 500, 220 | ||||
End Hole Diameter(mm) | 75 | 75 | ||||
Drill Rod diameter(mm) | 42, 50 | 42, 50 | ||||
Drill Angle | 90-75 | 90-75 | ||||
Matching engine power(KW) | 13.2 | 13.2 | ||||
Weight without engine(kg) | 600/740 | 620/750 | ||||
Machine Dimension(m) | 2.4*0.8*1.3 | 2.4*0.8*1.4 | ||||
Spindle | Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | |||
Stroke(mm) | 450 | 450 | ||||
Winch | Single rope lift force(kg) | 2000 | 2100 | |||
Single rope lift speed(m/s) | 0.41-1.64 | 0.35-2.23 | ||||
Rope diameter(mm) | 9.3 | 9.3 | ||||
Rope capacity(m) | 27 | 27 | ||||
Drill Mast | Rated load (ton) | 18 | 18 | |||
Effective height(m) | 6.5 | 6.5 | ||||
Mud Pump | Flow(L/MIN) | 95 | 95 | |||
Max. pressure(Mpa) | 1.2 | 1.2 | ||||
Back and forth times/min | 93 | 93 | ||||
Inlet hose dia.(mm) | 51 | 51 | ||||
Outlet hose dia.(mm) | 32 | 32 | ||||
