3 Ton 5ton frame crane Single Girder Gantry Crane 8 ton with Two Customized Cantilevers
- Category: >>>
- Supplier: Henan Weihua Heavy Machinery Co. Ltd.Henan Ltd.
Share on (1601246194924):
Product Overview
Description
Products Description
Single Beam Gantry Crane
* Single girder gantry crane is widely crane, together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHL type gantry crane.

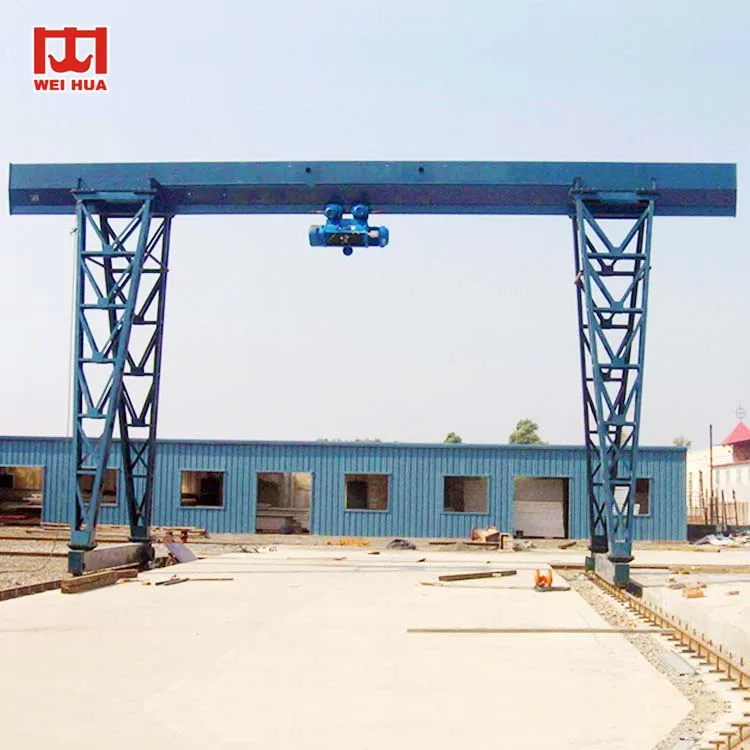

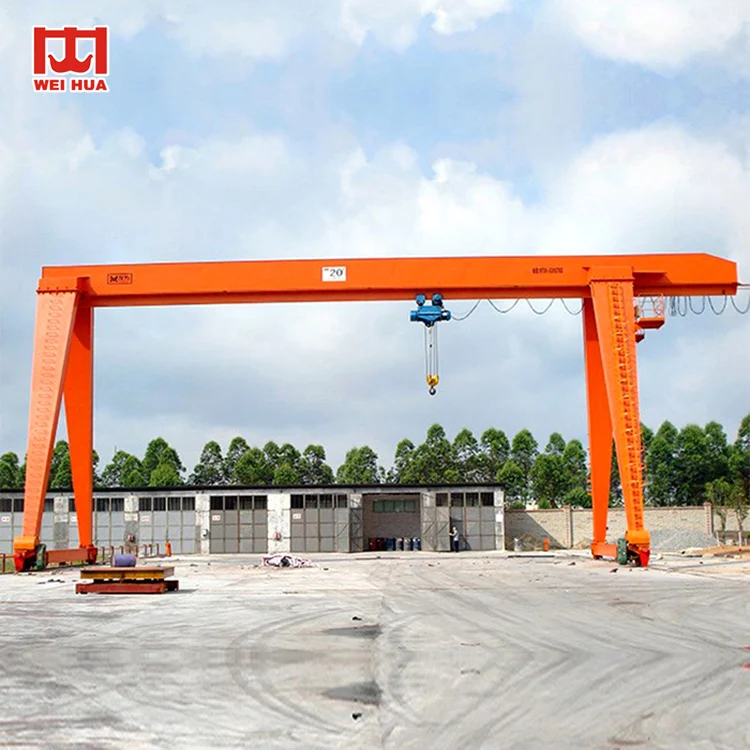

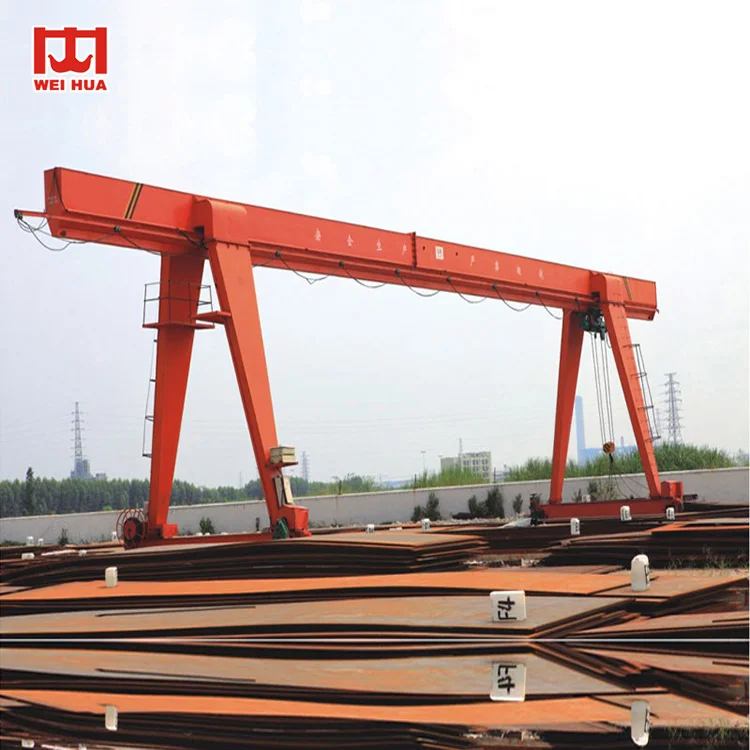

* MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs,which is very convenient and high efficiency.

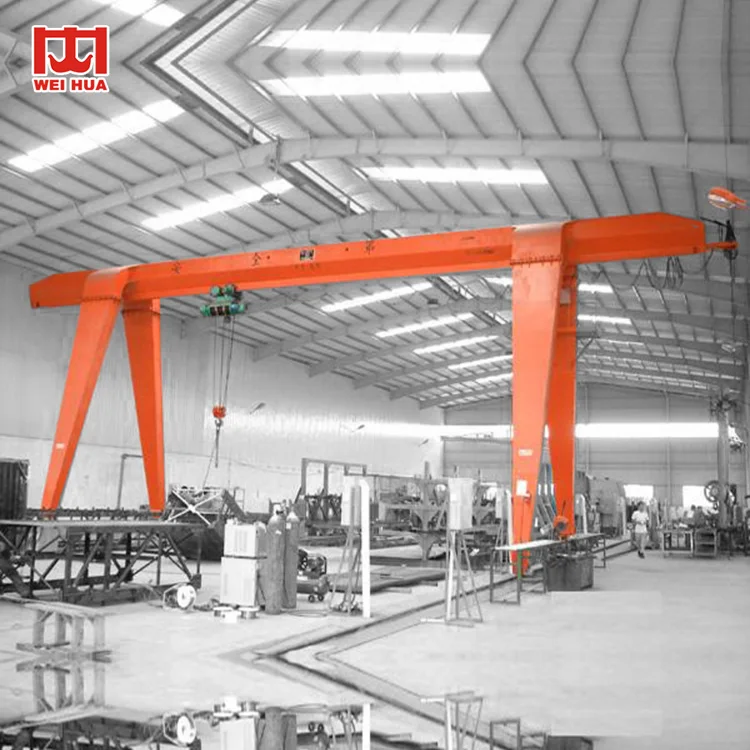

* MHL type single girder gantry crane is L type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.
* MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs,which is very convenient and high efficiency.
* MHL type single girder gantry crane is L type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.
Capacity | T | 3 | 5 | 10 | 16 | |||||||
Span | m | 12,16,20,24,30 | ||||||||||
Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||||||
Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | ||||||
Cross travelling | 20 | 20 | 20 | 20 | ||||||||
Long travelling | Ground | 20 | 20 | 20 | 20 | |||||||
Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | ||||||||
Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ||||||
Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | ||||||||
Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | |||||||
Lifting height | m | 6,9,12,18,24,30 | ||||||||||
Working duty | A3 | |||||||||||
Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||||||
Related Products
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.
Company Profile
Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Some Partners
Packing and shipping
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:

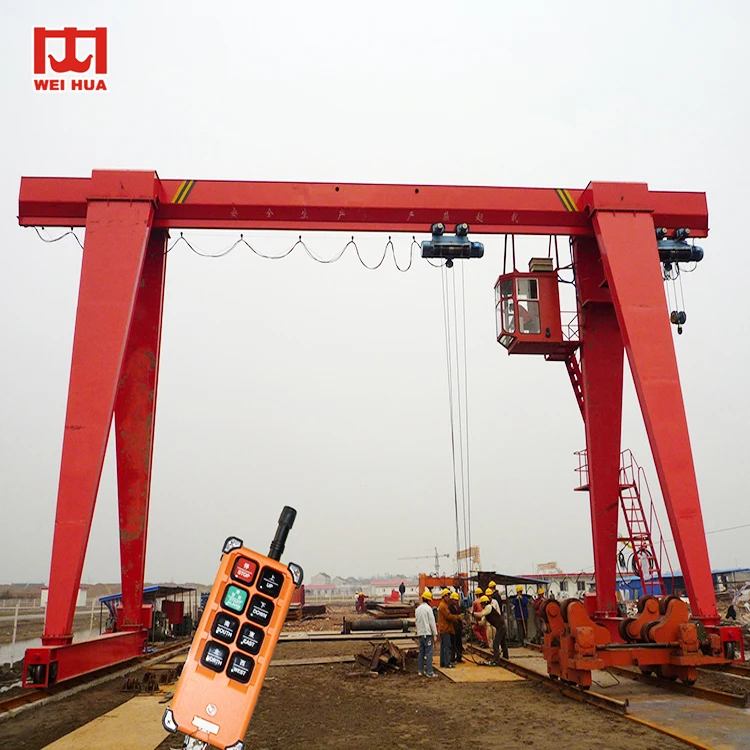

A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
