Product Overview
Description
Electrical Characteristics | ||
Module Type | SKT225M10 | |
Maximum Power- Pmax(W) | 225 | |
Open Circuit Voltage - Voc(V) | 19.54 | |
Short- Circuit Current - Isc(A) | 14.78 | |

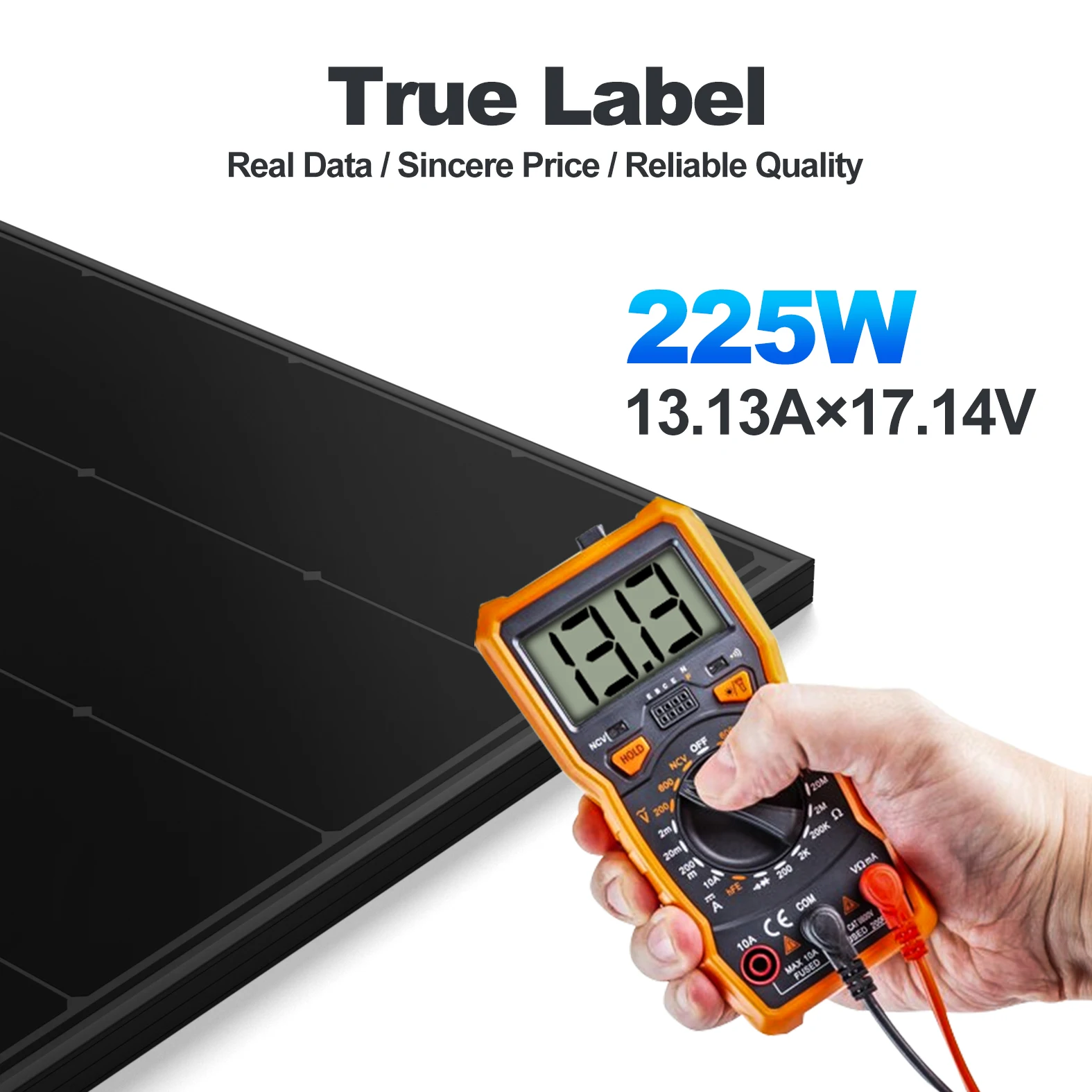

Voltage at Pmax -Vmp(V) | 17.14 | |

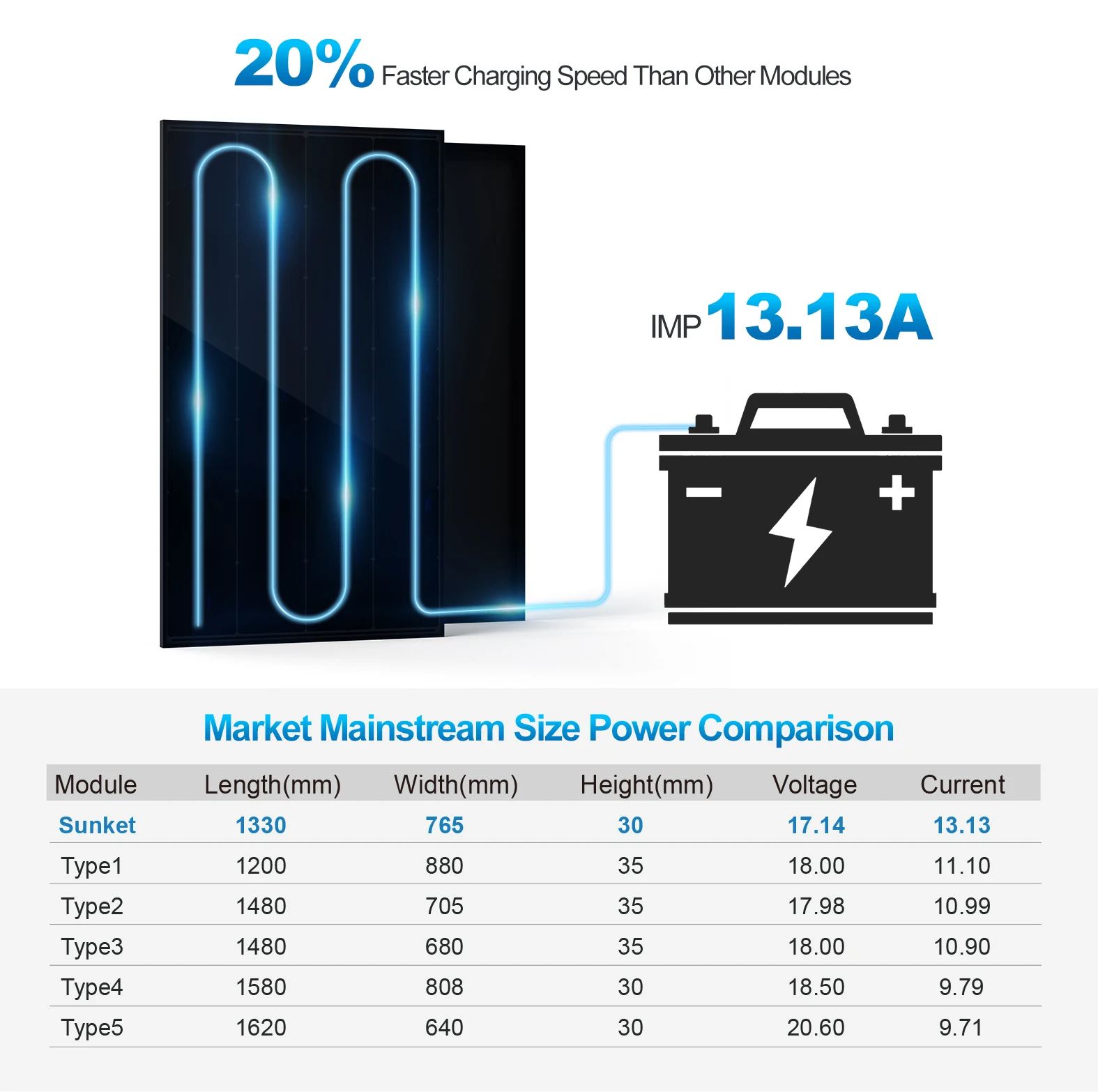

Current at Pmax - Imp(A) | 13.13 | |
Module Efficiency -ηm(%) | 22.11 | |
Power Tolerance (W) | 0, +4.99W | |
Maximum System Voltage(V) | 1000Vdc (IEC / UL) | |
Maximum Series Fuse Rating (A) | 20A | |
Mechanical Specifications | ||

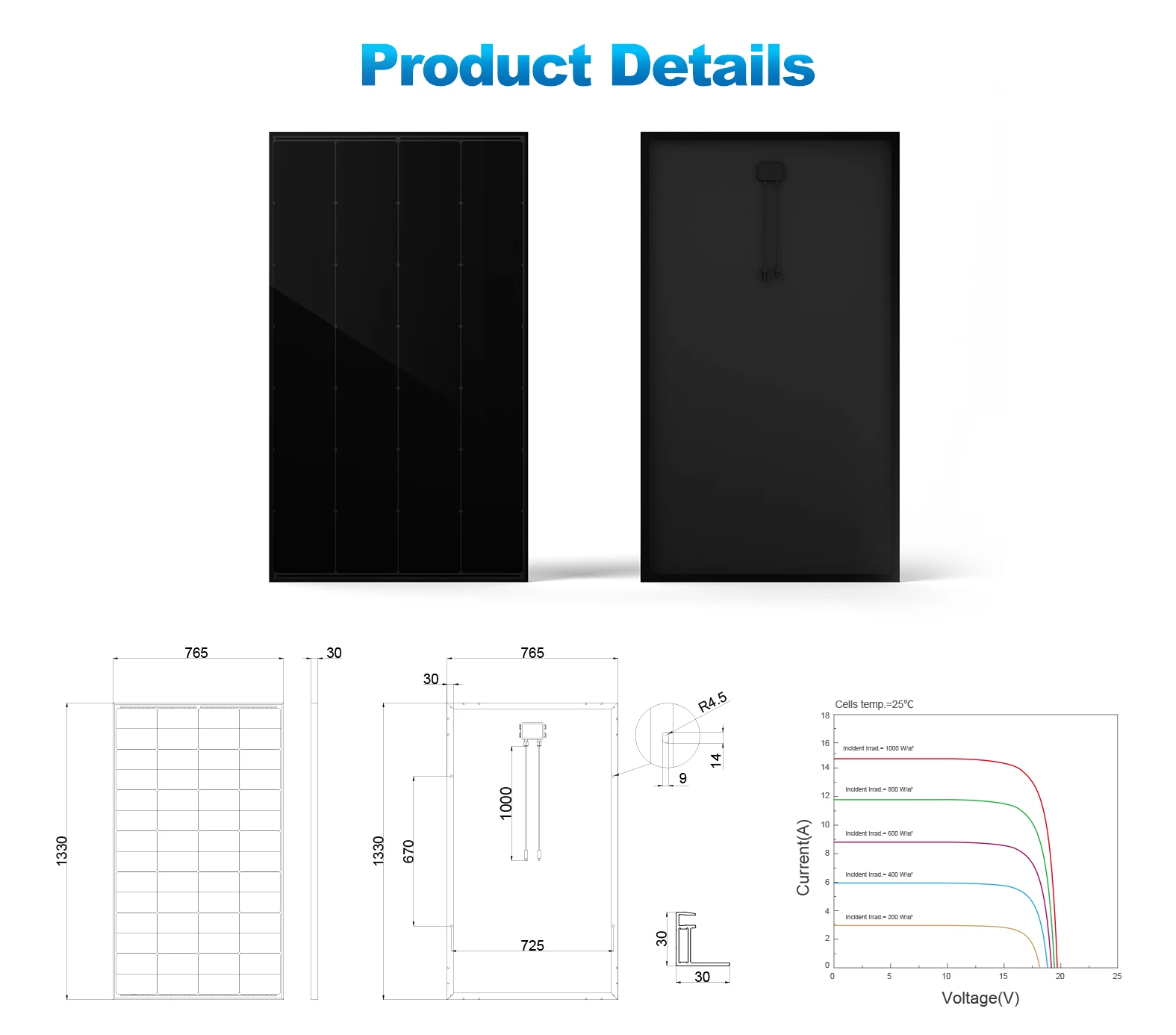

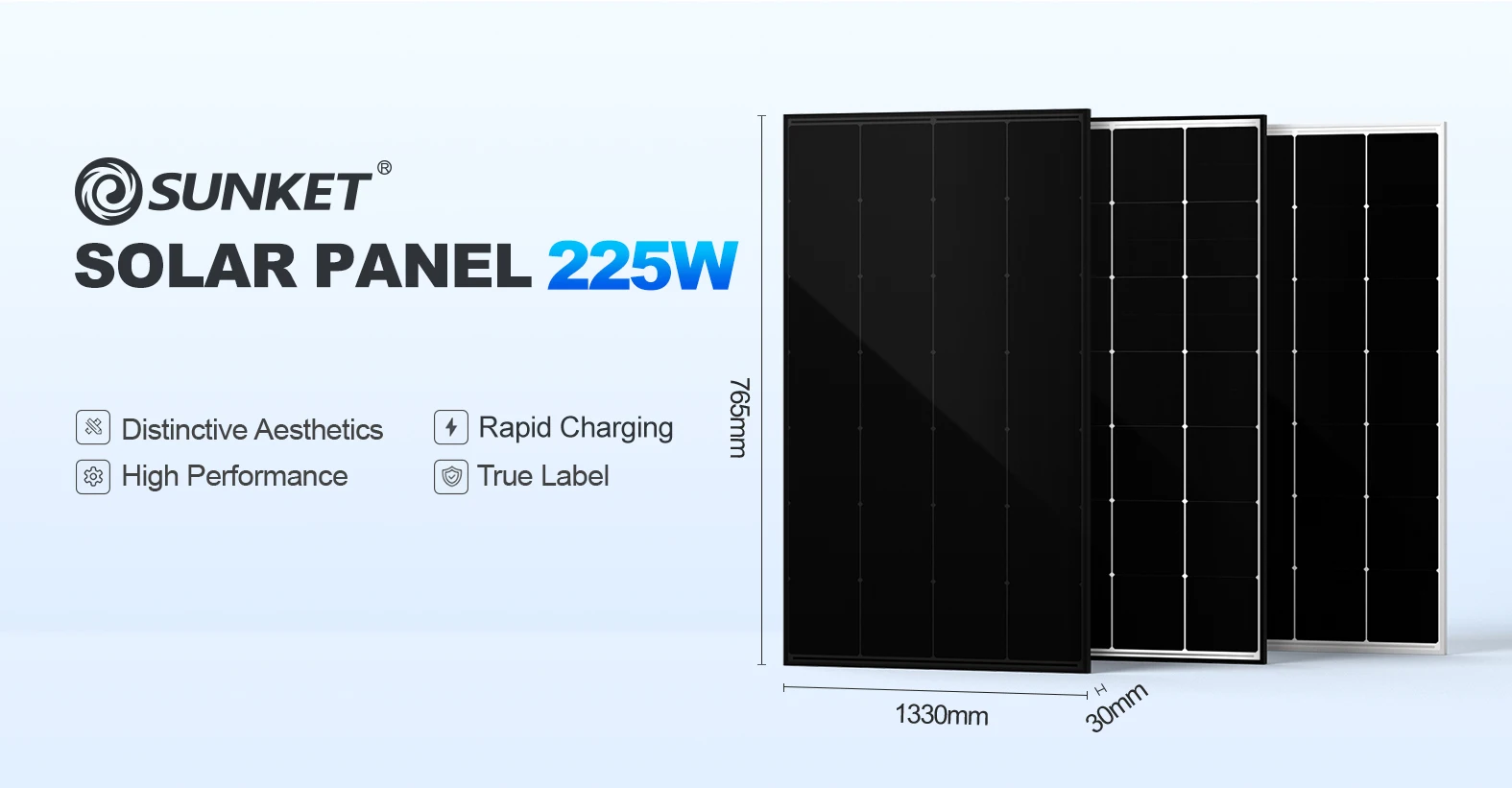

Module Dimensions | 1330*765*30mm | |
Weight | 11.2kg | |
Solar Cells | Mono crystalline 182x91mm (4x14pcs) | |
Front Glass | 3.2 mm tempered glass | |

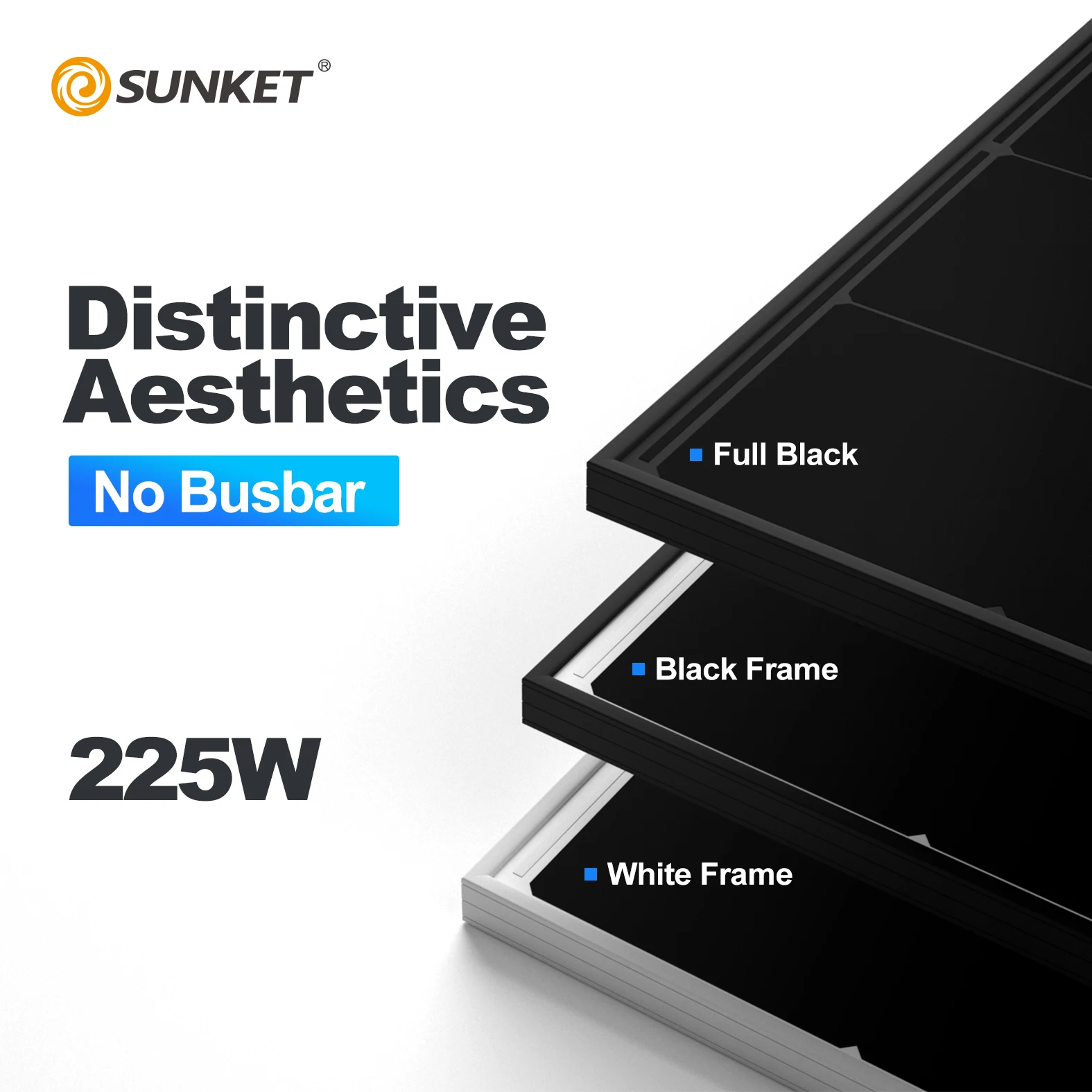

Frame | Aluminum | |
Junction Box | IP67 | |
Output Cables | 100cm, length can be customized | |
Connector | MC4 Compatible | |

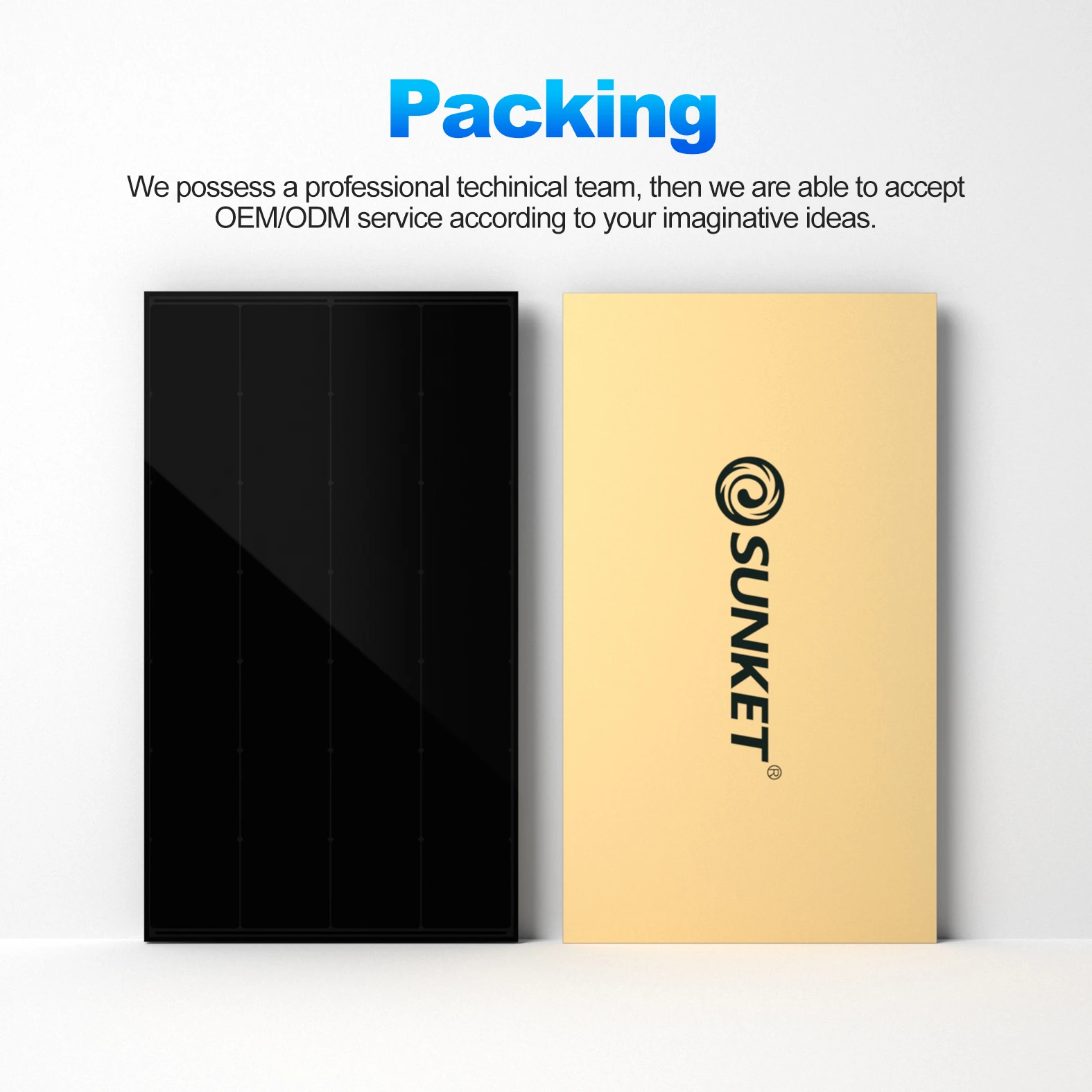

Packaging | 37pcs/Pallet | |
