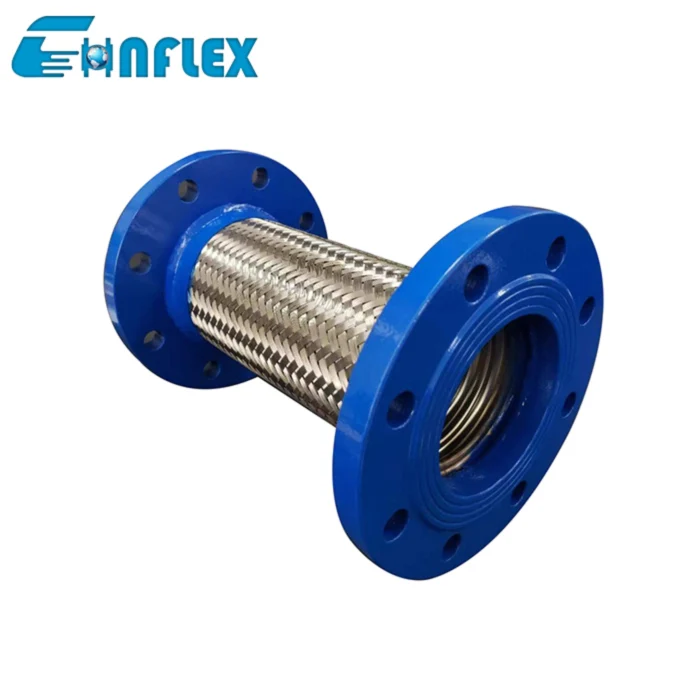

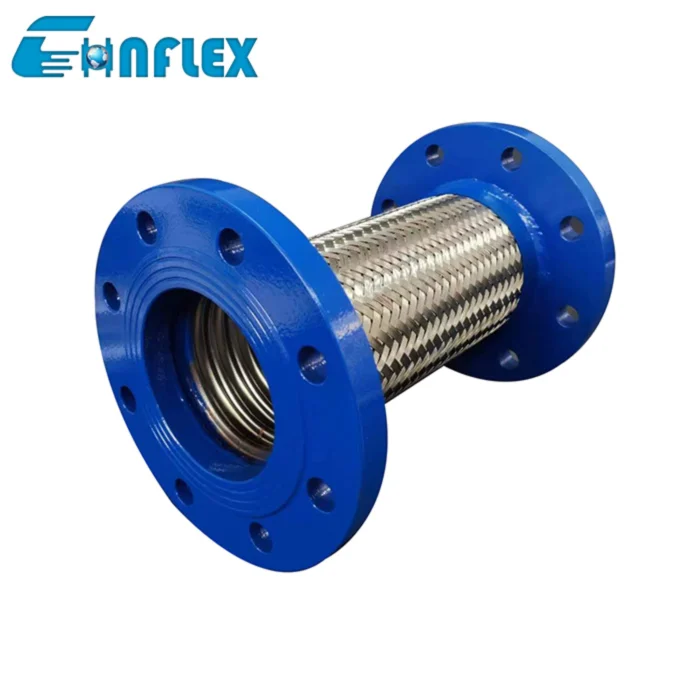

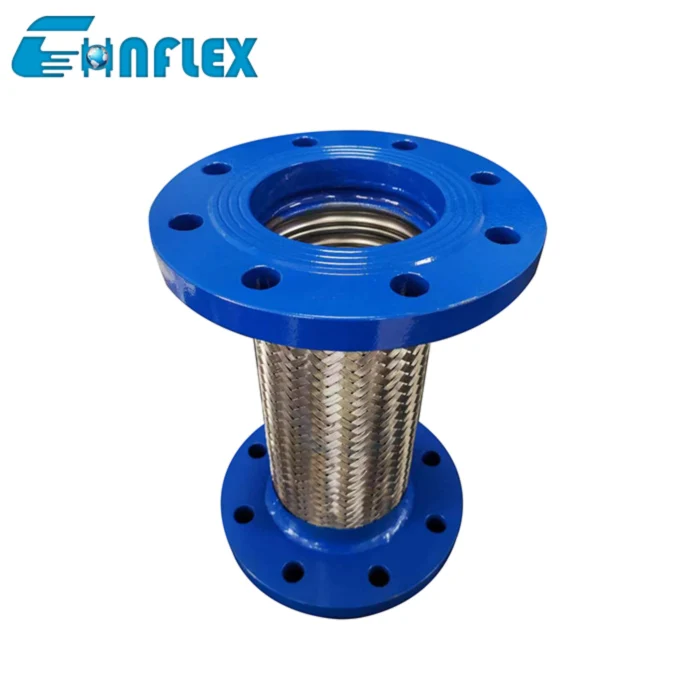

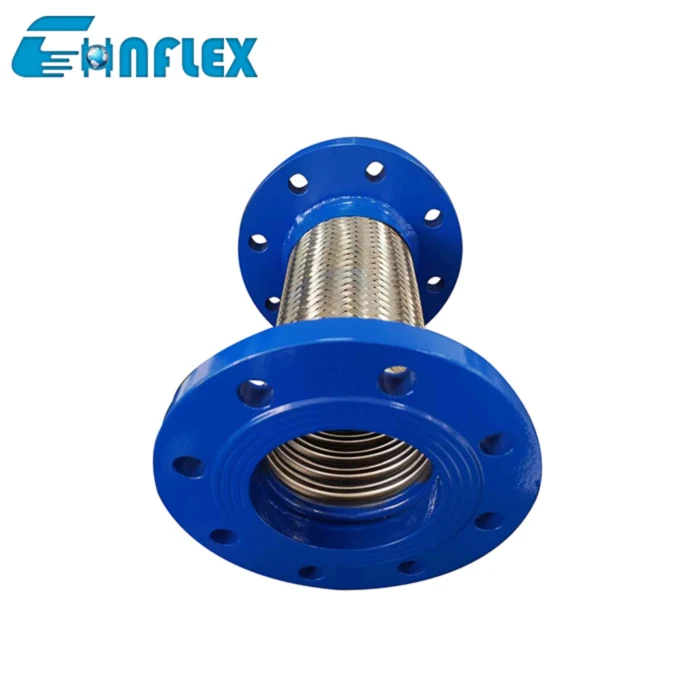

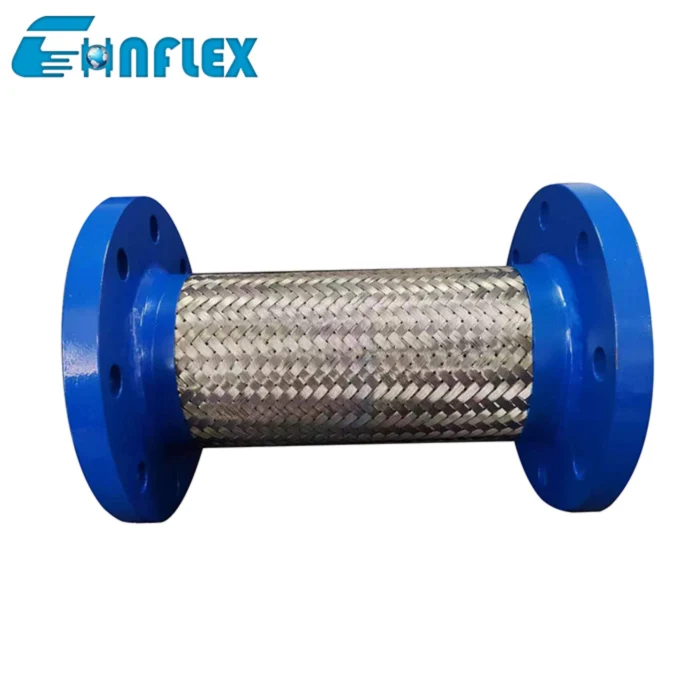

Stainless steel metal hose Metal Braided Hose Mesh Corrugated Pipe Flexible Gas Hose
- Category: >>>
- Supplier: Henan Chnflex Industrial Co. Ltd.
Share on (1601246314745):
Product Overview
Description
| Main data of metal hose | |||||||
| Norminal diameter | Inside diameter | Outside diameter mm | Minimum bending radius mm | Maximum working | |||
| pressure MPa | |||||||
| mm | mm | Corrugated hose | With a network set | Static | Dynamic | One network set | Two network set |
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 15 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 15 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 63 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 40 | 63 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 40 | 63 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 30 | 50 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 30 | 50 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 30 | 50 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 25 | 40 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 25 | 40 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 25 | 40 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 25 | 40 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 25 | 40 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 16 | 25 |
| 350 | 347.6 | 400 | 404.8 | 1750 | 3500 | 16 | 25 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 16 | 25 |
| Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device. |
Q1:What's certificates can you provide?
A1:We can provide CE, ISO certificate.
Q2:Is the flange galvaized?
A2:Yes, we have electronic galvanized and hot dip galvanized flanges. We also have painted flanges.
Q3:Can I get a sample?
A3:Yes. We can offer sample for free.
Q4:What is the MOQ?
A4:1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
