GKH3000C Superfine Ring Roller Mill High Capacity Grinding for Heavy Calcium and Minerals
- Category: >>>
- Supplier: Guilin Mining Machinery Co. Ltd.
Share on (1601246346290):
Product Overview
Description
Roller Ring Mill
Product Overview

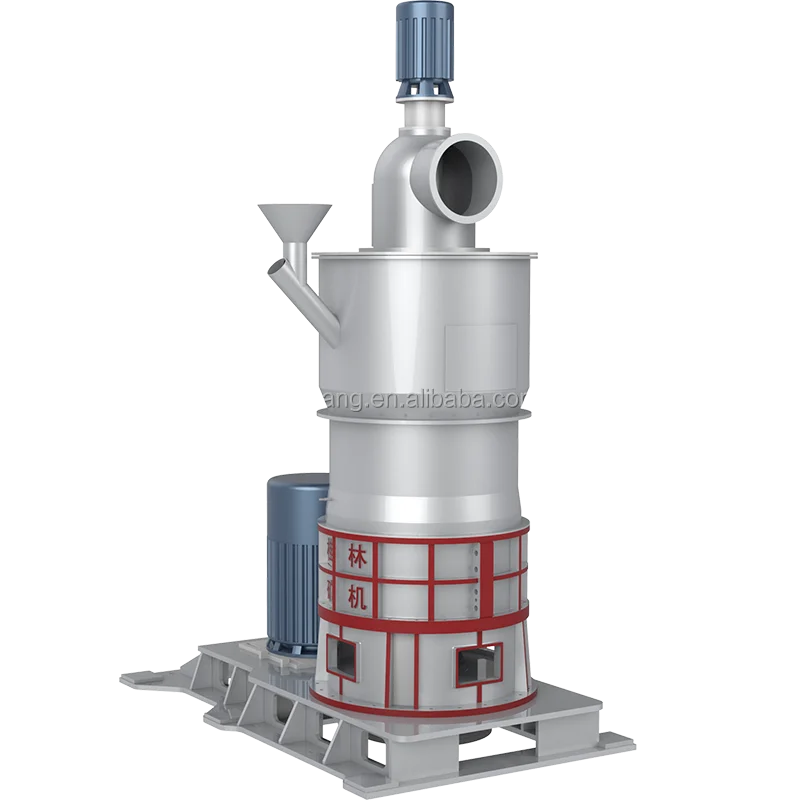

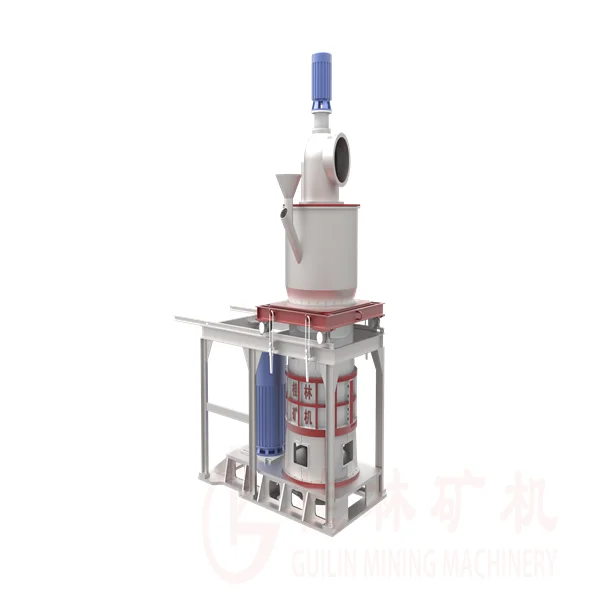

GKH Ring Roller Mill
GKH Ring Roller Mill is a new type of superfinegrinding equipmentdeveloped by our company with years of researchand development andcombining the advantages ofRing Roller Mill on themarket. GKH ring roller mill has the characteristics of high output, low energy consumption,reduced production cost,easymaintenance, etc. It is aideal model of domesticdry superfine grindingequipment.
Product Overview
01Production Background
GKH ring roller mill is a new type of superfine grinding equipment developed by our company with years of research and development and combining the advantages of Ring Roller Mill on the market. GKH ring roller mill has the characteristics of high output, low energy consumption, reduced production cost, easy maintenance, etc. It is a ideal model of domestic dry superfine grinding equipment.
02Functional Performance

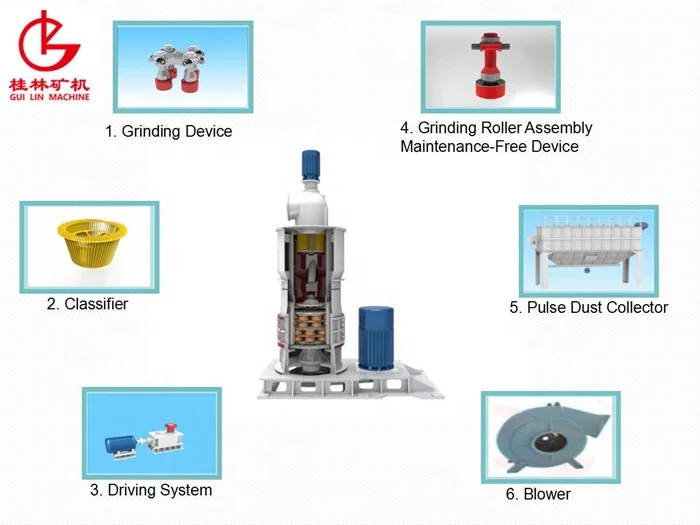

GKH ring roller mill is used the principle of impact, extrusion and grinding to crush materials.Structural innovation compared with domestic similar ring-roll mill products, the crushing pair adopts a combined structure, and the transmission main shaft adopts a polygonal rhombus structure.
03Processing Materials

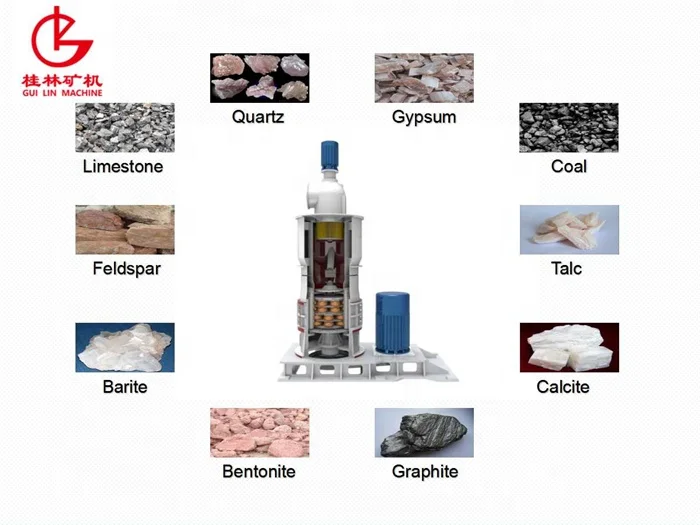

GKH ring roller mill is mainly used for crushing brittle materials with hardness less than 6, such as heavy calcium (calcite, marble, dolomite, etc.), barite, talc gypsum, petroleum coke, white carbon black, brucite, hydrogen aluminum hydride, white powder, wollastonite, kaolin, bentonite, rare earth and other materials.
GKH Roller Ring Mill
| mesh (D97) | GKH1000X | ||
| capacity (kg/h) | power consumption (kW/h) | total power (power) | |
| 800 | 2500~2800 | 43 | 152kw |
| 1250 | 1500~1800 | 67 | |
| 1500 | 1000~1300 | 92 | |
| 2000 | 650~750 | 125 | |
| 2500 | 600~650 | 135 | |
| 3000 | / | / | |

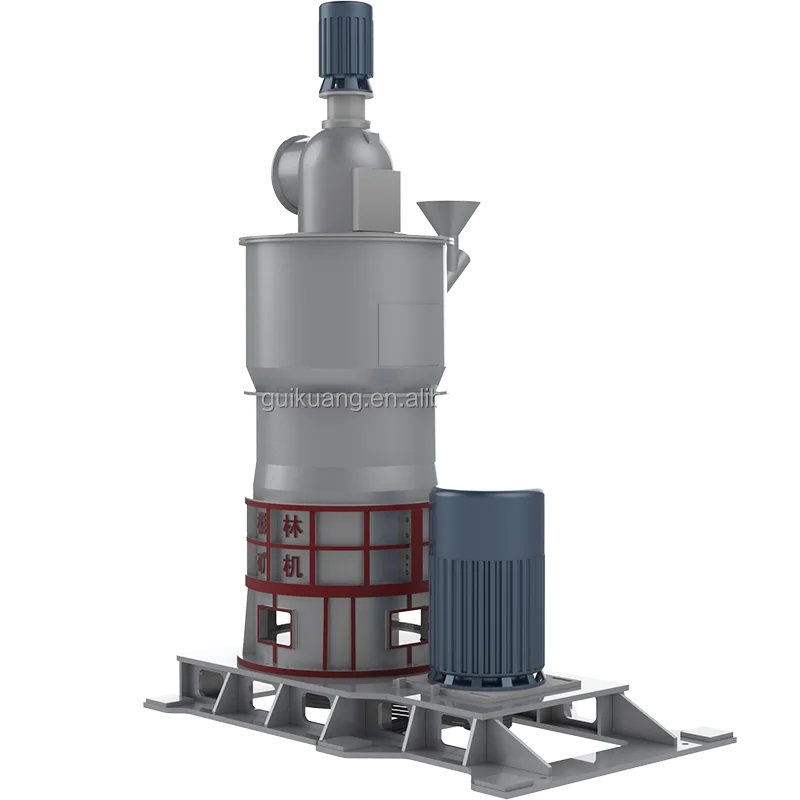

| mesh (D97) | GKH2000X | ||
| capacity (kg/h) | power consumption (kW/h) | total power (power) | |
| 800 | 4000~4500 | 40 | 237kw |
| 1250 | 4000~4500 | 68 | |
| 1500 | 4000~4500 | 92 | |
| 2000 | 4000~4500 | 110 | |
| 2500 | 4000~4500 | 119 | |
| 3000 | / | / | |
| mesh (D97) | GKH3000X | ||
| capacity (kg/h) | power consumption (kW/h) | total power (power) | |
| 800 | 5500~7000 | 37~38 | 287~340kw |
| 1250 | 3500~4000 | 50~56 | |
| 1500 | 2500~3000 | 67~70 | |
| 2000 | 1500~2000 | 100~114 | |
| 2500 | 1100~1500 | 134~153 | |
| 3000 | 1000~1200 | 183~208 | |
| mesh (D97) | GKH3000C | ||
| capacity (kg/h) | power consumption (kW/h) | total power (power) | |
| 200 | 1300~1500 | 14~16 | 280kw |
| 325 | 11000~12000 | 18~20 | |
| 400 | 9000~9500 | 21~24 | |
| 600 | 6500~7500 | 28~32 | |
| mesh (D97) | GKH1000C | ||
| capacity (kg/h) | power consumption (kW/h) | total power | |
| 400 | 5500~6200 | 27 | 237kw |
| 600 | 4000~4500 | 38 | |
| 800 | 3600~4300 | 45 | |
| 1250 | 1800~2300 | 8 | |
Company Information
Guilin Mining Machinery Co., Ltd. (formerly Guilin Mining Machinery Factory), founded in 1973, is the backbone enterprise of Guangxi
machinery industry, the frst batch of outstanding scientifc and technological enterprises in Guangxi, and one of the two major manufacturers
of grinding equipment designated by the former Ministry of Electrical and Mechanical Services. In 2013, the enterprise was restructured from
a state-owned enterprise to a private enterprise. In 2019, the enterprise was relocated as a whole, from Lingchuan County to Guilin High-speed Railway Economic Industrial Park, covering an area of 122 mu, with an advantageous geographical location and very convenient transportation.
FAQ
Q1.Are you manufacture or trading company?
GUI KUANG ,founded in 1973, was a premium and established enterprise from China that has been manufacturing high-quality machinery for more than 50 years.
We are committed to delivering superior and prompt services to customers worldwide and making you succeed.

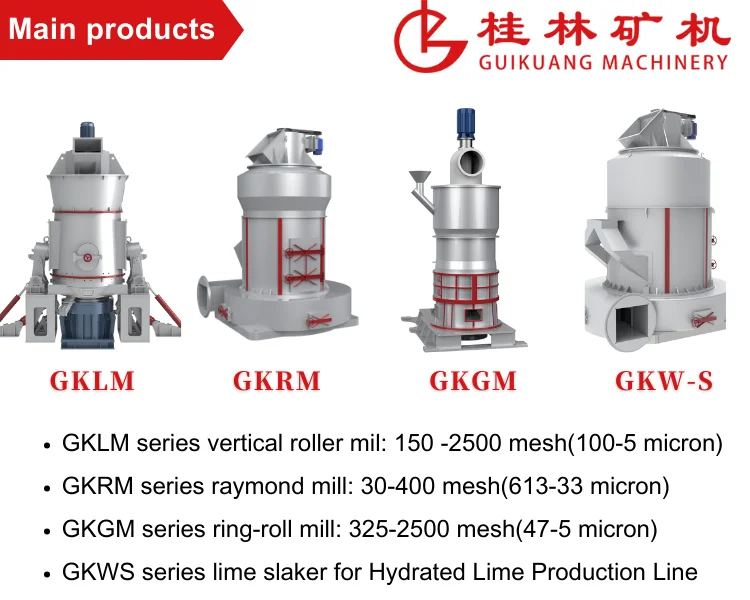

Q2.what can you buy from us?
Vertical Roller Mill
Superfine Vertical Roller Mill
Raymond Mill
Hydrated Lime Production Line
Ultra-fine Ring Roller Mill
Crusher
Innovative Sand Making Machine
Integrated Sand and Powder Grinding Machine
Other related production line
Q3. What details should customers send to us before we provide the equipment list and quotation?
1) The materials to be processed? quartz, talc, etc.
2) The maximum size of the stone before grinding?
3) The expected handling capacity? ton per hour or ton per day
Q4.How long is the warranty? Does your company supply the spare parts?
At least 12 months.we supply spare parts for you at lowest cost.
Q5: What is your payment method? Does you company support Trade Assurance on Alibaba?
A: T/T, Letter of Credit, Western Union, etc are available. Moreover, the Trade Assurance on Alibaba is okay.
Q6.why should you buy from us not from other suppliers?
Factory direct sales
Excellent pre-sale and after-sale service
