JAC 4*2 New or Used 10000 Liters Vacuum Pump Tank Truck Sewage Suction Vehicles
- Category: >>>
- Supplier: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.
Share on (1601246357333):
Product Overview
Description
Product Description
HOWO 6X4 20CBM vacuum sewage suction sewage tanker truck
Our Sewage Suction Truck adopts domestic technology leading "Weilong" vacuum pump, with large suction and long suction range, It is especially suitable for the suction, shipment and discharge of the silt in the sewer, especially the large objects such as sewer mud, silt, stone, brick and so on;
Fecal suction truck is a special purpose vehicle mainly used in cleaning the septic-tank, bilge and sewer.
It is mainly used for urban and rural sanitation sector suction and delivery feces and other sewage. Suitable for sucking fecal, sewage, mud, and liquid mixed with tiny granules. It is apply to the municipal sanitation, large & small industrial and mining enterprises, neighborhoods, schools, septic tank cleaning & transport , city pipeline cleaning & dredge, factories marsh liquid biogas clean-up.
Technical parameter for sewage suction trucks
Cabin | 2080 Cabin with two seats, one sleeper. With A/C. With left hand driven. 70° hydraulically tillable to the front as attached photo for ref. | |||
Vehicle Main Dimensions | (L x W x H)mm | 8400x2400x3100 | ||
Wheel base (mm) | 4500 | |||
Wheel track (front/rear) (mm) | 1805/1800 | |||
Approach/Departure angle(°) | 19/11 | |||
Weight in KGS | Tare Weight | 7000 | ||
Loading Capacity | 8000 | |||
Front axles loading capacity | 1x5000 | |||
Rear axles loading capacity | 1x10000 | |||
Max. driving speed(km/h) | 95 | |||
Engine | Brand | Cummins | ||
Model | ISF3.8S3168 | |||
Type | Turbo-charging and inter-cooling, Bosch high pressure common rail high pressure direct injection | |||
Horse Power(HP) | 168HP | |||
Emission standard | EuroⅡ | |||
Gearbox | DC6J65TC, 6 forwards & 1 reverse | |||
Fuel tank (L) | 150L alloy fuel tank | |||
Tire | 8.25R20 all radial tubeless tire ,7 pieces | |||
Tank specifications | 1, Tank size: 8 cbm 2, with Hydraulic system, the Tank can be lifted up and the tank rear cover openable 3, Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) 4, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment 5, Time for full suction<5min | |||

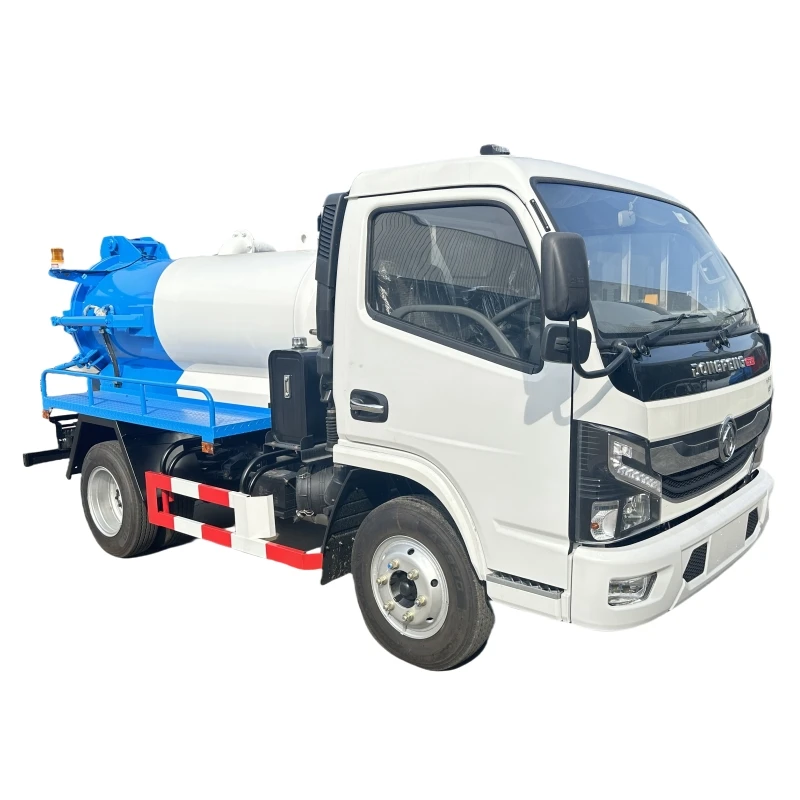

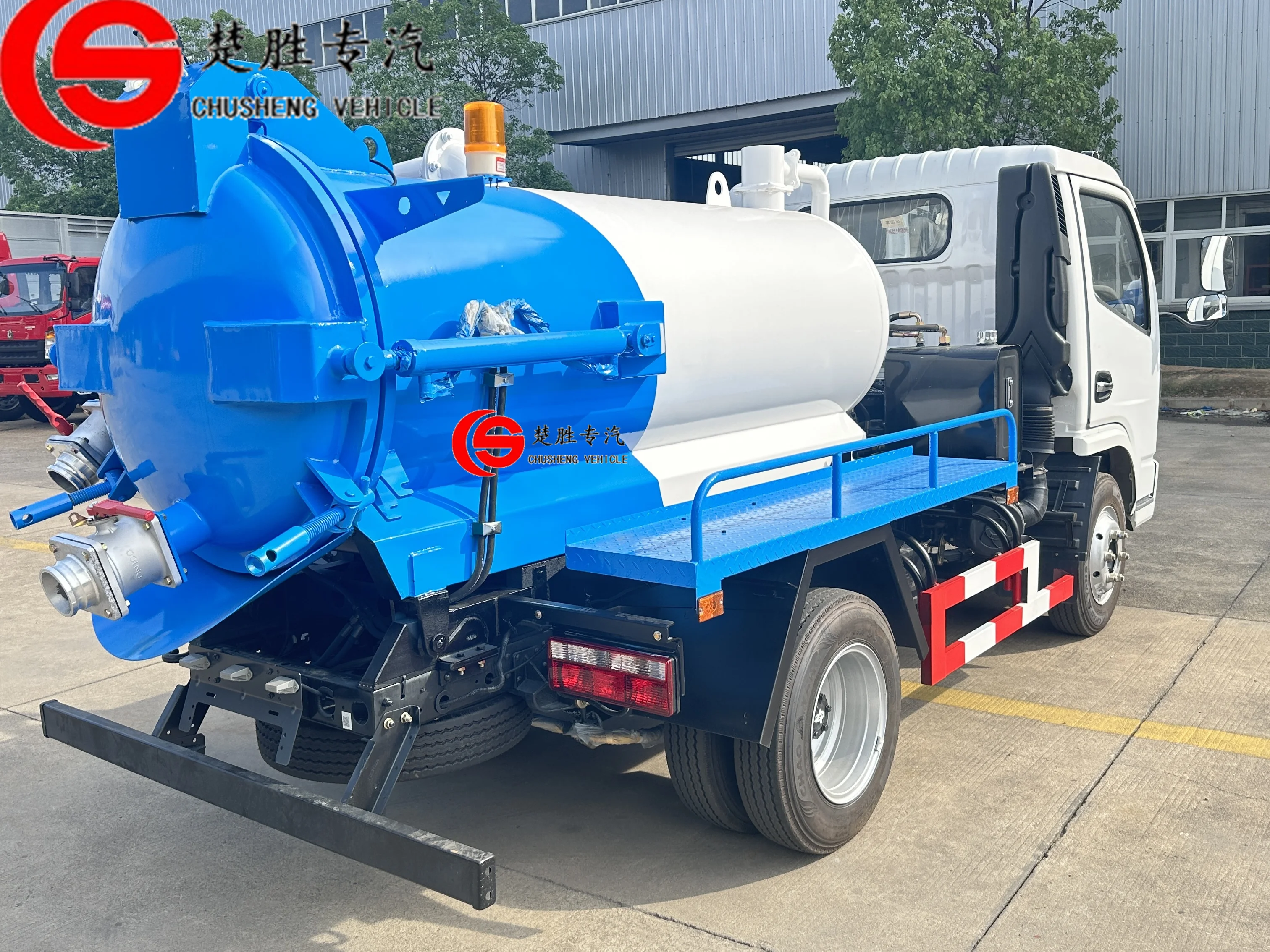

Detailed Images
We produces sewage suction trucks for various volumes with optional chassis brands, please contact us for more information freely.
Packaging & Shipping
Sewage suction trucks can be shipped by bulk, ro-ro and containers.
Company Information
Successful Cases

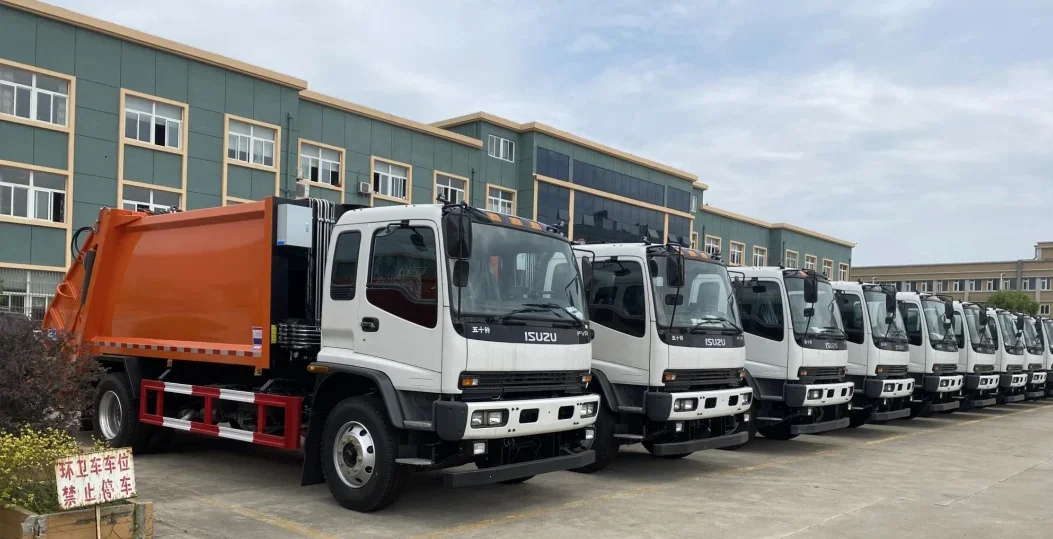

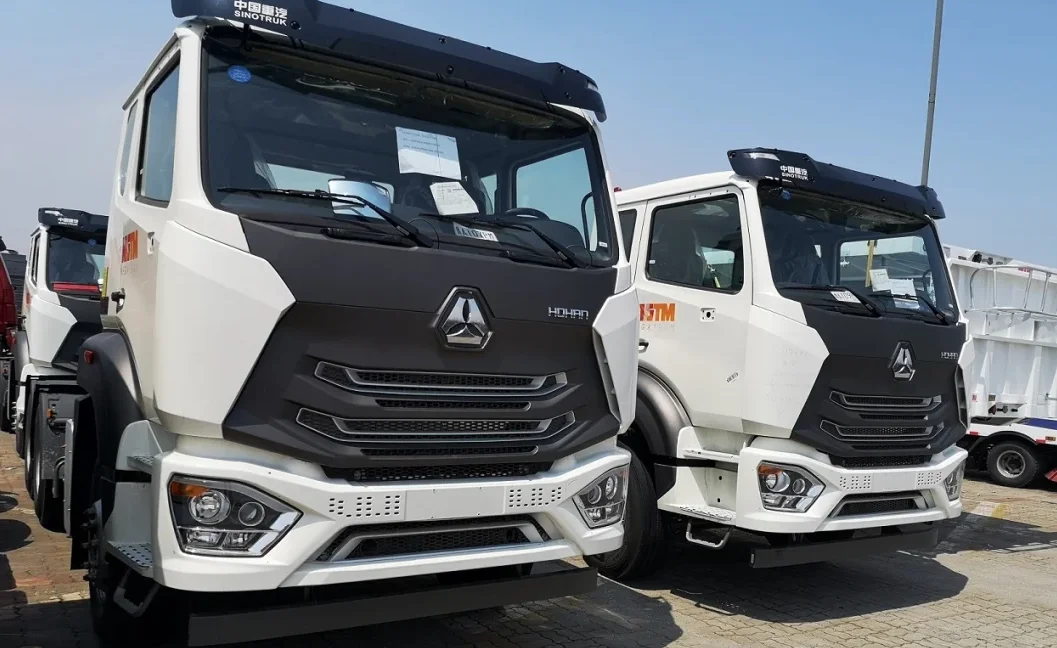

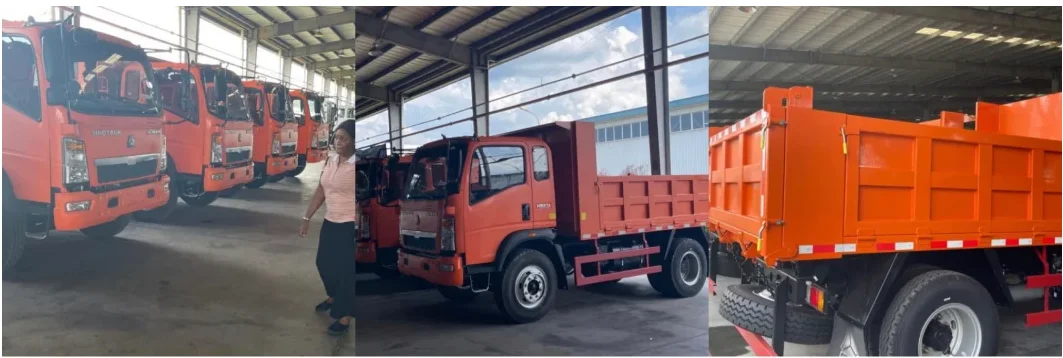

Related Products
Customer visiting
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
Q1. Are your manufacturer ?
A : Yes. We can totally manufacture the trucks as you required.
Q2. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
