Energy Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High Speed Doors Easy Setting

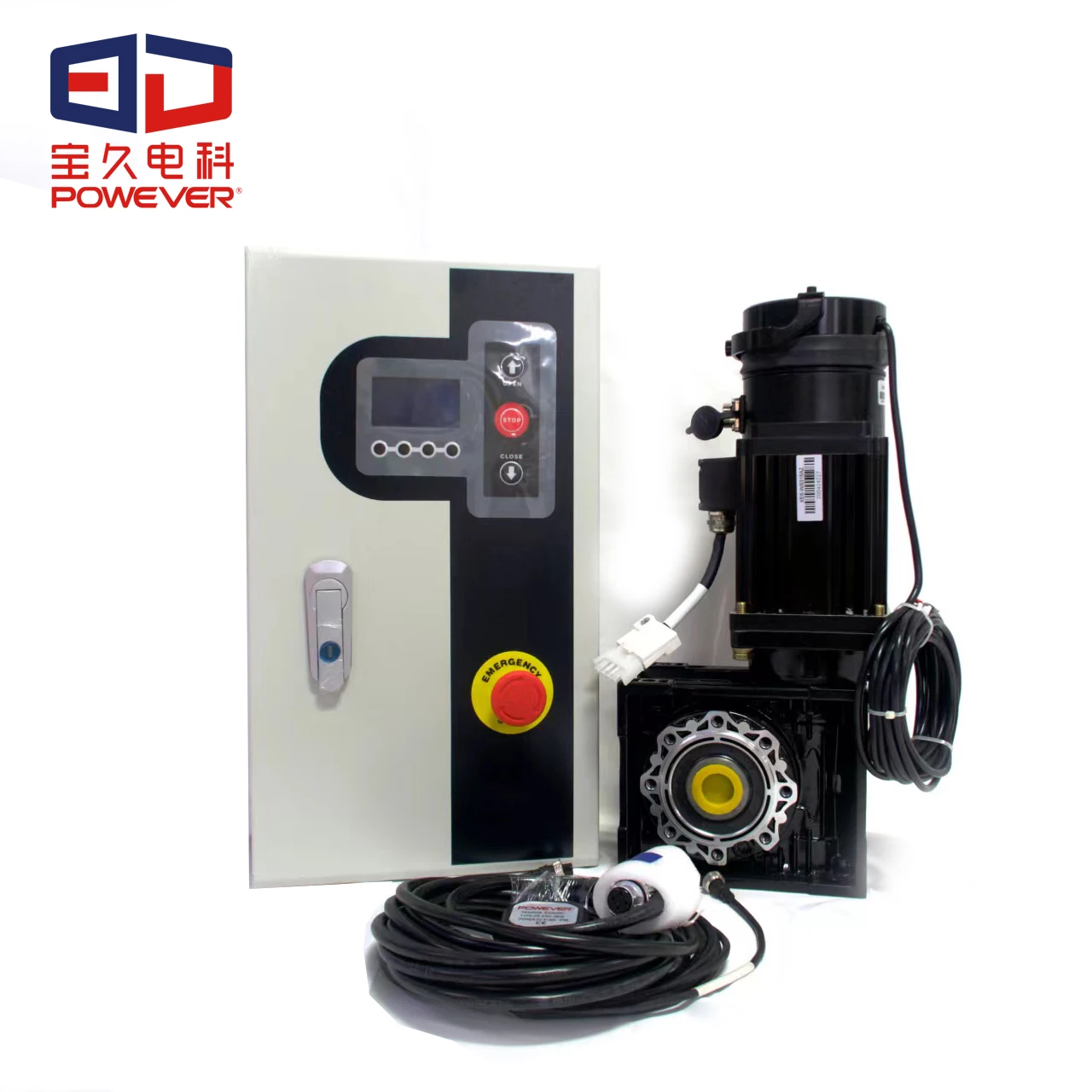

Energy-Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High-Speed Doors Easy Setting
Energy-Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High-Speed Doors Easy Setting
Energy-Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High-Speed Doors Easy Setting
Energy-Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High-Speed Doors Easy Setting

Energy Saving A4 1500W Servo Motor and Controller with CE Puertas Rapidas Flexible High Speed Doors Easy Setting

Share on (1601246379671):


Price:$440.00 - $455.00

Quantity:


Product Overview

Description

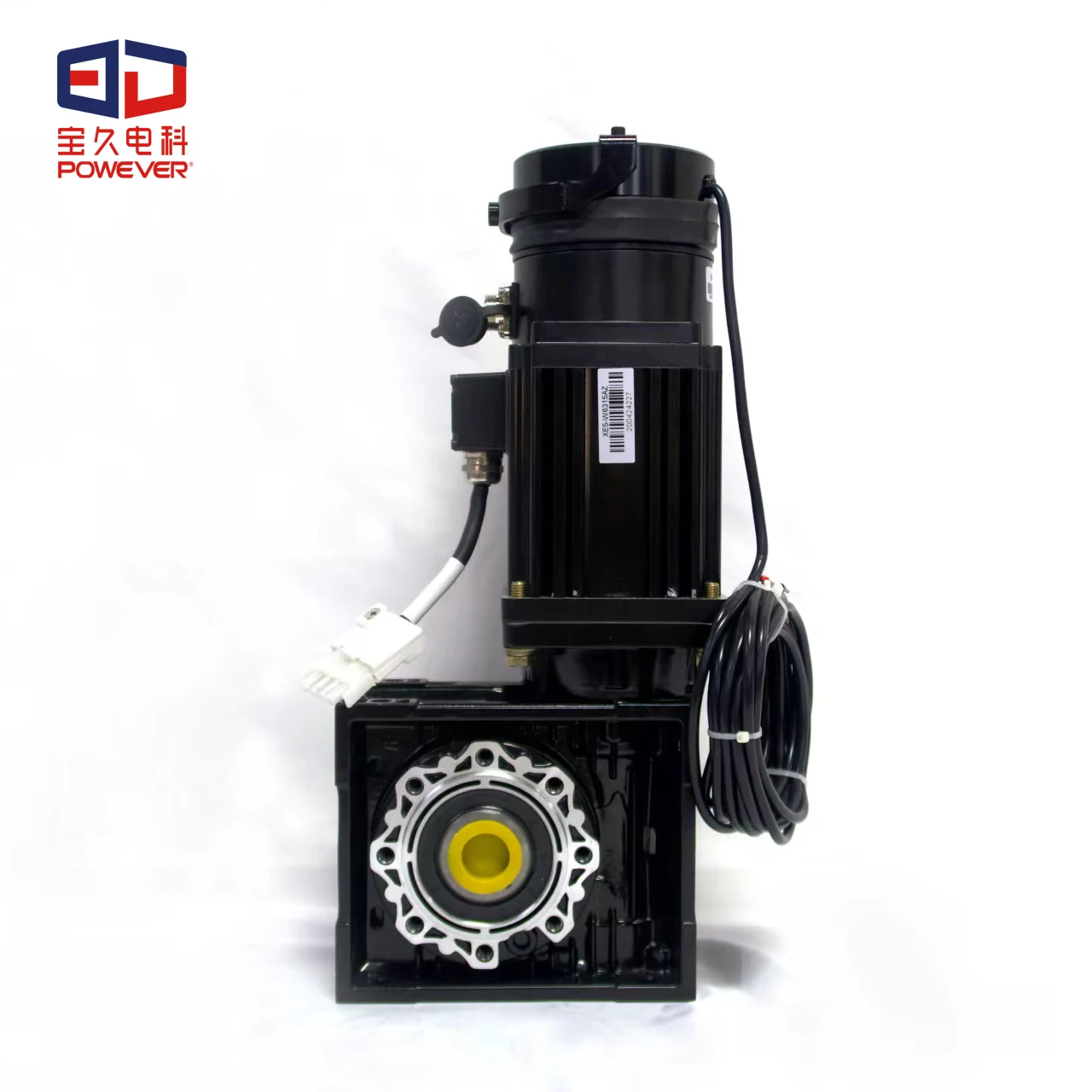

The A4 motor boasts a maximum speed of 2000 rpm (with the capacity to reach up to 2500rpm in low-temperature cold storage environments), while the door body can operate at a maximum speed of 1.95 m/s. This ultra-high-speed motor ensures heightened efficiency.
The A4 series fast door machine is highly responsive, boasting a door opening speed from 0 to 1.9 m/s in just 500 milliseconds. Within this range, adjustments can be made as needed, and smooth slow starts and stops can be easily configured, effectively reducing wear and tear on the entire door system.
Equipped with high-precision encoders and utilizing closed-loop vector control algorithms, it precisely calculates and controls the speed, torque, and position of the door body, ensuring precise and flexible door operation. Even during acceleration, there is no jarring impact on the door body, resulting in an extended lifespan.
The waterproof and dustproof design of aviation plugs ensures the stability and reliability of the connection. Capable of withstanding vibration, temperature changes, and other environmental factors, ensuring the stable operation of the equipment. Specific shaped sockets and pins prevent incorrect connections.

Recommended for:
Loading and unloading docks, warehouses, distribution centers
Manufacturing facilities, military installations
Refrigeration, energy management, and LEED-certified buildings



Features
Built to last
User friendly
Full load testing before delivery
2 year warranty
Easy to install
Easy to wire
Easy to adjust
Easy to maintain

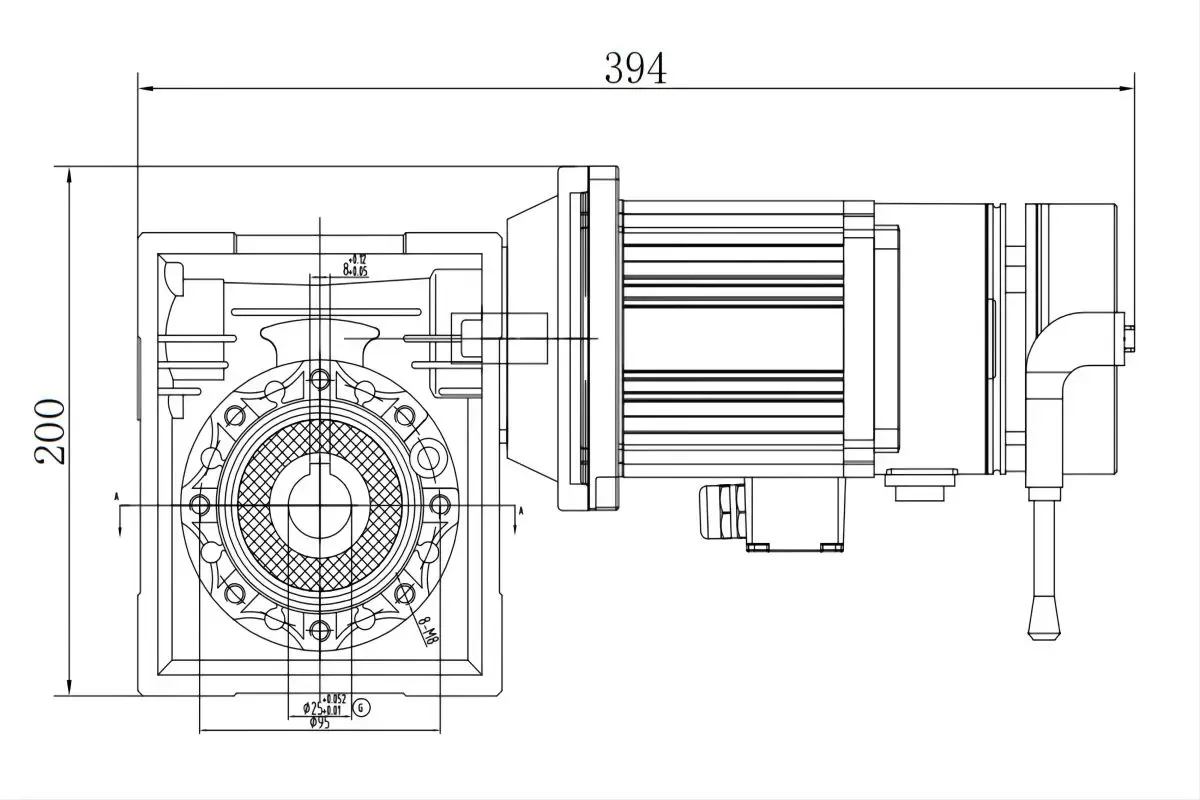

Basic Parameters
A4 1500W PE500
Power
1500W
Power supply
220V±10%
Reducer
Worm Gear Reducer(RV63）
Motor Operating Mode
S3
Max Rated Speed
2000 rpm
Rated Torque
7.2 Nm (2times Overload)
Motor IP Level
IP54
Shielding Wire Standard Length
5m/8m/11m
Working Temperature
-10℃~40℃
Limit Setting
Incremental Encodre + Absolute Encoder
Self Locking Method
Electronic Mechanical Brake

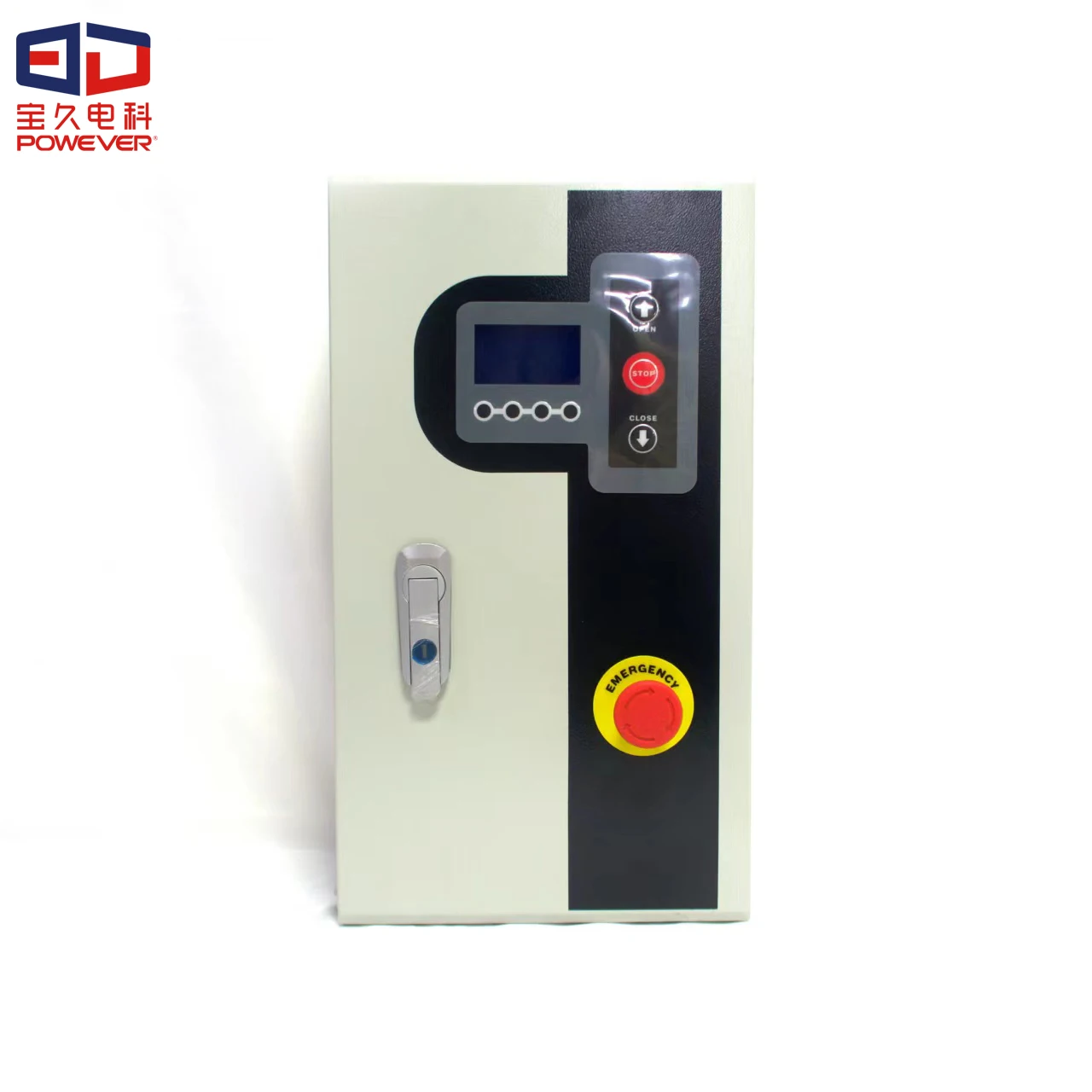

Control Panel Functions
Display
LCD Monitor
Opening Speed Setting
Stepless Speed Regulation
Closing speed setting
Stepless Speed Regulation
Opening Deceleration Interval Setting
√
Closing Deceleration Interval Setting
√
Automatic Closing Time-Delay (seconds)
0-240(0: Disable Automatic Door Closing）
Partial Opening Height(%)
Any Position Between the Limits
Running Status Display Option
√
Extensions of Control Panel Functions
Error Prompt
√
Data Statistics
√
Error Log
√
Maintenance reminder
√
Jogging Mode
√
Motor Running Reverse
√
Interface Logic Switching(NC/NO)
√
Anti-Shake Function In Low Temp.
√
Torque Servo Function
√

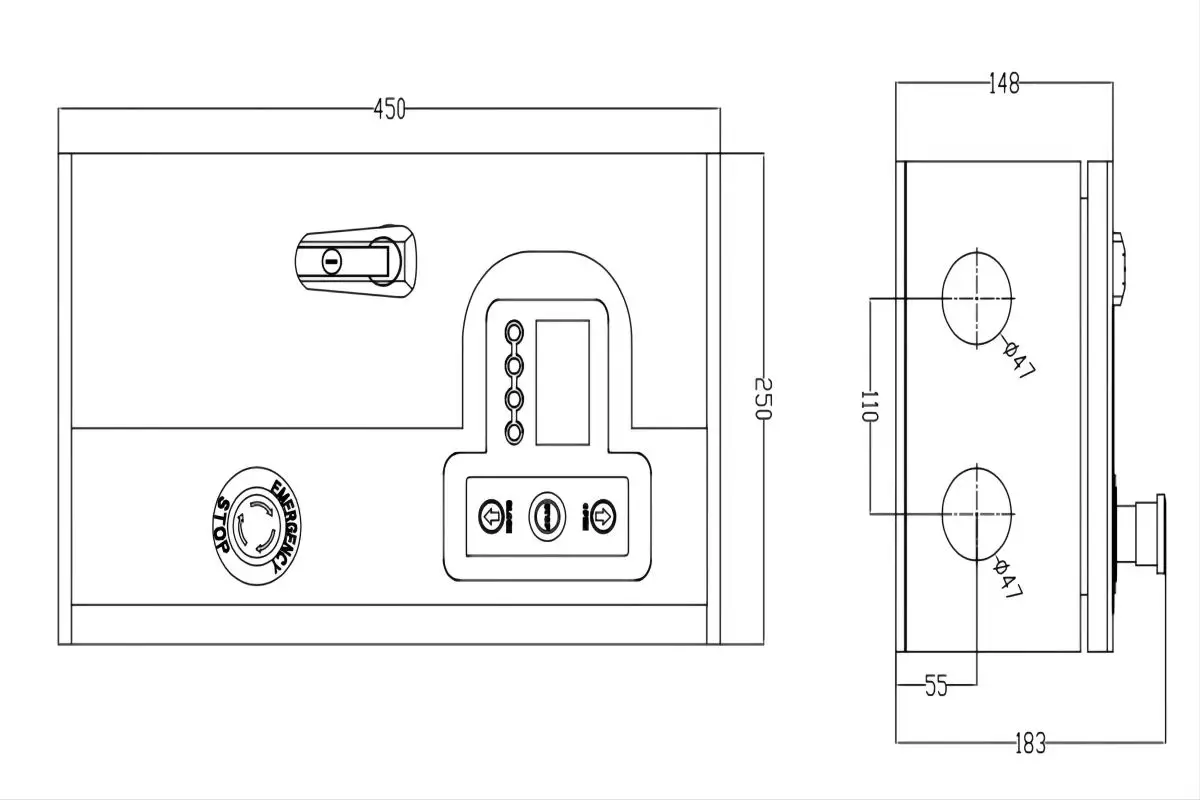

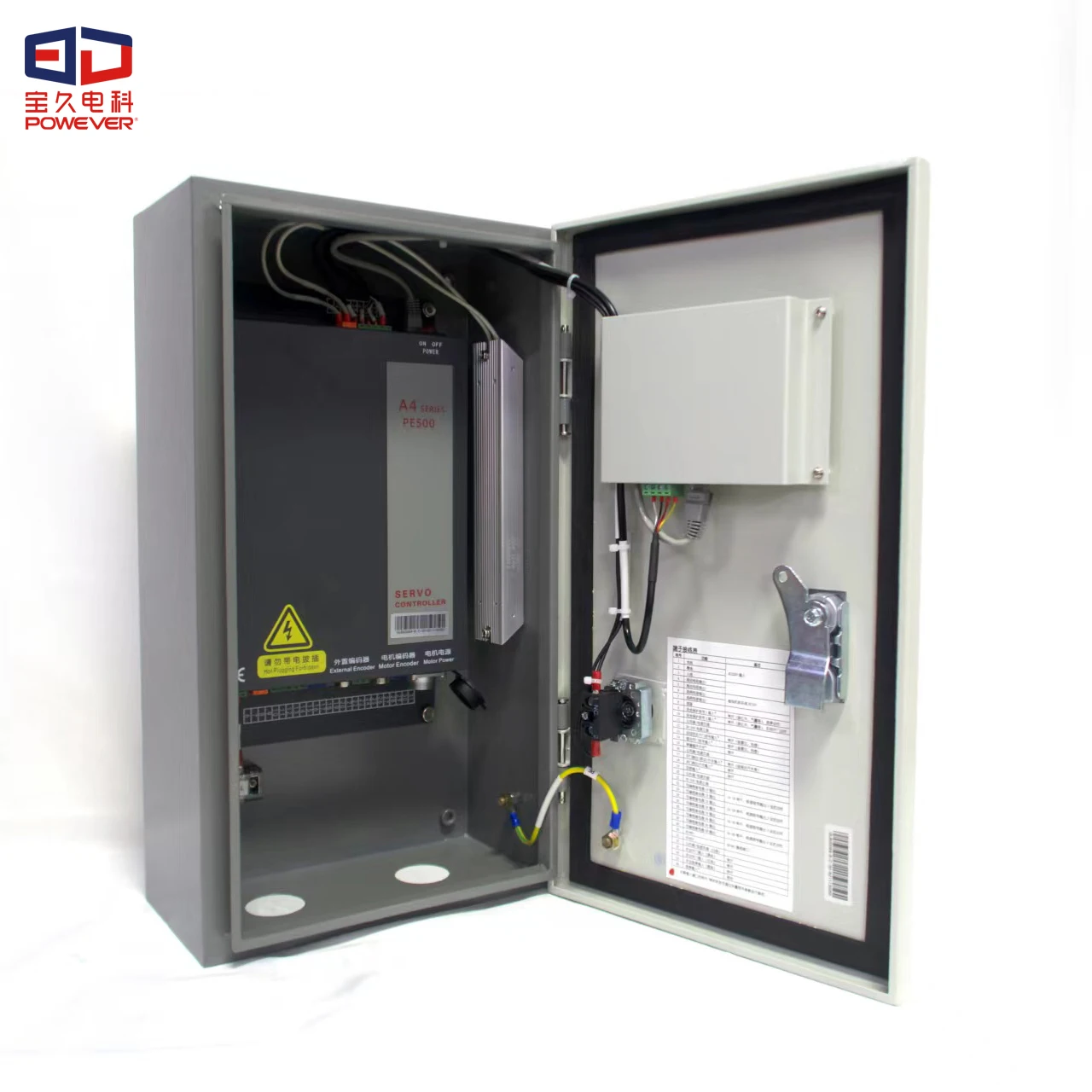

Interface of Control Cabinet
Networking Physical Interface
RS485
Safety Protection Signal 1 Input
Emergency stop
Safety Protection Signal 2 Input
Reverse Opening
Automatic Fully Opening Signal Input
√
Partial Opening Signal Input
√
Single Key Circle
√
Open Limit (Origin) Switch Input※
√
Close Limit Switch Input
√
Interlock Input
√
Programmable Relay Output
4 Groups
Manual/Automatic Switching Inputs
√
Emergency Stop Input
√
Limiting Options
Incremental Encoder
External Absolute Encoder
Proximity Switch












Utilizing full servo closed-loop vector control for precise operation.
Being efficient, energy-saving, and silent operation；
Ensuring precise positioning and variable frequency speed regulation as needed；
With slow start and stop technology, it achieves smooth running without any interruptions or jolts.

The system offers a use-friendly interaction interface.
LCD screen displays in full English, with concise menus；
Operational status and Error logs at a glance
Guided menu for easy Adjusting；

Comprehensive functionality .
Memory functions for door opening times, running duration ；
Anti-freeze self-opening function；
Boasting rich and flexible interfaces.

Multi functional integrated ports
Reserving terminals for external devices.like infrared device,radar geomagnetic switch, wind showers and automated production
lines,etc.

A comprehensive protection system
Incorporating fast directional rebound technology to prevent accidents,
Protection against rotor blockage, overvoltage, overheating, and overload to ensure safe operation
