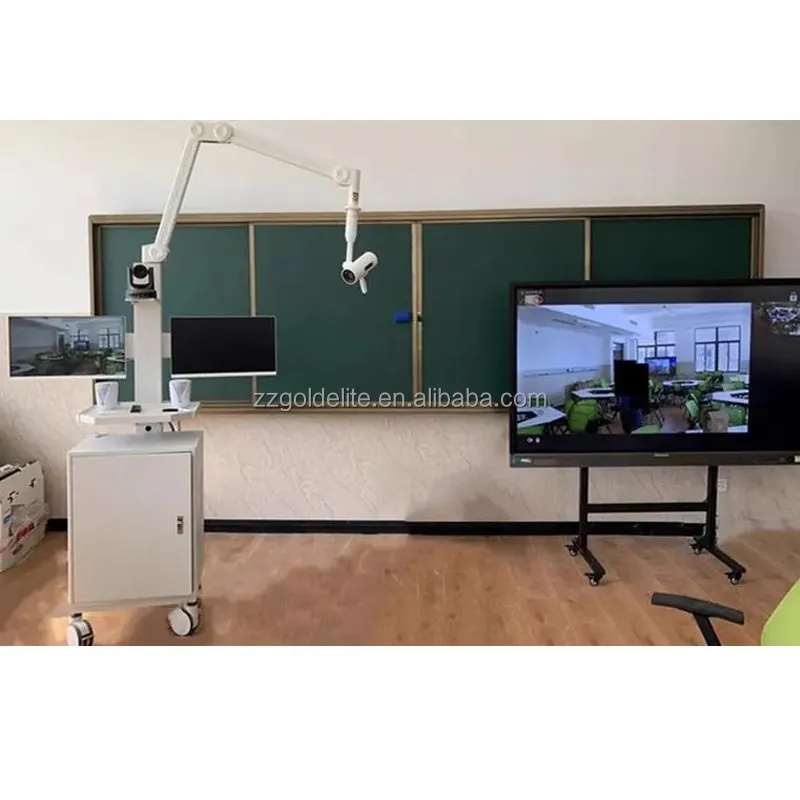

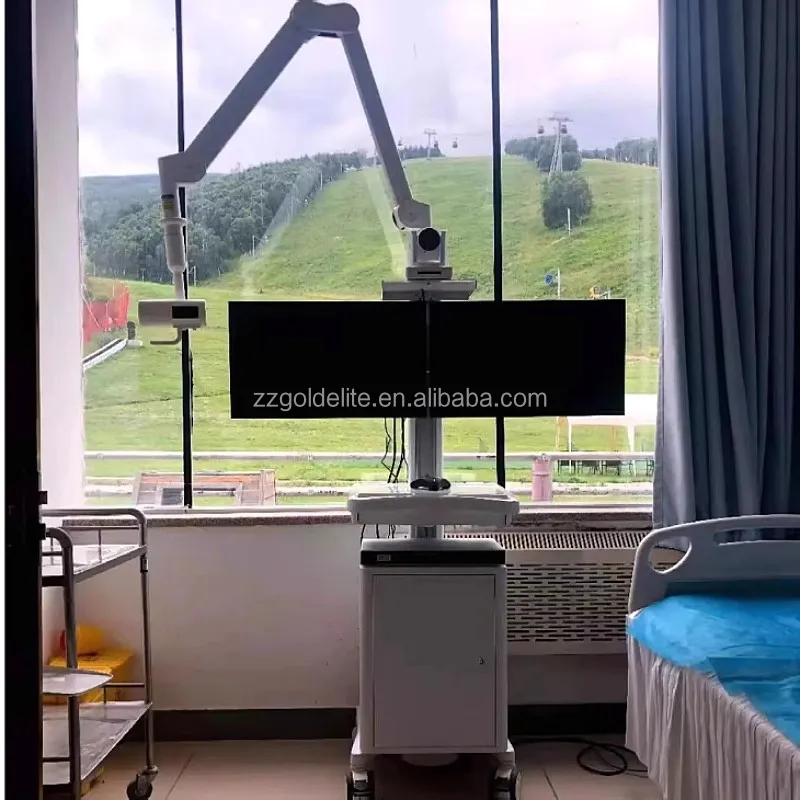

ABS Material Medical Teaching Trolley for Video Recording Hospital Furniture

Medical Camera & Teaching Trolley

Purpose: Used for shooting, live streaming, and synchronous teaching of fine technical operation scenarios.

Application: Medical operating room, dental, clothing design, automotive repair, precision instrument processing.

This product includes 2 products:

1. Provide a single trolley, excluding cameras, displays, and mainframe.

2. Provide a complete set of trolley and camera system.

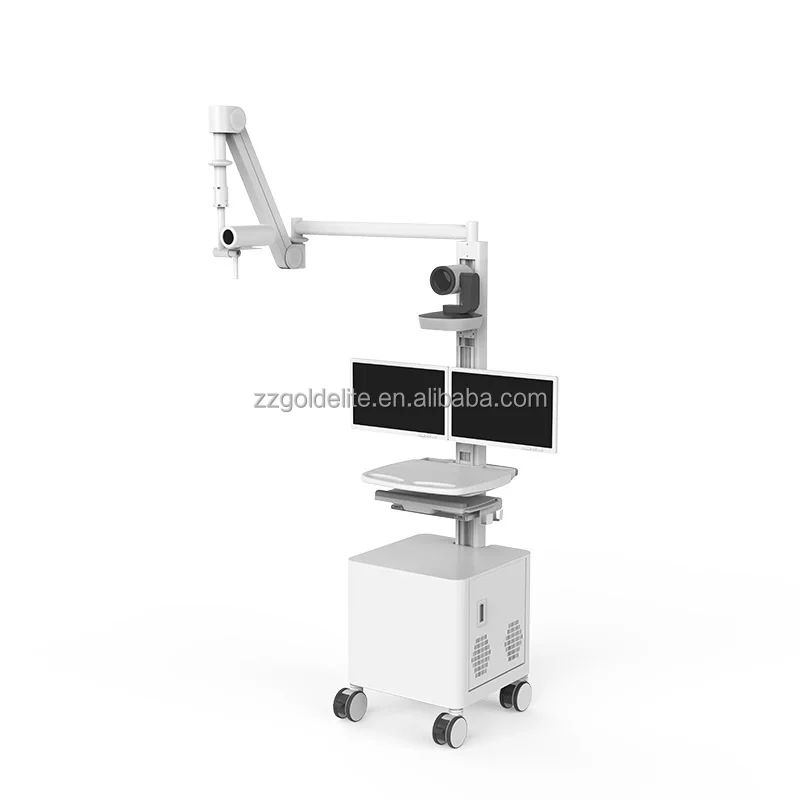

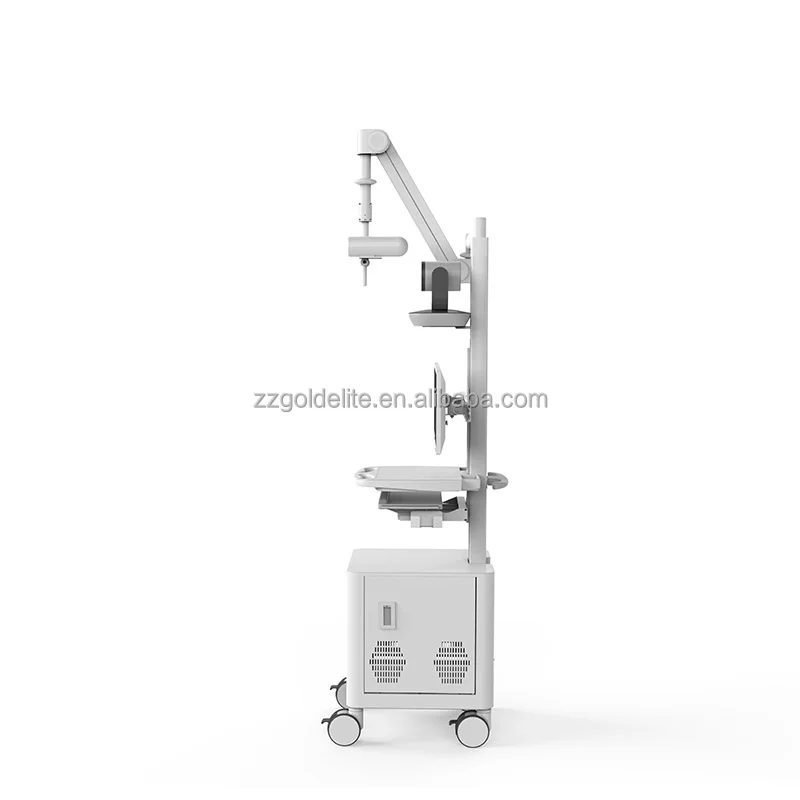

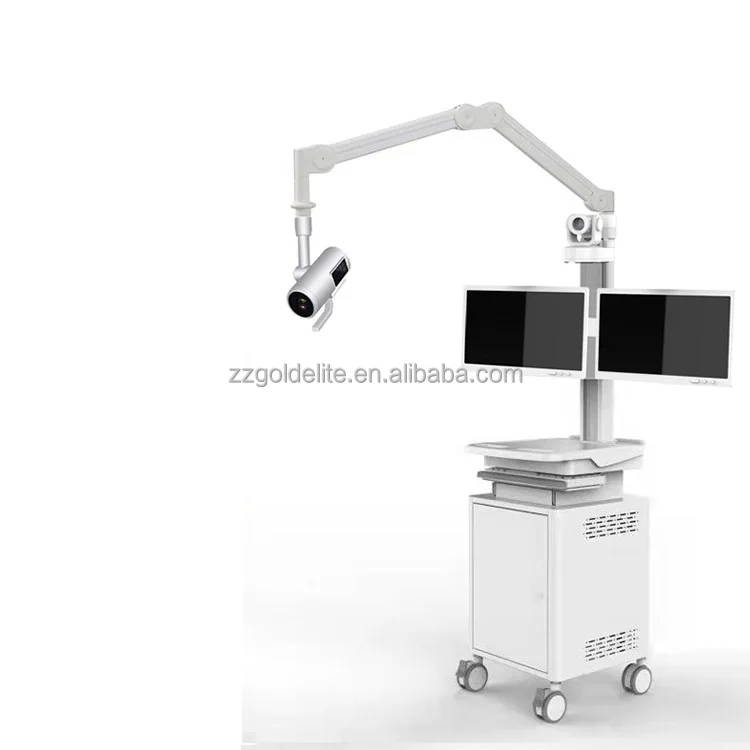

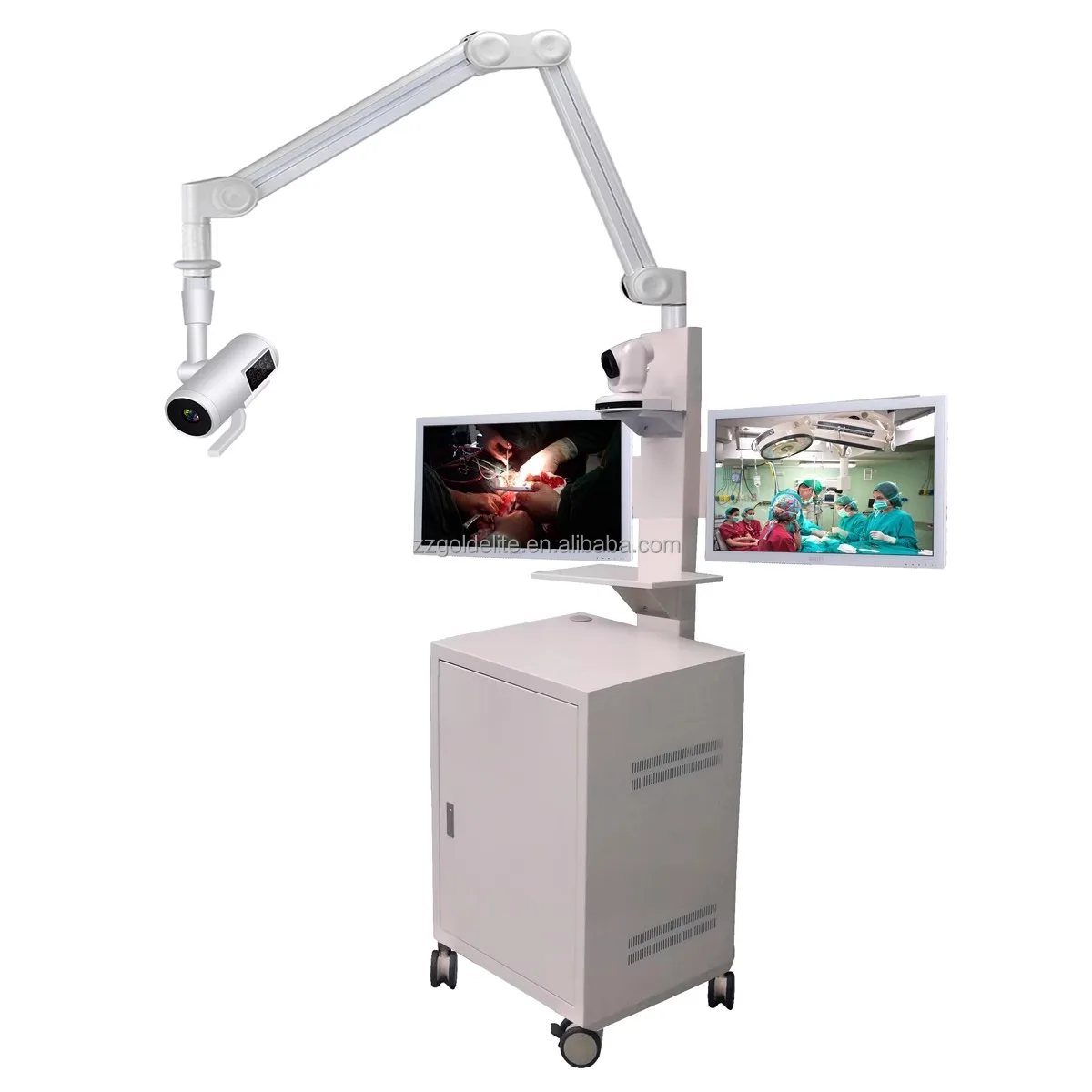

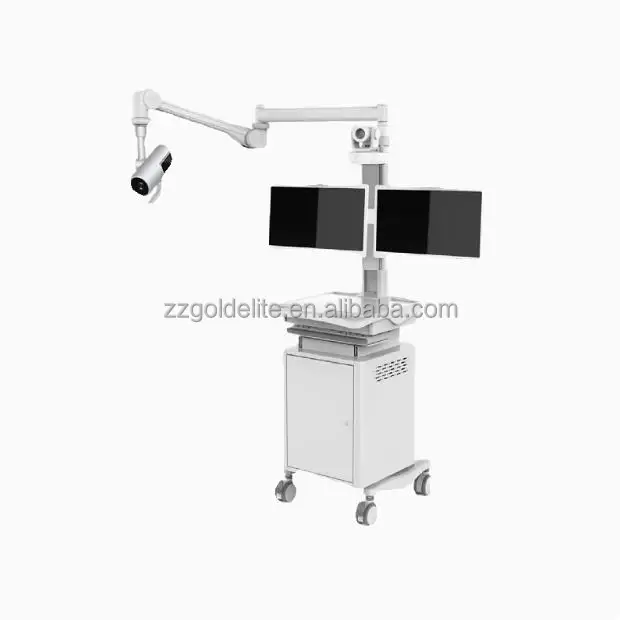

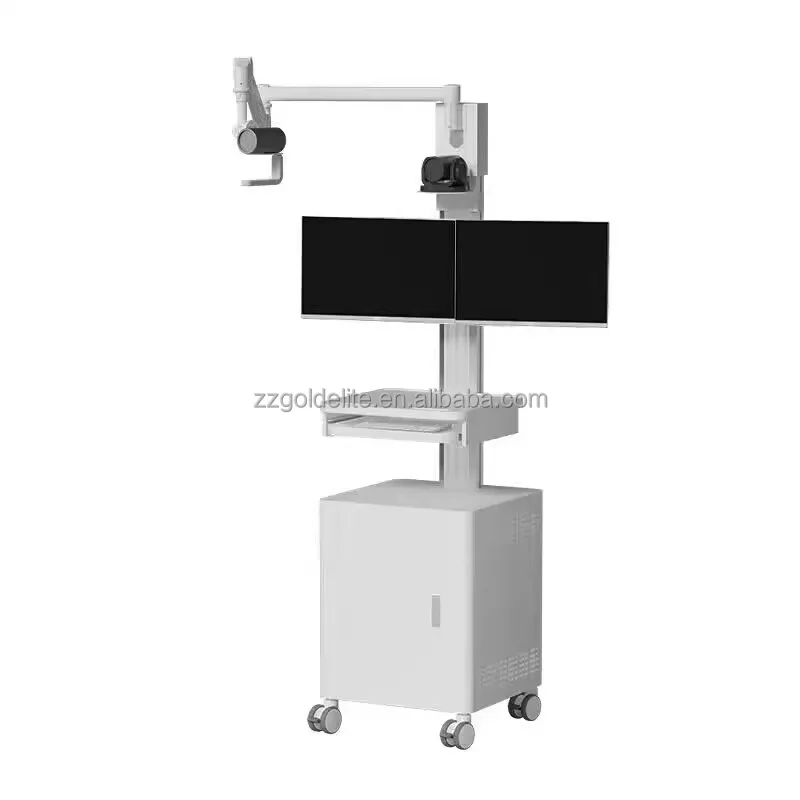

Medical mobile cart, imported cantilever, surgical field camera, panoramic camera (optional), video recorder (optional)
1. The vehicle base adopts four 4-inch high-strength anti winding silent universal medical wheels, two with brakes.

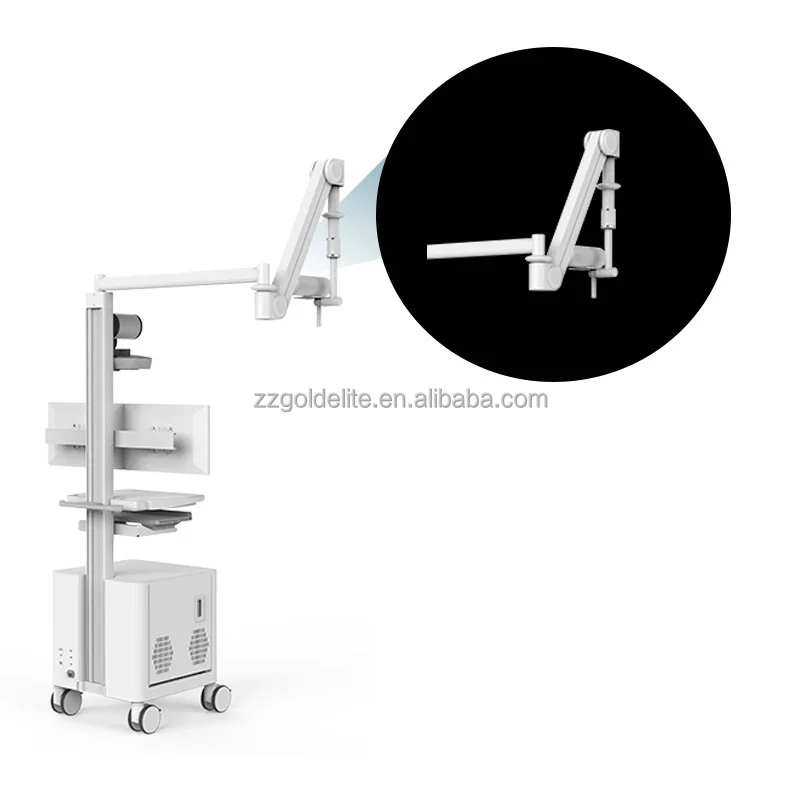

2. The universal arm of the trolley is made of aluminum alloy material, with a deployment distance of 1.2 meters and a vertical rotation angle of 60 degrees. The entire arm can rotate 360 degrees, and the wiring method is a hidden wiring design inside the arm.
3. The chassis part adopts a hardware steel frame, matched with a large box, which can accommodate 15U standard cabinet equipment.
4. The trolley column is made of thickened high-strength steel plate material, with a body height of 1.8 meters, suitable for use in operating rooms.
5. The Vesa monitor mounting bracket can withstand 10kg and can swing 30 degrees in pitch and 90 degrees in left and right directions, meeting the needs of different viewing angles. It supports single/dual screen styles.
6. The rear end of the column is equipped with an ABS plastic seamless integrated push/pull handle with anti-static design.
7. Integrated tabletop structure design, using advanced injection molding technology, seamless, no risk of liquid leakage, surface (for medical high gloss effect), scratch resistance, comfortable hand feel, with two grooves on the back of the tabletop, which can be used as storage space, convenient for work and easy to clean.
8. Configure a panoramic camera bracket, with a universal arm that can be connected to a dedicated camera; Support dual camera installation process.
9. Telescopic keyboard holder, made of sheet metal technology, with strong stability
10. The vehicle is equipped with inverters, adapters, and batteries to provide uninterrupted power supply for equipment or computers, ensuring safety and reliability.
11. The whole vehicle has leakage protection: the shell has functions of ground leakage battery protection and electric shock protection.
12. The entire vehicle can meet a 10 degree tilt test and can support a 50kg device load for walking

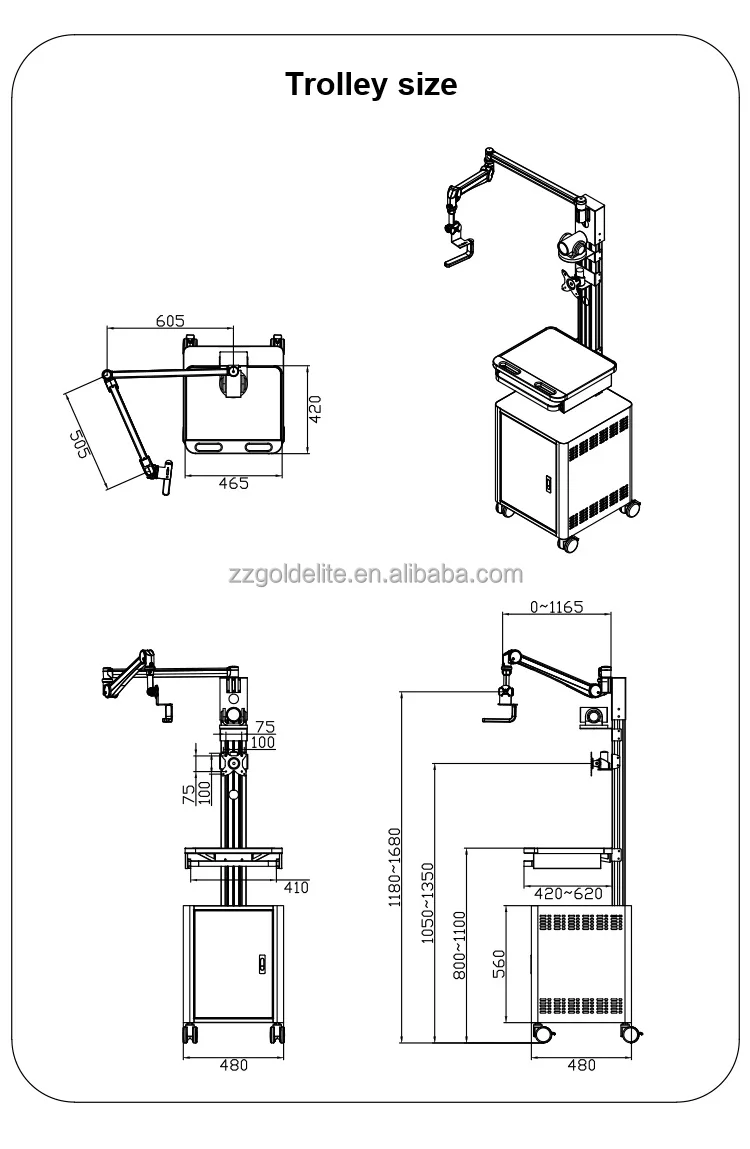

Mobile teaching cart specifications and dimensions:
1. The vehicle is 1900mm high, with a chassis width of 550mm and a depth of 550mm
Battery specifications:
1. High performance and environmentally friendly lithium iron phosphate batteries meet the low pollution requirements of hospitals.
2. The battery capacity is 39AH and can be charged and discharged for 2000 cycles.
3. Charging time ≤ 4 hours, inverter 220V output.
