Industrial Grade Standards Lighted Power Line Marker Air Marker Ball Airplane Warning Ball

Product Overviews

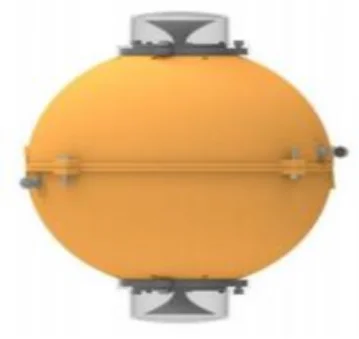

 TX-JSQ-02 luminous type aviation warning ball (marker ball), the ball adopts high-strength marine grade material injection molding, the lifespan can reach more than 20 years, its ultraviolet resistance is good, can be used in marine climate conditions for a long time without fading and aging; The light source adopts high efficiency patch LED with reflective optical structure, which has the characteristics of high brightness and long life. With independent research and development patent CT power taking device, the circuit anti-impact ability, anti-lightning ability is strong, can be applied to a variety of harsh working environment.

Product Details

Function & Features

lPC material, light weight, high strength.

lIntegrated forming, light weight, easy to install.

lStrong UV resistance, long-term outdoor use is not easy to fade.

lThe ball is designed with a wire hole and a drainage hole to prevent rain from entering the ball and causing residue.

l The pre-stranded wire protects the wire from arc, friction and other damage during installation.

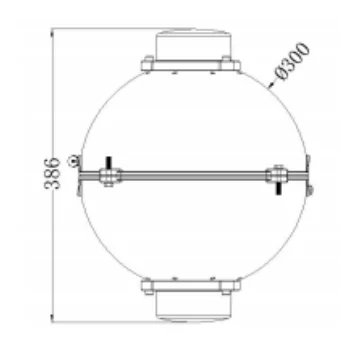

 Dimension Drawing

 Installation Info.

• At the mount point the alerting ball, wrap cable protecting bars round cables for 1000~1200mm long, with two ends of protecting bars extending 200~300mm beyong the surface of the ball.


• Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.


• Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position.


• Insert stainless stell bolt(M12*35)and then put flat washers and spring washers around each bolt. Tighten each nut at last.


Usage Notice

• To avoid causing accident, installers should do good personel safety measurement.


• No beat, no press, no heavy weight for long time to avoide damaged, deformation, or will affect installation.


• To avoid potential drop, clamp fixed screw must be checked if tightening

Application

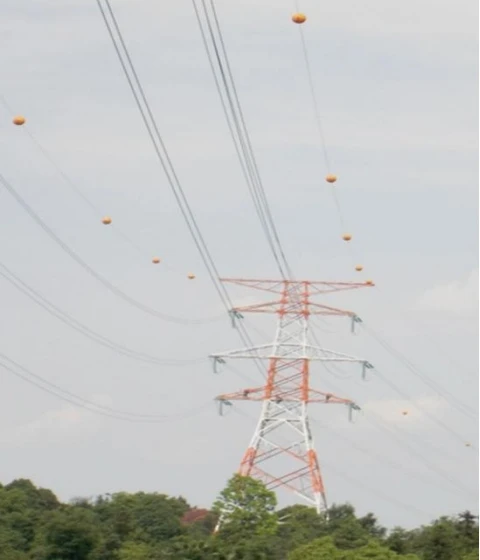

• Overhead transmission line, ultrahigh-tension transmission line, Rive-crossing transmission cable, ultra high cable.
