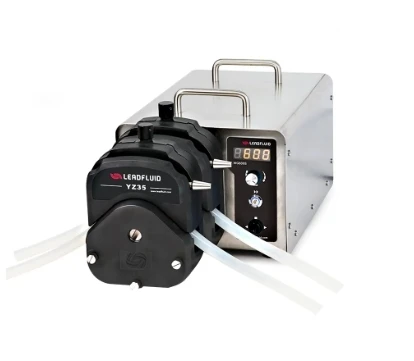

WG600S Industrial High Traffic Automatic Liquid Filling Machine Peristaltic Pump

WG600S Industrial Speed-Variable Peristaltic Pump

WG600S industrial speed-variable peristaltic pump, is suitable for transferring large flow rate of fluid in industry.DC brushless motor drive with large torque, no maintenance, more power. It has the basic functions such as start/stop, reversible direction, full speed (fast cleaning), adjust speed and state memory power-down memory.It can cascade two pump heads. RS485 communication interface, adopts the MODBUS protocol, easier to be connected with other equipments, such as computer, human machine interface and PLC

Functional Features

• Rotary encoder controls running speed, reversible direction, start/stop, full speed, easy to operate.

• LF-LED-OS software system, figure digital displays speed and working status.

• Large torque brushless motor drive, more power, free maintenance.

• 304 stainless steel housing, easy to clean, effectively prevent the corrosion of organic solvents.

• Timing running, easy dispensing function.

• The circuit board with conformal coating makes it dust-proof and moisture-proof.

• External control controls start/stop, reversible direction, optically coupled isolator., 5V, 12V, 24V input level optional.

• External analog control speed.

Technical indicators:

Peristaltic pump model:WG600S

Pump head model:YZ35

Flow range:0.4~13.2L /min

Speed range :30~600rpm

Speed resolution:1rpm

Speed accuracy:<±3%

External control:External control input level 5V,12V(Standard),24V (Optional),

External control analog 0-5V(Standard),0-10V, 4-20mA (Optional)

Communication interface:RS485 communication interface, MODBUS protocol is available,DB15 external control interface

Power supply:AC100~240V,50Hz/60Hz

Power consumption:<300W

Working environment:Temperature 0 ~ 40℃, relative humidity<80%

IP grade:IP31

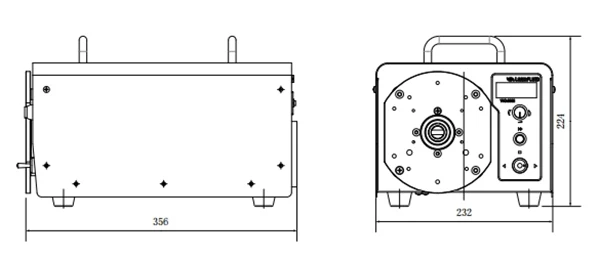

Dimension (L×W×H):356×232×224mm

Driver weight:11 kg

Applicable to peristaltic pump head and hose, flow parameters
