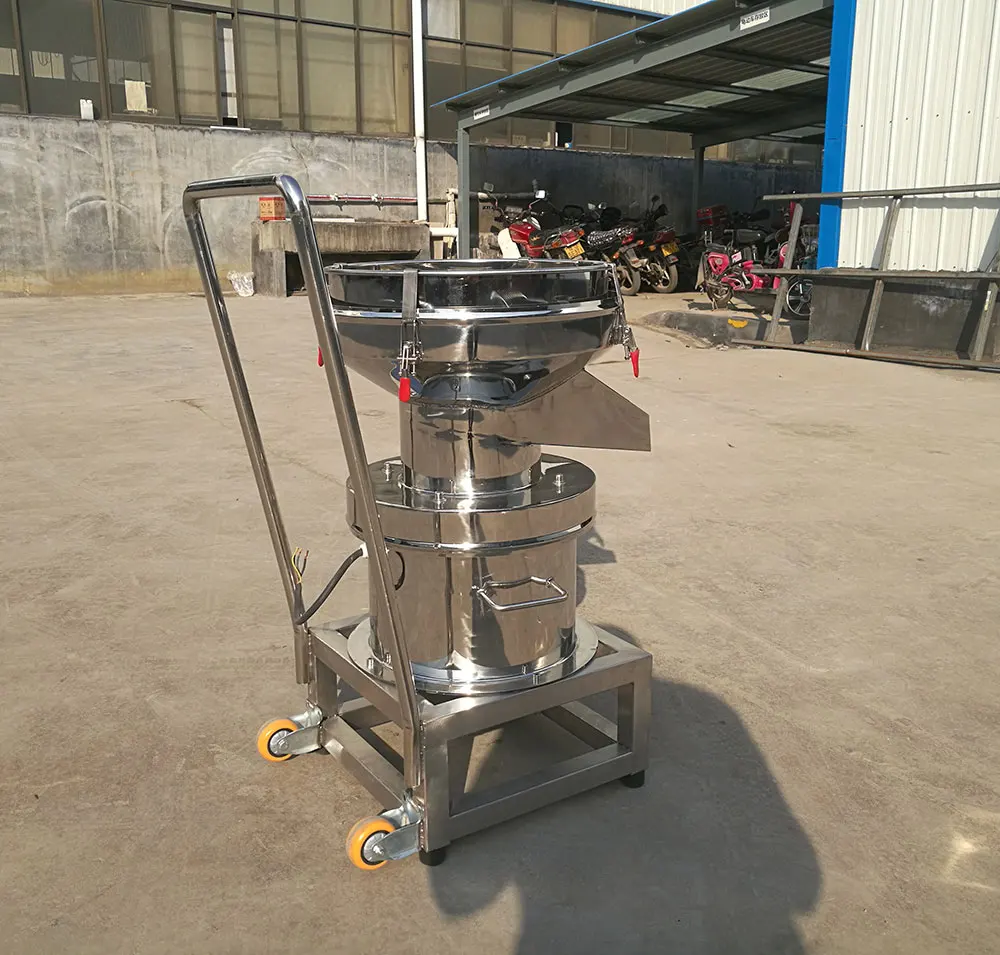

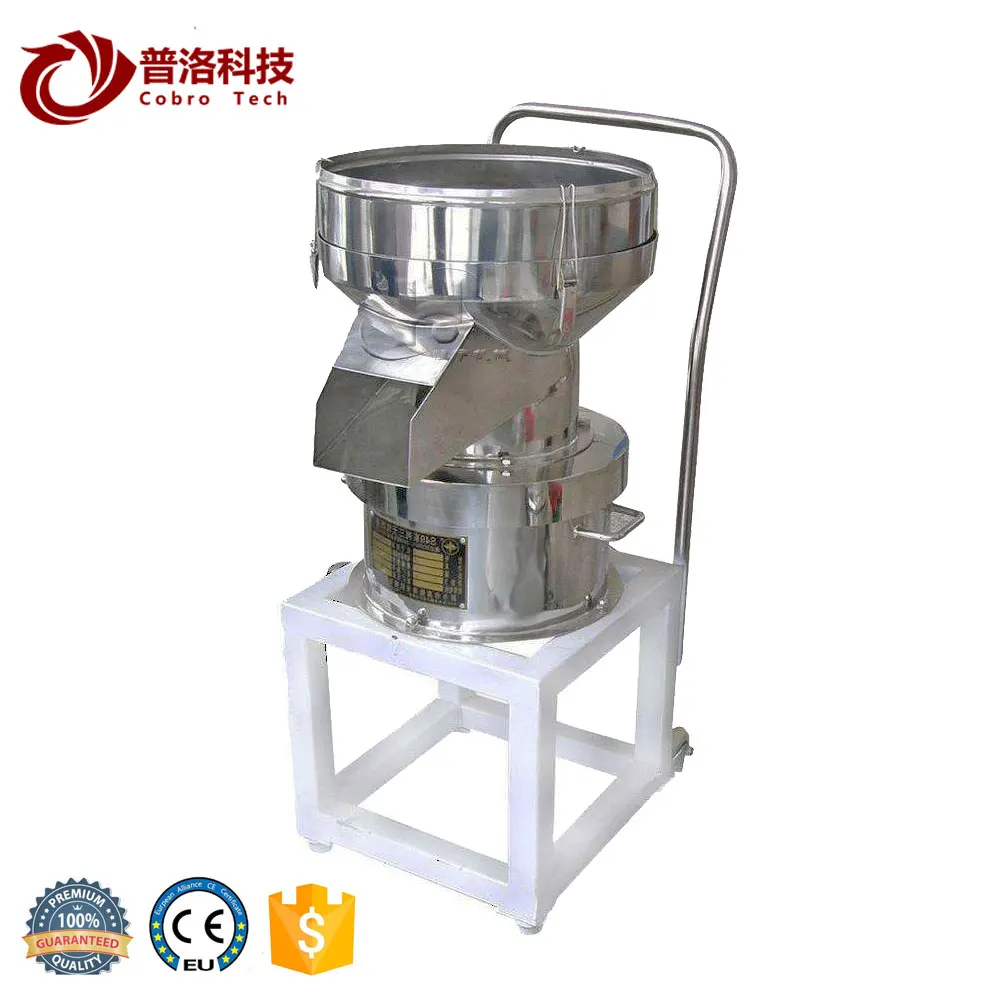

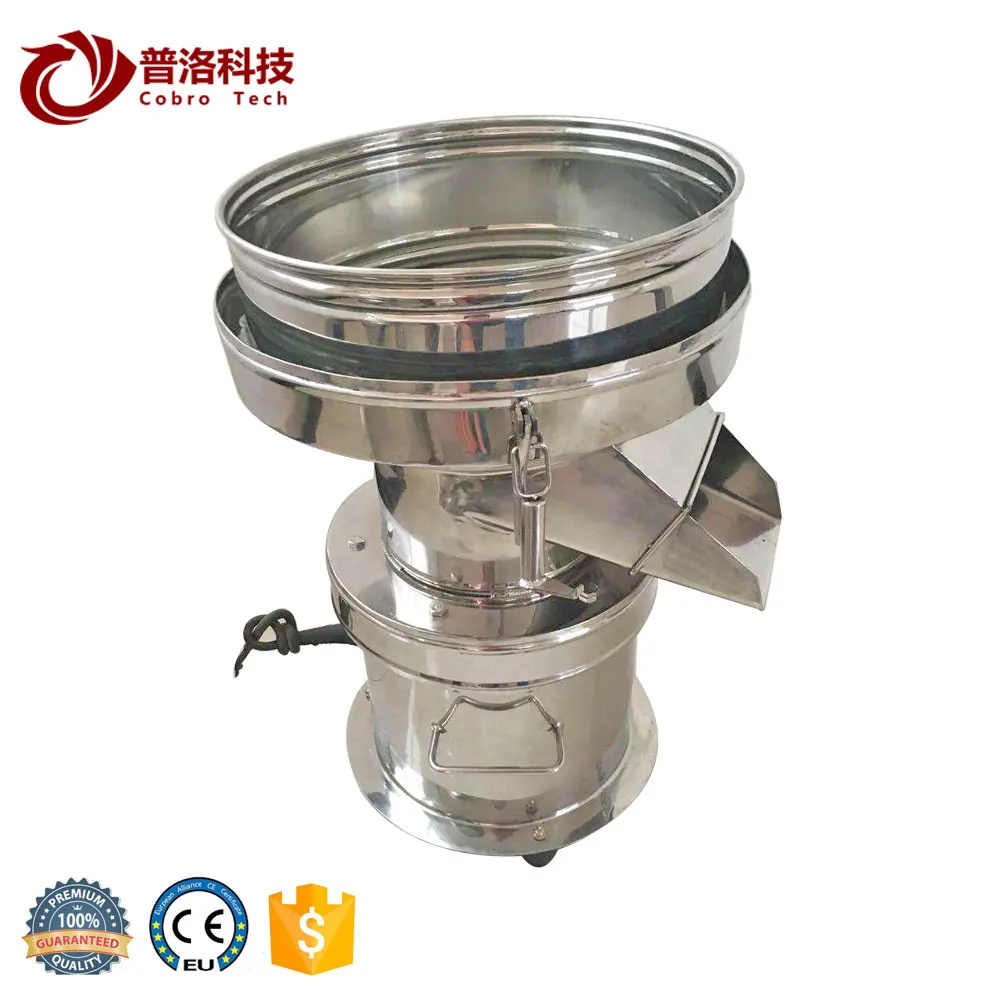

Small liquid filter separator sieve machine for milk or soymilk
- Category: >>>
- Supplier: COBRO TECH LTD
Share on (1601246548045):
Product Overview
Description
Product Overview
450 VIBRATION FILTER
Brief Introduction of 450 Vibration filter machine
PL-450 type vibration filter is a new and highly-efficiency filtrate equipment.it can be widely used in the filtering and screening work of pasty,powder.The minimum size of the material to process can be 5 micron.And the maximum number of the mesh is 400.Mainly apply for the small process capacity industry ,like ceramic,painting,dope,printing ink,pharmacy , food and etc.450 type machine consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device. The machine adopt a new vibration structure which is more stable ,hi-efficient and easily handled.the machine has a good-look,reasonable structure ,stable performance and is easily griddle handled,cleaned and its griddle is easily changed. Especial ,it can satisfy the need of changeable location.
Features
PL-450 series screen~filter is a hi-efficient ,low noise,small valum screen and filtration machine which can be displaced easily. The process capacity of the spray-painting material whose bulk density is 1.1t can reach 1200KL/H, when the screen is of 325mesh.the process capacity of the flour is 700Kg/H, when the screen is of 30mesh..To the indoor paint,the process capacity is 1.5 cubic meter per hour with a screen of 250mesh.
PL-450 type vibration filter is a new and highly-efficiency filtrate equipment.it can be widely used in the filtering and screening work of pasty,powder.The minimum size of the material to process can be 5 micron.And the maximum number of the mesh is 400.Mainly apply for the small process capacity industry ,like ceramic,painting,dope,printing ink,pharmacy , food and etc.450 type machine consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device. The machine adopt a new vibration structure which is more stable ,hi-efficient and easily handled.the machine has a good-look,reasonable structure ,stable performance and is easily griddle handled,cleaned and its griddle is easily changed. Especial ,it can satisfy the need of changeable location.
Features
PL-450 series screen~filter is a hi-efficient ,low noise,small valum screen and filtration machine which can be displaced easily. The process capacity of the spray-painting material whose bulk density is 1.1t can reach 1200KL/H, when the screen is of 325mesh.the process capacity of the flour is 700Kg/H, when the screen is of 30mesh..To the indoor paint,the process capacity is 1.5 cubic meter per hour with a screen of 250mesh.
FEATURES AT A GLANCE
1) Fully adjustable amplitudes of vibration

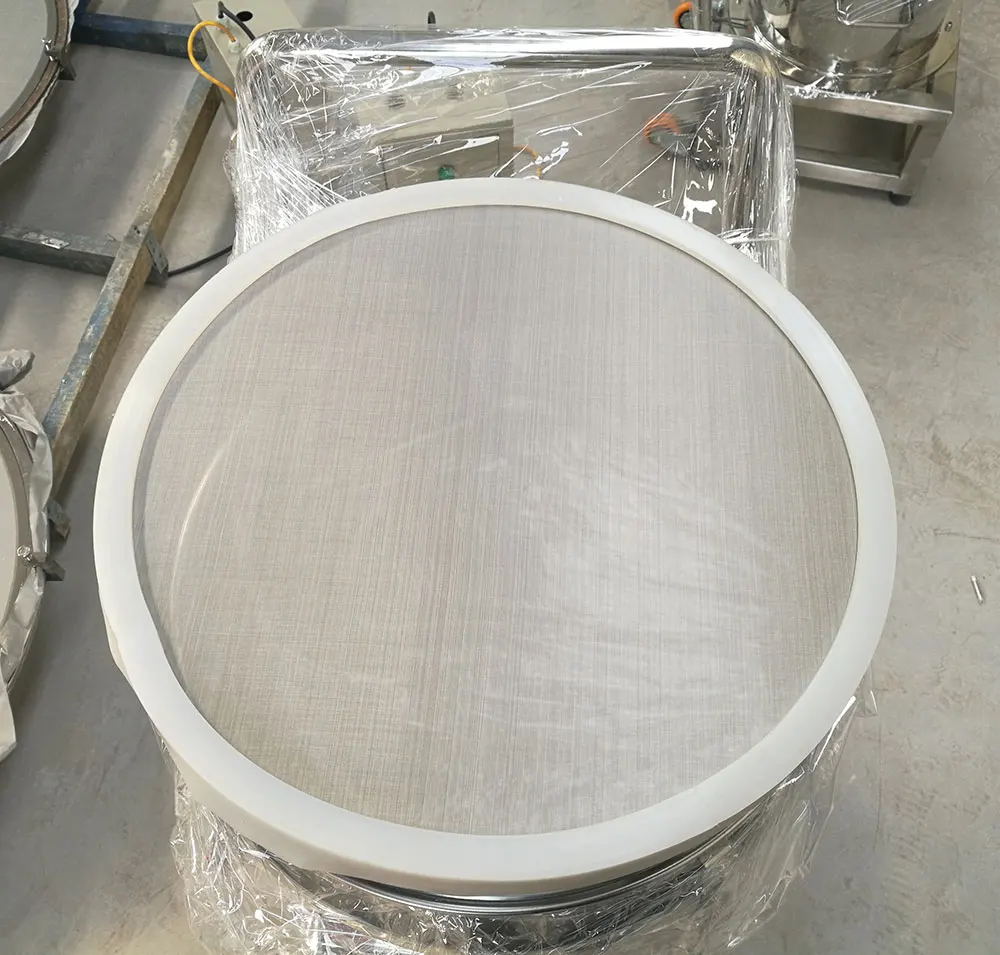

2) 25um to 25 mm aperture quick change mesh - frames.
3) Automatic ejection of oversize materials.
4) 304 / 316 L stainless steel contact parts as standard.
5)Deep anti - splash top rims.
2) 25um to 25 mm aperture quick change mesh - frames.
3) Automatic ejection of oversize materials.
4) 304 / 316 L stainless steel contact parts as standard.
5)Deep anti - splash top rims.

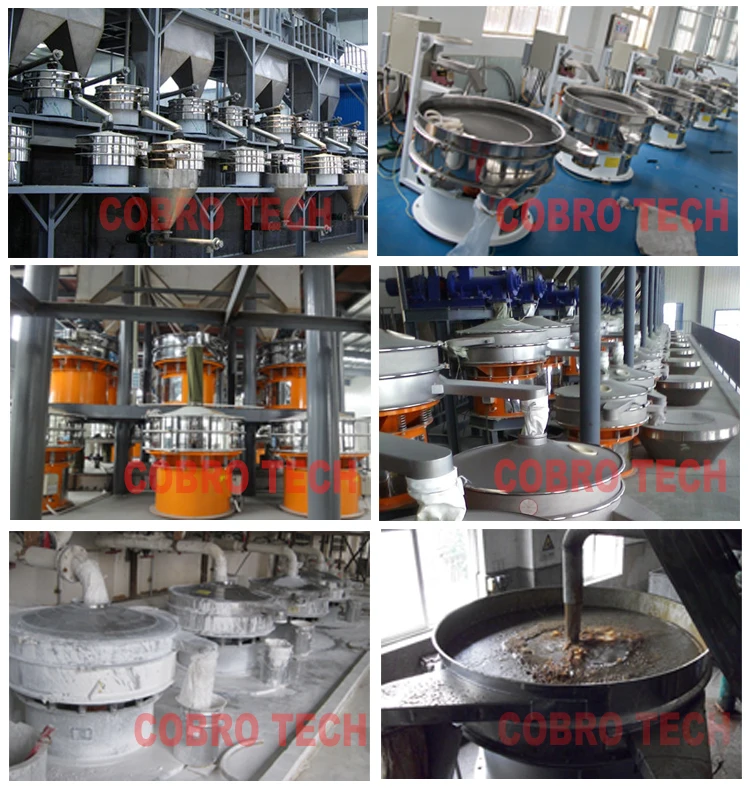

Application
1.Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, medicine powder, granules.
2.Food industry: sugar powder, starch, salt, rice, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
4. Medical industry: all kinds of medicine
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
2.Food industry: sugar powder, starch, salt, rice, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
4. Medical industry: all kinds of medicine
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
PRODUCT SPECIFICATIONS
Model | Diameter | Frequency | Power | Power supply | Mesh size |
PL-450 | 450 | 1450rpm | 0.25kw | 220/380V | 0.038-3mm |
