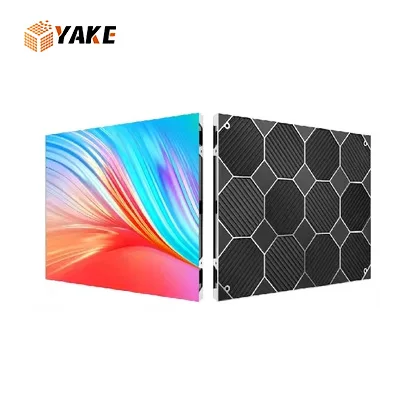

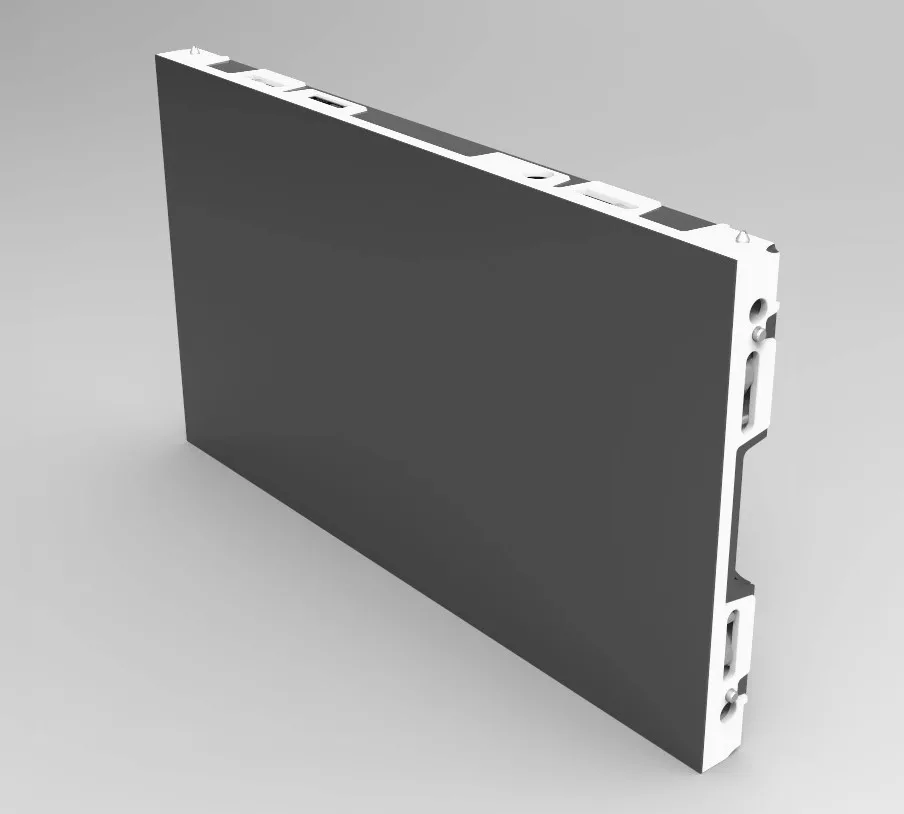

Yake Ultra HD Full Color LED Display P1.5 P1.8 P2 P2.5 P3 P4 Indoor Outdoor aluminium die casting cabinet fixed installation
- Category: >>>
- Supplier: Shenzhen Yake LED Tech Co. LimitedShenzhen Limited
Share on (1601246558019):
Product Overview
Description
Parameters and Details
Pixel Pitch | 1.86mm | 2mm | 2.5mm | 3.91mm |
Led Module Size | 320 x 160mm | 320 x 160mm | 320 x 160mm | 250 x 250mm |
Led Panel Size | 640 x 480mm | 640 x 480mm | 640 x 480mm | 500 x 500mm / 500x1000mm |
Led Panel Weight | 7KG | 7KG | 7KG | 7KG/14KG |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Drive Method | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/16 Scan |
Brightness | 900nits | 1000nits | 1000nits | 1200nits |
Power Supply | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell |
Receiving Card | Novastar / Linsn / Colorlight / Huidu | Novastar / Linsn / Colorlight / Huidu | Novastar / Linsn / Colorlight / Huidu | Novastar / Linsn / Colorlight / Huidu |
Max Power Consumption | 690W/Sqm | 690W/Sqm | 690W/Sqm | 690W/Sqm |
Working Temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
Best Viewing Distance | 1.8-18m | 2-20m | 2.5-25m | 4-40m |
Input Voltage | AC110V/220V+10% | AC110V/220V+10% | AC110V/220V+10% | AC110V/220V+10% |
Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
IP Rate | IP30 | IP30 | IP30 | IP30 |
Working System | Windows | Windows | Windows | Windows |
Show Details
Fine pitch LED display main pixel pitch is P1.86, P2, P2.5, P3.91,P2.976,P2.6.
With high resolution, it is easily achieve 4K and 8K HD LED video wall.
Different with traditional fixed LED cabinet, it can be installed fast with fast lock and direct power cable connection.

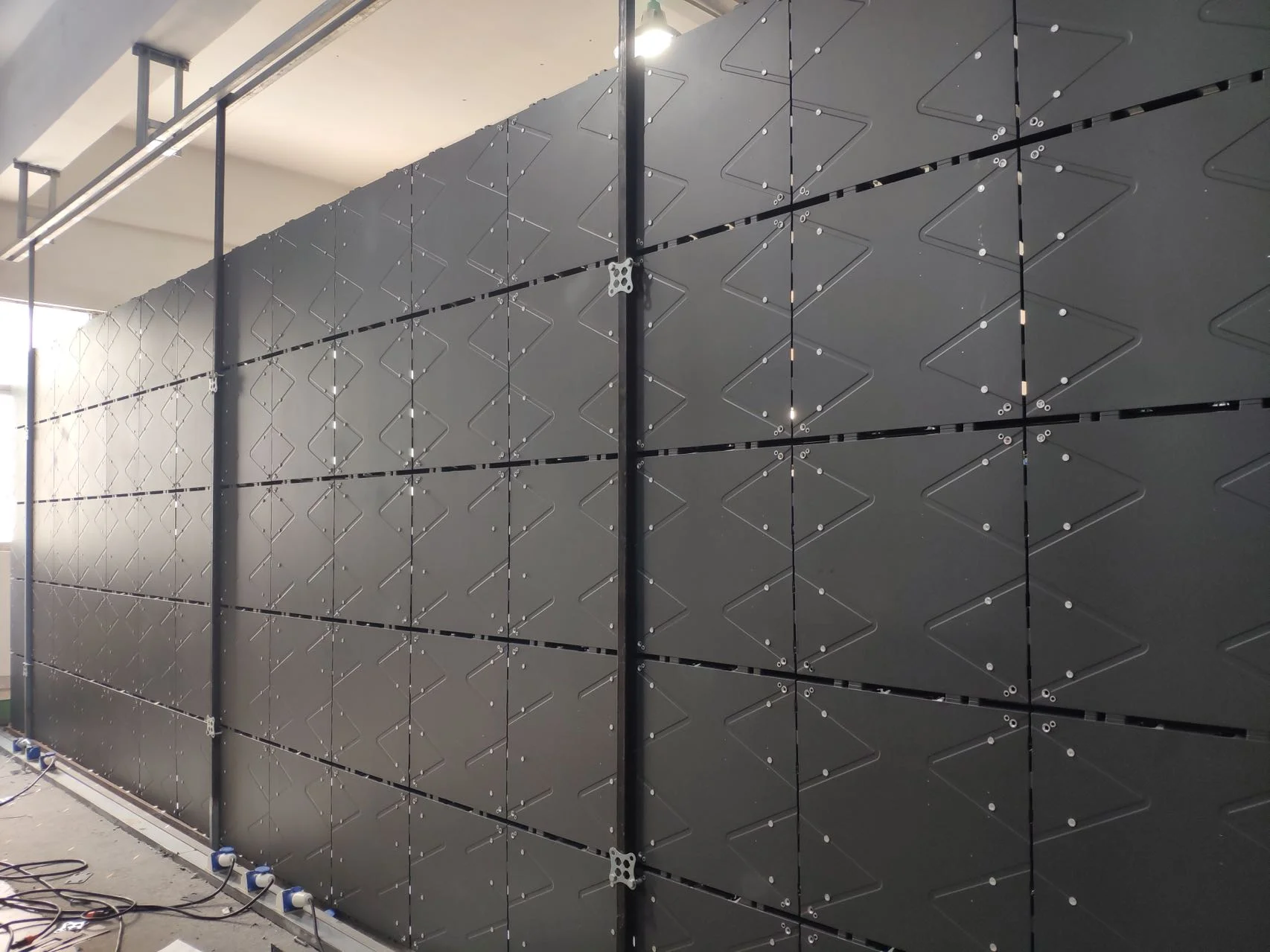

It can be installed on wall directly with some screws, no need steel structure. It save space and labor cost.
With high resolution, it is easily achieve 4K and 8K HD LED video wall.
Different with traditional fixed LED cabinet, it can be installed fast with fast lock and direct power cable connection.
It can be installed on wall directly with some screws, no need steel structure. It save space and labor cost.
Features

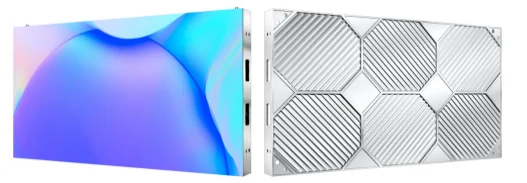

Die-casting aluminum cabinet, high-precision design；
With a unique connector, the gap of the cabinet can be fine-tuned to show the perfect picture quality;
The mold is molded at one time, and the processing precision is ±0.1mm, which makes it easy to achieve seamless stitching；
Front access construction, make installation and maintenance faster and easier；
No Fans, fast heat dissipation, super silence
With a unique connector, the gap of the cabinet can be fine-tuned to show the perfect picture quality;
The mold is molded at one time, and the processing precision is ±0.1mm, which makes it easy to achieve seamless stitching；
Front access construction, make installation and maintenance faster and easier；
No Fans, fast heat dissipation, super silence
Thin and Light Weight
With only about 59mm thickness and 7KG/PC weight, the small pitch LED display screen panel is portable and easy to install.

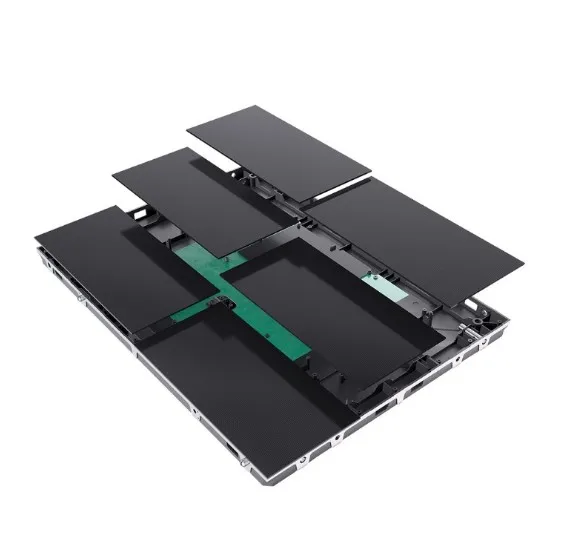

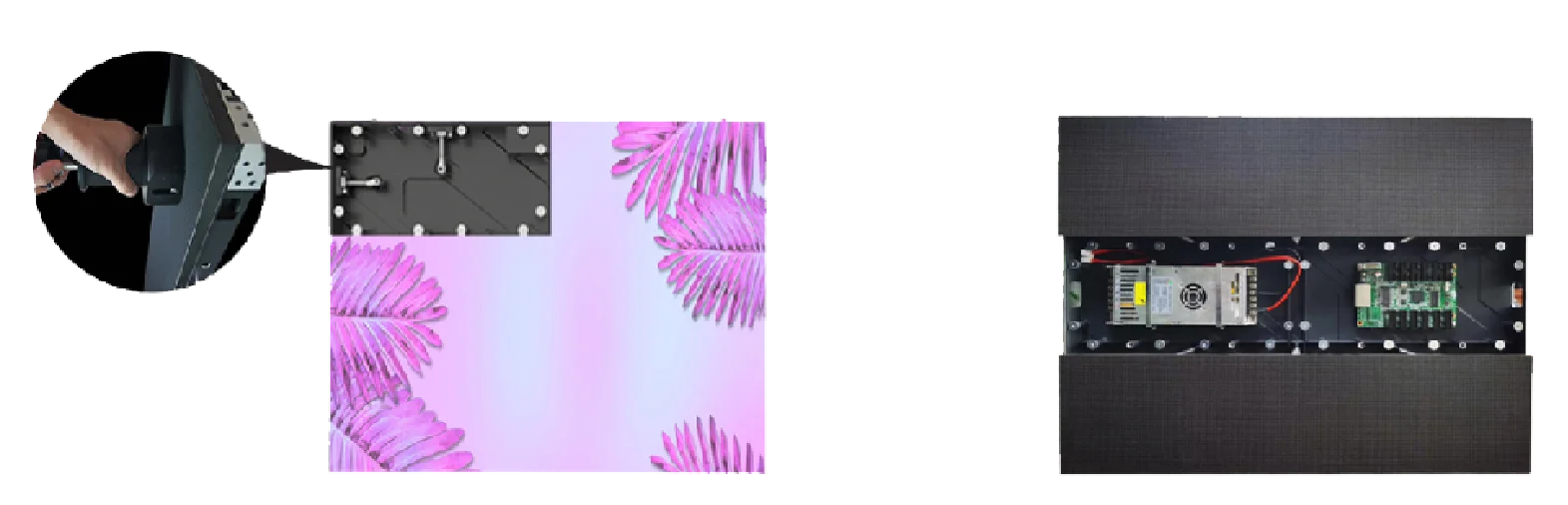

Front Maintenance
Can easily remove the modules from cabinet with vacuum tool.
Easy maintenance
The small pitch LED display is completely front maintenance, LED modules are pasted by magnets. Just need a vacuum tool to remove LED modules, then can maintain cables, receiving cards and power supplies.

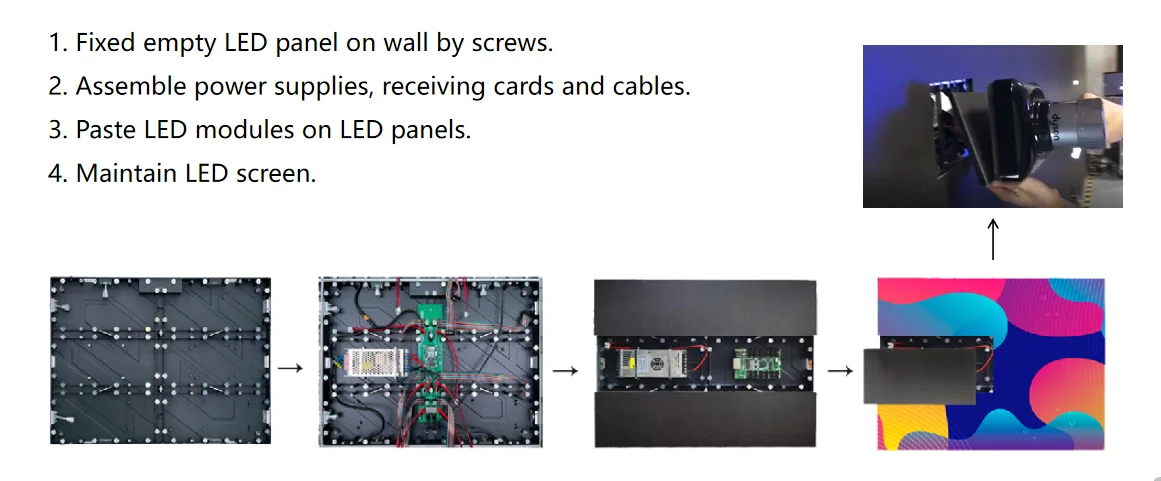

Installation and Maintenance
Wide viewing angle
WIDE DISPLAY ANGLE
160°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances
160°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances
72 hours aging test
Package and Delivary
Wooden case package
When finished the 72aging test, we will package the goods and arrange delivery.
Delivery
After completing the packaging, we will send the goods to a professional logistics company as soon as possible to catch up with the earliest sailing date.
After Sales Service
We have a professional team of engineers to provide every customer with professional and timely after-sales support.You don't need to worry about the installation and use of the screen, we will give you the best technical support.

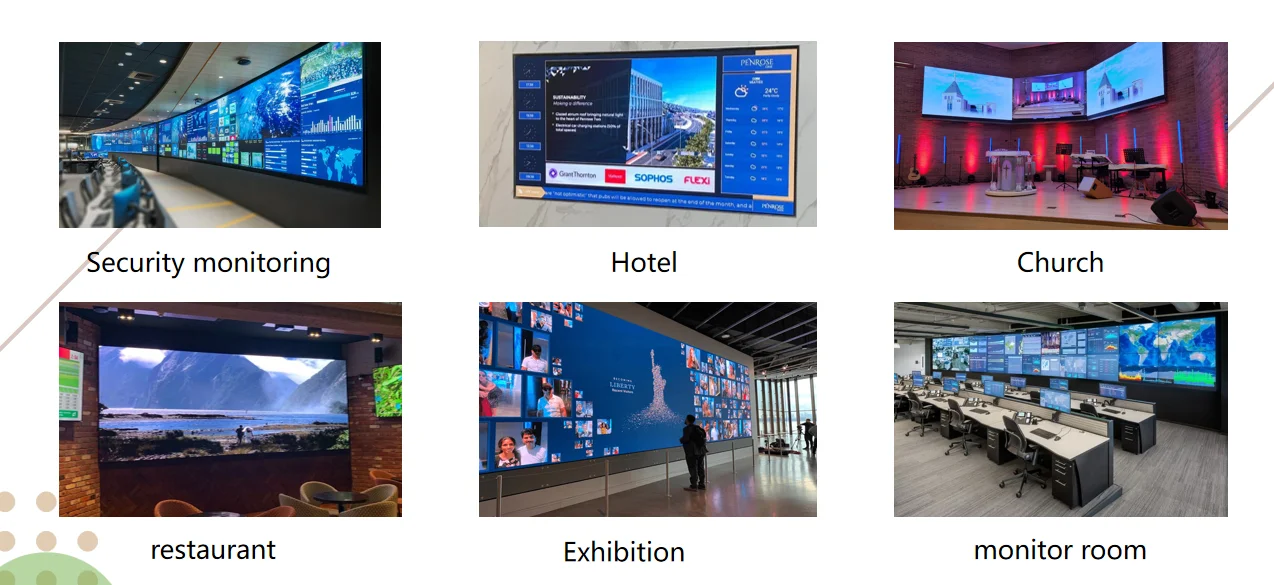

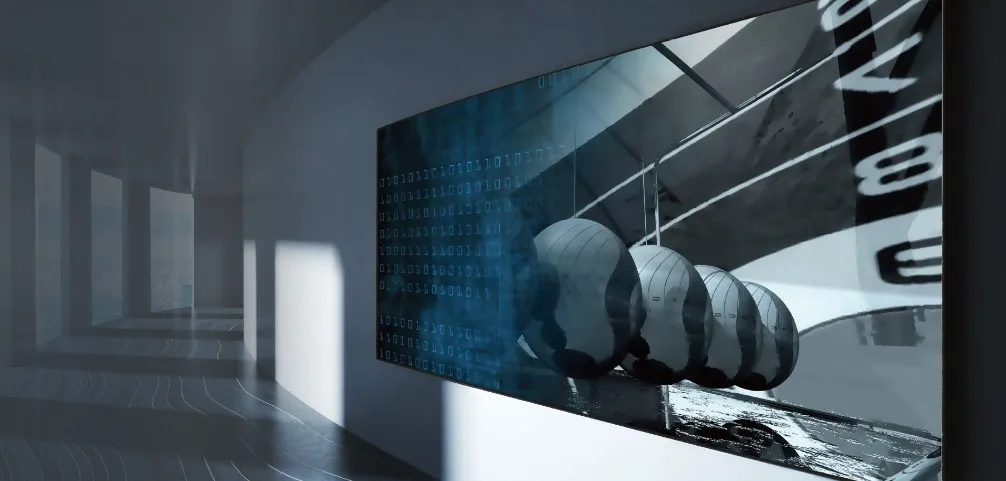

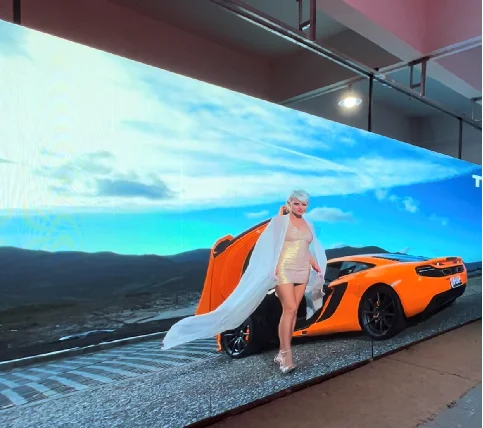

Applications&Projects
About Us
SHENZHEN YAKE LED TECH CO.,LIMITED，is one professional LED Products manufacturer in China. Our main products is Indoor & Outdoor full color and single color LED display, Single/double color LED signs, Rental LED display and LED lighting. The main products of our company have been exported to North America,Europe,Southeast Asia and other regions.
For the past few years, we commit to promote our brand.On the same time, OEM and ODM business are alsoaccepted.We understand the delicate balance between R&D, manufacturing and marketing both domestically andabroad.
Under the philosophy of “Quality First, Credit Top and Customer Uppermost”, we keep improving in managementand have gained unanimous recognition from domesticand foreign customers on quality, delivery and service.
For the past few years, we commit to promote our brand.On the same time, OEM and ODM business are alsoaccepted.We understand the delicate balance between R&D, manufacturing and marketing both domestically andabroad.
Under the philosophy of “Quality First, Credit Top and Customer Uppermost”, we keep improving in managementand have gained unanimous recognition from domesticand foreign customers on quality, delivery and service.
production workshop
Aging test workshop
Interaction with Clients
EXHIBITIONS
CLIENTS’ VISITING
Reviews from Purchased Clients
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
