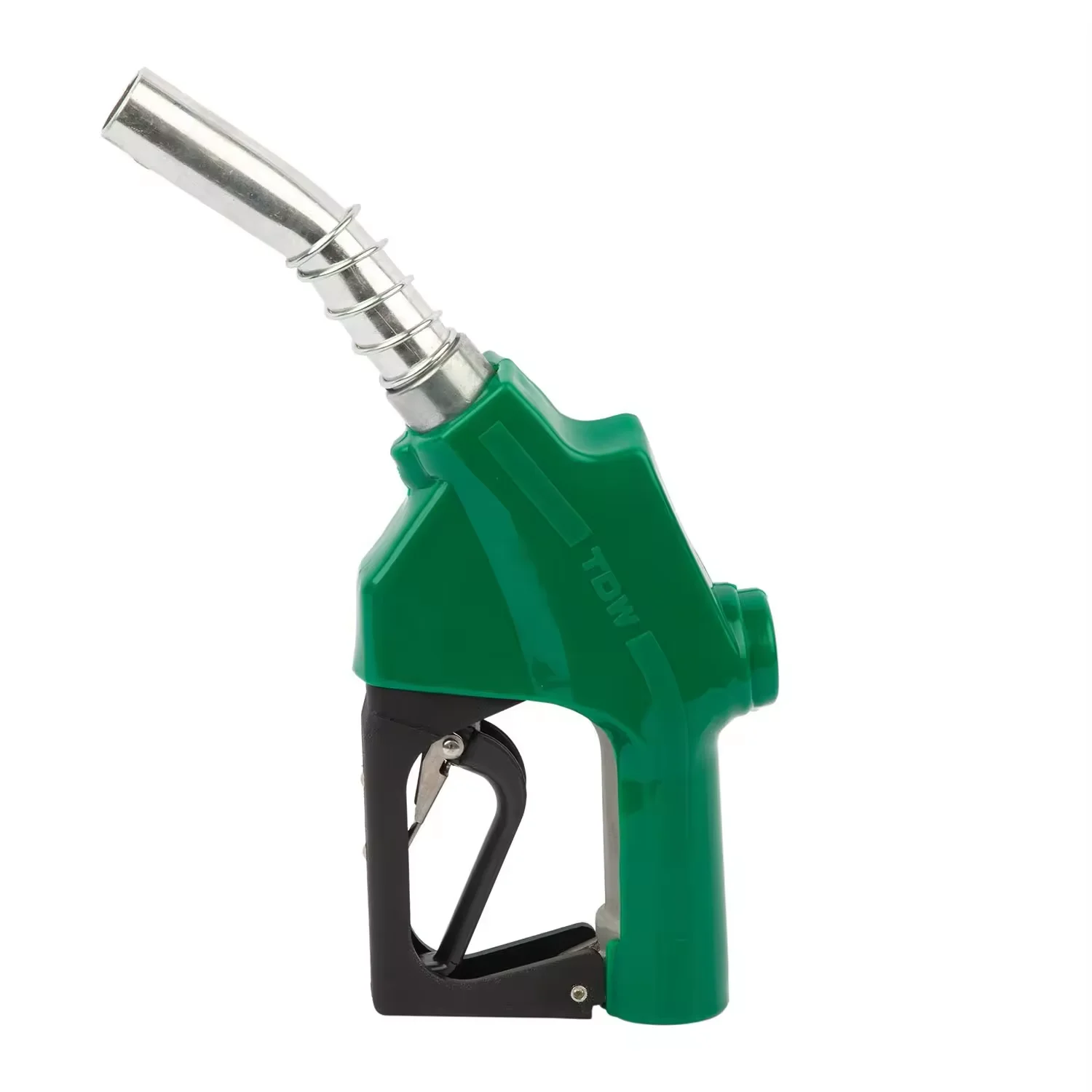

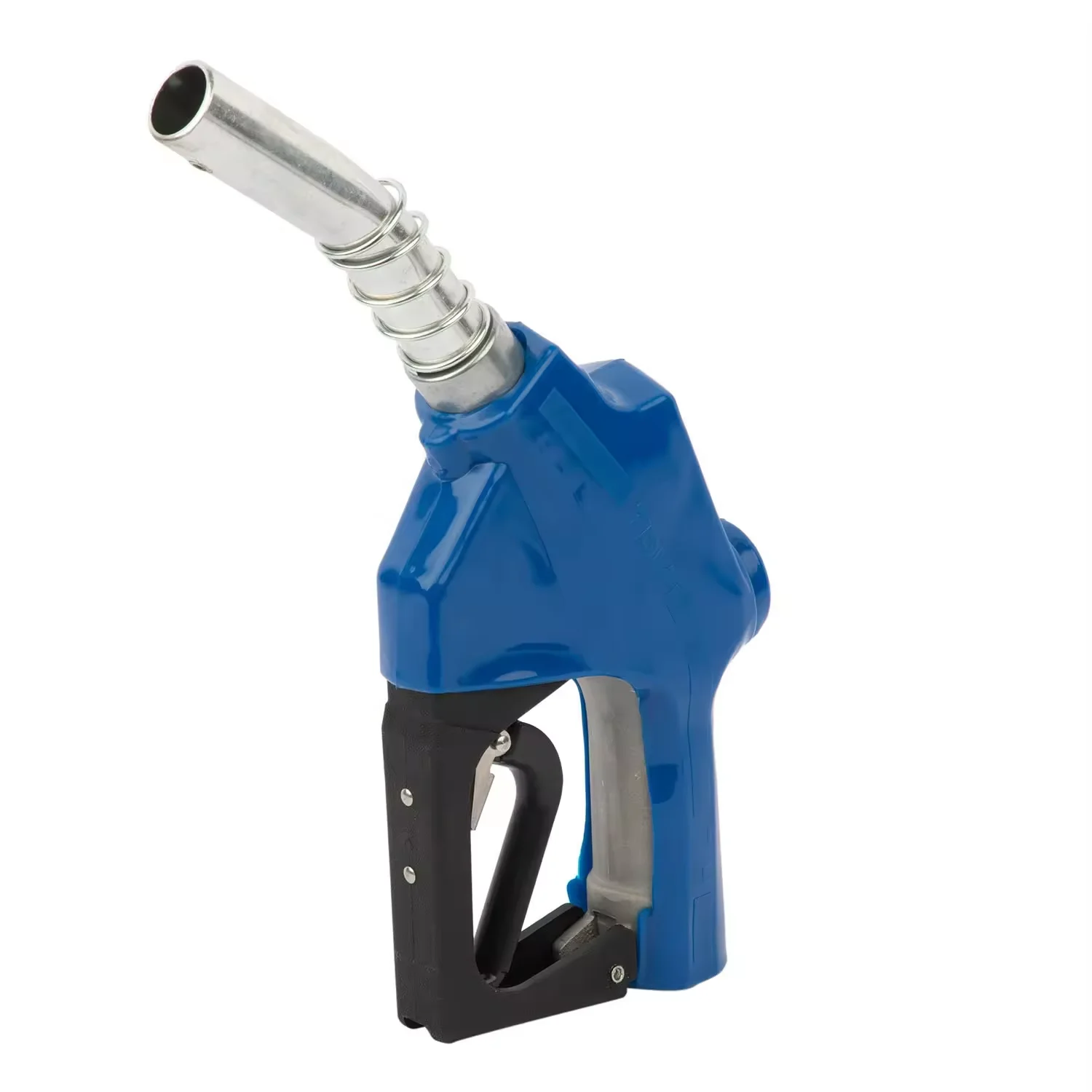

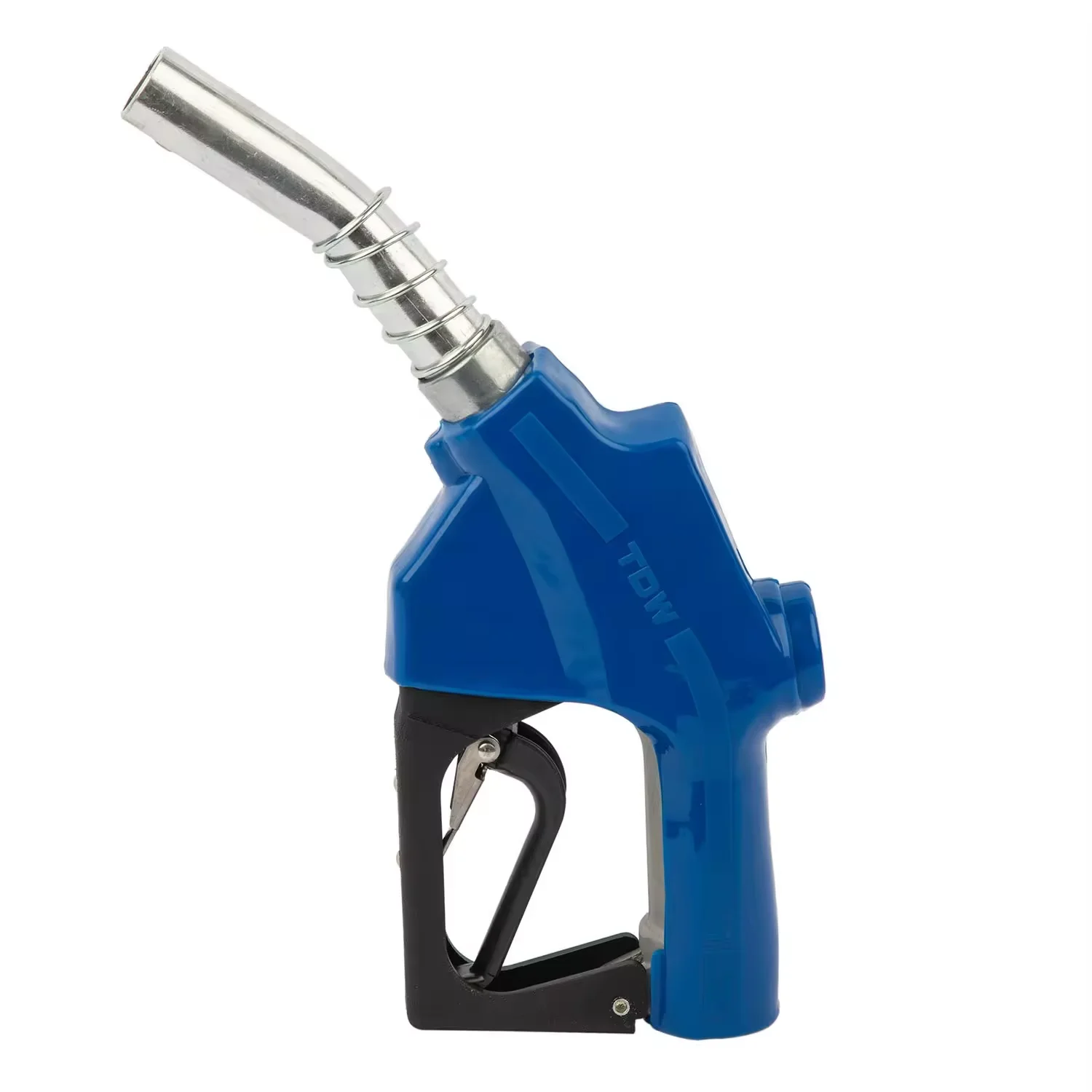

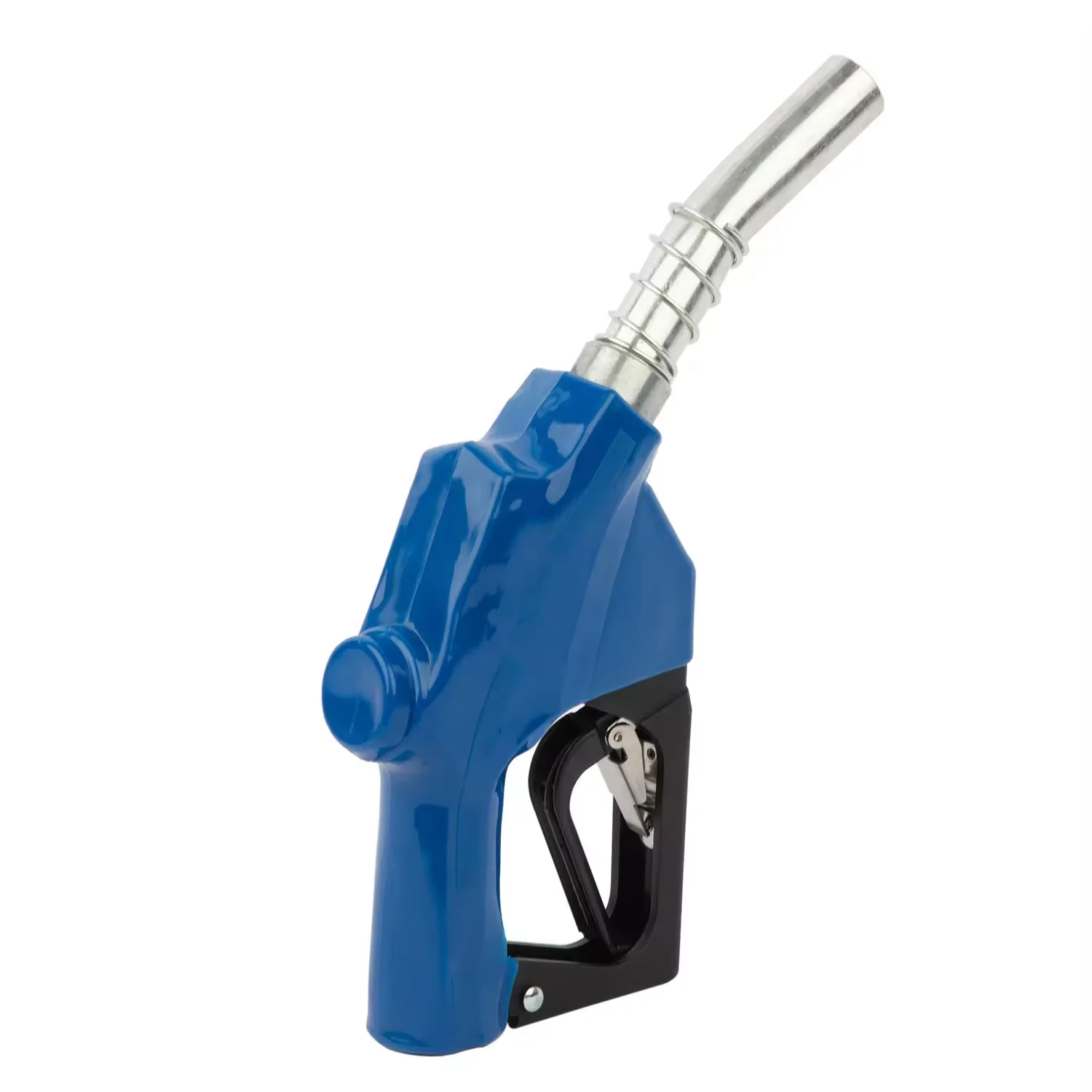

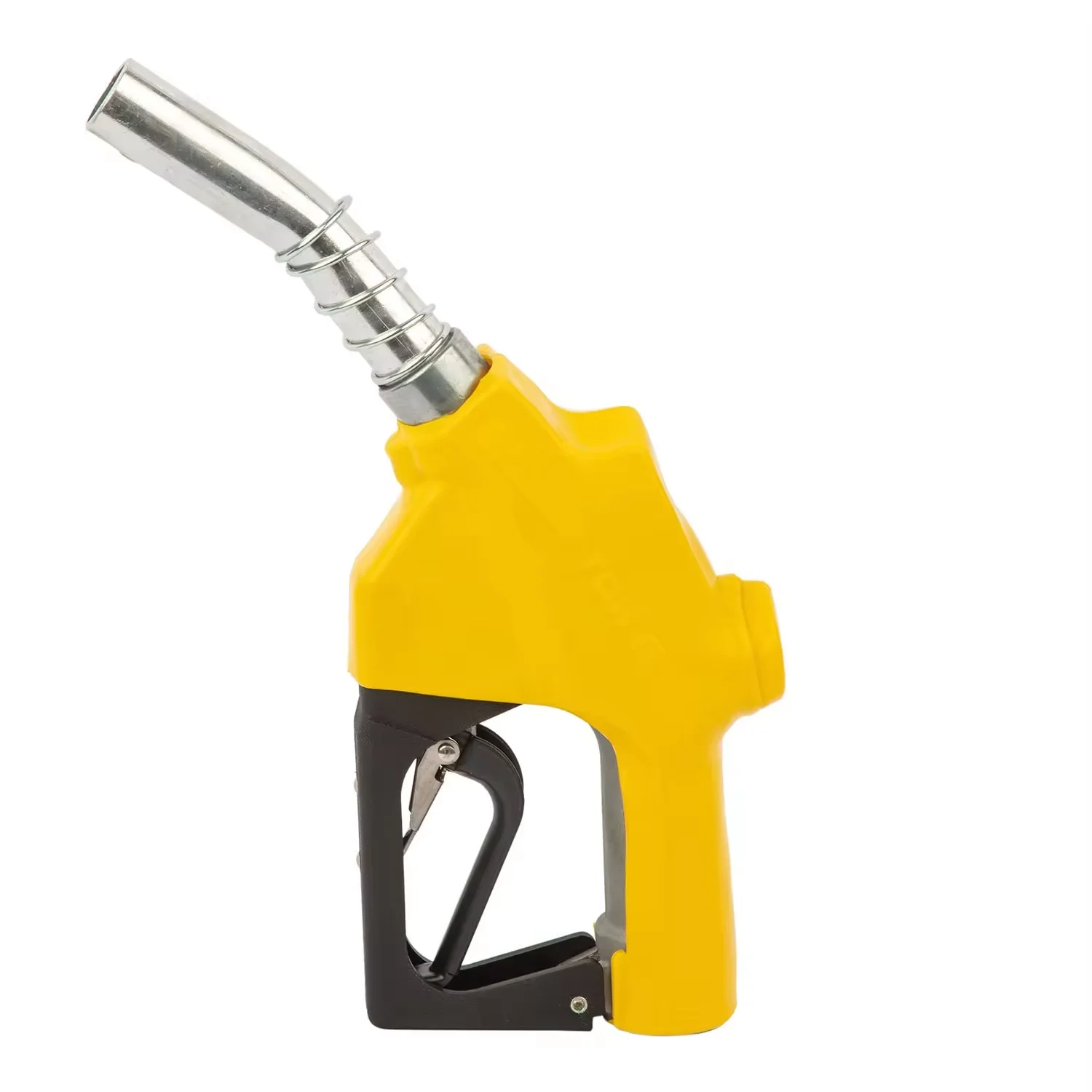

TDW-7H Automatic Nozzle OPW Type  Heavy Duty High Flow Refueling Nozzle






Product Overviews




Ø Even, Smooth spray pattern - Minimizes diesel foaming and false shut-off
Ø Extra long anchor spring - Keeps the nozzle secure in most large fill opening.
Ø Help reduces spills - A unique two-stage lever design assures a positive shut-off, even if held wide open.
Ø Three Position hold-open device - One finger control of hold-open mechanism means easy setting of flow rate.
Ø Easily replaced spouts -Simply remove three screws, Replacement kits are readily available from TDW.
Ø Dash-pot Action - For smoother closing action and reduced line shock.
Ø Dual Poppet - Easy to open nozzle against high pressure.
Ø Available with flow lock - Designed to shut off automatically when the spout is tipped ip, limiting spillage.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.



























Material
BodyAluminum
Lever and lever guardDuratuff
Main stemExtra hard stainless steel
SealsBuna-N, Viton







































Technical Specifical
Working Pressure0.2 Mpa
Auto Shut-off sensibility0.1 second
Inlet Size1"
ThreadNPT/BSP

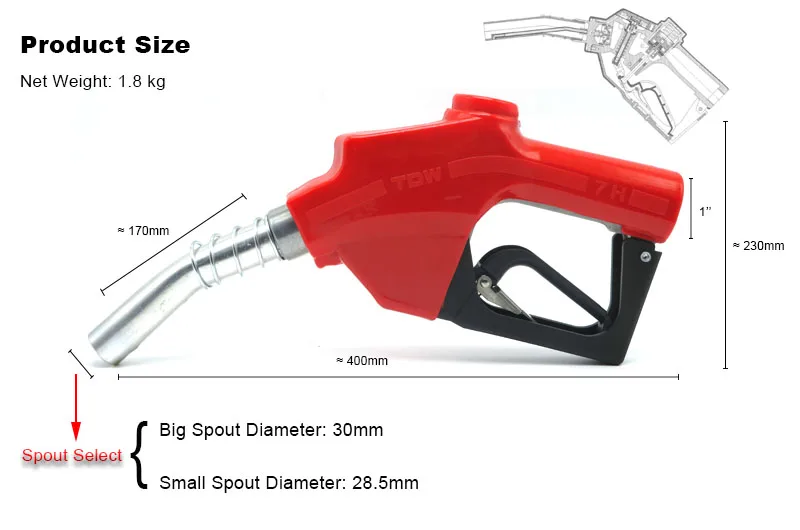

Spout Outlet Diameter30 mm, 28.7 mm
Flow Rate20 - 120 L/m
Net Weight1.55 KG









Order Select

































Order Specifications
Item No.Inlet ThreadSpout O.D.
TDW-7H011" NP28.7 mm
TDW-7H021" NPT30 mm
TDW-7H031" BSP28.7 mm
TDW-7H041" BSP30 mm













Color Options
Red, Green, Blue, Yellow, Black






















Package Data
SizeGross Weight
1pcs = 43*17*6.5 cm (box)1.7 kg
20pcs = 0.11 club (carton)34.3 kg







TDW-7H details

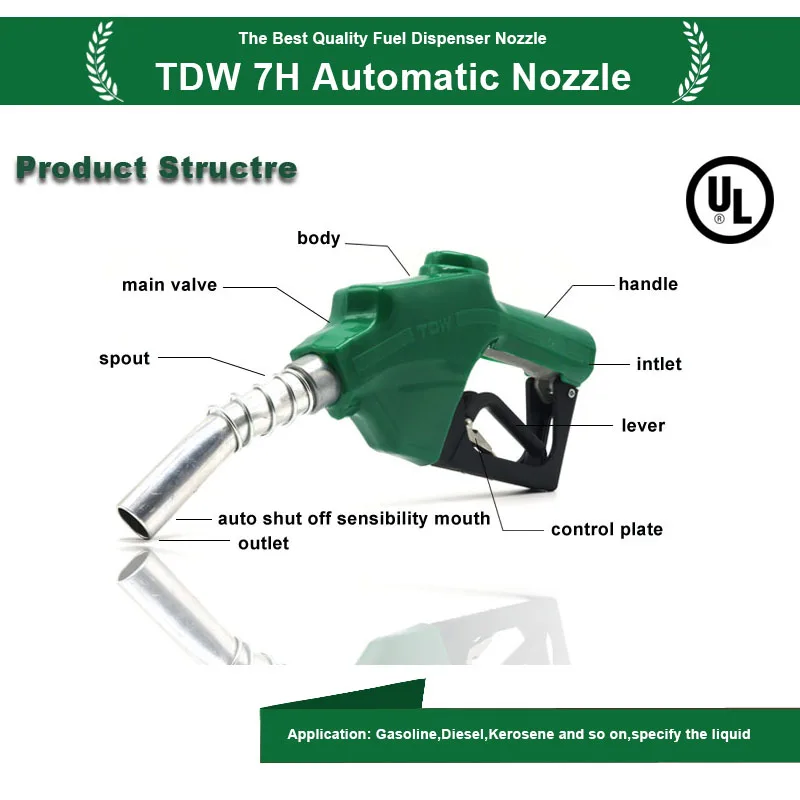

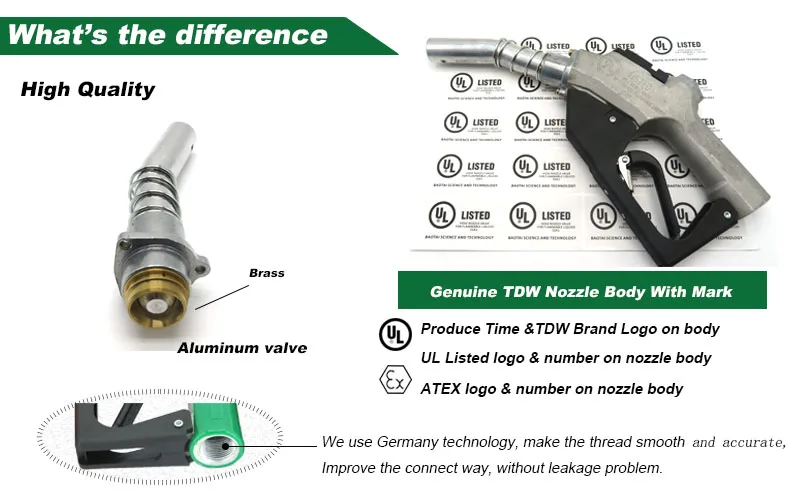

UL Listed OPW 7H.jpg3.jpgUL High Flow Nozzle.jpg7H.jpgOPW Automatic Nozzle.jpg
