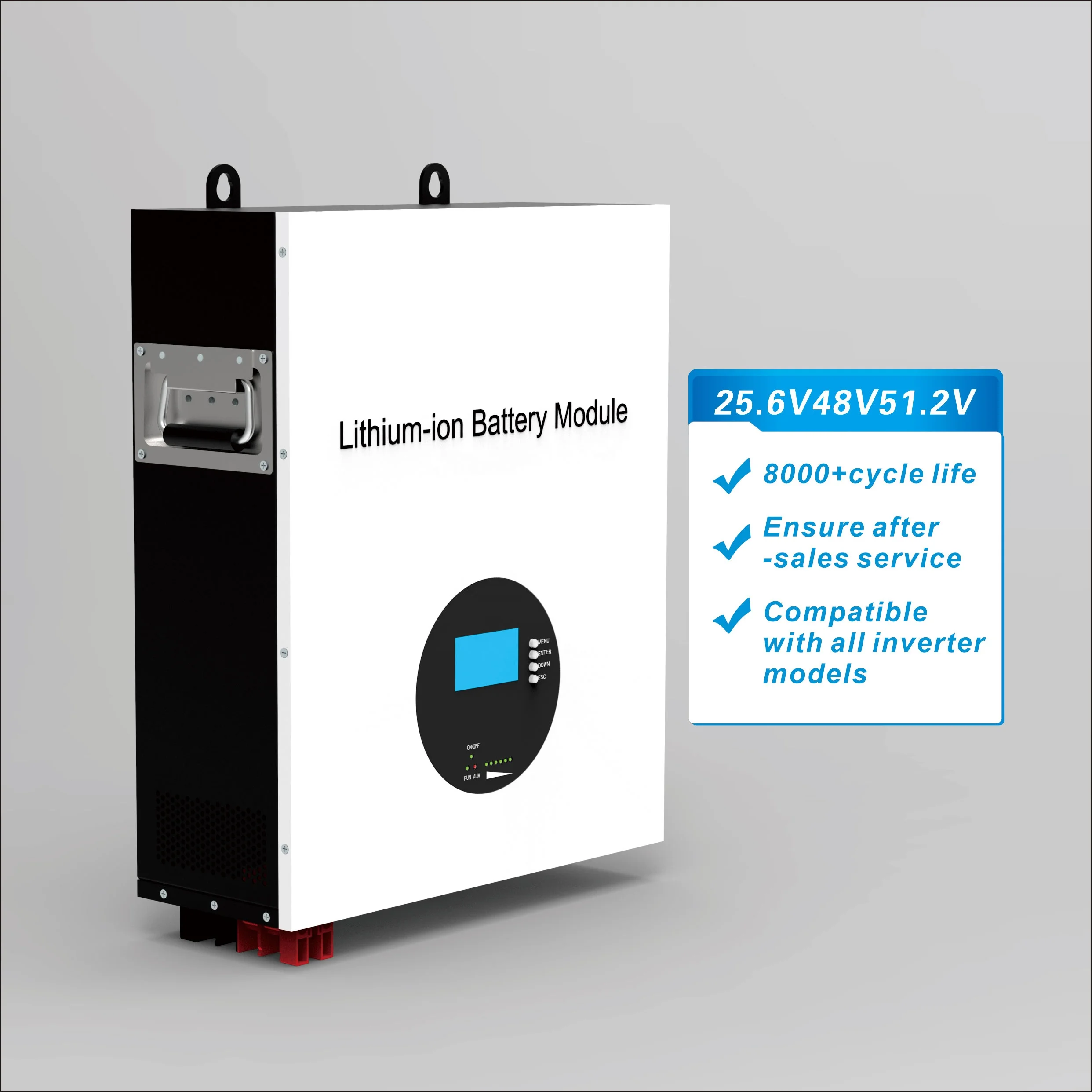

51.2v 230ah Lifepo4 Battery (ev Catl Cell) Home Solar Energy Storage System 48v Battery Pack 15kw Lithium Ion Batteries
- Category: >>>
- Supplier: Henan Zhuowei New Energy Technology Co. Ltd.
Share on (1601246755695):
Product Overview
Description
Products Description
Lithium iron phosphate batteries, as positive electrode materials, extend their cycling life and have good safety performance. The embedded BMS provides voltage, current, temperature protection, and alarm functions. The power system has a secondary cut-off protection, and when the voltage is too low, the system will cut off the power support to protect the battery's lifespan. Under normal operating conditions, the noise emitted by the entire system is very low due to the use of passive cooling design.
Product Parameters & Workflow
51.2V LiFePO4 Wall Mount Battery Parameters
MODEL | ZW4850LW | ZW48100LW | ZW48150LW | ZW48200LW | ||||
Electrical Characteristics | Rate voltage (Vdc) | 51.2 | ||||||
Rate capacity (AH) | 50 | 100 | 150 | 200 | ||||
Energy storage (KWH) | 2.56 | 5.12 | 7.68 | 10.24 | ||||
Cycle life | ≥6000 cycles to 85% DOD | |||||||
Months self discharge | ≤2% | |||||||
Efficiency of charge | 100% at 0.2C | |||||||
Efficiency of discharge | 96-99% at 1C | |||||||
Standard Charge | Charge voltage | 58.4 | ||||||
Charge mode | 0.2C to 54.8V, then 54.8V, charge current to 0.02C (CC/CV) | |||||||
Charge current(A) | 10 | 20 | 30 | 40 | ||||
Max. Charge current(A) | 50 | 100 | 120 | 200 | ||||
Charge cut-off voltage(VDC) | 58.4 | |||||||
Standard Discharge | Contiunous current(A) | 50 | 100 | 120 | 200 | |||
Discharge cut-off voltage(VDC) | 44.8 | |||||||
Environmental | Charge temperature | 0℃to 45℃(32F to 113F)@60±25% Relative Humidity | ||||||
Discharge temperature | -20℃to 60℃(-4F to 140F)@60±25% Relative Humidity | |||||||
Storage temperature | 0℃to40℃(32F to 104F)@60±25% Relative Humidity | |||||||
Mechanical | IP class | IP60 | ||||||
Material system | LiFePO4 | |||||||
Case material | Metal | |||||||
Case Type | Rack/Wall Mount | |||||||
Pack Dimensions L"W"H(mm) | 525*390*150 | 525*485*170 | 680*545*150 | 590*375*245 | ||||
Package Dimension L"W'H(mm) | 610*485*250 | 600*485*255 | 760*625*240 | 685*470*350 | ||||
Net Weight(kg) | 39.5 | 43.4 | 72 | 82 | ||||
Gross Weighi(kg) | 41.5 | 45.9 | 75 | 85 | ||||
Terminal | M8 | |||||||
Protocol (Optional) | CANBus/RS485/RS232 | |||||||
SOC(Optional) | LED/LCD | |||||||
The quality assurance period | 60 months | |||||||
After being upgraded, this wall mounted battery can maintain a lifespan of more than 10 years in an environment of 25 ℃, and its overall weight is lighter. Tested and compatible with all brands of inverters. If you have any other concerns, please feel free to contact me at any time.
Customer Feedback
Our sales personnel receive the most authentic feedback from our valued customers during their communication process.
Company Introduction
Henan Zhuowei New Energy Technology Co., Ltd. is a manufacturing factory that integrates design, research and development, production, and sales, focusing on producing new energy products for over 20 years. Its wall mounted lithium batteries, solar panels, stacked lithium batteries, bracket lithium batteries, forklift lithium batteries and other products have been sold to 65 countries and regions including the United States, Germany, Czech Republic, Netherlands, Philippines, Malaysia, Japan, Brazil, Dominican Republic, Colombia, South Africa, Kenya, Tanzania, etc.

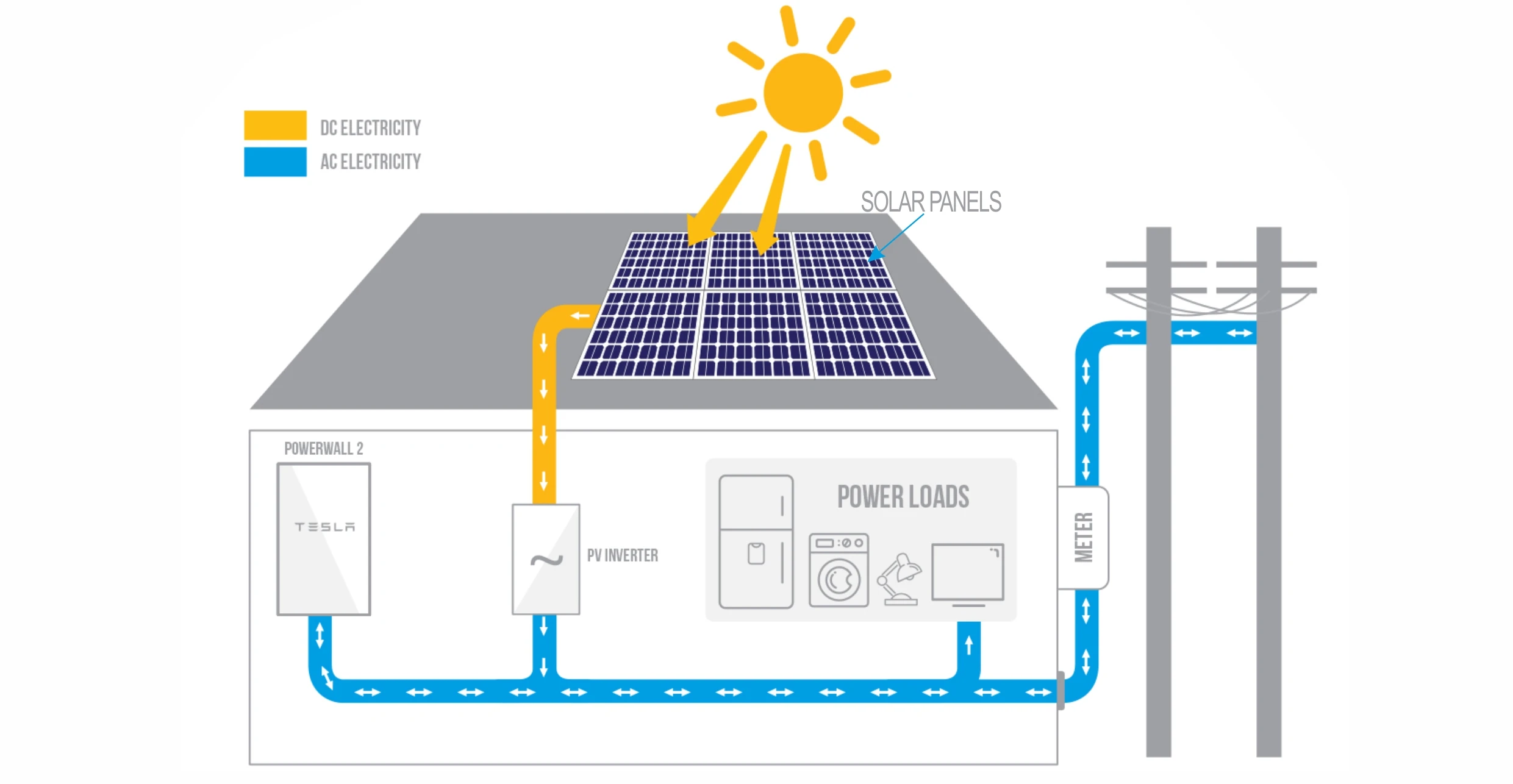

Application
Solar lithium batteries have high cost-effectiveness, energy conservation and environmental protection, and long cycle life. It can be used in multiple fields such as homes, companies, shops, industry, and new energy cycling.
Certificate
Packing &Transport
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples neeeds 10-15 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A.
1-Identify your needs requirements.
2-We will provide you with a quotation.
3-you confirms the samples and places a deposit for formal order.
4- We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. How about warranty?
A. 2 years warranty.
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples neeeds 10-15 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A.
1-Identify your needs requirements.
2-We will provide you with a quotation.
3-you confirms the samples and places a deposit for formal order.
4- We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. How about warranty?
A. 2 years warranty.
