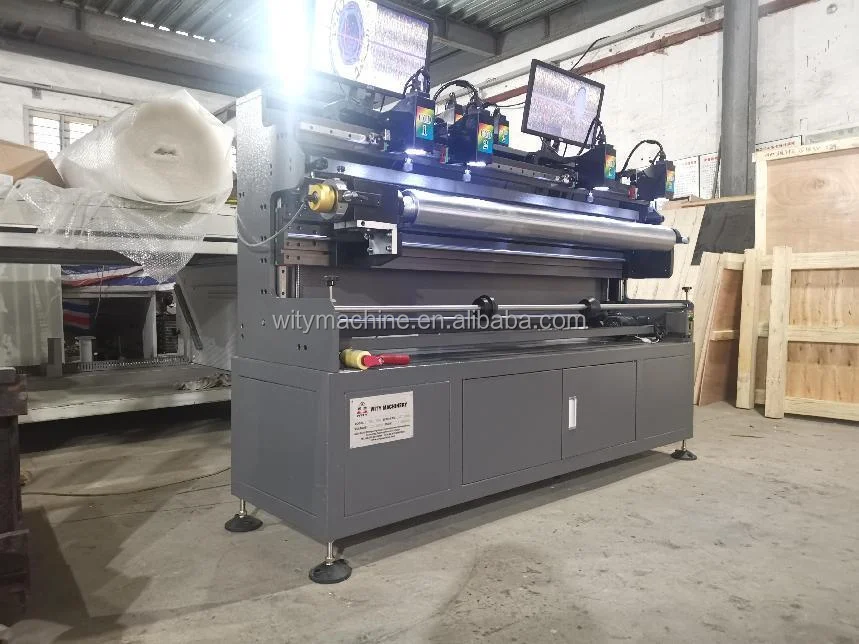

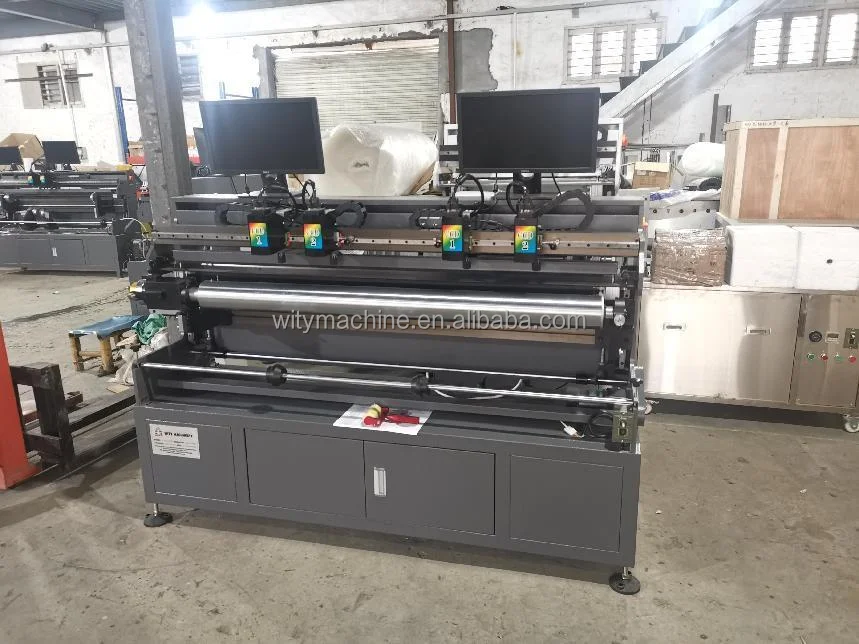

Sleeve type Flexo Plate Mounting Machine
- Category: >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (1601246896540):
Product Overview
Description
Product Description
a)This machine adopt high precision linear guide raids for horizontal positioning, the up and down position of camera is adjustable, use precision screw rod system

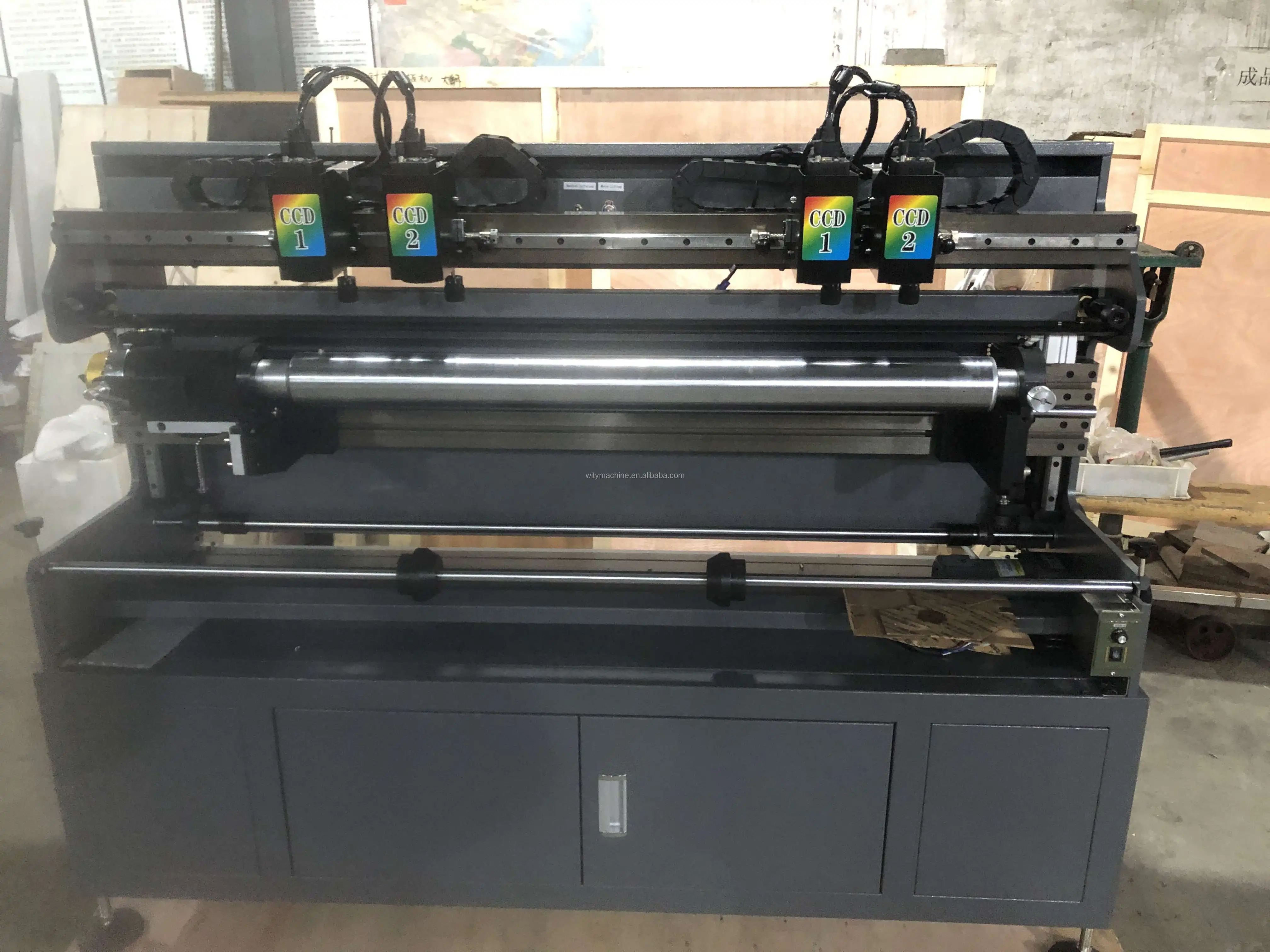

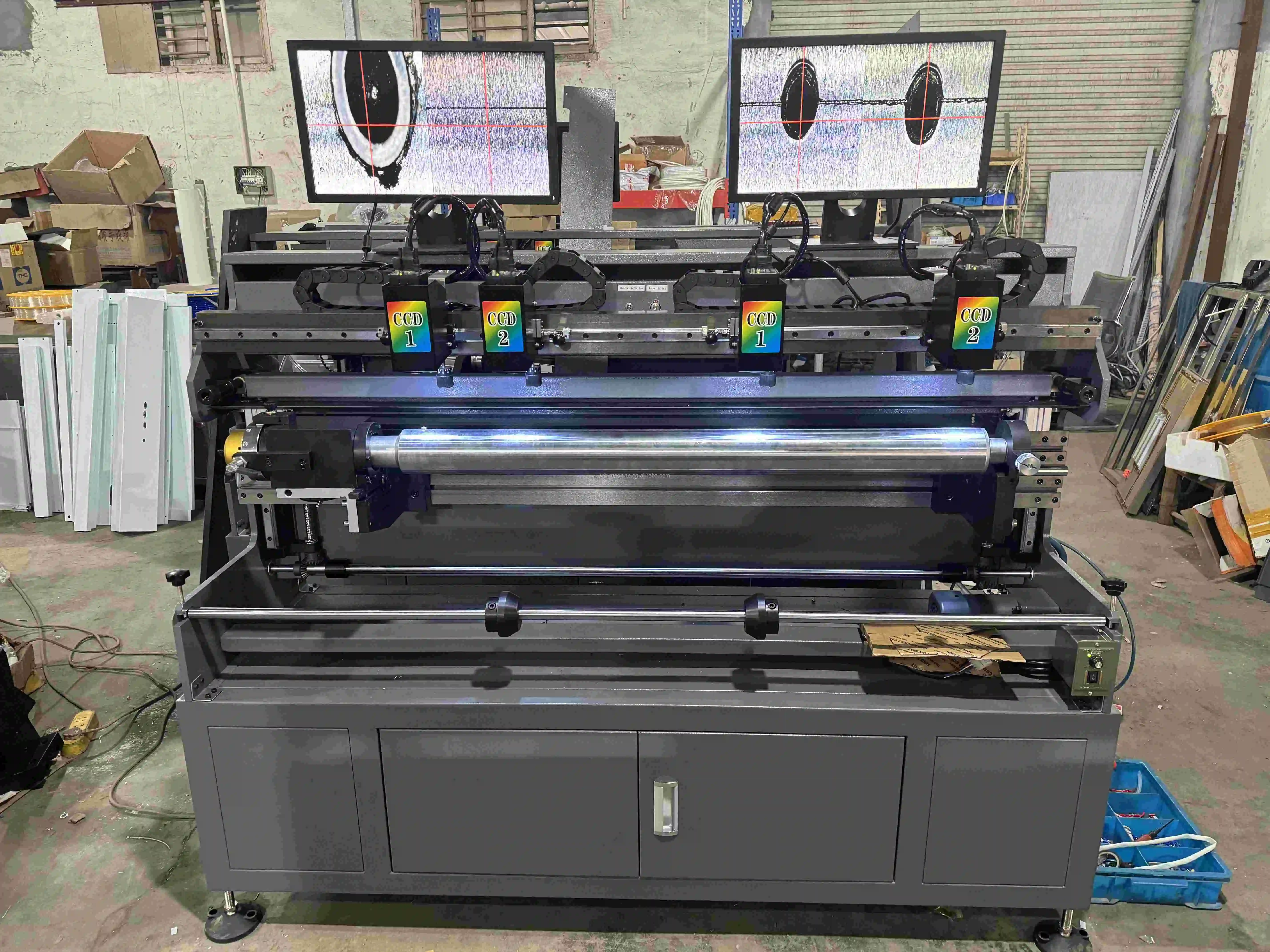

b)With magnify zoom lens, high definition CCD camera, and LCD dis-player
c)Can individually move the two camera, conveniently and accurate positioning the cross line.
d)The CCD camera can be adjusted in six direction, the parallelism is adjustable, high precision of plate mounting and registing.
e)The plate focus with micro-adjustment system, so that can accurate moving the plate and correct contrapose the datum line; after mounting, can check the precision directly and assure the plate mounting quality.
f)Pneumatic locking system, convenient loosen and tighten, fast plate mounting, easy operation, greatly improved the working efficiency.
g)Suitable for flexo plate and resin plate printing.
b)With magnify zoom lens, high definition CCD camera, and LCD dis-player
c)Can individually move the two camera, conveniently and accurate positioning the cross line.
d)The CCD camera can be adjusted in six direction, the parallelism is adjustable, high precision of plate mounting and registing.
e)The plate focus with micro-adjustment system, so that can accurate moving the plate and correct contrapose the datum line; after mounting, can check the precision directly and assure the plate mounting quality.
f)Pneumatic locking system, convenient loosen and tighten, fast plate mounting, easy operation, greatly improved the working efficiency.
g)Suitable for flexo plate and resin plate printing.
Specification
Model | TBJ-1200S | TBJ-1400S | TBJ-1600S |
Plate mounting width | 1220mm | 1400mm | 1600mm |
Plate cylinder diameter | ≦260mm | ≦260mm | ≦260mm |
Power | 0.5kw | 0.5kw | 0.5kw |
Voltage | 220V/1P | 220V/1P | 220V/1P |
Air supply | 3~4mpa | 3~4mpa | 3~4mpa |
