SKLN24x24 soybean meal wood pelelts feed pellets wind cooler

Product Overview

Description



SKLN24x24  soybean meal wood pelelts feed pellets wind cooler

Introduction:


1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;

2. Slide reciprocating discharger has smooth and reliable discharging, low residue;

3. Low power consumption, easily operation;

4. Pellet temperature after cooling is less than  +3°C~5°C ambient temperature;

5. It is suitable for pellet cooling.

Main Technical Parameters:



Model	SKLN 24×24
Power	1.5 kw
Capacity	20 t/h
Vibration frequency	25 times/min
Amplitude	30 mm
Cooling time	≤10 min
Sucking wind	36000 m³/h
Wind pressure	200 mmH2O
Outside size	3335×2636×4185mm
Weight	2430 kg



Related models:



Model	Power (kw)	Capacity(t/h)	Sucking wind(m³/h)	Vibration frequency
SKLN 11×11	0.75	2.5	4500	42 times/min
SKLN 14×14	0.75	5	9000	42 times/min
SKLN 16×16	0.75	7.5	13500	34 times/min
SKLN 19×19	1.1	10	18000	34 times/min
SKLN 22×22	1.5	17	36000	25 times/min
SKLN 24×24	1.5	20	36000	25 times/min

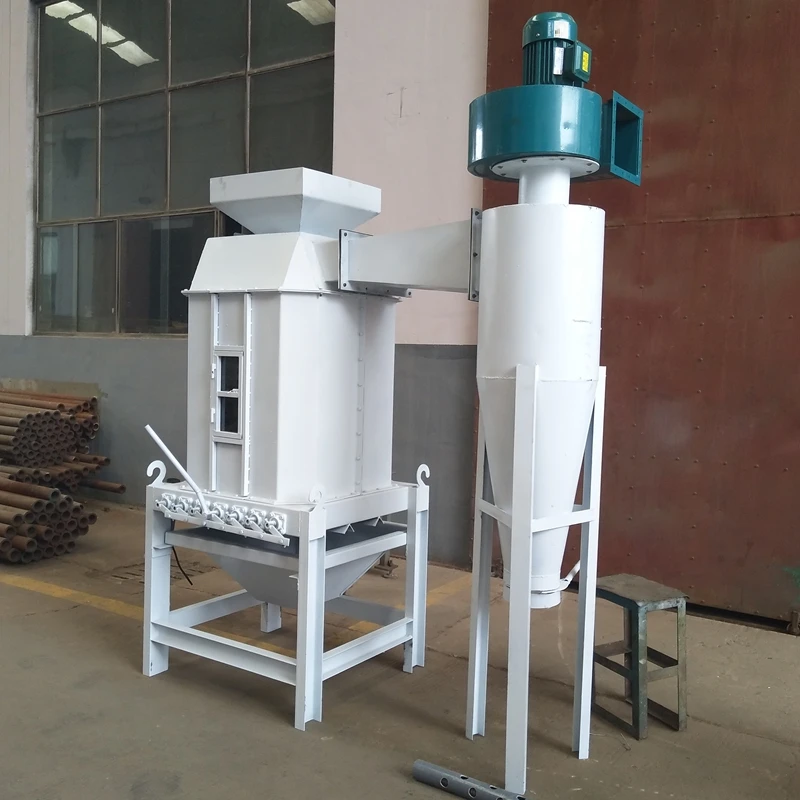

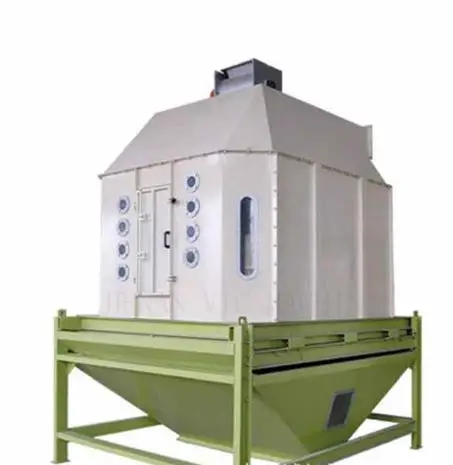

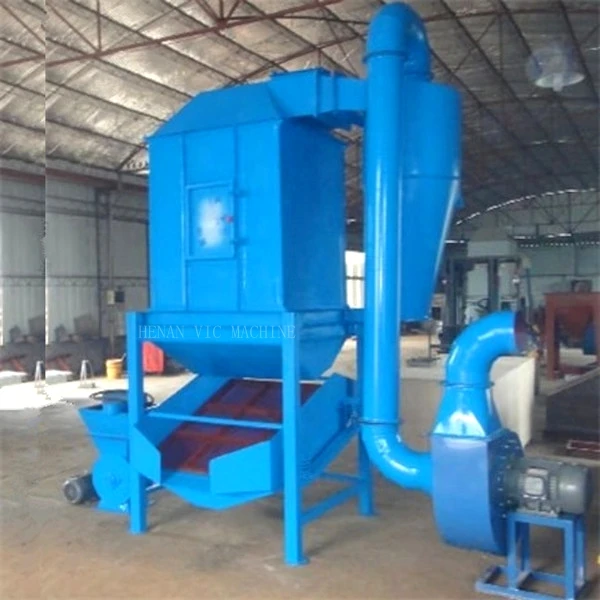

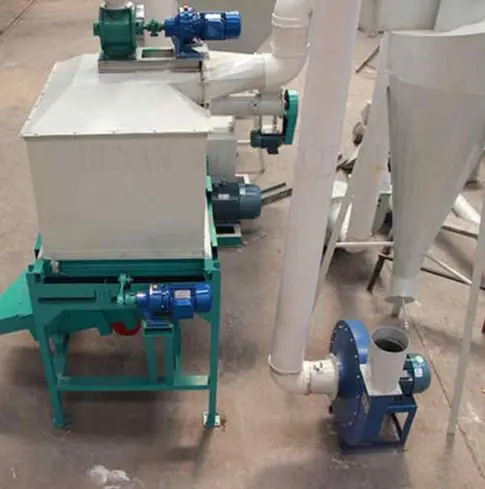

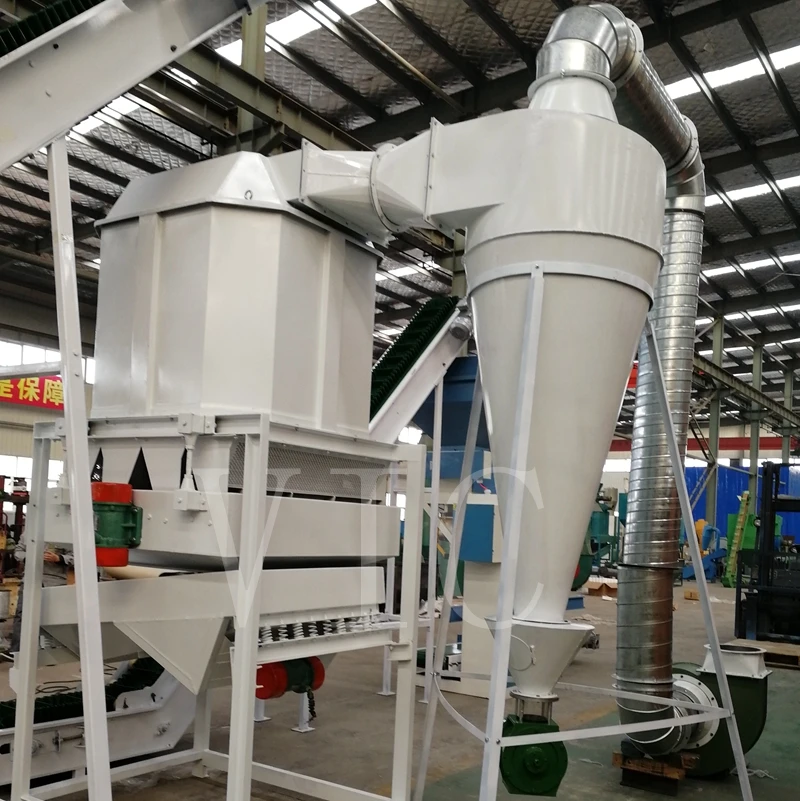

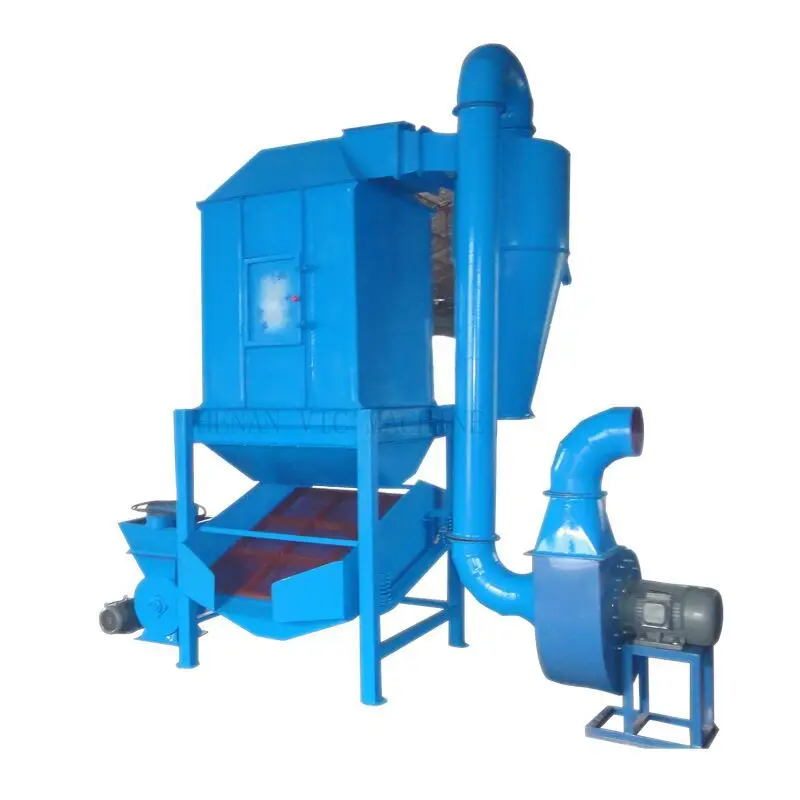

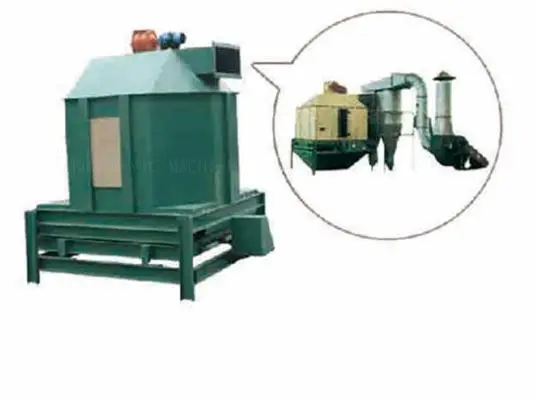

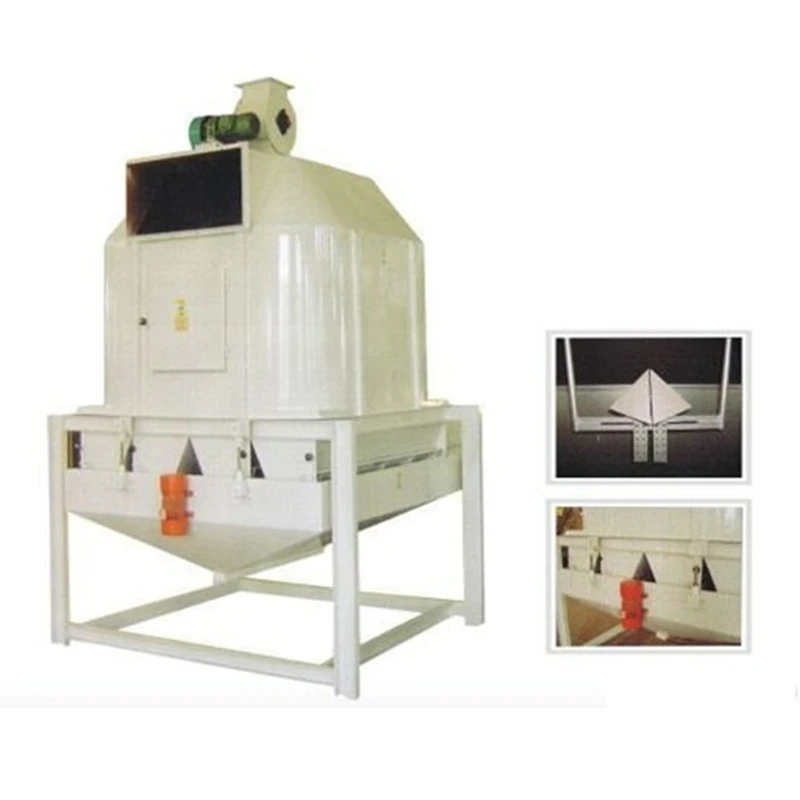

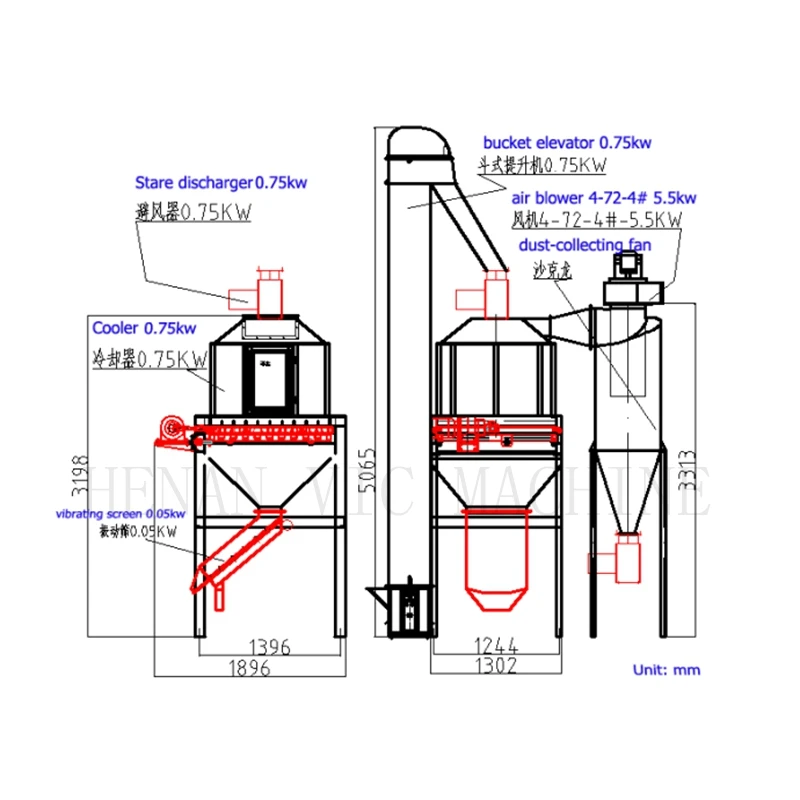

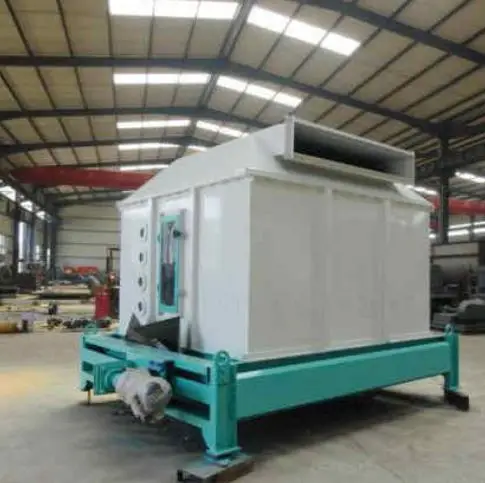

Pictures:











Package

Model:	SKLN 24×24
Packing material:	Wooden box
Packing Dimension:	3335×2636×4185mm
Gross Weight:	2430kg
20' Container:	---
40' Container:	2 Sets

Shipping:

By sea.







Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
