Resistance tinplate galvanized sheet tin drum pail barrel can side copper wire electrode straight seam welding machine
- Category: >>>
- Supplier: Jinan Scnc Machinery Co. Ltd.Jinan Ltd.
Share on (1601247119057):
Product Overview
Description
Product Overview

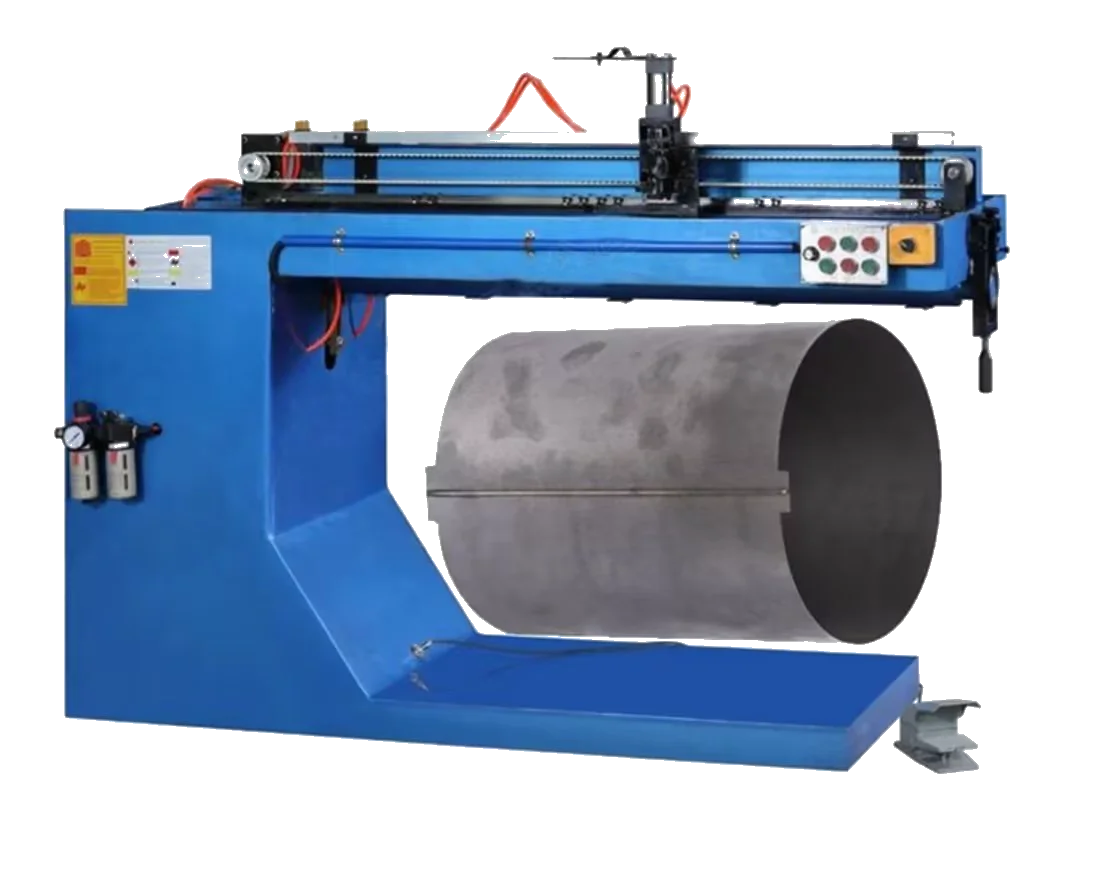

Straight seam automatic welding machine
Supercnc automatic longitudinal seam welding machine is widely used for all kinds of horizon and pipe straight seam welding,it match all kinds of welding source like tig welding, mig welding ,fiber laser welding.Machine equips with air cylinder fixing equipment,can fix the workpiece well for perfect welding.
Supercnc also provide professional welding solutions ,such as the welding column and boom / manipulator, welding rotator,welding positioner and laser welding machine,widely used for the circular / longitudinal seam welding tank.
Supercnc also provide professional welding solutions ,such as the welding column and boom / manipulator, welding rotator,welding positioner and laser welding machine,widely used for the circular / longitudinal seam welding tank.

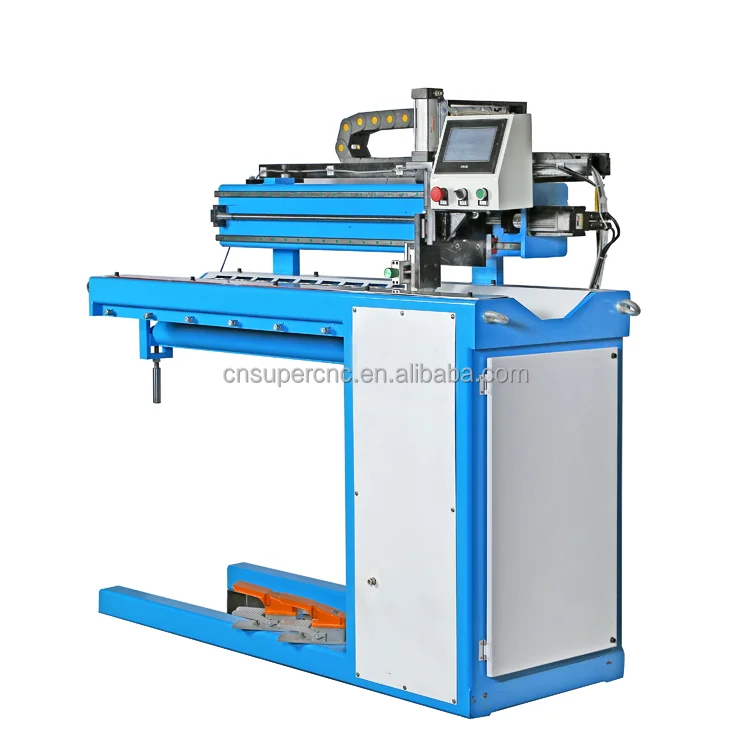

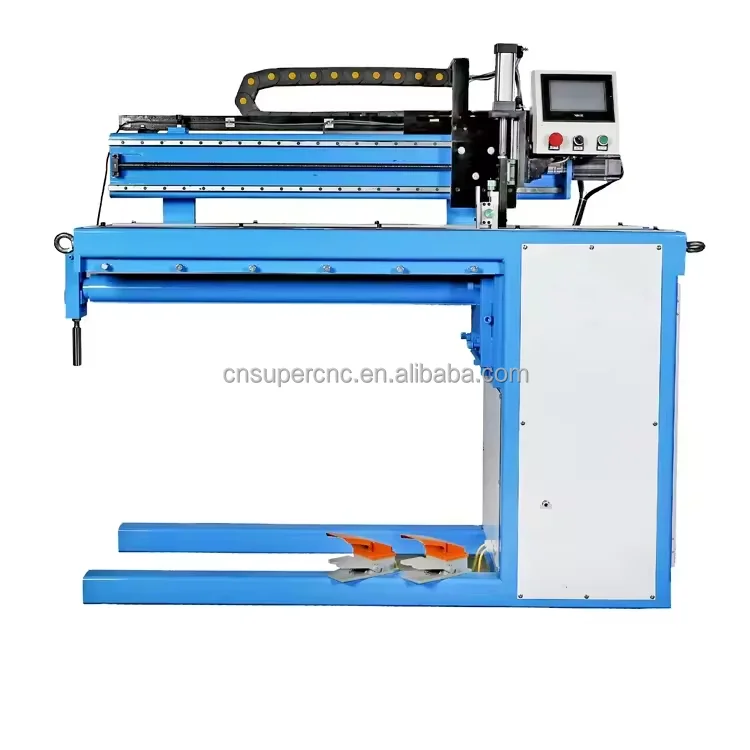

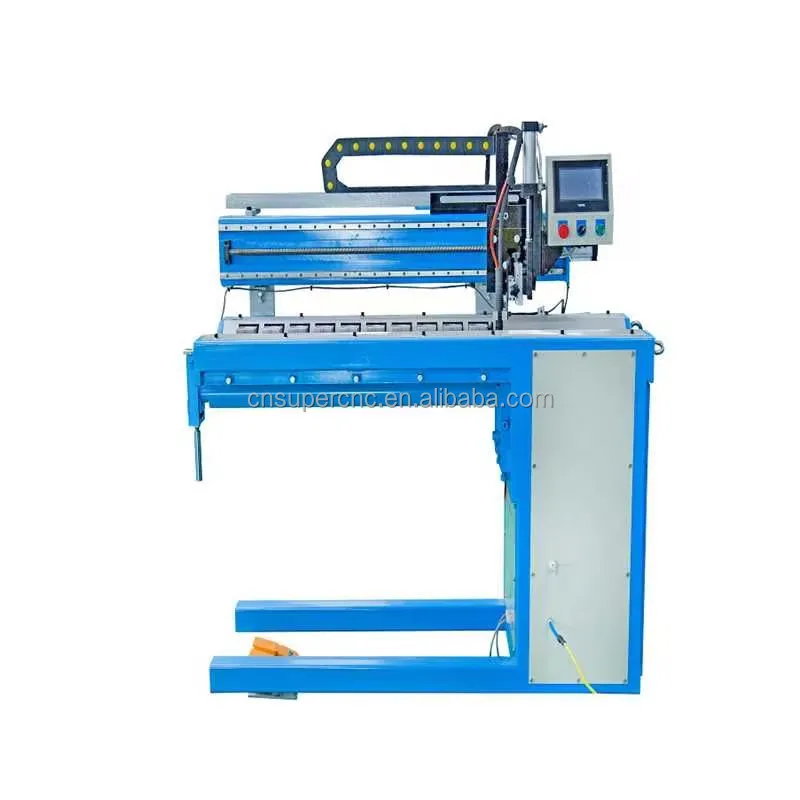

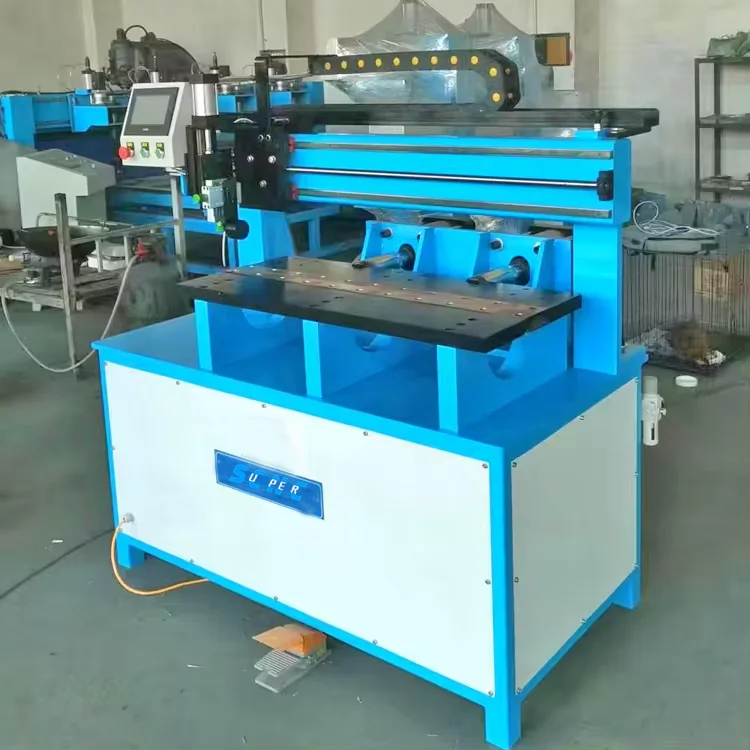

Straight Seam Welding machine
Supercnc Straight Seam Welding Machine,machine equips with touch screen controller,air cylinder press fixture,can process vertical straight seam welding with horizon
workpiece and pipe workpiece,working size support customization,support MIG/MAG/TIG and laser welding source welding.
workpiece and pipe workpiece,working size support customization,support MIG/MAG/TIG and laser welding source welding.

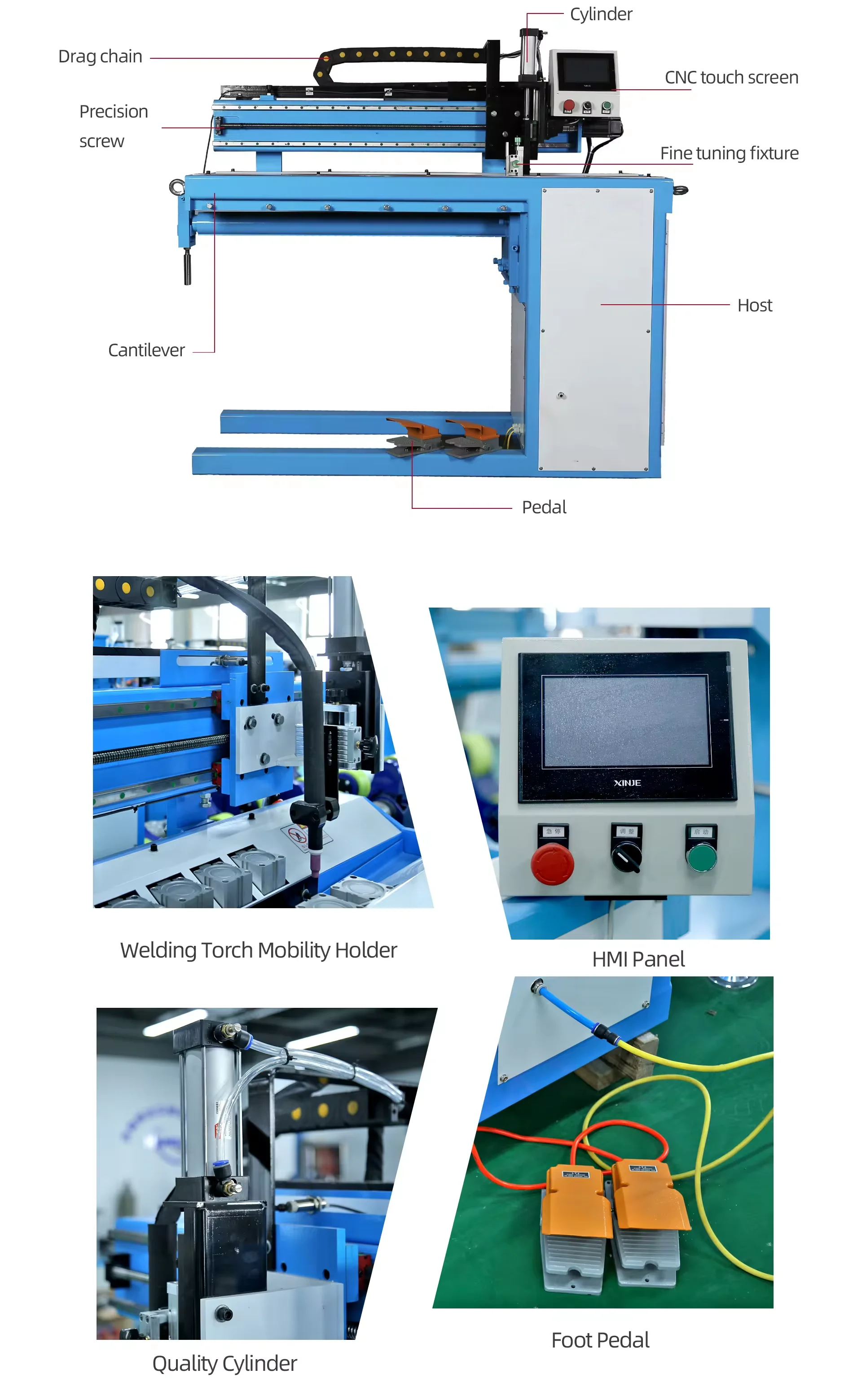

Mainly structure with cantilever structure,it is easy for workpiece loading and unloading.
Pneumatic key-type clamp fixture to ensure uniform clamping of the joint over the entire welding length,single and double side welding is available.
Flat plate joint,circular cylinder inner and outer ,square cylinder joints welding is available
PRODUCT SPECIFICATIONS
MODEL | SC-500 | SC-600 | SC-800 | SC-1200 | SC-1600 | SC-2000 |
Welding length | 500mm | 600mm | 800mm | 1200mm | 1600mm | 2000mm |
Workpiece thickness | 0.3-5mm | 0.3-5mm | 0.3-5mm | 0.4-5mm | 0.4-5mm | 0.4-5mm |
Min Pipe Workpiece diameter | 100mm | 100mm | 120mm | 150mm | 200mm | 220mm |
Welding line speed | 600-1500mm/min | 600-1500mm/min | 600-1500mm/min | 600-1500mm/min | 600-1500mm/min | 600-1500mm/min |
Voltage | 220V single phase | 220V single phase | 220V single phase | 220V single phase | 220V single phase | 220V single phase |
Machine diamension | 900X520X1200mm | 1100x520X1250mm | 1300X520X1250mm | 1800X600X1350mm | 2600x1000x1750mm | 3000x1000x1800mm |
Welding source option | MIG/MAG/TIG/Fiber laser source for option | 4MIG/MAG/TIG/Fiber laser source for option | MIG/MAG/TIG/Fiber laser source for option | MIG/MAG/TIG/Fiber laser source for option | MIG/MAG/TIG/Fiber laser source for option | MIG/MAG/TIG/Fiber laser source for option |

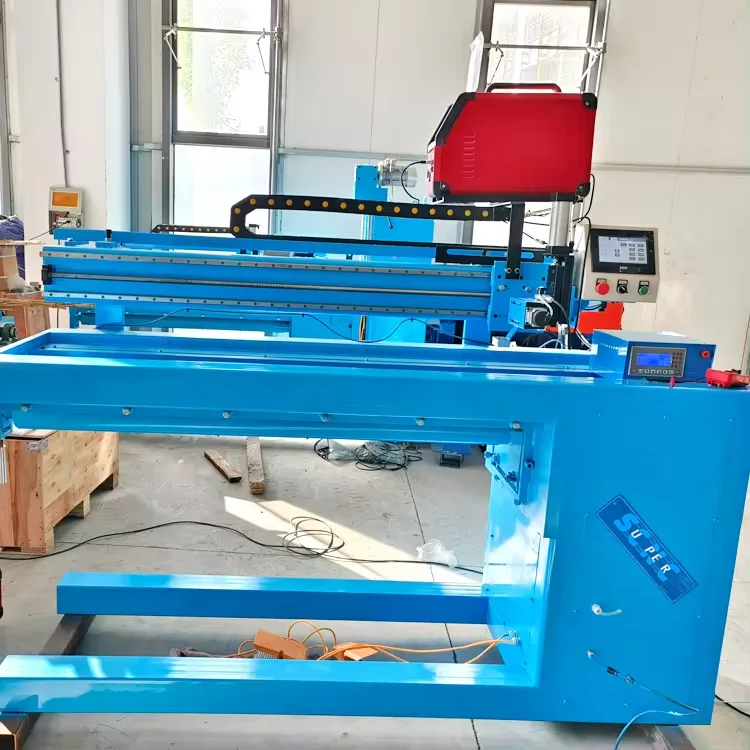

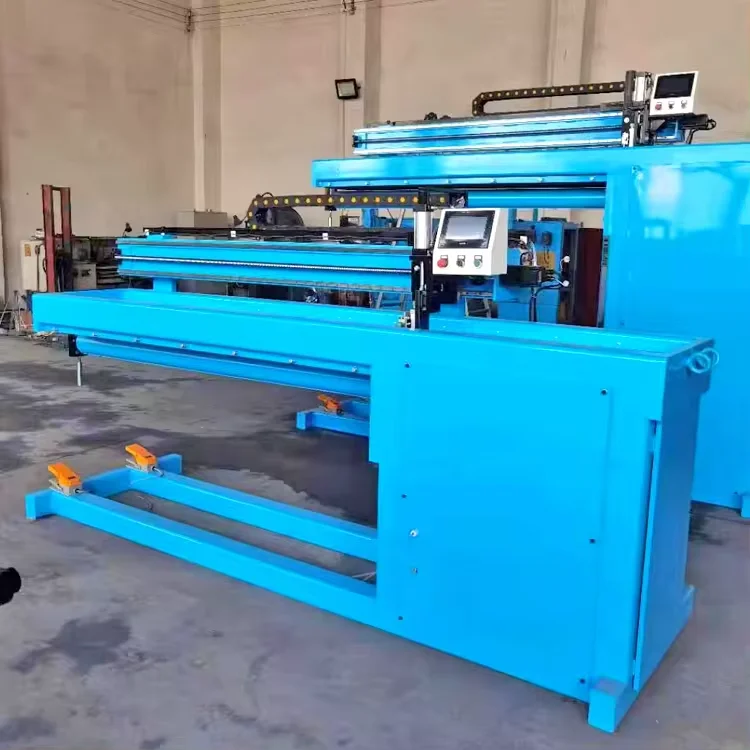

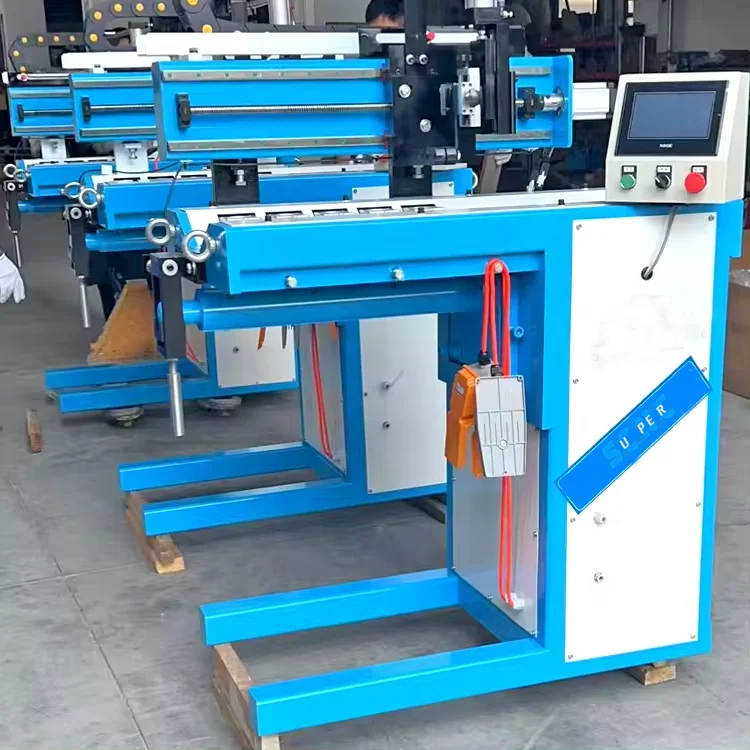

Product Display
Certifications

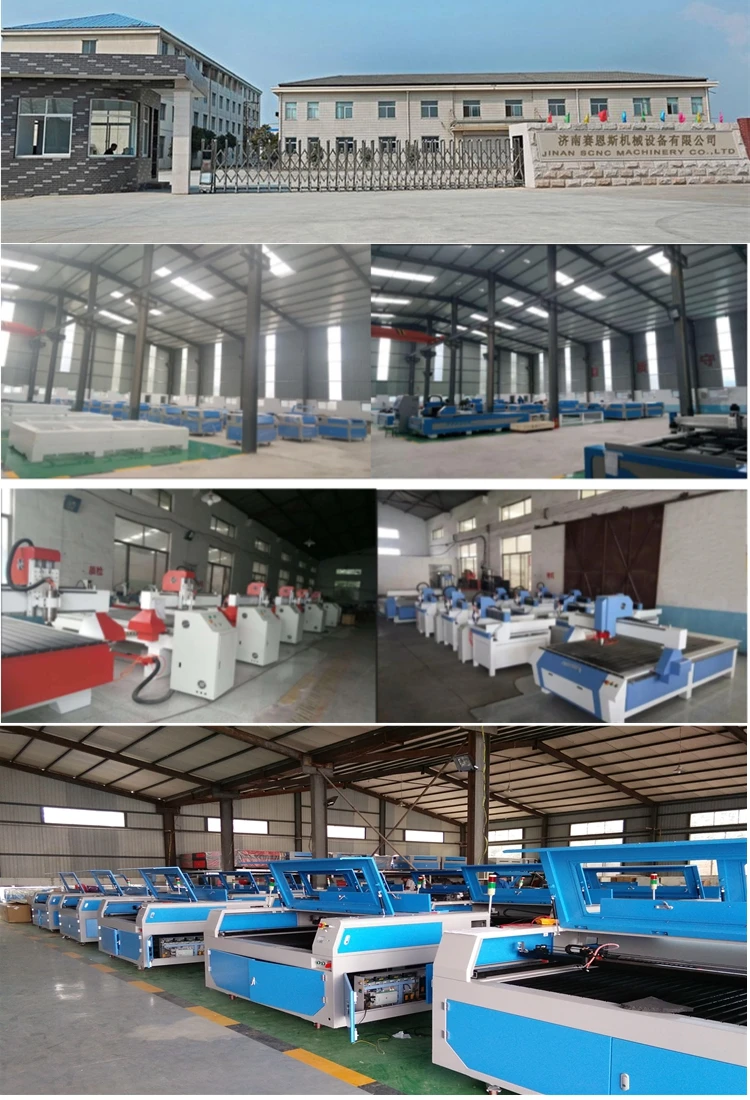

Company Profile
CHINA SCNC Machinery Equipment Co., Ltd(Super CNC). is located in Jinan Shandong Province. Specialized in CNC machines for more than 15years. Our main products are: various CNC machining centers / woodworking CNC Router machine / Fiber metal cutting machine/CO2 laser engraving and cutting machine / CNC plasma cutting machine / laser marking machine and all kinds of welding solusion supplying etc , As a factory ,we can design the machine such as shape,color,equipments according to your needs,doing OEM is also welcome.
FAQ
Q1: How can I get the training after I order the machine?
A1:
A)Machine manual and operation CD will be supplied with you for each machine
B)We have processional engineer team to supply 24 hours service online
C)Engineer available to service machine oversea
D)Welcome come to our factory to get training in any time
Q2::Do you arrange shipment for the machine?
A2:Under CFR or CIF terms, we are responsible for shipping from China port to the destination port. Under FOB/EXW terms, clients shall arrange shipment by themselves or their agent.
Q3:How is the packing?
A3:Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Q4:Are you a factory or trading company?
A4:We are professional manufacturer specialized in all kinds of cnc laser and welding machine with 15 years production experience.
Q5:Where is your factory located? How can I visit there?
A5:Our factory is located in Jinan City, Shandong Province. It will take 20 mins from jinan international airport; 2 hours from Beijing, 4 hours from Shanghai.
Q6,Can you do OEM?
A6: Yes, we can do OEM products. It's no problem.
Q7,How can I get some samples?
A7:We can make samples as per your detailed requirements or own design.You can arrange a RPI (remote pick-up) service upon Fedex,UPS,DHL, TNT, etc. to have the samples collected; or inform us your DHL consignee account No.
Q8: I never use this kind of machine before, is it easy to learn?
A8:User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or whatsapp.Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
Q9: How could I know if this machine is suitable for me?
A9:Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed
requirements,our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
A)Machine manual and operation CD will be supplied with you for each machine
B)We have processional engineer team to supply 24 hours service online
C)Engineer available to service machine oversea
D)Welcome come to our factory to get training in any time
Q2::Do you arrange shipment for the machine?
A2:Under CFR or CIF terms, we are responsible for shipping from China port to the destination port. Under FOB/EXW terms, clients shall arrange shipment by themselves or their agent.
Q3:How is the packing?
A3:Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Q4:Are you a factory or trading company?
A4:We are professional manufacturer specialized in all kinds of cnc laser and welding machine with 15 years production experience.
Q5:Where is your factory located? How can I visit there?
A5:Our factory is located in Jinan City, Shandong Province. It will take 20 mins from jinan international airport; 2 hours from Beijing, 4 hours from Shanghai.
Q6,Can you do OEM?
A6: Yes, we can do OEM products. It's no problem.
Q7,How can I get some samples?
A7:We can make samples as per your detailed requirements or own design.You can arrange a RPI (remote pick-up) service upon Fedex,UPS,DHL, TNT, etc. to have the samples collected; or inform us your DHL consignee account No.
Q8: I never use this kind of machine before, is it easy to learn?
A8:User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or whatsapp.Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
Q9: How could I know if this machine is suitable for me?
A9:Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed
requirements,our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
