Product Description

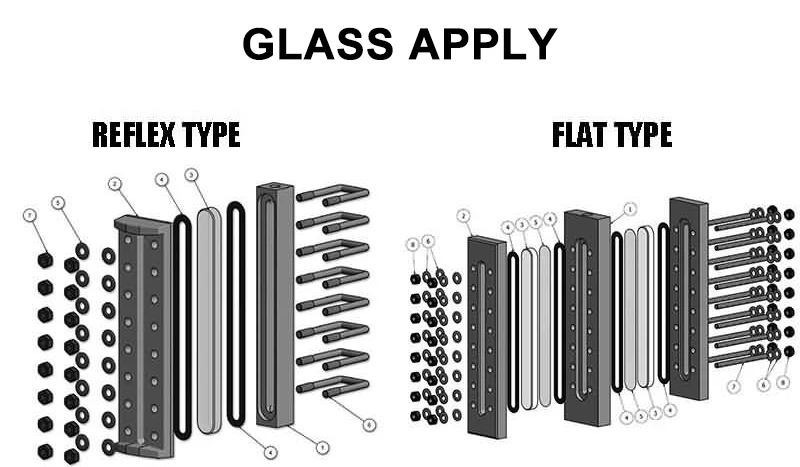

Water boiler glass level gauge TYPE A WITH GASKETS Reflex\tsight glass level gauge boiler

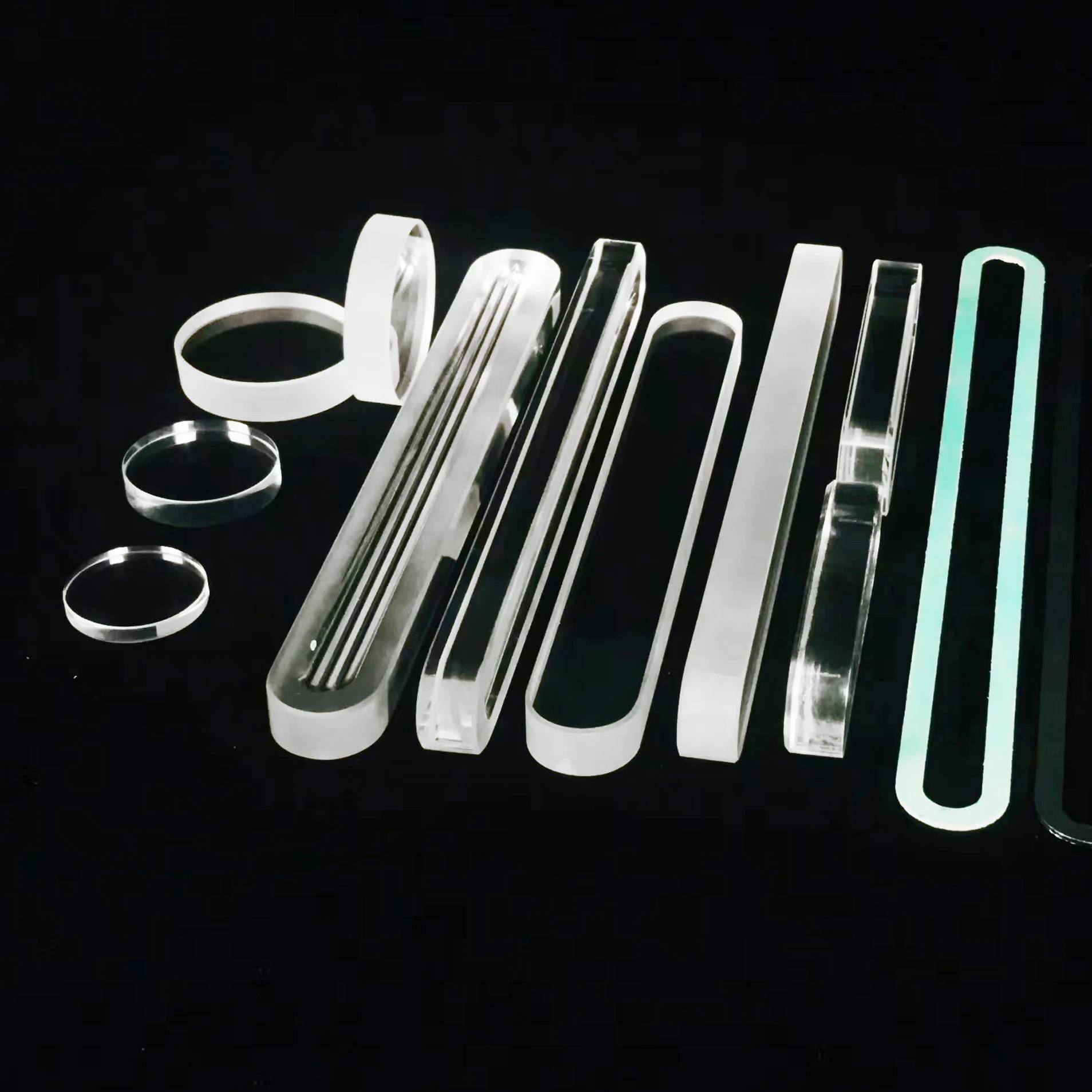

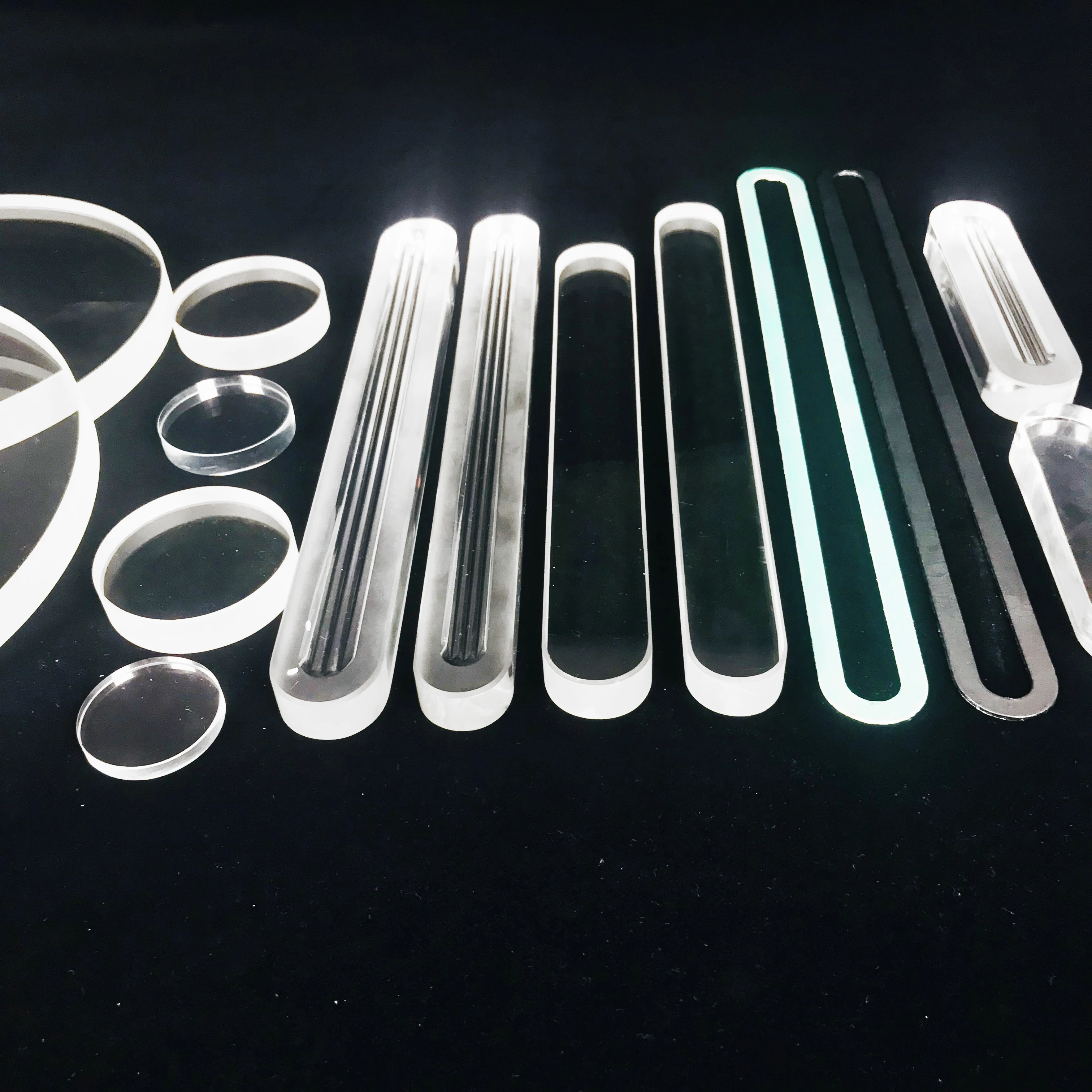

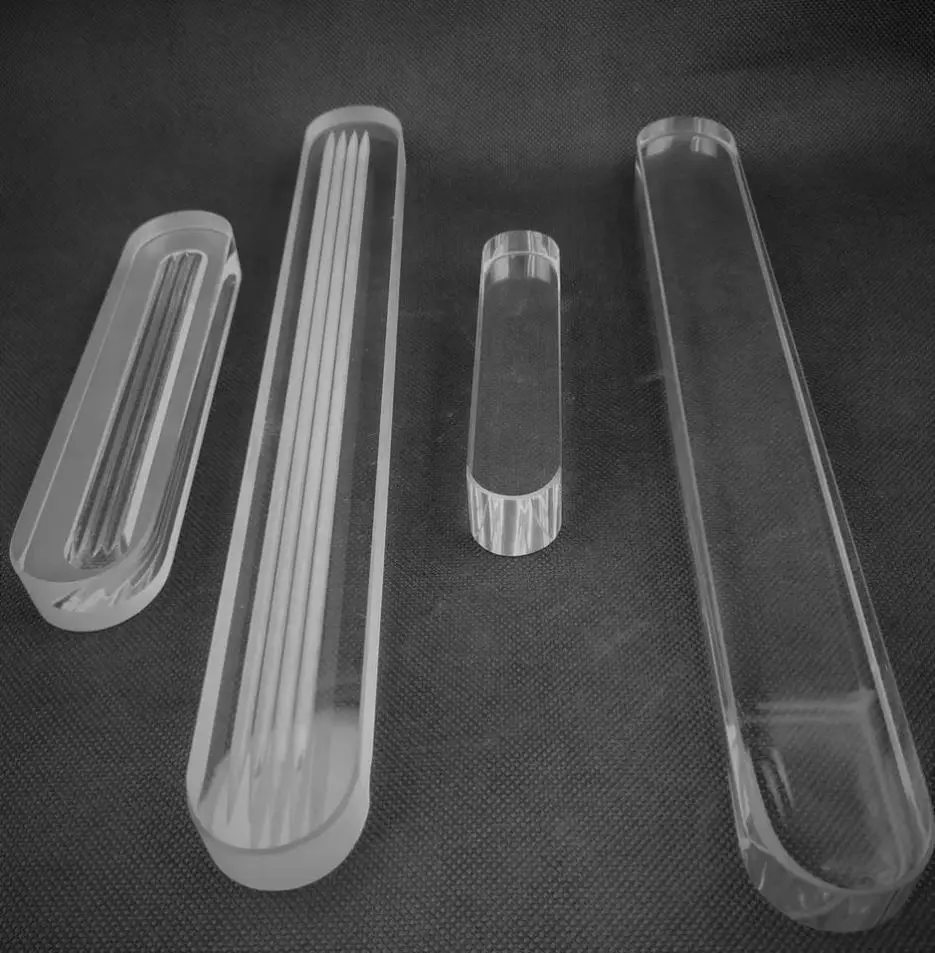

Reflex level gauge glass

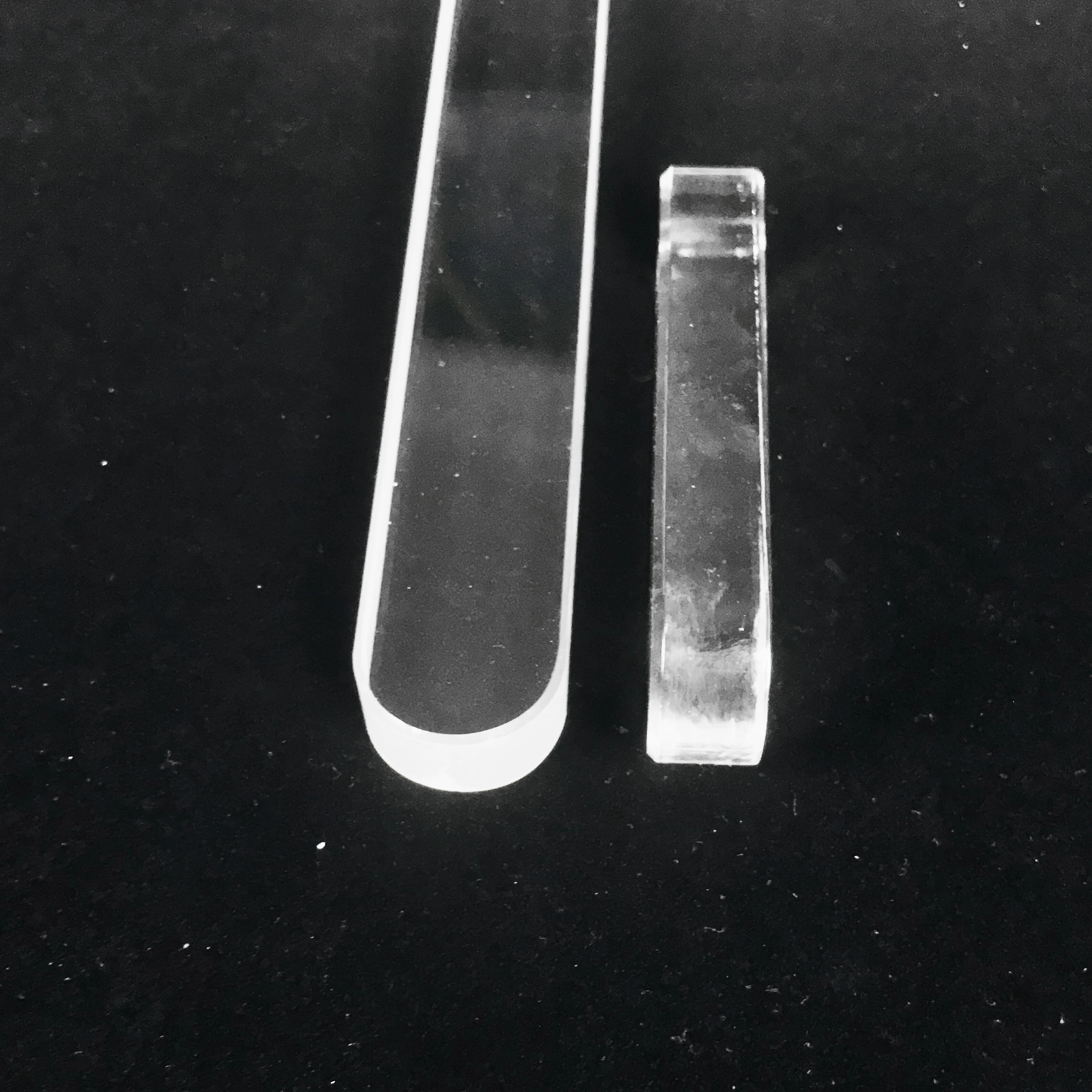

Transparent level gauge glass

Reflex /Flat type glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

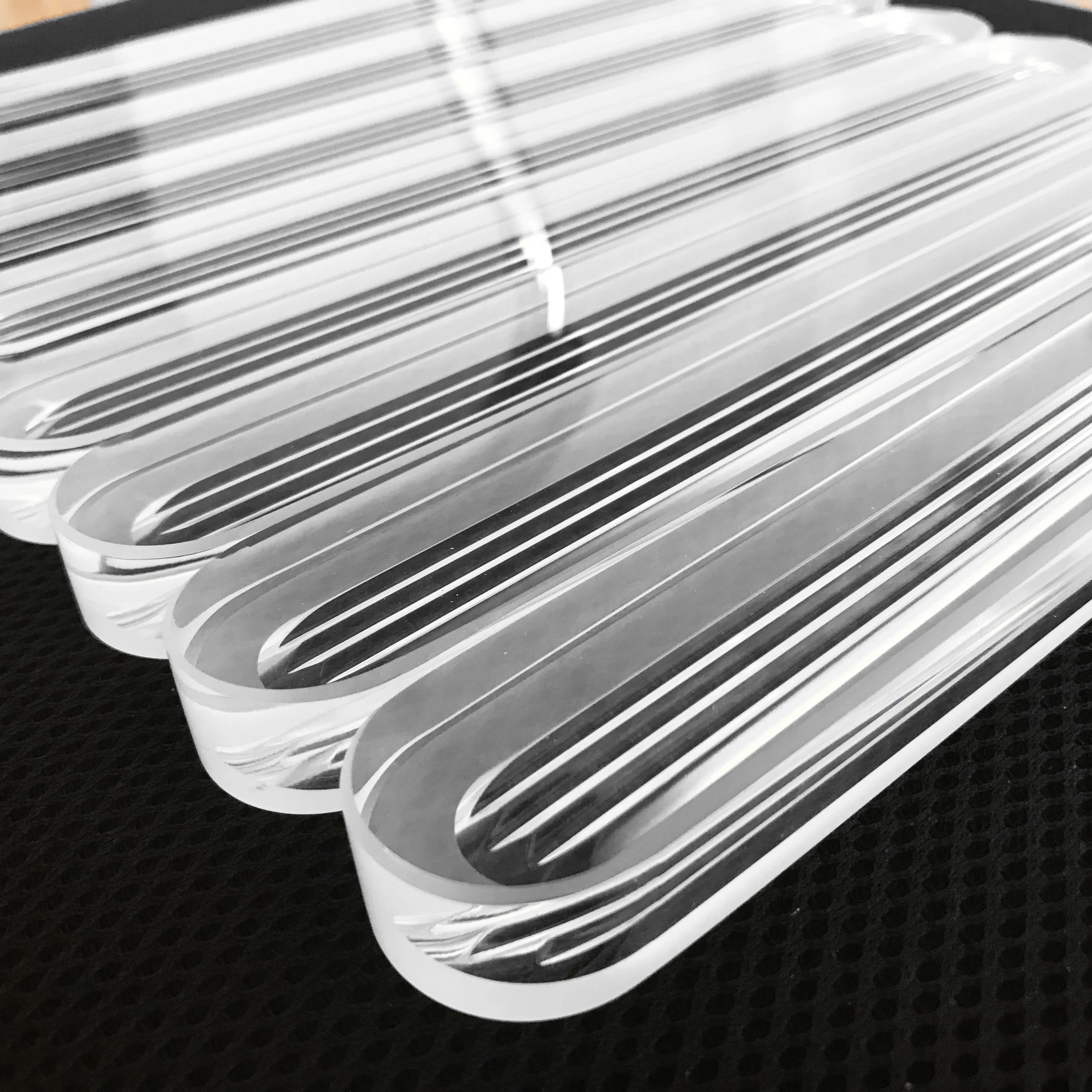

The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes it extremely resistant to the attack of boiler water.
It is used on observe level gauge of boiler for water position.
Reflex level gauge glass is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.
Flat level gauge glass is also named : Flat Gauge glass , Transparent level gauge glass, Flat Sight glasses , Transparent sight glass .





Product Name
Gauge Glass, Reflex Gauge Glass, Sight glass, level Gauge glass
Material
Aluminosilicate glass, Borosilicate glass
Color
Transparent, Red, Green
Density
2.62-2.67g/cm3
Transmissivity
91.8%(8mm),91.9%(1mm)
Hardness
>7
Tensile strength
4.8x107pa(N/M2)
Compressive strength
(0-300) 3.3±0.1×10-6K-1
Poisson's ratio
0.18
Coefficient of thermal expansion
(0-300) 4±0.1×10-6K-1
Thermal conductivity
1.2W·m-1·k-1
Softening point
820±10°C
Annealing point
560°C
Strain point
516±10°C
Electrical resistivity
>1018 Ωm
Dielectric constant
4.6 1 MHz, 25
Size
Width: 25-35 mm.
Length: 70-400 mm.
Thickness: 15-25 mm.
Advantage
1. More than 15 years experiences on glass manufacturing and exporting
2.Top quality glass with CE certificate, exporting to more 60 countries in the world
3.Unique designed strong wooden cases , solving the problem of breakage
4.Professional sales team, Personalized and focused service available 24 hours.




Dimensions of Reflex Gauge Glass (mm)

Size
TYPE A
TYPE B
TYPE H
L
W
H
L
W
H
L
W
H
HSSRX-0
95
30
17
95
34
17
-
-
-
HSSRX-1
115
30
17
115
34
17
115
34
22
HSSRX-2
140
30
17
140
34
17
140
34
22
HSSRX-3
165
30
17
165
34
17
165
34
22
HSSRX-4
190
30
17
190
34
17
190
34
22
HSSRX-5
220
30
17
220
34
17
220
34
22
HSSRX-6
250
30
17
250
34
17
250
34
22
HSSRX-7
280
30
17
280
34
17
280
34
22
HSSRX-8
320
30
17
320
34
17
320
34
22
HSSRX-9
340
30
17
340
34
17
340
34
22
HSSRX-10
370
30-
17
370
34
17
370
34
22
HSSRX-11
400
30
17
400
37
17
400
34
22
