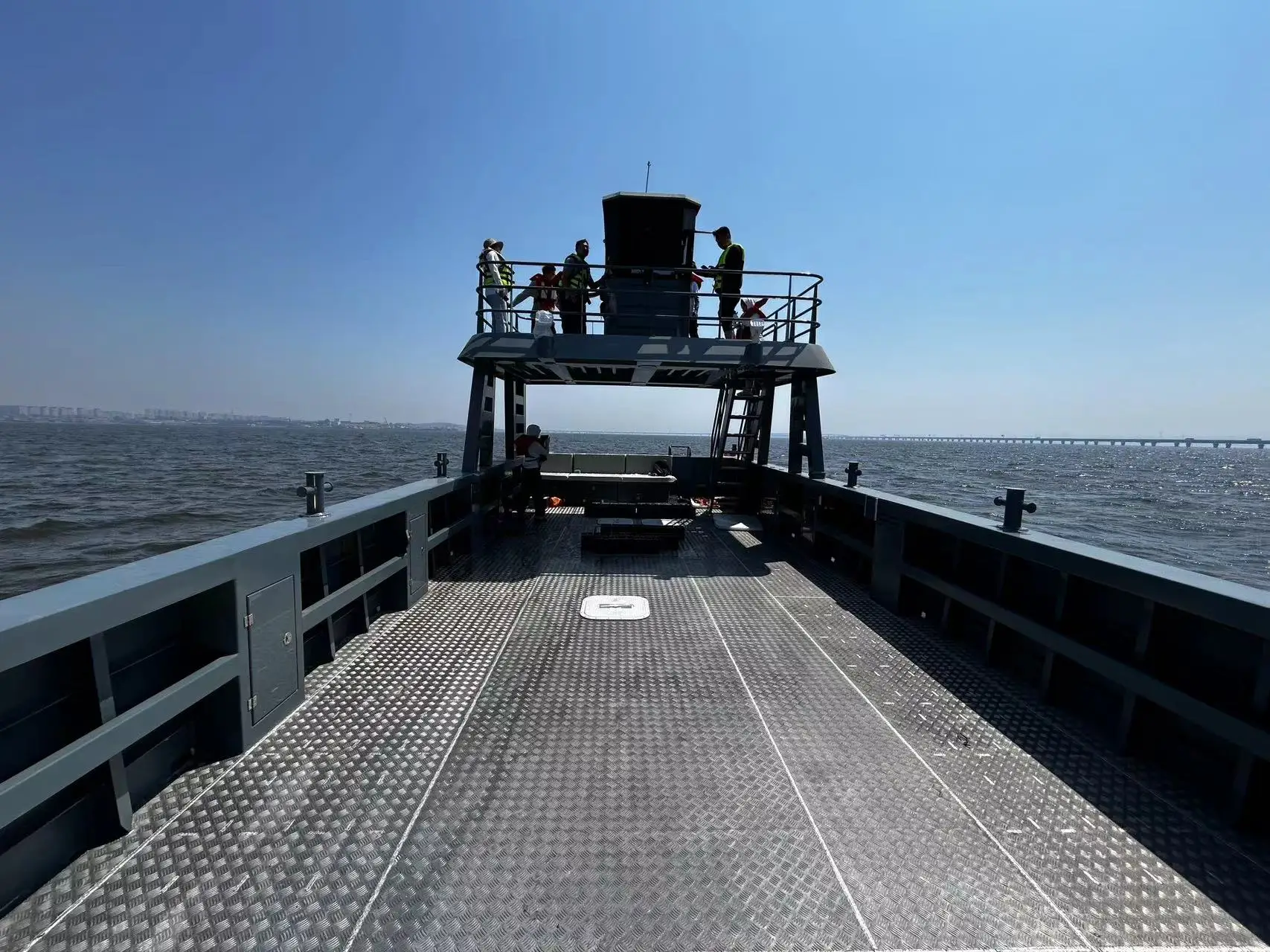

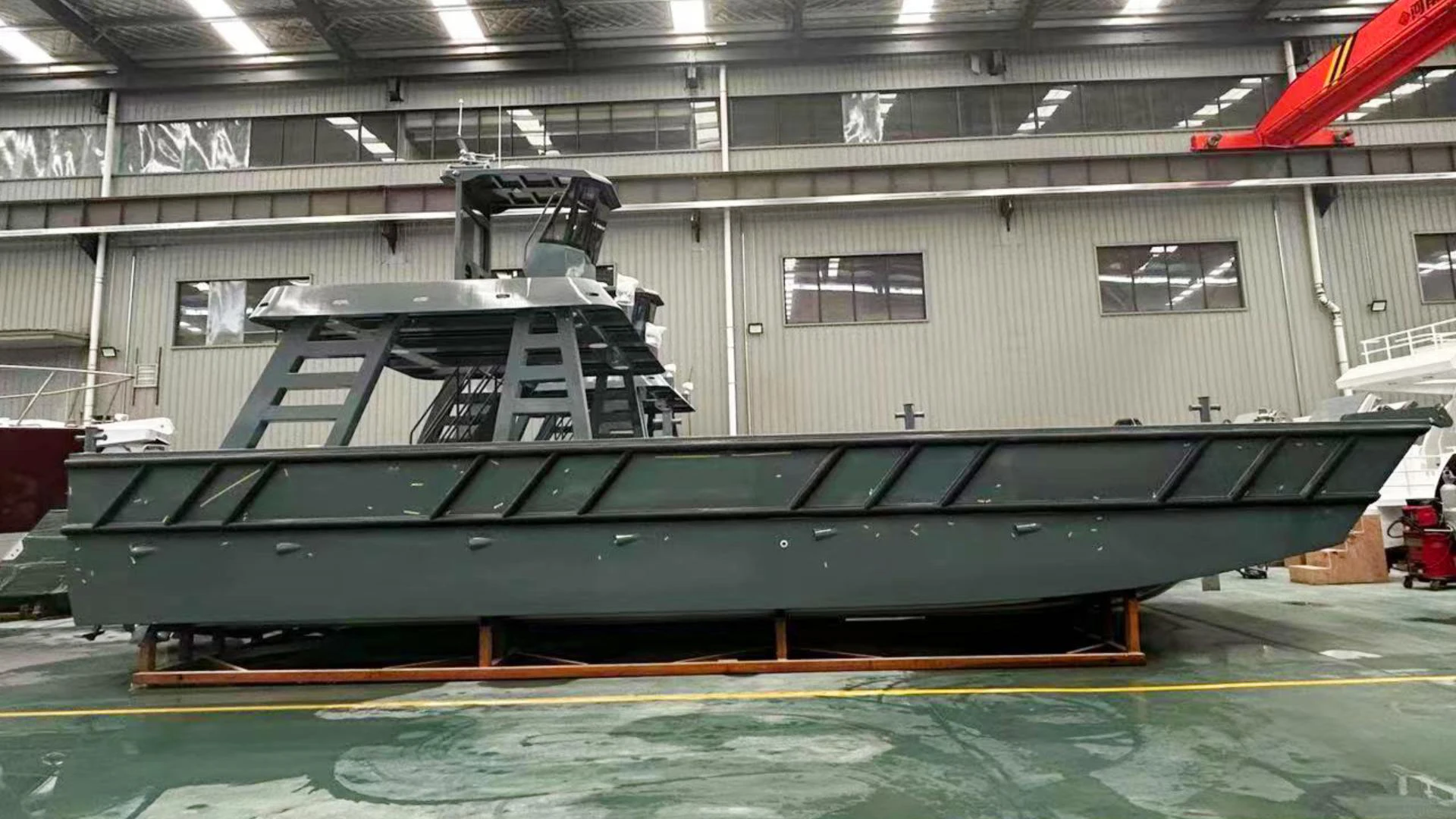

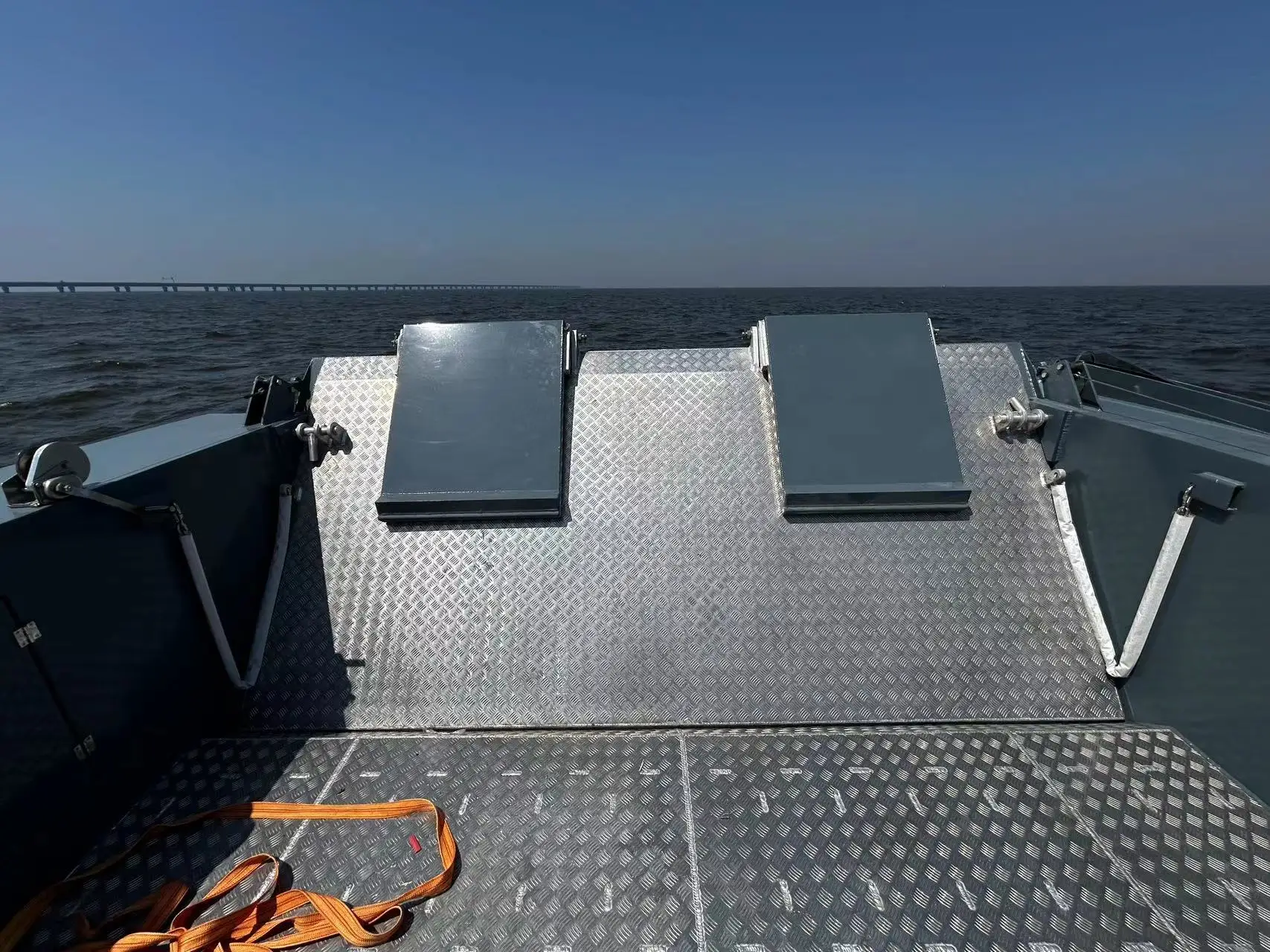

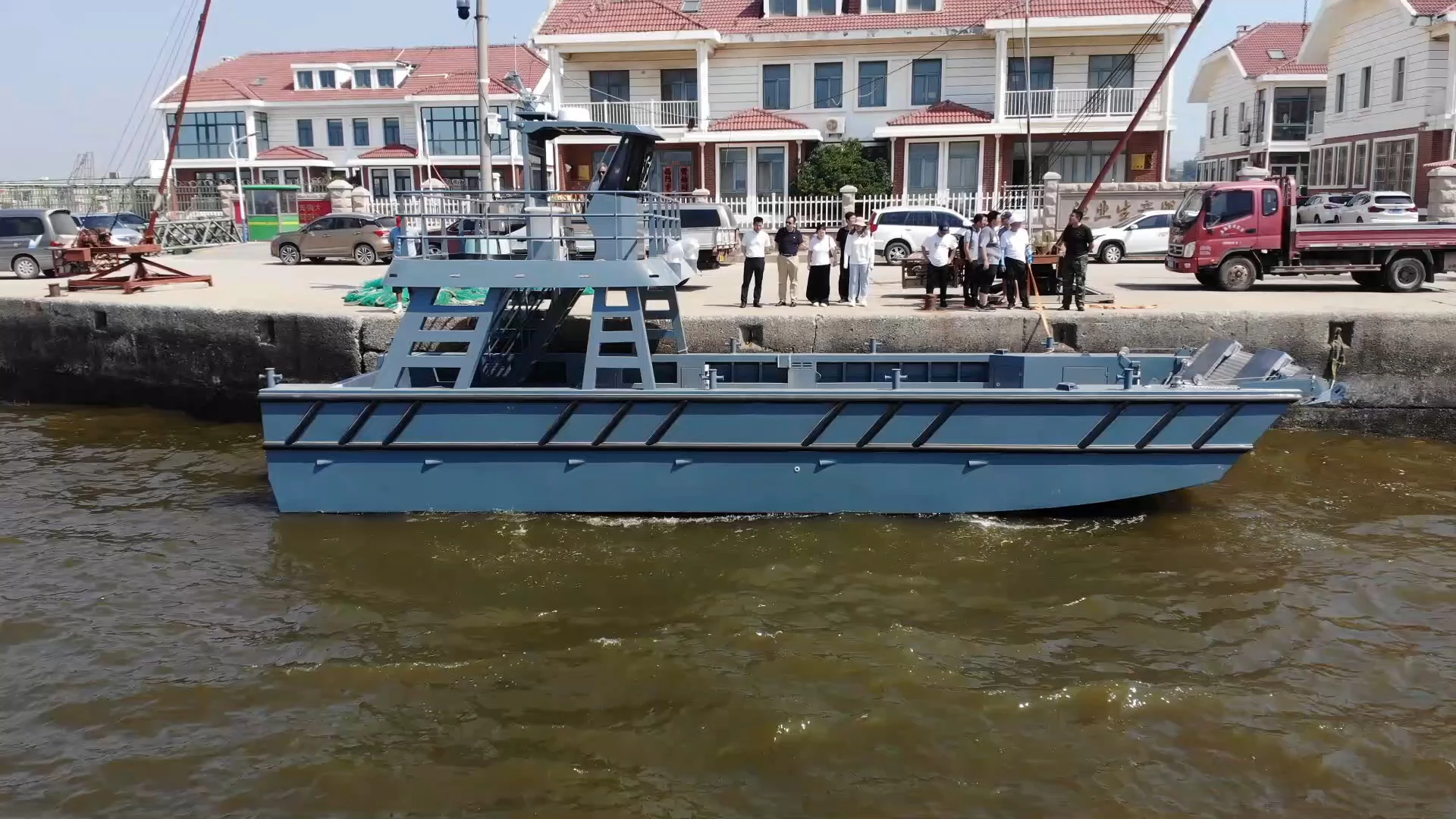

14x5m Landing Craft Double Deck Cockpit working boat Barge for sale
- Category: >>>
- Supplier: Shandong Seaking Boat Technology Co. Ltd.Shandong Ltd.
Share on (1601247306809):
Product Overview
Description
Production Description
Features:
This 14m landing craft is designed to maximize cargo efficiency with an 8-ton capacity and a separate bathroom on the lower deck.
Its upper-level cockpit provides a clear vantage point for superior control, while the spacious lower deck accommodates heavy loads with ease. Thoughtfully built to balance comfort and practicality, this craft is ideal for demanding marine transportation.
Its upper-level cockpit provides a clear vantage point for superior control, while the spacious lower deck accommodates heavy loads with ease. Thoughtfully built to balance comfort and practicality, this craft is ideal for demanding marine transportation.
1) China CCS certificate Marine aluminum 5083-H116 plate for boat hull
2) 6mm thickness bottom and 5mm sides , 12mm hull main ribs
3) Leakage testing for twice to ensure the boat hull is safe.
4)Strong hull ribs and transom make sure good performance on rough sea .
5) Self drain deck holes and high gunnel for safety .
2) 6mm thickness bottom and 5mm sides , 12mm hull main ribs
3) Leakage testing for twice to ensure the boat hull is safe.
4)Strong hull ribs and transom make sure good performance on rough sea .
5) Self drain deck holes and high gunnel for safety .
SPECIFICATIONS | （产品型号） |
Length of the Hull(m) | 14m |
Beam (m) | 5m |
Depth(m) | 1.69m |
Draught(m) | 0.31m |
Bottom side(mm) | 6mm |
Top side(mm) | 5mm |
Transom (mm) | 6mm |
Transom shaft | 25" |
Recommend horse power | 3x200hp |
Load capacity | 12000kg |

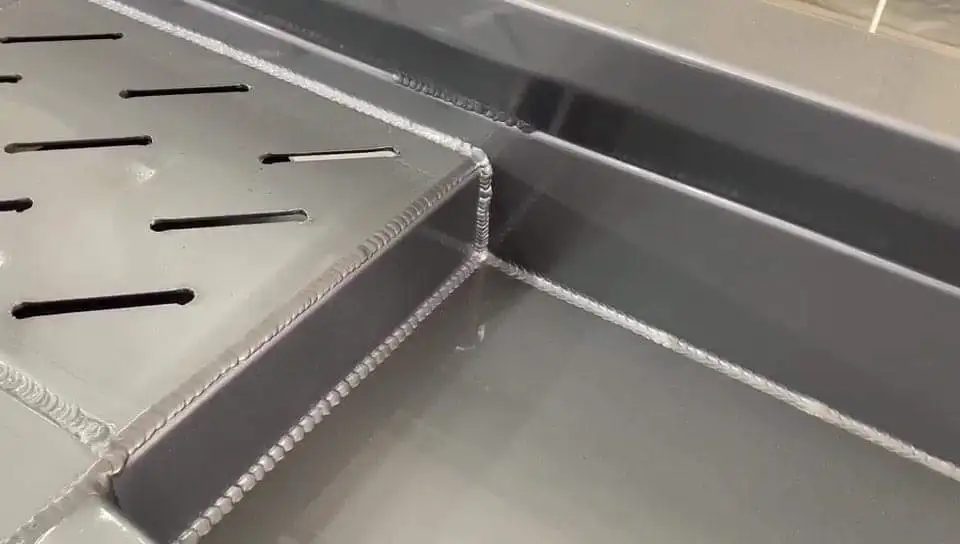

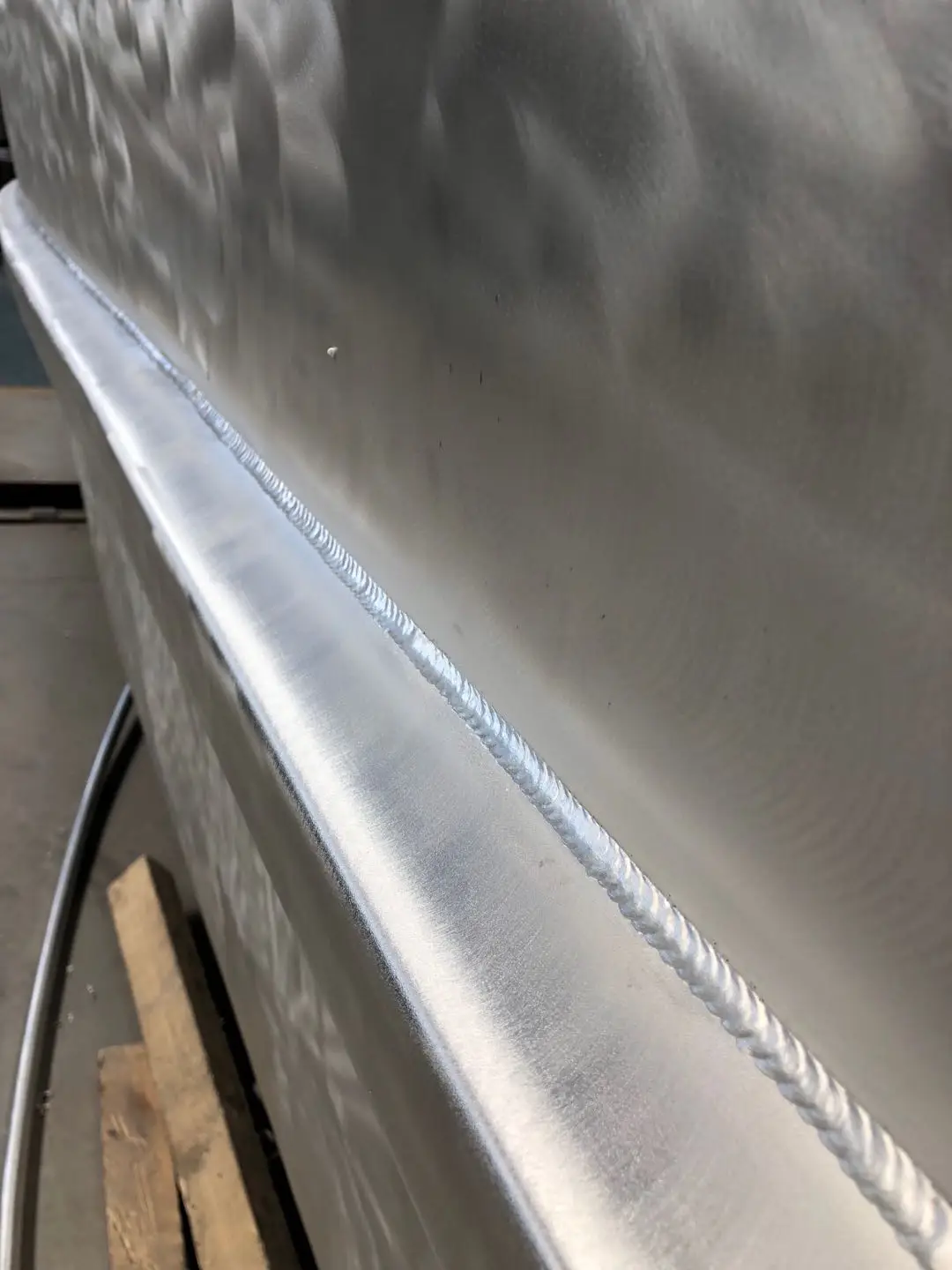

Welding Details:

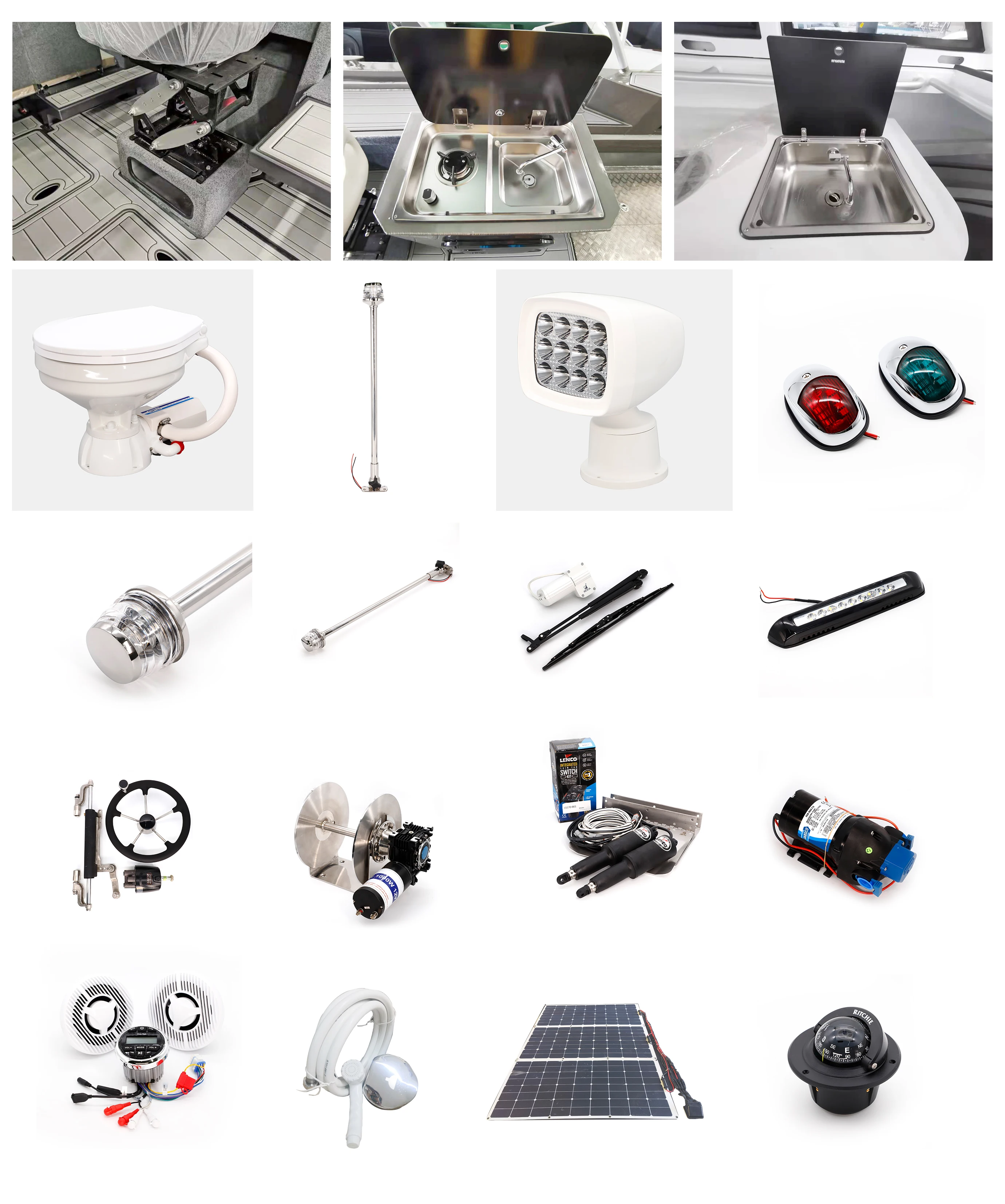

Product Options

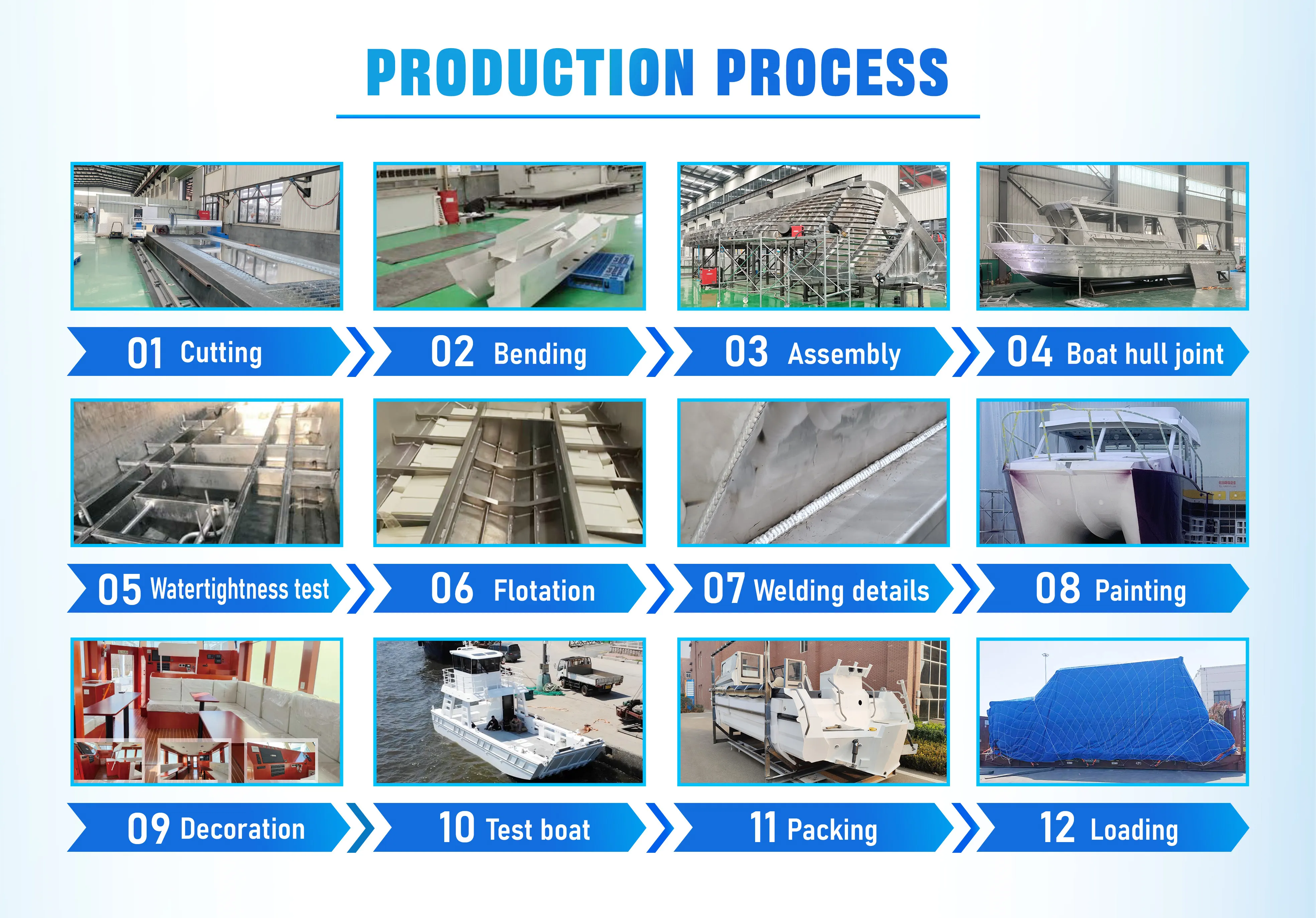

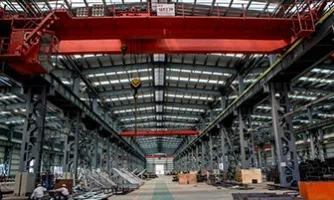

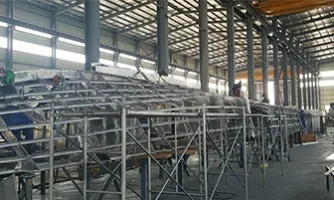

Manufacturing Technique
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system.
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses.
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe .
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.
4) The bottom is double bottom system and constructed on the longitudinal system of framing.
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.
4) The bottom is double bottom system and constructed on the longitudinal system of framing.
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm .
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system.
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses.
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe .

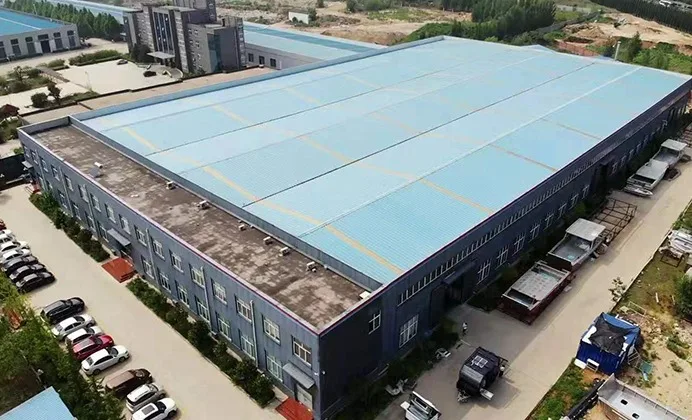

Company Profile

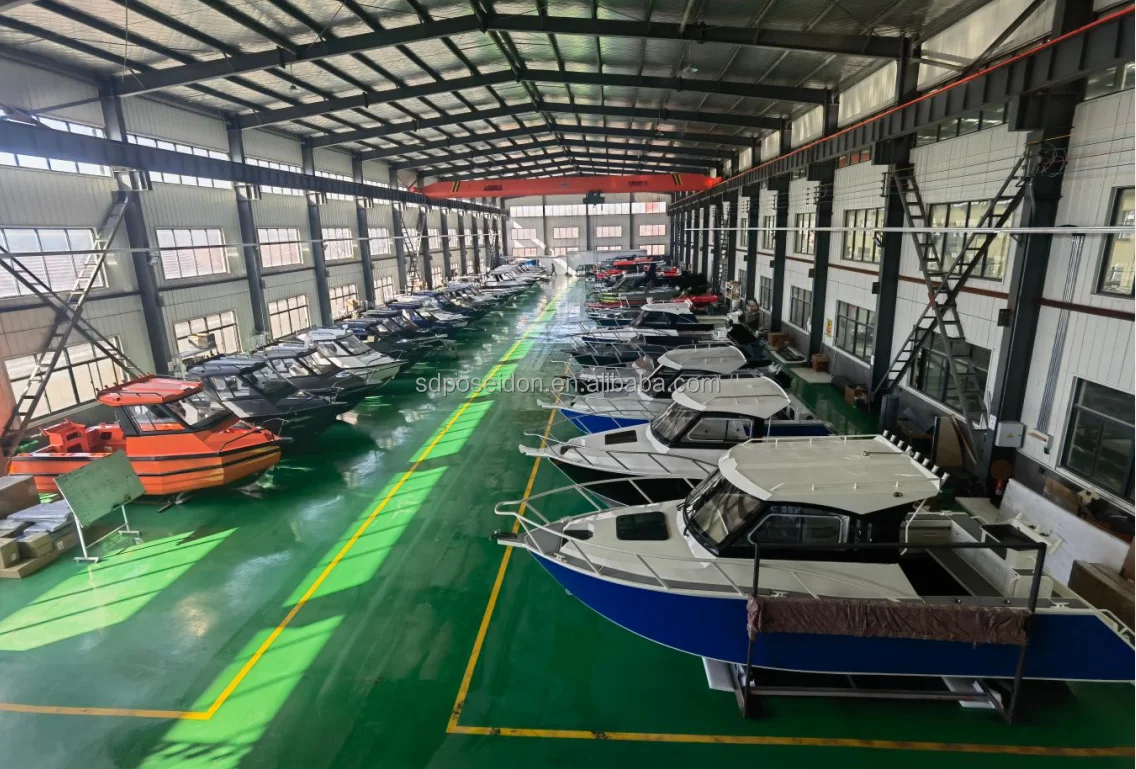

Shandong Poseidon Boat is government-supported enterprise that integrates design, R&D, production, sales and service to produce all kinds of high-quality aluminium boats. The company is located in Qingdao, China. We have been focusing on the development and production of high-quality aluminum boats.Over the past few years, our products have been exported to many countries in the world.High-quality products and excellent services have been widely praised by consumers. Our products use unique deep-v design. They feature high strength, good performance and durability, light weight, easy maintenance, etc. They are very popular in the market on account of their superior quality and competitive prices.
We also offer OEM service and we can manufacture trailers and boats according to buyers' drawings and designs. Now our products have been widely recognized by customers from Europe, America, Australia, etc. All products are with CE certification."Honesty, customer-oriented and hardworking" is our philosophy, and we are committed to manufacturing the high quality products for the world.Welcome to China and visit our factory.
FAQ
1. Who are we?
We are a professional Aluminum fishing boat manufacturer in China. We use high quality Marine grade 5083 H116 Aluminum plate. Our boats are sold very popular, North America(60.00%), Eastern Europe(19.00%) ,Africa(7.00%), Southeast Asia(7.00%), South America(3.00%), Mid East(2.00%), Oceania(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Aluminum boat, Fishing boat, Landing craft, Passenger boat, Patrol boat, Work boat, Pontoon boat.
4. Why should you buy from us not from other suppliers?
Many years of experience in production and development of aluminum boats. We have a 15-person R&D team (Including 2 doctors and 10 masters). Our company has more than 50 patents related to ships and 49 authorized patents.
5.What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF；
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Western Union;
Language Spoken: English.
We are a professional Aluminum fishing boat manufacturer in China. We use high quality Marine grade 5083 H116 Aluminum plate. Our boats are sold very popular, North America(60.00%), Eastern Europe(19.00%) ,Africa(7.00%), Southeast Asia(7.00%), South America(3.00%), Mid East(2.00%), Oceania(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Aluminum boat, Fishing boat, Landing craft, Passenger boat, Patrol boat, Work boat, Pontoon boat.
4. Why should you buy from us not from other suppliers?
Many years of experience in production and development of aluminum boats. We have a 15-person R&D team (Including 2 doctors and 10 masters). Our company has more than 50 patents related to ships and 49 authorized patents.
5.What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF；
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Western Union;
Language Spoken: English.
