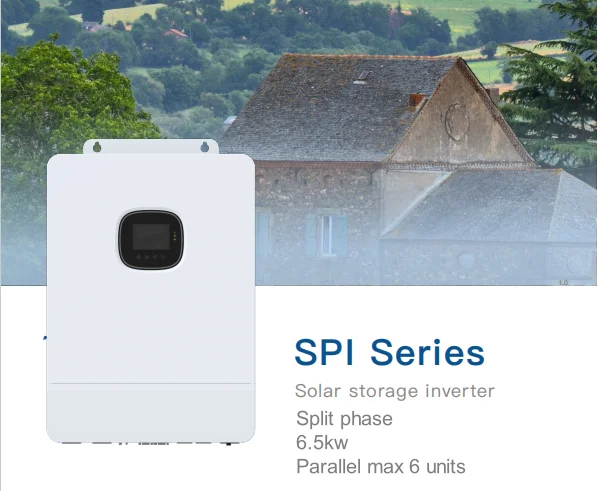

Promotion 6.5KW 7W 6 Units Parallel Dual 140A MPPT IP20 Li ion Battery BMS Split Phase Hybrid Solar Inverter
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1601247356799):
Product Overview
Description
Pure Sine Wave 140A 48v 6.5kw Parallel off Grid Dual MPPT 120V 240v Split Phase Solar Inverter System for Indoor Use
Product Description
Feature
Support split-phase/single-phase pure sine wave output
Support adjusting the voltage of each phase within the range of 100 Vac, 105 Vac, 110 Vac,
120 Vac and 127Vac
Support two-channel PV input and have the function of simultaneous two-channel
maximum power point tracking (MPPT) for charging/carrying capacity
Support two-channel MPPT, with an efficiency of up to 99.9% and a maximum
single-channel current of 18 A, perfectly fitting high-power modules
Provide four charge modes: only PV, mains first, PV first, and mains + PV
single-phase parallel connection
Two parallel-connection
Three parallel-connection
two-phase parallel connection
Split-phase system (four inverters)
Three-phase system (five inverters)
Hybrid Inverter 48v 6.5KW Parallel off Grid Dual MPPT Pure Sine Wave 140A 120V 240v Split Phase Solar Inverter System for Indoor
Specification
Model | SPI-6.5K-UP | SPI-5K-UP | Can be set | |||
INVERTER OUTPUT | ||||||
Rated Output Power | 6500W | 5000W | ||||
Max.Peak Power | 13000W | 10000W | ||||
Rated Output Voltage | 120/240Vac（split phase / single phase） | ✔ | ||||
Rated AC Frequency | 50/60HZ | ✔ | ||||
Waveform | Pure Sine Wave | |||||
Switch Time | 10ms(typical) | |||||
Parallel number | 1~6 | 1~6 | ✔ | |||
BATTERY | ||||||
Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery | ✔ | ||||
Rated Battery Voltage | 48Vdc | |||||
Voltage Range | 40-60Vdc | ✔ | ||||
Max.MPPT Charging Current | 140A | 120A | ✔ | |||
Max.Mains/Generator Charging Current | 80A | 60A | ✔ | |||
Max.Hybrid Charging Current | 140A | 120A | ✔ | |||
PV INPUT | ||||||
Num. of MPPT Trackers | 2 | |||||
Max.PV array power | 11000W | |||||
Max.input current | 18/18A | |||||
Max.Voltage of Open Circuit | 550Vdc+550Vdc | |||||
MPPT Voltage Range | 150~450Vdc | |||||
MAINS / GENERATOR INPUT | ||||||
Input Voltage Range | 65~140Vac | |||||
Frequency Range | 50/60Hz | |||||
Bypass Overload Current | 40A | |||||
EFFICIENCY | ||||||
MPPT Tracking Efficiency | 99.9% | |||||
Max. Battery Inverter Efficiency | 93% | |||||
GENERAL | ||||||
Dimensions | 584.6*410*133 mm | |||||
Weight | 18.9kg | 21kg | ||||
Protection Degree | IP20, for indoor use only | |||||
Operating Temperature Range | −10°C−55°C, >45°C derating | |||||
Noise | <60dB | |||||
Cooling Method | Internal Fan | |||||
Warranty | 18 months | |||||
COMMUNICATION | ||||||
Embedded Interfaces | RS485/CAN/USB/dry contact | ✔ | ||||
External Modules （Optional） | Wi-Fi / GPRS | ✔ | ||||
CERIFICATION | ||||||
Safety | IEC62109-1, IEC62109-2, and UL1741 | |||||
EMC | EN61000-6-1, EN61000-6-3, and FCC 15 class B | |||||
RoHS | YES | |||||
Product Details

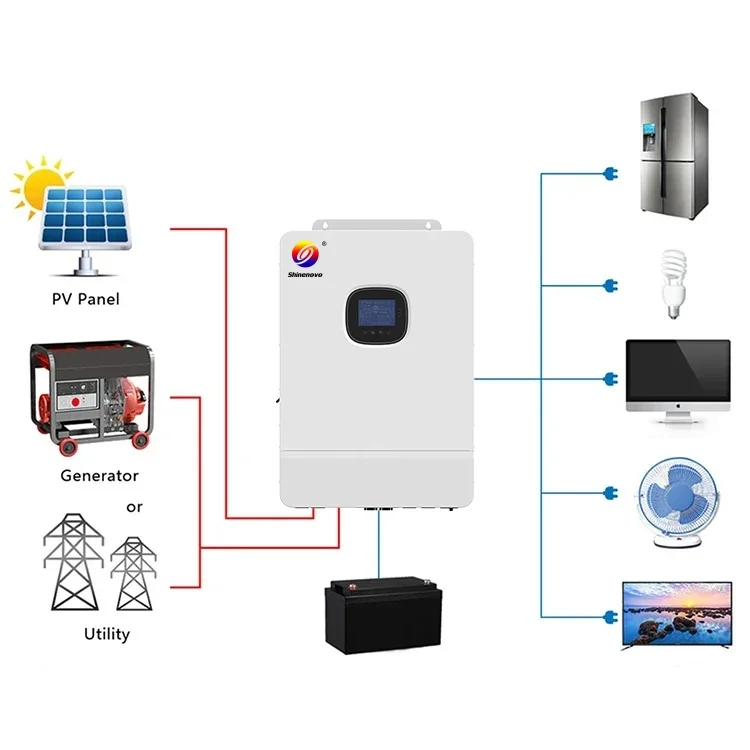

Application
Pure Sine Wave 140A 48v 6.5kw Parallel off Grid Dual MPPT 120V 240v Split Phase Solar Inverter System for Indoor Use
