Super mini Portable fiber laser marking machine for logo printing Laser Marker Handy structure with focus support
- Category: >>>
- Supplier: Jinan Lansen Laser Equipment Co. Ltd.
Share on (1601247415826):
Product Overview
Description
Product Description

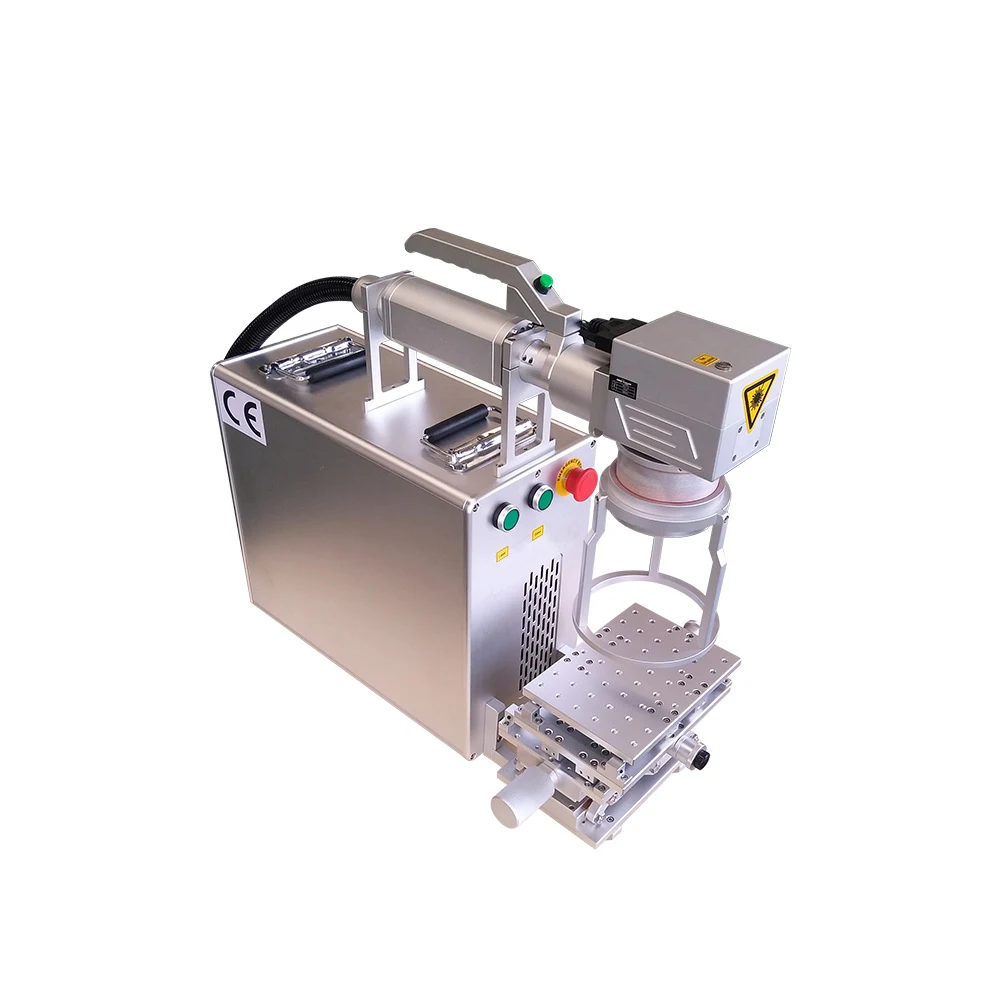

Super mini Portable fiber laser marking machine with focus support
Model | LS30W | ||||||
Laser Power | 20W | 20w | 30w | 50W | |||
Laser Wavelength | 1064nm | ||||||
Q-frequency | 20KHz~30KHz | ||||||
Divergence | 0.3mard | ||||||
Marking Range | 110*110mm | ||||||
Minimum Line Width | 0.02mm | ||||||
Minimum Character | 0.15mm | ||||||
Marking Depth | 0 ~0.5mm | ||||||
Engraving Line Speed | ≤7000mm/s | ||||||
Repeatability Accuracy | ±0.001mm | ||||||
Beam Quality | M2:1.2~1.8 | ||||||
Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc. | ||||||
Graphic Format Supported | BMP,IPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,etc | ||||||
Working Voltage | 220V±10%/50Hz/4A | ||||||
Unit Power | <0.5kw | ||||||
Use of the Environment | Clean and Dust Free or Dust less | ||||||
Working Condition:Humidity | 5%-75%,Free of Condensed Water | ||||||
Laser Module Life | >100000 hours | ||||||
Application materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

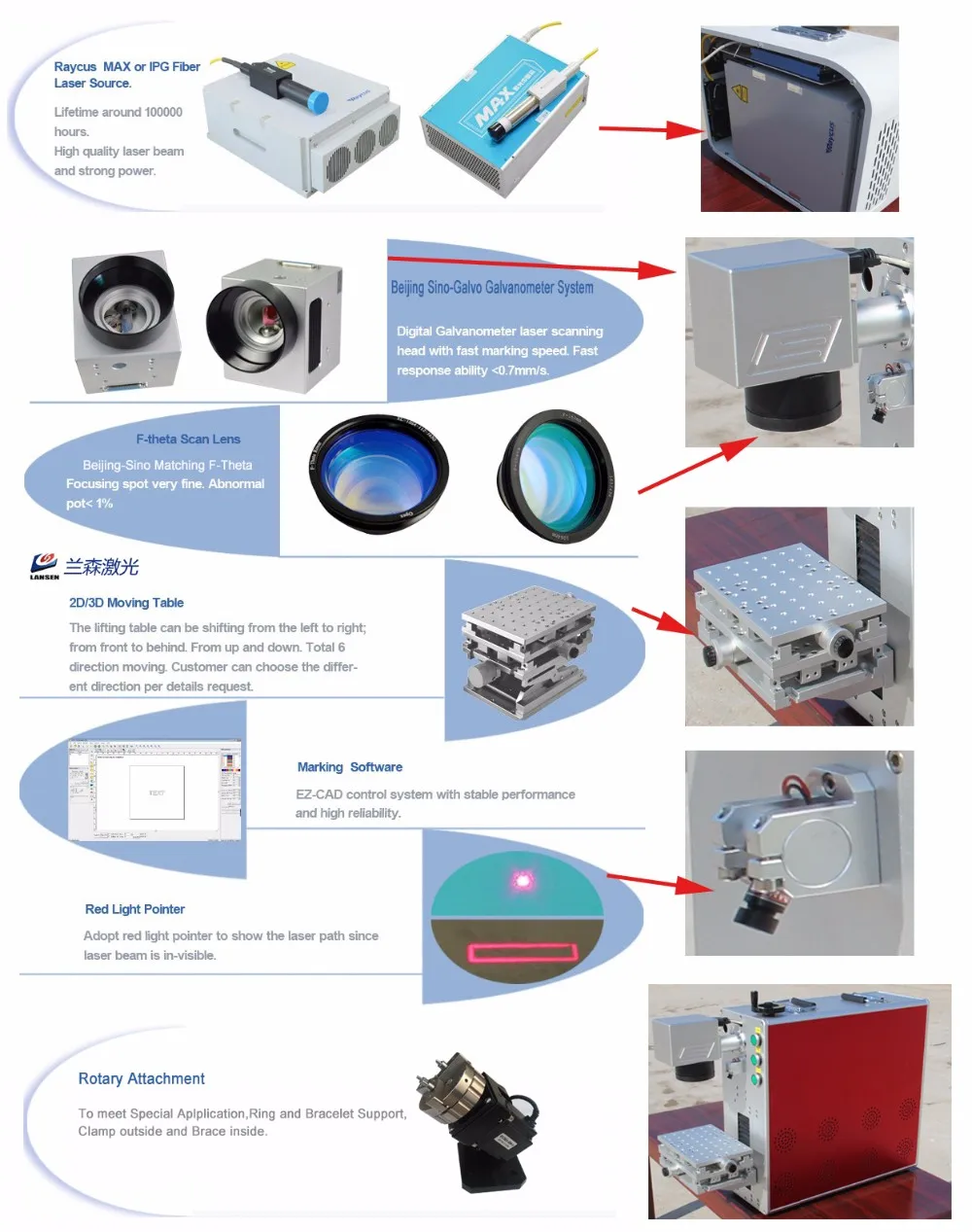

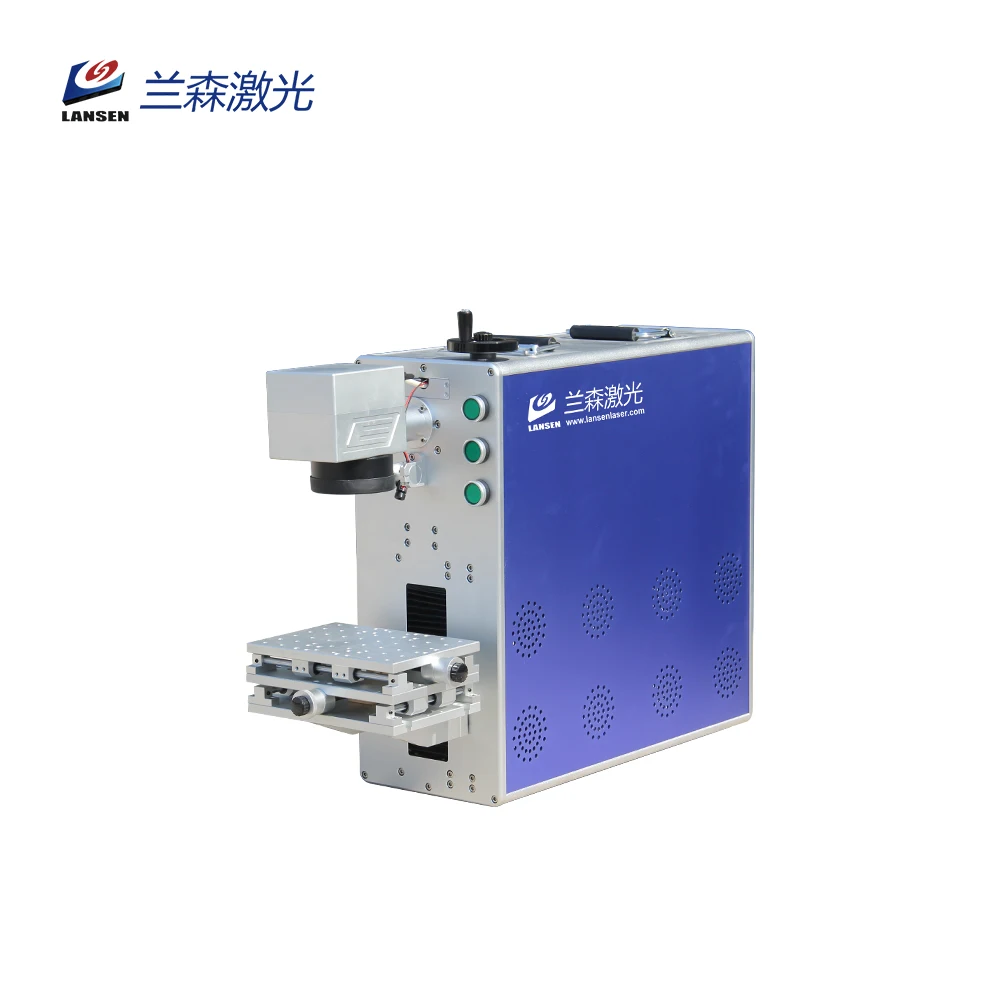

Machine Model
Certifications
About us
Packing & Delivery
FAQ and Contact
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
