Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Raytools Autofocus Metal Laser Cutter 3Kw 6Kw Stable Platform SUS MS Plates And Tubes Fiber Laser Cutting Machine
- Category: >>>
- Supplier: Shandong Nico Laser Technology Co. Ltd.
Share on (1601247879736):
Product Overview
Description
Products Description
Raytools Autofocus Metal Laser Cutter 3Kw 6Kw Stable Platform SUS MS Plates And Tubes Fiber Laser Cutting Machine
Product Paramenters
Model Number | F3015BT | |||||||||||||||
Laser type | Fiber laser | |||||||||||||||
Laser working medium | Fiber | |||||||||||||||
Laser wavelength | 1060-1080 nm | |||||||||||||||
Laser source brand | MAX | |||||||||||||||
Working area | 1500x3000mm /1500x6000mm | |||||||||||||||
Maximum acceleration | 1G | |||||||||||||||
Clamping range of pipe cutting machine chuck | Square tube and round pipes:20mm~240mm | |||||||||||||||
Chuck bearing | 300kg | |||||||||||||||
Maximum speed of pipe cutting machine chuck | 75r/min | |||||||||||||||
Maximum pipe length of pipe cutting machine | 3000mm /6000mm | |||||||||||||||
Positioning accuracy | ±0.05mm | |||||||||||||||
Repeatability | ±0.03mm | |||||||||||||||
Transmission way | Screw drive / rack drive | |||||||||||||||
Cutting thickness | Carbon steel: 22-25mm: Stainless steel: 14-16mm: Aluminum: 10-14mm; Brass: 10-14mm | |||||||||||||||
Control system | Cypcut FSCUT3000S | |||||||||||||||
Aiming and positioning | Red light | |||||||||||||||
Cooling way | Water cooling | |||||||||||||||
Working voltage | 3Phase 380V 50Hz | |||||||||||||||
Machine totally power | 42KVA | |||||||||||||||
Machine outlook dimension | 8100mm*3700mm*2000mm (1560 SlZE) | |||||||||||||||
Machine gross weight | About 5T (1560 SIZE) | |||||||||||||||
Maximum load capacity of work platfomm | 1600KG (1560 SIZE) | |||||||||||||||
Applications
Company Profile
Shandong Nico Laser Technology Co., Ltd. is located in the beautiful city of Jinan, covering an area of 70,000 square meters and a building area of 38,000 square meters. It has more than 85% of industry talents, a strong R&D team and production capacity.
It is a high-tech enterprise integrating fiber optic CNC technology R&D, production, sales and service. Main business: CNC equipment, laser automation equipment, robots and their automation equipment, laser cutting/welding/cleaning equipment and parts technology R&D, production, debugging and technical services.
Our company adheres to the concept of cooperative R&D and promotion of high-tech and high-quality products, and continues to work hard in the iron and steel metallurgy, aerospace, automobile industry, computer manufacturing, military electronics, machinery manufacturing, hardware tools, integrated circuits and other industries.
Our Clients and Teams

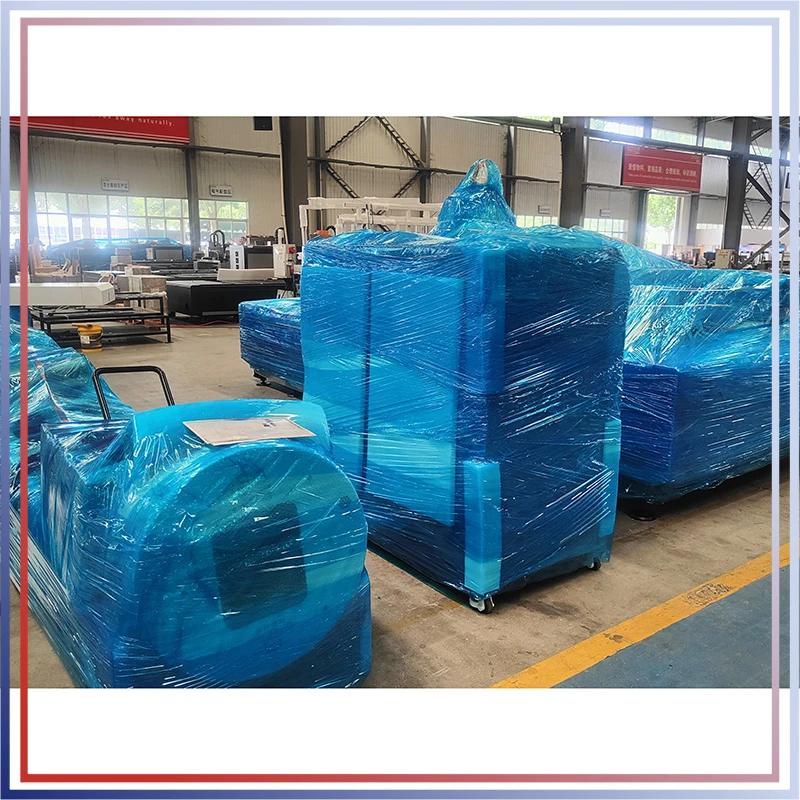

Product packaging
Why Choose Us
1. Price - Factory direct sale, competitive prices with the highest cost-effective;
2. Quality - High and assured quality, we manufacture what we promised;
3. Service - Professional turnkey one-stop service makes you more worry-free;
4. Delivery - Timely and precise schedule makes everything more smooth;
5. Response - 24hrs 365 days timely response, we will react to your every contact immediately
2. Quality - High and assured quality, we manufacture what we promised;
3. Service - Professional turnkey one-stop service makes you more worry-free;
4. Delivery - Timely and precise schedule makes everything more smooth;
5. Response - 24hrs 365 days timely response, we will react to your every contact immediately
FAQ
Q: Can you supply OEM or ODM?
A: We are manufacturer, we can manufacture the equipment according to your specific requirements.
Q: How Long is your production cycle?
Q: What can you buy from us?
A: We are manufacturer, we can manufacture the equipment according to your specific requirements.
Q: How Long is your production cycle?
A: 20-30 working days, according to the quantity and specification of machines.
Q: What can you buy from us?
A：Fiber laser cutting machine for metal sheet and pipes, 4 in 1 handheld laser welding machine, laser cleaning machine, etc..
Q: How is the payment?
A: T/T, L/C or other standard payment method.
Q: How Long is your warranty?
Q: How is the payment?
A: T/T, L/C or other standard payment method.
Q: How Long is your warranty?
A: Laser source two years; whole machine one year.
Q: If we have any problems in future production, will you help us?
Q: If we have any problems in future production, will you help us?
A: If necessary, you can contact us via mobile phone, Whatsapp, etc. . We will solve your problem as soon as possible.
