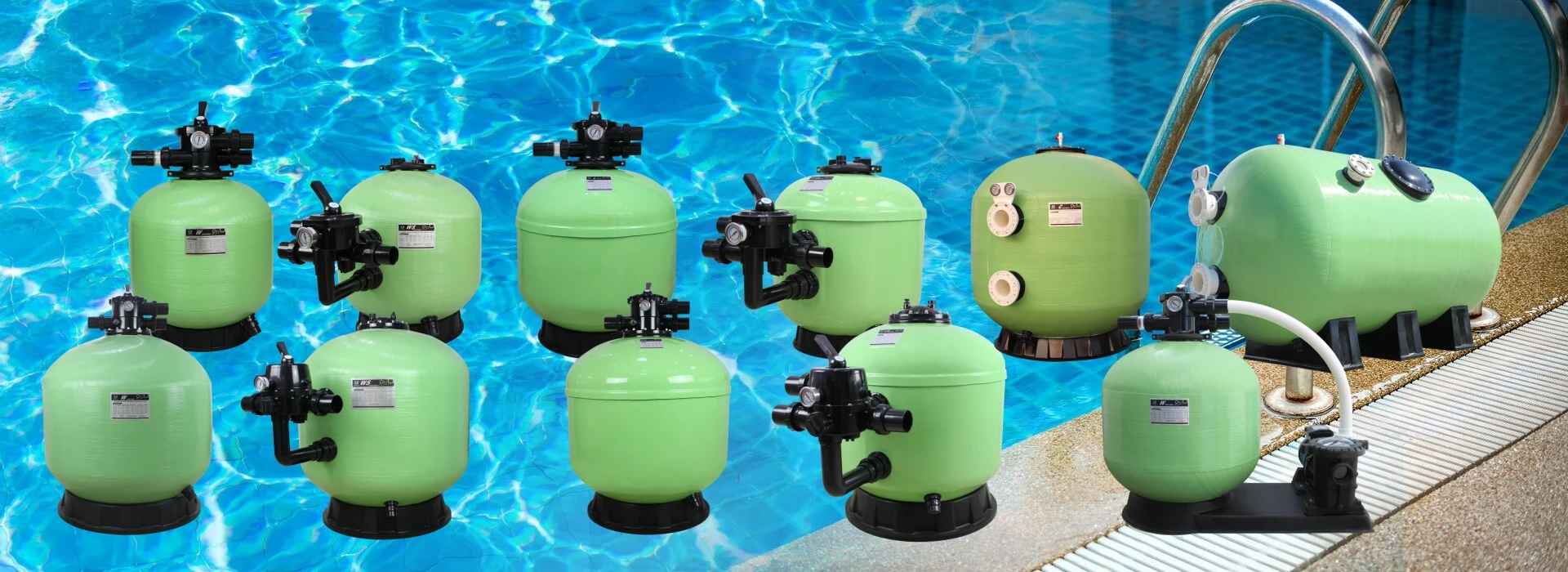

sand-filter-banner

High Quality Laminated FRP Top Mount Sand Filter Dia 21 inch Dia 36 inch for Swimming Pool Aquaculture Water Filter Tank Filter

Product Description

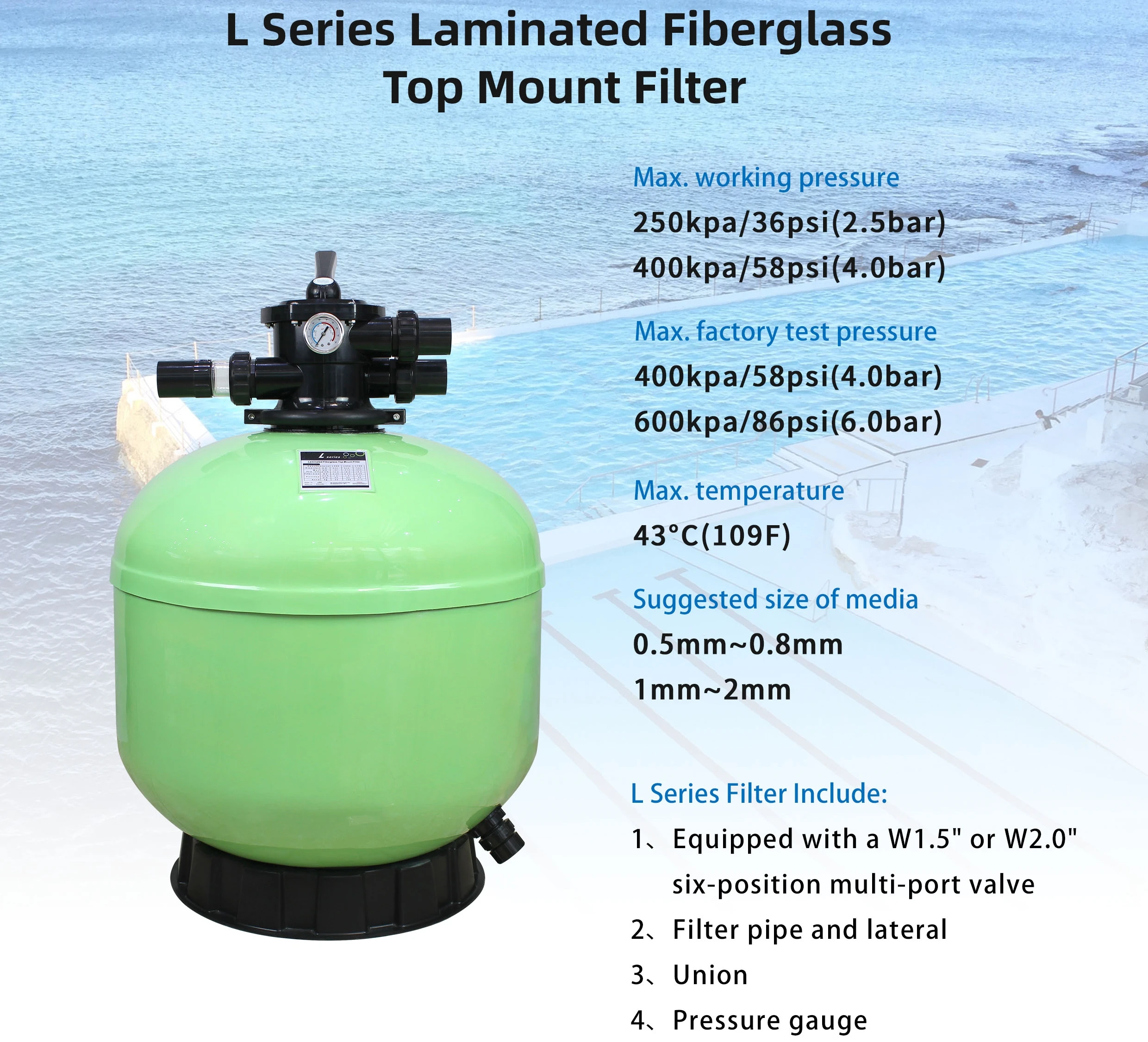

L series laminated fiberglass top mount filter is durable, corrosion-resistant, glossy finished in gel coats for a smooth and beautiful exterior, which is popular in the market. This collection of sand filters is the perfect choice for high-end villas and hotel pools, high-class spas and wellness pools, baths, fish ponds & etc.

FEATURES:

- Non corrosive gel coat fiberglass tank, smooth finished.

- Equipped with a 1.5'' or 2.0'' six-position multiport valve.

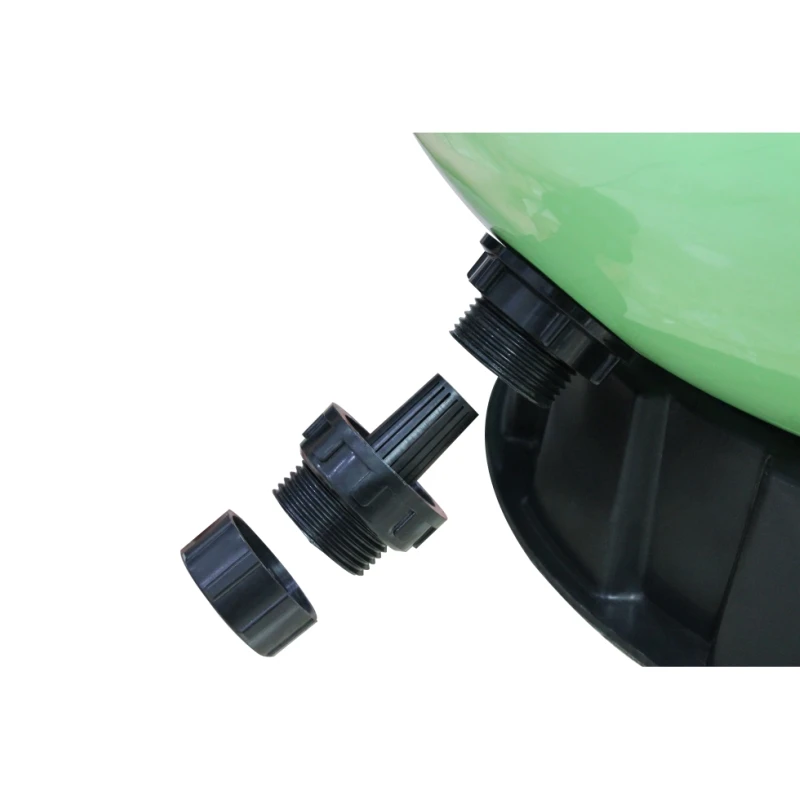

- Universal standard of union connection provided.

- Max. working pressure 36 psi/2.5 bar.

- Max. temperature of 43°C(109℉)

- Suggested size of media: 0.5-0.8mm.

- 100% test for finished filters.

SPECIFICATIONS:

Model	Max flow rate		Filter area	Port size		Sand	Dimension(mm)(Please refer to the structure pictures)
Model	lpm	m³ /h	m2	inch	mm	kg	A	B	C	D	E	F
Multiport valve W 1.5
L550	167	10.00	0.20	1.5''	50	88	886	750	690	390	530	286
L650	275	16.50	0.33	1.5''	50	158	1000	850	790	500	640	318
Multiport valve W 2.0
L750	366	22.00	0.44	2''	63	260	1170	1005	920	710	750	390
L800	420	25.00	0.50	2''	63	350	1200	1030	950	710	800	420
L900	533	32.00	0.64	2''	63	422	1295	1160	1080	710	900	450
Suggested sand weight varies with differences in filter media size. For reference only.

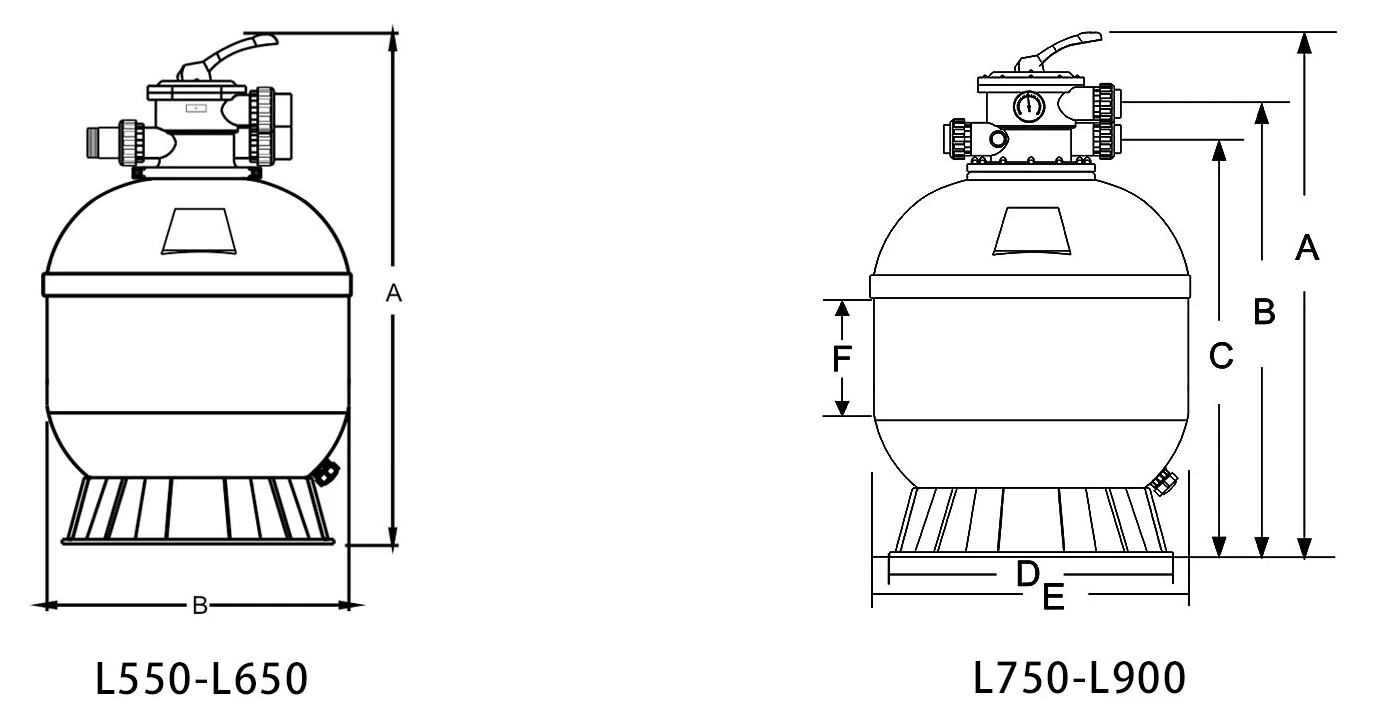

Structure:

L-sand-filter-s

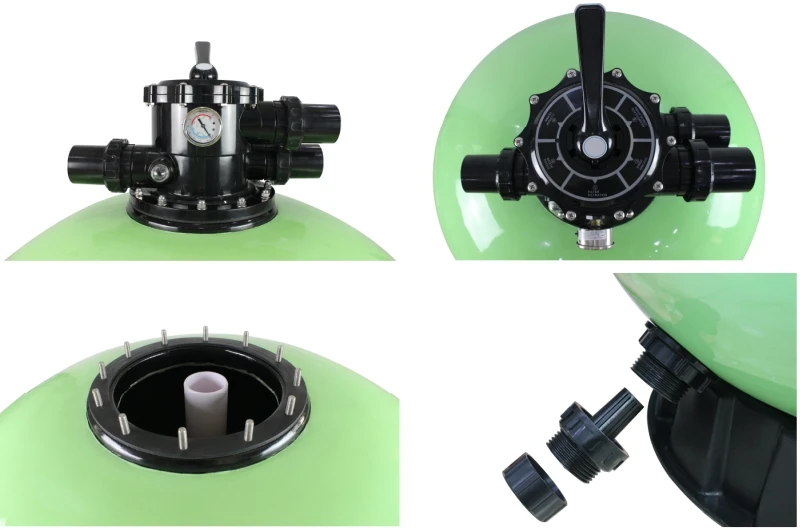

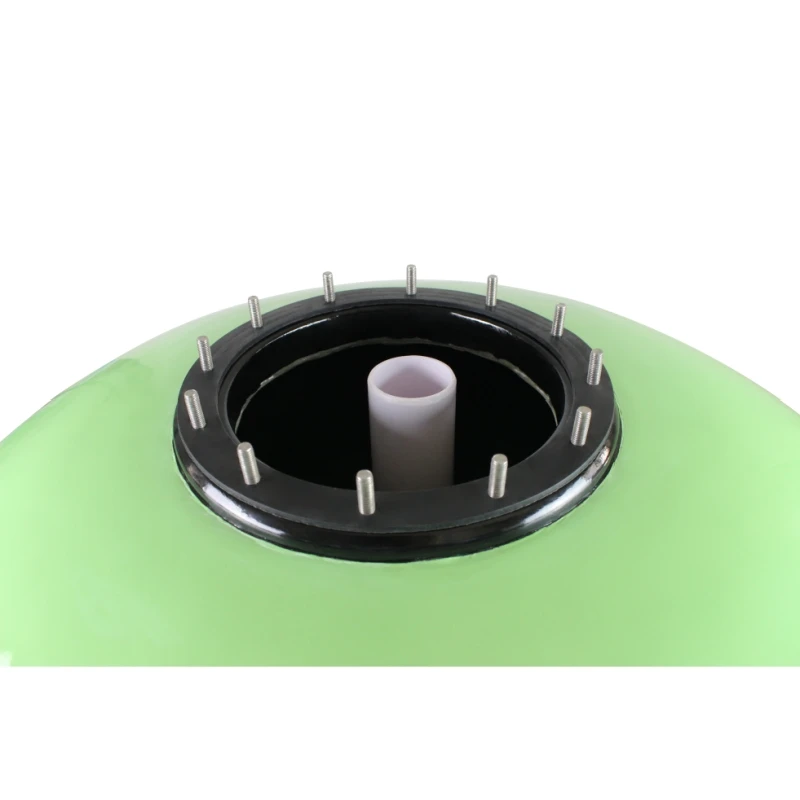

Details:

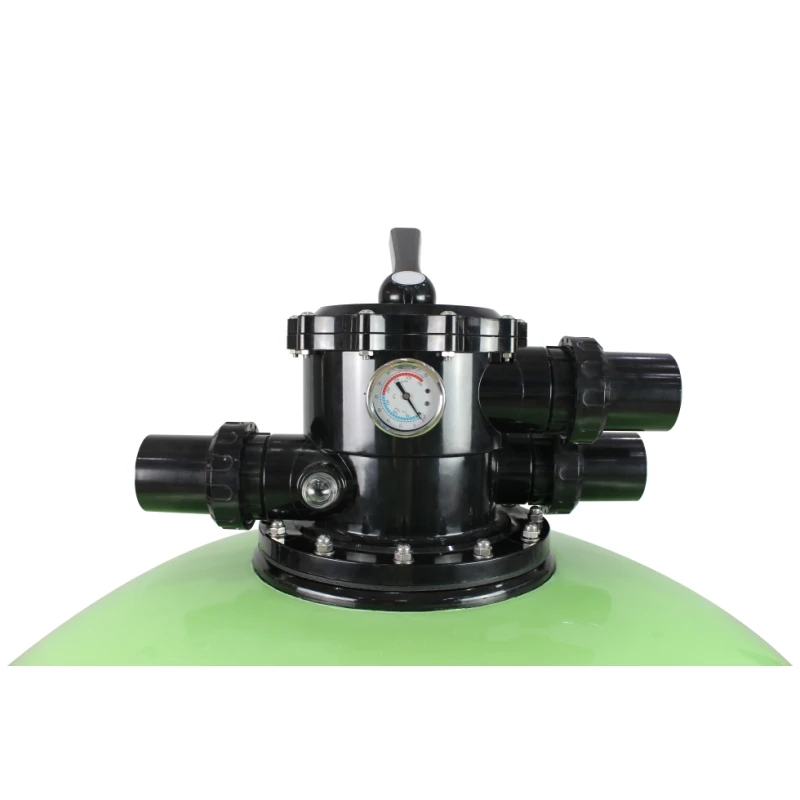

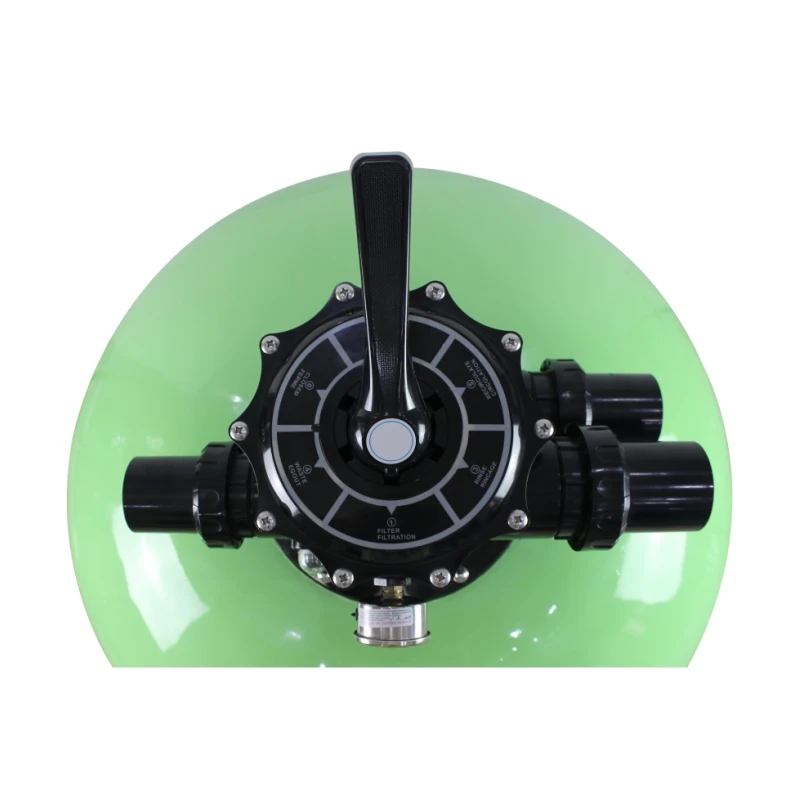

Multiport Valve(six position):

1. FILTER: normal filtration and vacuuming.

2. BACKWASH: clean filter by reversing the flow.

3. RINSE: flush dirt from valve after backwash.

4. WASTE: by-pass filter, used for vacuuming to waste or lowering water level.

5. RECIRCULATE: by-pass filter for circulating water to pool.

6. CLOSED: close all flow to filter or pool.

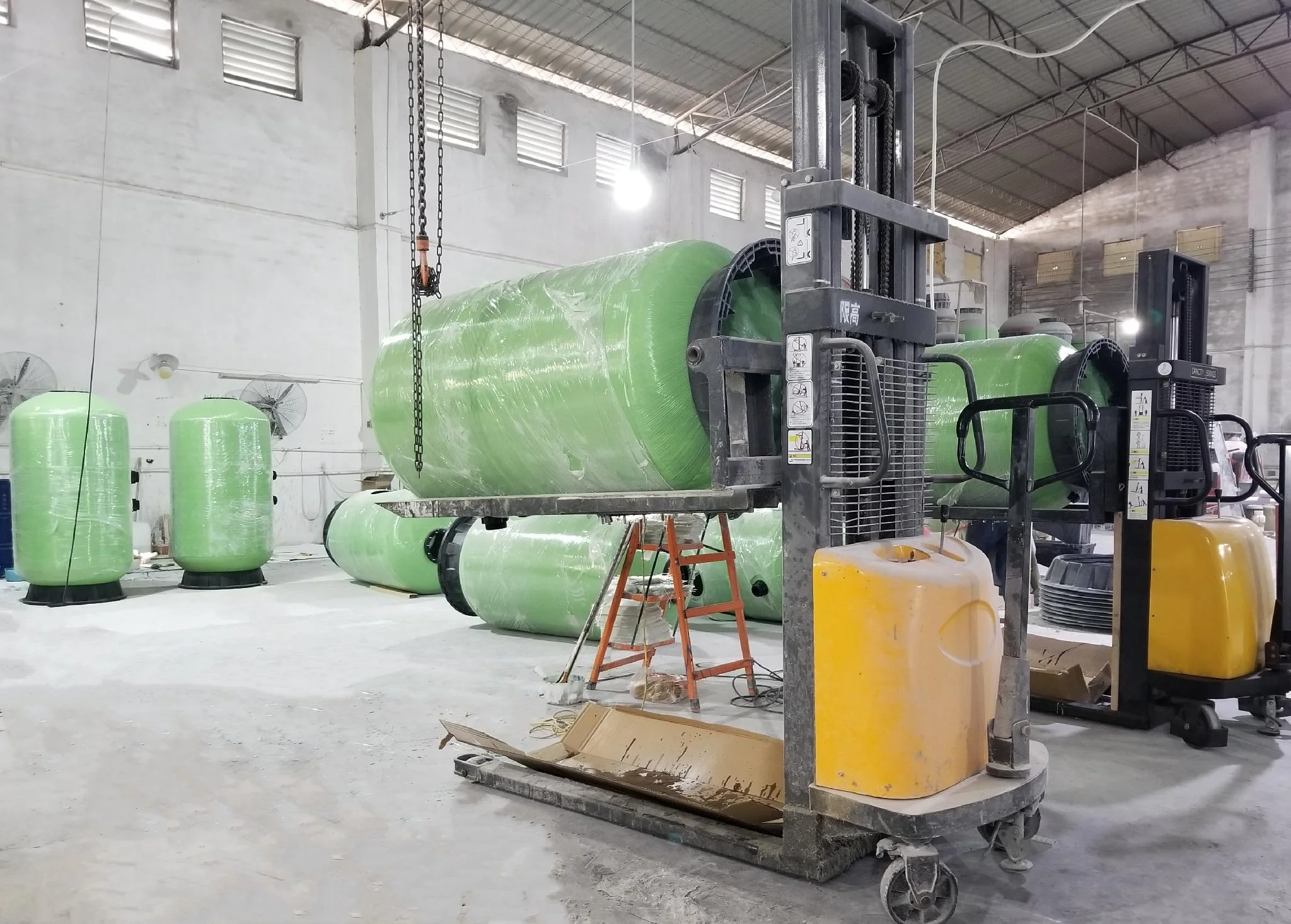

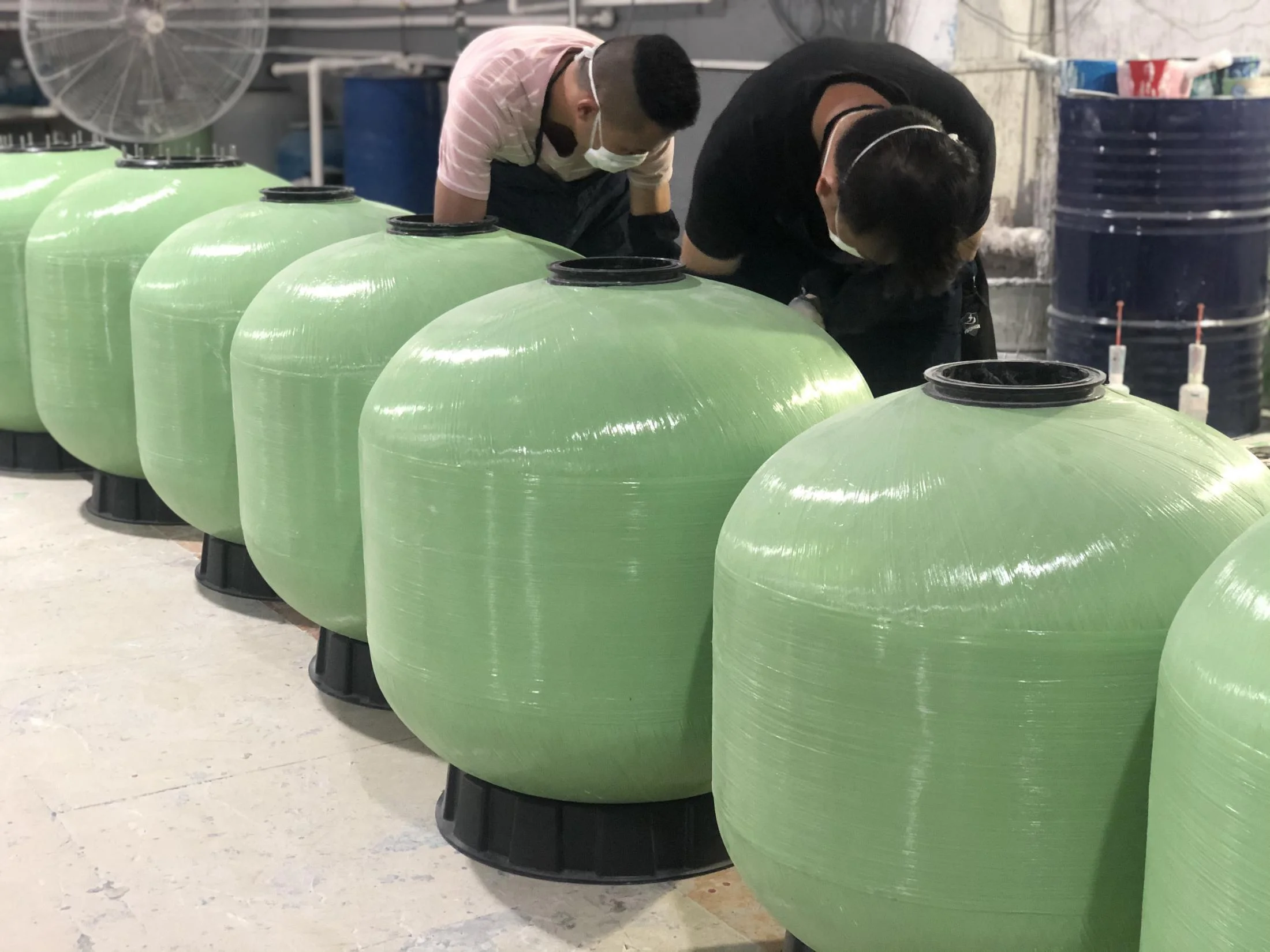

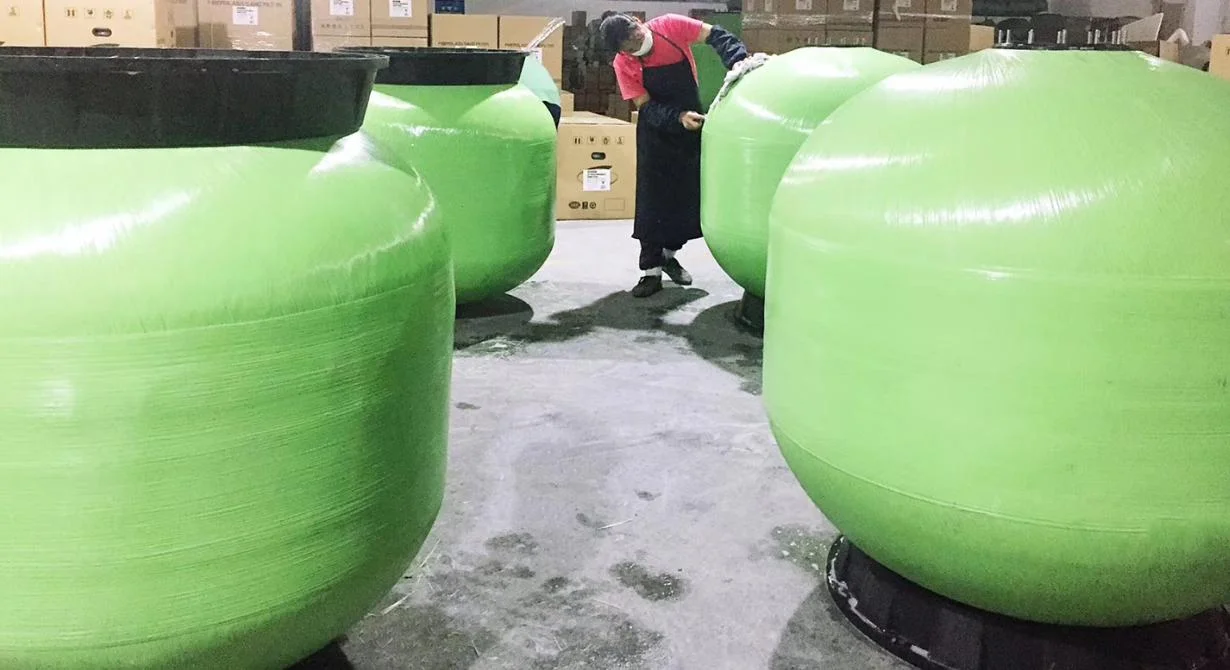

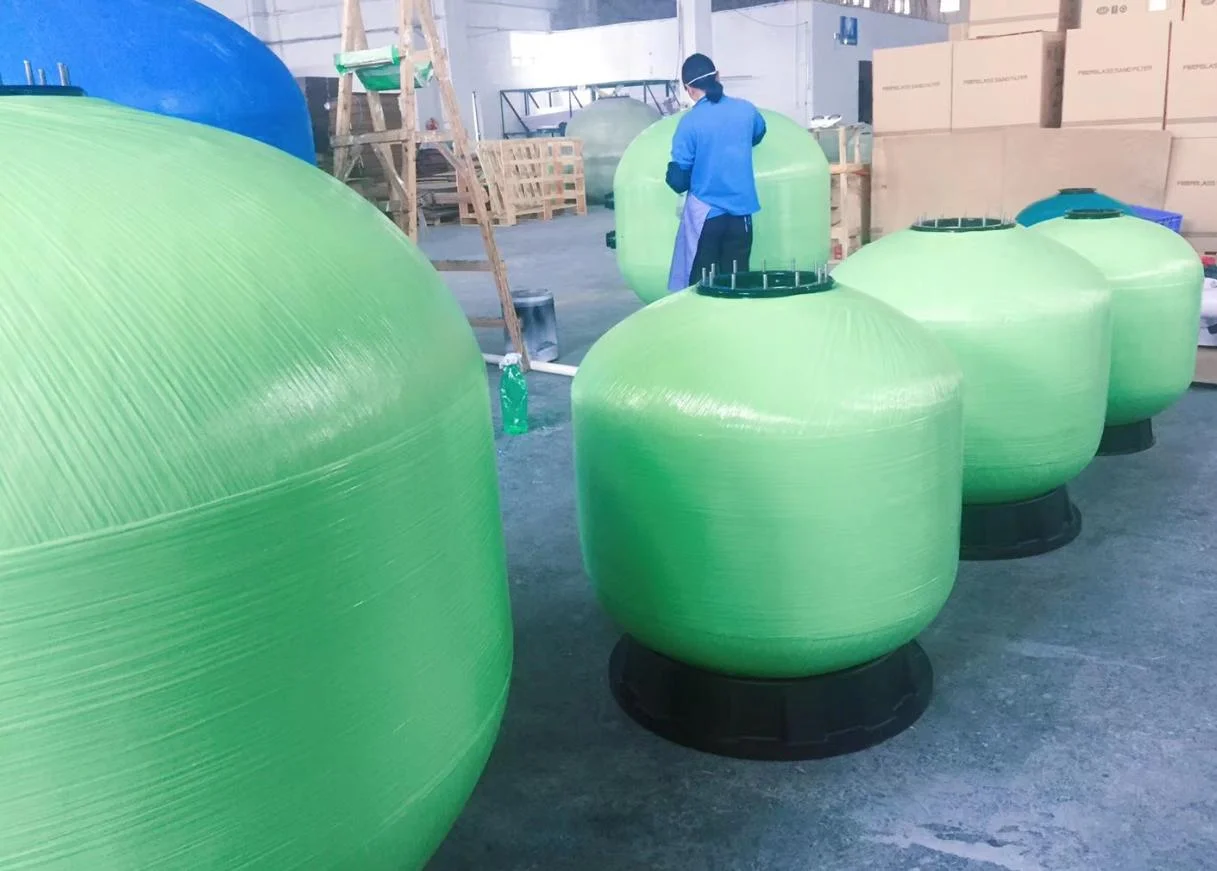

sand-filter-production3 sand-filter-production5 sand-filter-production6 sand-filter-production7

Factory

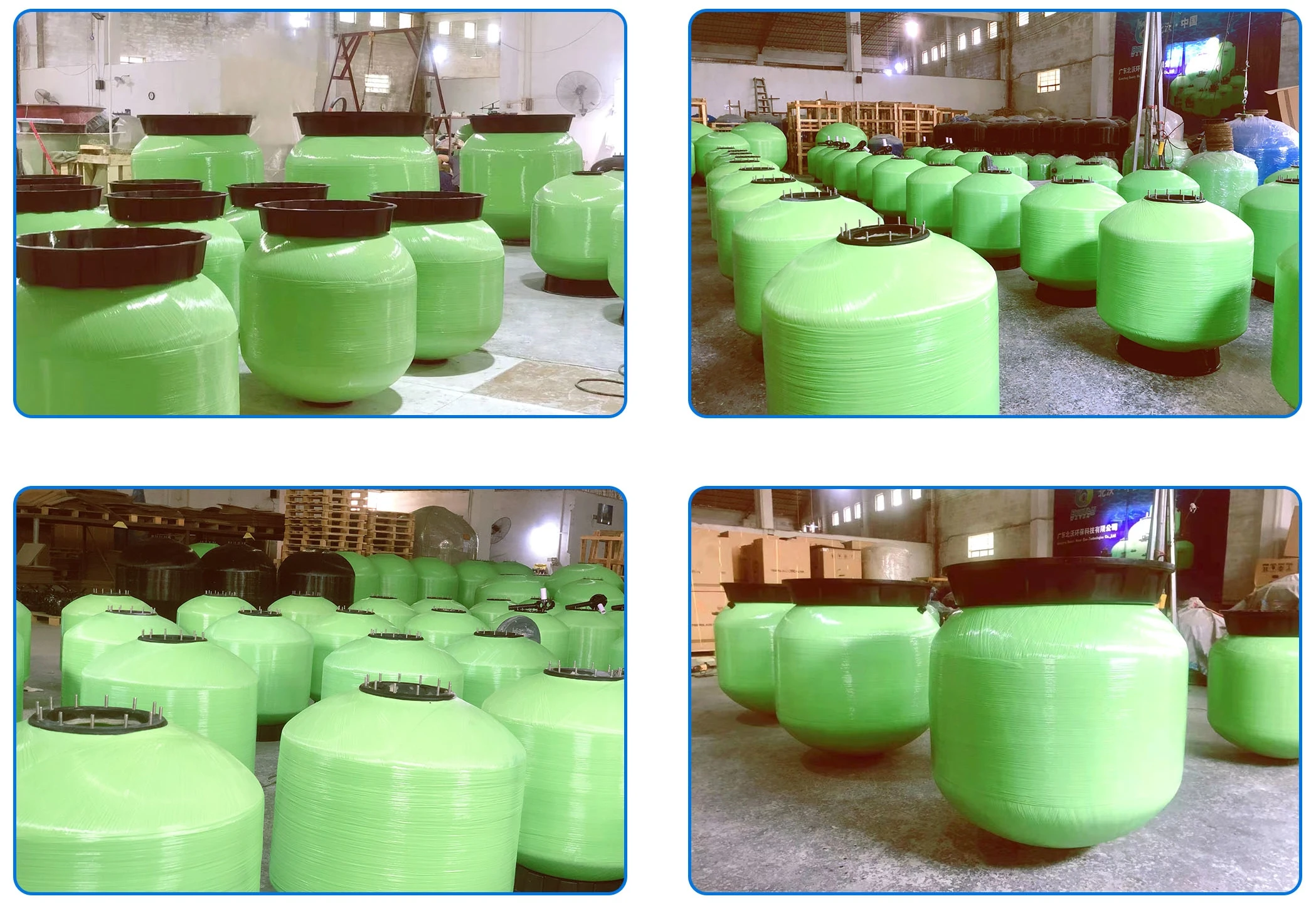

factory-production

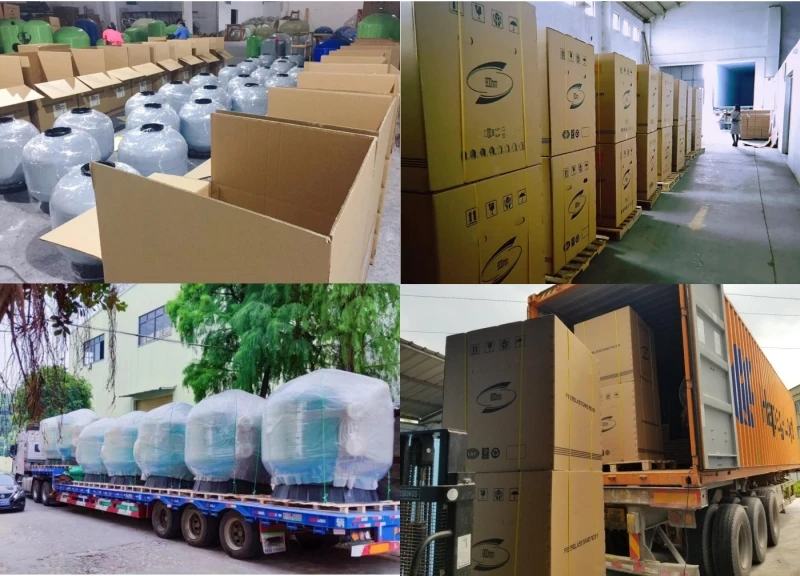

Shipping and packing:

shipping-and-package

Our Advantage

OEM/ODM service is available.

We have always adhered to the quality first.

We have a range of swimming pool related products

Certifications

swimming machine d (14)

EVOKE INDUSTRIES CO.,LTD is an internationally recognized professional manufacturer and sourcing company of pool related products, including sand filter, underwater pool lighting system, underwater fitness equipment and mini fitness trampoline, integrating R&D, production and sales as well. We are capable of providing professional high quality products and solutions to customers from all over the world, and satisfying customers in new products mold development and long term exclusive agent with good fast service and factory competitive price.

Welcome to contact us and visit our factory !
